2AUCY-V2025Mobile Phone

Head 1.17 W/kg Body-worn0.59 W/kg15mm distance Hotspot1.03 W/kg10mm distance

Agent Authorization Company: vivo Mobile Communication Co., Ltd. Address: #283, BBK Road, Wusha, Chang’An, DongGuan City, China Product Name: Mobile Phone Model Number(s): V2025 Product Description: Mobile Phone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-10-12 Name: Xiang Jianfeng Title: Certification Engineer Company: vivo Mobile Communication Co., Ltd.

vivo Mobile Communication Co., Ltd. Date:October 9, 2020 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The vivo Mobile Communication Co., Ltd. the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen BALUN Technology Co., Ltd., to act on the behalf of the vivo Mobile Communication Co., Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2AUCY-V2025 including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen BALUN Technology Co., Ltd. in connection with the Application shall have the same effect as acts of the vivo Mobile Communication Co., Ltd. The vivo Mobile Communication Co., Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. Yours Sincerely, Print name: Xiang Jianfeng Title:Certification Engineer vivo Mobile Communication Co., Ltd. 第 1 页

vivo Mobile Communication Co., Ltd. Date: October 9, 2020 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 RE: vivo Mobile Communication Co., Ltd. FCC ID: 2AUCY-V2025 FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. vivo Mobile Communication Co., Ltd. requests that the following documents regarding this submission for FCC ID : 2AUCY-V2025 be kept Long-Term confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf Part list BOM.pdf Tune-Up-Procedure software security information Tune up procedure.pdf software security information.pdf And below exhibit kept short-term confidential (180 days): Exhibit Type File Name External Photos External Photo.pdf Internal Photos Internal Photo.pdf Test Setup Photos Test Setup Photos.pdf Users Manuals Users Manual.pdf Those documents contain detailed system and equipment description and related information about the product which vivo Mobile Communication Co., Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, vivo Mobile Communication Co., Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Thank you for your attention to this matter. Yours Sincerely, Print name: Xiang Jianfeng Title:Certification Engineer vivo Mobile Communication Co., Ltd. 第 1 页

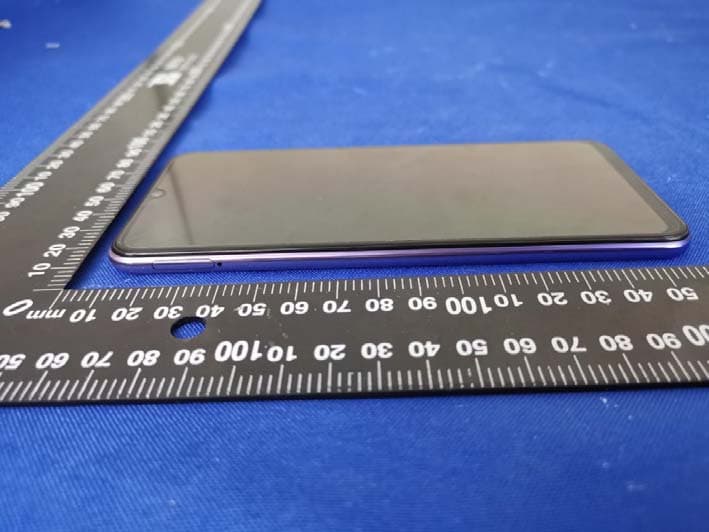

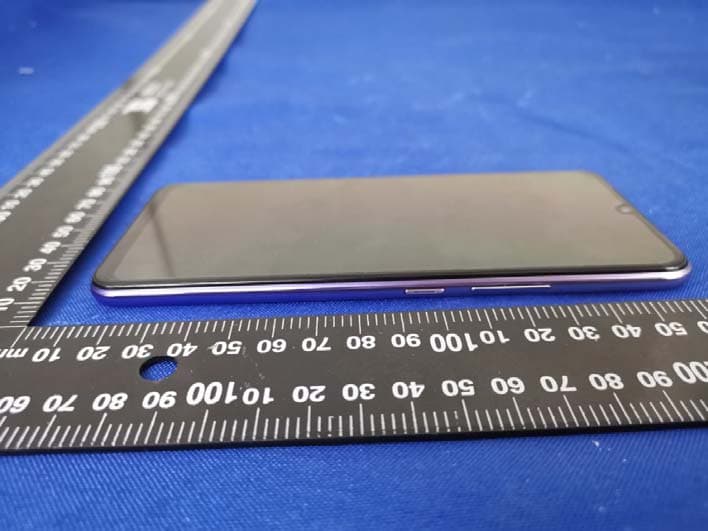

Annex No.: BL-SZ2090180-AW 1 / 6 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-SZ2090180-AW 2 / 6 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Annex No.: BL-SZ2090180-AW 3 / 6 TOP VIEW OF EUT c BOTTOM VIEW OF EUT Annex No.: BL-SZ2090180-AW 4 / 6 Accessory-Power Adapter (V3330L0A0-US, US Plug) CLOSE-UP Annex No.: BL-SZ2090180-AW 5 / 6 Accessory-Power Adapter (V3330L0A0-EU, EU Plug) CLOSE-UP Annex No.: BL-SZ2090180-AW 6 / 6 Accessory-USB Cable Accessory-Earphone

Label: Labellocation:

Annex No.: BL-SZ2090180-AI 1 / 6 EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER VIEW 2/3/4G Antenna BT/WIFI/GPS Antenna 2/3/4G Antenna Annex No.: BL-SZ2090180-AI 2 / 6 EUT UNCOVER VIEW MAIN BOARD TOP VIEW (WITH SHIELDING) Annex No.: BL-SZ2090180-AI 3 / 6 MAIN BOARD BACK VIEW (WITH SHIELDING) MAIN BOARD TOP VIEW (WITHOUT SHIELDING) Annex No.: BL-SZ2090180-AI 4 / 6 MAIN BOARD BACK VIEW (WITHOUT SHIELDING) SUB BOARD TOP VIEW (WITH SHIELDING) RF Chip Annex No.: BL-SZ2090180-AI 5 / 6 SUB BOARD TOP VIEW (WITHOUT SHIELDING) SUB BOARD BACK VIEW Annex No.: BL-SZ2090180-AI 6 / 6 Battery Photo (FRONT) Battery Photo (BACK SIDE)

Report No.: BL-SZ2090180-701 2 / 175 Revision History Version Issue Date Revisions Content Rev. 01 Oct. 10, 2020 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ..................................................................................................................... 5 1.1 Identification of the Testing Laboratory ...................................................................................... 5 1.2 Identification of the Responsible Testing Location ..................................................................... 5 1.3 Test Environment Condition ....................................................................................................... 5 1.4 Announce ................................................................................................................................... 6 2 PRODUCT INFORMATION ..................................................................................................................... 7 2.1 Applicant Information .................................................................................................................. 7 2.2 Manufacturer Information ........................................................................................................... 7 2.3 Factory Information .................................................................................................................... 7 2.4 General Description for Equipment under Test (EUT) ............................................................... 7 2.5 Ancillary Equipment .................................................................................................................... 7 2.6 Technical Information ................................................................................................................. 8 2.7 Power Reduction Description ................................................................................................... 10 3 SUMMARY OF TEST RESULT ............................................................................................................. 15 3.1 Test Standards ......................................................................................................................... 15 3.2 Device Category and SAR Limit ............................................................................................... 16 3.3 Test Result Summary ............................................................................................................... 17 3.4 Test Uncertainty ....................................................................................................................... 18 4 MEASUREMENT SYSTEM ................................................................................................................... 19 4.1 Specific Absorption Rate (SAR) Definition ............................................................................... 19 4.2 DASY SAR System .................................................................................................................. 20 5 SYSTEM VERIFICATION ...................................................................................................................... 27 5.1 Purpose of System Check ........................................................................................................ 27 5.2 System Check Setup ................................................................................................................ 27 6 TEST POSITION CONFIGURATIONS .................................................................................................. 28 6.1 Head Exposure Conditions ....................................................................................................... 28 Report No.: BL-SZ2090180-701 3 / 175 6.2 Body-worn Position Conditions ................................................................................................ 30 6.3 Hotspot Mode Exposure Position Conditions ........................................................................... 31 6.4 Product Specific 10g Exposure Consideration ......................................................................... 31 7 MEASUREMENT PROCEDURE ........................................................................................................... 32 7.1 Measurement Process Diagram ............................................................................................... 32 7.2 SAR Scan General Requirement ............................................................................................. 33 7.3 Measurement Procedure .......................................................................................................... 34 7.4 Area & Zoom Scan Procedure ................................................................................................. 34 8 CONDUCTED RF OUPUT POWER ...................................................................................................... 35 8.1 GSM ......................................................................................................................................... 35 8.2 WCDMA ................................................................................................................................... 36 8.3 LTE ........................................................................................................................................... 37 8.4 WIFI .......................................................................................................................................... 44 8.5 Bluetooth .................................................................................................................................. 47 8.6 Power Reduction List ............................................................................................................... 48 9 TEST EXCLUSION CONSIDERATION ................................................................................................. 80 9.1 SAR Test Exclusion Considerat…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2090180-701 CALIBRATION REPORT F.1 E-Field Probe Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 F.2 Data Acquisition Electronics Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 F.3 835 MHz Dipole Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 F.4 1750 MHz Dipole Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 F.5 1900 MHz Dipole Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 F.6 2450 MHz Dipole Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 F.7 2600 MHz Dipole Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701 Report No.: BL-SZ2090180-701

Document No: BL-SZ2090180 Page 1 of 71 Annex A.2 Peak to Average Ratio Document No: BL-SZ2090180 Page 2 of 71 WCDMA 1. WCDMA_Band2 1.1. WCDMA Peak to Average Ratio(NTNV)(Channel:9262) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1852.4 0.1 2.97 13 Pass Document No: BL-SZ2090180 Page 3 of 71 1.2. WCDMA Peak to Average Ratio(NTNV)(Channel:9400) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 3.38 13 Pass Document No: BL-SZ2090180 Page 4 of 71 1.3. WCDMA Peak to Average Ratio(NTNV)(Channel:9538) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1907.6 0.1 3.29 13 Pass Document No: BL-SZ2090180 Page 5 of 71 2. WCDMA_Band4 2.1. WCDMA Peak to Average Ratio(NTNV)(Channel:1312) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1712.4 0.1 3.04 13 Pass Document No: BL-SZ2090180 Page 6 of 71 2.2. WCDMA Peak to Average Ratio(NTNV)(Channel:1412) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1732.4 0.1 3.11 13 Pass Document No: BL-SZ2090180 Page 7 of 71 2.3. WCDMA Peak to Average Ratio(NTNV)(Channel:1513) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1752.6 0.1 3.25 13 Pass Document No: BL-SZ2090180 Page 8 of 71 3. WCDMA_Band5 3.1. WCDMA Peak to Average Ratio(NTNV)(Channel:4132) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 826.4 0.1 3.08 13 Pass Document No: BL-SZ2090180 Page 9 of 71 3.2. WCDMA Peak to Average Ratio(NTNV)(Channel:4182) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.4 0.1 2.96 13 Pass Document No: BL-SZ2090180 Page 10 of 71 3.3. WCDMA Peak to Average Ratio(NTNV)(Channel:4233) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 846.6 0.1 2.93 13 Pass Document No: BL-SZ2090180 Page 11 of 71 LTE 4. LTE_Band2 4.1. LTE Peak to Average Ratio(NTNV)(Subtest:1, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 3.11 13 Pass Document No: BL-SZ2090180 Page 12 of 71 4.2. LTE Peak to Average Ratio(NTNV)(Subtest:2, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 4.66 13 Pass Document No: BL-SZ2090180 Page 13 of 71 4.3. LTE Peak to Average Ratio(NTNV)(Subtest:3, Channel:18700, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 4.47 13 Pass Document No: BL-SZ2090180 Page 14 of 71 4.4. LTE Peak to Average Ratio(NTNV)(Subtest:4, Channel:18700, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.75 13 Pass Document No: BL-SZ2090180 Page 15 of 71 4.5. LTE Peak to Average Ratio(NTNV)(Subtest:5, Channel:18900, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 3.56 13 Pass Document No: BL-SZ2090180 Page 16 of 71 4.6. LTE Peak to Average Ratio(NTNV)(Subtest:6, Channel:18900, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 4.89 13 Pass Document No: BL-SZ2090180 Page 17 of 71 4.7. LTE Peak to Average Ratio(NTNV)(Subtest:7, Channel:18900, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 5.24 13 Pass Document No: BL-SZ2090180 Page 18 of 71 4.8. LTE Peak to Average Ratio(NTNV)(Subtest:8, Channel:18900, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 6.07 13 Pass Document No: BL-SZ2090180 Page 19 of 71 4.9. LTE Peak to Average Ratio(NTNV)(Subtest:9, Channel:19100, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 3.47 13 Pass Document No: BL-SZ2090180 Page 20 of 71 4.10. LTE Peak to Average Ratio(NTNV)(Subtest:10, Channel:19100, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 4.92 13 Pass Document No: BL-SZ2090180 Page 21 of 71 4.11. LTE Peak to Average Ratio(NTNV)(Subtest:11, Channel:19100, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 5.05 13 Pass Document No: BL-SZ2090180 Page 22 of 71 4.12. LTE Peak to Average Ratio(NTNV)(Subtest:12, Channel:19100, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 6.08 13 Pass Document No: BL-SZ2090180 Page 23 of 71 5. LTE_Band4 5.1. LTE Peak to Average Ratio(NTNV)(Subtest:1, Channel:20050, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 3.21 13 Pass Document No: BL-SZ2090180 Page 24 of 71 5.2. LTE Peak to Average Ratio(NTNV)(Subtest:2, Channel:20050, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 4.77 13 Pass Document No: BL-SZ2090180 Page 25 of 71 5.3. LTE Peak to Average Ratio(NTNV)(Subtest:3, Channel:20050, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 4.66 13 Pass Document No: BL-SZ2090180 Page 26 of 71 5.4. LTE Peak to Average Ratio(NTNV)(Subtest:4, Channel:20050, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 5.91 13 Pass Do…

Text truncated - open the document above for the full version.

Document No: BL-SZ2090180 Page 1 of 167 Annex A.3 Occupied Bandwidth Document No: BL-SZ2090180 Page 2 of 167 1. GSM_GSM850 1.1. GSM Occupied Bandwidth(NTNV)(Channel:128) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 824.2 99 26 0.004 Peak 0.24 0.3 0.3 Pass Document No: BL-SZ2090180 Page 3 of 167 1.2. GSM Occupied Bandwidth(NTNV)(Channel:190) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 836.6 99 26 0.004 Peak 0.25 0.3 0.3 Pass Document No: BL-SZ2090180 Page 4 of 167 1.3. GSM Occupied Bandwidth(NTNV)(Channel:251) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 848.8 99 26 0.004 Peak 0.25 0.3 0.3 Pass Document No: BL-SZ2090180 Page 5 of 167 2. GSM_PCS 2.1. GSM Occupied Bandwidth(NTNV)(Channel:512) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1850.2 99 26 0.004 Peak 0.25 0.3 0.3 Pass Document No: BL-SZ2090180 Page 6 of 167 2.2. GSM Occupied Bandwidth(NTNV)(Channel:661) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1880 99 26 0.004 Peak 0.24 0.3 0.3 Pass Document No: BL-SZ2090180 Page 7 of 167 2.3. GSM Occupied Bandwidth(NTNV)(Channel:810) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1909.8 99 26 0.004 Peak 0.25 0.3 0.3 Pass Document No: BL-SZ2090180 Page 8 of 167 3. EGPRS_GSM850 3.1. EGPRS Occupied Bandwidth(NTNV)(Channel:128) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 824.2 99 26 0.004 Peak 0.25 0.31 0.3 Pass Document No: BL-SZ2090180 Page 9 of 167 3.2. EGPRS Occupied Bandwidth(NTNV)(Channel:190) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 836.6 99 26 0.004 Peak 0.24 0.31 0.3 Pass Document No: BL-SZ2090180 Page 10 of 167 3.3. EGPRS Occupied Bandwidth(NTNV)(Channel:251) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 848.8 99 26 0.004 Peak 0.24 0.31 0.3 Pass Document No: BL-SZ2090180 Page 11 of 167 4. EGPRS_PCS 4.1. EGPRS Occupied Bandwidth(NTNV)(Channel:512) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1850.2 99 26 0.004 Peak 0.25 0.31 0.3 Pass Document No: BL-SZ2090180 Page 12 of 167 4.2. EGPRS Occupied Bandwidth(NTNV)(Channel:661) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1880 99 26 0.004 Peak 0.25 0.31 0.3 Pass Document No: BL-SZ2090180 Page 13 of 167 4.3. EGPRS Occupied Bandwidth(NTNV)(Channel:810) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1909.8 99 26 0.004 Peak 0.25 0.31 0.3 Pass Document No: BL-SZ2090180 Page 14 of 167 5. WCDMA_Band2 5.1. WCDMA Occupied Bandwidth(NTNV)(Channel:9262) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1852.4 99 26 0.1 Peak 4.14 4.73 5 Pass Document No: BL-SZ2090180 Page 15 of 167 5.2. WCDMA Occupied Bandwidth(NTNV)(Channel:9400) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1880 99 26 0.1 Peak 4.13 4.7 5 Pass Document No: BL-SZ2090180 Page 16 of 167 5.3. WCDMA Occupied Bandwidth(NTNV)(Channel:9538) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1907.6 99 26 0.1 Peak 4.13 4.7 5 Pass Document No: BL-SZ2090180 Page 17 of 167 6. WCDMA_Band4 6.1. WCDMA Occupied Bandwidth(NTNV)(Channel:1312) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1712.4 99 26 0.1 Peak 4.14 4.72 5 Pass Document No: BL-SZ2090180 Page 18 of 167 6.2. WCDMA Occupied Bandwidth(NTNV)(Channel:1412) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1732.4 99 26 0.1 Peak 4.13 4.72 5 Pass Document No: BL-SZ2090180 Page 19 of 167 6.3. WCDMA Occupied Bandwidth(NTNV)(Channel:1513) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1752.6 99 26 0.1 Peak 4.13 4.72 5 Pass Document No: BL-SZ2090180 Page 20 of 167 7. WCDMA_Band5 7.1. WCDMA Occupied Bandwidth(NTNV)(Channel:4132) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 826.4 99 26 0.1 Peak 4.14 4.73 5 Pass Document No: BL-SZ2090180 Page 21 of 167 7.2. WCDMA Occupied Bandwidth(NTNV)(Channel:4182) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 836.4 99 26 0.1 Peak 4.14 4.73 5 Pass Document No: BL-SZ2090180 Page 22 of 167 7.3. WCDMA Occupied Bandwidth(NTNV)(Channel:4233) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 846.6 99 26 0.1 Peak 4.13 4.74 5 Pass Document No: BL-SZ2090180 Page 23 of 167 8. LTE_Band2 8.1. LTE Occupied Bandwidth(NTNV)(Subtest:1, Channel:18607, Bandwidth:1.4, Modulation:QPSK, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1850.7 99 26 0.027 Peak 1.08 1.23 1.4 Pass Document No: BL-SZ2090180 Page 24 of 167 8.2. LTE Occupied Bandwidth(NTNV)(Subtes…

Text truncated - open the document above for the full version.

Document No: BL-SZ2090180 Page 1 of 167 Annex A.5 Spurious Emission at Antenna Terminals Document No: BL-SZ2090180 Page 2 of 167 GSM 1. GSM_GSM850 1.1. GSM Spurious Emission at Antenna Terminals(NTNV)(Channel:128) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detecto r Frequency (MHz) Power (dBm) Limit (dBm) Verdic t Sweep Point 0.009 0.15 0.001 Peak 0.011 -54.88 -13 Pass 401 0.15 30 0.01 Peak 0.28 -54.34 -13 Pass 2986 30 500 0.1 Peak 472.8 -42.92 -13 Pass 4701 500 1000 0.1 Peak 824.1 31.85 -13 N/A 5001 1000 10000 1 Peak 8946.97 -21.04 -13 Pass 9001 Document No: BL-SZ2090180 Page 3 of 167 1.2. GSM Spurious Emission at Antenna Terminals(NTNV)(Channel:190) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.015 -54.74 -13 Pass 401 0.15 30 0.01 Peak 0.47 -53.55 -13 Pass 2986 30 500 0.1 Peak 353.4 -42.71 -13 Pass 4701 500 1000 0.1 Peak 836.7 32.49 -13 N/A 5001 1000 10000 1 Peak 7696.817 -21.4 -13 Pass 9001 Document No: BL-SZ2090180 Page 4 of 167 1.3. GSM Spurious Emission at Antenna Terminals(NTNV)(Channel:251) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.009 -56.02 -13 Pass 401 0.15 30 0.01 Peak 0.19 -53.29 -13 Pass 2986 30 500 0.1 Peak 479.6 -42.45 -13 Pass 4701 500 1000 0.1 Peak 848.9 32.79 -13 N/A 5001 1000 10000 1 Peak 9574 -21.42 -13 Pass 9001 Document No: BL-SZ2090180 Page 5 of 167 2. GSM_PCS 2.1. GSM Spurious Emission at Antenna Terminals(NTNV)(Channel:512) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.01 -62.08 -13 Pass 401 0.15 30 0.01 Peak 0.18 -59.63 -13 Pass 2986 30 1000 0.1 Peak 990.394 -48.17 -13 Pass 9700 1000 3000 1 Peak 1850 28.93 -13 N/A 2001 3000 20000 1 Peak 19588 -19.81 -13 Pass 17001 Document No: BL-SZ2090180 Page 6 of 167 2.2. GSM Spurious Emission at Antenna Terminals(NTNV)(Channel:661) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.014 -61.73 -13 Pass 401 0.15 30 0.01 Peak 0.17 -58.98 -13 Pass 2986 30 1000 0.1 Peak 486.656 -47.88 -13 Pass 9700 1000 3000 1 Peak 1879 25.41 -13 N/A 2001 3000 20000 1 Peak 19834 -19.79 -13 Pass 17001 Document No: BL-SZ2090180 Page 7 of 167 2.3. GSM Spurious Emission at Antenna Terminals(NTNV)(Channel:810) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.009 -61.47 -13 Pass 401 0.15 30 0.01 Peak 0.18 -60.41 -13 Pass 2986 30 1000 0.1 Peak 989.893 -48.3 -13 Pass 9700 1000 3000 1 Peak 1910 28.35 -13 N/A 2001 3000 20000 1 Peak 19824 -19.76 -13 Pass 17001 Document No: BL-SZ2090180 Page 8 of 167 EGPRS 3. EGPRS_GSM850 3.1. EGPRS Spurious Emission at Antenna Terminals(NTNV)(Channel:128) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detecto r Frequency (MHz) Power (dBm) Limit (dBm) Verdic t Sweep Point 0.009 0.15 0.001 Peak 0.01 -55.1 -13 Pass 401 0.15 30 0.01 Peak 0.18 -53.96 -13 Pass 2986 30 500 0.1 Peak 439.8 -43.72 -13 Pass 4701 500 1000 0.1 Peak 824.2 28.71 -13 N/A 5001 1000 10000 1 Peak 7961.85 -21.68 -13 Pass 9001 Document No: BL-SZ2090180 Page 9 of 167 3.2. EGPRS Spurious Emission at Antenna Terminals(NTNV)(Channel:190) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.012 -55.73 -13 Pass 401 0.15 30 0.01 Peak 0.2 -53.18 -13 Pass 2986 30 500 0.1 Peak 456.1 -41.86 -13 Pass 4701 500 1000 0.1 Peak 836.6 28.73 -13 N/A 5001 1000 10000 1 Peak 9789 -21.19 -13 Pass 9001 Document No: BL-SZ2090180 Page 10 of 167 3.3. EGPRS Spurious Emission at Antenna Terminals(NTNV)(Channel:251) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.01 -54.73 -13 Pass 401 0.15 30 0.01 Peak 0.22 -53.79 -13 Pass 2986 30 500 0.1 Peak 358.2 -43.48 -13 Pass 4701 500 1000 0.1 Peak 848.8 29.1 -13 N/A 5001 1000 10000 1 Peak 7955.849 -21.51 -13 Pass 9001 Document No: BL-SZ2090180 Page 11 of 167 4. EGPRS_PCS 4.1. EGPRS Spurious Emission at Antenna Terminals(NTNV)(Channel:512) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.01 -60.94 -13 Pass 401 0.15 30 0.01 Peak 0.25 -59.37 -13 Pass 2986 30 1000 0.1 Peak 762.189 -48.6 -13 Pass 9700 1000 3000 1 Peak 1850 25.83 -13 N/A 2001 3000 20000 1 Peak 19279.987 -19.67 -13 Pass 17001 Document No: BL-SZ2090180 Page 12 of 167 4.2. EGPRS Spurious Emission at Antenna Terminals(NTNV)(Channel:661) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.01 -61.32 -13 Pass 401 0.15 30 0.01 Peak 0.2 -59.42 -13 Pass 2986 30 1000 0.1 Peak 606.97 -48.15 -13 Pass 9700 1000 3000 1 Peak 1881 23.65 -13 N/A 2001 3000 20000 1 Peak 19786 -19.77 -13 Pass 17001 Document No: BL-SZ2090180 Page 13 of 167 4.3. EGPRS Spurious Emission at Antenna Terminals(NTNV)(Channel:810) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.012 -60.76 -13 Pass 401 0.15 30 0.01 Peak 0.17 -60.19 -13 Pass 2986 30 10…
