2AUCY-V2314Mobile Phone

vivo Mobile Communication Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: October 30, 2023 Subject: Certifications concerning “covered” equipment pursuant to Part 2.911(d)(5)(i) and (ii) To whom it may concern, vivo Mobile Communication Co., Ltd. certifies that the equipment FCC ID: 2AUCY-V2314 for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. vivo Mobile Communication Co., Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. the applicant is not a named entity or any of its subsidiaries or affiliates. Sincerely, ________________________ Name: Xiang Jianfeng Title: Certification Engineer E-mail: [email protected]

vivo Mobile Communication Co., Ltd. Federal Communications Commission 7435 Oaklan d Mills Road Columbia MD 21046 Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: 2AUCY FRN:0028746295 vivo Mobile Communication Co., Ltd., certifies that, as of the date of the filing of application, SMART LUCKY TECHNOLOGY, INC. is designated as the U.S. agent for the purpose of accepting service of process on behalf of the applicant. The physical U.S. address and email and FRN for the designated agent are: Physical U.S. address: 5890 Pacific Center Blvd., San Diego, California 92121 FRN：0033411711 Email: [email protected] The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The agent accepts the designation by vivo Mobile Communication Co., Ltd. as the U.S. agent to accept service of process includes, but is not limited to, delivery of any correspondence, notices, orders, decisions, and requirements of administrative, legal, or judicial process related to Commission proceedings. Signed by the Applicant Signed by the Agent (if different from the Applicant) Name: Jianfeng Xiang Name: Lei Xu Title: Certification Engineer Title: Secretary Email: [email protected] Email: [email protected] Date: 2023/02/22 Date: 2023/02/22

vivo Mobile Communication Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (2AUCY-V2314). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Parts List Operational Description Tune Up software security requirement The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for a period of 180days: External Photos, Internal Photos, Test Setup Photos Manual Test Setup Photos Internal Photos External Photos User Manual Sincerely, (signature) (printed name) xiangjianfeng 2023-10-27

RF_160, Issue 04 vivo Mobile Communication Co., Ltd. Declaration of Authorization We Name: vivo Mobile Communication Co., Ltd. Address: No.1, vivo Road, Chang'an, Dongguan,Guangdong,China City: Dong guan Country: China Declare that: Name Representative of agent: Sherlock Fang Agent Company name: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Address: No.1 Workshop, M-10, Middle Section, Science & Technology Park, City: Shenzhen Country: China is authorized to apply for Certification of the following product(s): Product description: Mobile phone Type designation: V2314 Trademark: vivo FCC ID: 2AUCY-V2314 on our behalf. Sincerely yours, Contact Person: xiangjianfeng Applicant: vivo Mobile Communication Co., Ltd. Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

vivo Mobile Communication Co., Ltd. No.1, vivo Road, Chang'an, Dongguan,Guangdong,China UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: 2AUCY-V2314 (1) DFS Device -- Master, Client with Radar detection capability , ■ Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 MHz ■Yes, No ■Yes, No ■Yes, No ■Yes, No 2422 – 2452 MHz ■Yes, No ■Yes, No ■Yes, No ■Yes, No 5745 – 5825 MHz ■Yes, No ■Yes, No ■Yes, No ■Yes, No 5755 – 5795 MHz ■Yes, No ■Yes, No ■Yes, No ■Yes, No 5180 – 5240 MHz ■Yes, No ■Yes, No ■Yes, No ■Yes, No 5190 – 5230 MHz ■Yes, No ■Yes, No ■Yes, No ■Yes, No 5260 – 5320 MHz Yes, ■ No ■Yes, No Yes, ■ No Yes, ■ No 5270 – 5310 MHz Yes, ■ No ■Yes, No Yes, ■ No Yes, ■ No 5500 – 5700 MHz Yes, ■ No ■Yes, No Yes, ■ No Yes, ■ No 5510 – 5670 MHz Yes, ■ No ■Yes, No Yes, ■ No Yes, ■ No (3) Country code selection ability - Yes , ■ No If no, pls explain how was implemented : use Microsoft network utility (4) Meet 15.202 requirement - ■ Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices ■ A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , ■ No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory vivo Mobile Communication Co., Ltd. Printed Name: xiangjianfeng Position：Certification Director

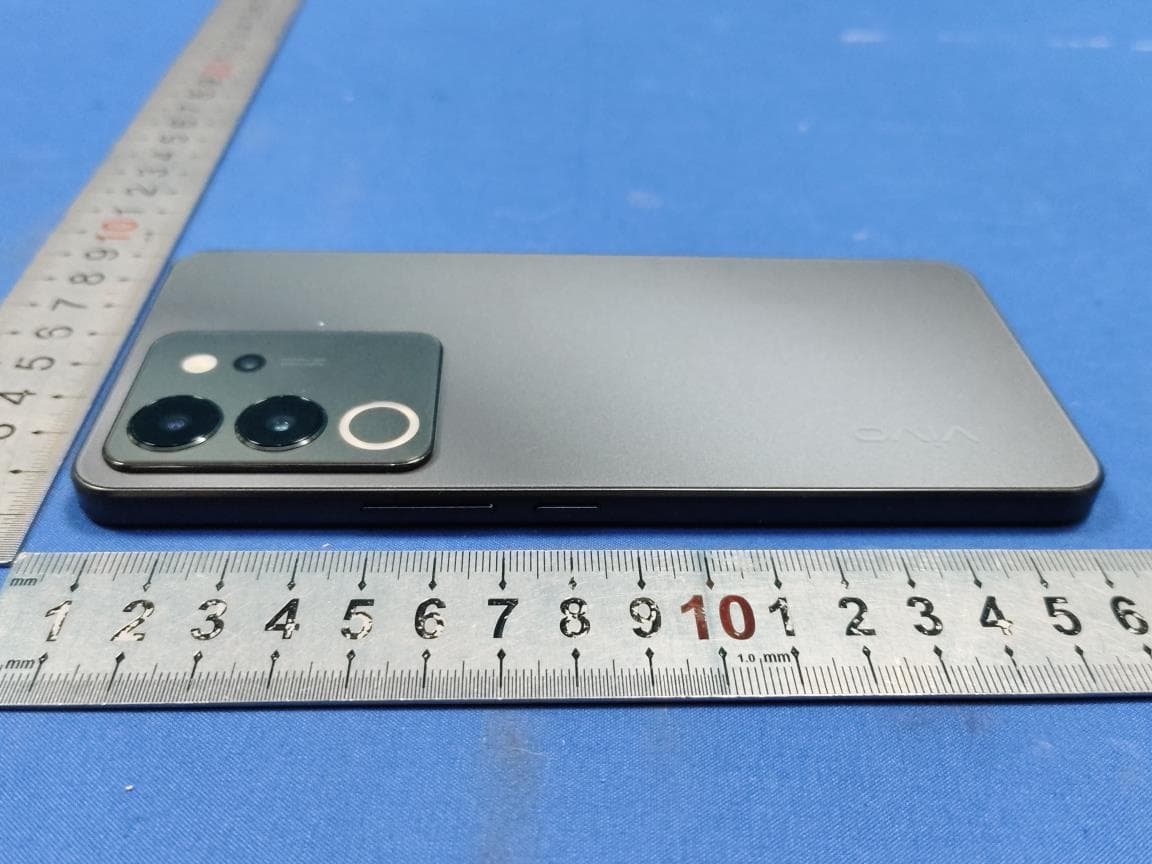

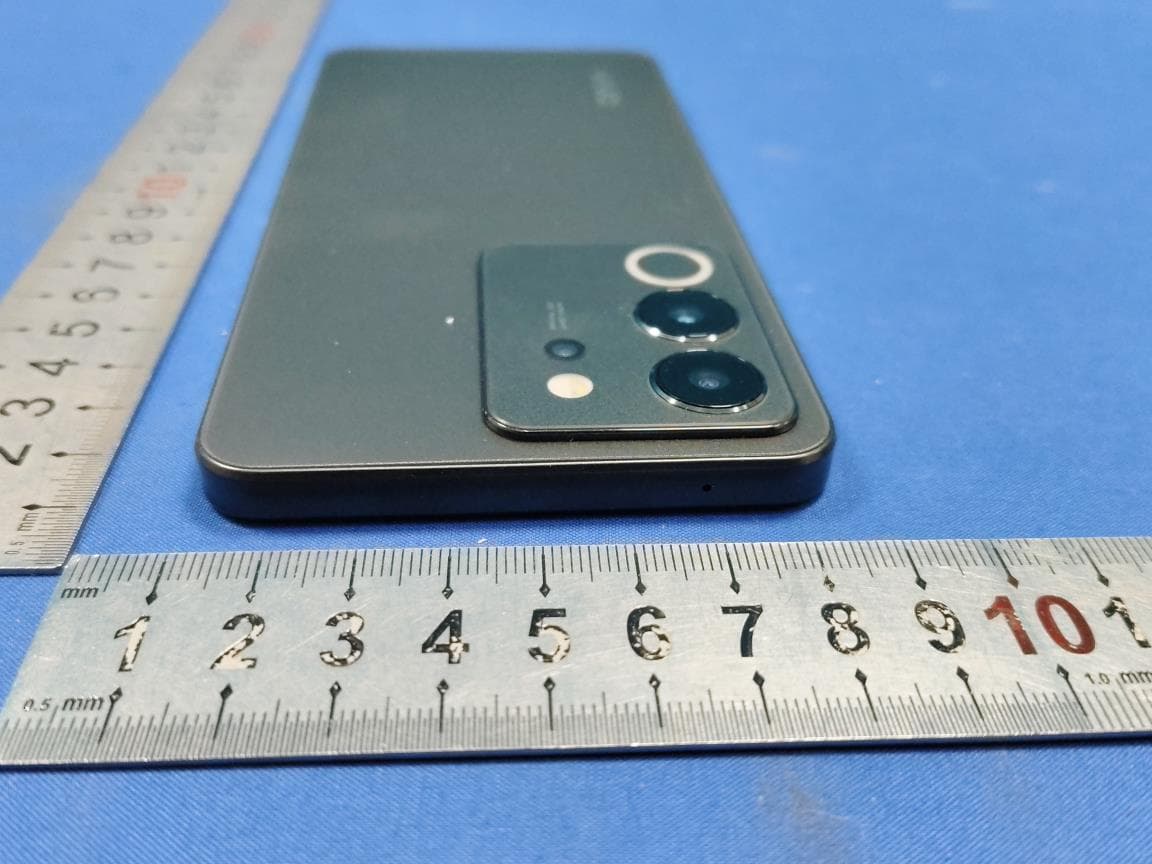

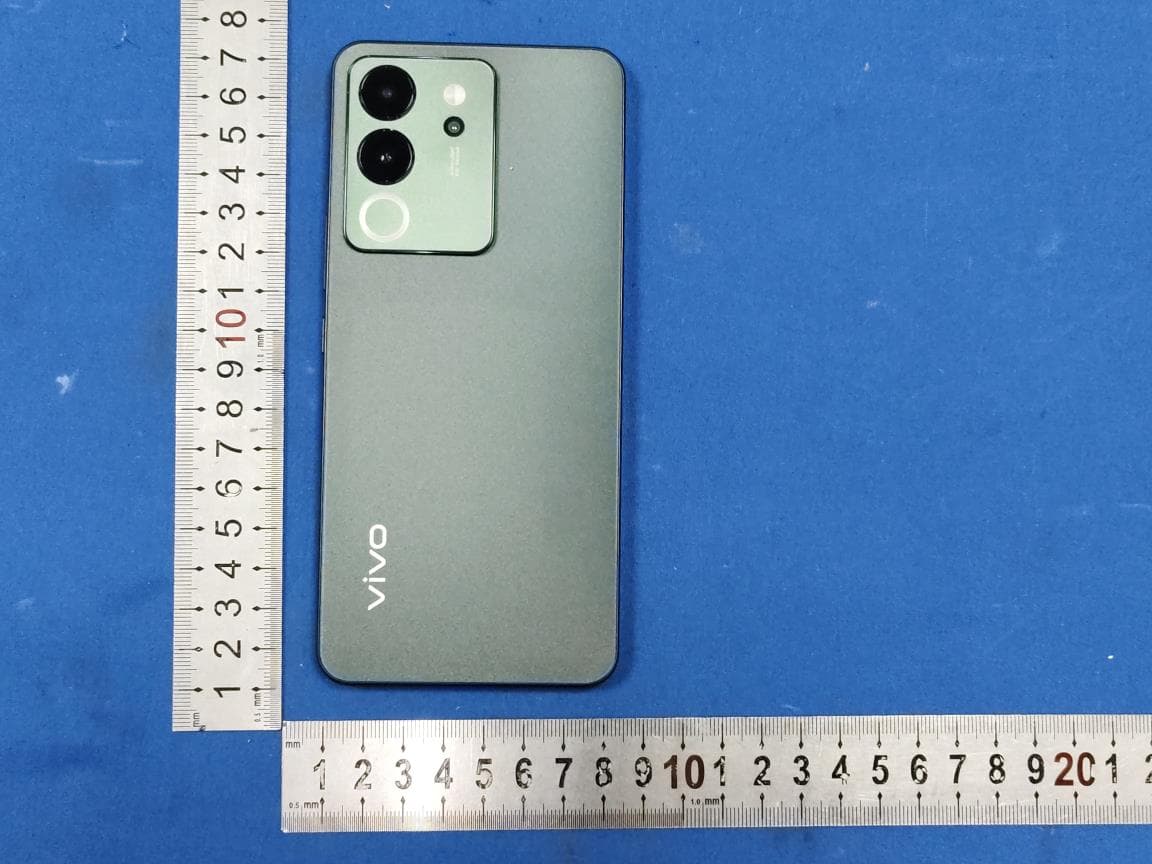

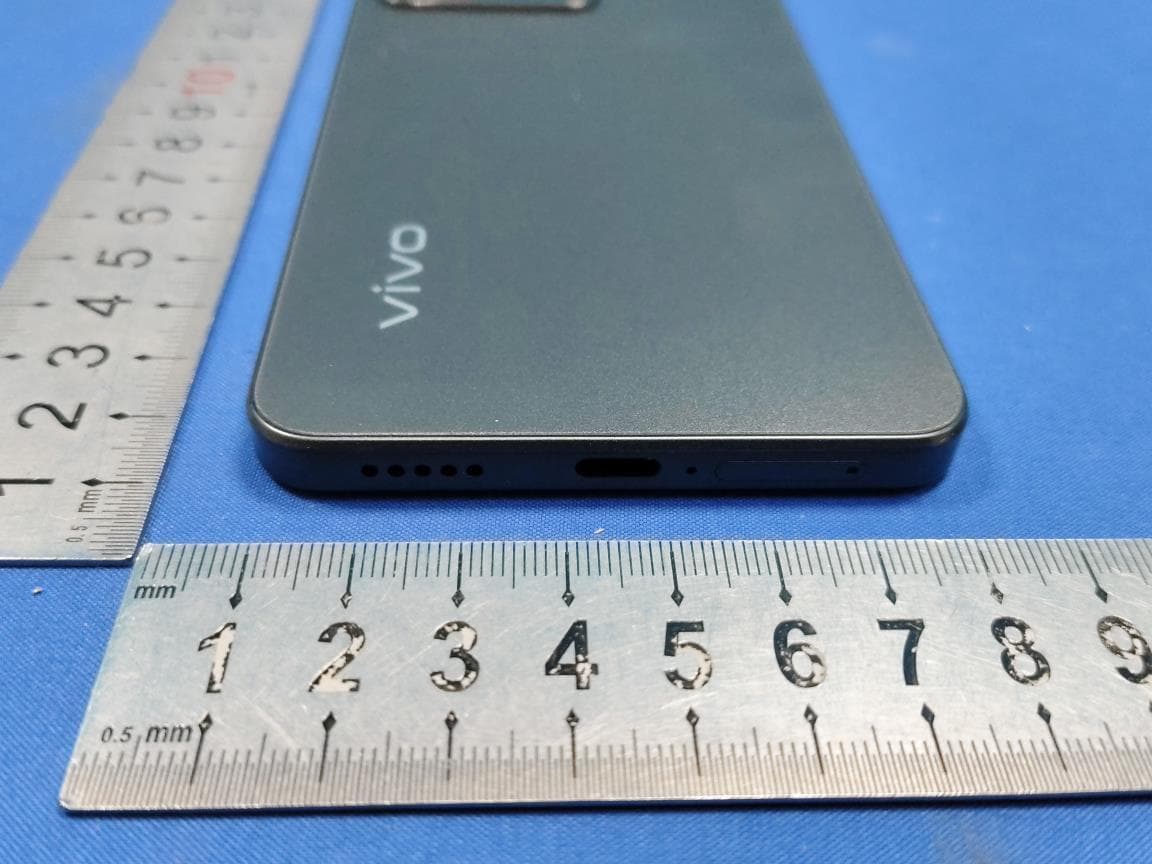

External photos

E-Label 1. The information that will be displayed on the e-label and information that will remain in the user manual is shown below: Information on E-label In Manual FCC ID number Yes No 15.19 statement (“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) No Yes Class A / B Digital Device user manual statements* No Yes Caution to the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment1 No Yes Describe any other FCC regulatory information included in e-label* * If the e-label includes information typically included in the manual then the e-label shall clearly differentiate between information required to be on the device’s surface and information required to be in the manual – refer to KDB 784748 D02 e labelling v02r01. E-label show： B. Access to the required information on the e-label 1. Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: To access the e-label information, in the device, Choose 1: Settings > About phone >Status, No special access codes or permissions are required to go through the above steps beyond enter- ing a userdefined password to protect against unauthorized access to the device. 2. The information is stored on the device, no special accessories or supplemental plug-ins (e.g., a SIM/USIM card) are required to access the information. Yes see E-label photos 3. Users are provided specific instructions on how to access the information. The information to the user is provided in the iPhone Info document. C. Labeling for Importation and Purchasing 1. Products utilizing e-labels are required to have a physical label on the product at the time of importation, marketing and sales. For devices imported in bulk and not packaged individually, a removable adhesive label or, for devices in protective bags, a label on the bags is acceptable for this purpose. Any removable label shall be of a type intended to survive normal shipping and handling and must only be removed by the customer after purchase. For devices imported already in individual packages ready for sale, the information may alternatively be provided on the package. It shall contain: 1. The FCC ID and/or the SDoC logo (if applicable); and 2. Any other information required by specific rule to be provided on the surface of the product unless such information is permitted to be included in the User’s manual or other packaging inserts. The FCC ID and Model number are present on the product packaging、physical label. D. Other considerations 1. The above information must be programmed by the responsible party and the information must be secured in such a manner that third-parties cannot modify it. The e-label information is pre-programmed by the grantee. The user cannot modify the e-label information. 2. All the applicable regulatory information required on the packaging or user instructions must be provided according to the rules even if it is displayed electronically. For example, hearing aid compatibility (HAC) ratings for the phones as specified in 47 C.F.R. § 20.19. Yes, it is provided

Internal photos Antenna TX Bands Ant 11# GSM:850,WCDMA:B5 LTE: B2/4/5/7/12/13/17/26/66 NR:7/26/38/41/66 Ant 12# NR:n77/78 Ant 13# NR:n77/78 Ant 14# GSM:1900,WCDMA：B2/4 LTE:B2/4/7/38/41/66 NR: n2/7/38/41/66 Ant 21# NR:n77/78 Ant 22# WiFi 2.4G BT Ant 23# NR:n77/78,WiFi 5G Ant 31# GSM: 1900 WCDMA:B2/4 LTE:B2/4/66/7/38/41 NR: n2/66/7/38/41 Ant 41# GSM:850,WCDMA:B5 LTE: B5/12/13/17/26 NR: n5/26

Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG02 Page : 1 of 11 Authorized Signature: Ervin Li Regulatory Manager FCC TEST REPORT PART 0 Application No.: ZEWM2309001295RG Applicant: vivo Mobile Communication Co., Ltd. Manufacturer: vivo Mobile Communication Co., Ltd. Product Name: Mobile Phone Model No.(EUT): V2314 Trade Mark: vivo FCC ID: 2AUCY-V2314 Date of Receipt: 2023/09/05 Date of Test: 2023/09/12 to 2023/10/25 Date of Issue: 2023/10/26 Test conclusion: PASS Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG02 Page : 2 of 11 REVISION HISTORY Report Number Revision Description Issue Date ZEWM2309001295RG02 01 Original 2023-10-26 Prepared By Vito Wang Checked By Roman Pan Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG02 Page : 3 of 11 CONTENTS 1 GENERAL INFORMATION .................................................................................................................................... 4 1.1 DETAILS OF CLIENT ................................................................................................................................................. 4 1.2 TEST LOCATION ...................................................................................................................................................... 4 1.3 TEST FACILITY ......................................................................................................................................................... 5 1.4 GENERAL DESCRIPTION OF EUT ............................................................................................................................ 6 1.5 TIME-AVERAGING FOR SAR ................................................................................................................................... 8 2 SAR CHARACTERIZATION .................................................................................................................................. 9 2.1 DSI AND SAR DETERMINATION ............................................................................................................................. 9 2.2 SAR DESIGN TARGET AND UNCERTAINTY .......................................................................................................... 10 2.3 SAR CHAR ............................................................................................................................................................ 10 Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG02 Page : 4 of 11 1 General Information 1.1 Details of Client Applicant: vivo Mobile Communication Co., Ltd. Address: No.1, vivo Road, Chang'an, Dongguan, Guangdong, China Manufacturer: vivo Mobile Communication Co., Ltd. Address: No.1, vivo Road, Chang'an, Dongguan, Guangdong, China 1.2 Test Location Company: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Address: No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China Post code: 518057 Test engineer: Vito Wang, Ethan Li Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG02 Page : 5 of 11 1.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0006. IC#: 4620C. • FCC –Designation Number: CN1336 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch has been recognized as an accredited testing laboratory. Designation Number: CN1336. Test Firm Registration Number: 787754. Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG02 Page : 6 of 11 1.4 General Description of EUT Device Type : portable device Exposure Category: uncontrolled environment / general population Product Name: Mobile Phone Model No.(EUT): V2314 FCC ID: 2AUCY-V2314 Trade Mark: vivo Product Phase: Identical Prototype IMEI: 864236069991151 864236069991839 864236069991698 864236069992514 864236069981798 864236069991532 864236069991672 Hardware Version: MP_0.1 Software Version: PD2325HF_EX_A_13.0.6.4.W30 Antenna Type: PIFA Antenna Device Operating Configurations : Modulation Mode: GSM: GMSK, 8PSK; WCDMA: QPSK, 16QAM(HSPA+); LTE: QPSK,16QAM,64QAM 5G NR: DFT-s-OFDM (PI/2 BPSK, QPSK, 16QAM, 64QAM, 256QAM), CP-OFDM (QPSK, 16QAM, 64QAM, 256QAM) WIFI: DSSS, OFDM; BT: GFSK, π/4DQPSK,8DPSK NFC: ASK Device Class: B GPRS Multi-slots Class: 33 EGPRS Multi-slots Class: 33 HSDPA UE Category: 24 HSUPA UE Category 6 DC-HSDPA UE Category: 24 Power Class: 4,tested with power level 5(GSM850) 1,tested with power level 0(GSM1900) 3, tested with power control “all 1”(WCDMA Band) 3, tested with power control Max Power(LTE Band) Frequency Bands: Band Tx (MHz) Rx (MHz) GSM850 824~849 869~894 GSM1900 1850~1910 1930~1990 WCDMA Band II 1850~1910 1930~1990 WCDMA Band IV 1710~1755 2110~2155 WCDMA Band V 824~849 869~894 LTE Band 2 1850 ~1910 1930 ~1990 LTE Band 4 1710~1755 2110~2155 LTE Band 5 824~849 869-894 LTE Band 7 2500~2570 2620~2690 LTE Band 12 699~716 729~746 LTE Band 13 777~787 746~756 LTE Band 17 704-716 734-746 Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG02 Page : 7 of 11 LTE Band 26 814~849 859~894 LTE Band 38 2570~2620 2570~2620 LTE Band 41 2496~2690 2496~2690 LTE …

Text truncated - open the document above for the full version.

Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG03 Page : 1 of 112 Authorized Signature: Ervin Li Regulatory Manager FCC TEST REPORT PART 2 (Test Under Dynamic Transmission Condition) Application No.: ZEWM2309001295RG Applicant: vivo Mobile Communication Co., Ltd. Manufacturer: vivo Mobile Communication Co., Ltd. Product Name: Mobile Phone Model No.(EUT): V2314 Trade Mark: vivo FCC ID: 2AUCY-V2314 Date of Receipt: 2023/09/05 Date of Test: 2023/09/12 to 2023/10/25 Date of Issue: 2023/10/26 Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG03 Page: 2 of 112 REVISION HISTORY Report Number Revision Description Issue Date ZEWM2309001295RG03 01 Original 2023/10/26 Prepared By Vito Wang Checked By Roman Pan Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG03 Page: 3 of 112 CONTENTS 1 INTRODUCTION ......................................................................................................................................................5 1.1 DETAILS OF CLIENT ................................................................................................................................................5 1.2 TEST LAB INFORMATION ........................................................................................................................................5 1.3 BIBLIOGRAPHY .......................................................................................................................................................6 2 TX VARYING TRANSMISSION TEST CASES AND TEST PROPOSAL ......................................................7 3 SAR TIME AVERAGING VALIDATION TEST PROCEDURES ......................................................................9 3.1 TEST SEQUENCE DETERMINATION FOR VALIDATION ...............................................................................................9 3.2 TEST CONFIGURATION SELECTION CRITERIA FOR VALIDATING SMART TRANSMIT FEATURE................................. 10 3.2.1 Test configuration selection for time-varying Tx power transmission .............................................. 10 3.2.2 Test configuration selection for change in call .................................................................................... 10 3.2.3 Test configuration selection for change in technology/band ............................................................. 10 3.2.4 Test configuration selection for change in antenna ............................................................................ 11 3.2.5 Test configuration selection for change in DSI .................................................................................... 11 3.2.6 Test configuration selection for change in time window .................................................................... 12 3.2.7 Test configuration selection for SAR exposure switching .................................................................. 13 3.3 TEST PROCEDURES FOR CONDUCTED POWER MEASUREMENTS .............................................................................. 14 3.3.1 Time-varying Tx power transmission scenario .................................................................................... 14 3.3.2 Change in call scenario........................................................................................................................... 16 3.3.3 Change in technology and band ............................................................................................................ 17 3.3.4 Change in antenna .................................................................................................................................. 19 3.3.5 Change in DSI .......................................................................................................................................... 20 3.3.6 Change in time window ........................................................................................................................... 21 3.3.7 SAR exposure switching ......................................................................................................................... 22 3.4 TEST PROCEDURE FOR TIME-VARYING SAR MEASUREMENTS ............................................................................... 23 4 TEST CONFIGURATIONS ................................................................................................................................... 25 4.1 WWAN (SUB-6) TRANSMISSION ........................................................................................................................... 25 5 CONDUCTED POWER TEST RESULTS FOR SUB-6 SMART TRANSMIT FEATURE VALIDATION . 30 5.1 MEASUREMENT SETUP .......................................................................................................................................... 30 5.2 PLIMIT AND PMAX MEASUREMENT RESULTS ......................................................................................................... 33 5.3 TIME-VARYING TX POWER MEASUREMENT RESULTS ............................................................................................ 34 5.3.1 GSM1900 ANT14 DSI2........................................................................................................................... 35 5.3.2 GSM1900 ANT14 DSI4........................................................................................................................... 39 5.3.3 WCDMA BAND 2 ANT31 DSI10 ........................................................................................................... 43 5.3.4 WCDMA BAND 2 ANT14 DSI2.............................................................................................................. 47 5.3.5 LTE Band 41 ANT14 DSI10 ...................................................................................…

Text truncated - open the document above for the full version.

Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG01 Page : 1 of 153 Authorized Signature: Ervin Li Regulatory Manager FCC SAR TEST REPORT Application No.: ZEWM2309001295RG01 Applicant: vivo Mobile Communication Co., Ltd. Manufacturer: vivo Mobile Communication Co., Ltd. Product Name: Mobile Phone Model No.(EUT): V2314 Trade Mark: vivo FCC ID: 2AUCY-V2314 Standards: FCC 47CFR §2.1093 Date of Receipt: 2023/09/05 Date of Test: 2023/09/12 to 2023/10/12 Date of Issue: 2023/10/22 Test conclusion: PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG01 Page : 2 of 153 REVISION HISTORY Report Number Revision Description Issue Date ZEWM2309001295RG01 01 Original 2023/10/22 Prepared By Vito Wang Checked By Roman Pan Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG01 Page : 3 of 153 TEST SUMMARY Frequency Band Maximum Reported SAR(W/kg) Head Body-worn Hotspot Product specific 10g SAR GSM850 0.54 0.27 0.58 / GSM1900 0.75 0.28 0.52 / WCDMA Band II <0.10 0.32 0.58 / WCDMA Band IV <0.10 0.29 0.50 / WCDMA Band V 0.46 0.24 0.45 / LTE Band 2 0.74 0.39 0.68 2.14 LTE Band 7 0.81 0.63 0.60 2.14 LTE Band 12/17 0.21 0.10 0.27 / LTE Band 13 0.40 0.21 0.44 / LTE Band 26/5 0.53 0.24 0.49 / LTE Band 41/38 <0.10 0.23 0.33 / LTE Band 66/4 0.74 0.32 0.58 / NR Band 2 0.13 0.32 0.55 / NR Band 7 0.66 0.75 0.56 1.83 NR Band 26/5 0.84 0.26 0.57 / NR Band 38 0.68 0.57 0.60 1.55 NR Band 41 0.63 0.72 0.57 1.53 NR Band 66 0.71 0.34 0.65 / NR Band 77 0.98 0.76 0.75 1.86 NR Band 78 0.84 0.93 0.60 1.99 WI-FI (2.4GHz) 0.36 0.14 0.28 / WI-FI (5GHz) 0.45 0.40 0.74 1.83 BT 0.19 <0.10 <0.10 / SAR Limited(W/kg) 1.6 4.0 Maximum Simultaneous Transmission SAR (W/kg) Scenario Head Body-worn Hotspot Product specific 10g SAR Sum SAR 1.38 1.36 1.37 3.11 SPLSR / / / / SPLSR Limited 0.04 0.10 Note: 1) The Simultaneous transmission SAR is the same test position of the WWAN antenna + WiFi/BT antenna. 2) According to TCB workshop (Overlapping LTE Bands): SAR in LTE band 17 (frequency range: 704-716 MHz) is covered by LTE band 12 (frequency range: 699-716 MHz). SAR in LTE band 5 (frequency range: 824-849 MHz) is covered by LTE band 26 (frequency range: 814-849 MHz). The SAR in LTE band 38 (frequency range: 2570-2620 MHz) is covered by LTE band 41 (frequency range: 2496-2690 MHz). The SAR in LTE band 4 (frequency range: 1710~1755 MHz) is covered by LTE band 66 (frequency range: 1710~1780 MHz). The SAR in NR band 5 (frequency range: 824-849 MHz) is covered by NR band 26 (frequency range: 814-849 MHz). Because the frequency range is similar, the maximum tuning limit is the same, and the channel bandwidth and other operating parameters for the smaller band is fully supported by the larger band. Doc No./Rev.: SGS-W-TRF-101 v00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZEWM2309001295RG01 Page : 4 of 153 CONTENTS 1 GENERAL INFORMATION .................................................................................................................................... 7 1.1 DETAILS OF CLIENT ................................................................................................................................................. 7 1.2 TEST LOCATION ...................................................................................................................................................... 7 1.3 TEST FACILITY ......................................................................................................................................................... 8 1.4 GENERAL DESCRIPTION OF EUT ............................................................................................................................ 9 1.4.1 DUT Antenna Locations (Back View) .......................................................................................................... 11 1.4.2 Smart Transmit feature for RF Exposure compliance .............................................................................. 12 1.4.3 Power reduction specification ....................................................................................................................... 15 1.5 TEST SPECIFICATION ............................................................................................................................................ 16 1.6 RF EXPOSURE LIMITS ............................................................................................................................................ 17 2 LABORATORY ENVIRONMENT ........................................................................................................................ 18 3 SAR MEASUREMENTS SYSTEM CONFIGURATION ...................................................................................... 19 3.1 THE SAR MEASUREMENT SYSTEM ...................................................................................................................... 19 3.2 ISOTROPIC E-FIELD PROBE EX3DV4 .................................................................................................................. 20 3.3 DATA ACQUISITION ELECTRONICS (DAE) ........................................................................................................... 21 3.4 SAM TWIN PHANTOM ........................................................................................................................................... 21 3.5 ELI PHANTOM ....................................................................................................................................................... 22 3.6 DEVICE HOLDER FOR TRANSMITTERS .................................................................................................................. 2…

Text truncated - open the document above for the full version.

Report No.: ZEWM2309001295RG01 Appendix F Antenna Locations 1. Detailed DUT Antenna Locations Report No.: ZEWM2309001295RG01 1. Detailed DUT Antenna Locations (Back View) Sensor A Sensor B Report No.: ZEWM2309001295RG01 Antenna TX Bands Ant 11# GSM:850 WCDMA:B5 LTE: B2/4/5/7/12/13/17/26/66 NR:7/26/38/41/66 Ant 12# NR:n77/78 Ant 13# NR:n77/78 Ant 14# GSM:1900 WCDMA：B2/4 LTE:B2/4/7/38/41/66 NR: n2/7/38/41/66 Ant 21# NR:n77/78 Ant 22# WiFi 2.4G BT Ant 23# NR:n77/78 WiFi 5G Ant 31# GSM: 1900 WCDMA:B2/4 LTE:B2/4/66/7/38/41 NR: n2/66/7/38/41 Ant 41# GSM:850 WCDMA:B5 LTE: B5/12/13/17/26 NR: n5/26

Report No.: ZEWM2309001295RG01 10 Conducted P ower of WIFI and B luetooth 10.1 Conducted Power of 2.4G WIFI WIFI 2.4G Body(Receiver off) Standalone& Simultaneous transmission WWAN+WLAN2.4G/5G/2.4G+5G Mode Channel Frequency(MHz) Data Rate(Mbps) Average Power (dBm) Tune up 802.11b 1 2412 1 18.64 20.00 6 2437 18.81 20.00 11 2462 18.91 20…

Text truncated - open the document above for the full version.
