2AUDZ-D8Dashboard Camera

快速入门指南 D8 骑行记录仪 一，产品清单 二，按键与标识 扫描下载“录风者”APP ① *安装前请确认配件齐全，如有缺失请联系客服。 ② 记录仪主机*1底座支架*1L型六角扳手(H2.5)*1L型六角扳手(H3)*1 车把支架*1内六角螺丝(M3x5)*2六角螺母*1开口扳手*1 后视镜五金支架*1安全帽底座支架*1安全帽底座泡棉*1内六角螺丝(M3x18)*1 硅胶垫*2内六角螺丝(M4x20)*1说明书*1 指示灯 内存卡 按键 铝盖 三，安装与使用 手机扫描封面二维码下载“录风者”APP。 开机：设备连接USB接口即开机，记录仪指示灯亮。 ③ 连接APP：点击“添加记录仪”>选择“行车记录仪”>记录 仪安装完成即可点击“下一步”>连接WiFi>跳转进入手机设 置界面>进入WiFi设置界面>点击"D8/D6...”开头的wifi名（如 下图所示）>输入密码"12345678">连接成功返回APP。 ④ 查看实时画面，连接成功即可查看。 ⑤ 查看回放，进入“实时画面” 点击“记录仪文件”。> ⑥ 下载视频，进入“” 中视频下载。 记录仪文件 >点击右上角选择按钮>选 ⑦ 设置参数，点击“设置”记录仪>点击所要设置的参数即可。 *因出厂配16G的内存卡已安装到设备中，所以无需在插卡。 （通电开机即亮灯，录制 中长亮） （如需更换内存卡请按此 标识方向插卡） （长按开/关机） （如需更换内存卡需拆 开此盖） ⑧ 安装底座：将底座支架孔和主机孔对齐，用 (M3x18)配合螺母固定。 内六角螺丝 ⑨ 安装车把支架： 1, 底座支架和车把支架用 2, 硅胶垫*2分别贴在车把支架的上下两个半圆弧中。 3, 车把支架套上车把用内六角螺丝(M4x20)固定即可。 两颗内六角螺丝(M3x5)固定。 ⑩ 安装后视镜支架： 1, 用开口扳手将车辆后视镜取下。 2, 底座支架和后视镜五金支架用两颗内六角螺丝(M3x5)固定。 3, 套在车辆后视镜镜杆上装回固定调好角度即可。 四，注意事项 ① ② ③ 连接WiFi时不能正常上网使用，仅限于查看记录仪视频。 WiFi使用期间ios可用流量，安卓暂不支持。 如自配内存卡，最大支持64G，请选择可兼容品牌：雷克沙 ，金士顿，三星铠侠。使用不适配或读取写入速度不够的内 存卡，可能会导致设备出现卡机、视频花屏、掉帧、无法读 取播放等等问题。 首次连接记录仪，在APP功能设置里将存储卡操作格式化。 五，常见问题及解决对策 常见问题 解决对策 无法加入网络 长按记录仪按键强制关机，然后在手动 开机，等待设备灯闪时将手机靠近设 备，尝试重新连接WiFi。 指示灯红灯长亮 1,查看内存卡是否装上。 2,在APP里格式化内存卡。 3,内存卡已损坏或者未正确插入。 视频漏录 1,在紧急录像里面查看是否有视频。 2,紧急录像里面覆盖掉了。 视频跳录内存卡有问题，在APP中格式化内存卡。 70 毫米 95 毫米 ⑪ 安装安全帽支架： 1, 2, 安全帽底座泡棉贴在支架上。 3, 在安全帽上找到合适的位置粘贴即可。 底座支架和安全帽底座支架用一颗内六角螺丝(M3x5)固定 *以上三种安装方式根据需求和条件任选一种使用。 六，频段参数 工作频段： 2412.0-2462.0 MHz最 大射频功率：16.53dbm ① ② 。 图示名称WiFi ⚠ 请及时保存重要视频，以防循环录制覆盖。 D8 Dashboard Camera Quick Start Guide 1.Product List 2.Buttons and Markings Scan and download the “Viidure”app ① *Please confirm that all accessories are complete before installation. If there are any missing parts, please contact customer service. ② Recorder host*1Base bracket*1L-shaped hexagonal wrench(H2.5)*1 L-shaped hexagonal wrench(H3)*1 Handlebar bracket*1Hex socket screw(M3x5)*2Hex nut*1Open-end wrench*1 Rearview mirror hardware bracket*1Safety helmet base bracket*1Safety helmet base foam*1Hex socket screw(M3x18)*1 Silicone pad*2Hex socket screw(M4x20)*1User Manual*1 Indicator light MicroSD card Buttons Aluminum cap 3.Installation and Usage Scan the QR code on the cover with your phone to download the "Viidure" app. Power on: The device is turned on when connected to the USB interface, and the recorder indicator light is on. ③ Connect APP: Tap "Add ". > Once the dash cam is physically installed, tap "Next".>"Connect Wi-Fi", the app will redirect you to your phone's Settings. > In Settings, go to Wi-Fi，Find and tap the Wi-Fi network named "D8/D6..." (as shown in the image below).Enter the password: "12345678". > After a successful connection, return to the app to proceed. Camera ④ View the real-time screen, connect successfully to view. ⑤ To view the playback, go to "Real time Screen">click on "Camera Files". ⑥ Download the video, go to "Camera Files">click the selection button in the upper right corner>select the video download. ⑦ Set parameters, click on “ Settings">click on the parameters you want to set. Camera *Since the 16GB memory card that comes with the factory has already been installed in the device, there is no need to insert the card. （The light will turn on when powered on, and will remain on for a long time during recording) (If you need to replace the memory card, please insert it in the direction indicated here) (Long press to turn on/off) (If you need to replace the memory card, you need to remove this cover) ⑧ Installation base: Align the base bracket hole with the host hole, and fix it with an internal hexagonal screw (M3x18) and nut. ⑨ Install handlebar bracket: 1. The base bracket and handlebar bracket are fixed with two internal hexagonal screws (M3x5). 2. Two silicone pads are attached to the upper and lower semi-circular arcs of the handlebar bracket. 3. Install the handlebar bracket onto the handlebar and fix it with an internal hexagonal screw (M4x20). ⑩ Install the rearview mirror bracket: 1. Use an open-end wrench to remove the vehicle's rearview mirror. 2. The base bracket and rearview mirror hardware bracket are fixed with two internal hexagonal screws (M3x5). 3. Install and fix the mirror rod on the vehicle's rearview mirror to adjust the angle. 4.Precautions ① ② ③ Unable to access the internet normally when connected to WiFi, limited to viewing recorder videos. During WiFi usage, iOS has available data, but Android does not currently support it. If equipped with a memory card that supports up to 64GB, please choose compatible brands: Rexroth, Kingston, Samsung Armor. Using memory cards that are not compatible or have insufficient read and write speeds may cause device issues such as lagging, video glitches, frame drops, and inability to read and play. Connect the recorder for the first time and format the memory card operation in the APP function settings. 5.Common Problems and Solutions Frequently Asked Questions solution Unable to join the network Press and hold the recorder button to forcefully shut down, then manually turn on the device, wait for the device light to flash, and bring the phone close to the device to tr y reconnecting to WiFi. The red indicator stays on continuously 1. Check if the memor y card is properly inser ted. 2. Format the memor y card in the official app. 3. Replace the card if it is damaged. Video omission 1. Check if there is any video in the emergency folder. 2. The emergency video was covered. Video missing /skipping Format the memor y card in the official app. Replace the card if it is damaged. 70 毫米 95 毫米 ⑪ Install the safety helmet bracket: 1. The base bracket and safety helmet base bracket are fixed with an internal hexagonal screw (M3x5) 2. The foam on the base of the safety helmet is attached to the bracket. 3. Find a suitable position on the safety helmet and stick it on. *Choose one of the above three installation methods according to your needs and conditions. 6.Frequency Band Parameters Operating Frequency Band:2412.0-2462.0 MHz Maximum Radio-Frequency Power: 16.53 dBm ① ② 。 Illustration WiFi Name ⚠ Please save imp…

Text truncated - open the document above for the full version.

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2AUDZ-D8 D1, D2, D3, D4, D5, D6, D7, D9, D10, D11, D12, D13, D15, D16, D17, D18, D19, D20, D21, D22, D23, D24, D25, D26, D27, D28, D29, D30, D50, D60, D70, D80, D90, D100 Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen Huaxia Testing Technology Co., Ltd Contact Name: Yoyo Zhou Address: 1F., Block A of Tongsheng Technology Building, Huahui Road, Dalang Street, Longhua District, Shenzhen, China Phone: +86-755-26648642 Email: [email protected] Signature: Date: 2026-06-02

Page 1 of 1 Rev.2.0 Shenzhen Keithy Innovation Technology Co., Ltd. WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2AUDZ-D8 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Chunxing Zhou / Manager Signature: Phone: +86-755-26648642 Email: [email protected] Date: 2026-06-13

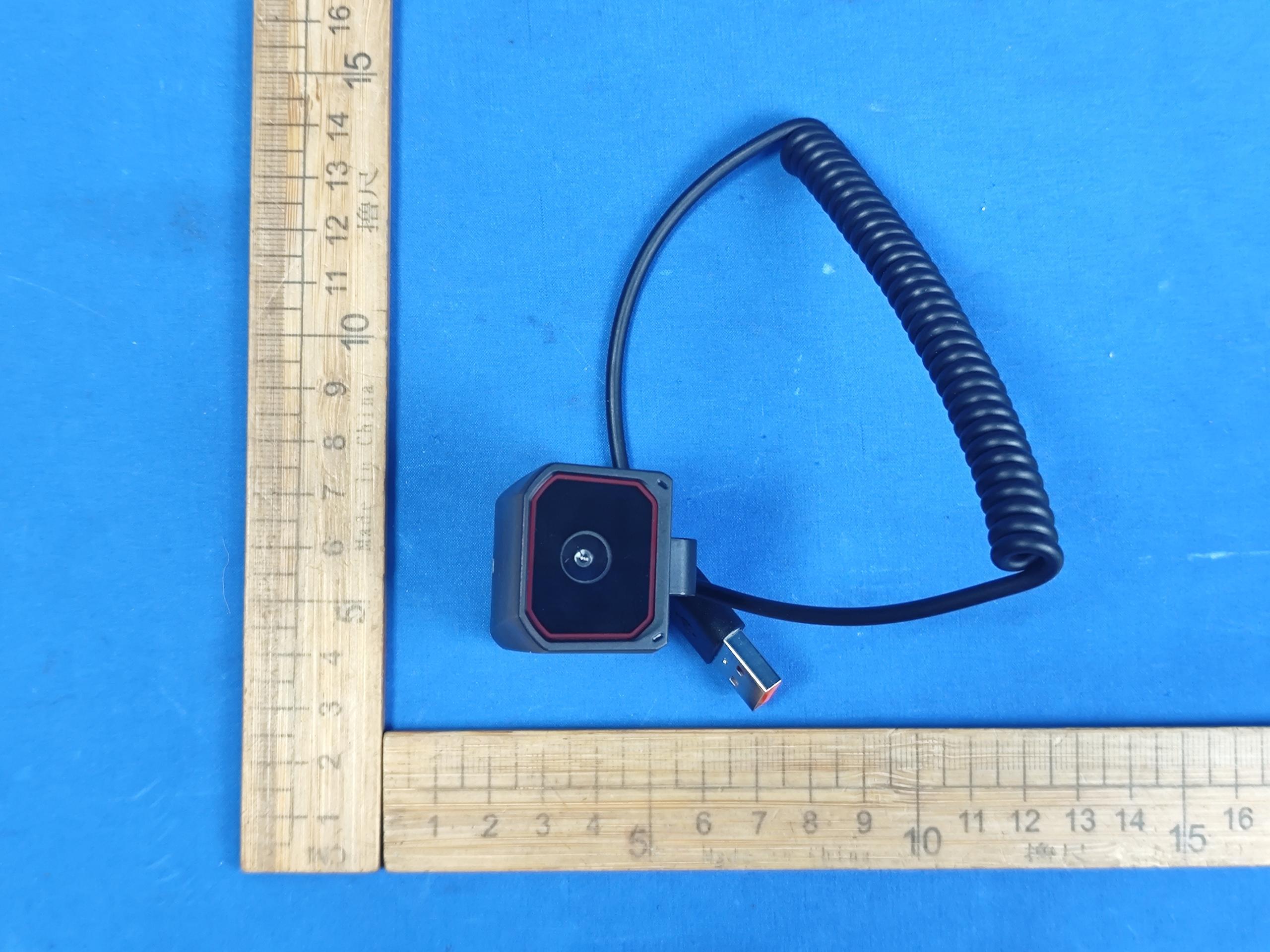

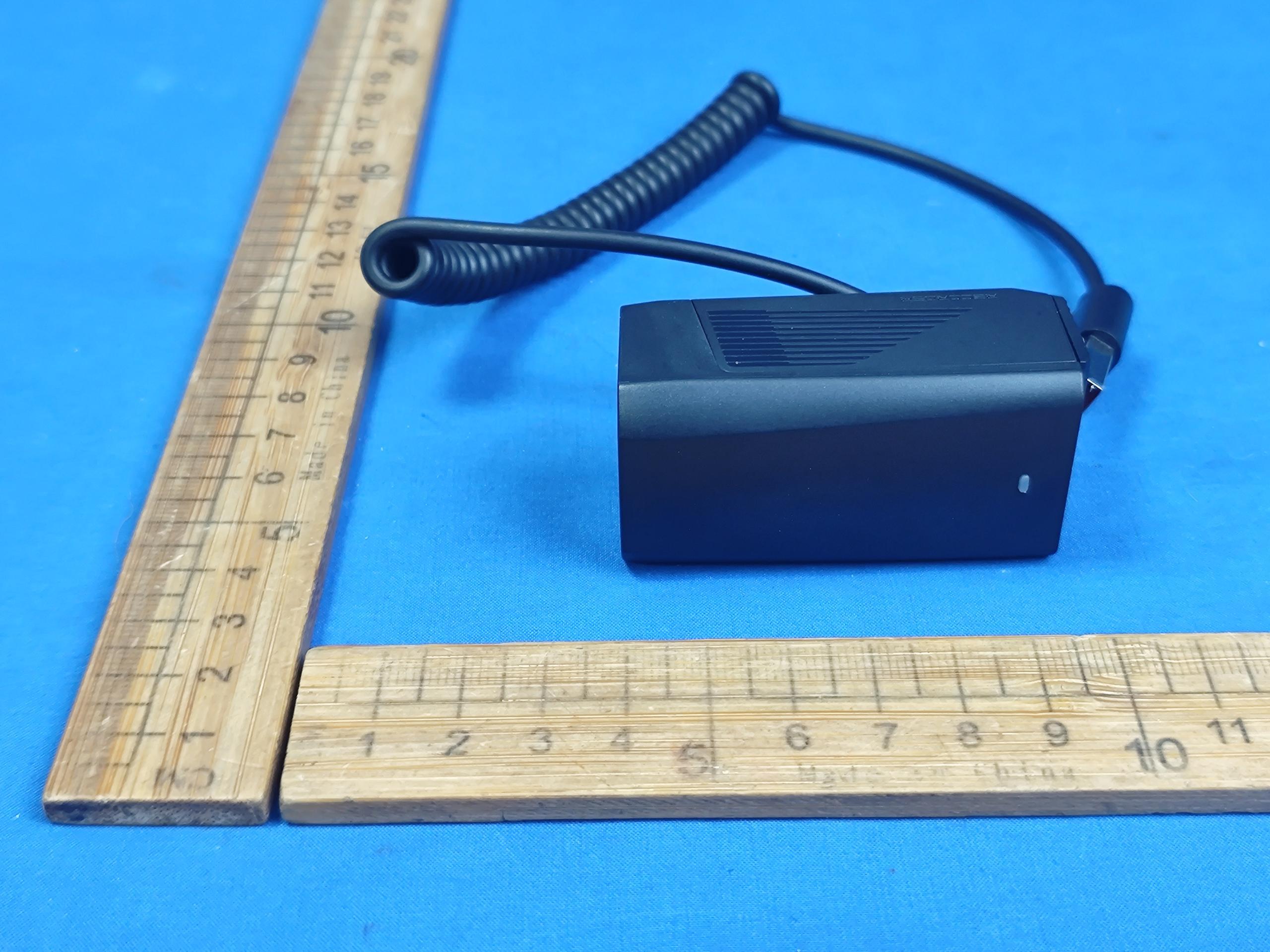

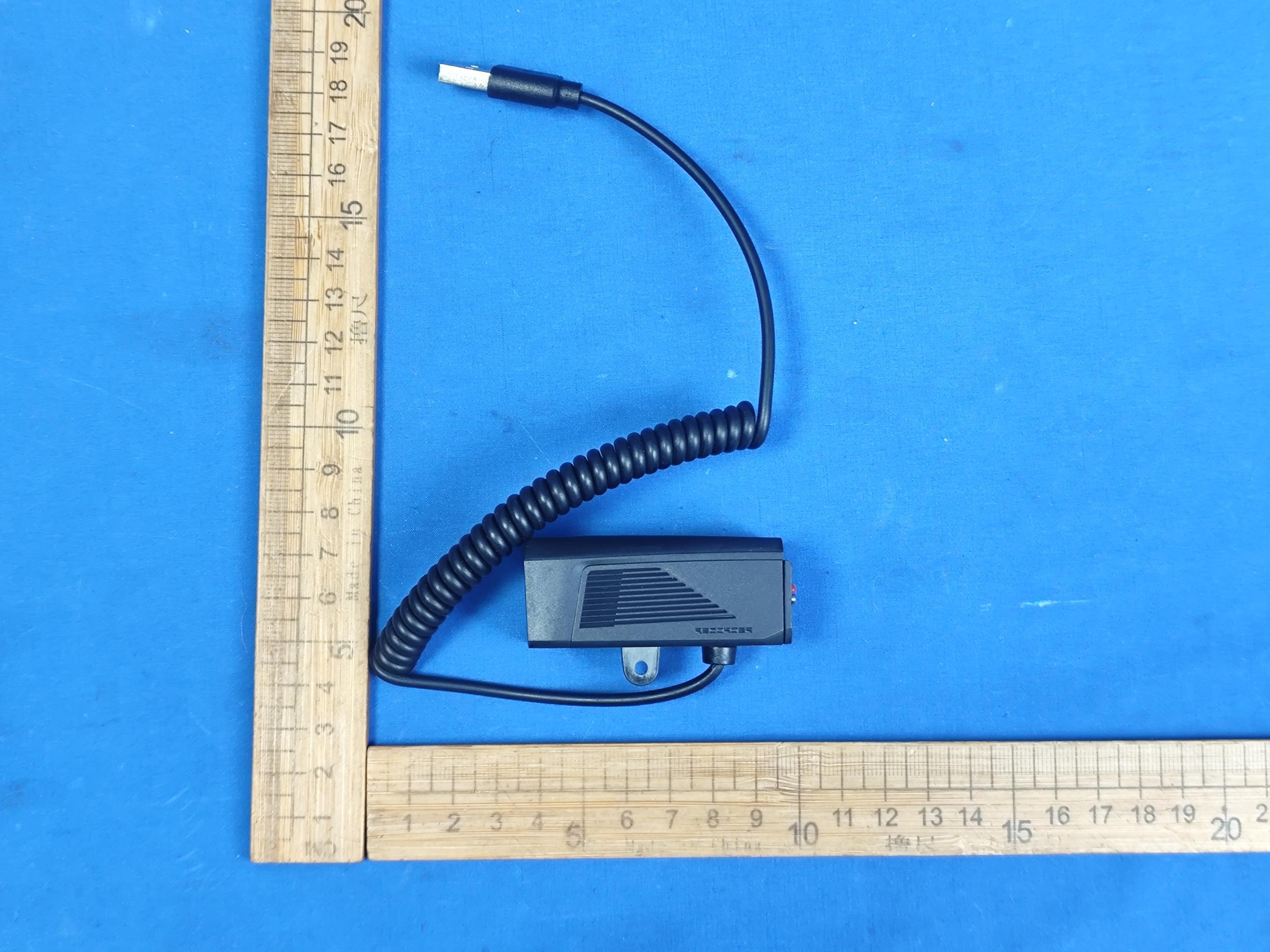

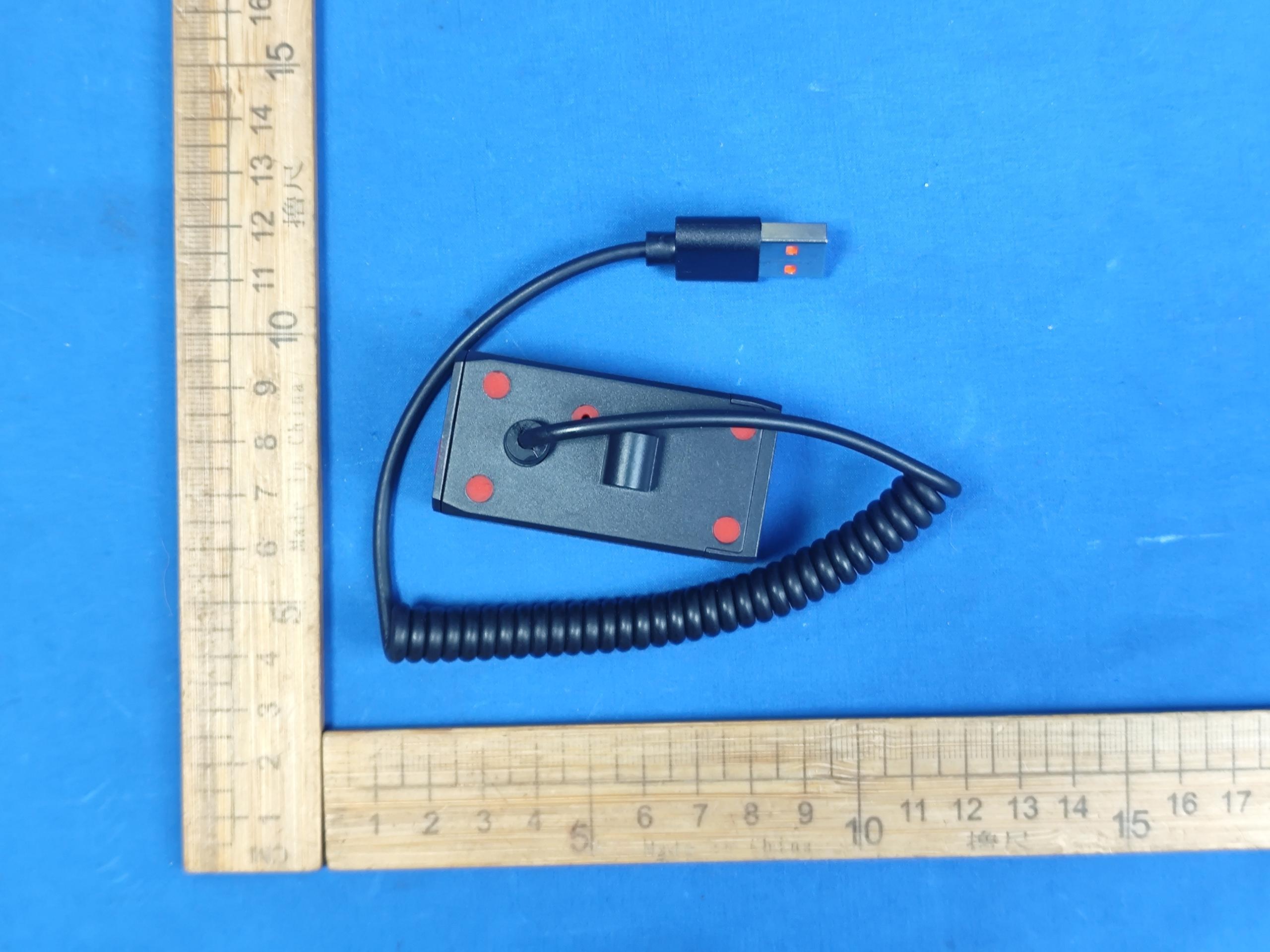

Externalphotos FCC ID: 2AUDZ-D8

D8 FCCID:2AUDZ-D8 Size:1.5mm*3.5mm

Internalphotos FCC ID: 2AUDZ-D8 Antenna

SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD 102A,102B,Building2,ShanghenglangNewIndustrialZone,ShanghenglangCommunity, DalangStreet,LonghuaDistrict,Shenzhen,Guangdong,People’sRepublicofChina,518000 Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V06 ReportTemplateRevisionDate:2026-01-30 RFExposureEvaluationReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20260100095E-02 Applicant: ShenzhenKeithyInnovationTechnologyCo.,Ltd. AddressofApplicant: RM101,BuildingB,MiliCulturalandCreativePark,No.6,ChangfaEastRoad, YangmeiCommunity,BantianStreet,LonggangDistrict,Shenzhen EquipmentUnderTest(EUT): EUTName:DashboardCamera ModelNo.:D1,D2,D3,D4,D5,D6,D7,D9,D10,D11,D12,D13,D15,D16,D17,D18, D19,D20,D21,D22,D23,D24,D25,D26,D27,D28,D29,D30,D50,D60, D70,D80,D90,D100 TestModelNo.:D8 BrandName:N/A FCCID:2AUDZ-D8 Standards: 47CFRPart1.1307 47CFRPart1.1310 447498D04InterimGeneralRFExposureGuidancev01 DateofReceipt:2026-01-13 DateofTest:2026-01-13to2026-05-22 DateofIssue:2026-6-2 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD ReportNo.:CQASZ20260100095E-02 Page:2of6 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20260100095E-02Rev.01 Initialreport 2026-6-2 SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD ReportNo.:CQASZ20260100095E-02 Page:3of6 2Contents Page 1VERSION............................................................................................................................................................................2 2CONTENTS........................................................................................................................................................................3 ..................................................................................................................................................................................................3 3GENERALINFORMATION..............................................................................................................................................4 3.1CLIENTINFORMATION...................................................................................................................................................4 3.2GENERALDESCRIPTIONOFEUT...................................................................................................................................4 3.3GENERALDESCRIPTIONOF2.4GWIFICLASSIC...........................................................................................................4 4MPEEVALUATION...........................................................................................................................................................5 4.1RFEXPOSURECOMPLIANCEREQUIREMENT.................................................................................................................5 4.1.1Limits....................................................................................................................................................................5 4.1.2TestProcedure...................................................................................................................................................5 4.1.3EUTRFExposure..............................................................................................................................................6 SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD ReportNo.:CQASZ20260100095E-02 Page:4of6 3GeneralInformation 3.1ClientInformation Applicant: ShenzhenKeithyInnovationTechnologyCo.,Ltd. AddressofApplicant: RM101,BuildingB,MiliCulturalandCreativePark,No.6,ChangfaEast Road,YangmeiCommunity,BantianStreet,LonggangDistrict,Shenzhen Manufacturer: ShenzhenKeithyInnovationTechnologyCo.,Ltd. AddressofManufacturer: RM101,BuildingB,MiliCulturalandCreativePark,No.6,ChangfaEast Road,YangmeiCommunity,BantianStreet,LonggangDistrict,Shenzhen Factory: ShenzhenKeithyInnovationTechnologyCo.,Ltd. AddressofFactory: RM101,BuildingB,MiliCulturalandCreativePark,No.6,ChangfaEast Road,YangmeiCommunity,BantianStreet,LonggangDistrict,Shenzhen 3.2GeneralDescriptionofEUT ProductName: DashboardCamera ModelNo.: D1,D2,D3,D4,D5,D6,D7,D9,D10,D11,D12,D13,D15,D16,D17, D18,D19,D20,D21,D22,D23,D24,D25,D26,D27,D28,D29,D30, D50,D60,D70,D80,D90,D100 TestModelNo.: D8 TradeMark: N/A SoftwareVersion: D6-V1.3 HardwareVersion: D6_HX3508_V1.1 EUTPowerSupply: Li-ionbatteryDC3.7V60mAh,ChargebyDC5Vforadapter 3.3GeneralDescriptionof2.4GWIFIClassic OperationFrequency: 2412MHz~2462MHz TypeofModulation: IEEEfor802.11b:DSSS(CCK,DQPSK,DBPSK) IEEEfor802.11g:OFDM(64QAM,16QAM,QPSK,BPSK) IEEEfor802.11n(HT20):OFDM(64QAM,16QAM,QPSK,BPSK) NumberofChannel: IEEE802.11b/g,IEEE802.11nHT20:11Channels ChannelSeparation: 5MHz TransferRate: IEEEfor802.11b: 1Mbps/2Mbps/5.5Mbps/11Mbps IEEEfor802.11g: 6Mbps/9Mbps/12Mbps/18Mbps/24Mbps/36Mbps/48Mbps/54Mbps IEEEfor802.11n(HT20): 6.5Mbps/13Mbps/19.5Mbps/26Mbps/39Mbps/52Mbps/58.5Mbps/65Mbps SampleType: MobilePortable AntennaType:Chipantenna AntennaGain:1.75dBi Note： Theaboveparameterswilldirectlyaffectthetestresults.Theinformationisprovidedbytheapplicant. SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD ReportNo.:CQASZ20260100095E-02 Page:5of6 4MPEEvaluation 4.1RFExposureComplianceRequirement 4.1.1Limits ThetableappliestoanyRFsource(i.e.,singlefixed,mobile,andportabletransmitters)andspecifiespower anddistancecriteriaforeachofthefivefrequencyrangesusedfortheMPElimits.Thesecriteriaapplyat separationdistancesfromanypartoftheradiatingstructureofatleastλ/2π.Thethresholdsarebasedonthe generalpopulationMPElimitswithasingleperfectreflection,outsideofthereactivenear-field,andinthemain beamoftheradiator.FormobiledevicesthatarenotexemptperTableB.1[Table1of§1.1307(b)(…

Text truncated - open the document above for the full version.

承 認 書 SPECIFICATION FOR APPROVAL 客戶名稱 CUSTOMER ： 客戶料號 CUSTOMER’S P/N ： 料號 PART NUMBER ： JHUN3216F245C04T 規格 DESCRIPTION ： Chip Antenna 3216 L Ant 2.45G Type 04 版本 VERSION ： V1.0 日期 ISSUE DATE ： 2025/04/28 客 戶 承 認 CUSTOMER APPROVED 工 程 部 R&D CENTER 承 認 APPROVAL 確 認 CHECKED 製 作 DRAWN Ray Tennyson Snow 萬誠科技股份有限公司 OneWave Electronic Co., Ltd. 11261台北市北投區立功街151號1樓 1F, No. 151, Li Gong Street, Beitou District, Taipei City 11261, Taiwan 電話: (02) 2898-2220 TEL: +886 2 2898-2220 傳真: (02) 2898-5055 FAX: +886 2 2898-5055 2/11 ONEWAVE TECHNOLOGY CO., LTD. 3216 Chip antenna For Bluetooth / WLAN Applications Dimension (mm) L 3.23 ± 0.20 W 1.66 ± 0.20 T 0.45 ± 0.20 P/N: JHUN3216F245C04T 3/11 ONEWAVE TECHNOLOGY CO., LTD. Part Number Information JHUN 3216 F 245 C 04 T A B C D E F G A Product Series Antenna B Dimension L x W 3.2 x 1.6mm (±0.2mm) C Material High K material D Working Frequency 2.4 ~ 2.5GHz E Feeding mode PIFA & Single Feeding F Antenna type Type = 04 G Internal Code 1. Electrical Specification Remark : Bandwidth & Peak Gain was measured under evaluation board of next page Specification Part Number JHUN3216F245C04T Central Frequency 2450 MHz Bandwidth 120 (Min.) MHz Return Loss -6.5 (Max) dB Peak Gain 1.75 dBi Impedance 50 Ohm Operating Temperature -40～+110 °C Maximum Power 4 W Resistance to Soldering Heats 10 ( @ 260°C) sec. Polarization Linear Azimuth Beamwidth Omni-directional Termination Cu / Sn (Leadless) 4/11 ONEWAVE TECHNOLOGY CO., LTD. 2. Recommended PCB Pattern Evaluation Board Dimension 2 nd Evaluation Board Dimension Suggested Matching Circuit 重要資訊 : 匹配元件建議使用精準度高的電感±0.1~0.3nH、電容±0.1pF 5/11 ONEWAVE TECHNOLOGY CO., LTD. Layout Dimensions in Clearance area( Size=5.9*5.0mm) FootPrint (Unit : mm) ◆ 2 nd Layout Dimensions in Clearance area( Size=8.0*3.0mm) Matching Circuit 50 ohm transmission Line 6/11 ONEWAVE TECHNOLOGY CO., LTD. 3. Measurement Results Return Loss 7/11 ONEWAVE TECHNOLOGY CO., LTD. Radiation Pattern Efficiency Peak Gain Directivity 2400MHz 82.36 % 1.69 dBi 2.53 dBi 2450MHz 85.65 % 1.75 dBi 2.42 dBi 2500MHz 83.88 % 1.71 dBi 2.47 dBi Chamber Coordinate System X Z Y 8/11 ONEWAVE TECHNOLOGY CO., LTD. 4.Reliability and Test Condictions ITEM REQUIREMENTS TEST CONDITION Solderability 1. Wetting shall exceed 90% coverage 2. No visible mechanical damage Pre-heating temperature:150°C/60sec. Solder temperature:230±5°C Duration:4±1sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Solder heat Resistance 1. No visible mechanical damage 2. Central Freq. change :within ± 6% 10±0.5 sec. 60sec .. TEMP (°C) 150°C 260°C Pre-heating temperature:150°C/60sec. Solder temperature:260±5°C Duration:10±0.5sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Component Adhesion (Push test) 1. No visible mechanical damage The device should be reflow soldered(230±5°C for 10sec.) to a tinned copper substrate A dynometer force gauge should be applied the side of the component. The device must with-ST-F 0.5 Kg without failure of the termination attached to component. Component Adhesion (Pull test) 1. No visible mechanical damage Insert 10cm wire into the remaining open eye bend ,the ends of even wire lengths upward and wind together. Terminal shall not be remarkably damaged. Thermal shock 1. No visible mechanical damage 2. Central Freq. change :within ±6% Phase Temperature(°C) Time(min) 1 +110±5°C 30±3 2 Room Temperature Within 3sec 3 -40±2°C 30±3 4 Room Temperature Within 3sec +110°C=>30±3min -40°C=>30±3min Test cycle:10 cycles The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to High Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature: +110±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to Low Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature:-40±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Humidity 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature: 40±2°C Humidity: 90% to 95% RH Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. 4±1 sec. 60sec TEMP (°C) 150°C 230°C 9/11 ONEWAVE TECHNOLOGY CO., LTD. 5.Soldering and Mounting Mildly activated rosin fluxes are preferred. The minimum amount of solder can lead to damage from the stresses caused by the difference in coefficients of expansion between solder, chip and substrate. The terminations are suitable for all wave and re-flow soldering systems. If hand soldering cannot be avoided, the preferred technique is the utilization of hot air soldering tools. Recommended temperature profiles for re-flow soldering in Figure 1. Products attachment with a soldering iron is discouraged due to the inherent process control limitations. In the event that a soldering iron must be employed the following precautions are recommended. ‧Preheat circuit and products to 150°C ‧Never contact the ceramic with the iron tip ‧Use a 20 watt soldering iron with tip diameter of 1.0mm ‧280°C tip temperature (max) ‧1.0mm tip diameter (max) ‧Limit soldering time to 3 sec. SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) 60~120 s 10s max. 30~60s 250~260 230 180 150 TIME(sec.) Reflow Soldering SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) within 3s Gradualcooling 150 TIME(sec.) Iron Soldering Over 60s 350 300 10/11 ONEWAVE TECHNOLOGY CO., LTD. 6.Packaging Information Tape Specification: Reel Specification: (7’’, Φ180 mm) Tape Width(mm) A(mm) B(mm) C(mm) D(mm) Chip/Reel(pcs) 8 9.0±0.5 60±2 13.5±0.5 178±2 3000 11/11 ONEWAVE TECHNOLOGY CO., LTD. 7.Storage and Transportation Information Storage Conditions To maintain the solderability of terminal electrodes: 1. Temperature and humidity conditions: -10~ 40°C and 30~70% RH. 2. Recommended…

Text truncated - open the document above for the full version.

SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD 102A,102B,Building2,ShanghenglangNewIndustrialZone,ShanghenglangCommunity, DalangStreet,LonghuaDistrict,Shenzhen,Guangdong,People’sRepublicofChina,518000 Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V06 ReportTemplateRevisionDate:2026-01-30 TESTREPORT Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonly tothesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20260100095E-01 Applicant: ShenzhenKeithyInnovationTechnologyCo.,Ltd. AddressofApplicant: RM101,BuildingB,MiliCulturalandCreativePark,No.6,ChangfaEastRoad, YangmeiCommunity,BantianStreet,LonggangDistrict,Shenzhen EquipmentUnderTest(EUT): Product:DashboardCamera ModelNo.:D1,D2,D3,D4,D5,D6,D7,D9,D10,D11,D12,D13,D15,D16,D17,D18,D19, D20,D21,D22,D23,D24,D25,D26,D27,D28,D29,D30,D50,D60,D70,D80, D90,D100 TestModelNo.:D8 BrandName:N/A FCCID:2AUDZ-D8 Standards:47CFRPart15,SubpartC KDB558074D0115.247MeasGuidancev05r02 ANSIC63.10:2020 DateofReceipt:2026-01-13 DateofTest:2026-01-13to2026-05-22 DateofIssue:2026-6-2 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD ReportNo.:CQASZ20260100095E-01 Page:2of89 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20260100095E-01Rev.01 Initialreport 2026-6-2 SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD ReportNo.:CQASZ20260100095E-01 Page:3of89 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement47CFRPart15.203N/APASS ACPowerLine Conducted Emission 47CFRPart15.207 ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a- 2024 PASS ConductedPeak& AverageOutputPower 47CFRPart15.247 ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a- 2024 PASS 6dBOccupied Bandwidth 47CFRPart15.247 ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a- 2024 PASS PowerSpectralDensity47CFRPart15.247 ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a- 2024 PASS Band-edgeforRF ConductedEmissions 47CFRPart15.247 ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a- 2024 PASS RFConductedSpurious Emissions 47CFRPart15.247 ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a- 2024 PASS RadiatedSpurious Emissions 47CFRPart15.209 ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a- 2024 PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15.205/15.209 ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a- 2024 PASS SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD ReportNo.:CQASZ20260100095E-01 Page:4of89 Remark: Thetestedsample(s)andthesampleinformationareprovidedbytheclient. Tx:InthiswholereportTx(ortx)meansTransmitter. Rx:InthiswholereportRx(orrx)meansReceiver. RF:InthiswholereportRFmeansRadiatedFrequency. CH:InthiswholereportCHmeanschannel. Volt:InthiswholereportVoltmeansVoltage. Temp:InthiswholereportTempmeansTemperature. Humid:InthiswholereportHumidmeanshumidity. Press:InthiswholereportPressmeansPressure. N/A:Inthiswholereportnotapplication SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD ReportNo.:CQASZ20260100095E-01 Page:5of89 3Contents Page 1VERSION......................................................................................................................................................................2 2TESTSUMMARY........................................................................................................................................................3 3CONTENTS..................................................................................................................................................................5 4GENERALINFORMATION.......................................................................................................................................7 4.1CLIENTINFORMATION.............................................................................................................................................7 4.2GENERALDESCRIPTIONOFEUT..........................................................................................................................7 4.3PRODUCTSPECIFICATIONSUBJECTIVETOTHISSTANDARD................................................................................7 4.4TESTENVIRONMENTANDMODE.........................................................................................................................10 4.5DESCRIPTIONOFSUPPORTUNITS......................................................................................................................14 4.6TESTLOCATION....................................................................................................................................................14 4.7TESTFACILITY......................................................................................................................................................14 4.8TESTCONFIGURATION..........................................................................................................................................14 4.9STATEMENTOFTHEMEASUREMENTUNCERTAINTY...........................................................................................15 4.10DEVIATIONFROMSTANDARDS..........................................................................................................................15 4.11ABNORMALITIESFROMSTANDARDCONDITIONS..............................................................................................15 4.12OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..................................................................................15 4.13EQUIPMENTLIST................................................................................................................................................16 5TESTRESULTSANDMEASUREMENTDATA.......................................................................…

Text truncated - open the document above for the full version.

Setupphotos 1Photographs-EUTTestSetup 1.1RadiatedSpuriousEmission 9kHz~30MHz: 30MHz~1GHz: FCC ID: 2AUDZ-D8 Above1GHz: 1.2ConductedEmission 1.3RFConductedmeasurement
