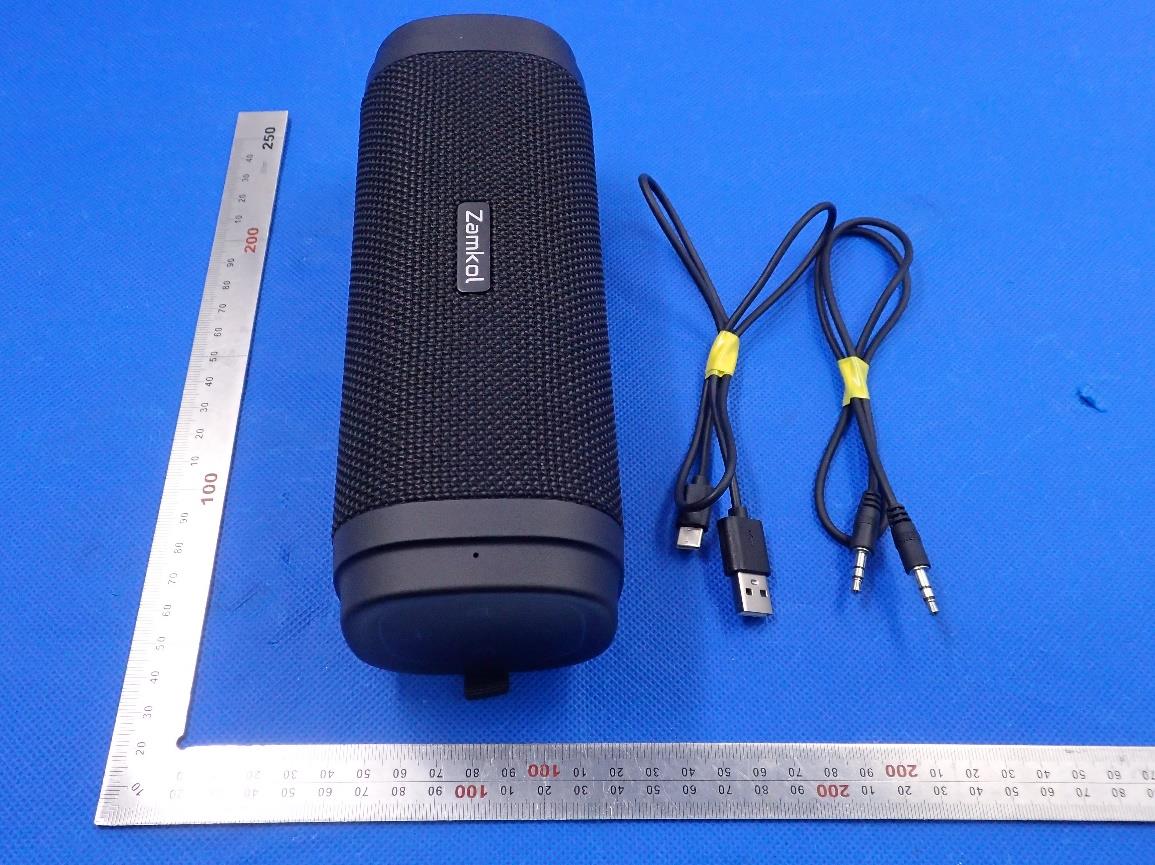

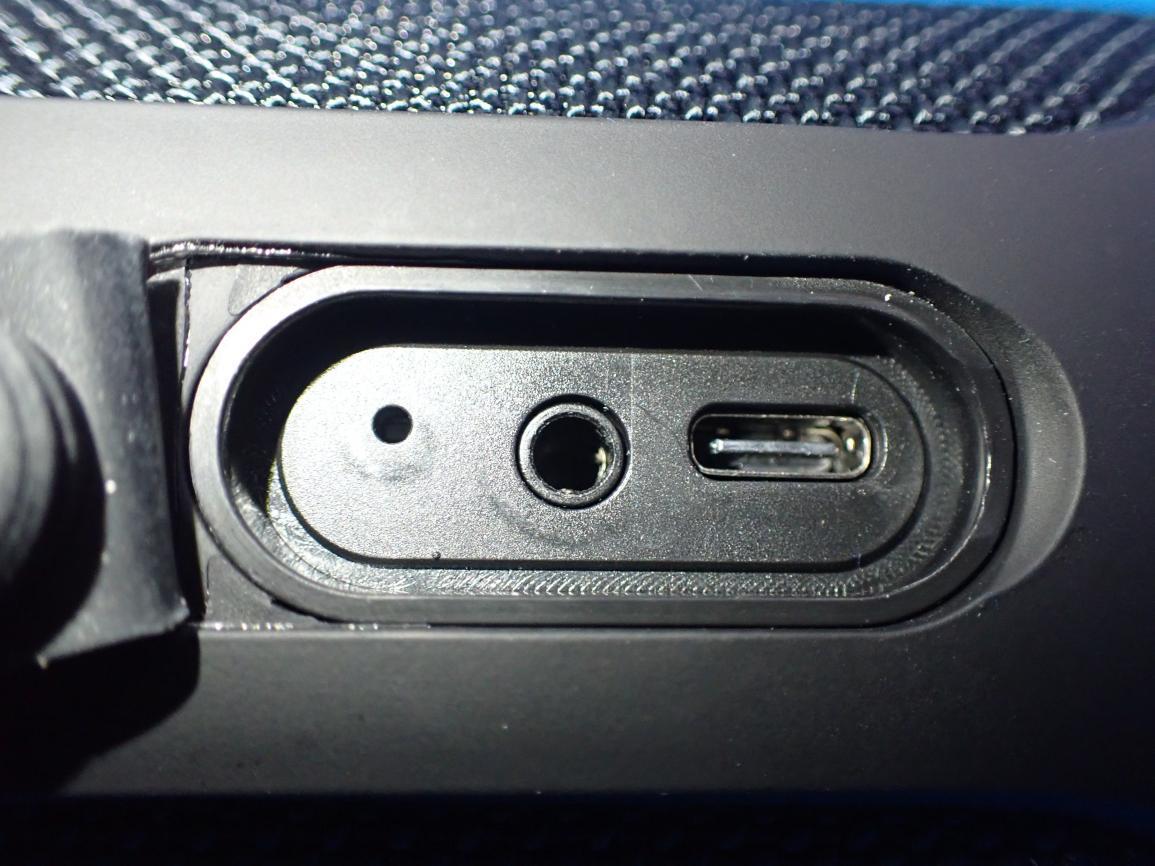

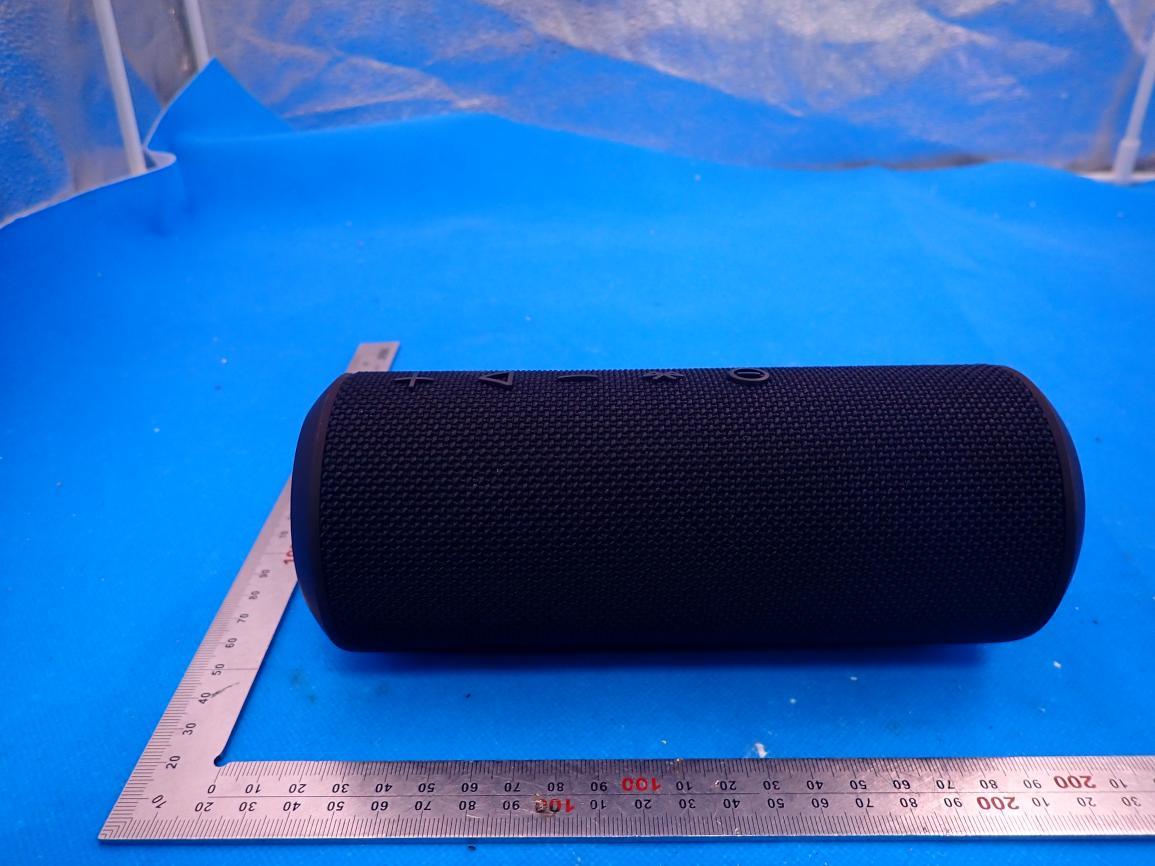

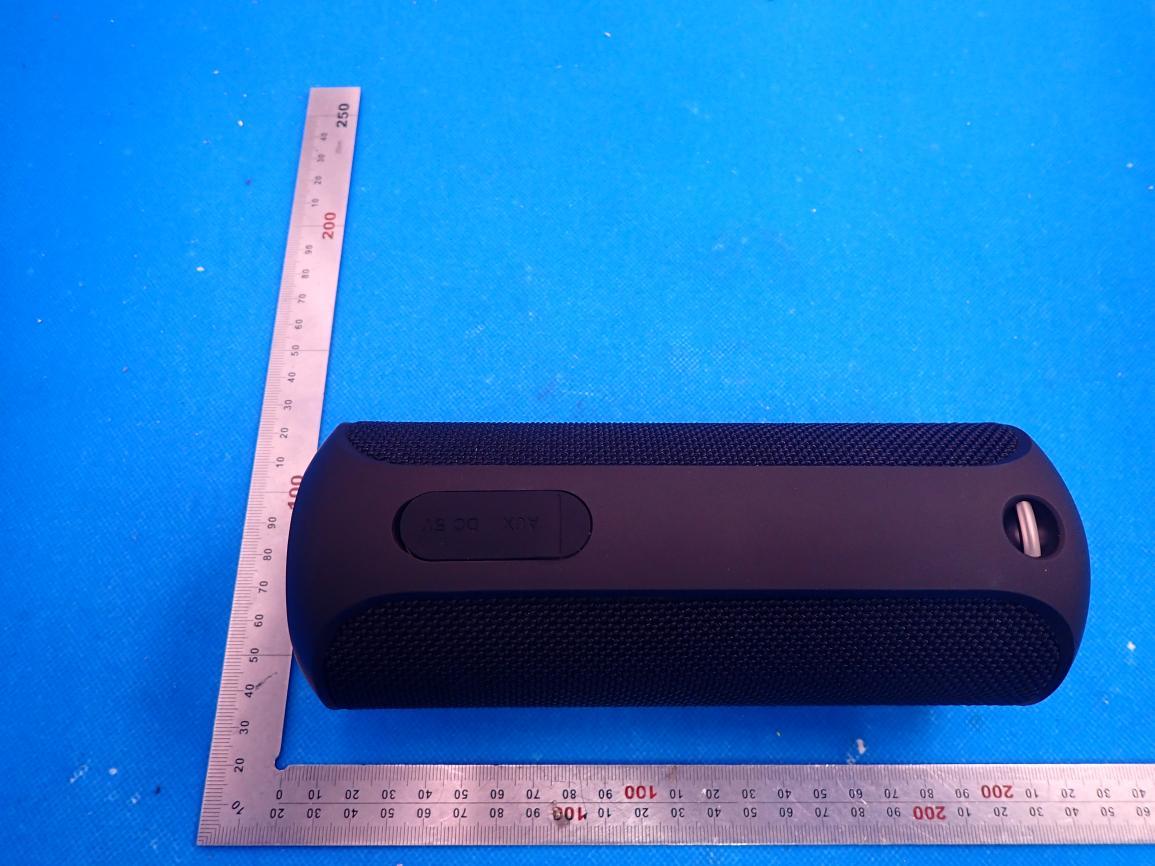

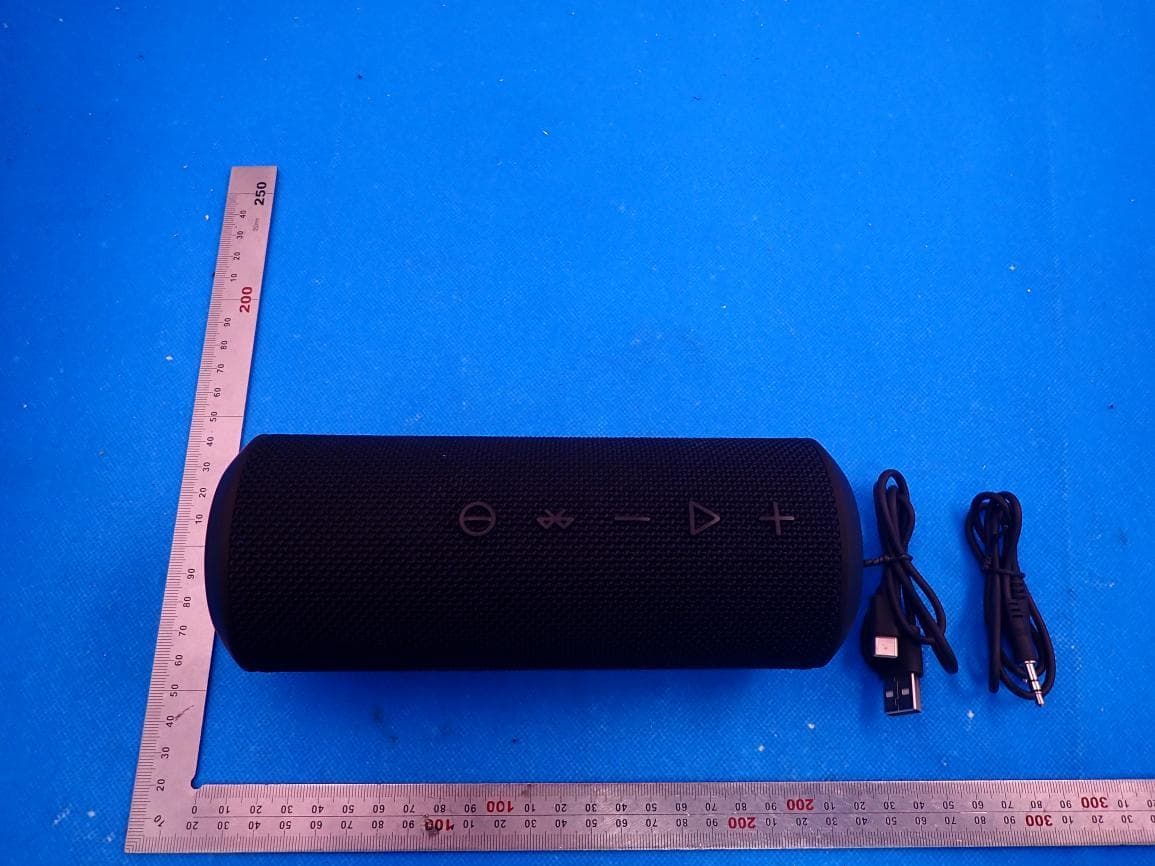

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)

FCC ID Label Location 30mm&30mm FCC ID: 2AUEW-ZK606PRO

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 BT Antenna INTERNAL VIEW OF EUT-5

RFEXPOSUREEVALUATION 1.PRODUCTINFORMATION ProductDescriptionWirelessStereoSpeaker ModelNameZK606Pro FCCID2AUEW-ZK606PRO 2.EVALUATIONMETHOD Accordingto447498D01GeneralRFExposureGuidancev06 The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR. Wheref(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation. 3.CALCULATION P t =-3.274dBm=0.470mW ThevalueoftheMaximumoutputpowerP t isreferredtothetestreportofthe CFR47 §15.247. TheresultforRFexposureevaluationSAR=(0.470mW/5mm).[√2.441GHz)]=0.147<3.0 for1-gSARand≤7.5for10-gextremitySAR. 4.CONCLUSION TheSARevaluationisnotrequired.

Page1of78 FCCTestReport ReportNo.:AGC02169210606FE03 FCCID:2AUEW-ZK606PRO APPLICATIONPURPOSE:OriginalEquipment PRODUCTDESIGNATION:WirelessStereoSpeaker BRANDNAME:Zamkol MODELNAME:ZK606Pro APPLICANT:ShenzhenYikexinNetworkTechnologyCo.,Ltd. DATEOFISSUE:Jul.06,2021 STANDARD(S):FCCPart15.247 REPORTVERSION:V1.0 AttestationofGlobalCompliance(Shenzhen)Co.,Ltd ReportNo.:AGC02169210606FE03 Page 2 of78 REPORTREVISERECORD ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/Jul.06,2021ValidInitialRelease ReportNo.:AGC02169210606FE03 Page 3 of78 TABLEOFCONTENTS 1.VERIFICATIONOFCONFORMITY...............................................................................................................................5 2.GENERALINFORMATION.............................................................................................................................................6 2.1.PRODUCTDESCRIPTION.....................................................................................................................................6 2.2.TABLEOFCARRIERFREQUENCYS..................................................................................................................6 2.3.RECEIVERINPUTBANDWIDTH...........................................................................................................................7 2.4.EXAMPLEOFAHOPPINGSEQUENCYINDATAMODE................................................................................7 2.5.EQUALLYAVERAGEUSEOFFREQUENCIESANDBEHAVIOUR...............................................................7 2.6.RELATEDSUBMITTAL(S)/GRANT(S)...............................................................................................................8 2.7.TESTMETHODOLOGY...........................................................................................................................................8 2.8.SPECIALACCESSORIES.......................................................................................................................................8 2.9.EQUIPMENTMODIFICATIONS.............................................................................................................................8 2.10.ANTENNAREQUIREMENT.................................................................................................................................8 3.MEASUREMENTUNCERTAINTY.................................................................................................................................9 4.DESCRIPTIONOFTESTMODES..............................................................................................................................10 5.SYSTEMTESTCONFIGURATION.............................................................................................................................11 5.1.CONFIGURATIONOFEUTSYSTEM.................................................................................................................11 5.2.EQUIPMENTUSEDINTESTEDSYSTEM........................................................................................................11 5.3.SUMMARYOFTESTRESULTS..........................................................................................................................11 6.TESTFACILITY..............................................................................................................................................................12 7.PEAKOUTPUTPOWER..............................................................................................................................................13 7.1.MEASUREMENTPROCEDURE.........................................................................................................................13 7.2.TESTSET-UP(BLOCKDIAGRAMOFCONFIGURATION)...........................................................................13 7.3.LIMITSANDMEASUREMENTRESULT............................................................................................................14 8.20DBBANDWIDTH.......................................................................................................................................................19 8.1.MEASUREMENTPROCEDURE.........................................................................................................................19 8.2.TESTSET-UP(BLOCKDIAGRAMOFCONFIGURATION)...........................................................................19 8.3.LIMITSANDMEASUREMENTRESULTS.........................................................................................................20 9.CONDUCTEDSPURIOUSEMISSION.......................................................................................................................25 9.1.MEASUREMENTPROCEDURE.........................................................................................................................25 ReportNo.:AGC02169210606FE03 Page 4 of78 9.2.TESTSET-UP(BLOCKDIAGRAMOFCONFIGURATION)...........................................................................25 9.3.MEASUREMENTEQUIPMENTUSED...............................................................................................................25 9.4.LIMITSANDMEASUREMENTRESULT............................................................................................................25 10.RADIATEDEMISSION................................................................................................................................................46 10.1.MEASUREMENTPROCEDURE.......................................................................................................................46 10.2.TESTSETUP.........................................................................................................................................................48 10.3.LIMITSANDMEASUREMENTRESULT..........................................................................................................49 10.4.TESTRESULT........................................................................…

Text truncated - open the document above for the full version.

ReportNo.:AGC02169210606FE03 Page 30 of78 Test_Graph_BR_ANT1_2480_1Mbps_HigherBandEmissions Test_Graph_EDR_ANT1_2402_2Mbps_ReferenceLevel ReportNo.:AGC02169210606FE03 Page 31 of78 Test_Graph_EDR_ANT1_2402_2Mbps_LowerBandEmissions Test_Graph_EDR_ANT1_2402_2Mbps_HigherBandEmissions ReportNo.:AGC02169210606FE03 Page 32 of78 Test_Graph_EDR_ANT1_2441_2Mbps_ReferenceLevel Test_Graph_EDR_ANT1_2441_2Mbps_LowerBandEmissions ReportNo.:AGC02169210606FE03 Page 33 of78 Test_Graph_EDR_ANT1_2441_2Mbps_HigherBandEmissions Test_Graph_EDR_ANT1_2480_2Mbps_ReferenceLevel ReportNo.:AGC02169210606FE03 Page 34 of78 Test_Graph_EDR_ANT1_2480_2Mbps_LowerBandEmissions Test_Graph_EDR_ANT1_2480_2Mbps_HigherBandEmissions ReportNo.:AGC02169210606FE03 Page 35 of78 Test_Graph_EDR_ANT1_2402_3Mbps_ReferenceLevel Test_Graph_EDR_ANT1_2402_3Mbps_LowerBandEmissions ReportNo.:AGC02169210606FE03 Page 36 of78 Test_Graph_EDR_ANT1_2402_3Mbps_HigherBandEmissions Test_Graph_EDR_ANT1_2441_3Mbps_ReferenceLevel ReportNo.:AGC02169210606FE03 Page 37 of78 Test_Graph_EDR_ANT1_2441_3Mbps_LowerBandEmissions Test_Graph_EDR_ANT1_2441_3Mbps_HigherBandEmissions ReportNo.:AGC02169210606FE03 Page 38 of78 Test_Graph_EDR_ANT1_2480_3Mbps_ReferenceLevel Test_Graph_EDR_ANT1_2480_3Mbps_LowerBandEmissions ReportNo.:AGC02169210606FE03 Page 39 of78 Test_Graph_EDR_ANT1_2480_3Mbps_HigherBandEmissions ReportNo.:AGC02169210606FE03 Page 40 of78 TestGraphsofBandEdgeEmissionsinNon-RestrictedFrequencyBands Test_Graph_BR_ANT1_2402_1Mbps_LowerBandEdgeEmissions Test_Graph_BR_ANT1_2480_1Mbps_HigherBandEdgeEmissions ReportNo.:AGC02169210606FE03 Page 41 of78 Test_Graph_BR_HOP_ANT1_NA_1Mbps_LowerBandEdgeEmissions Test_Graph_BR_HOP_ANT1_NA_1Mbps_HigherBandEdgeEmissions ReportNo.:AGC02169210606FE03 Page 42 of78 Test_Graph_EDR_ANT1_2402_2Mbps_LowerBandEdgeEmissions Test_Graph_EDR_ANT1_2480_2Mbps_HigherBandEdgeEmissions

ReportNo.:AGC02169210606FE03 Page 43 of78 Test_Graph_EDR_HOP_ANT1_NA_2Mbps_LowerBandEdgeEmissions Test_Graph_EDR_HOP_ANT1_NA_2Mbps_HigherBandEdgeEmissions ReportNo.:AGC02169210606FE03 Page 44 of78 Test_Graph_EDR_ANT1_2402_3Mbps_LowerBandEdgeEmissions Test_Graph_EDR_ANT1_2480_3Mbps_HigherBandEdgeEmissions ReportNo.:AGC02169210606FE03 Page 45 of78 Test_Graph_EDR_HOP_ANT1_NA_3Mbps_LowerBandEdgeEmissions Test_Graph_EDR_HOP_ANT1_NA_3Mbps_HigherBandEdgeEmissions ReportNo.:AGC02169210606FE03 Page 46 of78 10.RADIATEDEMISSION 10.1.MEASUREMENTPROCEDURE 1.TheEUTwasplacedonthetopoftheturntable0.8or1.5meteraboveground.Thephasecenterofthe receivingantennamountedonthetopofaheight-variableantennatowerwasplaced3metersfaraway fromtheturntable. 2.PowerontheEUTandallthesupportingunits.Theturntablewasrotatedby360degreestodeterminethe positionofthehighestradiation. 3.Theheightofthebroadbandreceivingantennawasvariedbetweenonemeterandfourmetersabove groundtofindthemaximumemissionsfieldstrengthofbothhorizontalandverticalpolarization. 4.Foreachsuspectedemission,theantennatowerwasscan(from1Mto4M)andthentheturntablewas rotated(from0degreeto360degrees)tofindthemaximumreading. 5.Setthetest-receiversystemtoPeakorCISPRquasi-peakDetectFunctionwithspecifiedbandwidthunder MaximumHoldMode. 6.Foremissionsabove1GHz,use1MHzRBWand3MHzVBWforpeakreading.Placethemeasurement antennaawayfromeachareaoftheEUTdeterminedtobeasourceofemissionsatthespecified measurementdistance,whilekeepingthemeasurementantennaaimedatthesourceofemissionsateach frequencyofsignificantemissions,withpolarizationorientedformaximumresponse.Themeasurement antennamayhavetobehigherorlowerthantheEUT,dependingontheradiationpatternoftheemission andstayingaimedattheemissionsourceforreceivingthemaximumsignal.Thefinalmeasurement antennaelevationshallbethatwhichmaximizestheemissions.Themeasurementantennaelevationfor maximumemissionsshallberestrictedtoarangeofheightsoffrom1mto4mabovethegroundor referencegroundplane. 7.Whentheradiatedemissionslimitsareexpressedintermsoftheaveragevalueoftheemissions,and pulsedoperationisemployed,themeasurementfieldstrengthshallbedeterminedbyaveragingoverone completepulsetrain,includingblankingintervals,aslongasthepulsetraindoesnotexceed0.1seconds. Asanalternative(providedthetransmitteroperatesforlongerthan0.1seconds)orincaseswherethe pulsetrainexceeds0.1seconds,themeasuredfieldstrengthshallbedeterminedfromtheaverage absolutevoltageduringa0.1secondintervalduringwhichthefieldstrengthisatitsmaximumvalues. 8.IftheemissionsleveloftheEUTinpeakmodewas3dBlowerthantheaveragelimitspecified,thentesting willbestoppedandpeakvaluesofEUTwillbereported,otherwise,theemissionswhichdonothave3dB marginwillberepeatedonebyoneusingthequasi-peakmethodforbelow1GHz. 9.Fortestingabove1GHz,theemissionsleveloftheEUTinpeakmodewaslowerthanaveragelimit(that meanstheemissionslevelinpeakmodealsocomplieswiththelimitinaveragemode),thentestingwillbe stoppedandpeakvaluesofEUTwillbereported,otherwise,theemissionswillbemeasuredinaverage modeagainandreported. 10.Incasetheemissionislowerthan30MHz,loopantennahastobeusedformeasurementandthe recordeddatashouldbeQPmeasuredbyreceiver.High-Lowscanisnotrequiredinthiscase. ReportNo.:AGC02169210606FE03 Page 47 of78 Thefollowingtableisthesettingofspectrumanalyzerandreceiver. SpectrumParameterSetting Start~StopFrequency9KHz~150KHz/RB200HzforQP Start~StopFrequency150KHz~30MHz/RB9KHzforQP Start~StopFrequency30MHz~1000MHz/RB120KHzforQP Start~StopFrequency 1GHz~26.5GHz 1MHz/3MHzforPeak,1MHz/3MHzforAverage ReceiverParameterSetting Start~StopFrequency9KHz~150KHz/RB200HzforQP Start~StopFrequency150KHz~30MHz/RB9KHzforQP Start~StopFrequency30MHz~1000MHz/RB120KHzforQP ReportNo.:AGC02169210606FE03 Page 48 of78 10.2.TESTSETUP RadiatedEmissionTest-SetupFrequencyBelow30MHz RADIATEDEMISSIONTESTSETUP30MHz-1000MHz RADIATEDEMISSIONTESTSETUPABOVE1000MHz ReportNo.:AGC02169210606FE03 Page 49 of78 10.3.LIMITSANDMEASUREMENTRESULT 15.209Limitinthebelowtablehastobefollowed Frequencies (MHz) FieldStrength (microvolts/meter) MeasurementDistance (meters) 0.009~0.4902400/F(kHz)300 0.490~1.70524000/F(kHz)30 1.705~30.03030 30~881003 88~2161503 216~9602003 Above9605003 Note:Allmodesweretestedforrestrictedbandradiatedemission,thetestrecordsreportedbelowaretheworst resultcomparedtoothermodes. 10.4.TESTRESULT Radiatedemissionbelow30MHz Theamplitudeofspuriousemissionsfrom9kHzto30MHzwhichareattenuatedmorethan20dBbelowthe permissiblevalueneednotbereported. ReportNo.:AGC02169210606FE03 Page 50 of78 Radiatedemissionfrom30MHzto1000MHz EUTWirelessStereoSpeakerModelNameZK606Pro Temperature 25°C RelativeHumidity55.4% Pressure960hPaTestVoltageNormalVoltage TestModeMode8AntennaHorizontal RESULT:PASS ReportNo.:AGC02169210606FE03 Page 51 of78 EUTWirelessStereoSpeakerModelNameZK606Pro Temperature 25°C RelativeHumidity55.4% Pressure960hPaTestVoltageNormalVoltage TestModeMode8AntennaVertical RESULT:PASS Note:1.Factor=AntennaFactor+Cableloss,Over=Measurement-Limit. 2.Alltestmodeshadbeenpre-tested.Themode8istheworstcaseandrecordedinthereport. ReportNo.:AGC02169210606FE03 Page 52 of78 Radiatedemissionabove1GHz EUTWirelessStereoSpeakerModelNameZK606Pro Temperature 25°C RelativeHumidity55.4% Pressure960hPaTestVoltageNormalVoltage TestModeMode7AntennaHorizontal EUTWirelessStereoSpeakerModelNameZK606Pro Temperature 25°C RelativeHumidity55.4% Pressure960hPaTestVoltageNormalVoltage TestModeMode7AntennaVertical ReportNo.:AGC02169210606FE03 Page 53 of78 EUTWirelessStereoSpeakerModelNameZK606Pro Temperature 25°C RelativeHumidity55.4% Pressure960hPaTestVoltageNormalVoltage TestModeMode8AntennaHorizontal EUTWirelessStereoSpeakerModelNameZK606Pro Temperature 25°C RelativeHumidity55.4% Pressure960hPaTestVoltageNormalVoltage TestModeMode8AntennaVertical ReportNo.:AGC02169210606FE03 Page 54 of78 EUTWirelessStereoSpeakerModelNameZK606Pro Temperature 25°C RelativeHumidity55.4% Pressure960hPaTestVoltageNormalVoltage TestModeMode9AntennaHorizontal EUTWirelessStereoSpeakerModelNameZK606Pro Temperature 25°C Relativ…

Text truncated - open the document above for the full version.

ReportNo.:AGC02169210606FE03 Page 63 of78 Test_Graph_BR_HOP_ANT1_NA_1Mbps_2480_NumberofBurst Test_Graph_BR_HOP_ANT1_NA_1Mbps_2480_TimeperBurst ReportNo.:AGC02169210606FE03 Page 64 of78 13.FREQUENCYSEPARATION 13.1.MEASUREMENTPROCEDURE TheEUTshallhaveitshoppingfunctionenabled.Usethefollowingspectrumanalyzersettings: 1.Span:Wideenoughtocapturethepeaksoftwoadjacentchannels. 2.RBW:StartwiththeRBWsettoapproximately30%ofthechannelspacing;adjustasnecessarytobest identifythecenterofeachindividualchannel. 3.Video(oraverage)bandwidth(VBW)≥RBW. 4.Sweep:Auto.e)Detectorfunction:Peak.f)Trace:Maxhold.g)Allowthetracetostabilize. Usethemarker-deltafunctiontodeterminetheseparationbetweenthepeaksoftheadjacentchannels. 13.2.TESTSETUP(BLOCKDIAGRAMOFCONFIGURATION) Sameasdescribedinsection6.2 13.3.MEASUREMENTEQUIPMENTUSED Thesameasdescribedinsection6.3 13.4.LIMITSANDMEASUREMENTRESULT TestDataofFrequencySeparation TestModeChannelSeparation(MHz)LimitsPassorFail GFSKHopping1.003>=2/3-20dBBWPass TestGraphsofNumberofHoppingFrequency Test_Graph_BR_HOP_ANT1_NA_1Mbps_HoppingSeparation Note:TheGFSKmodulationistheworstcaseandrecordedinthereport. ReportNo.:AGC02169210606FE03 Page 65 of78 14.LINECONDUCTEDEMISSIONTEST 14.1.LIMITSOFLINECONDUCTEDEMISSIONTEST Frequency MaximumRFLineVoltage Q.P.(dBμV)Average(dBμV) 150kHz~500kHz66-5656-46 500kHz~5MHz5646 5MHz~30MHz6050 Note:1.Thelowerlimitshallapplyatthetransitionfrequency. 2.Thelimitdecreaseslinearlywiththelogarithmofthefrequencyintherange0.15MHzto0.50MHz. 14.2.BLOCKDIAGRAMOFLINECONDUCTEDEMISSIONTEST EUT&Support ReportNo.:AGC02169210606FE03 Page 66 of78 14.3.PRELIMINARYPROCEDUREOFLINECONDUCTEDEMISSIONTEST 1.Theequipmentwassetupasperthetestconfigurationtosimulatetypicalactualusagepertheuser’s manual.WhentheEUTisatabletopsystem,awoodentablewithaheightof0.8metersisusedandis placedonthegroundplaneasperANSIC63.10(seeTestFacilityforthedimensionsofthegroundplane used).WhentheEUTisafloor-standingequipment,itisplacedonthegroundplanewhichhasa3-12mm non-conductivecoveringtoinsulatetheEUTfromthegroundplane. 2.Supportequipment,ifneeded,wasplacedasperANSIC63.10. 3.AllI/OcableswerepositionedtosimulatetypicalactualusageasperANSIC63.10. 4.AllsupportequipmentreceivedAC120V/60HzpowerfromaLISN,ifany. 5.TheEUTreceivedDC7.2VpowerfromadapterwhichreceivedAC120V/60HzpowerfromaLISN. 6.Thetestprogramwasstarted.EmissionsweremeasuredoneachcurrentcarryinglineoftheEUTusinga spectrumAnalyzer/ReceiverconnectedtotheLISNpoweringtheEUT.TheLISNhastwomonitoring points:Line1(HotSide)andLine2(NeutralSide).Twoscansweretaken:onewithLine1connectedto Analyzer/ReceiverandLine2connectedtoa50ohmload;thesecondscanhadLine1connectedtoa50 ohmloadandLine2connectedtotheAnalyzer/Receiver. 7.Analyzer/Receiverscannedfrom150kHzto30MHzforemissionsineachofthetestmodes. 8.Duringtheabovescans,theemissionsweremaximizedbycablemanipulation. 9.Thetestmode(s)werescannedduringthepreliminarytest. Then,theEUTconfigurationandcableconfigurationoftheabovehighestemissionlevelwererecordedfor referenceoffinaltesting. 14.4.FINALPROCEDUREOFLINECONDUCTEDEMISSIONTEST 1.EUTandsupportequipmentwassetuponthetestbenchasperstep2ofthepreliminarytest. 2.Ascanwastakenonbothpowerlines,Line1andLine2,recordingatleastthesixhighestemissions. Emissionfrequencyandamplitudewererecordedintoacomputerinwhichcorrectionfactorswereusedto calculatetheemissionlevelandcomparereadingtotheapplicablelimit.IfEUTemissionlevelwas less–2dBtotheA.V.limitinPeakmode,thentheemissionsignalwasre-checkedusingQ.PandAverage detector. 3.Thetestdataoftheworstcasecondition(s)wasreportedontheSummaryDatapage. ReportNo.:AGC02169210606FE03 Page 67 of78 14.5.TESTRESULTOFLINECONDUCTEDEMISSIONTEST LineConductedEmissionTestLine1-L RESULT:PASS ReportNo.:AGC02169210606FE03 Page 68 of78 LineConductedEmissionTestLine2-N RESULT:PASS ReportNo.:AGC02169210606FE03 Page 69 of78 APPENDIXA:PHOTOGRAPHSOFTESTSETUP RADIATEDEMISSIONTESTSETUPBELOW1GHz RADIATEDEMISSIONTESTSETUPABOVE1GHz ReportNo.:AGC02169210606FE03 Page 70 of78 CONDUCTEDEMISSIONTESTSETUP CONDUCTEDTESTSETUP ReportNo.:AGC02169210606FE03 Page 71 of78 APPENDIXB:PHOTOGRAPHSOFEUT WHOLEVIEWOFEUT TOPVIEWOFEUT ReportNo.:AGC02169210606FE03 Page 72 of78 BOTTOMVIEWOFEUT FRONTVIEWOFEUT ReportNo.:AGC02169210606FE03 Page 73 of78 BACKVIEWOFEUT LEFTVIEWOFEUT ReportNo.:AGC02169210606FE03 Page 74 of78 RIGHTVIEWOFEUT VIEWOFEUT(PORT) ReportNo.:AGC02169210606FE03 Page 75 of78 OPENVIEWOFEUT VIEWOFBATTERY ReportNo.:AGC02169210606FE03 Page 76 of78 INTERNALVIEWOFEUT-1 INTERNALVIEWOFEUT-2 ReportNo.:AGC02169210606FE03 Page 77 of78 INTERNALVIEWOFEUT-3 INTERNALVIEWOFEUT-4 BTAntenna ReportNo.:AGC02169210606FE03 Page 78 of78 INTERNALVIEWOFEUT-5 ----ENDOFREPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the R…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED EMISSION TEST SETUP CONDUCTED TEST SETUP
