2AUF7-N704UHF RFID module

Shenzhen Nation RFID Technologe Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 [June 17, 2026] U.S. Agent Designation [Shenzhen Nation RFID Technologe Co., Ltd.] acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought FCC ID: 2AUF7-N704 Name and company of U.S. agent: [GLOCERTS TECHNOLOGY INC] Physical U.S. address of agent: [19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507] FRN of U.S. agent: [0036339737] Email address of U.S. agent: [[email protected]] Telephone of U.S.agent: (626) 588-8039 [GLOCERTS TECHNOLOGY INC] acknowledges their obligation to accept service of process on behalf of [Shenzhen Nation RFID Technologe Co., Ltd.]. [Shenzhen Nation RFID Technologe Co., Ltd.] with the FRN [0028772168] accepts its obligation to maintain an agent for service of process in the United States for no less than 1 year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Signature [Lijun Xia] [Huiying Fan] [Engineering Manager] [Director] [Shenzhen Nation RFID Technologe Co., Ltd.] [GLOCERTS TECHNOLOGY INC]

Shenzhen Nation RFID Technologe Co., Ltd. (June 17, 2026) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2AUF7-N704 [Shenzhen Nation RFID Technologe Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Lijun Xia Shenzhen Nation RFID Technologe Co., Ltd. (June 17, 2026) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2AUF7-N704 [Shenzhen Nation RFID Technologe Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Lijun Xia

< Shenzhen Nation RFID Technologe Co., Ltd.> Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 Company name: Shenzhen Nation RFID Technologe Co., Ltd. FCC ID: 2AUF7-N704 Gentlemen, In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Certification Guide v02’. FCC ID: 2AUF7-N704 has been examined against the following requirements. Items to be covered by Single modular transmitters. Requirement per 15.212 and KDB 996369 D01 ‘Modular Certification Guide v02 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) Comply (Y/N) 1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly Refer to external photos. YES 2. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal All modulation and data inputs are buffered by circuitry on the transmitter chip X3M1, as is shown in the schematic. YES 3. The module must contain power supply regulation on the module Power supply regulation is provided by circuitry on the transmitter chip X3M1, as is shown in the schematic. YES 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) EUT module use a unique antenna connector. Please reference the exhibition Test Report. YES 5. The module must demonstrate compliance in a stand- alone configuration Please reference exhibition Test Configuration Photo for the stand- alone test configuration. YES 6. The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) The instruction on the labelling rule of the end product has been stated in the Users manual of this module. Please also see the exhibition Label Sample. YES 7. The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. YES 8. The module must comply with RF exposure requirements Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. YES Name: Lijun Xia Title: Engineering Manager Signature of applicant Date: 2026.06.16

Shenzhen Nation RFID Technologe Co., Ltd. (June 17, 2026) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (UHF RFID module / N704 / FCC ID: 2AUF7-N704) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Lijun Xia Title: Engineering Manager

Shenzhen Nation RFID Technologe Co., Ltd. (June 16, 2026) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Lijun Xia Title: Engineering Manager

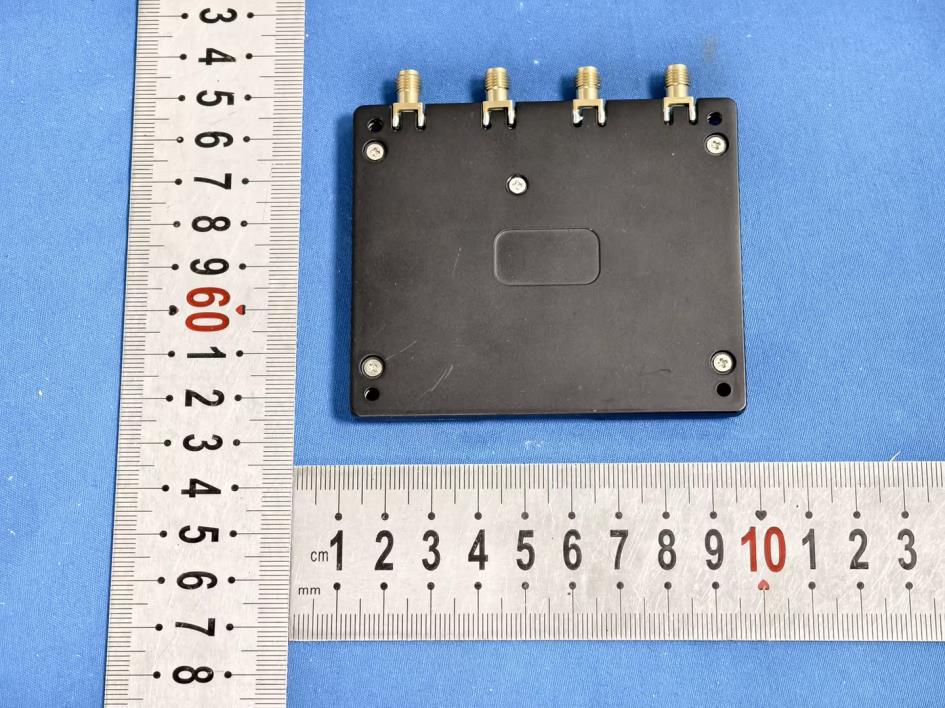

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 4 Model: N704 External Photos ANT Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 4

FCC ID LABEL: Label Location: FCC ID: 2AUF7-N704 Model No.: N704

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AUF7-N704 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result RFID RFID& LCH 23±1 24 251.188 6 5.6234 (7.5dBi) 0.28116 0.6 Pass

BR D- 17 Antenna ProductModel BRD-17 Antenna ProductFeatures Electrical Properties: Universal antenna suitable for UHF RFID applications, featuring high gain, low standing wave, ultra-wide bandwidth, etc. Mechanical Properties: Beautiful appearance, designed with ultra-thin technology, excellent workmanship, and simple installation. It can be used with various types of UHF card readers to maximize the performance. Main Applications BRD-17 Proantenna can be easily used in UHF RFID applications such as access control, warehousing, logistics, and retail. Performance Frequency range: 902 MHz ~ 928 MHz VSWR: ≤ 1. 3:1 Gain: 7.5 dBi Beamwidth: 45° x 100° ( horizontal x vertical ) Polarization: Circular polarization Relative humidity: 5% ~ 95% Impedance: 50Ω Mechanical indicators Dimensions: 550 mm x 340 mm x 40 mm Weight: 0.5 kg Material: Engineering plastic, FR4 Color:Picturecolor IP Class:IP6 4 Workingtemperature: - 40°C~ + 85°C Storagetemperature: - 40°C~ + 85°C AntennaPattern Antenna2D pattern2 ( phi=0°) Antenna2Dpattern1(phi=90 ° ) Antenna3Dpattern FAQandPrecautions TheBRD-17antennaisacircularlypolarizeddirectionalantenna.Whenusingit, attentionshouldbepaidtoadjustingtheinclinationoftheantennatoobtainthebest readingperformance. XC-AF12-A NT Materials: Engineering plastic ASA, aluminum Colour: White Protection grade: IP65 Operating temperature: -40°C to + 70°C Storage temperature: -40°C to + 70°C Installation The XC-AF12-A antenna can be installed on a steel frame structure or pillar through its own bracket or a bracket provided by the user, and connected to the reader via a coaxial cable. The antenna can be installed horizontally or vertically, depending on the installation orientation of the bracket. After installation, the inclination Angle of the antenna can be adjusted according to the actual situation. The antenna bracket is an alternative component. Customers can choose according to their needs. XC-AF12-A NT 1. ANT Size

Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 38 TEST REPORT Compiled by: Reviewed by: Approved by: Kai Chen Martin Feng Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. The tested sample(s) and the sample information are provided by the applicant. The authenticity, accuracy, and completeness of the provided information are the sole responsibility of the applicant. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The result decision rules of our laboratory are based solely on the direct comparison between the actual measured values of test results and the standard limits, without considering the measurement uncertainty.“” indicates the testing items were fulfilled by subcontracted lab. “” indicates the items are not in CNAS accreditation scope. Test item description: UHF RFID module FCC ID: 2AUF7-N704 Trademark(s): N/A Model/Type reference: N704 Applicant’s name: Shenzhen Nation RFID Technologe Co., Ltd. Address: Room 5806, Block A, Jingji Binhe Age, No. 9289 Binhe Blvd Rd, Futian District, Shenzhen, China Manufacturer: Shenzhen Nation RFID Technology Co., Ltd. Address: Room 5B-1, 5th Floor, Tianjing Building, Tianan Chegongmiao Industrial Zone, Xiangmihu, Shenzhen, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Apr. 25, 2026 Sample tested Date: Apr. 25, 2026 to Jun. 09, 2026 Issue Date: Jun. 09, 2026 Report No.: CTB26042501302RF01 Test Standards FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2020 Test Results PASS Remark: This is RFID radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB26042501302RF01 Report Tel: 4008-258-120 Web: http://www.ctb-lab.com Page 2 of 38 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ....................................................................................................................... 4 2. TEST SUMMARY .......................................................................................................... 5 3. MEASUREMENT UNCERTAINTY .............................................................................. 6 4. PRODUCT INFORMATION AND TEST SETUP ....................................................... 7 4.1 Product Information ................................................................................................................. 7 4.2 Test Setup Configuration ....................................................................................................... 7 4.3 Support Equipment .................................................................................................................. 7 4.4 Channel List ............................................................................................................................... 8 4.5 Test Mode .................................................................................................................................. 8 4.6 Test Environment ..................................................................................................................... 8 5. TEST FACILITY AND TEST INSTRUMENT USED .................................................. 9 5.1 Test Facility................................................................................................................................ 9 5.2 Test Instrument Used ............................................................................................................. 9 6. AC POWER LINE CONDUCTED EMISSION ......................................................... 12 6.1 Block Diagram Of Test Setup ............................................................................................. 12 6.2 Limit ........................................................................................................................................... 12 6.3 Test procedure ........................................................................................................................ 12 6.4 Test Result ............................................................................................................................... 14 7. RADIATED SPURIOUS EMISSION ......................................................................... 16 7.1 Block Diagram Of Test Setup ............................................................................................. 16 7.2 Limit ........................................................................................................................................... 16 7.3 Test procedure ........................................................................................................................ 17 7.4 Test Result ............................................................................................................................... 18 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ....................... 23 8.1 Block Diagram Of Test Setup ............................................................................................. 23 8.2 Limit ........................................................................................................................................... 23 8.3 Test procedure ........................................................................................................................ 23 8.4 Test Result ............................................................................................................................... 24 9. COUDUCTED PEAK OUTPUT POWER ................................................................. 27…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 2 Model: N704 Radiated Emission Below 1G Above 1G Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 2 Conducted emissions
