2AUHC-CTGED014G Smart phone

1 User Manual Global Enterprise Device (GED) Model: CTGED01 2 ABOUT This document contains only the instructions necessary for setting up and safe use of your GED device. Enjoy your GED and be cautious. WHAT’S IN THE BOX 1. DC+5V Adaptor *1 2. USB Cable*1 3. Rechargeable battery *1 4. Earphone *1 5. User manual *1 3 GED AT A GLANCE 1 - Earphones Jack 8 - Volume+ Control Key 2 - Proximity sensor 9 - Volume- Control Key 3 - Front Camera 10 - Power On/Off 4 - Receiver 11 - Rear Camera 5 - Mic 12 - Flash Light 6 - USB Port 13 - Fingerprint Key Sensor 7 - Speaker 4 CHARGING THE BATTERY Connect one end of the USB cable (supplied) to the USB port of the DC+5V adaptor (supplied). Connect the other end of the USB cable to the USB port of the device. Plug the DC+5V adaptor into the wall socket (AC 180-240V). Charging will start. You can also charge the device via a USB cable connected to a computer. The device should only be connected via a USB 2.0 connector. You can charge the phone via USB cable connected to a computer as well. NOTE When the battery capacity is low, you will see the prompt “Battery is low”. Please charge your device immediately to ensure proper device use. CAUTION Do not throw the battery into the fire; otherwise it may cause fire breakout or explosion of the battery. Do not place the battery together with metal necklaces or with other metal objects, otherwise it may cause liquid leakage, overheat, fire breakout or explosion of the battery. Do not use or put the battery near the fire, oven or other places with high temperature; otherwise it may cause liquid leakage, overheat, and fire breakout or explosion of the battery. If you notice, when charging the battery or using the device, that the temperature of the battery is abnormally high; the color of the battery casing has changed; the battery casing is distorted or any other unusual phenomena, please stop using the device and replace the battery. Do not charge the battery continuously for more than 24 hours. Risk of explosion if battery is replaced by an incorrect type. Dispose used batteries according to your local municipality instructions. 5 INSTALLING A SIM /SD CARD 1. Turn off the mobile phone and unplug the external power supply. 2. Remove the back cover using the groove on the side of the phone. 3. Remove the battery. 4. Insert the SIM card with Gold-colored contacts facing down. 5. Insert the optional SD card (not included) with the Gold-colored contact facing down. 6. Insert the battery making sure the connectors align. 7. Replace the back cover. WARNING Do not insert or remove the SIM card or the SD card when the device is connected to an external power supply as this may cause damage to the SIM card or to the SD card. POWER ON/OFF To turn on the device, long press Power On/Off key. To unlock, Swipe up the icon to the top. To lock the screen, short press the Power On/Off key. To turn off the mobile phone, long press Power On/Off button, then tap Power Off. 6 MAIN ICONS ICON DESCRIPTION Indicates the strength of the network signals. Shows missed calls. A new message has been received. Indicates that an application is being downloaded. The alarm clock has been set and activated. A call is in progress. A music item is playing. Shows battery level. Access is blocked. Connected to a Wi-Fi network. Bluetooth is turned on. CALLS OPERATIONS Mute: Press to mute the voice. Hands-free: Press to switch on the hands-free speaker. New call: Press to add a new attendee in a call. End a call: Press to end the ongoing call. 7 CONNECTIONS DATA In the main menu, tap Settings then Network & Internet. Tap SIM cards and select a SIM card. Tap Cellular data to select a SIM for data connectivity. To turn off data connection, tap near SIM slot 1 or 2. Note: data connection requires SIM card presence in the device. WI-FI In the main menu, tap Settings then Network & Internet. Tap Wi-Fi off to turn on and search a network. To turn Wi-Fi off, tap again. To add a hidden SSID: Tap Settings then Network & Internet” then Wi-Fi. Tap Add Network. Key-in the SSID in the required data field. Tap Advanced Options. Under Hidden Network change No to Yes. BLUETOOTH In the main menu, tap Settings then Connected devices Tap Pair New Device to search other Bluetooth devices Pair the device you desired. Tap Bluetooth On again to turn off your device. 8 USB COMPUTER CONNECTION Turn on the device; use the USB cable (supplied) to connect the USB Port of the mobile phone to the USB port of a computer. The icon appears automatically on the top of the screen of the mobile phone. Pull down from the top screen and touch to go into the USB connection screen. You can select the Connection type by touching “” to enable it. 9 MAIN SPECS Processor: Quad core 1.3Ghz processor Display: 5.5 inch two-point Capacitive Display Resolution: HD+ 720x1440 pixel Storage: 16 GB Ram: 2 GB Camera: Front 2.0 MP; Rear 5.0 MP/0.3MP Battery: 2500mAh Size: 147.6 x 70.9 x 10.1mm Expandable Memory: Up to 32 GB Sensor: G-sensor Fingerprint sensor: Yes Sim Slots: Dual SIM, GSM + GSM Sim Size: SIM1: Nano Wi-Fi: Wi-Fi 802.11, b/g/n Bluetooth: Bluetooth 4.0 GPS: Yes with A-GPS USB Connectivity: USB Micro 5Pin x1 Sound Port 3.5 MM Headphone jack Power Adaptor AC In 100-240V.50-60HZ, DC Out DC 5V/1A Network Support: 4G, 3G, 2G 10 SAFETY USAGE GUIDELINES  If the safety of the device has been compromised, it must be immediately withdrawn from use.  Do not touch the screen of the phone with sharp objects and do not scratch the screen.  Do not put the device in environments with excessive temperatures: Operating temperature: -10° C to 70° C  Do not charge the device near any flammable or explosive substances or in environments with much dust, humidity or excessively high or low temperatures  Do not expose the device to strong magnetic fields.  Power off the device and disconnect the charging cable before cleaning the device.  Do not use any chemical cleaning agents to clean the device. Use a damp a…

Text truncated - open the document above for the full version.

CommuniTake Technologies Ltd. Agent Authorization Company: CommuniTake Technologies Ltd. Address: Yokneam Star Building, High-Tech Park, POB 344, Yokneam, Israel 2069205 Product Name: 4G Smart Phone Model Number(s): CTGED01 Product Description: Mobile phone supports 2G/3G/4G and Bluetooth, WIFI, GPS, GLONASS functions We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Eran Karpen Date: Feb. 02, 2020 Name: Title: Manager Company: CommuniTake Technologies Ltd.

CommuniTake Technologies Ltd. Date: Mar. 02, 2020 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The CommuniTake Technologies Ltd., the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen BALUN Technology Co., Ltd., to act on the behalf of the CommuniTake Technologies Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2AUHC-CTGED01 including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen BALUN Technology Co., Ltd. in connection with the Application shall have the same effect as acts of the CommuniTake Technologies Ltd.. The CommuniTake Technologies Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. Yours Sincerely, Name of the Manager: Eran Karpen Position: Manager Signature:

CommuniTake Technologies Ltd. To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 RE: CommuniTake Technologies Ltd. FCC ID: 2AUHC-CTGED01 FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Realme Chongqing Mobile Telecommunications Corp., Ltd requests that the following documents regarding this submission for FCC ID: 2AUHC-CTGED01 be kept Long-Term confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf Part list BOM.pdf Tune-Up-Procedure Tune up procedure.pdf And below exhibit kept short-term confidential(180 Days): Exhibit Type File Name External Photos External Photos.pdf Internal Photos Internal Photos.pdf Test Setup Photos Test Setup Photos.pdf Users Manuals Users Manual.pdf Those documents contain detailed system and equipment description and related information about the product which CommuniTake Technologies Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, CommuniTake Technologies Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Thank you for your attention to this matter. Yours Sincerely, Name of the Manager: Eran Karpen Position: Manage Date: Feb. 02, 2020 Signature:

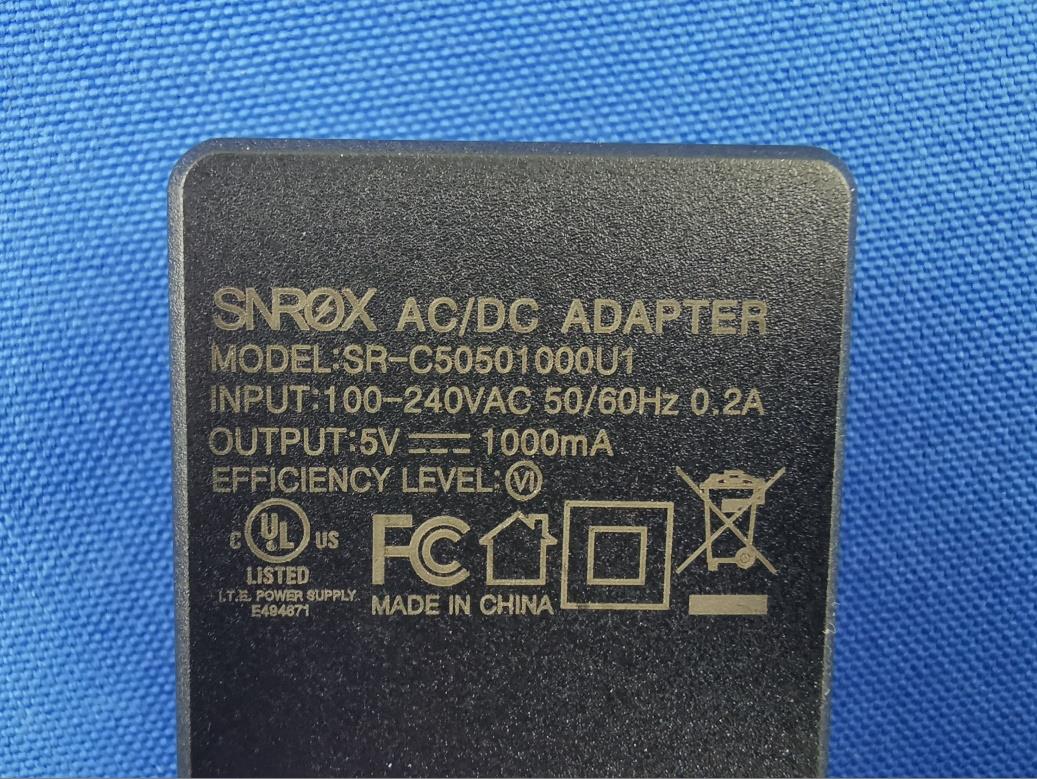

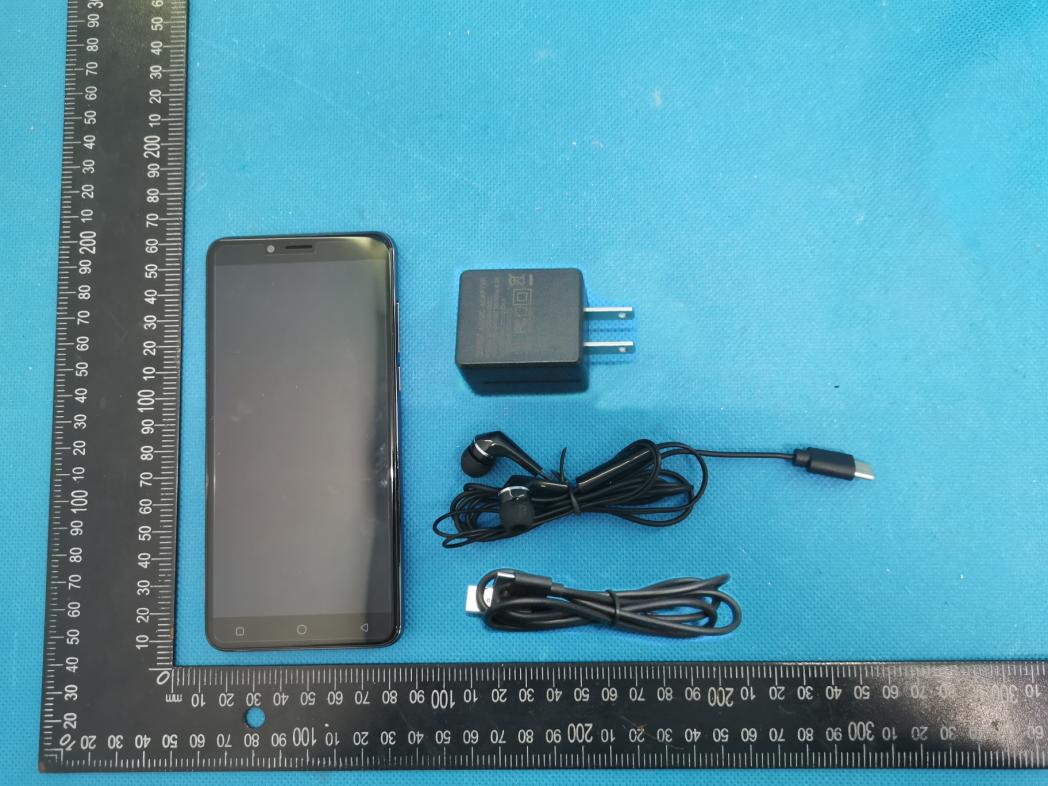

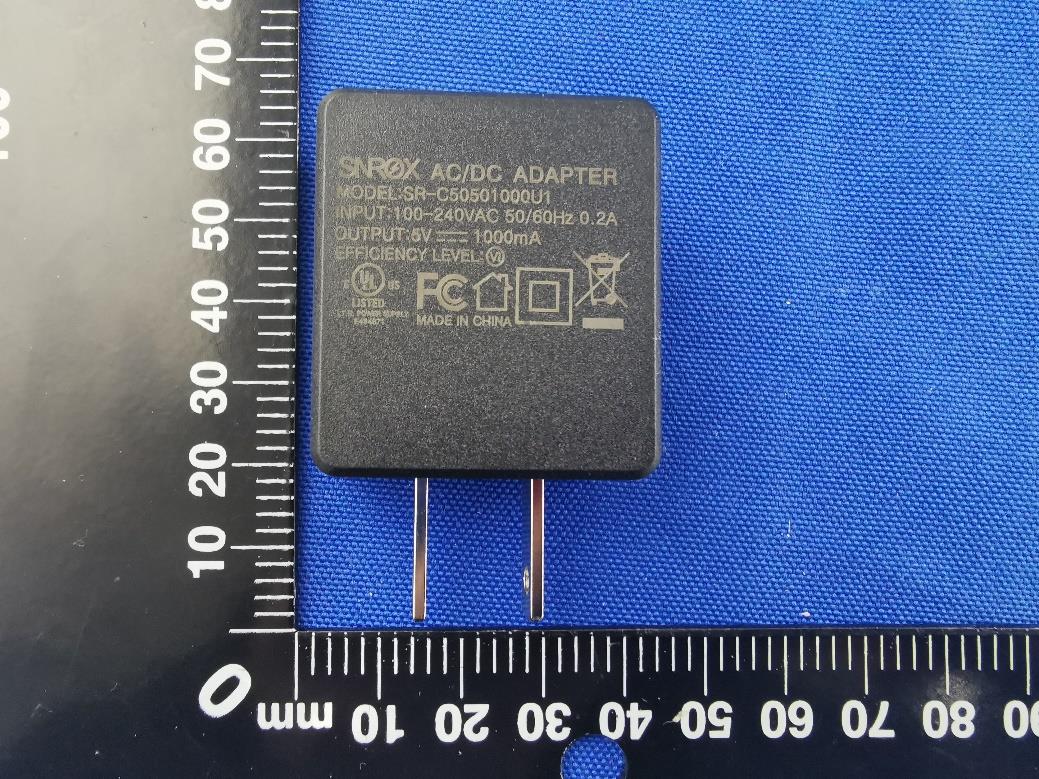

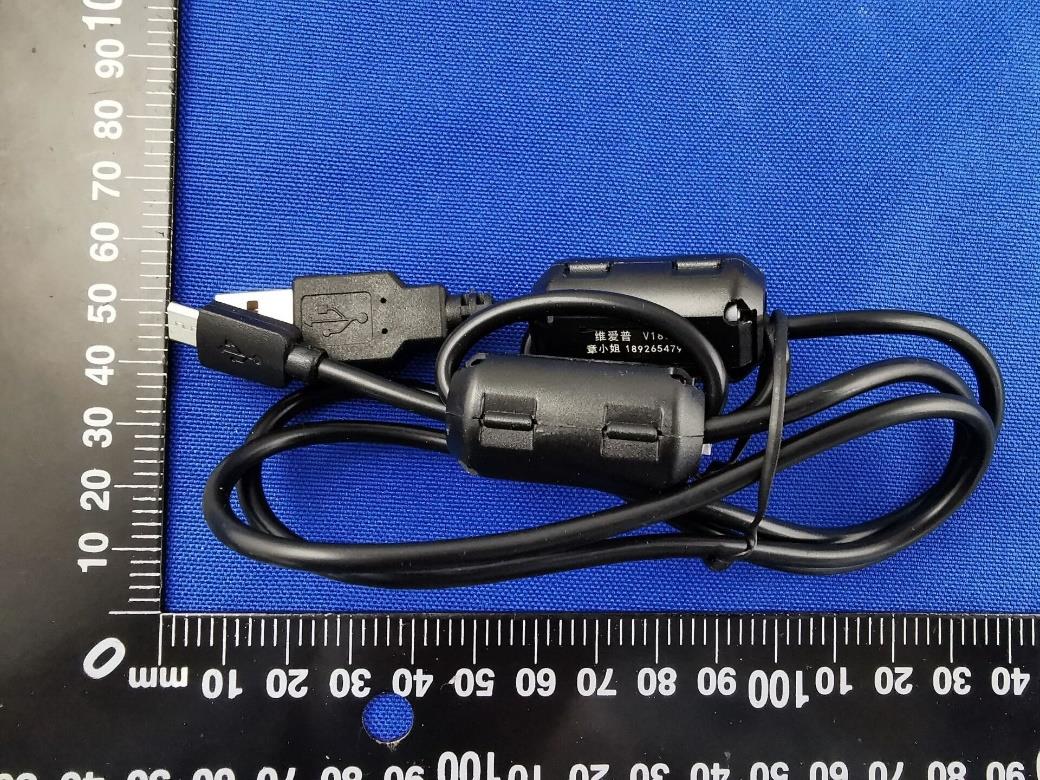

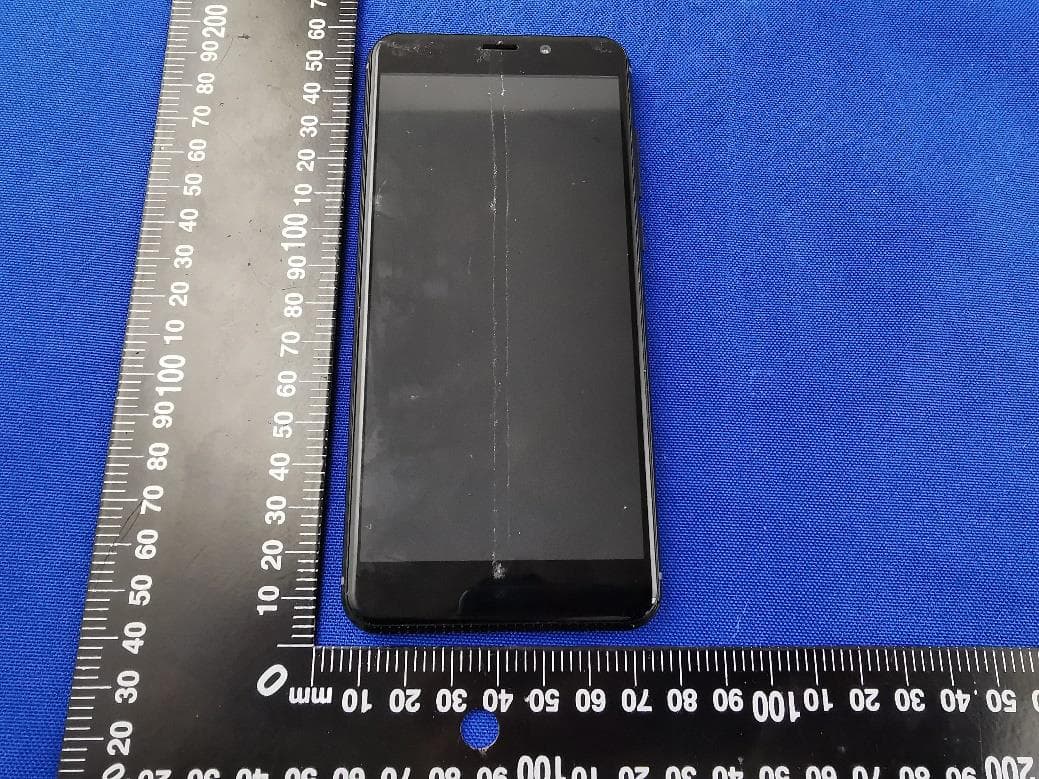

Annex No.: BL-SZ2010032-AW 1 / 5 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-SZ2010032-AW 2 / 5 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Annex No.: BL-SZ2010032-AW 3 / 5 TOP VIEW OF EUT c BOTTOM VIEW OF EUT Annex No.: BL-SZ2010032-AW 4 / 5 Accessory-Adapter CLOSE-UP Annex No.: BL-SZ2010032-AW 5 / 5 Accessory-USB Cable Accessory-Earphone

Label LabelLocation LabelLocation

Report No.: BL-SZ2010032-701 2 / 96 Revision History Version Issue Date Revisions Content Rev. 01 Feb. 18, 2020 Initial Issue TABLE OF CONTENTS 1 ADMINSTRATIVE DATA (GENERAL INFORMATION) .......................................................................... 5 1.1 Identification of the Testing Laboratory ...................................................................................... 5 1.2 Identification of the Responsible Testing Location ..................................................................... 5 1.3 Test Environment Condition ....................................................................................................... 5 1.4 Announce ................................................................................................................................... 5 2 PRODUCT INFORMATION ..................................................................................................................... 6 2.1 Applicant Information .................................................................................................................. 6 2.2 Manufacturer Information ........................................................................................................... 6 2.3 Factory Information .................................................................................................................... 6 2.4 General Description for Equipment under Test (EUT) ............................................................... 6 2.5 Ancillary Equipment .................................................................................................................... 6 2.6 Technical Information ................................................................................................................. 7 3 SUMMARY OF TEST RESULTS ............................................................................................................. 8 3.1 Test Standards ........................................................................................................................... 8 3.2 Device Category and SAR Limit ................................................................................................. 9 3.3 Test Result Summary ............................................................................................................... 10 3.4 Test Uncertainty ....................................................................................................................... 11 4 SAR MEASUREMENT SYSTEM ........................................................................................................... 13 4.1 Definition of Specific Absorption Rate (SAR) ........................................................................... 13 4.2 SATIMO SAR System .............................................................................................................. 13 5 SYSTEM VERIFICATION ...................................................................................................................... 22 5.1 Antenna Port Test Requirement ............................................................................................... 22 5.2 Purpose of System Check ........................................................................................................ 22 5.3 System Check Setup ................................................................................................................ 22 6 EUT TEST POSITION CONFIGURATUONS ........................................................................................ 23 6.1 Head Exposure Conditions ....................................................................................................... 23 Report No.: BL-SZ2010032-701 3 / 96 6.2 Body-worn Position Conditions ................................................................................................ 24 6.3 Hotspot Mode Exposure Position Conditions ........................................................................... 25 7 SAR MEASUREMENT PROCEDURES ................................................................................................ 26 7.1 SAR Measurement Process Diagram ...................................................................................... 26 7.2 SAR Scan General Requirements ............................................................................................ 27 7.3 SAR Measurement Procedure ................................................................................................. 28 7.4 Area & Zoom Scan Procedures ................................................................................................ 28 8 CONDUCTED RF OUPUT POWER ...................................................................................................... 29 8.1 GSM ......................................................................................................................................... 29 8.2 WCDMA ................................................................................................................................... 30 8.3 LTE ........................................................................................................................................... 31 8.4 WIFI .......................................................................................................................................... 38 8.5 Bluetooth .................................................................................................................................. 38 9 EUT ANTENNA LOCATION SKETCH .................................................................................................. 39 9.1 SAR Test Exclusion Consider Table ........................................................................................ 40 9.2 10g Extremity Exposure Consider ............................................................................................ 42 10 TEST RESULTS .........................................................................…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2010032-701 CALIBRATION REPORT F.1 E-Field Probe Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 F.2 750 MHz Dipole Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 F.3 835 MHz Dipole Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 F.4 1800 MHz Dipole Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 F.5 1900 MHz Dipole Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701 Report No.: BL-SZ2010032-701

2 / 76 1 GENERAL INFORMATION 1.1 Introduction This document contains a summary of the requirements set forth by the IEEE 1528, FCC KDB 865664 D01 for reference dipoles used for SAR measurement system validations. Instead of the typical annual calibration recommended by measurement standards, the reference dipoles were demonstrated that the SAR target, impedance and return loss have remain stable, so the longer calibration interval is acceptable. 1.2 General Description for Equipment under Test (EUT) Model Frequency Serial Number Product Condition(New/ Used) Last Cal. Date Last Meas. Date Dipole DIP 0G750 750 MHz SN 11/17 DIP 0G750-446 Used 2017/03/17 2019/03/21 DIP 0G835 835 MHz SN 11/17 DIP 0G835-447 Used 2017/03/17 2019/03/21 DIP 0G900 900 MHz SN 11/17 DIP 0G900-448 Used 2017/03/17 2019/03/21 DIP 1G800 1800 MHz SN 11/17 DIP 1G900-449 Used 2017/03/17 2019/03/19 DIP 1G900 1900 MHz SN 11/17 DIP 1G900-450 Used 2017/03/17 2019/03/19 DIP 2G000 2000 MHz SN 11/17 DIP 2G000-451 Used 2017/03/17 2019/03/19 DIP 2G450 2450 MHz SN 11/17 DIP 2G450-452 Used 2017/03/17 2019/03/19 DIP 2G600 2600 MHz SN 11/17 DIP 2G600-453 Used 2017/03/17 2019/03/19 Waveguide SWG5500 5GHz-6GHz SN 49/16 WGA42 Used 2017/03/17 2019/03/20 3 / 76 1.3 Test Equipment List Description Manufacturer Model Serial No. Cal. Date Cal. Due PC Dell N/A N/A N/A N/A E-Field Probe MVG SSE2 SN 34/15 SSE2 EPGO265 2019/03/19 2019/03/18 Phantom1 SATIMO SAM SN 30/13 SAM103 N/A N/A Phantom2 SATIMO SAM SN 30/13 SAM104 N/A N/A MultiMeter Keithley MultiMeter 2000 4024022 2018/06/15 2019/06/14 Signal Generator R&S SMBV100A 260592 2018/06/15 2019/06/14 Power Meter Agilent E4419B GB40201833 2018/11/02 2019/11/01 Power Sensor Agilent E9300A MY41498012 2018/11/02 2019/11/01 Power Sensor Agilent E9300A MY41499891 2018/11/02 2019/11/01 Network Analyzer R&S ZVL-6 101380 2018/06/15 2019/06/14 Thermometer Elitech RC-4HC N/A 2018/11/13 2019/11/12 Power Amplifier SATIMO 6552B 22374 N/A N/A Dielectric Probe Kit SATIMO SCLMP SN 25/13 OCPG56 N/A N/A Attenuator COM-MW ZA-S1-31 1305003187 N/A N/A Directional coupler AA-MCS AAMCS-UDC 000272 N/A N/A 4 / 76 1.4 EUT Photos DIP 0G750-446 DIP 0G835-447 5 / 76 DIP 0G900-448 DIP 1G800-449 DIP 1G900-450 DIP 2G000-451 6 / 76 DIP 2G450-452 DIP 2G600-453 Waveguide SWG5500 7 / 76 2 DIPOLE IMPEDANCE AND RETURN LOSS The dipoles are designed to have low return loss when presented against a flat phantom at the specified distance. A Vector Network Analyzer was used to perform a return loss measurement on the specific dipole when in the measurement location against the phantom and the distance was specified by the manufacturer with a special, low loss and low relative permittivity spacer. The impedance was measured at the SMA-connector with the network analyzer. The measurement of verification with return loss should not deviate by more than 20% and minimum of 20 dB of the return loss, and the impedance (real or imaginary parts) should not deviate by more than 5 Ohms from the previous measurement using network analyzer. Note: The “Previous Meas.” in the following table refer to dipoles or other equivalent RF sources calibration reports. 8 / 76 2.1 DIP 0G750 RETURN LOSS AND IMPEDANCE IN HEAD LIQUID Meas. Results Current Meas. Previous Meas. Max. Deviation Return Loss(dB) -26.12 -26.40 1.1 % Impedance 53.2 Ω +2.7 jΩ 53.7 Ω +1.9 jΩ 0.8 Ω (Imaginary part) Return Loss Impedance 9 / 76 RETURN LOSS AND IMPEDANCE IN BODY LIQUID Meas. Results Current Meas. Previous Meas. Max. Deviation Return Loss(dB) -26.69 -27.73 3.8 % Impedance 50.1 Ω + 5.4 jΩ 51.1 Ω + 5.9 jΩ 1.0 Ω (Real part) Return Loss Impedance 10 / 76 2.2 DIP 0G835 RETURN LOSS AND IMPEDANCE IN HEAD LIQUID Meas. Results Current Meas. Previous Meas. Max. Deviation Return Loss(dB) -31.42 -30.45 3.1% Impedance 55.6 Ω -3.4 jΩ 53.5 Ω -1.1 jΩ 2.3 Ω (Imaginary part) Return Loss Impedance 11 / 76 RETURN LOSS AND IMPEDANCE IN BODY LIQUID Meas. Results Current Meas. Previous Meas. Max. Deviation Return Loss(dB) -24.02 -23.10 4.0% Impedance 47.3Ω+5.0 jΩ 48.2Ω+5.2 jΩ 0.9 Ω (Real part) Return Loss Impedance 12 / 76 2.3 DIP 0G900 RETURN LOSS AND IMPEDANCE IN HEAD LIQUID Meas. Results Current Meas. Previous Meas. Max. Deviation Return Loss(dB) -30.91 -31.55 2.0% Impedance 50.39 Ω - 2.4 jΩ 51.8 Ω - 2.1 jΩ 1.4 Ω (Real part) Return Loss Impedance 13 / 76 RETURN LOSS AND IMPEDANCE IN BODY LIQUID Meas. Results Current Meas. Previous Meas. Max. Deviation Return Loss(dB) -28.58 -27.62 3.5% Impedance 54.4 Ω +2.1 jΩ 54.7 Ω +2.2 jΩ 0.3 Ω (Real part) Return Loss Impedance 14 / 76 2.4 DIP 1G800 RETURN LOSS AND IMPEDANCE IN HEAD LIQUID Meas. Results Current Meas. Previous Meas. Max. Deviation Return Loss(dB) -23.52 -24.28 3.1% Impedance 41.6Ω + 3.3 jΩ 44.8Ω + 3.9 jΩ 3.2 Ω (Real part) Return Loss Impedance 15 / 76 RETURN LOSS AND IMPEDANCE IN BODY LIQUID Meas. Results Current Meas. Previous Meas. Max. Deviation Return Loss(dB) -26.39 -27.41 3.7% Impedance 46.0Ω +3.4 jΩ 47.8Ω +3.4 jΩ 1.8 Ω (Real part) Return Loss Impedance 16 / 76 2.5 DIP 1G900 RETURN LOSS AND IMPEDANCE IN HEAD LIQUID Meas. Results Current Meas. Previous Meas. Max. Deviation Return Loss(dB) -27.40 -23.59 16.2 % Impedance 52.4Ω+6.6 jΩ 52.7Ω+8.0 jΩ 1.4 Ω (Imaginary part) Return Loss Impedance 17 / 76 RETURN LOSS AND IMPEDANCE IN BODY LIQUID Meas. Results Current Meas. Previous Meas. Max. Deviation Return Loss(dB) -25.02 -22.29 12.2 % Impedance 50.4 Ω +6.6 jΩ 47.6 Ω +4.5 jΩ 2.8 Ω (Real part) Return Loss Impedance 18 / 76 2.6 DIP 2G000 RETURN LOSS AND IMPEDANCE IN HEAD LIQUID Meas. Results Current Meas. Previous Meas. Max. Deviation Return Loss(dB) -24.19 -25.10 3.6% Impedance 53.8Ω – 1.0 jΩ 55.7Ω – 1.2 jΩ 1.9 Ω (Real part) Return Loss Impedance 19 / 76 RETURN LOSS AND IMPEDANCE IN BODY LIQUID Meas. Results Current Meas. Previous Meas. Max. Deviation Return Loss(dB) -24.48 -25.32 3.3 % Impedance 55.9Ω-0.3 jΩ 54.8Ω-0.4 jΩ 1.1 Ω (Real part) Return Loss Impedance 20 / 76 2.7 DIP 2G450 RETURN LOSS AND IMPEDANCE IN HEAD LIQUID Meas. Results Current Meas. Pr…

Text truncated - open the document above for the full version.

Document No: BL-SZ2010032 Page 1 of 83 Annex A.2 Peak to Average Ratio Document No: BL-SZ2010032 Page 2 of 83 1. WCDMA_Band2 1.1. WCDMA Peak to Average Ratio(NTNV)(Channel:9262) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1852.4 0.1 3.04 13 Pass Document No: BL-SZ2010032 Page 3 of 83 1.2. WCDMA Peak to Average Ratio(NTNV)(Channel:9400) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 3.39 13 Pass Document No: BL-SZ2010032 Page 4 of 83 1.3. WCDMA Peak to Average Ratio(NTNV)(Channel:9538) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1907.6 0.1 3.42 13 Pass Document No: BL-SZ2010032 Page 5 of 83 2. WCDMA_Band4 2.1. WCDMA Peak to Average Ratio(NTNV)(Channel:1312) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1712.4 0.1 2.87 13 Pass Document No: BL-SZ2010032 Page 6 of 83 2.2. WCDMA Peak to Average Ratio(NTNV)(Channel:1412) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1732.4 0.1 2.96 13 Pass Document No: BL-SZ2010032 Page 7 of 83 2.3. WCDMA Peak to Average Ratio(NTNV)(Channel:1513) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1752.6 0.1 2.9 13 Pass Document No: BL-SZ2010032 Page 8 of 83 3. WCDMA_Band5 3.1. WCDMA Peak to Average Ratio(NTNV)(Channel:4132) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 826.4 0.1 2.93 13 Pass Document No: BL-SZ2010032 Page 9 of 83 3.2. WCDMA Peak to Average Ratio(NTNV)(Channel:4182) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.4 0.1 3.07 13 Pass Document No: BL-SZ2010032 Page 10 of 83 3.3. WCDMA Peak to Average Ratio(NTNV)(Channel:4233) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 846.6 0.1 2.99 13 Pass Document No: BL-SZ2010032 Page 11 of 83 4. LTE_Band2 4.1. LTE Peak to Average Ratio(NTNV)(Subtest:1, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 4.41 13 Pass Document No: BL-SZ2010032 Page 12 of 83 4.2. LTE Peak to Average Ratio(NTNV)(Subtest:2, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.22 13 Pass Document No: BL-SZ2010032 Page 13 of 83 4.3. LTE Peak to Average Ratio(NTNV)(Subtest:3, Channel:18700, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.25 13 Pass Document No: BL-SZ2010032 Page 14 of 83 4.4. LTE Peak to Average Ratio(NTNV)(Subtest:4, Channel:18700, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 6.17 13 Pass Document No: BL-SZ2010032 Page 15 of 83 4.5. LTE Peak to Average Ratio(NTNV)(Subtest:5, Channel:18900, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 5.16 13 Pass Document No: BL-SZ2010032 Page 16 of 83 4.6. LTE Peak to Average Ratio(NTNV)(Subtest:6, Channel:18900, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 5.45 13 Pass Document No: BL-SZ2010032 Page 17 of 83 4.7. LTE Peak to Average Ratio(NTNV)(Subtest:7, Channel:18900, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 6 13 Pass Document No: BL-SZ2010032 Page 18 of 83 4.8. LTE Peak to Average Ratio(NTNV)(Subtest:8, Channel:18900, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 6.46 13 Pass Document No: BL-SZ2010032 Page 19 of 83 4.9. LTE Peak to Average Ratio(NTNV)(Subtest:9, Channel:19100, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 4.78 13 Pass Document No: BL-SZ2010032 Page 20 of 83 4.10. LTE Peak to Average Ratio(NTNV)(Subtest:10, Channel:19100, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 5.36 13 Pass Document No: BL-SZ2010032 Page 21 of 83 4.11. LTE Peak to Average Ratio(NTNV)(Subtest:11, Channel:19100, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 5.71 13 Pass Document No: BL-SZ2010032 Page 22 of 83 4.12. LTE Peak to Average Ratio(NTNV)(Subtest:12, Channel:19100, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 6.29 13 Pass Document No: BL-SZ2010032 Page 23 of 83 5. LTE_Band4 5.1. LTE Peak to Average Ratio(NTNV)(Subtest:1, Channel:20050, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 4.67 13 Pass Document No: BL-SZ2010032 Page 24 of 83 5.2. LTE Peak to Average Ratio(NTNV)(Subtest:2, Channel:20050, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 4.93 13 Pass Document No: BL-SZ2010032 Page 25 of 83 5.3. LTE Peak to Average Ratio(NTNV)(Subtest:3, Channel:20050, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 5.71 13 Pass Document No: BL-SZ2010032 Page 26 of 83 5.4. LTE Peak to Average Ratio(NTNV)(Subtest:4, Channel:20050, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 5.83 13 Pass Document No: BL-…

Text truncated - open the document above for the full version.

Document No: BL-SZ2010032 Page 1 of 179 Annex A.3 Occupied Bandwidth Document No: BL-SZ2010032 Page 2 of 179 1. GSM_GSM850 1.1. GSM Occupied Bandwidth(NTNV)(Channel:128) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 824.2 99 26 0.004 Peak 0.25 0.31 0.3 Pass Document No: BL-SZ2010032 Page 3 of 179 1.2. GSM Occupied Bandwidth(NTNV)(Channel:190) Cent…

Text truncated - open the document above for the full version.
