2AUHC-CTIP4014G Smart phone

1 User Manual 4G Smart phone Model: CTIP401 2 ABOUT This document contains only the instructions necessary for setting up and safe use of your CTIP401 device. Enjoy your CTIP401 and be cautious. WHAT’S IN THE BOX 1. DC+5V Adaptor *1 2. USB Cable*1 3. Earphone *1 4. User manual *1 3 CTIP401 AT A GLANCE 1. Earphone slot 2. USB Port (for charging and connecting to computer) 3. Speaker 4. Front Camera 5. Receiver 6. Proximity sensor 7. Volume+/- Control Key 8. Power On/Off 9. Rear Camera 10. Flash Light 4 11. Fingerprint Key Sensor 12. Memu 13. Home 14. Back CHARGING THE BATTERY Connect one end of the USB cable (supplied) to the USB port of the DC+5V adaptor (supplied). Connect the other end of the USB cable to the USB port of the device. Plug the DC+5V adaptor into the wall socket (AC 180-240V). Charging will start. You can also charge the device via a USB cable connected to a computer. The device should only be connected via a USB 2.0 connector. You can charge the phone via USB cable connected to a computer as well. NOTE When the battery capacity is low, you will see the prompt “Battery is low”. Please charge your device immediately to ensure proper device use. CAUTION Do not throw the battery into the fire; otherwise it may cause fire breakout or explosion of the battery. Do not place the battery together with metal necklaces or with other metal objects, otherwise it may cause liquid leakage, overheat, fire breakout or explosion of the battery. Do not use or put the battery near the fire, oven or other places with high temperature; otherwise it may cause liquid leakage, overheat, and fire breakout or explosion of the battery. If you notice, when charging the battery or using the device, that the temperature of the battery is abnormally high; the color of the battery casing has changed; the battery casing is distorted or any other unusual phenomena, please stop using the device and replace the battery. Do not charge the battery continuously for more than 24 hours. Risk of explosion if battery is replaced by an incorrect type. Dispose used batteries according to your local municipality instructions. 5 INSTALLING A SIM /SD CARD 1. Turn off the mobile phone and unplug the external power supply. 2. Inserting needle into the round hole of SIM slot, press the needle gently and the SIM slot is popped out as shown in the picture. 3. Put SIM card or TF card on the SIM slot, push back the SIM slot. 4. If you need to take out the SIM card or TF card, use the needle to insert in the hole of the cassette as picture, press the needle gently, then the SIM card or TF card will be popped out. WARNING Do not insert or remove the SIM card or the SD card when the device is connected to an external power supply as this may cause damage to the SIM card or to the SD card. POWER ON/OFF To turn on the device, long press Power On/Off key. 6 To unlock, Swipe up the icon to the top. To lock the screen, short press the Power On/Off key. To turn off the mobile phone, long press Power On/Off button, then tap Power Off. MAIN ICONS ICON DESCRIPTION Indicates the strength of the network signals. Shows missed calls. A new message has been received. Indicates that an application is being downloaded. The alarm clock has been set and activated. A call is in progress. A music item is playing. Shows battery level. Access is blocked. Connected to a Wi-Fi network. Bluetooth is turned on. CALLS OPERATIONS Mute: Press to mute the voice. Hands-free: Press to switch on the hands-free speaker. 7 New call: Press to add a new attendee in a call. End a call: Press to end the ongoing call. CONNECTIONS DATA In the main menu, tap Settings then Network & Internet. Tap SIM cards and select a SIM card. Tap Cellular data to select a SIM for data connectivity. To turn off data connection, tap near SIM slot 1 or 2. Note: data connection requires SIM card presence in the device. WI-FI In the main menu, tap Settings then Network & Internet. Tap Wi-Fi off to turn on and search a network. To turn Wi-Fi off, tap again. To add a hidden SSID: Tap Settings then Network & Internet” then Wi-Fi. Tap Add Network. Key-in the SSID in the required data field. Tap Advanced Options. Under Hidden Network change No to Yes. BLUETOOTH In the main menu, tap Settings then Connected devices Tap Pair New Device to search other Bluetooth devices Pair the device you desired. 8 Tap Bluetooth On again to turn off your device. USB COMPUTER CONNECTION Turn on the device; use the USB cable (supplied) to connect the USB Port of the mobile phone to the USB port of a computer. The icon appears automatically on the top of the screen of the mobile phone. Pull down from the top screen and touch to go into the USB connection screen. You can select the Connection type by touching “” to enable it. MAIN SPECS 9 Processor: Octa core 1.5Ghz processor Display: 5.7 inch Resolution: HD+ IPS 720x1440 pixel Storage: 32 GB Ram: 3 GB Camera: Front 2.0 MP; Rear 5.0 MP/0.3MP Battery: 3000mAh Size: 155.1x7.3x8.6mm Expandable Memory: Up to 32 GB Sensor: G-sensor Fingerprint sensor: Yes Sim Slots: Dual SIM, GSM + GSM Sim Size: SIM1: Nano Wi-Fi: Wi-Fi Bluetooth: Bluetooth GPS: Yes with A-GPS USB Connectivity: Type-C 2.0 Sound Port Type-C Power Adaptor AC In 100-240V.50-60HZ, DC Out DC 5V Network Support: 4G, 3G, 2G SAFETY USAGE GUIDELINES  If the safety of the device has been compromised, it must be immediately withdrawn from use.  Do not touch the screen of the phone with sharp objects and do not scratch the screen.  Do not put the device in environments with excessive temperatures: Operating temperature: -10° C to 40° C  Do not charge the device near any flammable or explosive substances or in environments with much dust, humidity or excessively high or low temperatures 10  Do not expose the device to strong magnetic fields.  Power off the device and disconnect the charging cable before cleaning the device.  Do not use any chemical cleaning agents to clean the device. Use a damp and anti-static…

Text truncated - open the document above for the full version.

CommuniTake Technologies Ltd. Agent Authorization Company: CommuniTake Technologies Ltd. Address: Yokneam Star Building, High-Tech Park, POB 344, Yokneam, Israel 2069205 Product Name: 4G Smart phone Model Number(s): CTIP401 Product Description: 4G Smart phone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/05/07 Name: Eran Karpen Title: COO Company: CommuniTake Technologies Ltd.

CommuniTake Technologies Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/05/07 Subject; Request for Confidentiality FCC ID: 2AUHC-CTIP401 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC_Software_Security_Requirements_for_UNII_devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Eran Karpen Title: COO Email: [email protected]

CommuniTake Technologies Ltd. Yokneam Star Building, High-Tech Park, POB 344, Yokneam, Israel 2069205 Date: May 07, 2020 FCC ID: 2AUHC-CTIP401 Model Number: CTIP401 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Myx Fitness, LLC, declare that this EUT (FCC ID: 2AUR9-MYX215A) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely, (Signed) Name / Title: Eran Karpen / COO Company: CommuniTake Technologies Ltd. Address: Yokneam Star Building, High-Tech Park, POB 344, Yokneam, Israel 2069205 Phone: +972-4-6968900

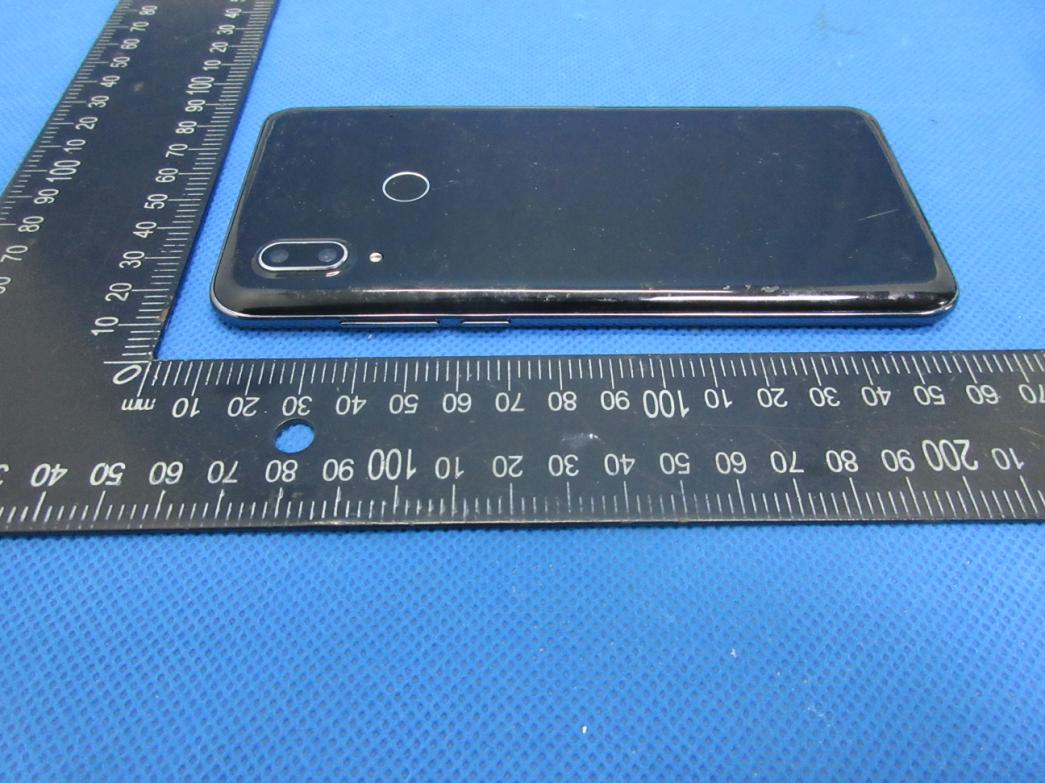

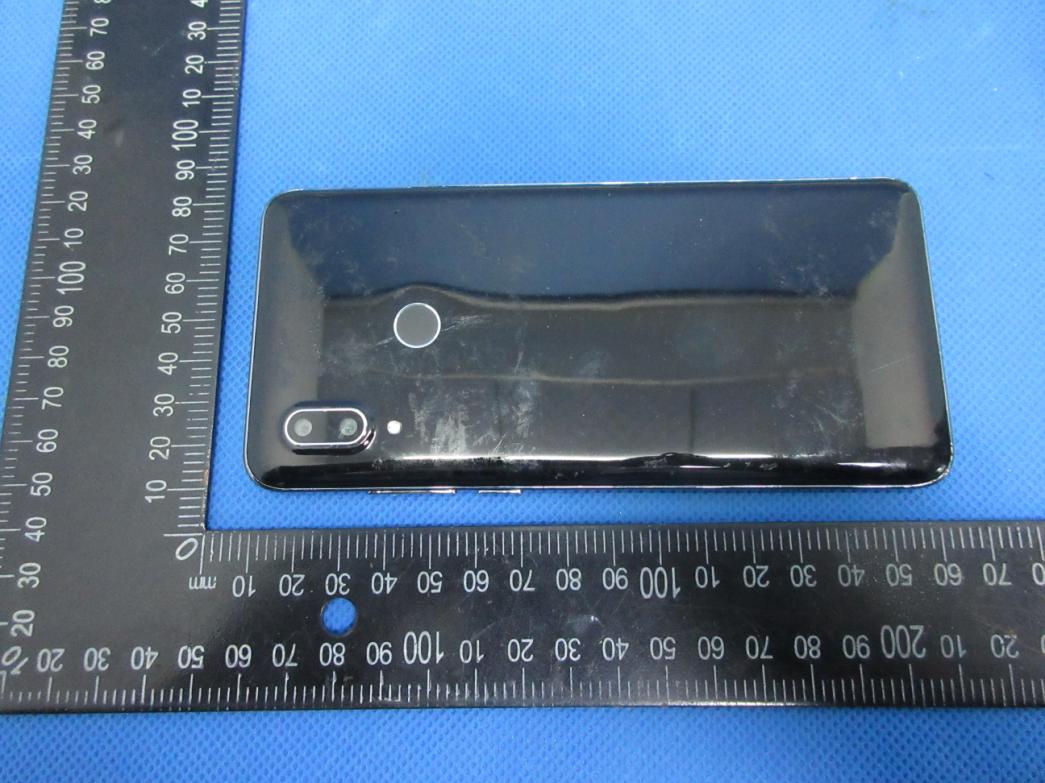

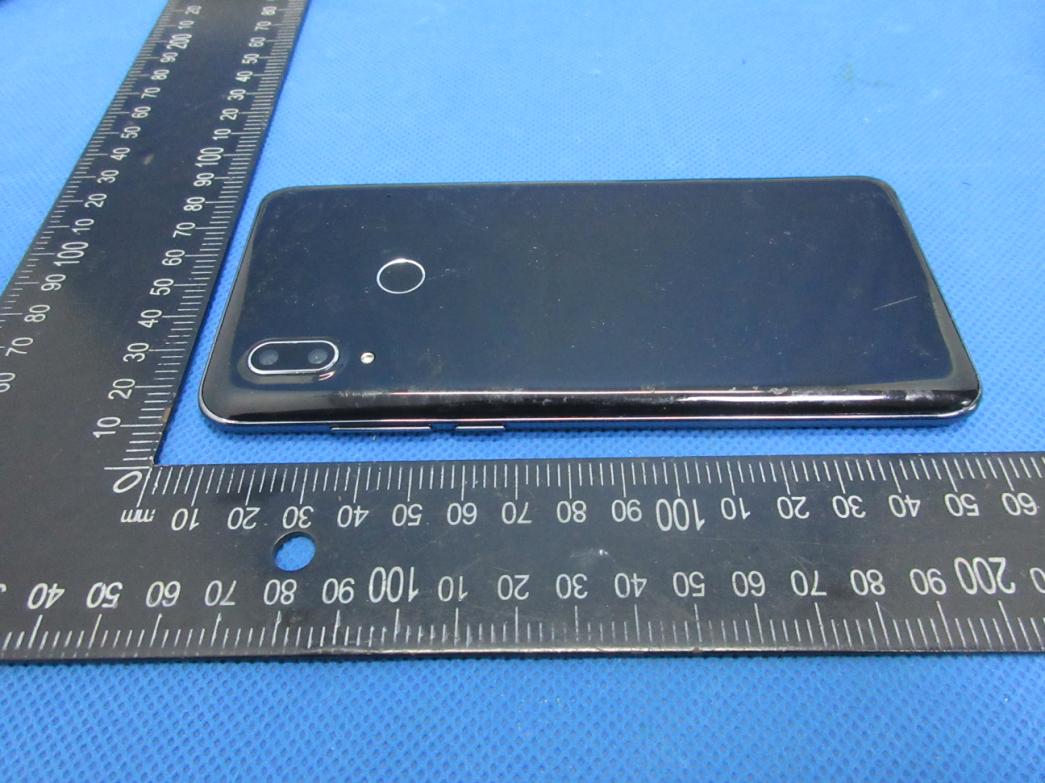

S19082902506 Model: CTIP401 N20191017V1 Photo 1 Photo 2 S19082902506 Model: CTIP401 N20191017V1 Photo 3 Photo 4 S19082902506 Model: CTIP401 N20191017V1 Photo 5 Photo 6 S19082902506 Model: CTIP401 N20191017V1 Photo 7 Photo 8 S19082902506 Model: CTIP401 N20191017V1 Photo 9 Photo 10 S19082902506 Model: CTIP401 N20191017V1 Photo 11

4G Smart Phone Model: CTIP401 Input: 100-240V~50/60Hz 0.2A MADE IN CHINA SN: FCC ID: 2AUHC-CTIP401 Manufacturer: Shenzhen Joyhong Technology Co., Ltd.

S19082902506 Model: CTIP401 N20191017V1 Photo 1 Photo 2 GSM / WCDMA / LTE Main ANT BT / Wi-Fi 2.4G / 5.2G / 5.8G / GPS ANT ANT LTE Div ANT S19082902506 Model: CTIP401 N20191017V1 Photo 3 Photo 4 S19082902506 Model: CTIP401 N20191017V1 Photo 5 Photo 6 S19082902506 Model: CTIP401 N20191017V1 Photo 7 Photo 8 S19082902506 Model: CTIP401 N20191017V1 Photo 9 Photo 10 S19082902506 Model: CTIP401 N20191017V1 Photo 11 Photo 12 S19082902506 Model: CTIP401 N20191017V1 Photo 13 Photo 14 S19082902506 Model: CTIP401 N20191017V1 Photo 15

S19082902506 Model: CTIP401 N20191017V1 Photo 1 Photo 2 GSM / WCDMA / LTE Main ANT BT / Wi-Fi 2.4G / 5.2G / 5.8G / GPS ANT ANT LTE Div ANT S19082902506 Model: CTIP401 N20191017V1 Photo 3 Photo 4 S19082902506 Model: CTIP401 N20191017V1 Photo 5 Photo 6 S19082902506 Model: CTIP401 N20191017V1 Photo 7 Photo 8 S19082902506 Model: CTIP401 N20191017V1 Photo 9 Photo 10 S19082902506 Model: CTIP401 N20191017V1 Photo 11 Photo 12 S19082902506 Model: CTIP401 N20191017V1 Photo 13 Photo 14 S19082902506 Model: CTIP401 N20191017V1 Photo 15

Page 1 of 309 Report No.: S19082902501001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： 4G Smart phone Trademark： CommuniTake Model Name： CTIP401 Family Model： N/A Report No.： S19082902501001 FCC ID： 2AUHC-CTIP401 Prepared for CommuniTake Technologies Ltd. Yokneam Star Building, High-Tech Park, POB 344, Yokneam, Israel 2069205 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website: http://www.ntek.org.cn Page 2 of 309 Report No.: S19082902501001 TEST RESULT CERTIFICATION Applicant’s name .................. : CommuniTake Technologies Ltd. Address .................................. : Yokneam Star Building, High-Tech Park, POB 344, Yokneam, Israel 2069205 Manufacturer's Name ........... : Shenzhen Joyhong Technology Co., Ltd. Address .................................. : Building A2, Xinhu Second Industrial Park, Zhongtai Road, Guangming, Bao'an, Shenzhen, Guangdong, China Product description Product name ......................... : 4G Smart phone Trademark ............................ : CommuniTake Model Name ......................... : CTIP401 Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Nov. 01, 2019 ~ Nov. 14, 2019 Date of Issue .......................................... : Mar. 16, 2020 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Cheng Jiawen) Approved By (Lab Manager) : (Sam Chen) Page 3 of 309 Report No.: S19082902501001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Mar. 16, 2020 Cheng Jiawen Page 4 of 309 Report No.: S19082902501001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) ................................................................................ 10 1.5. Ambient Condition ................................................................................. 10 2. SAR Measurement System ................................................................................. 11 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 11 2.2. Robot ..................................................................................................... 12 2.3. E-Field Probe .......................................................................................... 13 2.3.1. E-Field Probe Calibration ................................................................. 13 2.4. SAM phantoms ...................................................................................... 14 2.4.1. Technical Data .................................................................................. 15 2.5. Device Holder ........................................................................................ 16 2.6. Test Equipment List ................................................................................ 17 3. SAR Measurement Procedures .......................................................................... 19 3.1. Power Reference ................................................................................... 19 3.2. Area scan & Zoom scan .......................................................................... 19 3.3. Description of interpolation/extrapolation scheme .............................. 21 3.4. Volumetric Scan ..................................................................................... 21 3.5. Power Drift ............................................................................................ 21 4. System Verification Procedure .......................................................................... 22 4.1. Tissue Verification ................................................................................. 22 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 23 4.2. System Verification Procedure .............................................................. 24 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 26 5.1. SAR measurement variability ................................................................. 26 5.2. SAR measurement uncertainty .............................................................. 26 6. RF Exposure Positions .................................................…
