2AUI9UC1129RPW18Portable Electric Luminaires

BBx2 AA x4 Model / Model / Modelo #: UC1229-RPW-18LF5-G LED Bluetooth ® Speaker Under Cabinet Light (Page 1) Luminaire pour dessous de meuble avec haut-parleurs Bluetooth ® à DEL (Page 3) Luz LED para debajo de gabinetes con parlantes Bluetooth ® (Página 5) 1 2 3 ENGLISH Mark the general area where the mounting brackets (BB) will be located. Using a small drill or nail, make two small pilot holes at the marked locations. Align the mounting brackets (BB) and drive screws (AA) into place. NOTE: Ensure mounting location is within 5ft. of an electrical outlet and that there is enough space on backside to plug in the power cord and/or linking cord. With the USB ports facing outward, lift the fixture toward the mounting brackets (BB) while aligning the top of the fixture channel with both clips. Apply upward pressure until channel snaps into place and seats into both brackets. Plug into outlet. Use included cord clips (CC) for cord management. 1 2 3 CCx5 ENGLISH WARNINGS AND CAUTIONS IMPORTANT SAFETY INFORMATION 1. Use ONLY insulated staples or plastic ties to secure the cords. 2. Route and secure the cords so that they will not be pinched or damaged. 3. LED light output is strong enough to injure human eyes. Do NOT look directly at exposed LEDs. 4. LEDs gradually emit less light over their lifetime. 5. Do NOT use with an extension cord, use ONLY with power strips that have integral overcurrent protection. 6. Do NOT mount to surfaces less than ¼ in. 7. Do NOT mount over sinks or stoves. 8. Do NOT install these lights inside of enclosed cabinets. 9. Turn power off before servicing. 10. Maximum number of fixtures per run must NOT exceed maximum power supply wattage rating of 240W. 11. NOT intended for recessed installation in ceiling or soffits. DO NOT ATTEMPT TO INSTALL LED LIGHT BAR WHILE PLUGGED IN. DO NOT USE THIS FIXTURE WITH A DIMMING CIRCUIT. SHUT OFF POWER TO THE OUTLET PRIOR TO INSTALLING THE FIXTURE. DO NOT ATTEMPT TO INSTALL FIXTURE WHILE PLUGGED-IN TO POWER SUPPLY. Suitable for INDOOR damp locations ONLY. READ ENTIRE INSTALLATION PROCEDURE BEFORE YOU BEGIN! This fixture can ONLY be linked with Good Earth Lighting models UC1230-RPW-18LF5-G and UC1230-RPW-24LF7-G Power cord Cordon d'alimentation Cable de alimentación Linking cord Cordon de raccordement Cable de enlace 60in. / 152,4 cm 18in. / 45,7 cm Power/linking outlet Prise de courant pour raccordement Tomacorriente/salida de enlace Diffuser Diffuseur Difusor 5.0 Bluetooth speakers Haut-parleurs Bluetooth 5.0 Parlantes Bluetooth 5.0 USB ports Ports USB Puertos USB Wave sensor Capteur d’ondes Sensor de ondas USB ports Ports USB Puertos USB Required/ Nécessaire/ Obligatorio CCx5AAx4 * Actual hardware may differ from illustration * La quincaillerie incluse peut être différente de l’illustration. * Los aditamentos reales pueden diferir de los que se muestran en la ilustración. BB x2 Hardware kit* / Trousse de quincaillerie* / Kit de aditamentos* ATTACH AND SAVE RECEIPT HERE NOTE: Ensure mounting location is within 5ft. of an electrical outlet and that there is enough space on backside to plug in the power cord. Avoid putting nails through the cord. 4 1. L'appareil intelligent est hors de portée. 2. L'appareil intelligent n'est pas détectable. 3. Le haut-parleur Bluetooth a été réinitialisé 1. Assurez-vous que l'éclairage sous le meuble est à moins de 10 m / 33 pi de l'appareil intelligent. 2. Activez le mode « Discoverable » (Susceptible d’être découvert/détecté) sur l'appareil pour permettre à l'éclairage sous le meuble et à l'appareil intelligent de se reconnaître mutuellement. 3. Débranchez le cordon d’alimentation de l’alimentation électrique. Retirez le luminaire « GEL UC1229 » de la liste des luminaires compatibles Bluetooth, branchez à nouveau le cordon d’alimentation dans l’alimentation électrique et resynchronisez les dispositifs. 3. Les haut-parleurs Bluetooth ne s'apparient pas à un appareil intelligent. 1. Les paramètres musicaux de l'appareil intelligent doivent être ajustés. 2. Le dispositif Bluetooth est trop éloigné. 1. Allumez la musique ou augmentez le volume à partir de l'appareil intelligent. 2. Rapprochez-vous entre la connexion des appareils. 4. Aucun son n’est émis par les haut-parleurs. Avant de manipuler le luminaire, coupez l’alimentation électrique sur le panneau central de disjoncteurs pour éliminer les risques de choc électrique. Kit de petit matériel de fixation: ZH-UC1229F18-RPW LISTE DES PIÈCES DE RECHANGE Avez-vous besoin d’assistance? Good Earth Lighting ® 1400 East Business Center Drive, Ste. 108 Mount Prospect, IL 60056 Good Earth Lighting ® est une marque déposée de Good Earth Lighting, Inc. © 2019 Good Earth Lighting, Inc. PROBLÈMECAUSE POSSIBLE ACTION CORRECTIVE Guide de recherche de la cause des problèmes 1. La lumière ne s’allume pas. 1. L’interrupteur du luminaire est en position hors tension. 2. Le luminaire n'est pas raccordé correctement à la boîte de jonction. 3. L’interrupteur est défectueux. 1. Cessez de l’utiliser. 1. Appelez notre Centre de service à la clientèle au (1-800-291-8838). 1. Vérifiez que le luminaire est sous tension et que son bouton d’éclairage est allumé. 2. Inspectez les connexions de câblage. 3. Testez l’interrupteur ou remplacez-le. Veuillez vous rendre sur notre site Web à l’adresse www.goodearthlighting.com/support ; ou téléphonez au Centre de service à la clientèle au 1-800-291-8838 de 8h30 à 17h00, HNC, du lundi au vendredi. Imprimé en Chine 2. Un fusible saute ou un disjoncteur se déclenche lorsque le luminaire est mis sous tension. Good Earth Lighting ® - GARANTIE LIMITÉE DE 6 ANS : Le fabricant garantit que ce luminaire ne comporte pas de défaut de matériau ou de vice de fabrication pendant une période de (6) ans après la date de l'achat original par le consommateur. Le luminaire n’est pas garanti en cas d’emploi dans un magasin de vente au détail ou autre environnement commercial. La garantie est limitée à une utilisation dans un environnement résidentiel. Nous …

Text truncated - open the document above for the full version.

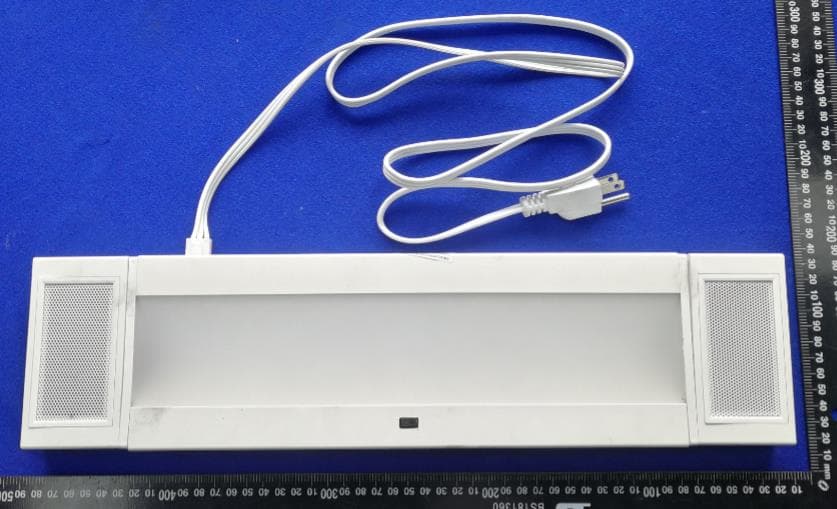

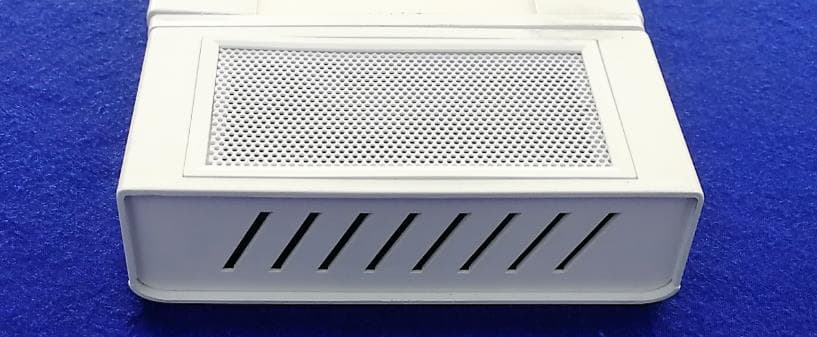

External Photo

Label Label Location 35mm 150mm

Internal Photo Bluetooth antenna

Good Earth Lighting Inc. SAR COMPLIANCE REPORT Report Type: FCC SAR assessment report Model: UC1229-RPW-18LF5-G REPORT NUMBER: 190900281SHA-002 ISSUE DATE: December 26,2019 DOCUMENT CONTROL NUMBER: TTRFFCCSAR-01_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCSAR-01_V1© 2018 Intertek Page 2 of 8 Report no.: 190900281SHA-002 Applicant: Good Earth Lighting Inc. 1400 East Business Center Drive, Suite 108, Mount Prospect, IL 60056, USA Manufacturer: Good Earth Lighting Inc. 1400 East Business Center Drive, Suite 108, Mount Prospect, IL 60056, USA Manufacturing Site: Ningbo Yito Optoelectronics Technology Co., Ltd. Fushan Industrial Centre, Guanhaiwei Town, CIXI Zhejiang 315315 FCC ID: 2AUI9UC1129RPW18 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: KDB447498 D01 General RF Exposure Guidance v06 FCC Part2.1091, FCC Part2.1093 FCC Part1.1307(b) PREPARED BY: REVIEWED BY: Project Engineer Eric Li Reviewer Wakeyou Wang Report No.: 190900281SHA-002 TEST REPORT TTRFFCCSAR-01_V1© 2018 Intertek Page 3 of 8 Revision History Report No. Version Description Issued Date 190900281SHA-002 Rev. 01 Initial issue of report December 26,2019 Report No.: 190900281SHA-002 TEST REPORT TTRFFCCSAR-01_V1© 2018 Intertek Page 4 of 8 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: Portable Electric Luminaires Type/Model: UC1229-RPW-18LF5-G Description of EUT: The EUT is Portable Electric Luminaires, it supports Bluetooth function, there is only one model, we test it and list the worst results in this report. Rating: 120V ac, 60Hz Category of EUT: Class B EUT type: Table top Floor standing Software Version: / Hardware Version: / Sample received date: 2019.9.20 Date of test: 2019.9.20~2019.9.25 1.2 Technical Specification Frequency Range: 2400MHz ~ 2483.5MHz Support Standards: Bluetooth 5.0 (BR+EDR) Modulation Technique: Frequency Hopping Spread Spectrum (FHSS) Type of Modulation: GFSK, π/4 DQPSK Channel Number: 79 (0 - 78) Data Rate: 1Mbps Channel Separation: 1 MHz Antenna: Internal PCB antenna, 0dBi Peak gain Report No.: 190900281SHA-002 TEST REPORT TTRFFCCSAR-01_V1© 2018 Intertek Page 5 of 8 1.3 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L0139 FCC Accredited Lab Designation Number: CN1175 IC Registration Lab Registration code No.: 2042B-1 VCCI Registration Lab Registration No.: R-4243, G-845, C-4723, T-2252 NVLAP Accreditation Lab NVLAP LAB CODE: 200849-0 A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 190900281SHA-002 TEST REPORT TTRFFCCSAR-01_V1© 2018 Intertek Page 6 of 8 2 SAR Assessment Test result: Pass 2.1 SAR Test Exclusion Limit 100 MHz – 6 GHz and ≤ 50 mm Report No.: 190900281SHA-002 TEST REPORT TTRFFCCSAR-01_V1© 2018 Intertek Page 7 of 8 100 MHz – 6 GHz and > 50 mm < 100 MHz and < 200 mm Report No.: 190900281SHA-002 TEST REPORT TTRFFCCSAR-01_V1© 2018 Intertek Page 8 of 8 2.2 Assessment Results The highest EIRP adjusted with tune-up tolerance is 2.95dBm = 1.97 mW < 10mW (Test Exclusion Thresholds of 2450MHz at 5mm). Therefore, the SAR requirement is deemed to be satisfied without test. ******************************************* END ************************************

Good Earth Lighting Inc. RF TEST REPORT Report Type: FCC Part 15.247 & ISED RSS-247 RF report Model: UC1229-RPW-18LF5-G REPORT NUMBER: 190900281SHA-001 ISSUE DATE: December 26,2019 DOCUMENT CONTROL NUMBER: TTRF15.247-01_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.247-01_V1 © 2017 Intertek Page 2 of 55 Report no.: 190900281SHA-001 Applicant: Good Earth Lighting Inc. 1400 East Business Center Drive, Suite 108, Mount Prospect, IL 60056, USA Manufacturer: Good Earth Lighting Inc. 1400 East Business Center Drive, Suite 108, Mount Prospect, IL 60056, USA Manufacturing Site: Ningbo Yito Optoelectronics Technology Co., Ltd. Fushan Industrial Centre, Guanhaiwei Town, CIXI Zhejiang 315315 FCC ID: 2AUI9UC1129RPW18 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2019): Radio Frequency Devices (Subpart C) ANSI C63.10 (2013): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices RSS-247 Issue 2 (February 2017): Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices RSS-Gen Issue 5 (March 2019) Amendment 1: General Requirements for Compliance of Radio Apparatus PREPARED BY: REVIEWED BY: Project Engineer Eric Li Reviewer Wakeyou Wang Report No.: 190900281SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 3 of 55 Content REVISION HISTORY................................................................................................................................................ 5 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 6 1 GENERAL INFORMATION ............................................................................................................................. 7 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 7 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 7 1.3 FREQUENCY HOPPING SYSTEM REQUIREMENT .......................................................................................................... 8 1.4 DESCRIPTION OF TEST FACILITY ............................................................................................................................ 10 2 TEST SPECIFICATIONS ................................................................................................................................. 11 2.1 STANDARDS OR SPECIFICATION ............................................................................................................................. 11 2.2 MODE OF OPERATION DURING THE TEST ................................................................................................................. 11 2.3 TEST SOFTWARE LIST .......................................................................................................................................... 12 2.4 TEST PERIPHERALS LIST ....................................................................................................................................... 12 2.5 TEST ENVIRONMENT CONDITION: .......................................................................................................................... 12 2.6 INSTRUMENT LIST .............................................................................................................................................. 13 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 14 3 20DB BANDWIDTH .................................................................................................................................... 15 3.1 LIMIT .............................................................................................................................................................. 15 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 15 3.3 TEST CONFIGURATION ........................................................................................................................................ 16 3.4 TEST RESULTS OF 20DB BANDWIDTH ..................................................................................................................... 16 4 CARRIER FREQUENCY SEPARATION ............................................................................................................ 17 4.1 LIMIT .............................................................................................................................................................. 17 4.2 TEST CONFIGURATION ..…

Text truncated - open the document above for the full version.

Report No.: 190900281SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 46 of 55 GFSK,2480MHz,DH5,Plot 1,Band Edge GFSK,2480MHz,DH5,Plot 2,0.009MHz~2475 MHz GFSK,2480MHz,DH5,Plot 3,2505MHz~10000 MHz GFSK,2480MHz,DH5,Plot 4,10000MHz~2500 0MHz DQPSK,2402MHz,2DH5,Plot 1,Band Edge DQPSK,2402MHz,2DH5,Plot 2,0.009MHz~23 80MHz Report No.: 190900281SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 47 of 55 DQPSK,2402MHz,2DH5,Plot 3,2410MHz~100 00MHz DQPSK,2402MHz,2DH5,Plot 4,10000MHz~25 000MHz DQPSK,2441MHz,2DH5,Plot 1,Band Edge DQPSK,2441MHz,2DH5,Plot 2,0.009MHz~23 00MHz DQPSK,2441MHz,2DH5,Plot 3,2500MHz~100 00MHz DQPSK,2441MHz,2DH5,Plot 4,10000MHz~25 000MHz Report No.: 190900281SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 48 of 55 DQPSK,2480MHz,2DH5,Plot 1,Band Edge DQPSK,2480MHz,2DH5,Plot 2,0.009MHz~24 75MHz DQPSK,2480MHz,2DH5,Plot 3,2505MHz~100 00MHz DQPSK,2480MHz,2DH5,Plot 4,10000MHz~25 000MHz Report No.: 190900281SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 49 of 55 5. Frequency Band Edge 5.1 Test Result and Data BT Frequency Band Edges-Conducted Mode Test Range (MHz) Packet Type Hopping Mode Band Edge (dBm) Limit Result GFSK 2380~2420 DH5 Hopping On -37.13 -16.458 Pass GFSK 2463.5~2503.5 DH5 Hopping On -50.21 -16.941 Pass DQPSK 2380~2420 2DH5 Hopping On -37.99 -16.515 Pass DQPSK 2463.5~2503.5 2DH5 Hopping On -51.07 -17.013 Pass Report No.: 190900281SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 50 of 55 5.2 Test Plots GFSK,Hopping,DH5,Band Edge HighRange GFSK,Hopping,DH5,Band Edge LowRange DQPSK,Hopping,2DH5,Band Edge HighRang e DQPSK,Hopping,2DH5,Band Edge LowRange Report No.: 190900281SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 51 of 55 6. Number of Hopping Frequencies 6.1 Test Data BT Number of Hopping Channels Mode Test Frequency Packet Type Hopping Number Result GFSK Hopping DH5 79 Pass 6.2 Test Plots GFSK,Hopping,DH5,2400~2426.5MHz GFSK,Hopping,DH5,2400~2483.5MHz GFSK,Hopping,DH5,2426.5~2454.5MHz GFSK,Hopping,DH5,2454.5~2483.5MHz Report No.: 190900281SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 52 of 55 7. Carrier Frequency Separation 7.1 Test Result and Data BT Carrier Frequency Separation Mode Test Frequency (MHz) Packet Type Range Separation (kHz) Result GFSK Hopping DH5 2401.5MHz~2403.5MHz 1001 Pass GFSK Hopping DH5 2440.5MHz~2442.5MHz 995 Pass GFSK Hopping DH5 2478.5MHz~2480.5MHz 1017 Pass DQPSK Hopping 2DH5 2401.5MHz~2403.5MHz 1291 Pass DQPSK Hopping 2DH5 2440.5MHz~2442.5MHz 979 Pass DQPSK Hopping 2DH5 2478.5MHz~2480.5MHz 1137 Pass Report No.: 190900281SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 53 of 55 7.2 Test Plots GFSK,Hopping,DH5,2401.5~2403.5MHz GFSK,Hopping,DH5,2440.5~2442.5MHz GFSK,Hopping,DH5,2478.5~2480.5MHz DQPSK,Hopping,2DH5,2401.5~2403.5MHz DQPSK,Hopping,2DH5,2440.5~2442.5MHz DQPSK,Hopping,2DH5,2478.5~2480.5MHz Report No.: 190900281SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 54 of 55 8. Dwell Time 8.1 Test Result and Data BT Dwell Time Mode Test Frequency (MHz) Packet Type Transmission Time (ms) Number Dwell Time (ms) Result GFSK 2402 DH1 0.380 330 125.27 Pass GFSK 2402 DH3 1.618 60 97.10 Pass GFSK 2402 DH5 2.877 60 172.63 Pass Report No.: 190900281SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 55 of 55 8.2 Test Plots GFSK,2402,DH1,Transmission Time GFSK,2402,DH1,Transmission Number GFSK,2402,DH3,Transmission Time GFSK,2402,DH3,Transmission Number GFSK,2402,DH5,Transmission Time GFSK,2402,DH5,Transmission Number ******************************************* END ************************************

Test Setup
