2AUR5-ESR3Electric scooter

Accelerator Turn up Turn Down Accelerator Charging 180/200W CP4210/CP2910 42VDC 29.2VDC 25.2V 4AH /36V 4AH 6 100kg 18km/h 25km/h Safety and Maintenace 1112 Safety and Maintenace Maintenance: 1. Before cleaning the product, be sure to turn off the switch and disconnect the power supply. 2. Please clean the product after each use. 3. The electric scooter can be wiped with a damp cloth. Do not put the E-scooter into water or other liquids, or wash it under water or other liquids. 4. This product should be stored in a clean, dry place out of direct sunlight. 5. Before storing the product, make sure it is clean and dry. Contact information: ManufacturerHL Corp Shenzhen AddressThe 3rd Industrial Park , Bitou Village Songgang Town , Baoan District , Shenzhen , China. Telephone+86 0755-2713-0185 Websitehttp://us.hlcorp.com/contact/ * If you experience problems related to riding, maintenance and safety, or if your electric vehicle appears problems, please contact us. Display 00. : Undervoltage, indicating that the vehicle battery needs to be charged. After charging, the fault can be removed; when the battery voltage is 30V, the undervoltage fault will be displayed; Display 01. : Overvoltage, indicating that the controller has detected that the current voltage is too high. If charging, please unplug the charger and long press the power button to shut down; when the battery voltage reaches 46V, it will display an overvoltage fault; Display 02. : The controller is faulty, indicating that the control is faulty. After long pressing the power button to shut down, turn on again. If the fault still cannot be eliminated, it is recommended to return to the factory for repair; Display 03. : The controller temperature is too high, please suspend the use of the vehicle, if the fault is not repaired after 10 minutes, press and hold the power button to shut down, and then restart, if the fault still cannot be eliminated, it is recommended to return to the factory for repair; Display 04. : Communication failure, you need to check whether the communication line interface between the instrument and the control terminal is loose or falling off; if the connection is confirmed to be intact, after the shutdown and restart, the failure cannot be eliminated, it is recommended to return to the factory for repair; Display 05. : Hall failure, indicating that the Hall wire connecting the controller and the motor is loose or the Hall of the motor itself is damaged; it can be verified by reinserting the connection wire between the controller and the motor. After pulling out, the fault cannot be eliminated, it is recommended to return to the factory for repair; Display 06. : The throttle handle is faulty, you need to check whether the throttle line is connected successfully and stably with the connecting line on the instrument side. If it is determined that the line is connected properly, then replace the throttle handle to see if the fault can be eliminated. If the fault still cannot be eliminated, It is recommended to return to the factory for repair; Display 07. : Brake failure, you need to check whether the brake cable is successfully and stably connected to the cable at the instrument end. If the cable is connected properly, the failure cannot be eliminated. It is recommended to return to the factory for repair; Display 08. : Overcurrent protection, when the current of ESX1 models reaches 17A, or when the current of ESX2/3 models reaches 18A, the system will enter overcurrent protection, which needs to be shut down and restarted to recover. If the fault still cannot be eliminated, it is recommended to return to the factory service; Devices are not intended for use at elevations greater than 2000 m above sea level Prolonged Exposure to UV Rays, Rain and the Elements May Damage the Enclosure Materials, Store Indoors When Not in Use WARNING – Risk of Fire – No User Serviceable Parts AVERTISSEMENT- Risque d’incendie et de choc électrique - Aucune des pièces ne peut être réparée par l’utilisateur This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision the appliance is only to be used with the unit provided

HL CORP (SHEN ZHEN) Agent Authorization Company: HL CORP (SHEN ZHEN) Address: The third Industrial Park, Bitou Village, Songgang Town, Baoan district, Shenzhen, China Product Name: Electric scooter Model Number(s): ESR3 Product Description: Electric scooter We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-12-21 Name: Zheng fengchun Company: HL CORP (SHEN ZHEN)

HL CORP (SHEN ZHEN) Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-12-03 Subject; Request for Confidentiality FCC ID: 2AUR5-ESR3 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely HL CORP (SHEN ZHEN) Contact person: Zheng fengchun

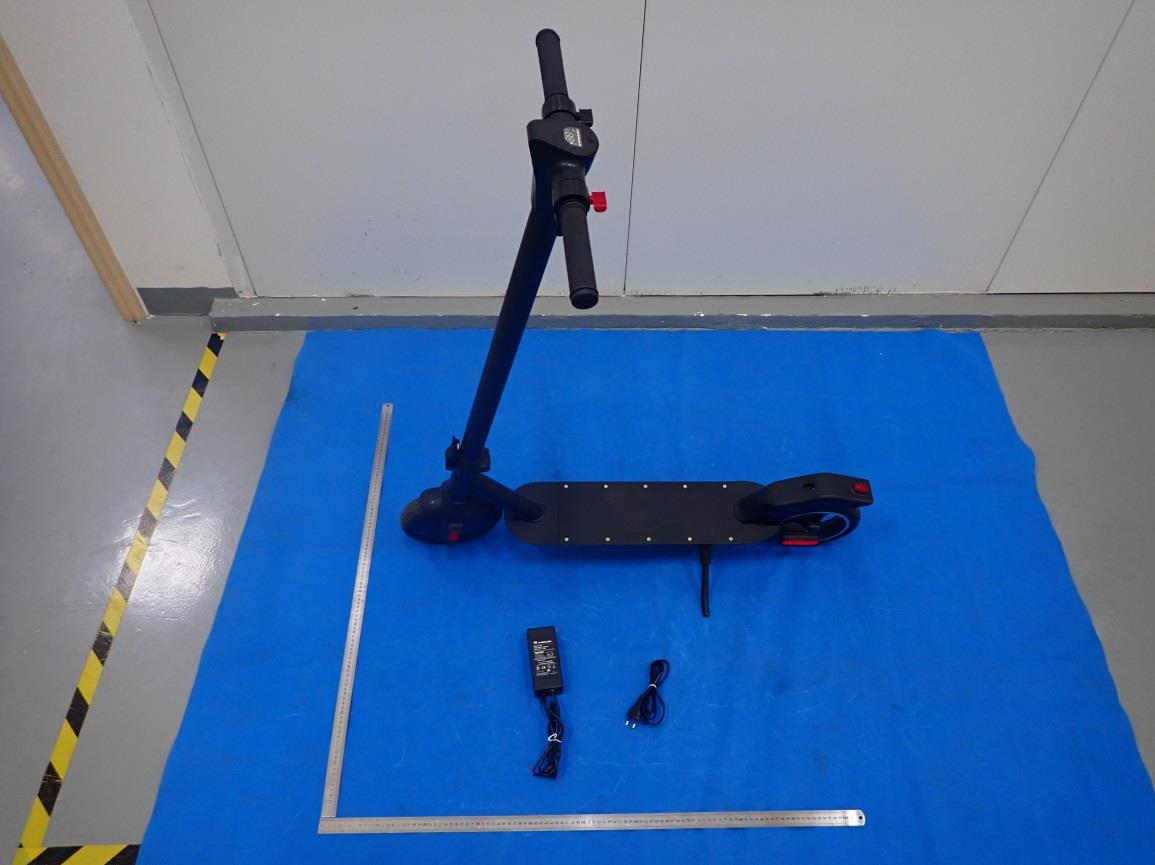

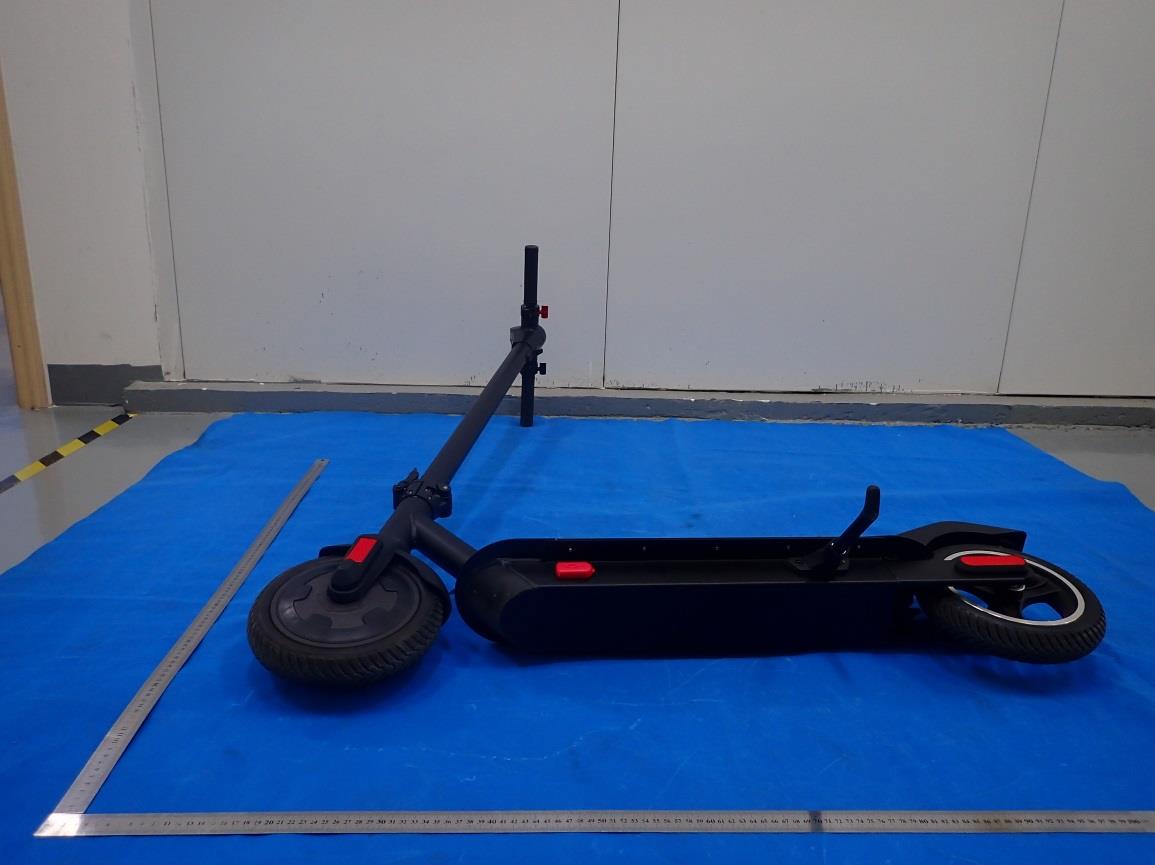

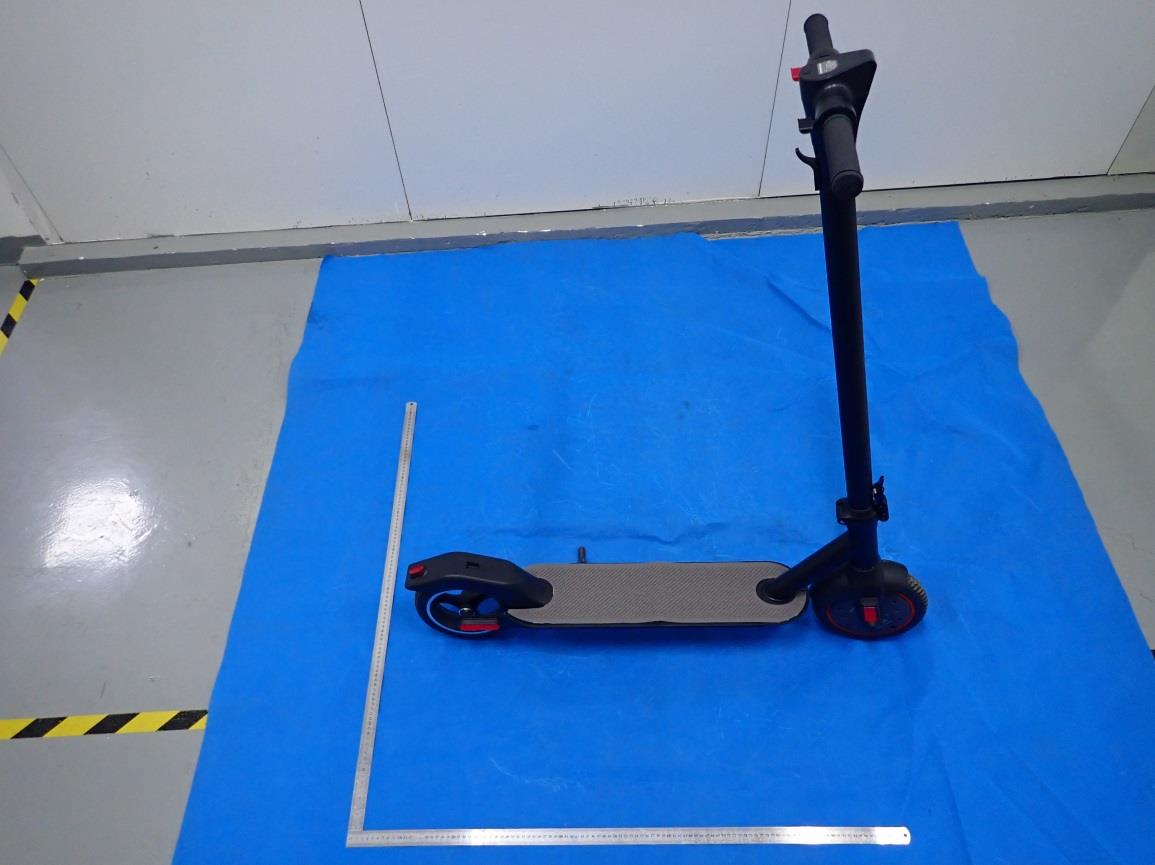

External Photos WHOLE VIEW OF EUT-1 WHOLE VIEW OF EUT-2 TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)

FCC ID Label Location FCC ID: 2AUR5-ESR3

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY-1 VIEW OF BATTERY-2 INTERNAL VIEW OF EUT-1 BT Antenna INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 INTERNAL VIEW OF EUT-8 INTERNAL VIEW OF EUT-9

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Electric scooter Model Name ESR3 FCC ID 2AUR5-ESR3 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BLE: P t =1.106dBm=1.29mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(1.29mW /5mm) .[√2.441GHz)]= 0.40<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 55 FCC Test Report Report No.: AGC08696200703FE02 FCC ID : 2AUR5-ESR3 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Electric scooter BRAND NAME : ORBO MODEL NAME : ESR3 APPLICANT : HL CORP (SHEN ZHEN) DATE OF ISSUE : Dec. 03,2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC08696200703FE02 Page 2 of 55 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 03,2020 Valid Initial Release Report No.: AGC08696200703FE02 Page 3 of 55 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ...................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RELATED SUBMITTAL(S)/GRANT(S) .................................................................................................... 7 2.4. TEST METHODOLOGY ........................................................................................................................... 7 2.5. SPECIAL ACCESSORIES ....................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS .............................................................................................................. 7 2.7. ANTENNA REQUIREMENT ..................................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 8 4. DESCRIPTION OF TEST MODES ................................................................................................................. 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 10 5.1. CONFIGURATION OF TESTED SYSTEM ............................................................................................. 10 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................ 10 5.3. SUMMARY OF TEST RESULTS ............................................................................................................ 10 6. TEST FACILITY ........................................................................................................................................... 11 7. PEAK OUTPUT POWER ............................................................................................................................. 12 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 12 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 13 8. 6 DB BANDWIDTH ...................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 15 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 17 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 17 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 17 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 17 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ....................................................... 25 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 25 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 25 10.3. MEASUREMENT EQUIPMENT USED ................................................................................................ 25 10.4. LIMITS AND MEASUREMENT RESULT ............................................................................................. 25 11. RADIATED EMISSION ............................................................................................................................... 27 11.1. MEASUREMENT PROCEDURE ......................................................................................................... 27 11.2. TEST SETUP ....................................................................................................................................... 28 11.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 29 11.4. TEST RESULT ....................................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC08696200703FE02 Page 46 of 55 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: AGC08696200703FE02 Page 47 of 55 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.: AGC08696200703FE02 Page 48 of 55 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: AGC08696200703FE02 Page 49 of 55 VIEW OF EUT(PORT) OPEN VIEW OF EUT Report No.: AGC08696200703FE02 Page 50 of 55 VIEW OF BATTERY-1 VIEW OF BATTERY-2 Report No.: AGC08696200703FE02 Page 51 of 55 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna Report No.: AGC08696200703FE02 Page 52 of 55 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Report No.: AGC08696200703FE02 Page 53 of 55 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 Report No.: AGC08696200703FE02 Page 54 of 55 INTERNAL VIEW OF EUT-7 INTERNAL VIEW OF EUT-8 Report No.: AGC08696200703FE02 Page 55 of 55 INTERNAL VIEW OF EUT-9 ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED EMISSION TEST SETUP CONDUCTED TEST SETUP
