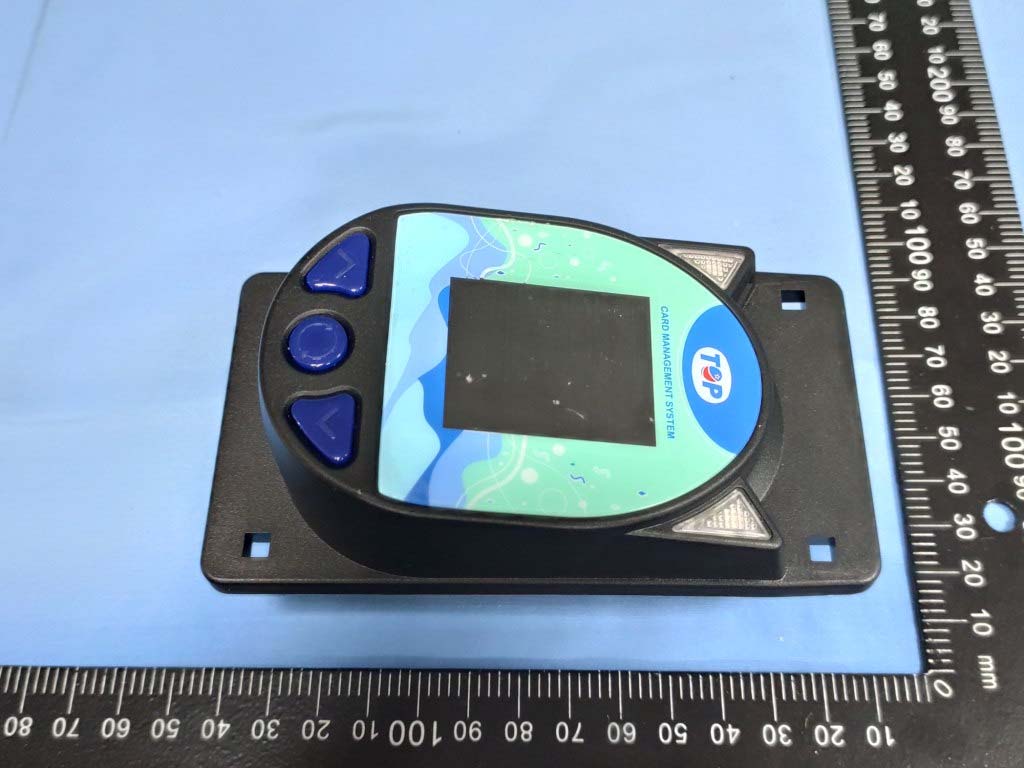

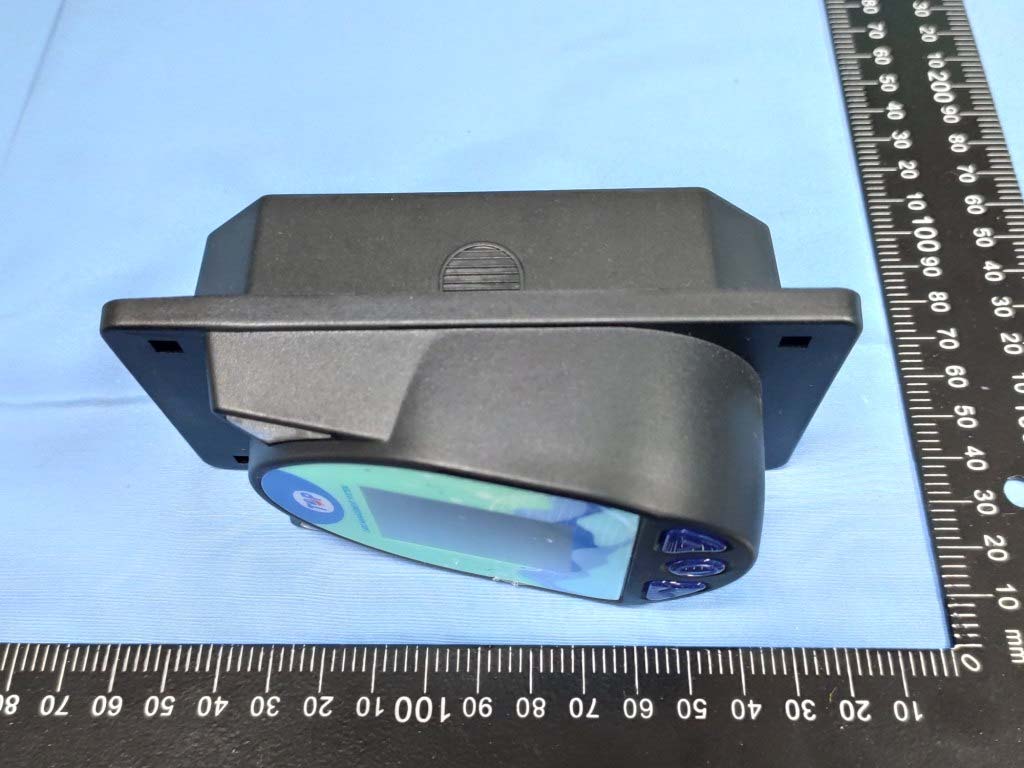

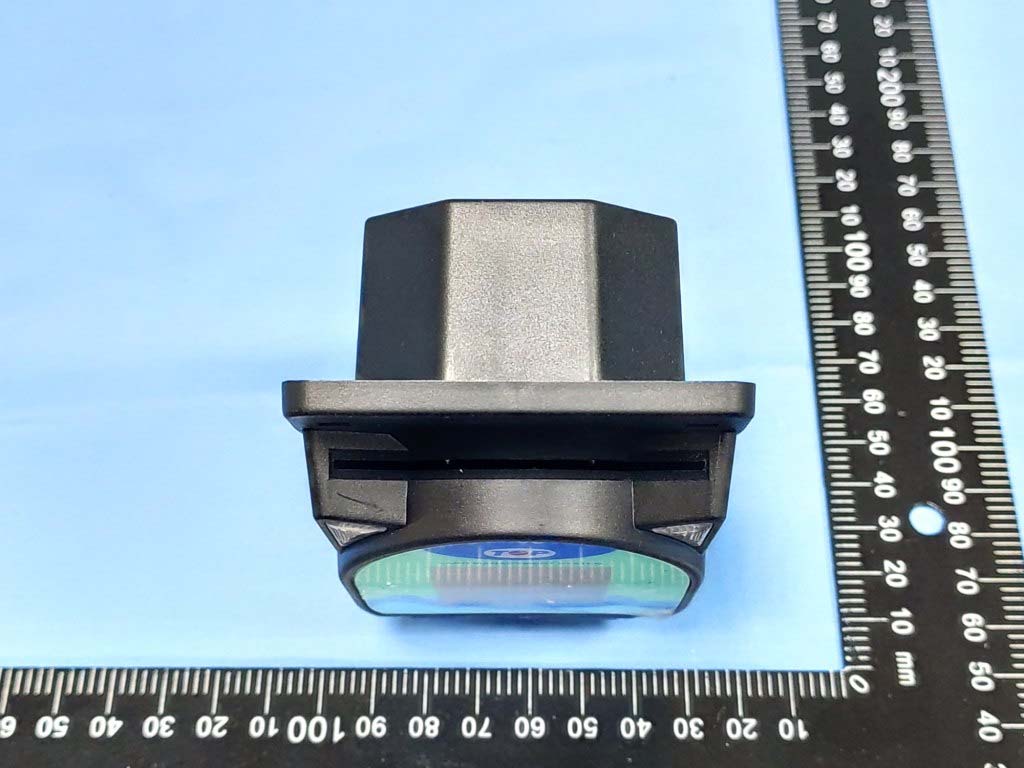

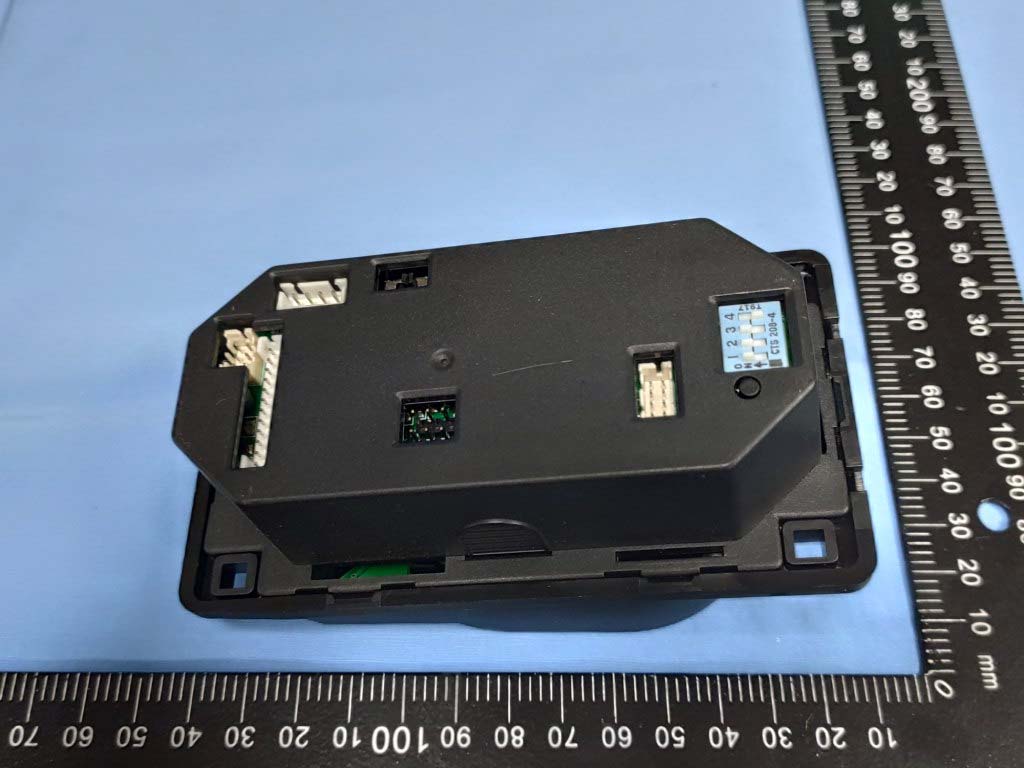

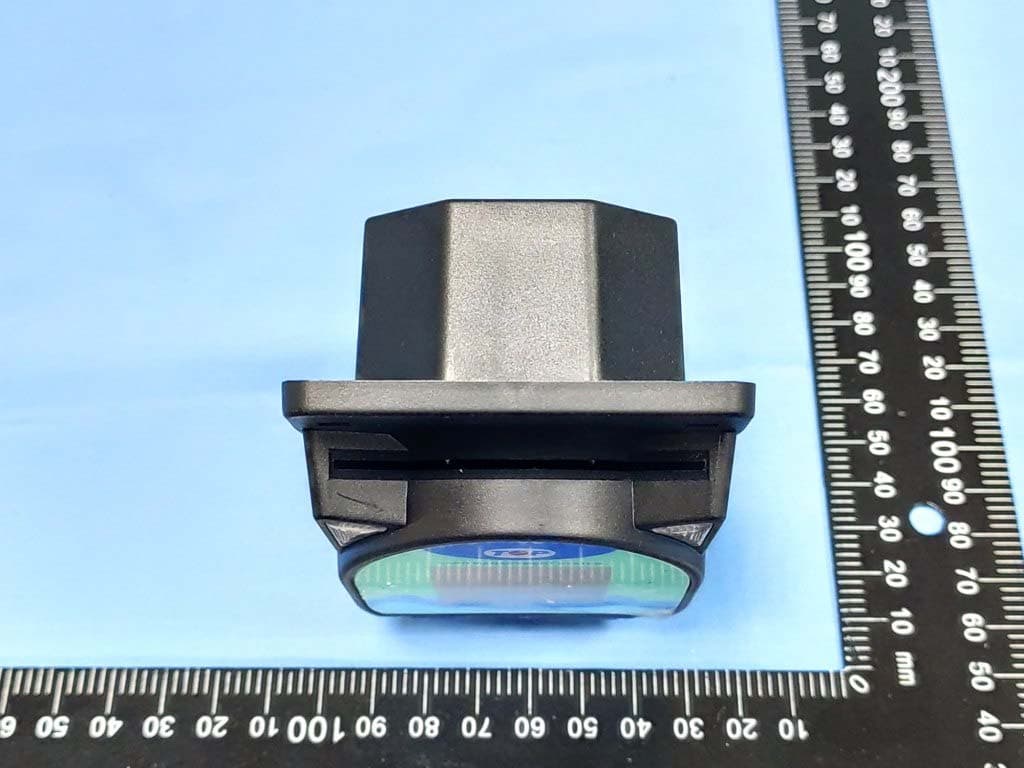

2AUZVCMS305Card Reader (CMS305)

Thank you for choosing TOP VME . CMS305 Card Reader User Guide Contents 1. Product Introduction ...............................................................................................1 1-1. Overview ............................................................................................................................1 1-2. Features ..............................................................................................................................1 2. Product Specifications .............................................................................................2 2-1. General Specifications ..................................................................................................2 2-2. Electronic Specifications ..............................................................................................2 2-3. Machine Specifications ................................................................................................2 3. Product content .........................................................................................................2 4. Product Dimension ...................................................................................................3 5. Installation Instructions ..........................................................................................4 6. Application ...................................................................................................................5 7. Wiring ............................................................................................................................6 8. Function Description ................................................................................................14 8-1. Setting and Display ........................................................................................................14 8-2. Setting ................................................................................................................................14 8-2-1. GAME ........................................................................................................................14 8-2-2. Signal .........................................................................................................................15 8-2-3. System .......................................................................................................................15 8-3. Function Modes ..............................................................................................................15 8-4. Operation Display ..........................................................................................................16 9. Troubleshooting ........................................................................................................16 1 CMS305 1. Product Introduction 1-1. Overview The card management system can save labor costs, and reduce auditing stress. All top-ups and cash settlements are completed at the cash register to avoid unnecessary cash handling. This solves the problem of miscalculation and difference between the cash and computer accounts of other branches, and increase the time cost of checking and reconciling. Easy to install and use, no need for network cable connection between devices. Information is using and transferring by the memory of the CPU. Without the computer management, each host can work independently. After using the system management, the accounts are clearer, the handover is simple, it is easy to check and manage at any time, and improve the work efficiency of the playground. All game cards can be transferred between players, and the venue does not need to be recovered, but can be stored, refunded and deposited. Applicable to all: game machine machines with the functions of opening points, returning coins, and issuing lottery tickets. 1-2. Features • Card Information High security • Compatible with various game consoles • Multiple devices can be connected in real time • Available a variety of card management modes 2 Card Reader 2. Product Specifications 2-1. General Specifications Communication Interface RS232/PULSE Card type Complies with ISO14443A, can support Mifare1 S70 contactless smart card Installation siteIndoors 2-2. Electronic Specifications Input power+12V DC Power Consumption Standby:1.5~1.6W Working:2.3W Max.:2.5W Temperature Range (° C) Ambient: 0~60 Storage:-10~80 Humidity:20~70%RH(no condensation) 2-3. Machine Specifications Weight154 ±10 g Dimension124 X 67 X 62.9 mm Screen Size18 Inch Screen 3. Product content MainCMS 305(with RF) Accessories Manual Wires (Check page...) Screw set CMS100H Adapter board(Optional) 3 CMS305 4. Product Dimension 67 2.638 52 2.047 103 4.055124 4.882 36.501.437 62.902.476 Unit : mm [inch] 4 Card Reader 5. Installation Instructions (a)x4 (d)x4 (b)x4 (c)x4 42 1.654 52 2.047 58 2.283 93 3.661 114 4.488103 4.055 C2[0.079] 5 0.197 -4Holes Unit : mm [inch] Recommended size Installation: 1. Please follow the steps according to the recommended shape and size of the door panel. 2. Align the mounting holes from the CMS305 (b) and the mounting holes on the installing panel. 3. Insert the carriage screw (a) and push through the aligned mounting openings (c) of the door panel. 4. Lock into place with the provided nuts (d). 5 CMS305 6. Application 6 Card Reader 7. Wiring ConnectorInterfaceVoltageUseWirePag. J3Power +12V DC Power CableWEL-R7U028 Power +12V DC Power Extension CU-R961-19 CN1 RS232/ UART Data Transfer WEL-R7U06 (Purchase) 10 CN1USB/UARTData Transfer 2WIR-CP2102N-00 (Purchase) 11 CMS100H PULSE/ HOPPER Data Transfer 2WIR- CMS3000C-00 (Purchase) 12 CMS100HPower +12V DC CMS100H Power cord 2WIR-CMS100G1- 0B (Purchase) 13 CMS100H UART/ UART CMS100H Data transfer 2WIR-CMS100H1- 0A (Purchase) 14 For Software update WEL-R7U06 2WIR-CP2102N-00 WEL-R7U02 DIP Switch Setting button 7 CMS305 PIN NOCOLORPIN DEFINE PIN1RED +12V DC PIN2ORANGEGND PIN3YELLOWNC NC NC NCPIN4GREEN PIN5BLUE PIN6PURPLE PIN N…

Text truncated - open the document above for the full version.
