2AUZX-BVSZWUZ-Wave Intelligent Ball Valve Servo

User Manual Ubitech Ltd. Version: 1.0.6 Page: 1 Ball Valve Servo Technology for Humanity BVSZWU Date:04-MAY-2020 Ubitech Ltd. Version: 1.0.6 Page: 2 INDEX 1. INTRODUCTIONS 1.1 Custos BVS 1.2 What’s Z-Wav e 2. FEATURES & SPECIFICATIONS 2.1 Physical Specifications 2.2 Hardware Specifications 2.3 Software Specifications 3. Z-WAVE SOFTWARE DEFINITIONS 3.1 Z-Wav e Plus Info 3.2 Version CC 3.3 Manufacturer Specifications 3.4 Notification CC 3.5 Indicator CC 3.6 Basic CC Mapping of Water Valve 3.7 Association Group Info (AGI) 3.8 Support Command Class in NIF 3.9 Configuration CC 4. WHAT INSIDE IN THE BOX 5. UNDERSTANDING CUSTOS BVS 5.1 Connectors & Interfaces 5.2 Smart Start Label 6. KEY & INDICATORS BEHAVIOR 6.1 To u ch S e ns e Bu tto n 6.2 Visual Indicator 6.3 Sound Indicator 7. PHYSICAL INSTALLATION 7.1 Quick Installation instruction 8. WORKING MODE SUPPORT 8.1 Standalone 8.2 Mesh Network 8.3 Wate r Valve 8.4 Water Leak Sensor & Alarm 8.5 Temperature Sensor 9. TOUCH SENSE BUTTON KEYLOCK 9.1 Keylock Enable 9.2 Keylock Disable 10. SETUP Z-WAVE NETWORK 10.1 Check Custos BVS Status 10.2 Add Custos BVS Into Z-Wav e Network 10.3 Remove Custos BVS From Z-Wave Network 10.4 Factory Default Reset Date:04-MAY-2020 Ubitech Ltd. Version: 1.0.6 Page: 3 11. WATER VALVE OPERATION 11.1 Forced-calibration Valve Po sitio n 11.2 Turn Valve To OPEN 11.3 Turn Valve To CLOSE 11.4 Pause OPEN/CLOSE Operation 11.5 Resume OPEN/CLOSE Operation 12. WATER LEAK ALARM 12.1 Wate r Le ak Dete ction & Alarm 12.2 Water Leak Alarm Cancellation 13. TEMPERATURE SENSOR REPORT 13.1 Temperature Report 14. APPENDIX 14.1 Z-Wav e Te r m in ol og y 14.2 System Event Status 14.3 To u ch S e ns o r Bu tto n K e y L oc k 14.4 Operation Mode 14.5 Network Operation & Status 14.6 Wate r Valve Operation & Status 14.7 Wate r Le ak Alarm Operation & Status Ubitech Ltd. Version: 1.0.6 Page: 4 1 INTRODUCTION 1.1 What’s Z-Wave Z-Wave is international wireless protocol used for Smart Home. It’s a mash network technology to ensure reliable two- way communication with each other. Z-Wave provides interoperability and security from multivendor to make sure Certificated product works within any same Z-Wave network. 1.2 Custos BVS Custos Ball Valve Servo “Custos BVS” is capable for outdoor deployment for controlling quarter run water valve OPEN / CLOSE. It also supports auto CLOSE valve when water leak is detected by Local Leak Sensor Probe. Custos BVS can be operated in any Z-Wa ve ne t w ork with other Z-Wave certified gateways or devices from other manufacturers. All mains operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. Date:04-MAY-2020 Ubitech Ltd. Version: 1.0.6 Page: 5 2 FEATURES & SPECIFICATIONS 2.1 Physical Specifications Parameter Value Model No. BVS-ZWU (US) / BVS-ZWE (EU) Dimensions 14.8 x 9.6 x 13.3mm Weight BVS Unit: 603g Body Color White Knob Color Blue Waterproof and Dustproof IP66 level / Outdoor deployment Usage For Indoor and Outdoor Water Va l v e O n / O f f Operation Temperature 14~122° F (-10 ~ +50°C) Relative Humidity 8% ~ 80% 2.2 Hardware Specifications Parameter Value Z-Wa v e M o d u l e ZGM130S037HGN1 Z-Wa v e R F D i s t a n c e 40m (Indoor) / 140m (Outdoor) Region Frequency US: 908.4 & 916MHz, FCC CFR47 Part 15.249 EU: 868.42 & 869.85MHz Motor Torque Power Adaptive torque output max: 6n.m Wa t e r L e a k S e n s o r Local Wa t e r Leak Sensor Probe Temperature Sensor Built-in MCP9700x, Range from -40°C to +125°C / (-40°F to +257°F) Action Button Touch Sense Button x 1 LED Indicator 3 colors LED. (Green, Yellow & Red) Sound Indicator Buzzer (Max. 85dB) Power Supply AC-DC: AC (110V 60Hz / 220V 50Hz); DC (12V / 1A) Power Consumption Standby: ~10mA @ 12VDC = 0.12W Full Operation: Max ~700mA @ 12VDC = 8.4W Date:04-MAY-2020 Ubitech Ltd. Version: 1.0.6 Page: 6 2.3 Software Specifications Parameter Value Wireless Technology Z-Wa v e Z-Wave Certification Type Z-Wa v e P l u s v2 Certification Z-Wa v e SDK Ve r s i o n v7.13.2 Z-Wa v e L i b r a r y Enhanced 232 Slave Z-Wa v e R o l e Ty p e Always On Slave Device Typ e Binary Switch Generic Device Type Switch Binary Specific Device Type Valve Open Close Security Class Non-Security, S0, S2 Unauthenticated and S2 Authenticated Smart Start Support: After powering on, Smart Start is auto activated if it’s out of Z-Wa v e n e t w o r k when power on Firmware Update Support: Firmware upgrade support via RF, “Over The Air (OTA)” Association Support 5 Groups. Lifeline, Water Valve, Water Leak, Overheat & Underheat Factory Default Reset Support: Device Locally Reset Power Down Memory Support: Valve ON/OFF status, Leak Alarm support suddenly power cut and restore previous status Date:04-MAY-2020 Ubitech Ltd. Version: 1.0.6 Page: 7 3 Z-WAV E S O F T WA R E D E F I N I T I O NS 3.1 Z-Wave Plus Info Z-Wa v e P l u s Ve r s i o n 2 Role Type 5 (ZWAVEPLUS_INFO_REPORT_ROLE_TYPE_SLAVE_ALWAYS_ON) Node Type 0 (ZWAVEPLUS_INFO_REPORT_NODE_TYPE_ZWAVEPLUS_NODE) Installer Icon Type 0x1500 (ICON_TYPE_GENERIC_VALVE_OPEN_CLOSE) User Icon Type 0x1500 (ICON_TYPE_GENERIC_VALVE_OPEN_CLOSE) 3.2 Version CC Parameter Value Z-Wa v e P r o t o c o l L i b r a r y Ty p e 0x03 Z-Wa v e Protocol Version 0x07 Z-Wa v e P r o t o c o l S u b Ve r s i o n 0x0D Firmware 0 Version 0x03 – Z-Wa v e C h i p M a j o r F i r m w a r e Ve r s i o n Firmware 0 Sub Version 0x02 – Z-Wa v e C h i p M i n o r F i r m w a r e Ve r s i o n Hardware Version 0x03 Number of firmware targets 0x03 3.3 Manufacturer Specifications Parameter Value Manufacturer ID 1 0x02 Manufacturer ID 2 0x70 Product Type ID 1 0x01 Product Type ID 2 0x01 Product ID 1 0x00 Product ID 2 0x0A Date:04-MAY-2020 Ubitech Ltd. Version: 1.0.6 Page: 8 3.4 Notification CC Notification Type Notification Events / State Description Heat Alarm 0x04 State idle 0x00 Notification value for the state variable going to idle (V5) Overheat detected 0x02 No Location Support Event Underheat detected 0x06 No Location Supp…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/07/22 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AUZX-BVSZWU BVSZWU For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: C.K. Sze Company: Ubitech Limited Address: Unit 12, 7F Block A, Hi-Tech Industrial Centre 5-21 Pak Tin Par Street, Tsuen Wan, NT 999077 Hong Kong Phone: (852) 94719203 Fax: (852) 94719203 E-Mail: [email protected]

Ubitech Limited Unit 12, 7F Block A, Hi-Tech Industrial Centre 5-21 Pak Tin Par Street, Tsuen Wan, NT 999077 Hong Kong Tel: (852) 94719203 Fax: (852) 94719203 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/22/2020 To whom it may concern: We, Ubitech Limited the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AUZX-BVSZWU including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: C.K. Sze Company: Ubitech Limited Address: Unit 12, 7F Block A, Hi-Tech Industrial Centre 5-21 Pak Tin Par Street, Tsuen Wan, NT 999077 Hong Kong Phone: (852) 94719203 Fax: (852) 94719203 E-Mail: [email protected]

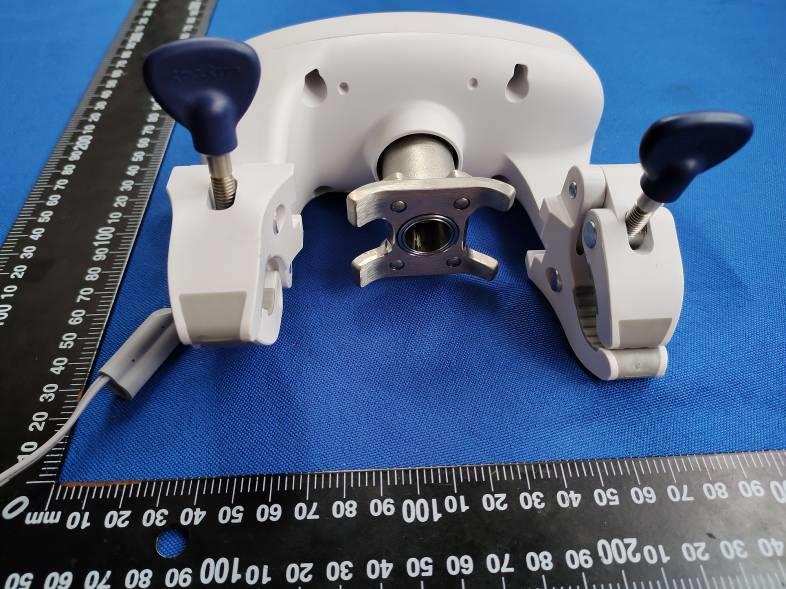

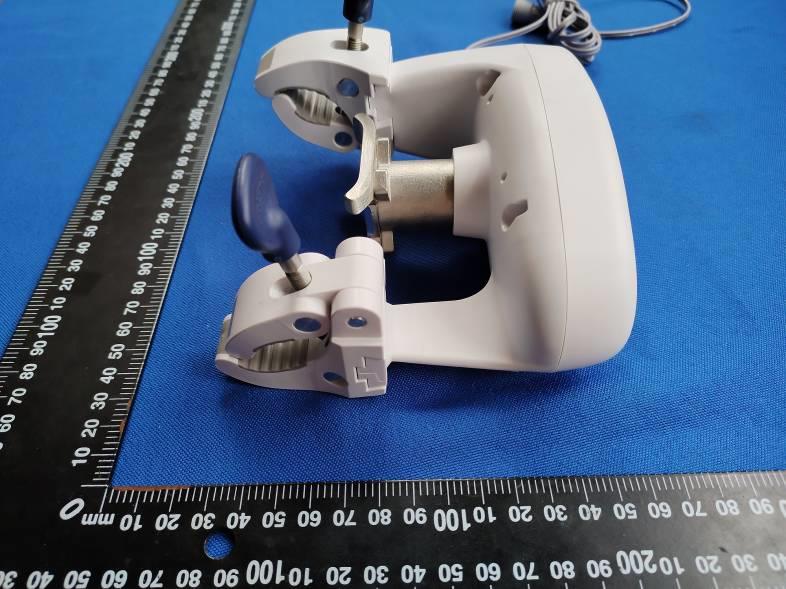

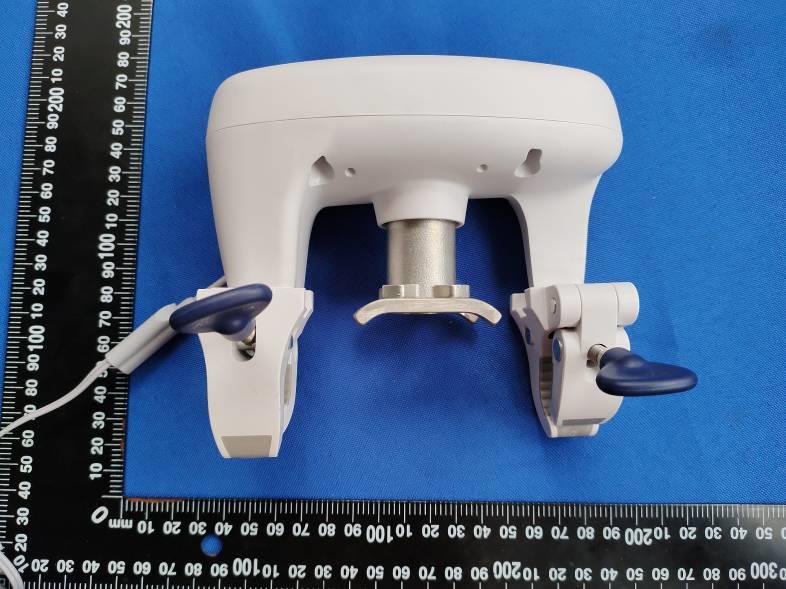

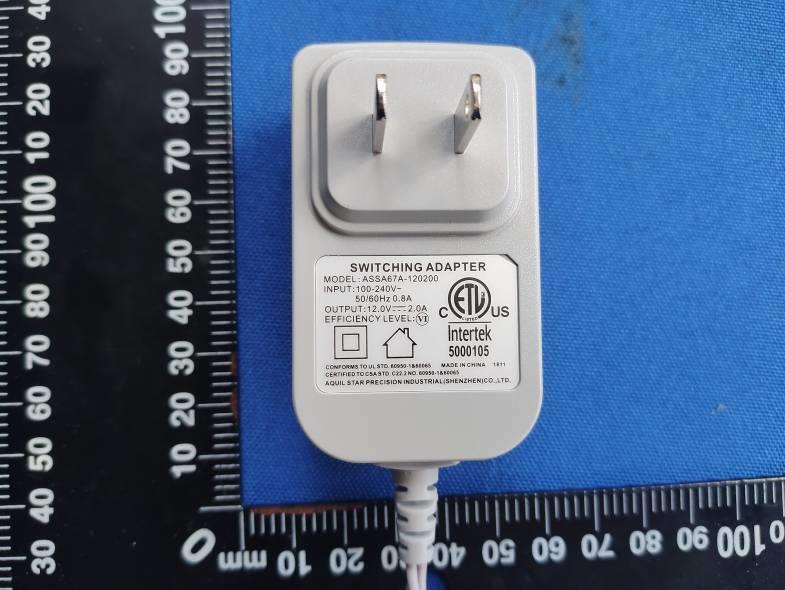

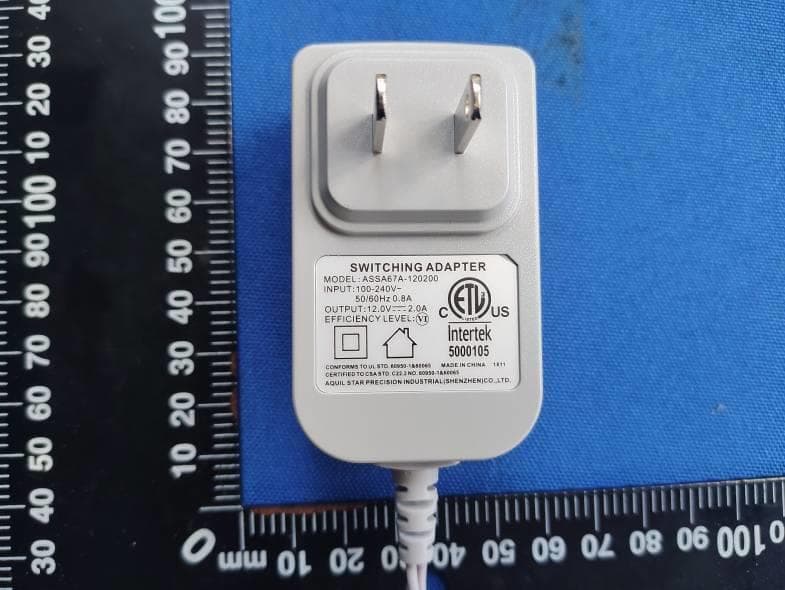

FCC ID: 2AUZX-BVSZWU FCC ID: 2AUZX-BVSZWU FCC ID: 2AUZX-BVSZWU

FCC ID: 2AUZX-BVSZWU

FCC ID: 2AUZX-BVSZWU Antenna FCC ID: 2AUZX-BVSZWU

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong TEST REPORT FCC PART 15 SUBPART C 15.249 Report Reference No. .....................: FCC ID. .............................................: GTS20200720015-1-3 2AUZX-BVSZWU Compiled by ( position+printed name+signature) .. : File administrators Jimmy Wang Supervised by ( position+printed name+signature) .. : Test Engineer Aaron Tan Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : July 14, 2020 Representative Laboratory Name .: Shenzhen Global Test Service Co., Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Ubitech Limited Address ............................................ : Unit 12, 7/F Block A, Hi-Tech Industrial Centre, 5-21 Pak Tin Par Street, Tsuen Wan, NT, Hong Kong Test specification ...........................: Standard ........................................... : 47 CFR FCC Part 15 Subpart C 15.249 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Z-Wave Intelligent Ball Valve Servo Trade Mark ....................................... : N/A Manufacturer .................................... : Yong Chao Plastic Technology Co.,Ltd Model/Type reference....................... : BVSZWU List Model ......................................... : N/A Ratings ............................................. : 12.0V/1A or 12.0V/2A Result................................................ : PASS Report No.: GTS20200720015-1-3 Page 2 of 29 T E S T R E P O R T Test Report No. : GTS20200720015-1-3 July 14, 2020 ____________________________________________________________________________________ Date of issue Equipment under Test : Z-Wave Intelligent Ball Valve Servo Model /Type : BVSZWU Listed Models : N/A Applicant : Ubitech Limited Address : Unit 12, 7/F Block A, Hi-Tech Industrial Centre, 5-21 Pak Tin Par Street, Tsuen Wan, NT, Hong Kong Manufacturer : Yong Chao Plastic Technology Co.,Ltd Address : No.21, Jinlang 1 Street, Diaolang village, Huangjiang Town, Dongguan City, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20200720015-1-3 Page 3 of 29 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Special Accessories 6 2.8 Related Submittal(s) / Grant (s) 6 2.9 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 8 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 Conducted Emissions Test 10 4.2 Radiated Emissions and Band Edge 15 4.3 Occupied Bandwidth Measurement 21 4.4 Antenna Requirement 23 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 24 6 P H O T O S O F T H E E U T ........................................................... 25 Report No.: GTS20200720015-1-3 Page 4 of 29 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.10: 2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: GTS20200720015-1-3 Page 5 of 29 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : July 03, 2020 Testing commenced on : July 04, 2020 Testing concluded on : July 13, 2020 2.2 Product Description Product Name: Z-Wave Intelligent Ball Valve Servo Model/Type reference: BVSZWU Power supply: DC 12V from adapter Adapter information 1: Model: ASSA67A-120200 Input: 100-240V~, 50/60Hz, 0.8A Output: 12.0V2.0A Adapter information 2: Model: XDJ121U-120100 Input: 100-240V~, 50/60Hz 0.3A Output: 12.0V1.0A Hardwrae Version: REV:3.0 Software Version: V3.2.17 Test samples ID: GTS20200720015-1-3# Z-wave Modulation: FSK/GFSK Operation frequency: 908.42MHz, 916MHz Channel number: 2 Antenna type: Helix antenna Antenna gain: 1.0dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 12.0V from adapter 2.4 Short description of the Equipment under Test (EUT) This is a Z-Wave Intelligent Ball Valve Servo. For more details, refer to the user’s manual of the EUT. Report No.: GTS20200720015-1-3 Page 6 of 29 2.5 EUT operation mode The Applicant…
