Macro-video丁echnologiesCO.,Ltd. Supplier/s Decloration of Conformity for the FCC SDoC Procedure The following Equipment adapt FCC SOoC Procedure according to FCC part 2.906 : Product Name: Smart camera Brand Name:一 Model Number: XVV-3620S-Q2, Q1, Q2, Q3, Q4, Q6Pro, Q12, Q13, Q14, Q15, P5, P6, P7, P8, P9, B13, B14, B15, Al, A4, 07, C1, C2, XVV-3620S-Q1, XVV-3610S-Q6 Pro, XVV-3620S-Q12, XVV-3130S-B10, XW- 3130S-A1 , XVV-3120S-07, XVV-3620S-P6, XVV-3130S-BM-C1 Report Number: WTX21X04027721W-2 It's herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received , including interference that may cause undesired operation. It is understood that each unit marketed is identical to the device as tested, and any changes to the device that could adversely affect the emission characteristics will require retest. The following importer / responsible party in United States: Not Available at Certification Stage Company Name: N/A Company Address: N/ A Telephone: N/ A Fax: N/A Person is responsible for marking this declaration: Wenhao hu Name (Full name ) e - a-e nH - ·· 、 HM- F H hUH 由， ， J iN - nH 口 - 。 e - u n - - 引 e - D G-P :队无比 legal Signature 2021-07-01 Oate

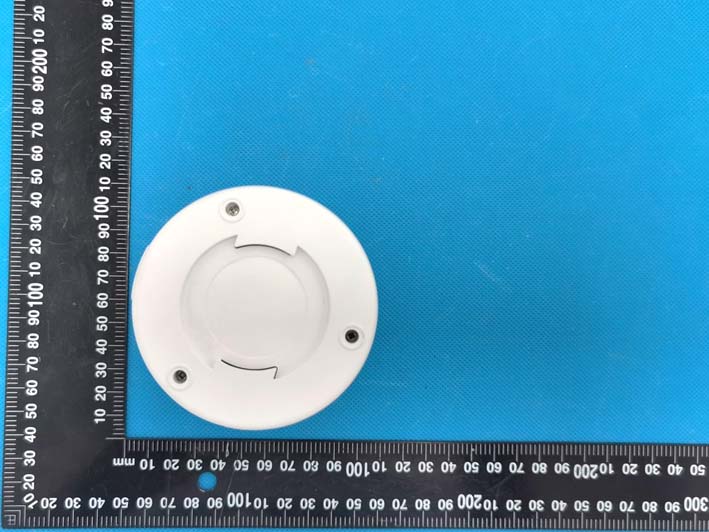

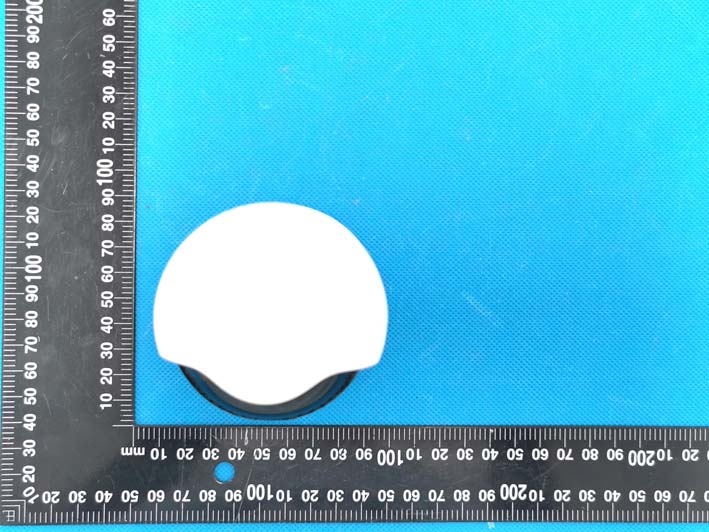

Reference No.: WTX21X04027721W-1 Page 2 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX21X04027721W-1 Page 3 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX21X04027721W-1 Page 4 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTX21X04027721W-1 Page 5 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn EUT View 7

Reference No.: WTX21X04027721W-1 Page 1 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Product Name: Smart camera Model No.: XVV-3620S-Q2 FCC ID: 2AV39-XVV-3620S-Q2 Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX21X04027721W-1 Page 6 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTX21X04027721W-1 Page 7 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTX21X04027721W-1 Page 8 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Solder Board-Component View 4 Solder Board-Component View 5 Reference No.: WTX21X04027721W-1 Page 9 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Solder Board-Component View 6 Antenna View

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 General Information Client Information Applicant: Macro-video Technologies Co.,Ltd. Address of applicant: 9th floor,building No.22, TIANAN-TEP,Panyu Road North No. 555, Panyu District,Guangzhou, Guangdong, China Manufacturer: Macro-video Technologies Co.,Ltd. Address of manufacturer: 9th floor,building No.22, TIANAN-TEP,Panyu Road North No. 555, Panyu District,Guangzhou, Guangdong, China General Description of EUT: Product Name: Smart camera Trade Name: / Model No.: XVV-3620S-Q2 Adding Model(s): Q1, Q2, Q3, Q4, Q6Pro, Q12, Q13, Q14, Q15, P5, P6, P7, P8, P9, B13, B14, B15, A1, A4, D7, C1, C2, XVV-3620S-Q1, XVV-3610S-Q6 Pro, XVV-3620S-Q12, XVV-3130S-B10, XVV-3130S-A1, XVV-3120S-D7, XVV-3620S-P6, XVV-3130S-BM-C1 Rated Voltage: DC 5V Power Adapter MODEL : TEKA-UCA10UN INPUT: C100-240V, 50-60Hz, 0.2A MAX OUTPUT: C5.0V, 1.0A FCC ID: 2AV39-XVV-3620S-Q2 Equipment Type: Fixed device Technical Characteristics of EUT: Wi-Fi Support Standards: 802.11b, 802.11g, 802.11n Frequency Range: 2412-2462MHz for 802.11b/g/n(HT20) 2422-2452MHz for 802.11n(HT40) RF Output Power: 15.77dBm (Conducted) Type of Modulation: DBPSK,BPSK,DQPSK,QPSK,16QAM,64QAM Quantity of Channels: 11 for 802.11b/g/n(HT20); 7 for 802.11n(HT40) Channel Separation: 5MHz Type of Antenna: PCB Antenna Antenna Gain: 5dBi 1.2 Standard Applicable According to §1.1307(b)(1) and KDB 447498 D01 General RF Exposure Guidance v06, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.3 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.4 MPE Calculation Result For Wi-Fi Maximum Tune-Up output power: 16(dBm) Maximum peak output power at antenna input terminal: 39.81(mW) Prediction distance: >20(cm) Prediction frequency: 2412 (MHz) Antenna gain: 5 (dBi) Directional gain (numeric gain): 3.16 The worst case is power density at prediction frequency at 20cm: 0.0250(mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Page 1 of 60 TEST REPORT Reference No. ....................: WTX21X04027721W-1 FCC ID ............................... .: 2AV39-XVV-3620S-Q2 Applicant .......................... .: Macro-video Technologies Co.,Ltd. Address ............................ .: 9th floor,building No.22, TIANAN-TEP,Panyu Road North No. 555, Panyu District,Guangzhou, Guangdong, China Product Name .................. .: Smart camera Test Model. ....................... .: XVV-3620S-Q2 Standards ......................... .: FCC Part 15.247 Date of Receipt sample ... .: Apr. 01, 2021 Date of Test....................... .: Apr. 01, 2021 to Apr.29, 2021 Date of Issue .................... .: Apr.29, 2021 Test Result ........................ .: Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Jack Huang / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX21X04027721W-1 Page 2 of 60 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY .............................................................................................................................. 7 1.7 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 8 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 10 3. ANTENNA REQUIREMENT ................................................................................................................................ 11 3.1 STANDARD APPLICABLE ....................................................................................................................................... 11 3.2 EVALUATION INFORMATION ................................................................................................................................ 11 4. POWER SPECTRAL DENSITY ........................................................................................................................... 12 4.1 STANDARD APPLICABLE ....................................................................................................................................... 12 4.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 1 2 4.3 TEST PROCEDURE ................................................................................................................................................. 12 4.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 12 5. DTS BANDWIDTH ................................................................................................................................................. 13 5.1 STANDARD APPLICABLE ....................................................................................................................................... 13 5.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 1 3 5.3 TEST PROCEDURE ................................................................................................................................................. 13 5.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 13 6. RF OUTPUT POWER ............................................................................................................................................ 14 6.1 STANDARD APPLICABLE ....................................................................................................................................... 14 6.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 1 4 6.3 TEST PROCEDURE ................................................................................................................................................. 14 6.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 14 7. FIELD STRENGTH OF SPURIOUS EMISSIONS ................................................................…
