2AV3N-EKR0535Contactless Wireless Charger

Contactless Wireless Charger User Manual EKR0535 Thank you for choosing this product! Please read this user manual carefully before use. Product Introduction Charging sensing distance: The distance between the magnetic induction coil built in the mobile phone and the magnetic induction coil built in the wireless charger should be no less than 18mm and no greater than 35mm. Please do not use thick phone case when using this product. Product Specification Name Contactless Wireless Charger Wireless charging standard Compatible with Qi-BPP RX output voltage / current 5W (5V/ 1A) TX input voltage / current DC 19V/1A or 24V/1A Effective charging distance 18mm-35mm Effective charging area Phi 20mm Typical charging efficiency 63%@25mm(Samsung S7) Working frequency 115k-140kHz Stand-by power consumption <0.1W Protection FOD, OTP, OVP Certifications FCC, CE, RoHS, PSE etc Above parameters are resulted from test lab, practical parameters would be different due to the product and some other factors. Magnetic shielding patch for tabletop What’s In This Box? Wireless Charger Power Adapter picture picture 3M Sticker Magnetic Shielding Patch picture picture Installation Instructions: Installation Mode --- 3M Adhesive 1. Tear off the double-glue and paste it to the top of the wireless charger. 2. The equipment is pasted to the bottom of the table. 3. Measure the corresponding position of the undertable wireless charger on the table. 4. Align the center of the magnetic shielding patch with the center of the charger under the table, and paste it well. 6. Installation is completed and please enjoy the wireless charging now! (The wireless charging center of the mobile phone should be aligned with the center point of the magnetic shielding patch attached on the tabletop.). 5. Plug the power adapter into the charger. Directions for use 1. Connect the wireless charger with the power source. 2. Put the mobile phone on the magnetic shielding patch to charge. When the charger is working, the indicator light lights up. Note: Only can be used by the device that conforms to the QI standard. Attentions 1. Do not press and shock heavily on product. 2. Do not split or remould the product by yourself. 3. Do not put the product near to fire or put it into water. 4. Do not use the wireless charger under severe conditions, such as high temperature, humidity & corrosivity, in case causing electric leakage. 5. Do not put the product near to magcard (credit card, bank card etc), in case causing the magnetism invalid. 6. Do not put metal or phone case with metal on the charger. 7. Keep the product away from water or other liquids. 8. If you need to clean the product, be sure the power is cut off. 9. Do not give it to children as kids’ toys. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 and part 18 of the FCC Rules. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Increase the separation between the equipment and any other radio device. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. This device complies with part 15 and part 18 of the FCC Rules. Operation is Subject To the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not explicitly approved by the party responsible for compliance could void the user's authority to operate this equipment. The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected. Caution: Any changes or modifications not expressly approved could void the user’s authority to operate the equipment. Warranty Regulations 1. Product Warranty Zhejinag Yunkai New Energy Technology Co., Ltd provides warranty services as follows: Functional components: warranty for 1 year 2. Disclaimer The following cases are not covered by warranty: (1) Damages caused by preservation or improper use not according to product specification (2) All appearance defects caused after product acceptance whether through express, logistics, air transport or sea transport. (3) Other components excluding functional components and power adapter. (4) Damages caused by natural disasters or external force majeure (5) Warranty identification tag of our company is torn, or unidentified, or altered, or is not in conformity with products (6) Customer cannot provide invoice or cannot prove that the product is within warranty period. (7) Not quality problem of products (8) Product appearance Notes: Zhejiang Yunkai New Energy Technology Co., Ltd Only assume responsibility of product itself. Remark: The Company reserves the final explanation rights within the limits permitted by law. 3. Warranty card Product Model No.: Maintenance Information: Name: Phone Number: Address: Date:

<Zhejiang Yunkai New Energy Technology Co., Ltd.> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020-10-14 Subject; Request for Confidentiality FCC ID: 2AV3N-EKR0535 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tommy Zhang Title: Manager

Zhejiang Yunkai New Energy Technology Co., Ltd. Letter of Authorization Company: Zhejiang Yunkai New Energy Technology Co., Ltd. Address: No.968, XueFengXi Road, YiWu City, Zhejiang Province, China Product Name: Contactless Wireless Charger Model Number: EKR0535 FCC Identifier: 2AV3N-EKR0535 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Tommy Zhang Date: 2020-10-14 Title: Manager Signature of applicant:

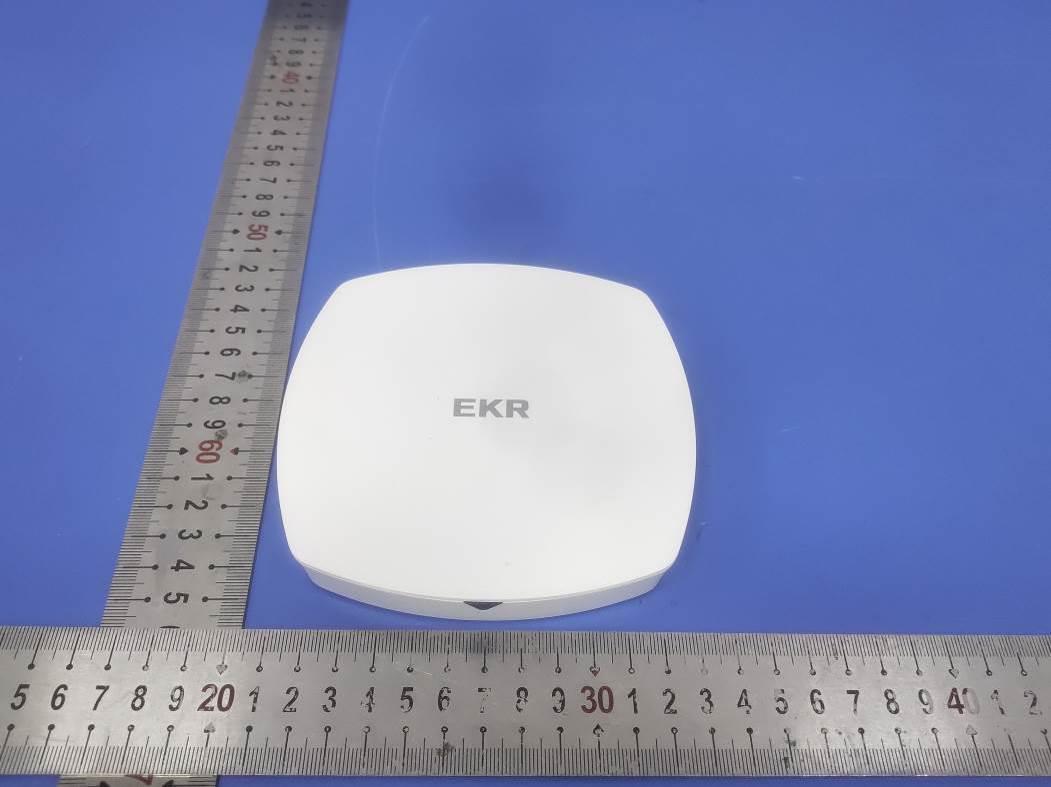

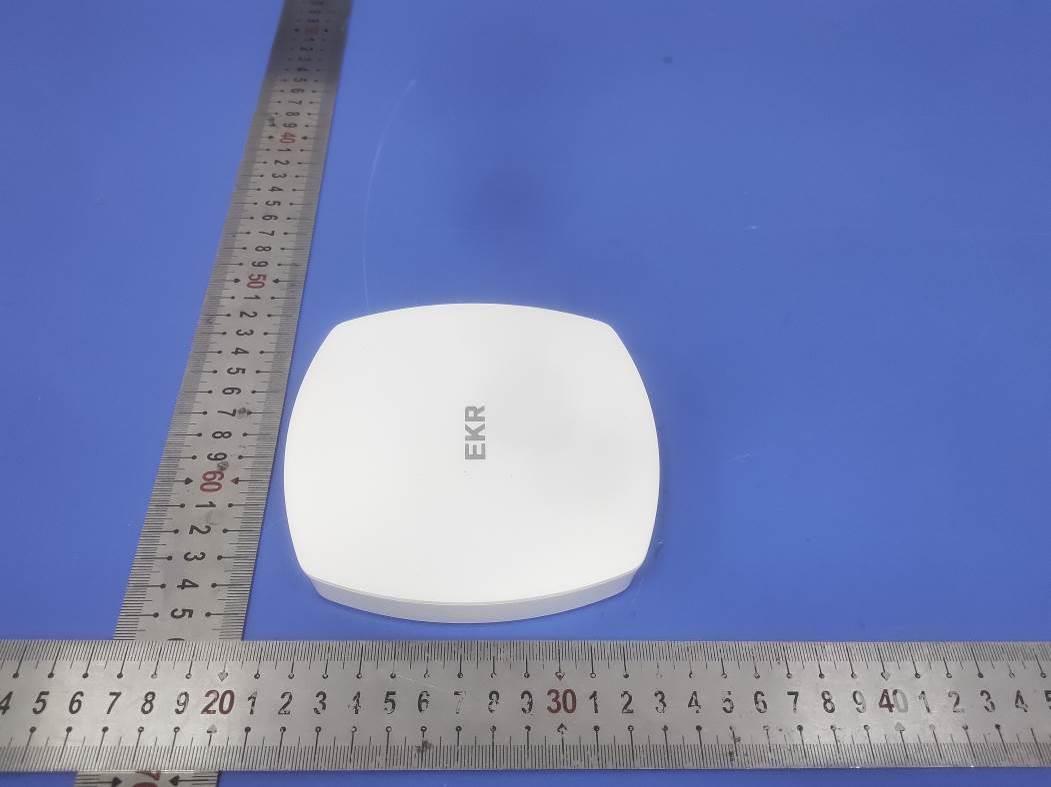

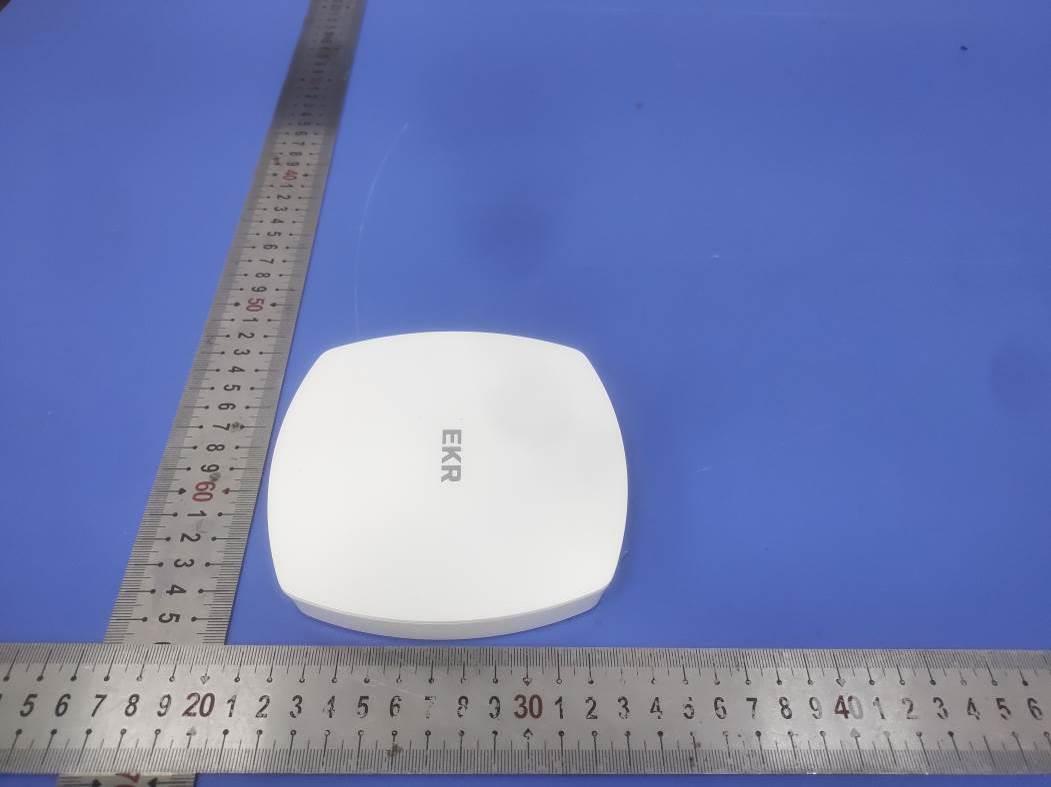

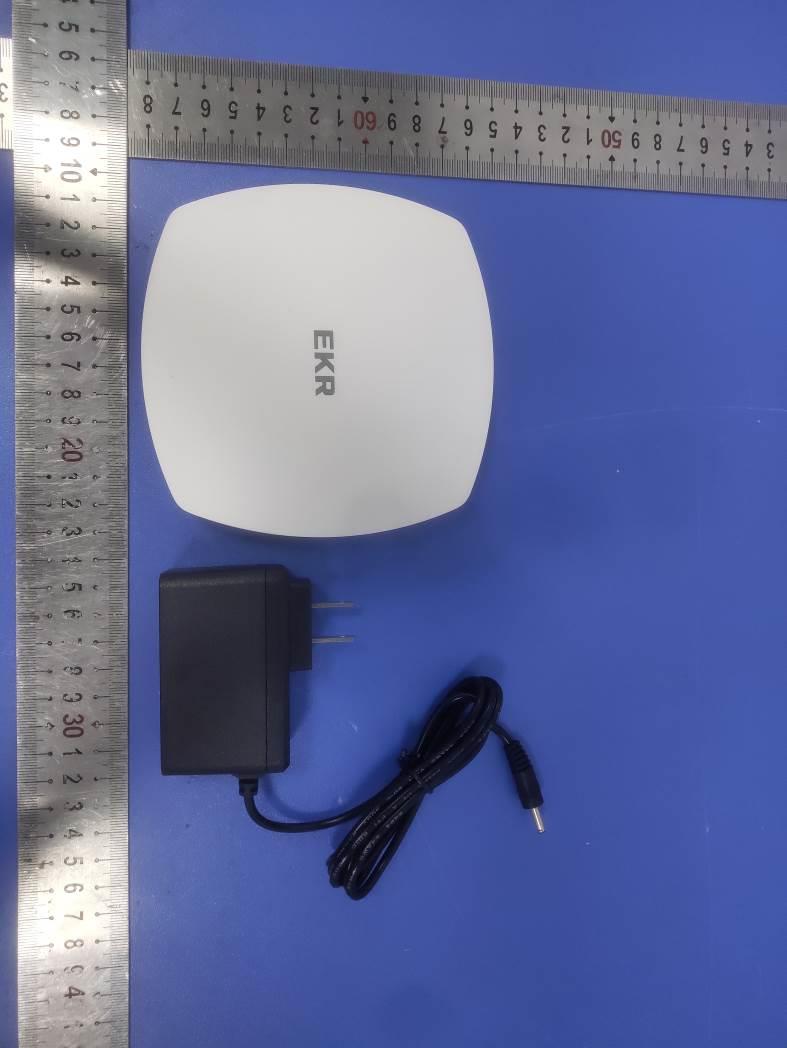

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AV3N-EKR0535 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 6.0cm*W: 4.0cm Label Location Contactless Wireless Charger Input: DC 24V 1A Output(Wireless Charging): DC 5V 1A FCC ID :2AV3N-EKR0535 This device complies with part 15 and part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Coil Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 11 RF Exposure Evaluation Report 1. Product Information FCC ID: 2AV3N-EKR0535 Number of tested samples 1 Sample number 200917070A Product Name Contactless Wireless Charger Model Number EKR0535 Power Supply Input: DC 24V 1A Output(Wireless Charging): DC 5V 1A Modulation Type CW (Continuous Wave) Frequency Range 115 KHz - 140 KHz Operation Frequency 125.0 KHz Antenna Type Coil Antenna Hardware version WE9012_20190815_V1.0 Software version / Accessories Mobile Phone(MI9) Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 11 inquiry is required to determine the applicable exposure limits below 100 kHz. 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 3. Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107:Indusial, Scientific, and Medical Equipment SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 11 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *10…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 Report No.: LCS200917070AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 23 FCC TEST REPORT For Zhejiang Yunkai New Energy Technology Co., Ltd. Contactless Wireless Charger Test Model: EKR0535 Prepared for : Zhejiang Yunkai New Energy Technology Co., Ltd. Address : No.968, XueFengXi Road, YiWu City, Zhejiang Province, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : September 24, 2020 Number of tested samples : 1 Sample number 200917070A Serial number : Prototype Date of Test : September 24, 2020 ~ October 14, 2020 Date of Report : October 14, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 Report No.: LCS200917070AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 23 FCC TEST REPORT FCC CFR 47 PART 18 Report Reference No. ................ : LCS200917070AEA Date Of Issue ................................. : October 14, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Zhejiang Yunkai New Energy Technology Co., Ltd. Address .......................................... : No.968, XueFengXi Road, YiWu City, Zhejiang Province, China Test Specification Standard ......................................... : FCC CFR 47 PART 18 Test Report Form No. .................... : LCSEMC-1.0 TRF Originator................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Contactless Wireless Charger Trade Mark ..................................... : EKR Test Model ...................................... : EKR0535 Power Supply ................................. : Input: DC 24V 1A Output(Wireless Charging): DC 5V 1A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Lh Li/ Administrator Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 Report No.: LCS200917070AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 23 FCC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200917070AEA October 14, 2020 Date of issue Test Model.............................. : EKR0535 EUT......................................... : Contactless Wireless Charger Applicant............................... : Zhejiang Yunkai New Energy Technology Co., Ltd. Address.................................. : No.968, XueFengXi Road, YiWu City, Zhejiang Province, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Zhejiang Yunkai New Energy Technology Co., Ltd. Address................................... : No.968, XueFengXi Road, YiWu City, Zhejiang Province, China Telephone............................... : / Fax.......................................... : / Factory................................... : Zhejiang Yunkai New Energy Technology Co., Ltd. Address................................... : No.968, XueFengXi Road, YiWu City, Zhejiang Province, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 Report No.: LCS200917070AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 23 Revision History Revision Issue Date Revisions Revised By 000 October 14, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 Report No.: LCS200917070AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 23 TABLE OF CONTENTS 1. GENERAL INFORMATION ......................................................................................................... 6 1.1 Description of Device (EUT) .............................................................................................................. 6 1.2 Support equipment List ....................................................................................................................... 6 1.3 External I/O Cable ............................................................................................................................... 6 1.4 Description of Test Facility ......…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Appendix A Photographs of Test Setup Conducted Emission-AC adapter charge mode Radiated Emission below 30MHz-AC adapter charge mode SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV3N-EKR0535 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Radiated Emission Below 1 GHz
