2AV9TDS-BEACON-06DS-Beacon-06

DS-Beacon-06 WEBSITE：HTTP://WWW.DEASINO.COM/ TEL：0755-83418691-801 FAX：0755-83418691-803 EMAIL： [email protected] PAGE 1 Base Station Beacon DS-Beacon-06 User Manual Product name Base Station iBeacon Product model DS-Beacon-06 A/B/C/D Version V1.0 Release time 2020/11/26 DS-Beacon-06 WEBSITE：HTTP://WWW.DEASINO.COM/ TEL：0755-83418691-801 FAX：0755-83418691-803 EMAIL： [email protected] PAGE 2 Version Information Revise Revised proposal Data Comment V1.0 Initial release DS-Beacon-06 WEBSITE：HTTP://WWW.DEASINO.COM/ TEL：0755-83418691-801 FAX：0755-83418691-803 EMAIL： [email protected] PAGE 3 CATALOGUE I. Product Introduction： ........................................................................... II. Product Features: ............................................................................... III. Application Range: .............................................................................. IV. Physical Property： ............................................................................. V. Electrical Specification： ......................................................................... VI. Technical Parameters： .......................................................................... VII. Default Parameters: ............................................................................. 1. iBeacon Program default parameters ................................................................................................................................................................................................ 2. DS-Beacon-06 Program default parameters .................................................................................................................................................................................... VIII. App usage and support devices: ................................................................... 1.App usage, Bluetooth scanning->Enter password connection->Configuration information ....................................................................................................... 2.Support devices ...................................................................................................................................................................................................................................... IX. Functional Description： ......................................................................... X. Certification Information: ......................................................................... XI. Product Claims: ................................................................................. DS-Beacon-06 WEBSITE：HTTP://WWW.DEASINO.COM/ TEL：0755-83418691-801 FAX：0755-83418691-803 EMAIL： [email protected] PAGE 4 I. Product Introduction： The Base Station DS-Beacon-06A/B/C/D developed by DEASINO Technology supports accelerometer sensor, Temperature & Humidity sensor, Pressure sensor, Noise sensor, Light sensor selection, various sensors can be used to detect the environmental status and collect a large amount of data. A button switch and an indicator light. The product uses iBeacon broadcast by default and support multi-channel broadcast. Each channel can customize broadcast power, broadcast interval and channel parameters, configurable connection password and sensor sampling time. The case is made of ABS plastic, which is exquisite and beautiful as a whole. It is convenient to replace the battery with the rotary battery back cover clasp. Product appearance drawing Model Sensor DS-Beacon-06 A 6 axis accelerometer sensor and Gyro sensor, Temperature & Humidity sensor, Pressure & Temperature sensor, Light sensor DS-Beacon-06 B Noise sensor DS-Beacon-06 C Acceleration sensor, Temperature & Humidity sensor, Light sensor DS-Beacon-06 D Acceleration sensor II. Product Features:  Support iBeacon protocol  Use nRF52 Series Chip  The broadcasting distance can reach 100 M  Switching function、Low voltage alarm function、Support Accelerometer  Support sensor data broadcast  Set Bluetooth broadcast parameters and sensor sampling time III. Application Range: Indoor positioning of shopping malls, airports and other large public places; Online explanation of tourist attractions, museums, etc., Check in for exhibitions, forums and offices. Location based real-time message push, such as live information, conference process sharing, etc., Audience interaction such as concerts and large-scale events. DS-Beacon-06 WEBSITE：HTTP://WWW.DEASINO.COM/ TEL：0755-83418691-801 FAX：0755-83418691-803 EMAIL： [email protected] PAGE 5 IV. Physical Property： Model DS-Beacon-06 Size 25× 15mm Weight 24(g) Battery Model Disposable lithium-manganese dioxide batteries Supply Voltage DC 3.0 V Housing Material ABS Housing Color White V. Electrical Specification： Quiescent Current ≤3 uA Peak Current 5.5 mA Average Current 33uA Battery Model CR2450 Battery Capacity 520 mAh Operating Temperature -20°C ~+60°C Working Hours 2 Years Bluetooth Stack 5.2 Broadcasting Power 0 dBm Broadcasting Frequency 1000ms Transmission Distance 100M in open environment Security The default connection password is 000000 VI. Technical Parameters： Communication Protocol Bluetooth Low Energy 5. 2 Broadcasting Power -40 +4dBm, Default 0 dBm Broadcasting Frequency 40ms~10s, Default 1000ms Broadcasting Distance Can reach 100M (in open environment) Security Support password modification parameters; Restart and unconnected mode; Support app shutdown; Anti malicious connection function DS-Beacon-06 WEBSITE：HTTP://WWW.DEASINO.COM/ TEL：0755-83418691-801 FAX：0755-83418691-803 EMAIL： [email protected] PAGE 6 VII. Default Parameters: 1. iBeacon Program default parameters Parameter Name Default UUID Device ID 184f2020-1126-1815-87A5-F6D0BD9C5D00 Major Major 0 Minor Minor 1 Measured power Power Adjustment -54dBm Transmission Power Transmitted Power 0dBm Change Password Change Password 000000（only support for ASCII Character)） Broadcasting Interval Broadcasting period 1000m…

Text truncated - open the document above for the full version.

SHENZHEN DEASINO TECHNOLOGY CO ., LTD Agent Authorization Company: SHENZHEN DEASINO TECHNOLOGY CO ., LTD Address: Floor3B. 4Building, YongQi Technology Park. YinTian Industrial Zone. XiXiang. BaoAn District ShenZhen Product Name: DS-Beacon-06 Model Number(s): DS-Beacon-06 Product Description: DS-Beacon-06 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-03-22 Name: Tiger tan Company: SHENZHEN DEASINO TECHNOLOGY CO ., LTD

SHENZHEN DEASINO TECHNOLOGY CO ., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-03-17 Subject; Request for Confidentiality FCC ID: 2AV9TDS-BEACON-06 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely SHENZHEN DEASINO TECHNOLOGY CO ., LTD Contact person: Tiger tan

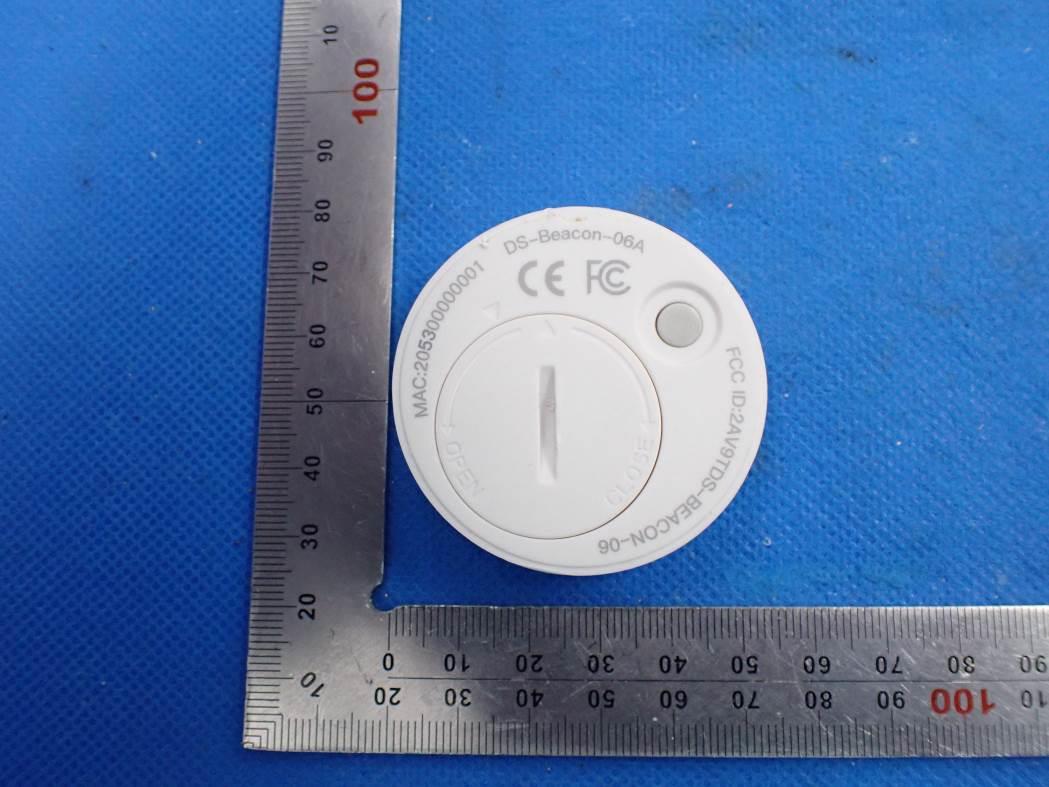

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AV9TDS-BEACON-06

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description DS-Beacon-06 Model Name DS-Beacon-06 FCC ID 2AV9TDS-BEACON-06 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BLE: GFSK 1Mbps: P t = -2.109dBm=0.62mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.62mW /5mm) .[√2.480GHz)]= 0.20<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. GFSK 2Mbps: P t = -2.118dBm=0.61mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.61mW /5mm) .[√2.402GHz)]= 0.19<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 62 FCC Test Report Report No.: AGC07581210301FE02 FCC ID : 2AV9TDS-BEACON-06 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : DS-Beacon-06 BRAND NAME : DS MODEL NAME : DS-Beacon-06 APPLICANT : SHENZHEN DEASINO TECHNOLOGY CO., LTD DATE OF ISSUE : Mar. 17, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC07581210301FE02 Page 2 of 62 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 17, 2021 Valid Initial Release Report No.: AGC07581210301FE02 Page 3 of 62 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ...................................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 5 2.3. RELATED SUBMITTAL(S)/GRANT(S) .................................................................................................... 6 2.4. TEST METHODOLOGY ........................................................................................................................... 6 2.5. SPECIAL ACCESSORIES ....................................................................................................................... 6 2.6. EQUIPMENT MODIFICATIONS .............................................................................................................. 6 2.7. ANTENNA REQUIREMENT ..................................................................................................................... 6 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 7 4. DESCRIPTION OF TEST MODES ................................................................................................................. 8 5. SYSTEM TEST CONFIGURATION ............................................................................................................... 9 5.1. CONFIGURATION OF TESTED SYSTEM ............................................................................................... 9 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 9 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 9 6. TEST FACILITY ........................................................................................................................................... 10 7. PEAK OUTPUT POWER ............................................................................................................................. 11 7.1. MEASUREMENT PROCEDURE ............................................................................................................ 11 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 11 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 12 8. 6 DB BANDWIDTH ...................................................................................................................................... 16 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 16 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 16 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 16 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 20 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 20 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 20 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 20 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 20 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ....................................................... 35 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 35 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 35 10.3. MEASUREMENT EQUIPMENT USED ................................................................................................ 35 10.4. LIMITS AND MEASUREMENT RESULT ............................................................................................. 35 11. RADIATED EMISSION ............................................................................................................................... 39 11.1. MEASUREMENT PROCEDURE ......................................................................................................... 39 11.2. TEST SETUP ....................................................................................................................................... 40 11.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 41 11.4. TEST RESULT ..................................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC07581210301FE02 Page 48 of 62 EUT DS-Beacon-06 Model Name DS-Beacon-06 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical PK AV RESULT: PASS Report No.: AGC07581210301FE02 Page 49 of 62 EUT DS-Beacon-06 Model Name DS-Beacon-06 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC07581210301FE02 Page 50 of 62 EUT DS-Beacon-06 Model Name DS-Beacon-06 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. Report No.: AGC07581210301FE02 Page 51 of 62 GFSK 2Mbps: TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT DS-Beacon-06 Model Name DS-Beacon-06 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC07581210301FE02 Page 52 of 62 EUT DS-Beacon-06 Model Name DS-Beacon-06 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical PK AV RESULT: PASS Report No.: AGC07581210301FE02 Page 53 of 62 EUT DS-Beacon-06 Model Name DS-Beacon-06 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC07581210301FE02 Page 54 of 62 EUT DS-Beacon-06 Model Name DS-Beacon-06 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. Report No.: AGC07581210301FE02 Page 55 of 62 APPENDIX A: PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ Report No.: AGC07581210301FE02 Page 56 of 62 CONDUCTED TEST SETUP Report No.: AGC07581210301FE02 Page 57 of 62 APPENDIX B: PHOTOGRAPHS OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: AGC07581210301FE02 Page 58 of 62 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.: AGC07581210301FE02 Page 59 of 62 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: AGC07581210301FE02 Page 60 of 62 OPEN VIEW OF EUT VIEW OF BATTERY Report No.: AGC07581210301FE02 Page 61 of 62 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna Report No.: AGC07581210301FE02 Page 62 of 62 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether ba…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED TEST SETUP
