2AV9W-FR50TFACE RECOGNITION ACCESS CONTROL

Vizolink (Shenzhen) CO., LTD. Agent Authorization Company: Vizolink (Shenzhen) CO., LTD. Address: Room 311, Zhongxing Business NO.12-2 Zhongxing Road, Bantian, Shenzhen, China Product Name: FACE RECOGNITION ACCESS CONTROL Model Number(s): FR50T, FR51T, FR50, FR51, FR80T, FR81T, FR80, FR81 Product Description: FACE RECOGNITION ACCESS CONTROL We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jul. 15, 2020 Name: Leo Xiao Title: Manager Assistant Company: Vizolink (Shenzhen) CO., LTD.

Vizolink (Shenzhen) CO., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jul. 15, 2020 Subject; Request for Confidentiality FCC ID: 2AV9W-FR50T To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Leo Xiao Title: Manager Assistant

Model Difference Declaration To Whom It May Concern, We, Vizolink (Shenzhen) CO., LTD.(FACE RECOGNITION ACCESS CONTROL) Trademark:Vizolink; Model Number: FR50T, FR51T, FR50, FR51, FR80T, FR81T, FR80, FR81;All model’s the function, software and electric circuit are the same, only with a product model named different for commercial purpose. Test sample model: FR50T. Please contact me if you have any question. Name: Leo Xiao Date: Jul. 15, 2020 Title: Manager Assistant Signature of applicant:

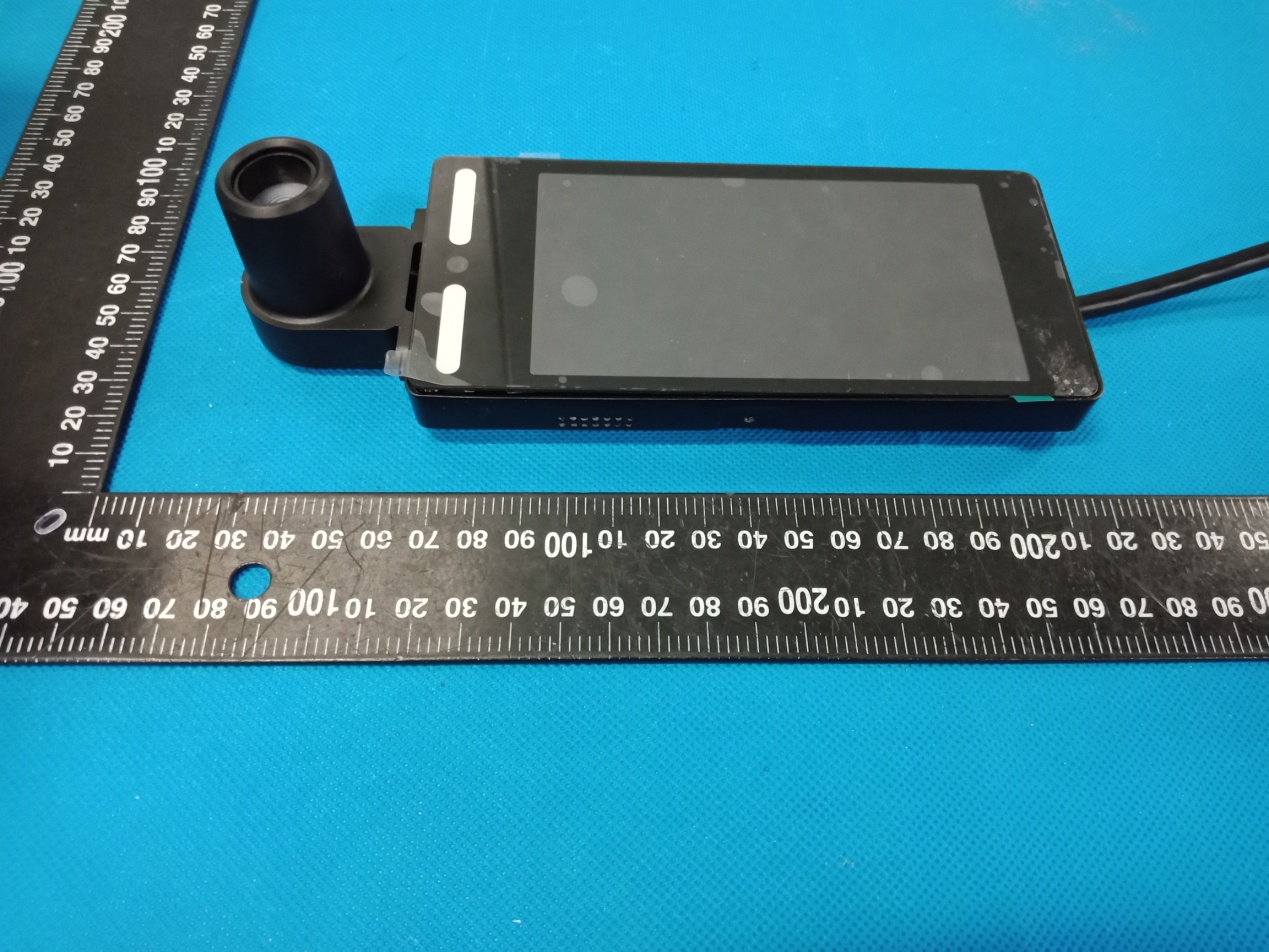

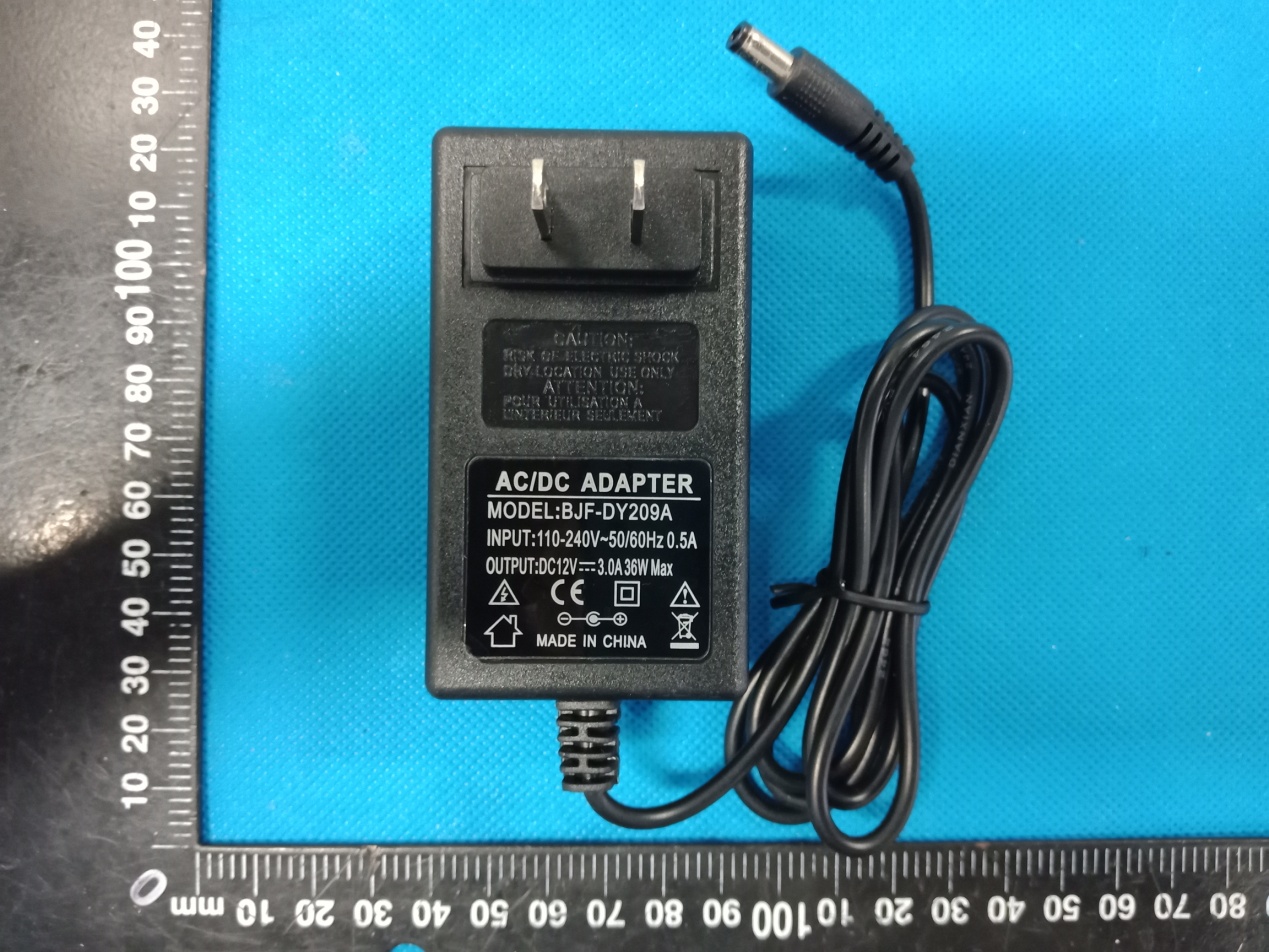

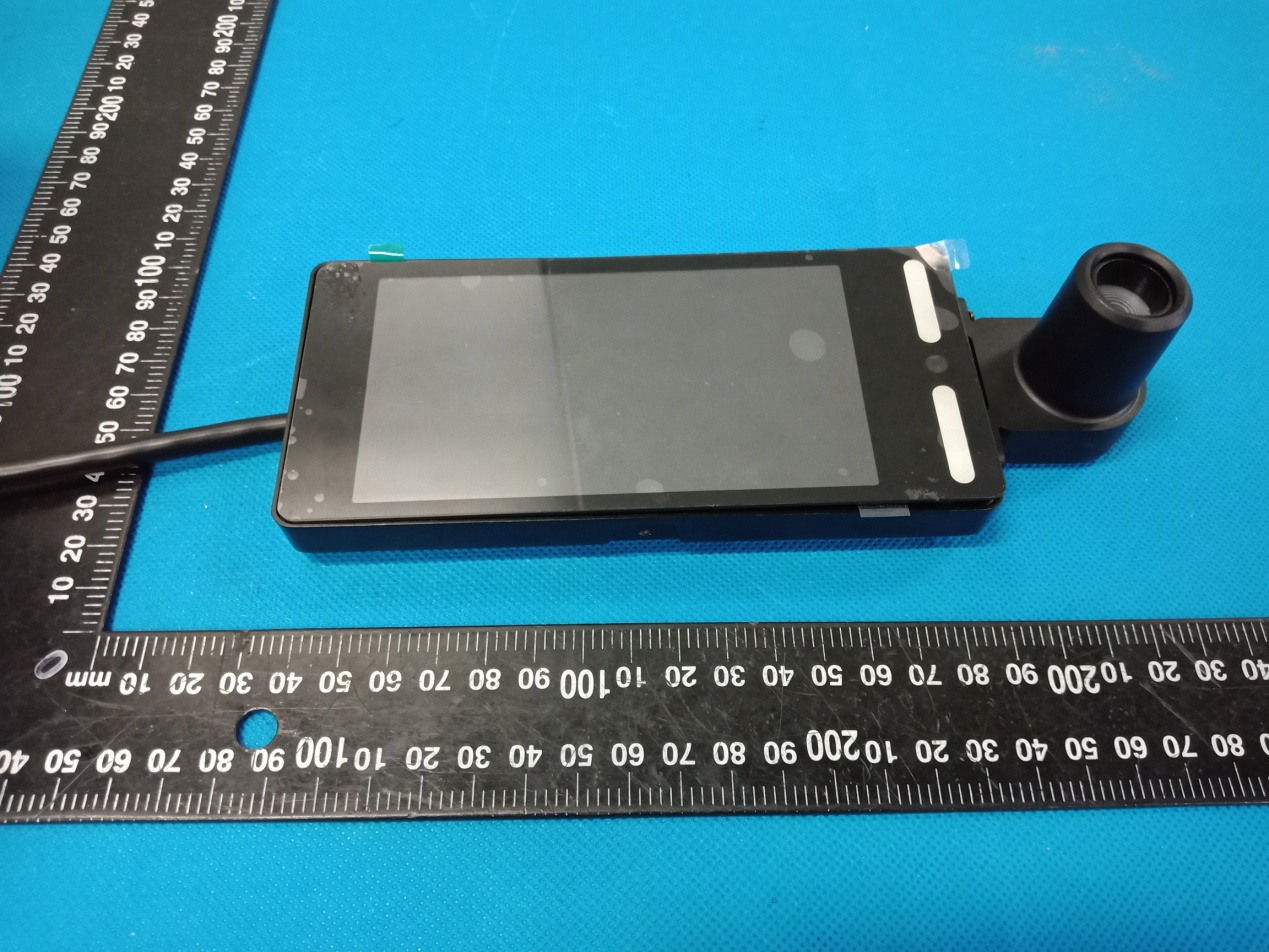

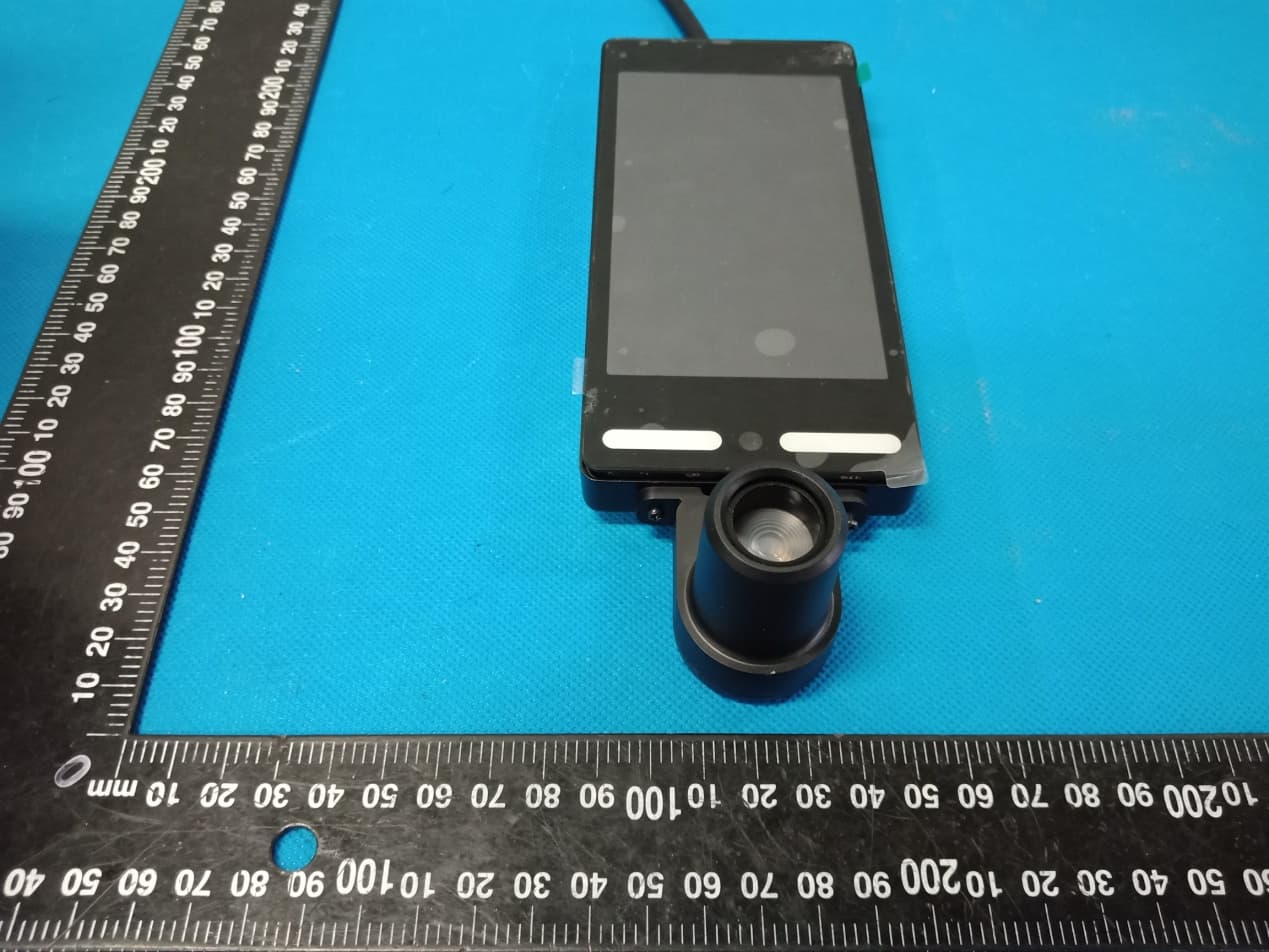

Annex A External Photos Report No.: HK2006181440‐E Page 1 of 4 Report No.: HK2006181440‐E Page 2 of 4 Report No.: HK2006181440‐E Page 3 of 4 Report No.: HK2006181440‐E Page 4 of 4

FCC ID LABEL: Label Location Width: 2cm Long: 4cm FCC ID: 2AV9W-FR50T Product name: FACE RECOGNITION ACCESS CONTROL Model No.: FR50T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

Annex B Internal Photo Report No.:HK2006181440-E Page 1 of 6 Antenna Report No.:HK2006181440-E Page 2 of 6 Report No.:HK2006181440-E Page 3 of 6 Report No.:HK2006181440-E Page 4 of 6 Report No.:HK2006181440-E Page 5 of 6 Report No.:HK2006181440-E Page 6 of 6

MPE ESTIMATION FCC ID: 2AV9W-FR50T 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result WIFI Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (numerical) MPE ( mW/cm²) 2.4G WIFI 13.01 13±1(14) 25.119 2.5 1.7783 0.00889 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2006181440-E, antenna gain=2.5dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.00889 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Report No.: HK2006181440-E FCC TEST REPORT Test report On Behalf of Vizolink (Shenzhen) CO., LTD. For FACE RECOGNITION ACCESS CONTROL Model No.: FR50T, FR51T, FR50, FR51, FR80T, FR81T, FR80, FR81 FCC ID: 2AV9W-FR50T Prepared for : Vizolink (Shenzhen) CO., LTD. Room 311, Zhongxing Business NO.12-2 Zhongxing Road, Bantian, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Jun. 25, 2020 ~Jul. 02, 2020 Date of Report: Jul. 02, 2020 Report Number: HK2006181440-E Report No.: HK2006181440-E Page 2 of 69 TEST RESULT CERTIFICATION Applicant’s name .................. : Vizolink (Shenzhen) CO., LTD. Address .................................. : Room 311, Zhongxing Business NO.12-2 Zhongxing Road, Bantian, Shenzhen, China Manufacture's Name ............. : Vizolink (Shenzhen) CO., LTD. Address .................................. : Room 311, Zhongxing Business NO.12-2 Zhongxing Road, Bantian, Shenzhen, China Product description Trade Mark: Vizolink Product name ............................ : FACE RECOGNITION ACCESS CONTROL Model and/or type reference . : FR50T, FR51T, FR50, FR51, FR80T, FR81T, FR80, FR81 Standards .............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Jun. 25, 2020 ~Jul. 02, 2020 Date of Issue ........................................... : Jul. 02, 2020 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Report No.: HK2006181440-E Page 3 of 69 TABLE OF CONTENTS 1. Test Result Summary ............................................................................... 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. TEST FACILITY .................................................................................................................................. 5 1.3. MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. EUT Description ........................................................................................ 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. OPERATION OF EUT DURING TESTING .................................................................................................... 8 2.3. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. General Information ................................................................................ 10 3.1. TEST ENVIRONMENT AND MODE ............................................................................................................ 10 3.2. DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 11 4. Test Results and Measurement Data .................................................... 12 4.1. CONDUCTED EMISSION ........................................................................................................................ 12 4.2. MAXIMUM CONDUCTED OUTPUT POWER .............................................................................................. 16 4.3. EMISSION BANDWIDTH ......................................................................................................................... 18 4.4. POWER SPECTRAL DENSITY ................................................................................................................ 24 4.5. CONDUCTED BAND EDGE AND SPURIOUS EMISSION MEASUREMENT ..................................................... 30 4.6. RADIATED SPURIOUS EMISSION MEASUREMENT ................................................................................... 40 4.7. ANTENNA REQUIREMENT ............................................................................................................. 66 4.8. PHOTOGRAPH OF TEST ................................................................................................................. 67 4.9. PHOTOS OF THE EUT ..................................................................................................................... 69 Report No.: HK2006181440-E Page 4 of 69 ** Modifited History ** Revison Description Issued Data Remark Revsion 1.0 Initial Test Report Release Jul. 02, 2020 Jason Zhou Report No.: HK2006181440-E Page 5 of 69 1. Test Result Summary 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge 1§5.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 1.2. TEST FACILITY Test Firm : Shenzhen HUAK Testing Technology Co., Ltd. Address 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emissions
