2AV9W-Q100Conference speaker

Vizolink (Shenzhen) CO., LTD. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: Vizolink (Shenzhen) CO., LTD. Address: Room 311, Zhongxing Business NO.12-2 Zhongxing Road, Bantian, Shenzhen, China Product Name: Conference speaker FCCID: 2AV9W-Q100 Model(s): Q100, Q100S, Q100P, Q100C, Q100B, Q100R 2.911(d)(5)(i) EquipmentType We, [Vizolink (Shenzhen) CO., LTD.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Leo Xiao Date: Jun. 01, 2023 Title: Manager Assistant Company name: Vizolink (Shenzhen) CO., LTD. Signature: NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Vizolink (Shenzhen) CO., LTD. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Vizolink (Shenzhen) CO., LTD. Address: Room 311, Zhongxing Business NO.12-2 Zhongxing Road, Bantian, Shenzhen, China Product Name: Conference speaker FCCID: 2AV9W-Q100 Model(s): Q100, Q100S, Q100P, Q100C, Q100B, Q100R 2.911(d)(5)(ii) Applicant filing We, [Vizolink (Shenzhen) CO., LTD.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Leo Xiao Date: Jun. 01, 2023 Title: Manager Assistant Company name: Vizolink (Shenzhen) CO., LTD. Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Vizolink (Shenzhen) CO., LTD. Agent Authorization Company: Vizolink (Shenzhen) CO., LTD. Address: Room 311, Zhongxing Business NO.12-2 Zhongxing Road, Bantian, Shenzhen, China Product Name: Conference speaker Model Number(s): Q100, Q100S, Q100P, Q100C, Q100B, Q100R Product Description: Conference speaker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 01, 2023 Name: Leo Xiao Title: Manager Assistant Company: Vizolink (Shenzhen) CO., LTD.

Vizolink (Shenzhen) CO., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jun. 01, 2023 Subject; Request for Confidentiality FCC ID: 2AV9W-Q100 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Leo Xiao Title: Manager Assistant

Vizolink (Shenzhen) CO., LTD. Model Difference Declaration To Whom It May Concern, We, Vizolink (Shenzhen) CO., LTD. (Conference speaker) ; Model Number: Q100, Q100S, Q100P, Q100C, Q100B, Q100R; Model Difference: All model’s the function, software and electric circuit are the same, only with product model named different. Test sample model: Q100. Please contact me if you have any question. Signature: Date: Jun. 01, 2023 Name: Leo Xiao Title: Manager Assistant

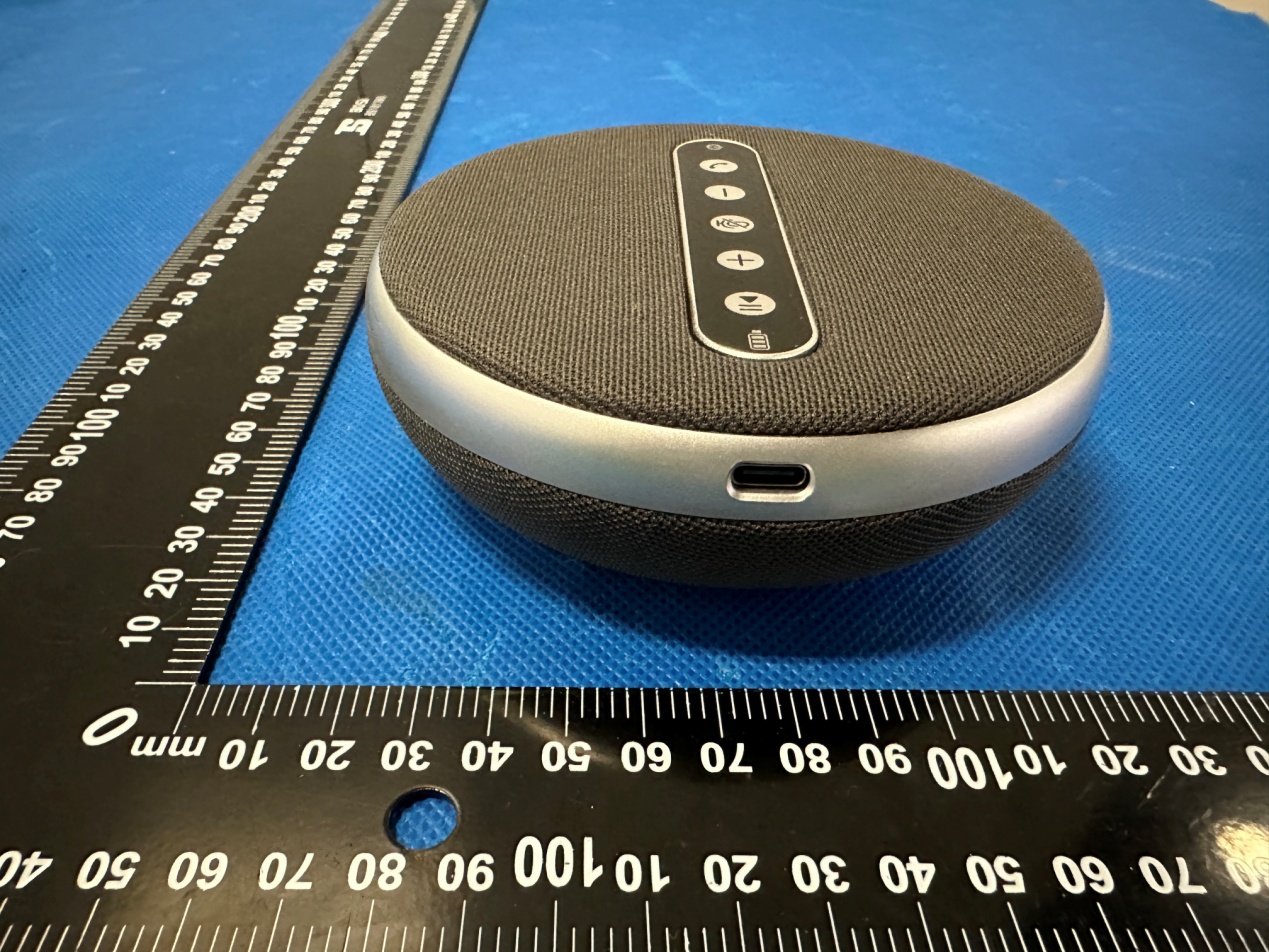

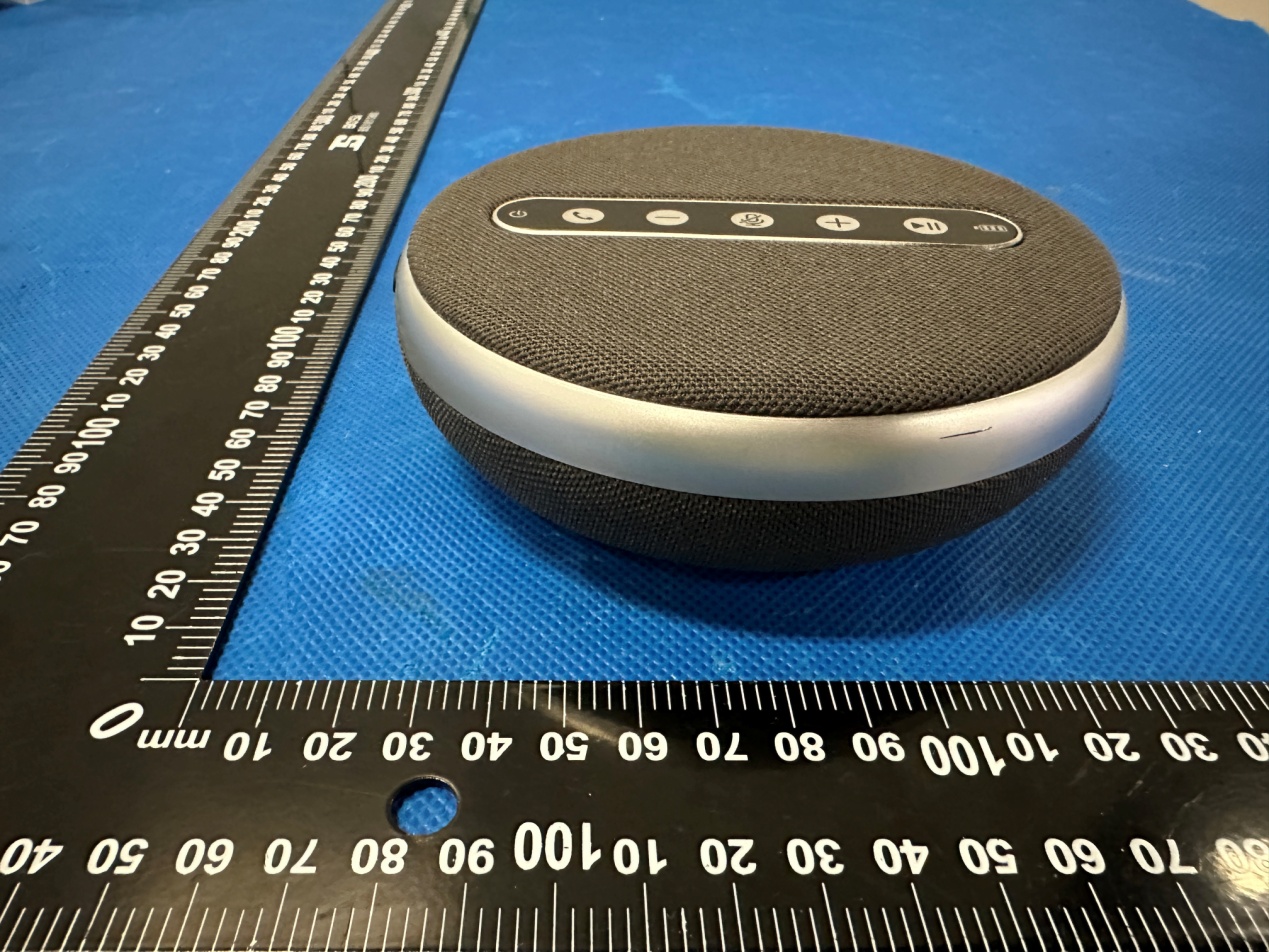

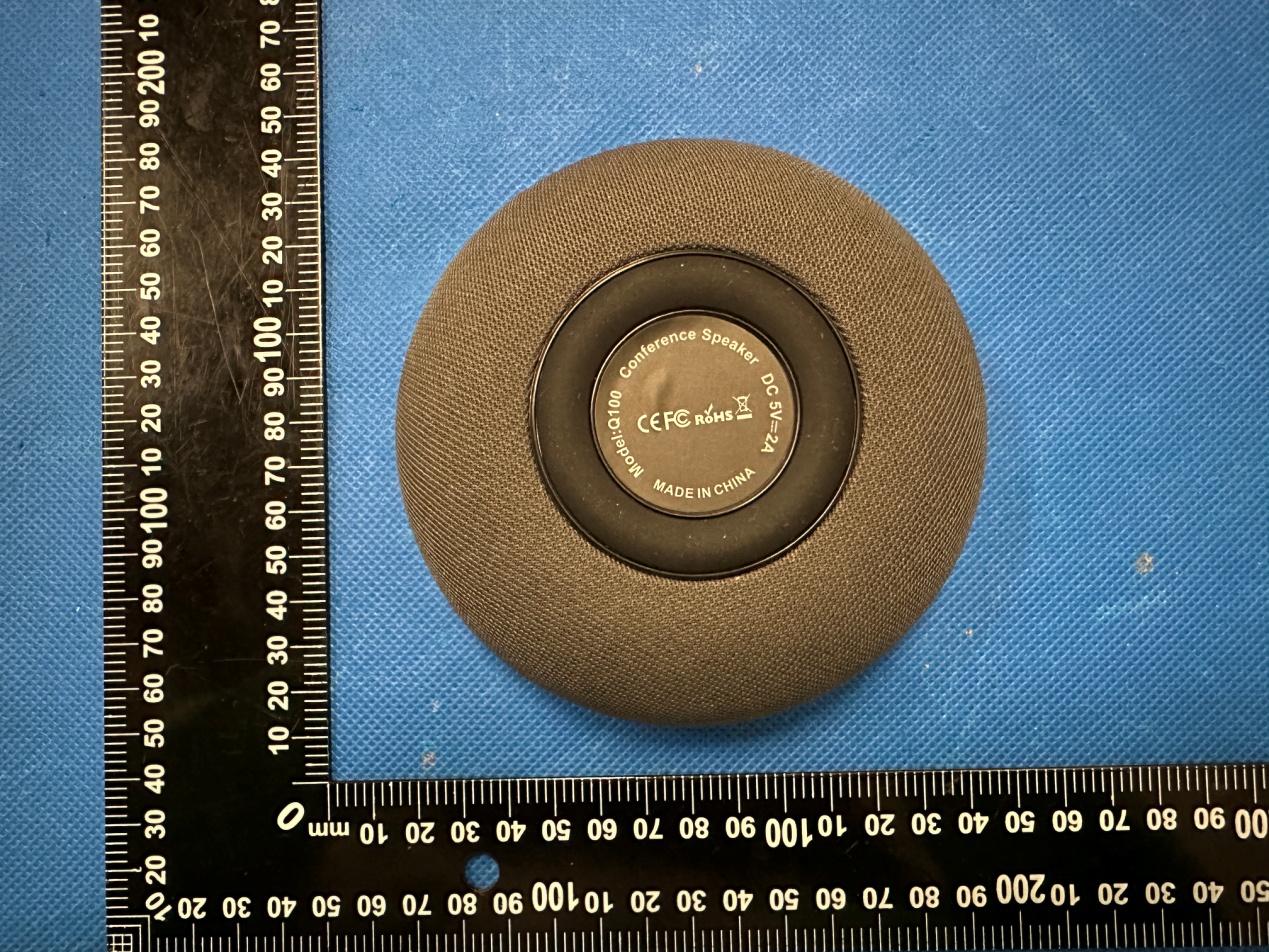

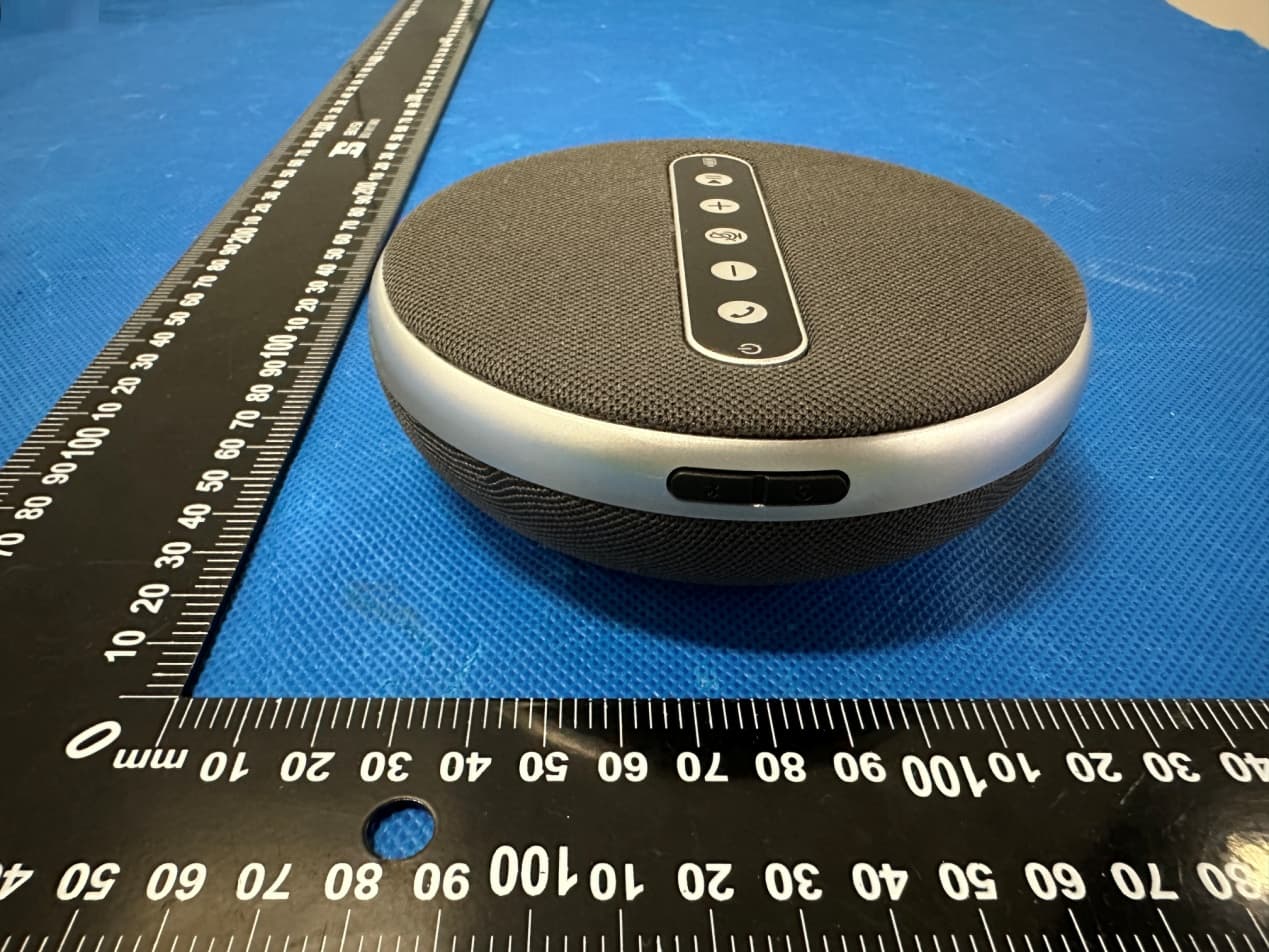

Annex A External Photos Report No.: HK2305101830-E/HK2305101831-E Page 1 of 3 Report No.: HK2305101830-E/HK2305101831-E Page 2 of 3 Report No.: HK2305101830-E/HK2305101831-E Page 3 of 3

FCC ID LABEL: Ca. 10mm x 20mm label location FCC ID: 2AV9W‐Q100

Rep port No.: HK2305101830 Int 0-E/HK2305 Annex B ternal Pho 5101831-E B oto Page 1 off 4 Report No.: HK2305101830-E/HK2305101831-E Page 2 of 4 Report No.: HK2305101830-E/HK2305101831-E Page 3 of 4 Antenna Re p port No.: HK23051018300-E/HK23055101831-E Page 4 of 4

FCC RF Exposure FCC ID: 2AV9W-Q100 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v01 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Output power (dBm) Tune Up Power (dBm) Max Tune Up power dBm/mW Min test separati on distance mm Result Limit SAR Test Exclusion BT 0.24 0±1(1) 1.26 5 0.39651 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2305101830-E, antenna gain=-0.58dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.39651 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 47 Report No.: HK2305101830-E FCC Test Report FCC PART 15 SUBPART C 15.247 Test report On Behalf of Vizolink (Shenzhen) CO., LTD. For Conference speaker Model No.: Q100, Q100S, Q100P, Q100C, Q100B, Q100R FCC ID: 2AV9W-Q100 Prepared For : Vizolink (Shenzhen) CO., LTD. Room 311, Zhongxing Business NO.12-2 Zhongxing Road, Bantian, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: May 10, 2023 ~ May 17, 2023 Date of Report: May 17, 2023 Report Number: HK2305101830-E Page 2 of 47 Report No.: HK2305101830-E Test Result Certification Applicant’s Name .................. : Vizolink (Shenzhen) CO., LTD. Address .................................. : Room 311, Zhongxing Business NO.12-2 Zhongxing Road, Bantian, Shenzhen, China Manufacture's Name ............. : Vizolink (Shenzhen) CO., LTD. Address .................................. : Room 311, Zhongxing Business NO.12-2 Zhongxing Road, Bantian, Shenzhen, China Product Description Trade Mark ............................. : vizolink Product Name ........................... : Conference speaker Model and/or type reference...: Q100, Q100S, Q100P, Q100C, Q100B, Q100R Standards .............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .................................... . Date (s) of Performance of Tests .... . May 10, 2023 ~ May 17, 2023 Date of Issue .................................... May 17, 2023 Test Result ........................................ Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 47 Report No.: HK2305101830-E Table of Contents Page 1. Summary ................................................................................................................................... 5 1.1. Test Standards ............................................................................................................................ 5 1.2. Test Description .......................................................................................................................... 5 1.3. Information of the Test Laboratory ............................................................................................ 6 1.4. Statement of the Measurement Uncertainty ............................................................................. 6 2. General Information .................................................................................................................. 7 2.1. Environmental Conditions .......................................................................................................... 7 2.2. General Description of EUT ........................................................................................................ 7 2.3. Description of Test Modes and Test Frequency .......................................................................... 8 2.4. Equipments Used during the Test ............................................................................................... 9 2.5. Related Submittal(s) / Grant (s) ................................................................................................ 10 2.6. Modifications ............................................................................................................................ 10 2.7. Description of Test Setup .......................................................................................................... 10 3. Test Conditions and Results ..................................................................................................... 11 3.1. Conducted Emissions Test ........................................................................................................ 11 3.2. Radiated Emissions and Band Edge .......................................................................................... 14 3.3. Maximum Peak Conducted Output Power ............................................................................... 25 3.4. 20dB Bandwidth ....................................................................................................................... 26 3.5. Frequency Separation ............................................................................................................... 29 3.6. Number of Hopping Frequency ................................................................................................ 31 3.7. Time of Occupancy (Dwell Time) ............................................................................................. 33 3.8. Out‐of‐Band Emissions ............................................................................................................. 36 3.9. Pseudorandom Frequency Hopping Sequence ........................................................................ 43 3.10. Antenna Requirement .............................................................................................................. 44 4. Test Setup Photos of the EUT ................................................................................................... 45 5. Photos of the EUT .................................................................................................................... 47 Page 4 of 47 Report No.: HK2305101830-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release May 17, 2023 Jason Zhou Page 5 of 47 Report No.: HK2305101830-E 1. Summary 1.1. Test Standards The …

Text truncated - open the document above for the full version.

Model: Q100 Radiated Emissions Conducted Emission
