Multi-functional ID Card & Passport Reader User Manual Version 1.0 RealPass-N 1. Introduction 1.1 RealPass-N RealPass-N is a multi-functional ID document and passport reader that can read variety of data such as OCR, photos, characters, barcodes. Capture Surface IP54 rated rugged structure, the device features USB 2.0 power and data transfer interface. 1.2 Application • Immigration clearance • Cuss & self check-in kiosk • Automated immigration clearance system (Autogate) 1.3 Features • Compact size and ergonomic design • Powered from USB 2 port or external power supply. • Flexible OCR to read various documents type • Reads 1D and 2D barcodes. • Multi-color LED and beep sound for intuitive user interface • Provides SDK for easy integration into any systems 1.5 Specifications Dimension (W x D x H, mm) With Cover: 155 x 190 x 103.8 Without cover: 155 x 190 x 98.8 Window Size (W x L, mm) 130 x 90mm Weight 1.01kg Image Resolution 500dpi Image Color Depth 24 bits / pixels Light Sources Visible, IR, UV Processing Time Image Capture (WH, IR, UV) and MRZ Reading < 2 sec Ingress Protection Surface IP54 Operating Temperature 0°C ~ 40°C Power Supply USB Power (5V 700mA) or External Power (12V 300mA) Data Interface USB 2.0 Operating Systems Windows XP(32bit), Vista(32/64bit), 7(32/64bit) SDK Full SDK including DLLs with a demo program TWAIN Driver TWAIN 2.1 or higher (for windows) Support Language VC++, VB.net, C#, WPF, Builder6.0, Delphi2009 1.6 Device Components RealPass-N USB3.0 C able Adaptor Cord 2. Exterior 2.1 Top View 2.1.1 Indication LED (1) OCR - Green: Lighted when OCR reading is succeeded. - Red: Lighted when OCR reading failed. - Blue: Lighted when OCR is operating. (2) PWR (Power) - Red: Lighted when the device is supplied with power source. - Green: Lighted when the device is connected with Realpass application (SDK). 3. Installation 3.1 Device driver Installation 3.1.1 Installation program check and execution (x86 / x64) Execute “RealPass_Driver(x86).exe” for x86 system or “RealPass_Driver(amd64)_WHQL.exe” for x64 system. 3.1.2 Start InstallShield Wizard Click “Next” 3.1.3 Customer Information Enter your information and Click “Next” 3.1.4 Select the setup type Select “Complete” and Click “Next” 3.1.5 Ready to Install the Program Click “Install” 3.1.6 Completion of driver installation Click “Finish” FCC compliance information FCC compliance information THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment under FCC rules. This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements.

Suprema ID Inc. Date: December 13, 2019 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Subject: Supplier's Declaration of Compliance FCC ID: 2AVDARealPass-N To Whom It May Concern: We hereby attest to the fact that we have applied the Supplier’s Declaration of Conformity (SDoC) for a Class B Computer Peripheral to the digital portion of this composite filing. The requirements identified in KDB 896810 and 47CFR 2.948(b) have been followed. A test report has been issued by ESTECH Co., Ltd( 140-16, Eongmalli-ro, Majang-myeon, Icheon-si, Gyeonggi-do, Korea) and can be identified by report number :ESTEFC1912-002. Sincerely, Suprema ID Inc. Address : 510-1, 69, Seongnam-daero, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea Signature : Name and Job Title : Byung-jun Jang / senior researcher E-mail : [email protected] Tel : +82-31-710-4941

Suprema ID Inc. Letter of Authorization Company: Suprema ID Inc. Address: 510-1, 69, Seongnam-daero, Bundang-gu, Seongnam, Gyeonggi, South Korea Product Name: RealPass-N Model Number: RealPass-N FCC Identifier: 2AVDARealPass-N We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Byoungjoon-Jang Date: 11 / Dec / 2019 Title: Assistant researcher Signature of applicant:

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 11.Dec, 2019 Subject; Request for Confidentiality FCC ID: 2AVDARealPass-N To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. • Schematic Diagram • Block Diagram • Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission' s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. • External Photos • Internal Photos • Test Setup Photos • User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Title: Assistant researcher

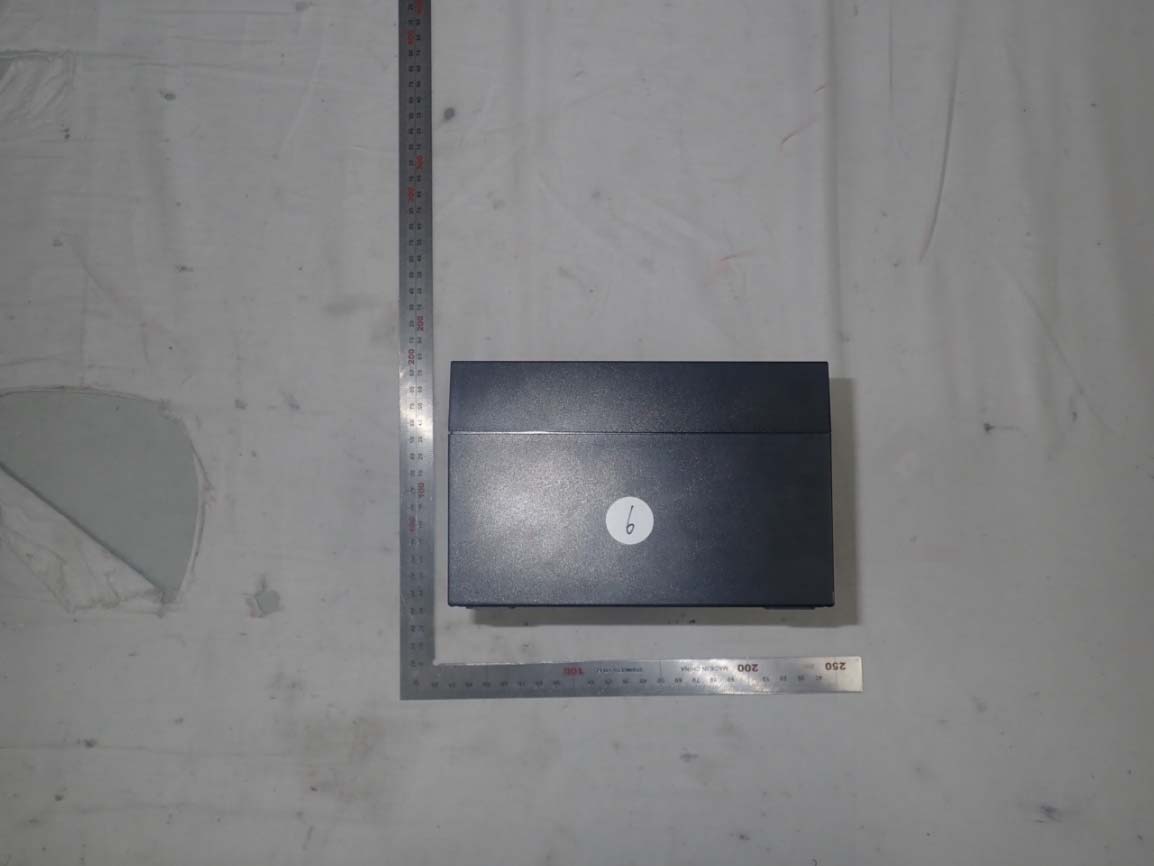

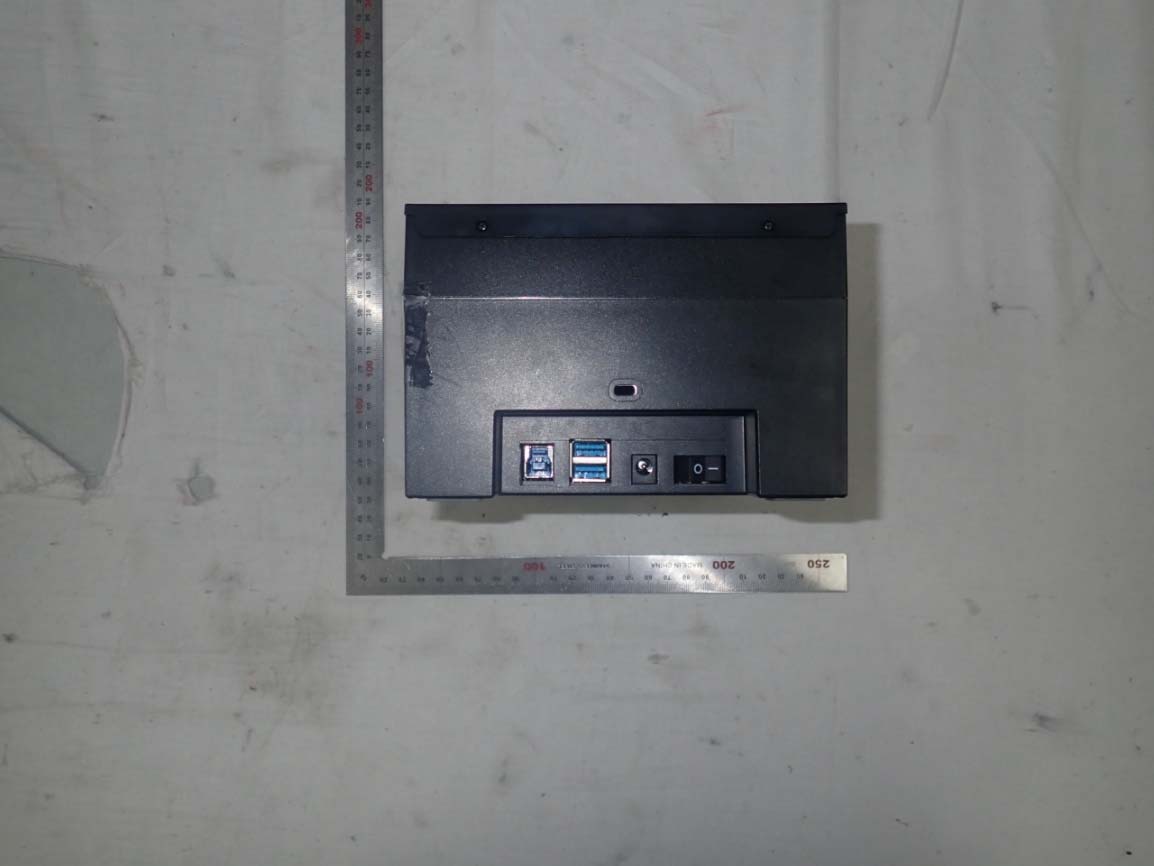

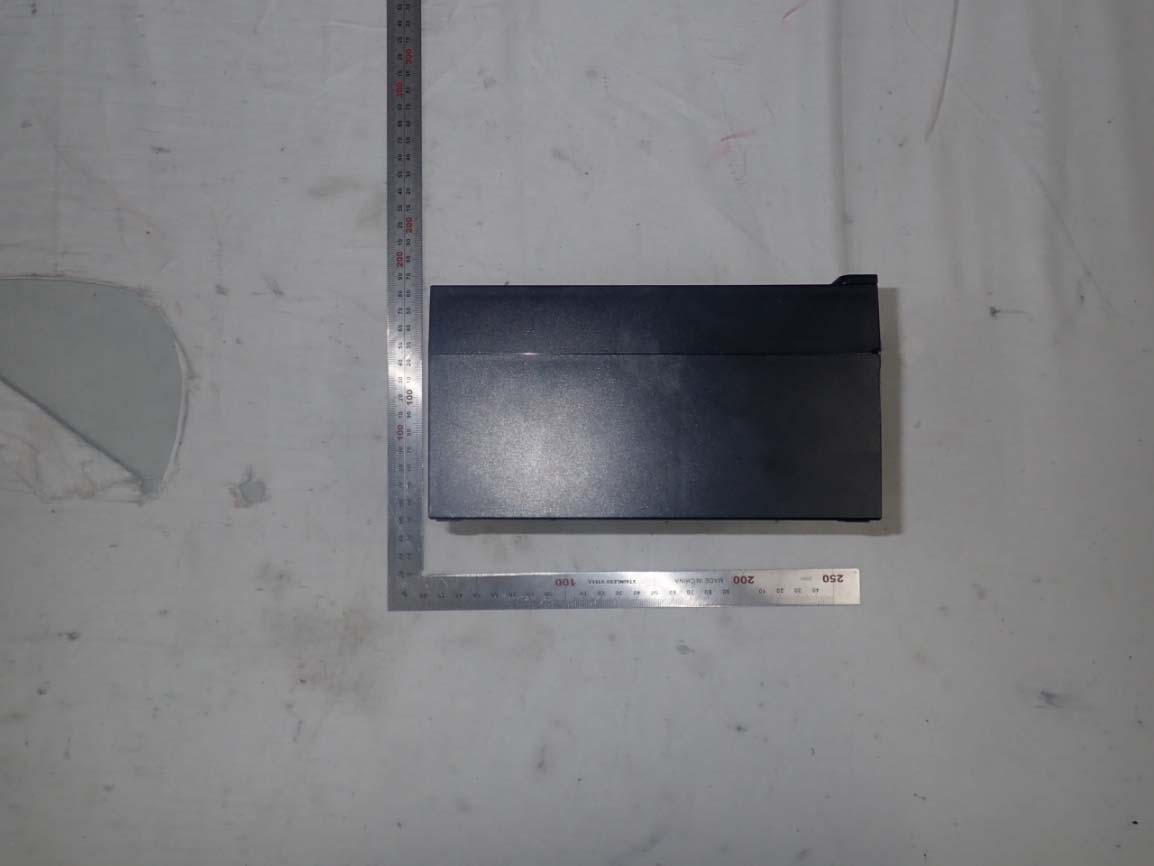

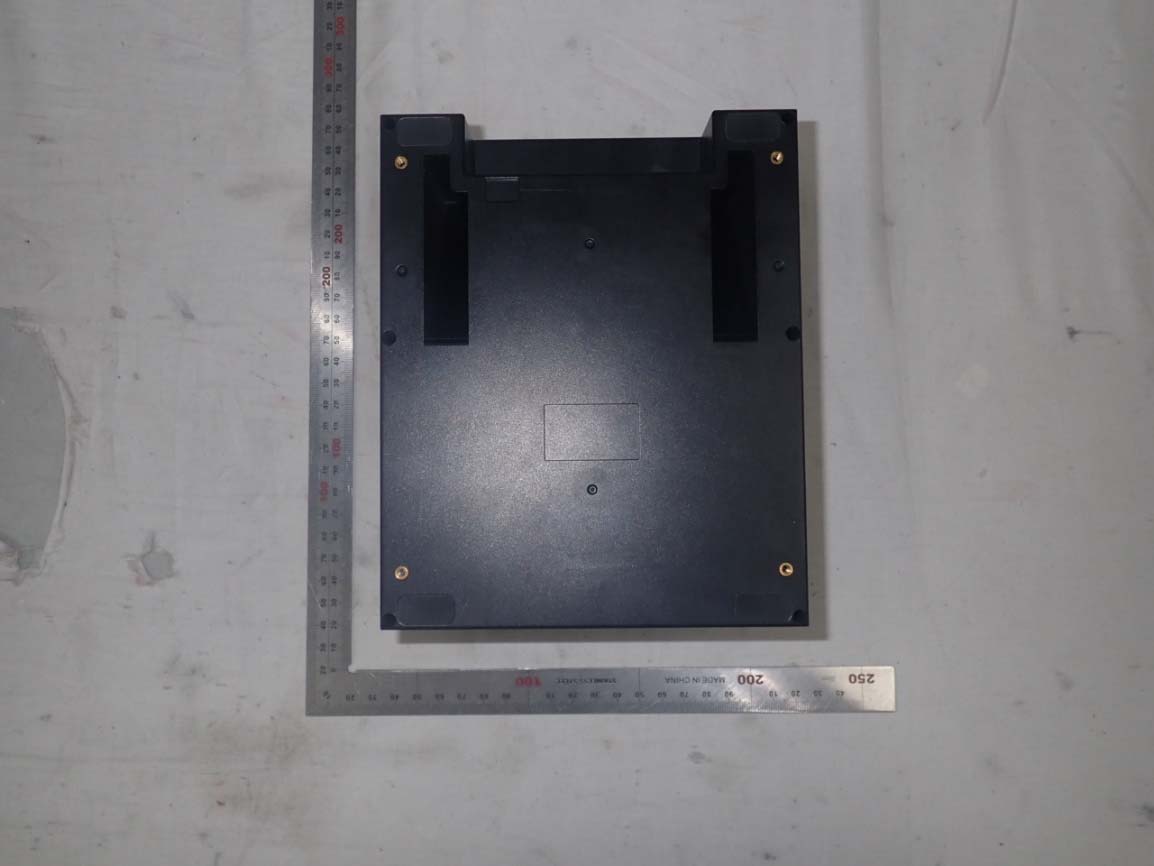

FRONT REAR LEFT RIGHT TOP BOTTOM
