2AVDARP-NRealPass-N

220831-RealPass-N-E001 RealPass-N Compact Full-page Document Reader User Manual 220831-RealPass-N-E001 1. RealPass-N RealPass-N is a compact, full-page and multi-functional document reader for one-step reading of multiple document types including ICAO standard documents such as e-Passport, e-Visa, ID cards and 1D & 2D barcodes. It is designed to capture or extract data from visual data page and RFID chip of electronic documents quickly and reliably in a variety of public and commercial sectors. By design and performance innovation, it provides 500DPI high resolution, USB 2.0 high speed, tempered glass with IP54 surface and Anti-glare technology to capture image and data in multiple illuminations (White, IR, UV). RealPass-N is an ideal and ergonomic form factor with low profile and simple shape for space-saving and easy integration in self-service kiosks, e- gates and counters. 2. Features • Compact, full-page and multi-functional document reader • One-step reading of visual data page and RFID chip of e-documents • ICAO Doc 9303 Standard Compliance • 500DPI high resolution (Configurable), 24bit true color image • OCR data capture of the Machine Readable Zone (MRZ) • Reads ISO14443 Type A/B contactless chip, 1D/2D Barcodes • Multiple illumination (White, IR and UV) • Hoodless Operation in various environments • Anti-Glare Technology to capture high quality images • Automatic document placement detection • Smart power consumption is automatically activated once PC turned off • Multi-color LED and beep sound for intuitive user interface • USB 2.0 high speed interface Integrated USB 3.0 Hub – 2 ports for external peripheral device • No moving parts, robust, minimal maintenance cost • Rugged form factor with tempered glass and IP54 surface • Low profile, simple shape for space-saving and easy integration • Kensington® Security Lock, SAM Slot • Provides SDK for easy integration into any systems INTRODUCTION 220831-RealPass-N-E001 3. Application • Border Control & Immigration Service • Airport/Port Security Service • Law Enforcement • Bank & Insurance & Mobile Operators • Hotels/Car Rental/Casinos/Duty-Free shop • Travel Agencies/Airline Check-in • Document & Visa Issuance • Self-Service Kiosks & e-Gates 220831-RealPass-N-E001 1.Specifications 1.1. Specifications Dimension (WxDxH, mm) 155 x 190 x 99.8 (103.8w/ Guide) Active Windows Size (HxV, mm) 130 x 90 Weight (kg) 1.01 Image Resolution (DPI) 500(Configurable), 5M Pixel Sensor Image Color Depth 24 bits / pixels Illuminations White/Visible, IR, UV(UVA) Contactless RFID Reading ISO 14443 A/B Type (up to 848Kbps) including BAC, PA, AA, EAC, PACE and SAC, PC/SC support Barcode Reading 1D: Code 11, 39, 39 Extended, 93,128 / UCC 128 / 2 of 5 Interleaved / EAN 8, 13 / UPC A, E / Add 2, 5 2D: PDF417, Data Matrix, QR Code, Micro QR Code Image Formats BMP, PNG, JPEG Image Sensor 5M Pixel Processing Time Image Capture(HW, IR, UV) and MRZ reading < 2 sec. Indicator Multi-Color LED, Navigation LED, Beep(Programmable) Operating Temperature -20°C ~ 55°C Operating Humidity 0 to 95% (non-condensing) IP rate IPX0(surface), Tempered glass(scratch free) Power Supply USB (5V, 700mA) or External Power (DC12V, 1000mA) Interface USB 2.0 high speed, Integrated USB 3.0 Hub – 2 ports for external peripheral device Communication Protocol ISO 14443 Type A/B(ISO7816), PCSC Interface Recommend Hardware 2GHz Pentium® 4 CPU (Intel Core 2 Duo), 1GB DRAM or above Operating Systems Windows 10, 8, 7(32/64bit), Linux Ubuntu and CentOS LTS(32/64bit) Software SDK including DLLs with demo programs in multiple programming languages, F/W Upgrade via USB interface Certificates KC, CE, FCC, CB, WEEE, RoHS, Reach *** This equipment shall be supplied by LPS (Limited Power Source) FEATURES AND SPECIFICATIONS 220831-RealPass-N-E001 1.2 Device Configuration & Components RealPass-N USB Cable 220831-RealPass-N-E001 2. Exterior 2.1. Top View 2.1.1. Indication LED 1) OCR - Green: Lights when OCR reading is succeeded - Red: Lights when OCR reading failed - Blue: Lights when OCR is operating 2) PWR (Power) - Red: Lights when the device is supplied with power source - Green: Lights when the device is connected to RealPass SDK application 220831-RealPass-N-E001 3. Device Driver Installation 3.1. Disconnect USB cable to PC before starting the driver installation. 3.2. Double-Click & run “ReaPass_DeviceDriver(Win7 or Win 10). exe” as administrator. 1 st Step of Installation 3.3. The driver installation starts 2nd Step of Installation 220831-RealPass-N-E001 3rd Step of Installation 3.4. Click “Finish” to exit the driver installation program. 4th Step of Installation 3.5. Connect USB cable to PC, and check status in Device Manager. 220831-RealPass-N-E001 4. Run RealPass-N with RealPassExample_VC.exe 4.1. Go to the directory which is located ‘RealPassSDK’ and then go to the ‘bin’. 4.2. Run ‘RealPassExample_VC.exe’ 4.3. Click ‘Connect’ button. (If you can hear beep sound, ‘RealPassExample_VC.exe’ connects RealPass-N automatically.) 220831-RealPass-N-E001 4.4. Place any passport on the platen, and then click ‘Start’ button. (* Private information is deleted.)

Suprema ID Inc. 1207, 37, Sagimakgol-ro 62beon-gil, Jungwon-gu, Seongnam-si, Gyeonggi-do, Republic of Korea Tel. +82-31-710-4941 / Fax. +82-31-786-0552 Date: December 21, 2022 Dear Sir/Madam Re: Letter of Similarity We, Suprema Inc., declare the differences for between original model and variant models. -Product: RealPass-N -Model name: RP-N -Variant Model name: RealPass-N(MOJ), RealPass-NB, RealPass-N, RP-NB,RPN-B, RPN-F, RPN-J Please refer to the below variant model list. RP-N RealPass-N(MOJ), RealPass-NB, RealPass-N, RP-NB,RPN-B, RPN-F, RPN-J Basic model All of the series models are identical including component, circuit, pattern, except the model name All models are made up by same H/W, F/W and compared with basic mode, the difference described as above. *** The product was tested with basic model. (worst-case model was tested) Sincerely Yours, Name: Byoungjoon Jang Title: Assistant Researcher

Suprema ID Inc. 1207, 37, Sagimakgol-ro 62beon-gil, Jungwon-gu, Seongnam-si, Gyeonggi-do, South Korea Byoungjoon Jang / Assistant Researcher Date: December 21, 2022 Eurofins Electrical a nd Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR RealPass-N / RP-N / 2AVDARP-N To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (below list) required to be submitted with this application be permanently withheld from public review. Permanent Confidential Request -. Schematics -. Block Diagram -. Operational Description -. Part list SPECIFY REASON FOR REQUEST (i.e. the above document s are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely,

Suprema ID Inc. 1207, 37, Sagimakgol-ro 62beon-gil, Jungwon-gu, Seongnam-si, Gyeonggi-do, South Korea Date: December 21, 2022 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR RealPass-N / RP-N / 2AVDARP-N To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (below list) required to be submitted with this application be short-term Confidentiality f or a period of 180 days after grant is issued. Short-Term Confidential Request -. External Photos -. Internal Photos -. Test set-up photo -. User Manual SPECIFY REASON FOR REQUEST (i.e. These documents contain detailed system and equipment descriptions and related information about the product, which we considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, we feel that this information would be of benefit to our competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Byoungjoon Jang / Assistant Researcher

Suprema ID Inc. 1207, 37, Sagimakgol-ro 62beon-gil, Jungwon-gu, Seongnam-si, Gyeonggi-do, South Korea Date: December 21, 2022 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Ms. Hyowon Jeong/Staff of Eurofins KCTL Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires on e year from the current date. Sincerely, Byoungjoon Jang / Assistant Researcher

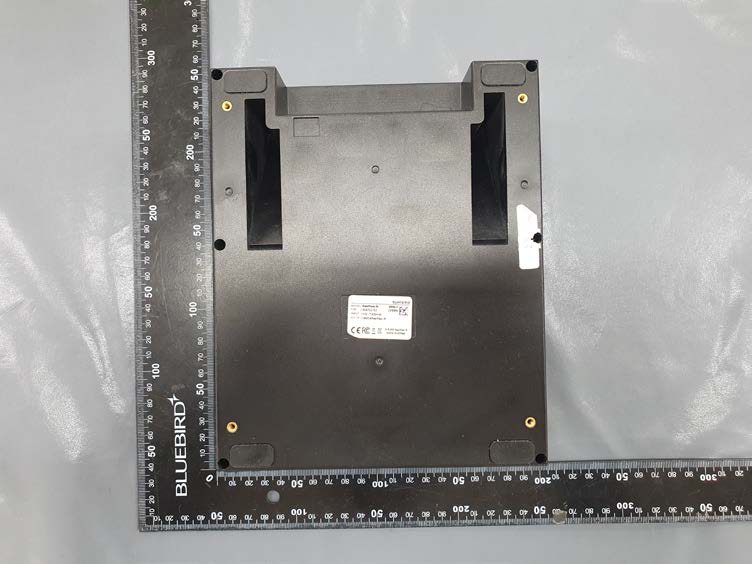

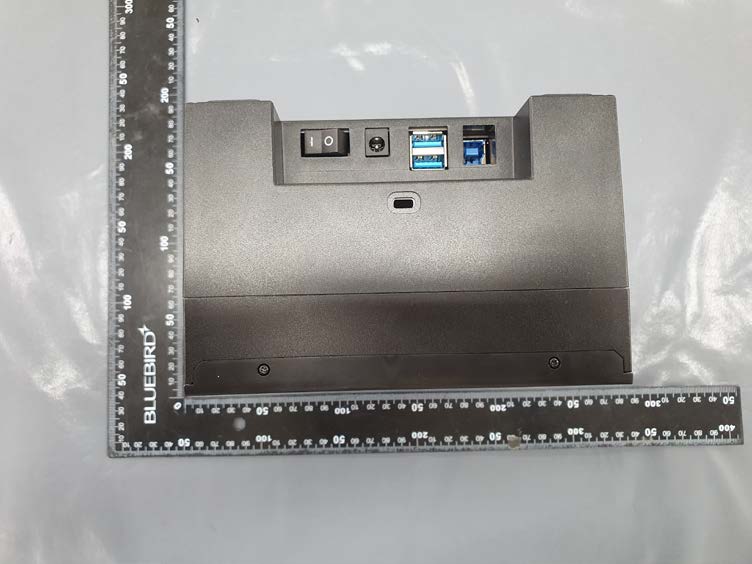

This test report shall not be reproduced, except in full, without the written approval External photos of EUT This test report shall not be reproduced, except in full, without the written approval This test report shall not be reproduced, except in full, without the written approval

RP-N Label Information & Location

This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT This test report shall not be reproduced, except in full, without the written approval This test report shall not be reproduced, except in full, without the written approval Loop antenna (NFC) This test report shall not be reproduced, except in full, without the written approval

RealPass-N Antenna page2 ---------------------------------------- Spec page3 --------------------------------------- Picture Antenna Spec Sheet Model : RealPass-N 1 RealPass-N Antenna Spec Upper Antenna Lower Antenna TYPEPCB Pattern Ant ModulationASK Frequency13.56MHz 2 RealPass-N Antenna Pictures 3

verify No.102216677017 Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR22-SRF0239 Page (2) of (27) KCTL-TIR001-003/7 (20220705) KP22-05399 REPORT REVISION HISTORY Date Revision Page No 2022-12-29 Originally issued - This report shall not be reproduced except in full, without the written approval of Eurofins KCTL Co.,Ltd. This document may be altered or revised by Eurofins KCTL Co.,Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by Eurofins KCTL Co.,Ltd. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KS Q ISO/IEC 17025 and KOLAS accreditation. General remarks for test reports Statement concerning the uncertainty of the measurement systems used for the tests (may be required by the product standard or client) Internal procedure used for type testing through which traceability of the measuring uncertainty has been established: Procedure number, issue date and title: Calculations leading to the reported values are on file with the testing laboratory that conducted the testing. Statement not required by the standard or client used for type testing Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR22-SRF0239 Page (3) of (27) KCTL-TIR001-003/7 (20220705) KP22-05399 CONTENTS 1. General information ......................................................................................................4 2. Device information ........................................................................................................4 2.1. Frequency/channel operations................................................................................5 3. Antenna requirement ....................................................................................................5 4. Summary of tests ..........................................................................................................6 5. Measurement uncertainty .............................................................................................7 6. Test results ...................................................................................................................8 6.1. 20 ㏈ Bandwidth ....................................................................................................8 6.2. Frequency tolerance ............................................................................................. 10 6.3. Radiated spurious emissions ................................................................................ 13 6.4. AC Conducted emission ....................................................................................... 23 7. Measurement equipment ............................................................................................ 26 Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR22-SRF0239 Page (4) of (27) KCTL-TIR001-003/7 (20220705) KP22-05399 1. General information Client : Suprema ID Inc.INC Address : 1207, 37, Sagimakgol-ro 62beon-gil, Jungwon-gu, Seongnam-si, Gyeonggi-do, Republic of Korea Manufacturer : Suprema ID Inc. Address : 1207, 37, Sagimakgol-ro 62beon-gil, Jungwon-gu, Seongnam-si, Gyeonggi-do, Republic of Korea Laboratory : Eurofins KCTL Co.,Ltd. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 CAB Identifier: KR0040, ISED Number: 8035A KOLAS No.: KT231 2. Device information Equipment under test : RealPass-N Model : RP-N Derivative Model : RealPass-N(MOJ), RealPass-NB, RealPass-N, RP-NB,RPN-B, RPN-F, RPN-J Frequency range : 13.56 ㎒ Modulation technique : ASK Number of channels : 1 ch Power source : DC 5 V (USB) DC 12 V (Adapter) Antenna specification : Loop antenna (NFC) Antenna gain : N/A Software version : 01.01.02 Hardware version : V03 Operation temperature : -20 °C ~ 55 °C 2.1. Accessory information Equipment Manufacturer Model Serial No. Power source AC Adapter KEERDA DZ036DL120250F N/A Input: 100-240V, 50/60㎐ 1.2 A Output: 12V/2.5A Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR22-SRF0239 Page (5) of (27) KCTL-TIR001-003/7 (20220705) KP22-05399 2.2. Information about derivative model The difference between basic model and derivative models is: RealPass-N(MOJ), RealPass-NB, RealPass-N, RP-NB,RPN-B, RPN-F, RPN-J: RP-N with customer’s mark & label Each models are the same functionality 2.3. Frequency/channel operations This device contains the following capabilities: NFC Ch. Frequency (㎒) 01 13.56 Table 2.3.1. NFC 3. Antenna requirement Requirement of FCC part section 15.203 An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section. - The transmitters have permanently attached TAG antennas (Internal antenna) on board. Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR22-SRF0239 Page (6) of (27) KCTL-TIR001-003/7 (20220705) KP22-05399 4. Summary of tests FCC Part section(s) Parameter Test Condition Test results 15.225(a) In-band Fundamental Emission Radiated Pass 15.225(b)(c) In-band Spurious Emission Pass 15.225(d)…
