2AVED-BLM7663BU2IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module

BL-M7663BU2 IEEE 802.11a/b/g/n/ac 2T2R USB WiFi +Bluetooth 5.0 Module Specification 1http://www.b-link.net.cn Module Name: BL-M7663BU2 Module Type: IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module Revision: V1.0 Customer Approval: Company: Title: Signature:Date: BL-link Approval: Title: Signature:Date: Revision History RevisionSummaryRelease Date 0.1Initial release2021-07-30 1.0Official version2021-08-04 2http://www.b-link.net.cn 1.Introduction The BL-M7663BU2 is a highly integrated 2T2R 802.11a/b/g/n/ac Wireless LAN (WLAN) network and bluetooth combo module. The module’s interface is USB 1.0/1.1/2.0. It combines a WLAN MAC, a 2T2R capable WLAN base band. Bluetooth support 5.1 performance. The BL-M7663BU2 module provides a complete solution for a high throughput performance integrated wireless LAN and BT device. 1.1 Features Operating Frequencies: 2.4~2.4835GHz and 5.15~5.85GHz Host Interface is USB2.0 IEEE Standards: IEEE 802.11a/b/g/n/ac Wireless data rate can reach up to 867Mbps Bluetooth v2.1/4.1/4.2 and supports Bluetooth 5.1 system Connect to external antenna through IPEX connectors Power Supply: VDD33 3.3V±0.2V 1.2 Block Diagram 3http://www.b-link.net.cn 1.3GeneralSpecifications ModuleName BL-M7663BU2 ChipsetMT7663BUN WLANStandardIEEE802.11a/b/g/n/ac BTSpecificationBluetoothCoreSpecificationv5.1/4.2/4.1/2.1 HostInterface USB2.0forWiFiandBluetooth Antenna Connecttotheexternalantennas throughIPEXconnectors DimensionSMD22Pins-- 27.0*17.7*3.1mm(L*W*H), Tolerance:+/-0.15mm PowerSupplyDC3.3V±0.2V@1500mA(Max) OperationTemperature-20°Cto+70°C OperationHumidity10%to95%RH(Non-Condensing) 2.PinAssignments (TOPView) 2.1PinDefinition No.PinNameTypeLevelModulePinDescription 1BT_WAKE O 3.3VBTwakeuphost 2GNDPGND 4http://www.b-link.net.cn 3 USB_DPI/OUSBdifferentialdataline 4 USB_DMI/OUSBdifferentialdataline 5 RESETI 3.3V SystemresetInput(activelow) 6 VDD33PMainPowersupply 7 WLAN_WAKEO 3.3V WLANwakeuphost 8 NCNC 9 GNDRFGND 10 NCRFNC（Reserved2.4G/5GRFPADforWLAN_ANT1） 11 GNDRFGND 12 GNDRFGND 13 NCRFNC（Reserved2.4G/5GRFPADforWLAN_ANT0） 14 GNDRFGND 15 GNDRFGND 16 NCRFNC（ReservedBTRFPAD） 17 GNDRFGND 18 NCNC 19 NCNC 20 NCNC 21 NCNC 22 GNDPGND IPEX0 WLAN_RF0RFIPEXconnectorfor2.4G/5GRFtoWLAN_ANT0 IPEX1 WLAN_RF1RFIPEXconnectorfor2.4G/5GRFtoWLAN_ANT1 IPEX2 BT_RFRFIPEXconnectorforBTRFtoBT_ANT P:PowerorGround;I/O:In/Output;I:Input;O:Output;RF:AnalogRFPortorRFGround; 3.ElectricalandThermalSpecifications 3.1RecommendedOperatingConditions ParametersMinTypMaxUnits AmbientOperatingTemperature-202570°C ExternalAntennaVSWR1.92/ SupplyVoltageVDD333.13.33.5V 5http://www.b-link.net.cn 3.2CurrentConsumption Conditions:VDD33=3.3V;Ta:25°C; UseCase VDD33Current(average) TypMaxUnits WLANUnassociated(LinuxDriver,BT_Disable) 68 75 mA 2.4G11b1MbpsTX@19dBm(1TXRFtest) 368 398 mA 2.4G11b1MbpsRX(1RXRFtest) 98 128 mA 2.4G11g6MbpsTX@18dBm(1TXRFtest) 331 361 mA 2.4G11g6MbpsRX(1RXRFtest) 96 126 mA 2.4G11nHT20MCS8TX@14dBm(2TXRFtest) 591 621 mA 2.4G11nHT20MCS8RX(2RXRFtest) 125 155 mA 2.4G11nHT40MCS15TX@14dBm(2TXRFtest) 384 414 mA 2.4G11nHT40MCS15RX(2RXRFtest) 119 149 mA 5G11a6MbpsTX@18dBm(1TXRFtest) 456 506 mA 5G11a6MbpsRX(1RXRFtest) 127 177 mA [email protected](2TXRFtest) 703 753 mA 5G11nHT20MCS8RX(2RXRFtest) 144 194 mA 5G11nHT40MCS15TX@14dBm(2TXRFtest) 508 558 mA 5G11nHT40MCS15RX(2RXRFtest) 146 196 mA 5G11acVHT80MCS9TX@14dBm(2TXRFtest) 476 526 mA 5G11acVHT80MCS9RX(2RXRFtest) 156 206 mA 4.WLAN&BluetoothRFSpecifications 4.12.4GWLANRFSpecification Conditions:VDD33=3.3V;Ta:25°C 6http://www.b-link.net.cn FeaturesDescription WLAN StandardIEEE 802.11b/g/n/ac, CSMA/CA Frequency Range2.4~2.4835GHz (2.4GHz ISM Band) ChannelsCh1~Ch13 (For 20MHz Channels) Modulation 802.11b (DSSS): CCK, DQPSK, DBPSK; 802.11g (OFDM): BPSK, QPSK, QAM16, QAM64; 802.11n (OFDM): BPSK, QPSK, QAM16, QAM64; 802.11ac (OFDM): BPSK, QPSK, QAM16, QAM64, QAM256; Date Rate 802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps; 802.11n (HT20): MCS0~MCS7(1T1R_SISO) 6.5~72.2Mbps; 802.11n (HT20): MCS8~MCS15(2T2R_MIMO) 13~144.4Mbps; 802.11n (HT40): MCS0~MCS7(1T1R) 13.5~150Mbps; 802.11n (HT40): MCS8~MCS15(2T2R) 27~300Mbps; 802.11ac (VHT20): MCS0~MCS8(1T1R) 6.5~86.7Mbps; 802.11ac (VHT20): MCS0~MCS8(2T2R) 13~173.3Mbps; 802.11ac (VHT40): MCS0~MCS9(1T1R)13.5~200Mbps; 802.11ac (VHT40): MCS0~MCS9(2T2R)27~400Mbps; Frequency Tolerance≦±15ppm 2.4G Transmitter Specifications (WLAN_ANT0 & WLAN_ANT1) TX RateTX Power（dBm）TX Power Tolerance（dB）EVM（dB） 802.11b@1~11Mbps15dBm±2dBm≦-10dB 802.11g@6Mbps19dBm±2dBm≦-10dB 802.11g@54Mbps19dBm±2dBm≦-25dB 802.11n@HT20_MCS019dBm±2dBm≦-10dB 802.11n@HT20_MCS719dBm±2dBm≦-28dB 802.11n@HT40_MCS019dBm±2dBm≦-10dB 802.11n@HT40_MCS719dBm±2dBm≦-28dB 802.11ac@VHT40_MCS919dBm±2dBm≦-32dB 2.4G Receiver Specifications (WLAN_ANT0 & WLAN_ANT1) RX RateMin Input Level（dBm）Max Input Level（dBm）PER 802.11b@1Mbps-92dBm-5< 8% 802.11b@11Mbps-86dBm -5 < 8% 802.11g@6Mbps-90dBm-5< 10% 802.11g@54Mbps-74dBm -5 < 10% 802.11n@HT20_MCS0-88dBm-5< 10% 802.11n@HT20_MCS7-70dBm -5 < 10% 7http://www.b-link.net.cn 802.11n@HT40_MCS0-86dBm-5< 10% 802.11n@HT40_MCS7-68dBm -5 < 10% 802.11ac@VHT40_MCS9-63dBm -5 < 10% 4.2 5G WLAN RF Specification Conditions: VDD33=3.3V ; Ta:25°C FeaturesDescription WLAN StandardIEEE 802.11a/n/ac, CSMA/CA Frequency Range 5.15~5.25GHz; 5.735~5.835GHz (5GHz ISM Band) Channels Ch36, Ch40, Ch44, Ch48; Ch149~Ch165 Modulation 802.11a (OFDM): BPSK, QPSK, QAM16, QAM64; 802.11n (OFDM): BPSK, QPSK, QAM16, QAM64; 802.11ac (OFDM): BPSK, QPSK, QAM16, QAM64, QAM256; Date Rate 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps; 802.11n (HT20): MCS0~MCS7(1T1R_SISO) 6.5~72.2Mbps; 802.11n (HT20): MCS8~MCS15(2T2R_MIMO) 13~144.4Mbps; 802.11n (HT40): MCS0~MCS7(1T1R) 13.5~150Mbps; 802.11n (HT40): MCS8~MCS15(2T2R) 27~300Mbps; 802.11ac (VHT20): MCS0~MCS8(1T1R) 6.5~86.7Mbps; 802.11ac (VHT20): MCS0~MCS8(2T2R) 13~173.3Mbps; 802.11ac (VHT40): MCS0~MCS9(1T1R)13.5~200Mbps; 802.11ac (VHT40): MCS0~MCS9(2T2R)27~400Mbps; 802.11ac (VHT80): MCS0~MCS9(1T1R)29.3~433.3Mbps; 802.11ac (…

Text truncated - open the document above for the full version.

Shenzhen Feng Ruixiang Intelligent Technology Co., Ltd. Agent Authorization Company: Shenzhen Feng Ruixiang Intelligent Technology Co., Ltd. Address: 302, Building 6, no.4 Zhongxing road, Zhangge community, Fucheng street, Longhua district, Shenzhen, Guangdong,P.R. China Product Name: IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module Trade Mark: N/A Model Number(s): BL-M7663BU2 FCC ID: 2AVED-BLM7663BU2 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-08-31 Name: Haiyun Peng Title: sales director Company: Shenzhen Feng Ruixiang Intelligent Technology Co., Ltd.

Shenzhen Bilian Electronic Co.,Ltd. FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Subject; Module Approval Request Letter Company name: IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module FCC ID: 2AVED-BLM7663BU2 Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID: 2AVED-BLM7663BU2 has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes the module with a shield. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes The module must contain power supply regulation on the module. The modular has an onboard 3.3V regulator(integrated in MT7663BU). The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). The modular contain a unique antenna connector, and be marketed and operated only with specific antenna(s) of Section 15.204(c),Maximum Antenna Gain is 2dBi. The module must demonstrate compliance in a stand-alone configuration. The modular was tested in a standalone configuration apart from host units. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). The modular has its own FCC ID number. The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes Shenzhen Bilian Electronic Co.,Ltd. FCC Modular Approval Request Rev 3.0 The module must comply with RF exposure requirements Yes, RF cexposure evaluation performed at 20cm. Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist. Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules Page 18 2.3 Summarize the specific operational use conditions Page 18 2.4 Limited module procedures Page 18 2.5 Trace antenna designs Page 18 2.6 RF exposure considerations Page 18 2.7 Antennas Page 18 2.8 Label and compliance information Page 18 2.9 Information on test modes and additional testing requirements Page 18 2.10 Additional testing, Part 15 Subpart B disclaimer Page 18 Name: Haiyun Peng Date: 2021-08-31 Title: sales director Signature of applicant

Shenzhen Feng Ruixiang Intelligent Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-08-31 Subject; Request for Confidentiality FCC ID: 2AVED-BLM7663BU2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Software Security Requirements In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name / Title: Haiyun Peng / sales director Company: Shenzhen Feng Ruixiang Intelligent Technology Co., Ltd. Address: 302, Building 6, no.4 Zhongxing road, Zhangge community, Fucheng street, Longhua district, Shenzhen Guangdong,P.R., China, 518000 Phone: 13662644686 Fax: 0755-28164675 E-Mail: [email protected]

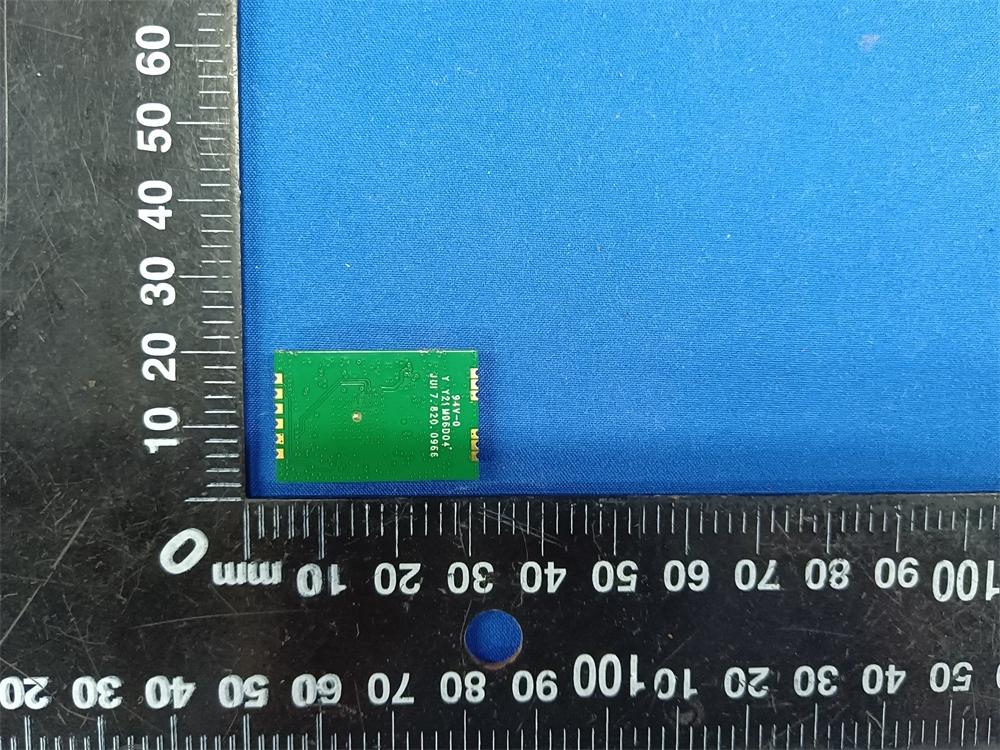

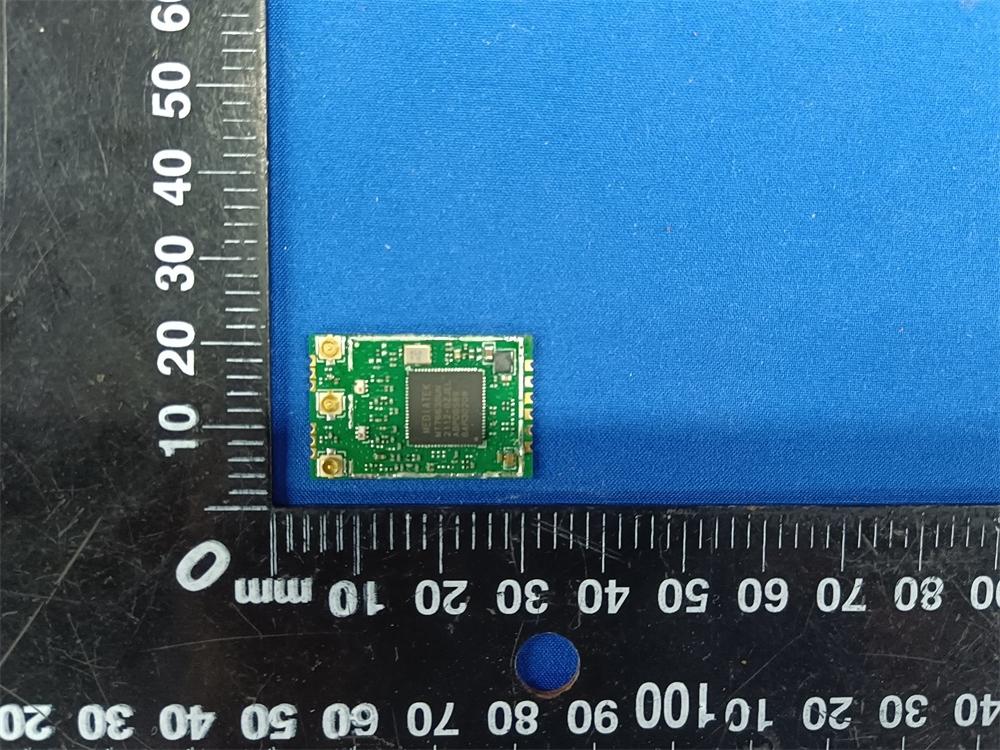

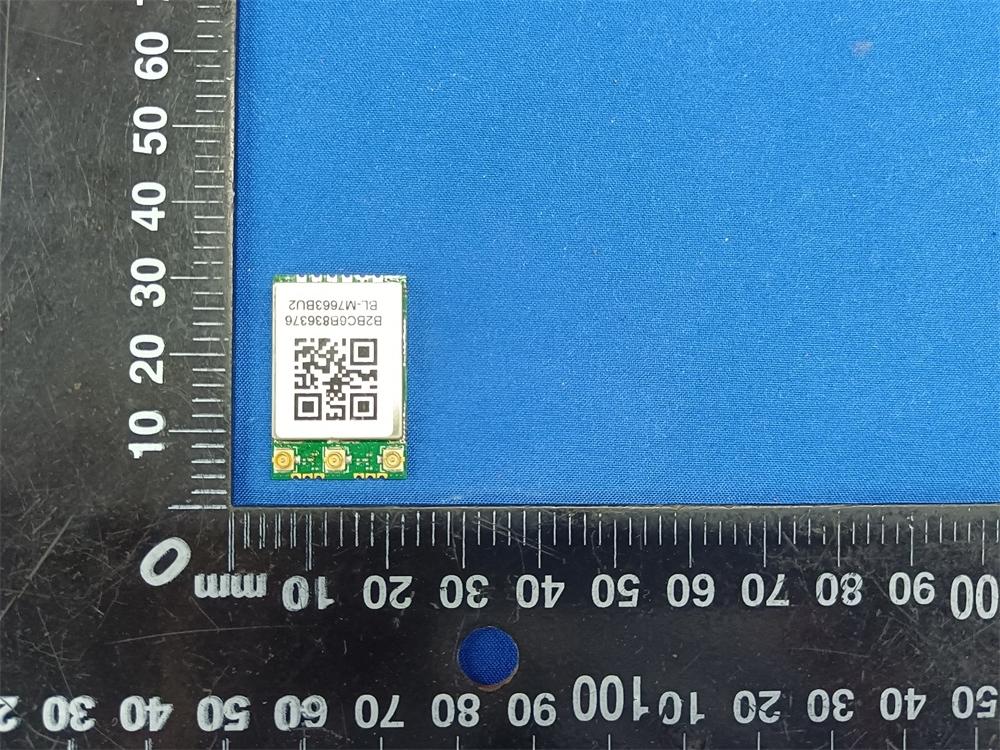

FCC ID: 2AVED-BLM7663BU2 Fig. 1 Fig. 2 FCC ID: 2AVED-BLM7663BU2 Fig. 3 Fig. 4

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20210811010-1-13 2AVED-BLM7663BU2 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Oliver Ou Approved by ( position+printed name+signature) . : Manager Simon Hu Date of issue .................................... : Aug. 27, 2021 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen Feng Ruixiang Intelligent Technology Co., Ltd. Address ............................................ : 302, Building 6, no.4 Zhongxing road, Zhangge community, Fucheng street, Longhua district, Shenzhen Guangdong,P.R., China, 518000 Test specification ........................... : Standard ........................................... : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Feng Ruixiang Intelligent Technology Co., Ltd. Model/Type reference ...................... : BL-M7663BU2 Listed Models .................................. : N/A Modulation Type ............................... : IEEE 802.11a /802.11b/802.11g/802.11n/802.11ac GFSK, π/4-DQPSK, 8DPSK Operation Frequency........................ : From 2412MHz to 2462MHz, 5180MHz to 5240MHz, 5745MHz to 5825MHz, 2402MHz to 2480MHz Hardware Version ............................ : V1.0 Software Version .............................. : V1.1 Rating ............................................... : DC 3.3V Result ............................................... : PASS Report No.: GTS20210811010-1-13 Page 2 of 21 T E S T R E P O R T Test Report No. : GTS20210811010-1-13 Aug. 27, 2021 ______________________________________________________________________________________________ Date of issue Equipment under Test : IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module Model /Type : BL-M7663BU2 Listed model : N/A Applicant : Shenzhen Feng Ruixiang Intelligent Technology Co., Ltd. Address : 302, Building 6, no.4 Zhongxing road, Zhangge community, Fucheng street, Longhua district, Shenzhen Guangdong,P.R., China, 518000 Manufacturer : Shenzhen Feng Ruixiang Intelligent Technology Co., Ltd. Address : 302, Building 6, no.4 Zhongxing road, Zhangge community, Fucheng street, Longhua district, Shenzhen Guangdong,P.R., China, 518000 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20210811010-1-13 Page 3 of 21 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT .................................................................................................................................... 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT .......................................................................…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : GTS20210811010-1-9 2AVED-BLM7663BU2 Compiled by ( position+printed name+signature).. : File administrators Peter Xiao Supervised by ( position+printed name+signature).. : Test Engineer Oliver Ou Approved by ( position+printed name+signature).. : Manager Simon Hu Date of issue ..................................... : Aug. 27, 2021 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Shenzhen Feng Ruixiang Intelligent Technology Co., Ltd. Address ............................................ : 302, Building 6, no.4 Zhongxing road, Zhangge community, Fucheng street, Longhua district, Shenzhen Guangdong,P.R., China, 518000 Test specification ........................... : Standard ........................................... : FCC Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Feng Ruixiang Intelligent Technology Co., Ltd. Model/Type reference ...................... : BL-M7663BU2 List Models ..................................... : N/A Modulation Type ............................... : GFSK,π/4-DQPSK,8DPSK Operation Frequency ........................ : From 2402MHz to 2480MHz Hardware Version ............................ : V1.0 Software Version .............................. : V1.1 Rating ............................................... : DC 3.3V Result ............................................... : PASS Report No.: GTS20210811010-1-9 Page 2 of 39 T E S T R E P O R T Test Report No. : GTS20210811010-1-9 Aug. 27, 2021 ______________________________________________________________________________________________ Date of issue Equipment under Test : IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module Model /Type : BL-M7663BU2 Listed model : N/A Applicant : Shenzhen Feng Ruixiang Intelligent Technology Co., Ltd. Address : 302, Building 6, no.4 Zhongxing road, Zhangge community, Fucheng street, Longhua district, Shenzhen Guangdong,P.R., China, 518000 Manufacturer : Shenzhen Feng Ruixiang Intelligent Technology Co., Ltd. Address : 302, Building 6, no.4 Zhongxing road, Zhangge community, Fucheng street, Longhua district, Shenzhen Guangdong,P.R., China, 518000 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20210811010-1-9 Page 3 of 39 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 7 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 7 2.8. EUT Exercise Software .......................................................................................................................... 7 2.9. Special Accessories ............................................................................................................................... 7 2.10. External I/O Cable ................................................................................................................................ 7 2.11. Modifications ........................................................................................................................................ 7 3. TEST ENVIRONMENT ...........................…

Text truncated - open the document above for the full version.

FCC ID: 2AVED-BLM7663BU2 _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2AVED-BLM7663BU2 _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 3
