2AVEIJERNANO-F5113Carbon Nanotube Heating Film

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. iwarm 4.0 uses soft,thin material as the core heating material,which converts electricity quickly into heat energy through efficient electrothermal conversion. I.Features of iwarm 4.0 1. Driving force:5V,high safety factor(<36V); 2. Planar heating, even heating, fast heating,comfortable; 3. The far-infrared wavelength emitted by iwarm 4.0 is very close to the human body; 4. Realize intelligent and touch-tune control mode, meet the requirements of different people and different temperatures in different environments. II.About products 1.Product photos 2.Bluetooth function Connect the USB connector to the 5V / 2A mobile power interface, long-perss the controller, let the Bluetooth light flashing, Controller enters Bluetooth connection status. 3.Using steps (1). Download and install app for mobile phone. (2). Connect APP,:open your phone Bluetooth, enter the software interface and long-perss the controller, let the Bluetooth light flashing, click on the “+” to add intelligent wearing, then you can work on the iwarm 4.0 independently III.Controller Controller usage guide Control lamp condition Output level Red light long bright High level Orange light long bright Middle level White light long bright Low level Red light flashing Heating sheet reaches setting high level temperature Orange light flashing Heating sheet reaches setting middle level temperature White light flashing Heating sheet reaches setting low level temperature Bluetooth light flashing Open your phone bluetooth,the controller and your phone must in 2 meters,then connect APP Purple/red light fast flashing The master controller is wrong,please connect with manufacturer IV.Product description 1. Heating clothes are prohibited from dry cleaning. They can be washed by machine or hand at room temperature. After washing, they need to be fully dried before they can be used again. 2. Strictly forbidden to charge and discharge on the edge of mobile power supply. 3. Please turn off or remove the mobile power when not use. Avoid heating when not dress, Forbid using sleep. V.Product parameters Name: iwarm 4.0 Two piece size:150mm*190mm*2P Three piece size:150mm*220mm*1P+150mm*120mm*2P Using temperature:-20°C to 60°C Using relative humidity:≤85RH% VI.Disabled groups *Infants and without self-care ability; *Careful use of pregnant women VII.Product packing configuration 1. 1 set Heating component; 2. 1 copy instruction manual; 3. 1 tag. [Warranty terms] 1. From the date of saling. Free warranty within one year(not-human damage); 2. The following cases are not in the warranty scope: beyond the scope of attention, improper use, self-repair or man-made sabotage(including misoperation),and use the product for other purpose beyond the scope,etc. 3. Within the scope of the law, our company reserves the right of modification and final interpretation of the warranty; 4. The provisions of laws and regulations are clearly defined and enforced. 5. Product name: Carbon Nanotube Heating Film 6. Model No.: JD-F5113(iwarm4.0),JD-F5112(iwarm4.0)

Suzhou Jernano Carbon Co.,Ltd. Date: 2020-06-10 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2AVEIJERNANO-F5113 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Suzhou Jernano Carbon Co.,Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Xiangrui Wang Title: R&D Signature: On behalf of Company: Suzhou Jernano Carbon Co.,Ltd. Telephone: 0512-62872764

Suzhou Jernano Carbon Co.,Ltd.. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Suzhou Jernano Carbon Co.,Ltd. NO.398 Ruoshui Road, Suzhou Industrial Park,Suzhou,China Regarding: Confidentiality Request regarding application for FCC ID: 2AVEIJERNANO-F5113 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Xiangrui Wang Title: R&D Company Name: Suzhou Jernano Carbon Co.,Ltd.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Suzhou Jernano Carbon Co.,Ltd. Address NO.398 Ruoshui Road, Suzhou Industrial Park,Suzhou,China Grantee Code 2AVEI FCC ID 2AVEIJERNANO-F5113 Authorized Contact Name xiangrui Wang Contact Email [email protected] Contact Phone 0512-62872764 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2020-06-10 Print Name: Xiangrui Wang Title: R&D *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

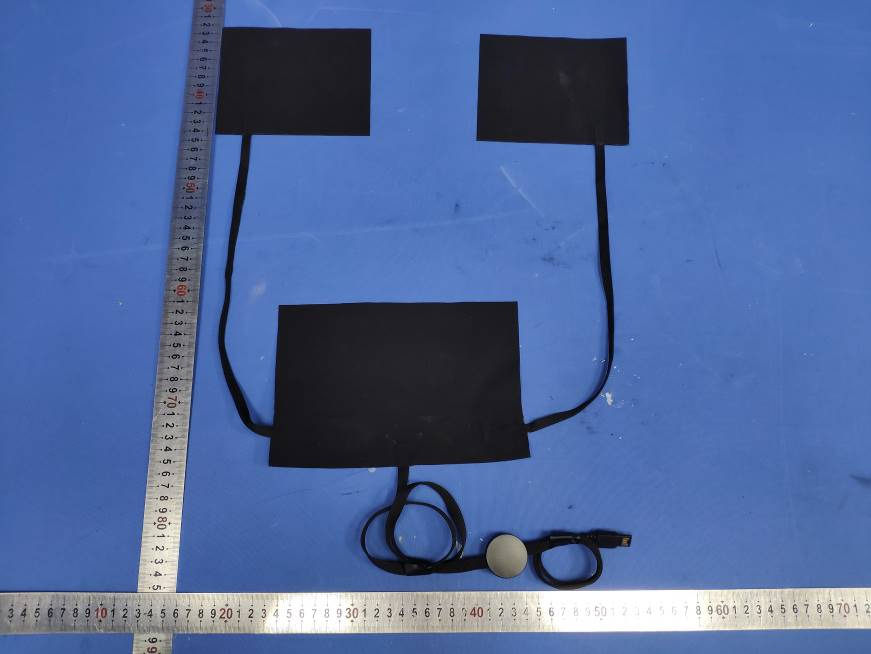

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 2 Page 1 of 2 External Photos Applicant: Suzhou Jernano Carbon Co.,Ltd. Address of Applicant: NO.398 Ruoshui Road,Suzhou Industrial Park,China Equipment Under Test (EUT): Product Name: Carbon Nanotube Heating Film Model No.: JD-F5113(iwarm4.0) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 2 Page 2 of 2 End

Label : Label location

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 5 Page 1 of 5 Internal Photos Applicant: Suzhou Jernano Carbon Co.,Ltd. Address of Applicant: NO.398 Ruoshui Road,Suzhou Industrial Park,China Equipment Under Test (EUT): Product Name: Carbon Nanotube Heating Film Model No.: JD-F5113(iwarm4.0) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 5 Page 2 of 5 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 5 Page 3 of 5 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 5 Page 4 of 5 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 5 Page 5 of 5 End

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200600427502 Page: 1 of 7 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF MPE REPORT Application No.: SHEM2006004275CR FCC ID: 2AVEIJERNANO-F5113 Applicant: Suzhou Jernano Carbon Co.,Ltd. Address of Applicant: NO.398 Ruoshui Road,Suzhou Industrial Park,China Manufacturer: Suzhou Jernano Carbon Co.,Ltd. Address of Manufacturer: NO.398 Ruoshui Road,Suzhou Industrial Park,China Equipment Under Test (EUT): EUT Name: Carbon Nanotube Heating Film Model No.: JD-F5113(iwarm4.0),JD-F5112(iwarm4.0) Standard(s) : FCC Rules 47 CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2020-06-10 Date of Test: 2020-06-13 to 2020-06-22 Date of Issue: 2020-06-29 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200600427502 Page: 2 of 7 Revision Record Version Description Date Remark 00 Original 2020-06-29 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200600427502 Page: 3 of 7 2 Contents Page 1 COVER PAGE................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION .......................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................... 4 3.2 TECHNICAL SPECIFICATIONS ................................................................................................................... 4 3.3 TEST LOCATION ....................................................................................................................................... 5 3.4 TEST FACILITY .......................................................................................................................................... 5 3.5 DEVIATION FROM STANDARDS ................................................................................................................. 5 3.6 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................... 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ......................................................................... 6 5 MEASUREMENT AND CALCULATION .................................................................................................... 7 5.1 MAXIMUM TRANSMIT POWER ................................................................................................................... 7 5.2 RF EXPOSURE CALCULATION ................................................................................................................. 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200600427502 Page: 4 of 7 3 General Information 3.1 General Description of E.U.T. Power supply: DC 5V By adapter Serial Number: 20205113C 3.2 Technical Specifications BLE Antenna Gain: 1.5dBi Antenna Type: PCB Antenna BT Version V4.2 LE Data Rate: 1Mbps Channel Spacing: 2MHz Modulation Type: GFSK Number of Channels: 40 Operation Frequency: 2402MHz to 2480MHz SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200600427502 Page: 5 of 7 3.3 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests were sub-contracted. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L4354) CNAS has accredited Compliance Certification Services (Kunshan) Inc. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • A2LA (Certificate No. 2541.01) Compliance Certification Services (Kunshan) Inc. is accredited by the American Association for Laboratory Accreditation (A2LA). Certificate No. 2541.01. • FCC (Designation Number: CN1172) Compliance Certification Services Inc. has been recognized as an accredited testing laboratory. Designation Number: CN1172. • ISED (CAB identifier: CN0072) Compliance Certification Services (Kunshan) Inc. has been recognized by Innovation, Science and Economic Development Canada (ISED) as an accredited testing laboratory. CAB Identifier: CN0072. • VCCI (Member No.: 1938) The 3m and 10m Semi-anechoic chamber and Shielded Room of Compliance Certification Services (Kunshan) Inc. has been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: R-1600, C-1707, T-1499, G-10216 respectively. 3.5 Deviation from Standards None 3.6 Abnormalities from Stand…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200600427501 Page: 1 of 37 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: FCC ID: SHEM2006004275CR 2AVEIJERNANO-F5113 Applicant: Suzhou Jernano Carbon Co.,Ltd. Address of Applicant: NO.398 Ruoshui Road,Suzhou Industrial Park,China Manufacturer: Suzhou Jernano Carbon Co.,Ltd. Address of Manufacturer: NO.398 Ruoshui Road,Suzhou Industrial Park,China Factory: Suzhou Jernano Carbon Co.,Ltd. Address of Factory: NO.398 Ruoshui Road,Suzhou Industrial Park,China Equipment Under Test (EUT): EUT Name: Carbon Nanotube Heating Film Model No.: JD-F5113(iwarm4.0),JD-F5112(iwarm4.0)¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-06-10 Date of Test: 2020-06-13 to 2020-06-22 Date of Issue: 2020-06-29 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200600427501 Page: 2 of 37 Revision Record Version Description Date Remark 00 Original 2020-06-29 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200600427501 Page: 3 of 37 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Declaration of EUT Family Grouping: Note 1: There are series models mentioned in this report, and they are the similar in electrical and electronic characters. Only the model JD-F5113(iwarm4.0) was tested since their differences were the model number, trade name and appearance. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200600427501 Page: 4 of 37 3 Contents Page 1 COVER PAGE ........................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................. 3 3 CONTENTS ........................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................... 5 4.1 DETAILS OF E.U.T. .......................................................................................................................... 5 4.2 POWER LEVEL SETTING USING IN TEST................................................................................................ 5 4.3 DESCRIPTION OF SUPPORT UNITS ..................................................................................................... 5 4.4 MEASUREMENT UNCERTAINTY........................................................................................................... 6 4.5 TEST LOCATION ............................................................................................................................... 7 4.6 TEST FACILITY ................................................................................................................................. 7 4.7 DEVIATION FROM STANDARDS ........................................................................................................... 7 4.8 ABNORMALITIES FROM STANDARD CONDITIONS................................................................................... 7 5 EQUIPMENT LIST ................................................................................................................................. 8 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................... 9 6.1 ANTENNA REQUIREMENT .................................................................................................................. 9 7 RADIO SPECTRUM MATTER TEST RESULTS ............................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Appendix A for SHEM200600427501 1. Duty Cycle 1.1 Test Result Test Mode Channel Frequency(M Hz) TX Type ANT No. T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) 1M 2402 SISO 1 0.408 0.626 65.18 1.86 2440 SISO 1 0.408 0.625 65.28 1.85 2480 SISO 1 0.408 0.625 65.28 1.85 1.2 Test Graph SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 2. Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 1M 2402 SISO 1 0.669 ≥0.5 PASS 2440 SISO 1 0.666 ≥0.5 PASS 2480 SISO 1 0.669 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Span using in PSD (MHz) Span using in Power (MHz) Test Result (MHz) 1.5*BW (MHz) 1M 2402 SISO 1 0.669 1.004 1 3 2440 SISO 1 0.666 1.000 1 3 2480 SISO 1 0.669 1.004 1 3 Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 1M 2402 SISO 1 1.064 Only for Report Use 2440 SISO 1 1.061 Only for Report Use 2480 SISO 1 1.062 Only for Report Use 2.2 Test Graph - 6dB Bandwidth SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 2.3 Test Graph - 99% Occupied Bandwidth SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 3. Maximum Conducted Output Power 3.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 1M 2402 SISO -1.19 30 PASS 2440 SISO -0.96 30 PASS 2480 SISO -1.50 30 PASS 3.2 Test Graph SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 4. Maximum Power Spectral Density (PSD) 4.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 1M 2402 SISO -16.26 ≤8 PASS 2440 SISO -16.07 ≤8 PASS 2480 SISO -16.60 ≤8 PASS 4.2 Test Graph SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 5. Unwanted Emissions in Non-restricted Frequency Bands 5.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 1M 2402 SISO 1 Refer to test graph -21.24 PASS 2440 SISO 1 Refer to test graph -21.24 PASS 2480 SISO 1 Refer to test graph -21.24 PASS 5.2 Test Graph SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 5 Page 1 of 5 Test Setup Photos-FCC Applicant: Suzhou Jernano Carbon Co.,Ltd. Address of Applicant: NO.398 Ruoshui Road,Suzhou Industrial Park,China Equipment Under Test (EUT): Product Name: Carbon Nanotube Heating Film Model No.: JD-F5113(iwarm4.0) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 5 Page 2 of 5 1 Contents Page 1 CONTENTS............................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ............................................................ 3 2.1 RF Conducted Setup ......................................................................................... 3 2.2 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup ......... 3 2.3 Radiated Emission Test Setup .......................................................................... 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 5 Page 3 of 5 2 EQUIPMENT UNDER TEST PICTURES 2.1 RF Conducted Setup 2.2 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 5 Page 4 of 5 2.3 Radiated Emission Test Setup 30MHz to 1GHz Above 1GHz SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 5 Page 5 of 5 Zoom: End
