2AVFE-EULTRA4G Smart Phone

Quick Start Guide Guía de inicio rápido Инструкция по началу работы Guide de démarrage rapide HTC Wildfire E ultra Thank you for choosing HTC Wildfire E ultra. See the User Guide to learn how to use the device and find solutions to common problems. Inside the box: ƻ 1 HTC Wildfire E ultra smartphone ƻ 2 Warranty card ƻ 3 Quick start guide ƻ 4 Power adapter ƻ 5 USB cable ƻ 6 Headset * Actual configuration on accessories will be different as per different selling region/territory. Knowing your device Before using the device, familiarize yourself with its basic operations. z To power on your device, press and hold the power button for at least 3 seconds until the screen turns on. z When you turn on your device for the first time, follow the on screen prompts to set it up. z Press and hold the power button for at least 10 seconds to restart your device. ƻ 1 Headset jack ƻ 2 Micro-USB port ƻ 3 Power button ƻ 4 Volume control Getting started Follow the illustrations and instructions below to set up your device. Please use the eject pin included in the box. Charging the battery z Connect the larger end of the USB cable to the power adapter and the smaller end to the Micro-USB port on the smartphone; z To prolong battery lifespan, use a reliable network connection. Avoid frequently disconnecting the power adapter while charging the battery. For more information You can find service hotlines, retailer address, service policies and more information for your HTC Wildfire E ultra at https://www.htc.com Go to Settings and touch About phone> Legal Information to view legal information about your product. Go to Settings and touch About phone> FCC ID to view FCC ID information. ™ All pictures and illustrations in this guide,including but not limited to the device color, size, and display content, are for your reference only. The actual device may vary. Nothing in this guide constitutes a warranty of any kind, expree or implied. Safety regulations Before using the device, read the safety information. Follow the precautions below to prevent dangerous situations. z Do not insert or remove the SIM card when your device is powered on. z Do not use cut or modified SIM cards with your devices as these may not be recognized and could damage the card tray(slot). z Do not use the device in places or premises where the use of mobile phones and radio equipment is not recommended or prohibited by the rules. z Do not use the device near electronic or medical equipment, because interference may affect device operation. z Do not use or store the device in dusty places. Dust may cause the device to malfunction; z Do not use the device with damaged case or accessories. z Keep the device away from children and pets. Small parts of the device can cause suffocation if swallowed. z Be careful not to scratch your device or hurt yourself when using the eject pin. z Do not use the device outdoors during a thunderstorm. z Do not store the device in high temperatures (near a heater, microwave oven, oven, etc.). An overheated rechargeable battery may cause a fire and explosion. z Follow all safety precautions and local rules for using mobile devices while driving. z To avoid damage to your hearing, do not use the headset at maximum volume when listening to music for a long time. z Use only chargers, rechargeable batteries and other accessories approved by the manufacturer. z Do not allow the contact of the battery with conductive objects (metal objects, liquids, etc.). z Do not use the device in places with high humidity (swimming pool, bathroom, etc.), and avoid using the device with wet hands. z Do not try to open the battery cover by yourself. This may cause battery explosion. Please go to an authorized service center for technical support. z If your SIM card does not match your device, please contact your carrier. z High sound pressure Hearing damage risk Do not listen at high volume leves for long periods Transportation and storage conditions z The packaged smartphone can be transported in any type of closed vehicles at temperatures from + 5 ° C to +40 ° C, protected from direct exposure to precipitation, solar radiation and mechanical damage. Disposal rules z Keep in mind that the product or electronic accessories (memory, cable and so on.) cannot be disposed of with other household waste. It is necessary to use special landfills or points for disposal of electronic devices. Legal Notice Trademarks and Permissions HTC and the HTC logo are the trademarks or registered trademarks of HTC Corporation and used under license by Fortune Ship International Industrial Limited. Android is a trademark of Google LLC. LTE is a trademark of ETSI. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. Wi-Fi ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are trademarks of Wi-Fi Alliance. Copyright © 2021 Fortune Ship International Industrial Limited. All rights reserved. THIS DOCUMENT IS FOR INFORMATION PURPOSES ONLY, AND DOES NOT CONSTITUTE ANY KIND OF WARRANTIES. Caution: Use the Product in the environment with the temperature Between -20ć and 40ć, and Max. charging ambient temperature 35ć; Otherwise, it may damage your product. For the following equipment: Product Name: 4G Smart Phone Model: Wildfire E ultra Brand Name: HTC Fortune Ship International Industrial Limited E-mail: [email protected] Hereby declares that this [Name: 4G Smart Phone, Model: Wildfire E ultra] is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The equipment was passed. The test was performed according to the following European standards: The product shall only be connected to a USB interface of version USB2.0 and that the connection to a power USB is allowed. Use careful with the earphone maybe possible excessive sound pressure from earphones and headphones can cause hearing loss. Adapter shall be installed near the equipment and shall be easily accessible. Only …

Text truncated - open the document above for the full version.

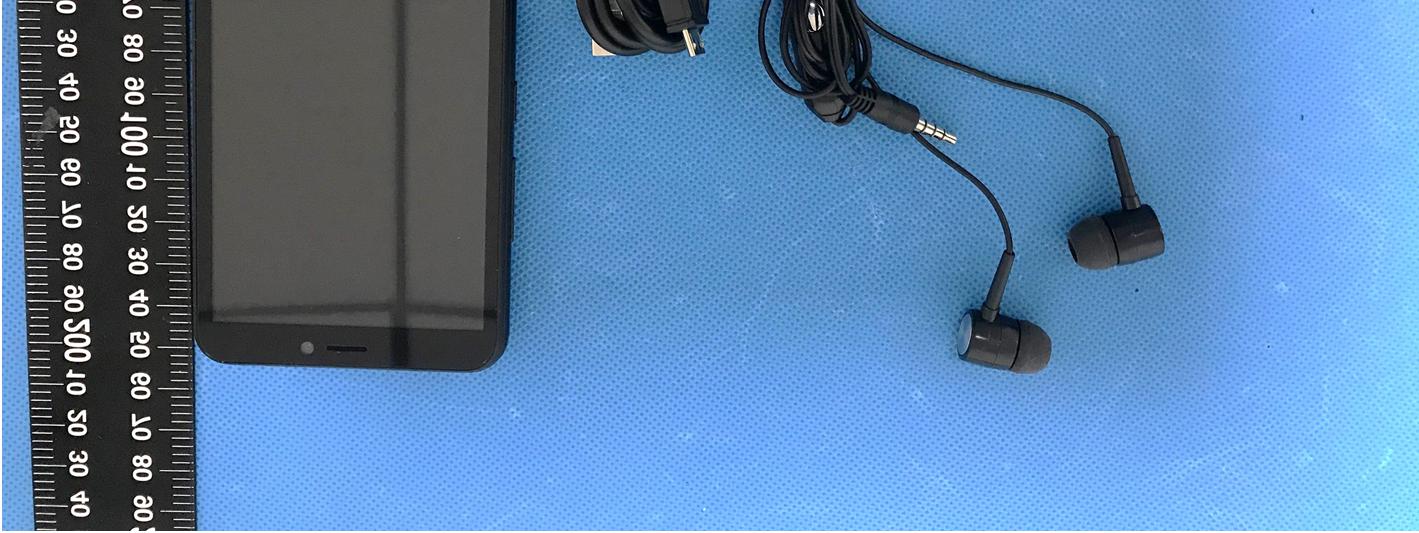

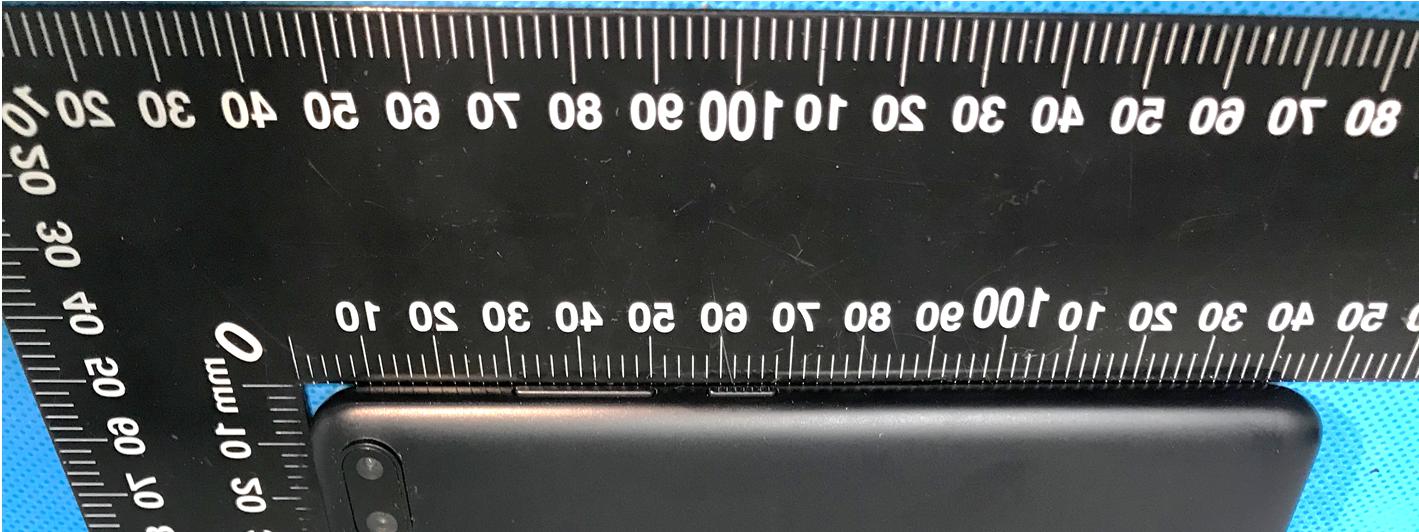

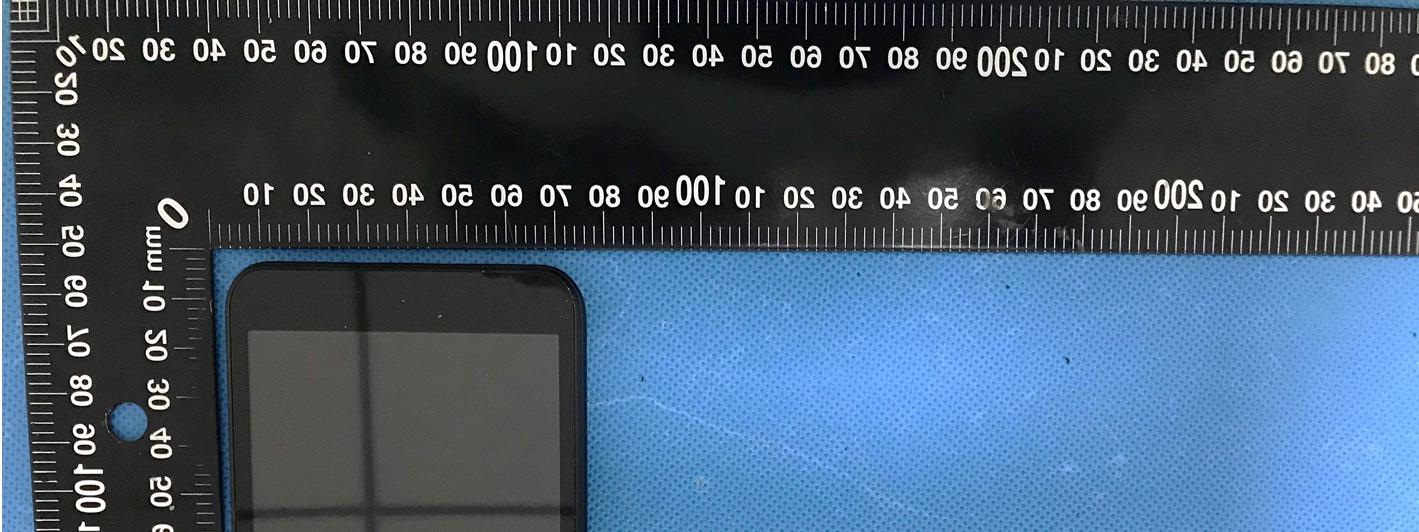

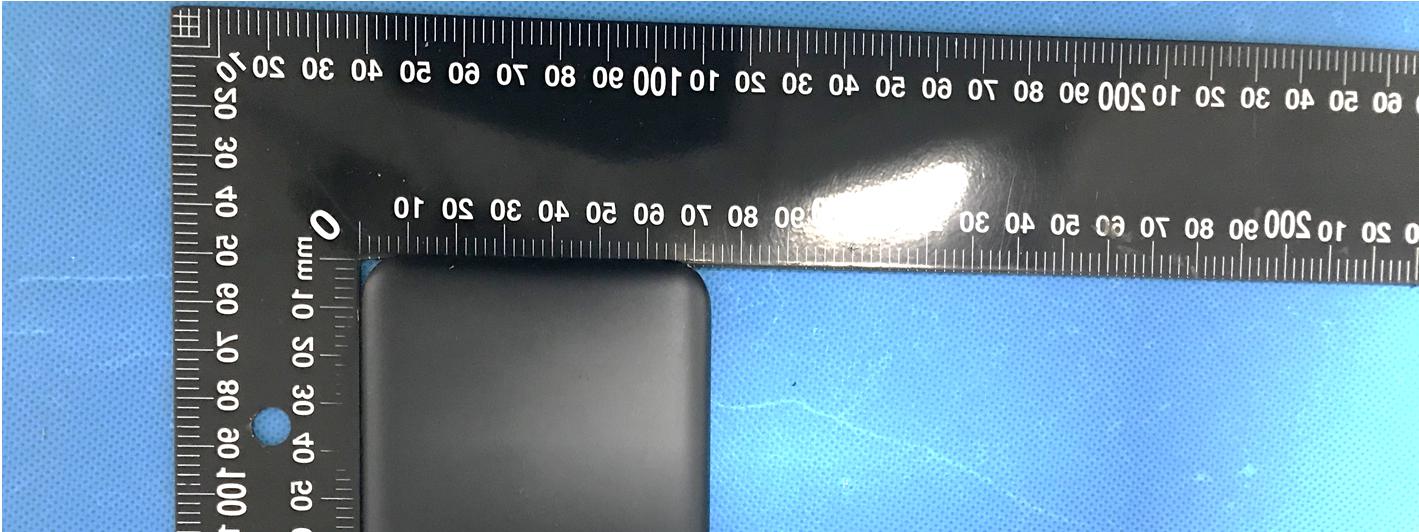

Reference No:WTX21X05048097W-1/2/3/4/5 Page 2 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No:WTX21X05048097W-1/2/3/4/5 Page 3 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No:WTX21X05048097W-1/2/3/4/5 Page 4 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No:WTX21X05048097W-1/2/3/4/5 Page 5 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7

Reference No:WTX21X05048097W-1/2/3/4/5 Page 1 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AVFE-EULTRA Specifications: Go to Settings and touch System about Phone to view FCC ID for the product. Products must not require special accessories or supplemental plug-ins (e.g., the installation of a SIM/USIM card) to access the information. The FCC ID, warning statements, or other information must be displayed electronically in a manner that is clearly legible without the aid of magnification. Both regulatory information and dedicated exclusive application(s) or script(s) must be secured and implemented in a factory-set-unalterable format. A physical temporary label is also required on the product, or a label on the packaging, at the time of importation, marketing, and sales. The physical label can be a summary version of the required regulatory information, such that the product can be identified as complying with the FCC’s equipment authorization requirements. Proposed Label Location on EUT FCC ID Label Location

Reference No:WTX21X05048097W-1/2/3/4/5 Page 6 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No:WTX21X05048097W-1/2/3/4/5 Page 7 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No:WTX21X05048097W-1/2/3/4/5 Page 8 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 4 Solder Board-Component View 5 Reference No:WTX21X05048097W-1/2/3/4/5 Page 9 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 6 Antenna View

Ref : ACR.233.1.17.SATU.A WALTEK TESTING GROUP (SHENZHEN) CO., LTD. 1/F, BUILDING A, HONGWEI INDUSTRIAL PARK, LIUXIAN 2ND ROAD BAO'AN DISTRICT SHENZHEN (518101), CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 45/15 EPGO280 Calibrated at MVG US 2105 Barrett Park Dr. - Kennesaw, GA 30144 Calibration Date: 07/03/2020 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in MVG USA using the CALISAR / CALIBAIR test bench, for use with a COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.233.1.17.SATU.A Page: 2/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 7/3/2020 Checked by : Jérôme LUC Product Manager 7/3/2020 Approved by : Kim RUTKOWSKI Quality Manager 7/3/2020 Customer Name Distribution : Waltek Testing Group (Shenzhen) Co., Ltd. Issue Date Modifications A 7/3/2020 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.233.1.17.SATU.A Page: 3/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment .................................................................................................... 10 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.233.1.17.SATU.A Page: 4/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number SN 45/15 EPGO280 Product Condition (new / used) New Frequency Range of Probe 0.7 GHz-6GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.193 M Dipole 2: R2=0.188 M Dipole 3: R3=0.198 M A yearly calibration interval is recommended. 2PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – MVG COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.233.1.17.SATU.A Page: 5/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid, with the plastic …

Text truncated - open the document above for the full version.

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 143 TEST REPORT Reference No. .................... : WTX21X05048097W FCC ID ................................ : 2AVFE-EULTRA Applicant ........................... : Fortune Ship International Industrial Limited Address ............................. : Unit C, 24/F, Golden Bear Industrial Centre, 66-82 Chai Wan Kok Street, Tsuen Wan NT, HONGKONG Product Name ................... : 4G Smart Phone Test Model. ........................ : Wildfire E ultra Standards .......................... : FCC Part 2.1093 ANSI / IEEE C95.1 : 2005+A1:2010 ANSI / IEEE C95.3 : 2002(R2008) IEEE 1528 :2013 Date of Receipt sample .... : May. 19, 2021 Date of Test........................ : May. 19, 2021 to Jun. 14, 2021 Date of Issue ..................... : Jun. 16, 2021 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be Reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Jack Sun / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX21X05048097W Page 2 of 143 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn TABLE OF CONTENTS 1. General Information ................................................................................................................................................... 3 1.1 Product Description for Equipment Under Test (EUT) ......................................................................................... 3 1.2 Test Standards .................................................................................................................................................... 6 1.3 Test Methodology ................................................................................................................................................ 6 1.4 Test Facility ......................................................................................................................................................... 6 2. Summary of Test Results .......................................................................................................................................... 7 3. Specific Absorption Rate (SAR) ................................................................................................................................ 8 3.1 Introduction .......................................................................................................................................................... 8 3.2 SAR Definition ..................................................................................................................................................... 8 4. SAR Measurement System ........................................................................................................................................ 9 4.1 The Measurement System .................................................................................................................................. 9 4.2 Probe ................................................................................................................................................................... 9 4.3 Probe Calibration Process ................................................................................................................................. 11 4.4 Phantom ............................................................................................................................................................ 12 4.5 Device Holder .................................................................................................................................................... 12 4.6 Test Equipment List ........................................................................................................................................... 13 5. Tissue Simulating Liquids ....................................................................................................................................... 14 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 14 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 15 5.3 Tissue Calibration Result ................................................................................................................................... 16 6. SAR Measurement Evaluation ................................................................................................................................ 17 6.1 Purpose of System Performance Check ............................................................................................................ 17 6.2 System Setup .................................................................................................................................................... 17 6.3 Validation Results .............................................................................................................................................. 19 7. EUT Testing Position ............................................................................................................................................... 20 7.1 Define Two Imaginary Lines on The Handset .................................................................................................... 20 7.2 Cheek Position ...................................…

Text truncated - open the document above for the full version.

Reference No.: WTX21X05048097W Page 66 of 143 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn LTE Band 5–Body SAR Test (Gap: 10mm) Plot No. Mode Test Position Body Freque ncy Output Power (dBm) Rated Limit (dBm) Scaling Factor SAR1g (W/kg) Scaled SAR1g (W/kg) Modulation, Bandwidth, RB MHz QPSK 10MHz 1RB Back Side 849.0 22.80 23.0 1.047 0.186 0.195 30. QPSK 10MHz 1RB Front Side 849.0 22.80 23.0 1.047 0.19 0.199 QPSK 10MHz 1RB Left side 849.0 22.80 23.0 1.047 0.048 0.050 QPSK 10MHz 1RB Bottom side 849.0 22.80 23.0 1.047 0.146 0.153 QPSK 10MHz 50%RB Back Side 849.0 21.62 22.0 1.091 0.149 0.163 QPSK 10MHz 50%RB Front Side 849.0 21.62 22.0 1.091 0.142 0.155 QPSK 10MHz 50%RB Left side 849.0 21.62 22.0 1.091 0.037 0.040 QPSK 10MHz 50%RB Bottom side 849.0 21.62 22.0 1.091 0.114 0.124 LTE Band 7–Body SAR Test (Gap: 10mm) Plot No. Mode Test Position Body Freque ncy Output Power (dBm) Rated Limit (dBm) Scaling Factor SAR1g (W/kg) Scaled SAR1g (W/kg) Modulation, Bandwidth, RB MHz QPSK 20MHz 1RB Back Side 2510 22.68 23.0 1.076 0.334 0.360 QPSK 20MHz 1RB Front Side 2510 22.68 23.0 1.076 0.302 0.325 QPSK 20MHz 1RB Left side 2510 22.68 23.0 1.076 0.163 0.175 31. QPSK 20MHz 1RB Bottom side 2510 22.68 23.0 1.076 0.45 0.484 QPSK 20MHz 50%RB Back Side 2510 21.37 21.50 1.030 0.257 0.265 QPSK 20MHz 50%RB Front Side 2510 21.37 21.50 1.030 0.233 0.240 QPSK 20MHz 50%RB Left side 2510 21.37 21.50 1.030 0.124 0.128 QPSK 20MHz 50%RB Bottom side 2510 21.37 21.50 1.030 0.346 0.357 LTE Band 17–Body SAR Test (Gap: 10mm) Plot No. Mode Test Position Body Freque ncy Output Power (dBm) Rated Limit (dBm) Scaling Factor SAR1g (W/kg) Scaled SAR1g (W/kg) Modulation, Bandwidth, RB MHz 32. QPSK 10MHz 1RB Back Side 710 21.80 21.5 0.933 0.374 0.349 QPSK 10MHz 1RB Front Side 710 21.80 21.5 0.933 0.348 0.325 QPSK 10MHz 1RB Left side 710 21.80 21.5 0.933 0.099 0.092 QPSK 10MHz 1RB Bottom side 710 21.80 21.5 0.933 0.214 0.200 QPSK 10MHz 50%RB Back Side 710 21.17 21.5 1.079 0.313 0.338 QPSK 10MHz 50%RB Front Side 710 21.17 21.5 1.079 0.293 0.316 QPSK 10MHz 50%RB Left side 710 21.17 21.5 1.079 0.082 0.088 QPSK 10MHz 50%RB Bottom side 710 21.17 21.5 1.079 0.188 0.203 Reference No.: WTX21X05048097W Page 67 of 143 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn WLAN 2.4GHz –Body SAR Test Plot No. Mode Test Position Body Frequency Output Power (dBm) Rated Limit (dBm) Scaling Factor SAR1g (W/kg) Scaled SAR1g (W/kg) CH. MHz 33. 802.11b Back Side 11 2462 15.65 16.0 1.084 0.121 0.131 802.11b Front Side 11 2462 15.65 16.0 1.084 0.094 0.102 802.11b Right side 11 2462 15.65 16.0 1.084 0.04 0.043 Remark: Per KDB 447498 D01 v06, if the highest output channel SAR for each exposure position ≤ 0.8 W/kg other channels SAR tests are not necessary. Reference No.: WTX21X05048097W Page 68 of 143 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn 9.3 Simultaneous Multi-band Transmission SAR Analysis List of Mode for Simultaneous Multi-band Transmission No. Configurations Head SAR Body SAR 1 GSM(Voice/Data) + WLAN(2.4G)(Data) Yes Yes 2 WCDMA (Voice/Data)+ WLAN (2.4G)(Data) Yes Yes 3 LTE(Data) + WLAN (2.4G)(Data) Yes Yes GSM(Voice/Data) + Bluetooth(Data) Yes Yes WCDMA (Voice/Data) + Bluetooth(Data) Yes Yes LTE(Data) + Bluetooth(Data) Yes Yes Remark: 1. GSM ,WCDMA and LTE share the same antenna, and cannot transmit simultaneously. 2. WLAN and Bluetooth share the same antenna, and cannot transmit simultaneously. 3. According to the KDB 447498 D01 v06, when standalone SAR test exclusion applies to an antenna that transmits simultaneously with other antennas, the standalone SAR must be estimated according to following to determine simultaneous transmission SAR test exclusion: (max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)/x] W/kg for test separation distances ≤ 50 mm; where x = 7.5 for 1-g SAR, and x = 18.75 for 10-g SAR. For simultaneous transmission analysis, Bluetooth SAR is estimated per KDB 447498 D01 v06 as below: Bluetooth: Tune-Up Power (dBm) Max. Power (mW) Distance (mm) Frequency (GHz) X SAR(1g) 5mm SAR(1g) 10mm 6.5 4.47 5/10 2.480 7.5 0.172 0.086 4. The maximum SAR summation is calculated based on the same configuration and test position. Reference No.: WTX21X05048097W Page 69 of 143 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Head SAR WWAN and WLAN WWAN WLAN(2.4G) Summed SAR (W/kg) Position Band Scaled SAR (W/kg) Scaled SAR (W/kg) Right Cheek GSM 0.514 0.220 0.734 Right Tilted GSM 0.170 0.118 0.288 Left Cheek GSM 0.282 0.224 0.506 Left Tilted GSM 0.160 0.145 0.305 Right Cheek WCDMA 0.520 0.220 0.740 Right Tilted WCDMA 0.137 0.118 0.255 Left Cheek WCDMA 0.333 0.224 0.557 Left Tilted WCDMA 0.163 0.145 0.308 Right Cheek LTE 0.767 0.220 0.987 Right Tilted LTE 0.225 0.118 0.343 Left Cheek LTE 0.535 0.224 0.759 Left Tilted LTE 0.149 0.145 0.294 WWAN and Bluetooth WWAN Bluetooth Summed SAR (W/kg) Position Band Scaled SAR (W/kg) Scaled SAR (W/kg) Right Cheek GSM 0.514 0.172 0.686 Right Tilted GSM 0.170 0.172 0.342 Left Cheek GSM 0.282 0.172 0.454 Left Tilted GSM 0.160 0.172 0.332 Right Cheek WCDMA 0.520 0.172 0.692 Right Tilted WCDMA 0.137 0.172 0.309 Left Cheek WCDMA 0.333 0.172 0.505 Left Tilted WCDMA 0.163 0.172 0.335 Right Cheek LTE 0.767 0.172 0.939 Right Tilted LTE 0.225 0.172 0.397 Left Cheek LTE 0.535 0.172 0.707 Left Tilted LTE 0.149 0.172 0.321 Reference No.: WTX21X05048097W Page 70 of 143 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Body-worn SAR WWAN and WLAN WWAN WLAN(2.4G) Summed SAR (W/kg) Position Band Scaled SAR (W/kg) Scaled SAR (W/kg) Back GSM 0.554 0.131 0.685 Front GSM 0.485 0.102 0.587 Back WCDMA 0.346 0.131 0.477 Front WCDMA 0.191 0.102 0.293 Back LTE 0.392 0.131 0.523 Front LTE 0.364 0.102 0.466 WWAN and Bluetooth WWAN Bluetooth Summed SAR (W/kg) Position Band Scaled SAR (W/kg) Scaled SAR (W/kg) Back GSM 0.554 0.172 0.726 Front GSM 0.485 0.172 0.657 Back WCDMA 0.346 0.172 0.518 Front …

Text truncated - open the document above for the full version.

Reference No.: WTX21X05048097W Page 141 of 143 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Body Right Body Left Reference No.: WTX21X05048097W Page 142 of 143 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Body Top Body Bottom Reference No.: WTX21X05048097W Page 143 of 143 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Annex E. Calibration Certificate Please refer to the exhibit for the calibration certificate ***** END OF REPORT *****

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 59 TEST REPORT Reference No. .................... : WTX21X05048097W-4 FCC ID ................................ : 2AVFE-EULTRA Applicant ........................... : Fortune Ship International Industrial Limited Address ............................. : Unit C, 24/F, Golden Bear Industrial Centre, 66-82 Chai Wan Kok Street, Tsuen Wan NT, HONGKONG Product Name ................... : 4G Smart Phone Test Model. ........................ : Wildfire E ultra Standards .......................... : FCC Part 15.247 Date of Receipt sample .... : May. 19, 2021 Date of Test........................ : May. 19, 2021 to Jun. 04, 2021 Date of Issue ..................... : Jun. 04, 2021 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Jason Su / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX21X05048097W-4 Page 2 of 59 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY .............................................................................................................................. 7 1.7 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 8 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 10 3. ANTENNA REQUIREMENT .....................…
