HTC True Wireless Headset Basic Quick Start Guide Model: HTC HS01 What’s in the box  Headset x1  Quick Start Guide x1  USB cable x1  Rubber tips x2(Large, Small)  Warranty card x1 Things to keep in mind with HTC True Wireless Headset Basic  HTC True Wireless Headset Basic should not be used in extreme temperatures.  Make sure to use a 5 volt charger and charge the batteries before use. Pairing HTC True Wireless Headset Basic with your phone 1. Power on HTC True Wireless Headset Basic first, and then to find Bluetooth settings on your cellphone, make sure Bluetooth is turned ON, and to pair with " HTC HS01 ". Consult your phone user guide for details. Tip: 2. Once paired, Headset will automatically connect when it will be powered on next time. Controls: ANC ON/ OFF In the power off status：long press ANC button for 3 seconds enter into ANC mode , short press ANC button enter into transparent mode, short press ANC button again, ANC will be went off. In the power on status ：short press ANC button enter into ANC mode, short press ANC enter into transparent mode again, short press ANC one more again, ANC will be went off. Next song: Long press ”+” button for 2 seconds Volume increase: short press "+" button Power on/ off: Press and hold the "Power on" button for 3 seconds Turn on SIRI / Voice Assistant: Press twice continuously "Power on" button Music Play /Pause: press the "Power on" button . Answer the call/ Hang up the phone: press the "Power on" button. Reject Call: Long Press 3 seconds Previous song: Long pres"-"button for2seconds Volume decrease: short press "-" button LED notification Charging port LED notifications 1 Charging LED Red on: Connected to power and charging Red off: Charging complete Flashing red: Low battery warning 2 Connecting LED Blue flicker first，then red and blue flicker alternately: Power on and Pairing. Pairing success: red and blue flicker alternately is off，then Blue flicker one time each 10 seconds. In power on status： ANC model: Press ANC button, green is always on. Transparent mode：After entering into ANC mode, Press ANC button again, green is always on. ANC OFF: After entering into Transparent mode ,press ANC button green is off. In power off status ： Long press ANC button for 3 seconds enter into ANC mode, green is always on， long press ANC button again for 3 seconds, green is off, ANC will be turned off. Technical specifications Product model HTC HS01 Bluetooth version 5.0 Bluetooth range 10 m Impedance 32 Ω Speaker frequency response 20 Hz - 20 kHz Charging interface Type-C Battery capacity 130 mAh Input 5V-0.5A Active Noise-Cancellation -25dB ~ -30dB Only play music 12 hours Music/Noise reduction 10 hours Noise reduction only 18 hours Charging time 1.5 hours Weight 35g Legal Notice HTC and HTC logo are the trademarks of HTC Corporation and used under lic ense by Fortune Ship International Industrial Limited for HTC True Wireless headset basic in whole world. The Bluetoothword mark and logos are registered trademarks owned by Bluetooth SIG, Inc. Copyright2021 Fortune Ship International Industrial Limited.All rights reserved. THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT CONSTIT UTE ANY KIND OF WARRANTIES. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

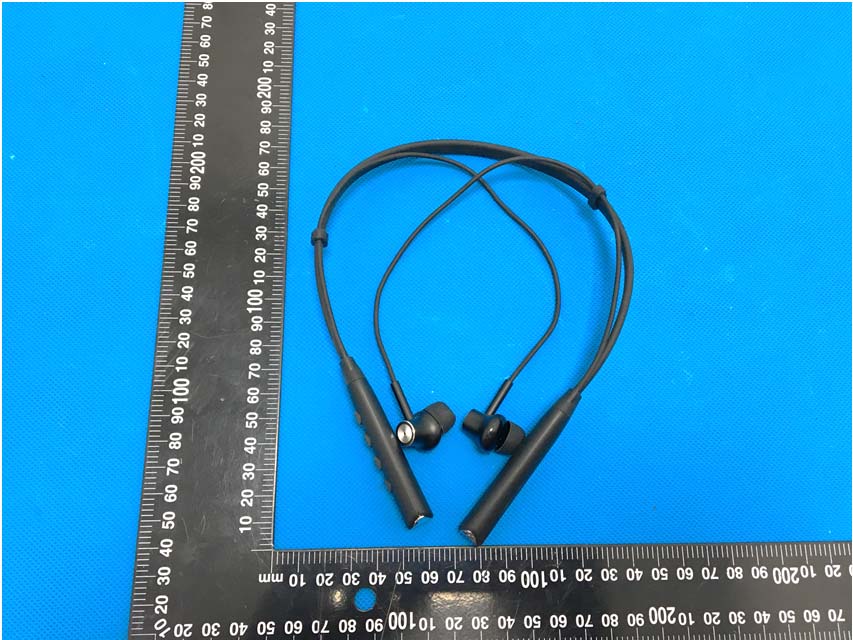

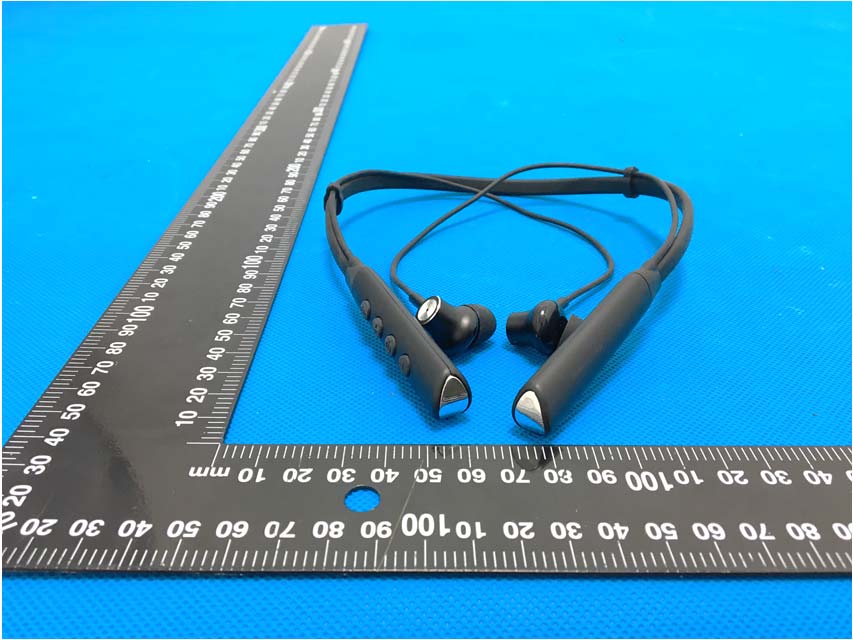

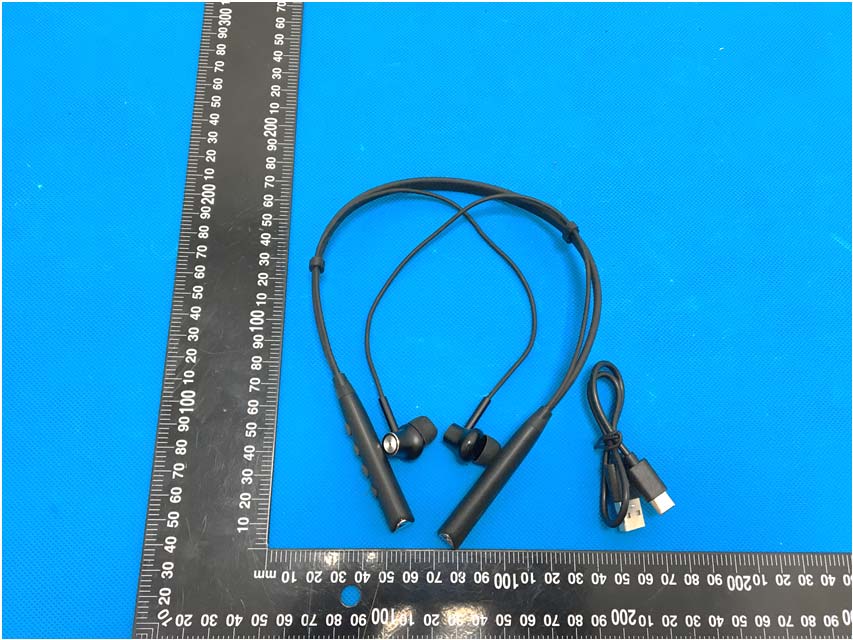

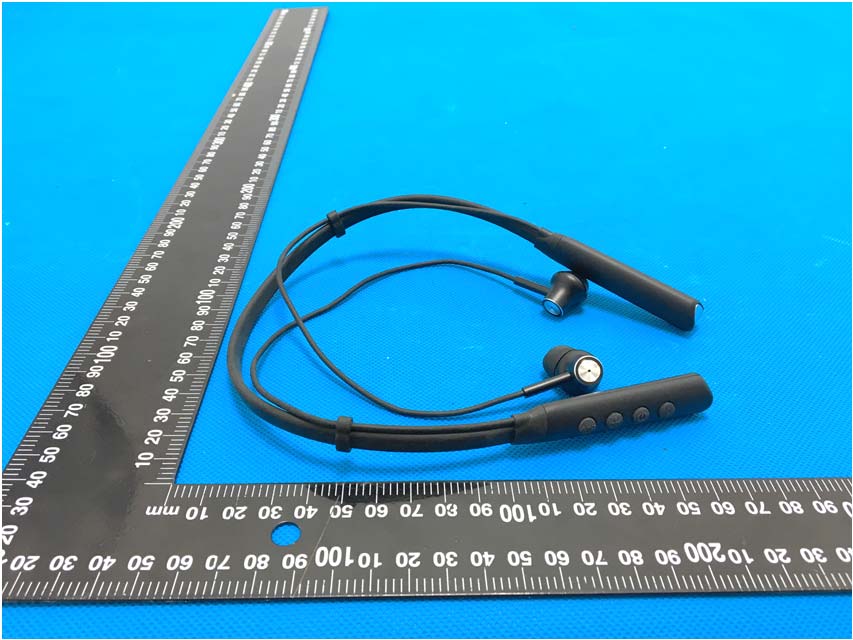

Reference No.: WTX21X04034843W-1/2 Page 2 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX21X04034843W-1/2 Page 3 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 3 EUT View 4 Reference No.: WTX21X04034843W-1/2 Page 4 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 5 EUT View 6 Reference No.: WTX21X04034843W-1/2 Page 5 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 7 EUT View 8

Reference No.: WTX21X04034843W-1/2 Page 1 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AVFE-HTCHS01 Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX21X04034843W-1/2 Page 6 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX21X04034843W-1/2 Page 7 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX21X04034843W-1/2 Page 8 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 3 Antenna View

RF Exposure Requirements Product Description: HTC True Wireless Headset Basic Model No.: HTC HS01 FCC ID: 2AVFE-HTCHS01 According to the KDB 447498 D01 v06 section 4.3.1, for 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ꞏ [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where - f(GHz) is the RF channel transmit frequency in GHz - Power and distance are rounded to the nearest mW and mm before calculation - The result is rounded to one decimal place for comparison Calculation Result: Tx frequency range: 2402-2480MHz Min. test separation distance: 5mm Maximum Conducted Output Power: -3.539dBm Tune-Up output power: -3dBm RF channel transmit frequency: 2480MHz Result: 0.2 Limit: 3.0 The exclusion thresholds is 0.2 < 3, so the transmitter complies with the RF exposure requirements and the SAR is not required.

Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 1 of 37 TEST REPORT Reference No. .................... : WTX21X04034843W-2 FCC ID ................................ : 2AVFE-HTCHS01 Applicant ........................... : Fortune Ship International Industrial Limited Address ............................. : Unit C, 24/F, Golden Bear Industrial Centre, 66-82 Chai Wan Kok Street, Tsuen Wan NT, HONGKONG Product Name ................... : HTC True Wireless Headset Basic Test Model. ........................ : HTC HS01 Standards .......................... : FCC Part 15.247 Date of Receipt sample .... : Apr.19, 2021 Date of Test........................ : Apr.19, 2021 to Apr.28, 2021 Date of Issue ..................... : Apr.28, 2021 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Mike Shi/ Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX21X04034843W-2 Page 2 of 37 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY .............................................................................................................................. 6 1.7 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 7 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 10 3. ANTENNA REQUIREMENT ................................................................................................................................ 11 3.1 STANDARD APPLICABLE ....................................................................................................................................... 11 3.2 EVALUATION INFORMATION ................................................................................................................................ 11 4. POWER SPECTRAL DENSITY ........................................................................................................................... 12 4.1 STANDARD APPLICABLE ....................................................................................................................................... 12 4.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 12 4.3 TEST PROCEDURE ................................................................................................................................................. 12 4.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 12 5. DTS BANDWIDTH ................................................................................................................................................. 13 5.1 STANDARD APPLICABLE ....................................................................................................................................... 13 5.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 13 5.3 TEST PROCEDURE ................................................................................................................................................. 13 5.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 13 6. RF OUTPUT POWER ............................................................................................................................................ 14 6.1 STANDARD APPLICABLE ....................................................................................................................................... 14 6.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 14 6.3 TEST PROCEDURE ................................................................................................................................................. 14 6.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 14 7. FIELD STRENGTH OF SPURIOUS EMISSIONS ..........................................................…

Text truncated - open the document above for the full version.

Reference No.: WTX21X04034843W-1/2 Page 9 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Reference No.: WTX21X04034843W-1/2 Page 10 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTX21X04034843W-1/2 Page 11 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
