©2020 Apricity Code Inc. Ara LTE Water Heater Controller Installation Instructions – Model: APHW-01A 1 Introduction The Apricity Ara is a utility-connected LTE communication and switch device for energy management of residential hot water heaters. This manual describes the physical installation of the Ara. Installation is straightforward and can be completed by a qualified homeowner but is typically completed by an agent of the electrical utility. The installer should always consult state and local codes to ensure a compliant installation. Once the unit is installed and powered on, it will automatically connect over cellular networks and be available for grid power management. Units are pre-configured by Apricity on a client-by-client basis. 2 Installation Preparation Installation will require, at a minimum, the following tools. Some circumstances may require additional tools depending on the conditions around the existing electrical panel and hot water heater. • Phillips-head and flat-head screwdrivers • Wire strippers • Pliers or Wrenches (for cable clamp/conduit connection) • Recommended: voltage tester or sniffer (to confirm hot water heater is disconnected by circuit breaker panel) This procedure simply describes the steps for connecting the Ara to the hot water heater circuit and is not an introduction to electrical wiring or safety. If you are not confident that you can proceed safely with this work, contact a licensed electrician to complete the installation for you. Installation instructions may vary depending on the configuration of your hot water heater, some adjustments may be required. Installation consists of removing the top plate from the existing water heater junction box, and building the Ara into the circuit with the mains AC power supply connected to the “Line In” terminals, and the water heater load connected to the “Output” terminals. Proceed with the installation as follows: Existing Junction Disassembly 1. Turn off the electricity to the hot water heater by switching the circuit breaker to the “OFF” position. Confirm that there is no voltage at the hot water heater connection before proceeding. 2. Remove the electrical cover plate from the junction box on top of the water heater. Check voltages to confirm that power is disconnected. 3 3. Remove the wire nuts from the wires and separate. The panel-side wires (always on) will connect to “Line In,” and the heater load wires will connect to “Output” 4. Loosen and remove the cable clamp from the junction box cover. Remove the cover plate from the wires and set aside. 5. Unscrew the cover of the Apricity Ara and set the cover aside. 6. Check the length of the existing ground, it will need to pass through both conduit ports on the Ara and return to the heater’s bonding screw or post in the same way as it does without the Ara in place. Provide additional length with a junction inside the Ara if necessary. Mounting the Controller 7. Instructions are provided for mounting the Ara to either the water heater or to the wall. We recommend mounting to the water heater where space permits: Heater Mount: • Remove one washer and one nut from the conduit fitting leaving the closest to the Ara. Ensure the that the nut closest to the Ara is secure. • Mount the cover plate from the water heater onto the conduit fitting at the bottom of the Ara, with the Ara facing into the room. Replace washer and nut, tighten. • Thread the load wires from the hot water heater through the cover plate and the connected hole of the Ara. Place the Ara and cover plate back onto the hot water heater and fasten the cover plate in place using the original screws. o If the cover plate cannot be refastened to the heater with the Ara in place, then install the supplied conduit fitting on the cover plate with the Ara detached, fasten the conduit plate to the hot water heater, and then install the Ara on the plate, with the load wires threaded through the assembly as above. Wall Mount (Alternative): 4 • If there is insufficient space above the hot water heater for the controller, wall mounting must be used. • An additional length of flexible conduit, clamps, and wires are required (not included). • Select a suitable location to mount the controller to the wall, and mount the controller to the wall using the provided mounting holes. • Attach the additional conduit to the bottom of the controller and attach the other end to the junction box cover. Feed hot water heater wires through the conduit (additional wire, including a ground extension, will likely be needed: use code compliant wire for your jurisdiction as necessary). Finally, secure the junction box cover back to hot water heater. 8. Connect the load wires from the water heater to the terminal block labeled “OUTPUT” inside the Ara. Route the wires to the terminal block and trim to length with ¼” of bare wire exposed on the ends. 9. Open the terminal blocks by turning its screws counterclockwise until the screw threads click. Insert the wire into the opening on the side of the terminal block and tighten the screw until snug. Do not over-tighten, or the Ara may be damaged and the wires may not hold. Terminal blocks accept 10-30 AWG wire. 10. Install the heater’s original cable clamp for the supply wires in the conduit port at the top of the Ara. 11. Thread the supply wires through the Line In conduit port on the Ara, and provide an extension of the ground wire if necessary. The line and neutral wires should be long enough to reach the terminal blocks on the Ara – if not, provide extensions as necessary. Trim, strip, and connect the supply wires to the Line In terminal block on the Ara. a. Note: If it is necessary to preserve line and neutral orientation for the model hot water heater you are working on (i.e. a 120v hot water heater), when the Ara’s relay is closed the two nearest screw posts are connected (lower Line In to upper Output), and the two furthest screw posts are connected (upper Line In to lower Out…

Text truncated - open the document above for the full version.

Connect Bend Boston (541) 204‐4450 2789 NW Lolo Drive 288 Norfolk Street [email protected] Bend, OR 97703 Suite 3A www.apricitycode.com Cambridge, MA 02139 Date: 17 January 2020 Federal Communications Commission Authorization and Evaluation Decision 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cover Letter for FCC Application FCC ID: 2AVFOARA‐001V2 We hereby request original FCC certification under rule part 15.247 for “Ara LTE Water Heater Controller”. This device contains an FCC Certified LTE CAT‐M1 radio module (FCC ID: 2ANPO00NRF9160) and a Bluetooth 5 radio transmitter. The radios do not transmit simultaneously. The Bluetooth radio has been tested for intentional radiation by Element Materials Technology, and the unit has been tested for unintentional radiation at the same facility. Sincerely, Jacob Betcher COO – Apricity Code Corporation

Connect Bend Boston (541) 204-4450 2789 NW Lolo Drive 288 Norfolk Street [email protected] Bend, OR 97703 Suite 3A www.apricitycode.com Cambridge, MA 02139 Date: 8 January 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Request for confidentiality FCC ID: 2AVFOARA-001V2 To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459 and 0.457(d) the documents listed below and attached with this application for certification be provided with confidential status. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent User’s Manual Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Jacob Betcher COO

Connect Bend Boston (541) 204-4450 2789 NW Lolo Drive 288 Norfolk Street [email protected] Bend, OR 97703 Suite 3A www.apricitycode.com Cambridge, MA 02139 External Photos | FCC ID: 2AVFOARA-001V2 | IC: 25756-ARA001V2 FRONT BACK Connect Bend Boston (541) 204-4450 2789 NW Lolo Drive 288 Norfolk Street [email protected] Bend, OR 97703 Suite 3A www.apricitycode.com Cambridge, MA 02139 External Photos | FCC ID: 2AVFOARA-001V2 | IC: 25756-ARA001V2 TOP SIDE BOTTOM SIDE Connect Bend Boston (541) 204-4450 2789 NW Lolo Drive 288 Norfolk Street [email protected] Bend, OR 97703 Suite 3A www.apricitycode.com Cambridge, MA 02139 External Photos | FCC ID: 2AVFOARA-001V2 | IC: 25756-ARA001V2 RIGHT SIDE LEFT SIDE

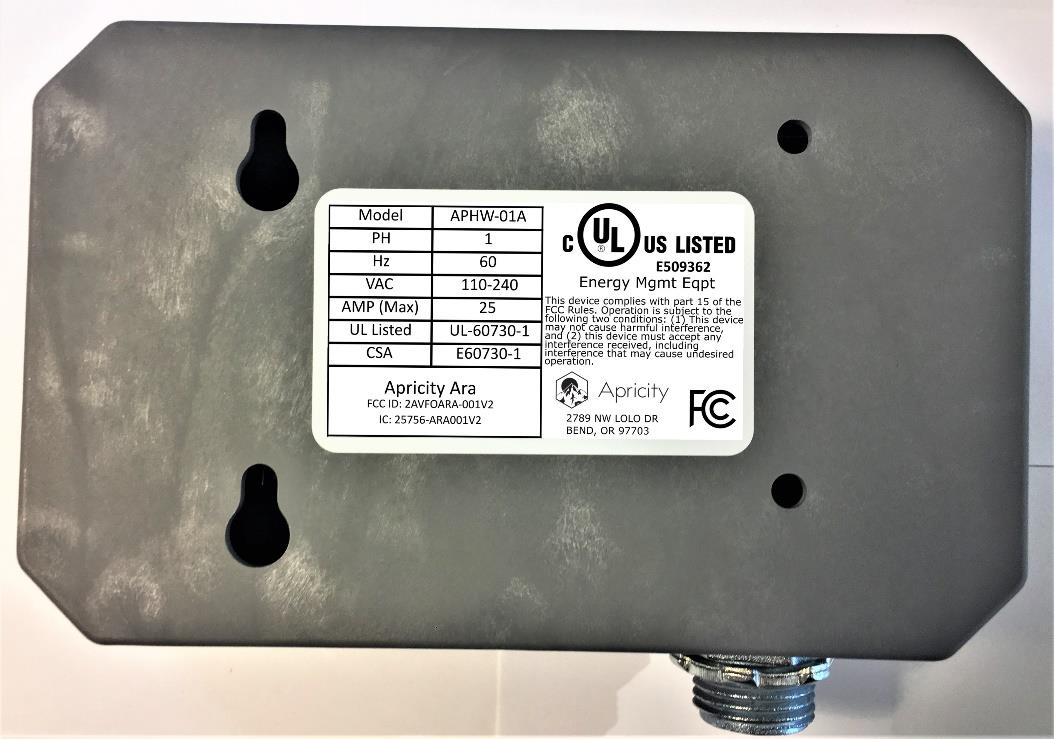

Connect Bend Boston (541) 204-4450 2789 NW Lolo Drive 288 Norfolk Street [email protected] Bend, OR 97703 Suite 3A www.apricitycode.com Cambridge, MA 02139 Label and Location | FCC ID: 2AVFOARA-001V2

Connect Bend Boston (541) 204-4450 2789 NW Lolo Drive 288 Norfolk Street [email protected] Bend, OR 97703 Suite 3A www.apricitycode.com Cambridge, MA 02139 Internal Photos | FCC ID: 2AVFOARA-001V2 | IC: 25756-ARA001V2 Connect Bend Boston (541) 204-4450 2789 NW Lolo Drive 288 Norfolk Street [email protected] Bend, OR 97703 Suite 3A www.apricitycode.com Cambridge, MA 02139 Internal Photos | FCC ID: 2AVFOARA-001V2 | IC: 25756-ARA001V2 Connect Bend Boston (541) 204-4450 2789 NW Lolo Drive 288 Norfolk Street [email protected] Bend, OR 97703 Suite 3A www.apricitycode.com Cambridge, MA 02139 Internal Photos | FCC ID: 2AVFOARA-001V2 | IC: 25756-ARA001V2 Connect Bend Boston (541) 204-4450 2789 NW Lolo Drive 288 Norfolk Street [email protected] Bend, OR 97703 Suite 3A www.apricitycode.com Cambridge, MA 02139 Internal Photos | FCC ID: 2AVFOARA-001V2 | IC: 25756-ARA001V2 WITHOUT SHIELD Connect Bend Boston (541) 204-4450 2789 NW Lolo Drive 288 Norfolk Street [email protected] Bend, OR 97703 Suite 3A www.apricitycode.com Cambridge, MA 02139 Internal Photos | FCC ID: 2AVFOARA-001V2 | IC: 25756-ARA001V2 WITH SHIELD (ACCESS LEVEL OF AN ELECTRICIAN/INSTALLER)

Connect Bend Boston (541) 204-4450 2789 NW Lolo Drive 288 Norfolk Street [email protected] Bend, OR 97703 Suite 3A www.apricitycode.com Cambridge, MA 02139 Antenna Information | FCC ID: 2AVFOARA-001V2 | IC: 25756-ARA001V2 A list of antennas to be used with the transmitter. include manufacturer, model number, gain (dbi) and description (e.g.dipole, yagi, patch, etc.) BT Antenna: Pulse Larsen, W3334B0150, 5.5dBi, Flat Patch LTE Antenna: LTE Antenna: Linx, ANT-LPL-FPC-100, 6.5dBi, Flat Patch For FCC Part 15 transmitters, describe compliance with FCC 15.203 Snippet of 15.203: “An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section.” The antennas are located inside the product enclosure and are not designed to be user replaceable. No external access to the antennas or antenna connectors is provided. For transmitters below 30 MHz, instead of the gain, please provide the dimensions of the loop antenna and / or a ruler in the photograph of the loop. The size of the loop, the dimensions, and the number of turns should be documented. N/A Please see next page for detailed antenna photos. Connect Bend Boston (541) 204-4450 2789 NW Lolo Drive 288 Norfolk Street [email protected] Bend, OR 97703 Suite 3A www.apricitycode.com Cambridge, MA 02139 Antenna Information | FCC ID: 2AVFOARA-001V2 | IC: 25756-ARA001V2 BT ANTENNA LTE ANTENNA
