BLUEDRIVE S POWER FIN TM User’s Guide PF-240S WARNING For your own safety and that of your equipment, make sure to take the following precautions. Failure to follow warning notices and instruction may result in property damage, serious injury or death. Please keep the manual and read it carefully before using the product; If the manual is lost, please contact our after-sale service center. aquamarina.com TABLE OF CONTENTS I. SAFETY WARNING II. MAIN COMPONENTS, PARAMETERS AND OVERALL DIMENSIONS III. PACKING LIST IV. INSTALLATION AND INSTRUCTION V. MAINTENANCE VI. GUIDANCE ON PROBLEMS VII. WARRANTY AND AFTER SERVICE CONTACT INFORMATION SAFETY WARNING 1.This product is only for providing power for water leisure products and only limited to be used in water. It is forbidden to use it for other purposes. 2.When using the product, a proper emergency stop leash should be used 3.Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. 4.Do not modify the product or add other parts to it in any way. If any parts is damaged, Please contact after-sale service center. 5. Wash the power fin and its motor with fresh water; and do not put it in sea water or salt water to avoid damage to the motor. 6. This product is with li-ion batteries, always follow the batteries use principle and Matters needing attention. 7. The battery must be removed from the appliance before it is scrapped. 8. The appliance must be disconnected from the supply mains before removing the battery. 9. The battery must be disposed properly according to local regulations. 10. Never charge or use the product in thunderstorms and lightning conditions. 11. It is necessary to check whether each connection is firm before each use. 12. Check whether its electricity is enough before each use. 13. The power fin only be supplied at SELV(Safety Extra Low Voltage), can be applied only with specified batteries, specified chargers and remote control. If user needs to replace them, please contact the appointed after-sale service center. 14. The electric charging port of the battery case should be either connected with the power fin,or connected with charger, or cover its lid to avoid short circuit damage caused by other metals or moisture. 15. When the remote control and the charger are not used for a long time, it is necessary To disconnect power supply. 16. When it is not in use, it should be stored under the temperature of - 15°~45° and avoid direct sunlight. 17. If the power fin is scrapped or need to be replaced with new one, it is necessary to follow the principle of recycling or return it to the dealer. 18. The appliance can be only used with specified chargers from the original manufacturer . 19. The components with electric box and motor is for the field installed equipment, its installation to ISUP shall be considered the safety requirements of moving part, water proof and other risks FCC ID: 2AVFRPF-240S FCC statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. • If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following Two conditions: (1) This device may not cause harmful interference, and (2) this device mustaccept any interference received, including interference that may cause undesired operation. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF EXPOSURE WARNING The equipment complies with FCC RF exposure limits set forth The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. for an uncontrolled environment. POWER FIN PRODUCT DETAIL: Metal connector Motor protective cover Motor protective cover Motor Motor propeller Guide vane PARAMETERS Underwater Jet Operating Speed: 4-6km/h • Low gear : Max. Speed 4km/h • High gear : Max. Speed 6km/h Runtime: 1h for low gear, 0.5h for high gear Protective Cover Material: ABS Dimension: 300 x 210 x 110mm (11.8” x 8.3” x 4.3”) Weight: 2.5kg (5.5lbs) Battery Case Rechargeable Battery Pack: 11.1VDC, 8.8Ah/97.68Wh Special lithium-ion battery for BlueDrive S Power Fin Material: watertight, flame retardant ABS Battery Life: ≥300 cycles Dimension: 210 x 155 x 75mm (8.3” x 6.1” x 3”) Net Weight: 1.25kg (2.8lbs) With rechargeable battery, circuit board and 2-in-1 magnetic switch (working as both power switch and emergency stop switch) Charger Input: 100-240VAC,50/60Hz, 1.6A Output: DC12.6V 5A E480809 Full charging time for battery pack is 2~3 hours Interface: Metal interface of watertight marine waterproof for plug in Packing Dimension: 62 x 29.5 x 18.5cm (24.4'' x 11.6'' x 7.3'') Packing weight / Net weight: 5.9 kg (13 lbs) / 4.25 kg (9.4 lbs) PACKING LIST No. Name of component part Picture Quantity /Unit Remark 1 Underwate Jet 1 Set With power cord,plug,fin base and push-in pin 2 Battery Case (Include Li-ion battery pack) 1 Set With rechargeable bat…

Text truncated - open the document above for the full version.

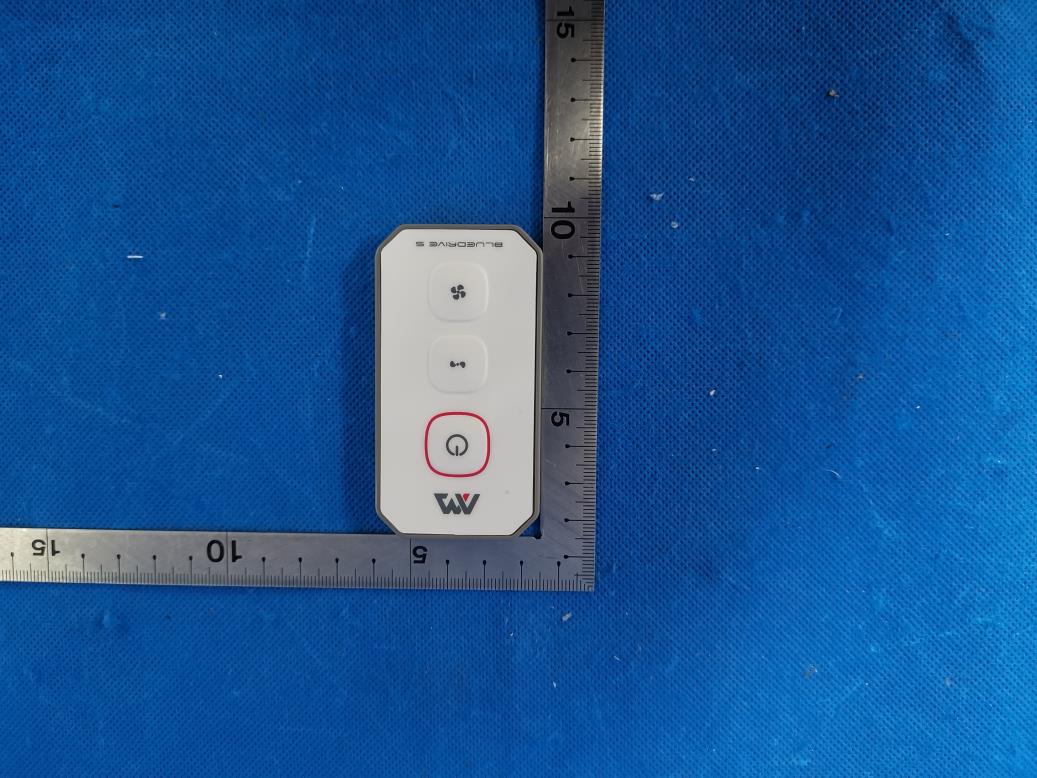

Page: 1 of 3 (1) EUT Photo (2) EUT Photo Page: 2 of 3 (3) EUT Photo (4) EUT Photo Page: 3 of 3 (5) EUT Photo (6) EUT Photo
