2AVFX-FK-IR1SRadio

IR1S Portable Internet Radio IR1S Portable Internet Radio 2 | 2 | Get to know your IR1S The IR1S is an internet radio equipped with Wi-Fi, DAB+, FM, and Bluetooth features. With clear audio and reliable reception, the IR1S provides access to a wide range of local and international radio stations and podcasts. Thanks to its Wi-Fi connectivity, you can also explore thousands of internet radio stations and on-demand shows from around the world. Before you begin, take a moment to familiarise yourself with its features so you can make the most of your first listening session. 3 Plugging in your IR1S 3.1 3.2 Position the Radio Place your IR1S radio in the location where you plan to use it. Ensure the location has a strong and stable Wi-Fi signal for smooth internet radio streaming. Also ensure the position allows the telescopic antenna to be fully extended, so that DAB+ and FM radio signals can be received clearly—especially important in areas with weaker signal strength. 3.3 Connect the Power Adaptor to the Mains Plug the DC power adaptor into a mains socket. If your sockethas a Connect the DC Adaptor to the Radio Insert the USB C cable into thecorresponding input on the back of 3.4 Extend and Adjust the Antenna (for DAB/FM) If you plan to listen to DAB or FM radio stations, fully extendthe antenna. Adjust its length and angle as needed to improvereception quality, especially in areas with weak signal strength. switch, ensure it is turned on. the IR1S. 1 Inside the box, you’ll find your IR1S in the colour you selected. 1 | In the box IR1S radio Power Cable Owner’s Manual Power Adapter 4 3. Back: press to back a level. 4. Menu: press Menu to Configuration menu. 5. / Tune+: Radio on, Press to seek to next stations, Press and hold to auto-scan stations. In Bluetooth mode, the unit switches to the next track. 6. / Tune-: Radio on, Press to seek to previous stations, Press and hold to auto-scan stations. In Bluetooth mode, the unit switches to the previous track. 7. Favorites 1/2/3+ button: 8. Favorites 3+ button: Hold: full screen if supported 9. : B/FM or Intrne Rdio: Press to select Play/PauseDAeta 10. Info: View more information about the station or track playing. As shown below has connectors [from left to right] for the following: 11 12 13 Rear Panel Connectors 2. Mode: Press to change source. Now playing view: Hold: Save station to favourite Press: Load favourite Any other mode Press: Recall favourite: DAB/FM or Internet Radio:Hold: Save a station to 1 2 3 4 5 6 7 810 9 4 I Controls, connectors and display 6. TUNE- / 7. PRESET 1 / 2 8. PRESET 3+ 5. TUNE+ / 3. Back 4. Menu 10. INFO 1. Select Dial 2. Mode 9. Play/Pause / 1.1. Power/ Standby : Press to turn on; Radio on: press and hold to turn off (Battery power) press and hold to enter Standby Mode (Mains Power). press and hold to cancel alarm function. 1.2. Volume : Any mode, Turn to adjust volume up or down 1. Select Dial: Power/Select/ Volume/Mute/Snooze: 1.3. SELECT: Now playing view: Turn: Current mode station list 1.4. SNOOZE: Press and hold the Select Dial to snooze [ 9 minitues] Now playing view: (Radio modes) Press to Mute Menus & Lists: Press: Select Turn: Scroll through entries favourites Press: Open the favourites list 3 11. DC Input (USB-C) – Connect the included USB-C power cable to power the radio from mains supply. 12. Headphone Jack (3.5mm) – Plug in standard headphones or earphones using a 3.5mm audio jack for private listening. 13. Battery Compartment – Insert AA batteries into the compartment for portable operation without mains power. 6 5 5 | Turn on and connect to Wi-Fi 1. Turn on the Radio To turn on the radio, connect the supplied DC adapter to the rear panel input and plug into a mains outlet. The device will enter standby mode automatically – press the Select/On button to power on the radio. 2. Select Your Language • Turn the to highlight your preferred Select Dial • Press the to confirm your choice. Select Dial 3. Set Your Time Zone • Choose your time zone to ensure the clock updates correctly via Wi-Fi. 3.1. Turn the to highlight your region Select Dial and press it to confirm. 3. 2 . Next, highlight your city and press the to confirm.Select Dial 4. Configure Network • When prompted, highlight ‘Yes’ using the Select Dial to set up a Wi-Fi network. • To skip Wi-Fi setup, highlight and press “No” the to confirm.Select Dial You can always set up Wi-Fi later in the • Press the to continue. Select Dial System Settings menu. 5. Choose a Connection Method: Option 1: Scan and Select The radio will scan for available Wi-Fi networks. 1 . Highlight your network using the Select Dial and press it to confirm. 2. Use the to enter your Wi-Fi password: Select Dial • Turn the dial to select characters and press the Select Dial to confirm each one. • To delete a character, highlight the delete symbol and press the Select Dial. • Once your password is complete, highlight the “√” OK symbol and press the to confirm. Select Dial Option 2: WPS Pairing • Highlight WPS using the and press to confirm.Select Dial • Press the WPS Button on your router. The radio should connect automatically. • If WPS pairing fails, try again or use the Scan and Select method to enter your password. 4. Select local region and country • Once connected to Wi-Fi, set your region and country: 1. Highlight your region using the and press Select Dial 2. Repeat the process to select your country. • These settings help tailor internet radio station lists to your location. For more information, refer to : Section 6 - Internet Radio. to confirm. 5. Confirm Wi-Fi Connection • Your radio is now connected to Wi-Fi. • To explore different modes, press the Mode Buttonrepeatedly until the desired mode is highlighted. Then, press the to confirm. Select Dial • Why not try one of the source modes, choose from either Internet radio, Podcasts, DAB, FM using the button to switch between modes.Mode language. 87 6 | Internet Radio 1. Switch to Internet radio mode Press the Mode butto…

Text truncated - open the document above for the full version.

Rev 1/26/2023 HuiZhou LEMEDIA Technology Co.,Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2026-03-19 FCC ID: 2AVFX-FK-IR1S Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing HuiZhou LEMEDIA Technology Co.,Ltd certifies that the equipment for which authorization is soughtis not“covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. HuiZhou LEMEDIA Technology Co.,Ltd certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant toDA-24-886 and KDB 986446 D01 Covered Equipment Guidancesection B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing HuiZhou LEMEDIA Technology Co.,Ltd certifies that, as of the date of the filing of the application, the applicantis not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Applicant: HuiZhou LEMEDIA Technology Co.,Ltd Address: No. 2 Lv Hua Bei Road, YuanZhou Town, BoLuo County, HuiZhou City, GD Province, CN Contact Person: Angel wang Tel.: 07526680379 Email: [email protected] Sincerely, Signature: $QJHOZDQJ

Attestation Statements Date: TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, 2026-03-26 USA HuiZhou LEMEDIA Technology Co.,Ltd, the undersigned, hereby authorize HOPEK CORPORATION INC to act as our designated agent for service of process, HuiZhou LEMEDIA Technology Co.,Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding RE: Attestation Statements Part 2.911(d)(7) request for(FCC ID:2AVFX-FK-IR1S) involving the equipment. HOPEK CORPORATION INC accepts the responsibility to act as designated agent for service of process. Applicant Information： Company name: HuiZhou LEMEDIA Technology Co.,Ltd Contact Name: Angel wang Address: No. 2 Lv Hua Bei Road, YuanZhou Town, BoLuo County, HuiZhou City, GD Province, CN Telephone No: 07526680379 Email: [email protected] FRN: 0033044140 Signature: Angel wang Agent Information: Company Name: HOPEK CORPORATION INC Address:16755 Coyote Bush Dr Unit 84, San Diego, CA 92127 United States FRN: 0034562900 Contact Name: Yangyang Xu Telephone No: 561-875-9826 Email: [email protected] Signature: Yangyang Xu

HuiZhouLEMEDIATechnologyCo.,Ltd Officeof EngineeringTechnology FederalCommunicationsCommission 7435 OaklandMills Road Columbia,MD 21046 USA Date: March25, 2026 Subject;Requestfor Confidentiality FCC ID: 2AVFX-FK-IR1S To WhomIt May Concern, Pursuantto the provisionsof the Commission’s rules Title 47 Sections§0.457 and §0.459,we are requestingthe Commissionto withholdthe followingattachment(s)as confidential documentsfrom publicdisclosureindefinitely. Thesedocumentscontaindetailedsystemand equipmentdescriptionsand are consideredas proprietaryinformationin operationof the equipment.The publicdisclosureof these documentsmight be harmfulto our companyand wouldgive competitorsan unfair advantage in the market. SchematicDiagram Block Diagram Parts List OperationalDescription Tune-upProcedure SOFTWARESECURITYREQUIREMENTSFOR U-NII DEVICES In additionalto abovementioneddocuments,in order to complywith the marketingregulations in Title 47 CFR §2.803 and the importationrules in Title 47 CFR §2.1204,while ensuringthat businesssensitiveinformationremainsconfidentialuntil the actualmarketingof newly authorizeddevices,we requestShort Term Confidentialityof the followingattachment(s); ExternalPhotos Test SetupPhotos InternalPhotos User Manual For 45 days, pursuantto PublicNoticeDA 04-1705. OR For 180 days pursuantto KDB 726920D01. It is our understandingthat all measurementtest reports,FCC ID label formatand correspondenceduringthe certificationreviewprocesscannotbe grantedas confidential documentsand this informationwill be availablefor publicreviewonce the grant of equipment authorizationis issued. Sincerely, Signature: Nam e: Angel wang Title: Manager $QJHOZDQJ

EffectiveDate:April2, 2020QSF7.6.4-8– AgentAuthorizationLetterTemplatePage1 of 1 RevisionDate:Revision:0 HuiZhouLEMEDIATechnologyCo.,Ltd Date：2026-03-19 ProductModelNumber:IR1S , IR4, IR4A, IR4S, IR6, IR6-MAX,IRX, M2P, M3P, M5P, M6P, IR-X, MP-X,SR-L, SR-X1,SR-X2,SR-X3,SR-Pro,SR-Ultra,SR-Elite,SR10,SR20,SR30,SR40,SR50,SR60,SR70,SR80,SR90,SR10 Pro, SR10 Ultra,SR20 Pro, SR30 Pro, SR40 Pro, SR50 Pro, SR60 Pro, SR70 Pro, Pinell101, Pinell102, Pinell Stereo,Pinell202, Pinell501, IR4 PRO, IR4S-2 FCC ID：2AVFX-FK-IR1S To whomit may concern, Re:ProductCertificationRepresentativeAuthorizationLetter We authorizeQAI LaboratoriesLtd. 3980 North FraserWay, BurnabyB.C. CanadaV5J 5K5 to act on our behalfon all mattersconcerningthe abovenamedequipment. This shall includethe following: Testing Approvalapplicationsand procedures We declarethatQAI LaboratoriesLtd.is allowedto forwardall informationrelatedto the approvalprojectto the appliedcertificationbody and to the notificationentitiesand to discuss any issuesconcerningthe approvalapplication.Any and all acts carriedout byQAI LaboratoriesLtd.on our behalfshall have the same effect as acts of our own. Signature: By:Angelwang ContactListedon FCC Wesbite Title: Manager Email:[email protected] On behalfof:HuiZhouLEMEDIATechnologyCo.,Ltd $QJHOZDQJ

HuiZhouLEMEDIATechnologyCo.,Ltd DeclarationLetterof ModelDifference Date:2026-03-19 FCC ID:2AVFX-FK-IR1S TestedModelNumber:IR1S AddingModelNumber(s):IR4, IR4A, IR4S, IR6, IR6-MAX,IRX, M2P, M3P, M5P, M6P, IR-X, MP-X,SR-L, SR-X1,SR-X2,SR-X3,SR-Pro,SR-Ultra,SR-Elite,SR10,SR20,SR30,SR40,SR50, SR60,SR70,SR80,SR90,SR10 Pro, SR10 Ultra, SR20 Pro, SR30 Pro, SR40 Pro, SR50 Pro, SR60 Pro, SR70 Pro, Pinell 101, Pinell 102, Pinell Stereo,Pinell 202, Pinell 501, IR4 PRO, IR4S-2 All AddingModelNumber(s)is/are same electricallyidenticalas TestedModelNumber. YoursSincerely, Applicant:HuiZhouLEMEDIATechnologyCo.,Ltd Address:No. 2 Lv Hua Bei Road,YuanZhouTown,BoLuoCounty,HuiZhouCity, GD Province,CN ContactPerson:Angelwang Tel.: 07526680379 Email:[email protected] Sincerely, Signat ure: $QJHOZDQJ

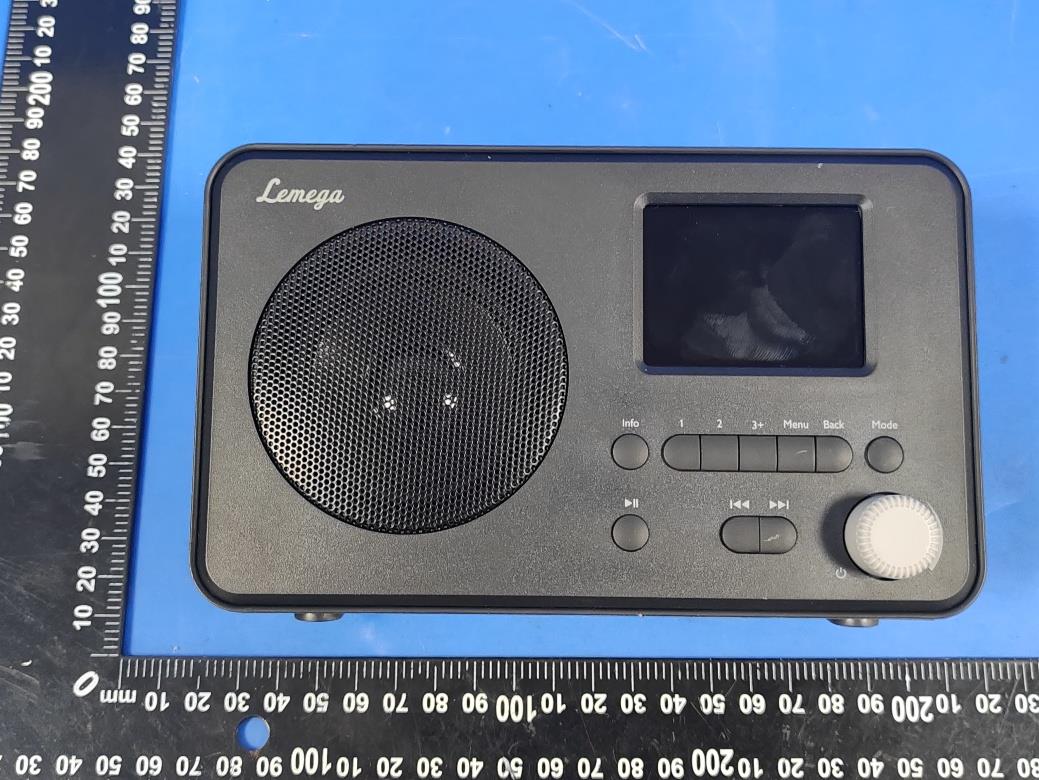

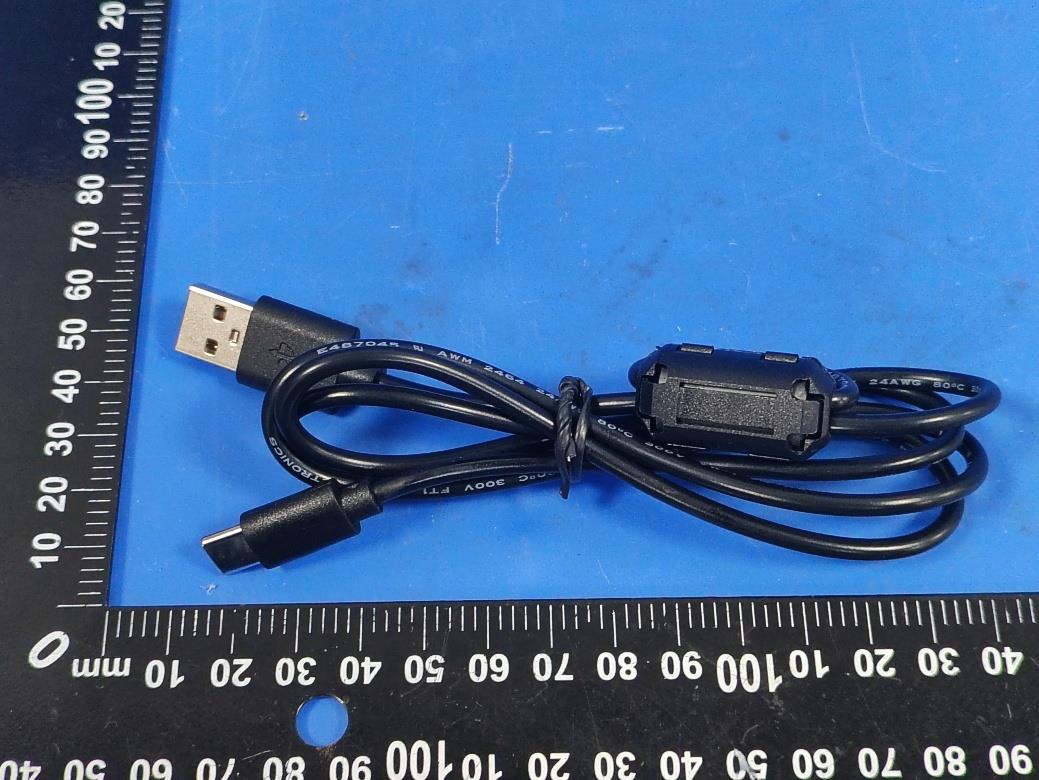

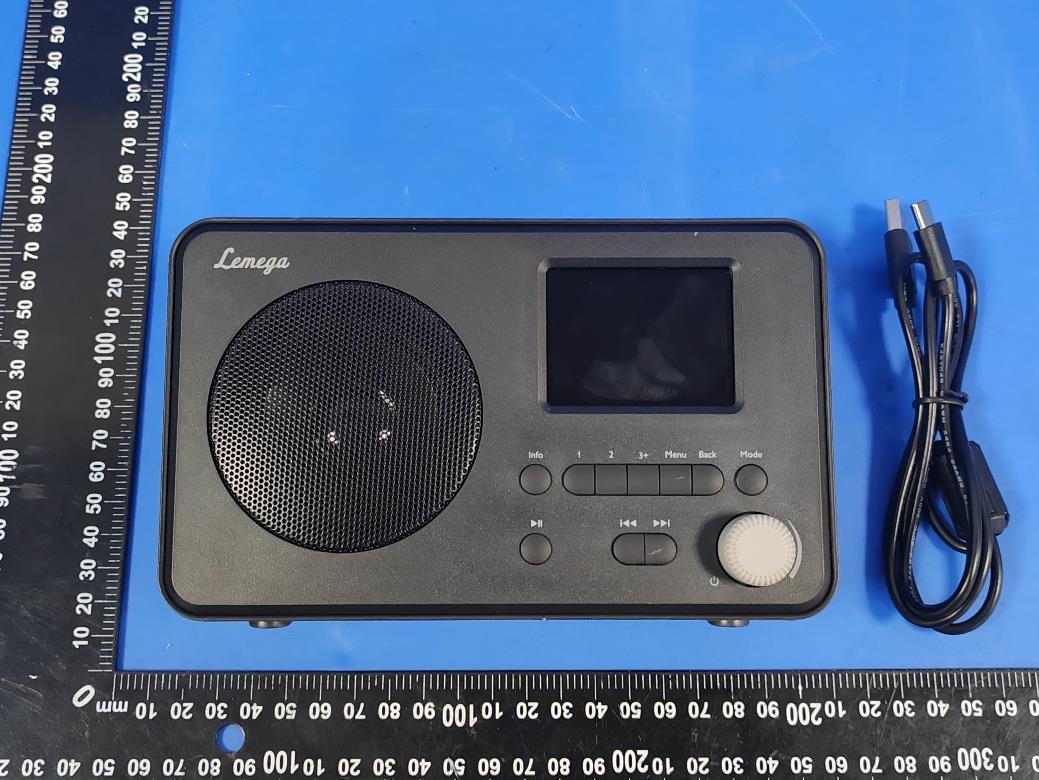

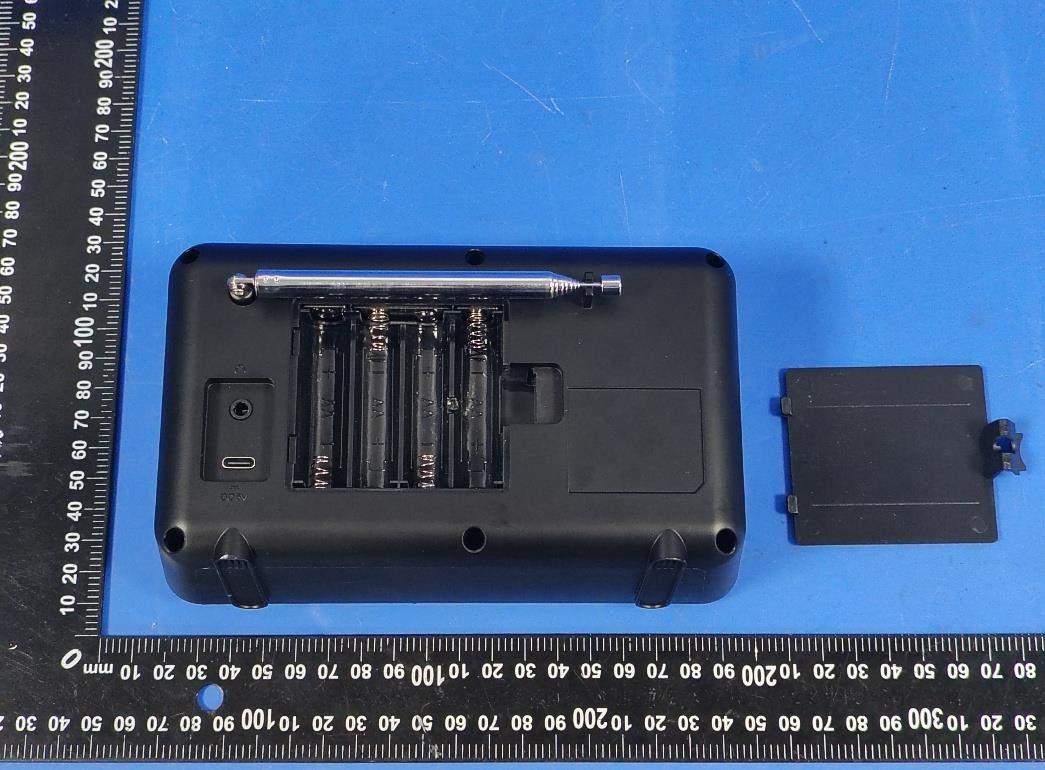

Page 1 of 7 Report No.: LGT26B026 Appendix - External Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 7 Report No.: LGT26B026 Appendix - External Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 7 Report No.: LGT26B026 Appendix - External Photographs of EUT Constructional Details Photo 5 Photo 6 Page 4 of 7 Report No.: LGT26B026 Appendix - External Photographs of EUT Constructional Details Photo 7 Photo 8 Page 5 of 7 Report No.: LGT26B026 Appendix - External Photographs of EUT Constructional Details Photo 9 Photo 10 Page 6 of 7 Report No.: LGT26B026 Appendix - External Photographs of EUT Constructional Details Photo 11 Photo 12 Page 7 of 7 Report No.: LGT26B026 Appendix - External Photographs of EUT Constructional Details Photo 13 Photo 14 SS

Label Size: 30*37mm

Page 1 of 4 Report No.: LGT26B026 Appendix - Internal Photographs of EUT Constructional Details Photo 1 Photo 2 BT ANT WiFi ANT Page 2 of 4 Report No.: LGT26B026 Appendix - Internal Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 4 Report No.: LGT26B026 Appendix - Internal Photographs of EUT Constructional Details Photo 5 Photo 6 Page 4 of 4 Report No.: LGT26B026 Appendix - Internal Photographs of EUT Constructional Details Photo 7 Photo 8

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 8 EMF TEST REPORT Product Name: Radio Model Number: IR1S, IR4, IR4A, IR4S, IR6, IR6-MAX, IRX, M2P, M3P, M5P, M6P, IR-X, MP-X, SR-L, SR-X1, SR-X2, SR-X3, SR-Pro, SR-Ultra, SR-Elite, SR10, SR20, SR30, SR40, SR50, SR60, SR70, SR80, SR90, SR10 Pro, SR10 Ultra, SR20 Pro, SR30 Pro, SR40 Pro, SR50 Pro, SR60 Pro, SR70 Pro, Pinell 101, Pinell 102, Pinell Stereo, Pinell 202, Pinell 501, IR4 PRO, IR4S-2, MS3 FCC ID: 2AVFX-FK-IR1S Issued For : HuiZhou LEMEDIA Technology Co.,Ltd No. 2 Lv Hua Bei Road, YuanZhou Town, BoLuo County, HuiZhou City, GD Province, CN Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26B026HA01 Sample Received Date: Feb. 05, 2026 Date of Test: Feb. 05, 2026 ~ June 17, 2026 Date of Issue: June 17, 2026 Report No.: LGT26B026HA01 Page 2 of 8 TEST REPORT CERTIFICATION Applicant: HuiZhou LEMEDIA Technology Co.,Ltd Address: No. 2 Lv Hua Bei Road, YuanZhou Town, BoLuo County, HuiZhou City, GD Province, CN Manufacturer: HuiZhou LEMEDIA Technology Co.,Ltd Address: No. 2 Lv Hua Bei Road, YuanZhou Town, BoLuo County, HuiZhou City, GD Province, CN Product Name: Radio Trademark: Lemega/LEMEGA/MangoKit/Lewood/LEWOOD/Pinell Model Number: IR1S, IR4, IR4A, IR4S, IR6, IR6-MAX, IRX, M2P, M3P, M5P, M6P, IR- X, MP-X, SR-L, SR-X1, SR-X2, SR-X3, SR-Pro, SR-Ultra, SR-Elite, SR10, SR20, SR30, SR40, SR50, SR60, SR70, SR80, SR90, SR10 Pro, SR10 Ultra, SR20 Pro, SR30 Pro, SR40 Pro, SR50 Pro, SR60 Pro, SR70 Pro, Pinell 101, Pinell 102, Pinell Stereo, Pinell 202, Pinell 501, IR4 PRO, IR4S-2, MS3 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR §2.1093 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Chris Chen Vita Li Engineer Technical Director Report No.: LGT26B026HA01 Page 3 of 8 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 8 Report No.: LGT26B026HA01 Page 4 of 8 Revision History Rev. Issue Date Revisions 00 June 17, 2026 Initial Issue Report No.: LGT26B026HA01 Page 5 of 8 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: Radio Test Model Number: IR1S Series Number: IR4, IR4A, IR4S, IR6, IR6-MAX, IRX, M2P, M3P, M5P, M6P, IR-X, MP- X, SR-L, SR-X1, SR-X2, SR-X3, SR-Pro, SR-Ultra, SR-Elite, SR10, SR20, SR30, SR40, SR50, SR60, SR70, SR80, SR90, SR10 Pro, SR10 Ultra, SR20 Pro, SR30 Pro, SR40 Pro, SR50 Pro, SR60 Pro, SR70 Pro, Pinell 101, Pinell 102, Pinell Stereo, Pinell 202, Pinell 501, IR4 PRO, IR4S-2, MS3 Model Difference: Only the appearance is different. Frequency Bands: Bluetooth 2402-2480MHz WiFi 802.11b/g/n(20MHz): 2412~2462MHz 802.11n(40MHz):2422~2452MHz Adapter: Input: AC 100-240V 50/60Hz 0.5A MAX Output: DC 5.0V 2.0A 10.0W Battery: Rated Voltage: 4*AAA Hardware Version: N/A Software Version: N/A 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT26B026HA01 Page 6 of 8 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Report No.: LGT26B026HA01 Page 7 of 8 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: LGT26B026HA01 Page 8 of 8 2.3 TEST RESULT Turn up Result Mode Turn up Power BT-GFSK 1.5±1dBm BT-π/4-DQPSK 2.5±1dBm BT-8DPSK 2.5±1dBm 2.4G WIFI-802.11b 6.5±2dBm 2.4G WIFI-802.11g 6±1dBm 2.4G WIFI-802.11n(HT20) 6.5±2dBm 2.4G WIFI-802.11n(HT40) 3.5±2dBm The MPE result of worst mode: RF Function Frequency (MHz) Max Turn up Power (dBm) Max Turn up Power (mW) Estimated SAR Limit Ratio Result BT 2402 3.50 2.24 0.694 3 0.231 Pass 2.4GHz Wi-Fi 2412 8.50 7.08 2.199 3 0.733 Pass 2.4GHz Wi-Fi…

Text truncated - open the document above for the full version.

MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 1 Inverted F Antenna Specification MANUFACTURE :SHANGHAI MOUNTAIN VIEW SILICON CO,. LTD PRODUCT NAME :MV_BP10xx PCB Antenna DATE:2019-10-30 Address: Room D, 3rd Floor, Building 2, Lane 1238 Zhangjiang Road, China (Shanghai) Pilot Free Trade Zone, Shanghai, China MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 2 1. Antenna describe Antenna plate ： Inverted F Antenna Frequency range ： 2.4GHz-2.48GHz ITEM Name Inverted F Antenna Specification Model Name2.4GHz Antenna PolarizationHorizontal and Vertical Azimuth Beam PattemOmni-directional Impedance50 Ohm Antenna Lengh14.4mm Gain(Max) 2.81(±1 dBi ） 2. Antenna Photo& Lengh （ mm ） MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 3 3. Gain Frequency Gain （ dBi ） 2400MHz2.81 2410MHz2.74 2420MHz2.70 2430MHz2.73 2440MHz1.01 2450MHz1.26 2460MHz1.50 2470MHz1.49 2480MHz1.42 2490MHz0.36 2500MHz0.33 4. Return Loss/VSWR/Input Impedance Frequency Return Loss (dB)VSWR Input Impedance( Ω） 2400MHz-7.232.5325.37 2400MHz-6.472.8017.99 2450MHz-6.222.9017.18 2480MHz-5.183.4415.55 2500MHz-4.563.8915.48 MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 4 Annex A Photographs 1. Test Setup Annex B Figures 1.2D Radiation Pattern Phi=0° MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 5 Phi=90° Theta=90° MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 6 2.3D Radiation Pattern 2400MHz 2450MHz MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 7 2500MH 3.Return Loss MVSILICON 上海山景集成电路股份有限公司 Shanghai Mountain View Silicon Co., Ltd 8 4.VSWR END

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 80 RF TEST REPORT Product Name: Radio Model Number: IR1S, IR4, IR4A, IR4S, IR6, IR6-MAX, IRX, M2P, M3P, M5P, M6P, IR-X, MP-X, SR-L, SR-X1, SR-X2, SR-X3, SR-Pro, SR-Ultra, SR-Elite, SR10, SR20, SR30, SR40, SR50, SR60, SR70, SR80, SR90, SR10 Pro, SR10 Ultra, SR20 Pro, SR30 Pro, SR40 Pro, SR50 Pro, SR60 Pro, SR70 Pro, Pinell 101, Pinell 102, Pinell Stereo, Pinell 202, Pinell 501, IR4 PRO, IR4S-2, MS3 FCC ID: 2AVFX-FK-IR1S Issued For : HuiZhou LEMEDIA Technology Co.,Ltd No. 2 Lv Hua Bei Road, YuanZhou Town, BoLuo County, HuiZhou Cit y, GD Province, CN Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26B026RF01 Sample Received Date: Feb. 05, 2026 Date of Test: Feb. 05, 2026 ~ Mar. 04, 2026 Date of Issue: Mar. 04, 2026 Report No.: LGT26B026RF01 Pa ge 2 of 80 TEST REPORT CERTIFICATION Applicant: HuiZhou LEMEDIA Technology Co.,Ltd Address: No. 2 Lv Hua Bei Road, YuanZhou Town, BoLuo County, HuiZhou City, GD Province, CN Manufacturer: HuiZhou LEMEDIA Technology Co.,Ltd Address: No. 2 Lv Hua Bei Road, YuanZhou Town, BoLuo County, HuiZhou City, GD Province, CN Product Name: Radio Trademark: Lemega/LEMEGA/MangoKit/Lewood/LEWOOD/Pinell Model Number: IR1S, IR4, IR4A, IR4S, IR6, IR6-MAX, IRX, M2P, M3P, M5P, M6P, IR-X, MP-X, SR-L, SR-X1, SR-X2, SR-X3, SR-Pro, SR-Ultra, SR-Elite, SR10, SR20, SR30, SR40, SR50, SR60, SR70, SR80, SR90, SR10 Pro, SR10 Ultra, SR20 Pro, SR30 Pro, SR40 Pro, SR50 Pro, SR60 Pro, SR70 Pro, Pinell 101, Pinell 102, Pinell Stereo, Pinell 202, Pinell 501, IR4 PRO, IR4S-2, MS3 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2020 + COR.1-2023 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT26B026RF01 Pa ge 3 of 80 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST LABORATORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 30 4.1 LIMIT 30 4.2 TEST PROCEDURE 30 4.3 TEST SETUP 30 4.4 EUT OPERATION CONDITIONS 31 4.5 TEST RESULTS 31 5. NUMBER OF HOPPING CHANNEL 32 5.1 LIMIT 32 5.2 TEST PROCEDURE 32 5.3 TEST SETUP 32 5.4 EUT OPERATION CONDITIONS 32 5.5 TEST RESULTS 32 6. AVERAGE TIME OF OCCUPANCY 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 TEST SETUP 33 6.4 EUT OPERATION CONDITIONS 33 6.5 TEST RESULTS 33 7. HOPPING CHANNEL SEPARATION MEASUREMEN 34 7.1 LIMIT 34 7.2 TEST PROCEDURE 34 Report No.: LGT26B026RF01 Pa ge 4 of 80 7.3 TEST SETUP 34 7.4 EUT OPERATION CONDITIONS 34 7.5 TEST RESULTS 34 8. BANDWIDTH TEST 35 8.1 LIMIT 35 8.2 TEST PROCEDURE 35 8.3 TEST SETUP 35 8.4 EUT OPERATION CONDITIONS 35 8.5 TEST RESULTS 35 9. OUTPUT POWER TEST 36 9.1 LIMIT 36 9.2 TEST PROCEDURE 36 9.3 TEST SETUP 36 9.4 EUT OPERATION CONDITIONS 36 9.5 TEST RESULTS 36 10. ANTENNA REQUIREMENT 37 10.1 STANDARD REQUIREMENT 37 10.2 EUT ANTENNA 37 APPENDIX I - TEST RESULTS 38 DUTY CYCLE 38 MAXIMUM PEAK CONDUCTED OUTPUT POWER 42 -20DB BANDWIDTH 46 OCCUPIED CHANNEL BANDWIDTH 50 CARRIER FREQUENCIES SEPARATION 54 BAND EDGE 58 BAND EDGE(HOPPING) 63 CONDUCTED RF SPURIOUS EMISSION 68 NUMBER OF HOPPING CHANNEL 75 DWELL TIME 77 APPENDIX II - MEASUREMENT PHOTOS 80 Report No.: LGT26B026RF01 Pa ge 5 of 80 Revision History Rev. Issue Date Revisions 00 Mar. 04, 2026 Initial Issue Report No.: LGT26B026RF01 Pa ge 6 of 80 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020 + COR.1-2023. Report No.: LGT26B026RF01 Pa ge 7 of 80 1.1 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All …

Text truncated - open the document above for the full version.

Page 1 of 2 Report No.: LGT26B026 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz Page 2 of 2 Report No.: LGT26B026 Set-up for Conducted Emission
