2AVG2-AK61Multi-in-one cooling wireless charger

产品介绍 感谢您购买本公司产品！本产品是一款带暖光灯的三合一磁吸 制冷无线充电器，可同时对手机、耳机和手表进行无线充电， 是一款方便使用的三合一无线充电产品。使用本产品前请认真 阅读本手册，并妥善保管，以备查阅。 中国制造 产品说明书 多功能制冷无线充电器 Thanks for choosing us! Product Introduction Product Manual MADE IN CHINA Multi-in-one cooling wireless charger 本产品有三种功能：给设备进行无线充充电、给手机制冷、拥 有暖光灯模式 使用说明 连接电源 1 三种设备充电方式 1.手机充电位置角度可以调节，用户可以根据舒适度选择自我调节。 将磁吸手机置于手机(磁吸)充电位后，手机自动吸附，产品充电并制 冷时指示灯为蓝灯常亮，手机充电制冷关闭时为绿灯常亮。拿开手机 后，制冷功能立即关闭，风扇等15秒后关闭;(如图1) 2.将三星/苹果手表放置于手表充电位置即可充电;(如图2) 3.将具有无线充功能的耳机放置于耳机充电位置后，耳机开始充电， 指示灯显示为绿灯亮3秒熄灭。(如图3) 2 手机制冷开关 3 暖光灯开关 1.灯光默认关闭，单击按键打开灯光弱光、再次单击按键灯光变为 强光，再单击按键关闭灯光。 2.灯为暖光灯，当光敏传感器检测到环境暗下来之后灯光、风扇以 及制冷功能5分钟之后关闭。 光敏传感器请不要遮挡，否则会影响产品正常功能注： 4 异物检测功能 当某个无线充区域感应到金属异物或者手机位置放偏，则会启动 FOD报警功能，其对应的指示灯显示为蓝灯持续闪烁;将充电设备位 置放正确或者取下金属异物后即可恢复正常充电状态。 人体接触产品USB口时，由于静电原因（触摸是静电式的），会关 掉灯光，重新触摸即可恢复灯光。 1.请勿对本产品撞击或投入火中水中，避免造成短路漏电。 2.请勿将本产品放置在灰尘多，温过高或过低的地方保存(温范 国-10*C-+40~C) 3.请保持植入医疗设备(心脏起搏器、植入性耳蜗等)与无线充电 器之间的距离至少为20cm，以避免对医疗设备造成潜在干扰 4.请将本产品放置于孩童不易接触的地方，以免发生意外。 5.请使用本产品标配附件，如果本产品由于使用非标配附件而造 成的损坏，不在保修范围内。 6.禁止私自拆卸产品，若导致产品损坏，不在保修范围内。 5 Phone Wireless Charging Position (charge horizontally or vertically) Watch Wireless Charging Position Click: Dim lightClick again: Strong light Click again: Turn off the lights Earbuds(Case) Wireless Charging Position Night light button Photosensitive sensor Night light Charging indicator light 单击：灯光弱光再次单击：灯光强光再次单击：关闭灯光 This product is a 3-in-1 magnetic attraction with a warm light Cooling wireless charger, capable of wirelessly charging phones, Earbuds and watches simultaneously It is a convenient and user-friendly three-in-one wireless charging product. Please be careful before using this product. 1. Connect one end of the C-C data cable to the product's input port and the other end to the power supply (it is recommended to use an adapter of 60W or above). After that, the product enters standby mode. At this point, the charging indicator light of the product will be blue and turn off after 3 seconds. The warm light will also turn off after 3 seconds. You can click the warm light button to turn on the weak light, click the button again to turn on the strong light, and click the button again to turn off the light. 1. The lights are off by default. Click the button to turn on the dim light, click the button again to make the light strong, and click the button again to turn off the light. 2. The lamp is a warm light. When the photosensitive sensor detects that the environment has darkened, the light, fan and cooling function will be turned off after 5 minutes. When a person touches the product's USB port, the light will turn off due to static electricity (touch is static-based). Touching it again will restore the light. When a certain wireless charging area detects a metal foreign object or the mobile phone is placed off-center, the FOD alarm function will be activated, and the corresponding indicator light will show a continuous flashing blue light. After placing the charging device in the correct position or removing the metal foreign object, the normal charging state can be restored. 1. Do not hit this product, throw it into fire or water to avoid short 2. Do not place this product in a high or low tempera- ture,or humidenvironment(temperature range -10'C-+40°C) 3. Please keep wireless charger away from implanted medical equipment (pacemaker,implantable cochlea, etc.) at least 20cmto avoid potentialinterference to medical equipment. 4. Please keep the product away from children reachment to avoidaccidents. 5. Please use the standard accessories of this product. lf this productis damaged due to the use of non-standard accessories, it is notcovered by the warranty. 6. Do not disassemble the product without permission. lf theproduct is damaged, it will not be covered by the warranty FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC RF exposure statement: The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance between 20cm the radiator your body. FCC 警告 本设备符合美国联邦通信委员会（FCC）规则第 15 部分的要求。设备操 作需遵守以下两个条件： 本设备不得产生有害干扰； 本设备必须接受任何接收到的干扰，包括可能导致非预期操作的干扰。 未经合规责任方明确批准，任何更改或改装都可能导致用户操作该设备的 权限失效。 本设备已通过测试，并依据 FCC 规则第 15 部分，符合 B 类数字设备的 相关限值。这些限值旨在为住宅安装环境提供合理的有害干扰防护。本设 备会产生、使用并可能辐射射频能量，若未按照说明书安装和使用，可能 对无线电通信造成有害干扰。但无法保证在特定安装环境中不会发生干扰 。若本设备对无线电或电视接收造成有害干扰（可通过开关设备判断）， 建议用户通过以下一种或多种方式消除干扰： 重新调整接收天线的方向或位置 增加本设备与接收器之间的距离 将本设备连接到与接收器不同电路的电源插座 咨询经销商或有经验的无线电 / 电视技术人员获取帮助 FCC 射频辐射暴露声明 本设备符合 FCC 针对非受控环境制定的辐射暴露限值。安装和操作本设 备时，辐射体与人体之间应至少保持20 厘米的最小距离。 This product has three functions:…

Text truncated - open the document above for the full version.

Page1of3ReportNo.:MTi250917010-0105 Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China. Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] Photographsofthetestsetup Model:AK61 ConductedEmissionatACpowerline Page2of3ReportNo.:MTi250917010-0105 Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China. Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] RadiatedEmissions(below30MHz) RadiatedEmissions(30MHz-1GHz) Page3of3ReportNo.:MTi250917010-0105 Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China. Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] MPE

承 认 东莞市德弗力五金电子材料有限公司 Dongguancity DFLElectronic TechnologyCo.,LTD 书 客户名称(CUSTOMER): 客户料号(PART NO.): 品 名(DESCRIPTION): 规格(SPECIFICATION): 电话：0769-8601632 东莞市石碣镇新风西路107号 No. 107, Xinfeng West Road, Shijie Town, Dongguan City 0 传真：0769-86372427 第 1 页 共 2 页 日 期(DATE): 14.5x24，0.08x36p，磁边起12MM 20230515 SPECIFICATION FOR APPROVEAL 本司确认（TRX APPROVAL） 制作 审核 客户确认（CUSTOMER APPROVAL） 确认结果(Result): 合格不合格 其它 承认日期 工程 批准 承认日期 曾小仙 邱志辉 20230515 手表线圈+硬磁 AKE AKE0-Y14.5×24-12-FR 产品型号: SPECIFICATION 二、原理图（schematic diagram:） 拟制/日期PREPARED BY/DATE 审核/日期CHECKED BY/DATE 东莞市德弗力五金电子材料有限公司 Dongguan city DFL Electronic Technology Co.,LTD DESC Rev:A 版本 Customer: Date: Description: AKE0-Y14.5×24-12-FR AKE 一、尺寸DIMENSION:(mm) A B C D E F G I 三、绕线参数(WindingSpecification: 注: ) 序号 NO. 端子 TERMINAL 圈数 Turns 绕线方向 Winding Direction 四、电气特性 ELECTRICAL CHARACTERISTICS: 温度 TEMPERATURE:25±10°C,湿度 RELATIVE HUMIDITY:65±20% 序号 NO. 客户/日期CUSTOMEU/DATE 端子 TERMINAL 项目 ITEM 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 3 4 IND. DC Q值 R 20230515 14.5±0.5 24±1.5 12.0±2.0 1 12T 线径 WIRE 0.08X36P热风线(cement wire) S 手表线圈+硬 逆时针anticlockwise 磁 3.0±2.0 1.线圈贴26.6*11*3.0硬磁 2.压线反帖，引线不交接 3.线圈不可松线 1. The coil is pasted with G26.6*11*3.0 hard magnetic. 2. The pressure wire is pasted in reverse, and the leads do not connect. 3. The coil must not be loose J K L 26.6±1.0 3.0±0.2 M N O P 100KHZ/1.0 7.1uH±10%加磁片 (Containing magnetic sheet) V SHDA 1062 H F E A B C D

FY-GZ001 Fine SPECIFICATIONFORAPPROVAL 客戶： CUSTOMER: 擬制 PREPAREDBY 審核 CHECKEDBY 批准 APPROVEDBY 客戶承認 CUSTOMERAPPROVE 冯伯群 苏燕平 钱立谋 工厂地址： FactoryAddress:Room702,Building1,ShangshijiaOldVillage,ShijiaCommunity,Matian Street,GuangmingDistrict,ShenzhenCity TEL：13824883512 客戶料號： CUSTP/N: 淘软料號： BESOFTP/N: 産品型號： DESC: 日期： DATE: 版本： Version: 20.5x40-11Ts-0.08x72P-10mm 2024/10/31 Page1of4 A.0 深圳市光明区马田街道石家社区上石家旧村厂房1号702 FY-GZ001 Fine VersionChangeHistory 版本 Rev. 變更前 BeforeChange 變更後 AfterChange 更改日期 ChangeDate 批准 ApprovedBy A.0 新发行 ---- 2024/10/31 钱立谋 Page2of4 FY-GZ001 Fine 産品型號： DESC 20.5 x40-11Ts-0.08*72-10mm-CLB 版本 Rev：A0 客戶CUST: 淘软料号FineP/N： 客户料号CUSTP/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATICDIAGRAM: 三、绕线参数WindingSpecification: A 40.0±1.0 B 20.5±0.5 C 0.7±0.05 D1 12±2 D2 10±2 E 3-5mm F 42.5±0.5 G 8.0ref H 2.0±0.2Max I 5.0ref 注： 1.线圈贴磁片，磁片尺寸42.5±0.5mm,内 孔5.0mm,厚度为0.8±0.1mm,开L槽 2.线圈出线位置缠宽度 6mm±0.5高温胶纸。3.磁片背面贴带 手撕位圆形直径42mm(ref)，内孔7.0mm (ref)普通双面胶。 1.Thecoilisattachedwitha magneticsheet.Thesizeofthe magneticsheetis42.5±0.5mm,with aninnerholeof5.0mmanda thicknessof0.8±0.1mm.AnL- shapedslotisopened. 2.Thepositionwherethecoilleads outiswrappedwitha6mm±0.5high -temperatureadhesivetape. 3.Onthebackofthemagneticsheet, acircularstickerwithadiameterof 42mm(ref)andaninnerholeof7.0 mm(ref)isattachedwithacommon double-sidedadhesivetape,witha tear-offtab. 序号 NO 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection 1 S F 热风线(cementwire) 0.08*72P 11Ts CCW 四、电气特性ELECTRICALCHARACTERISTICS: 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 序号 NO 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS 1 IND. S-F 5.5uH±20%单独线圈( Single coil ) 100KHz/1.0V LCZMETER1062B 2 IND. S-F 8.0uH±10%加磁片(Containing magneticsheet) 100KHz/1.0V LCZMETER1062B 3 Q值 S-F ≤9 0.0(ref)加磁片 (Containingmagneticsheet) 100KHz/1.0V LCZMETER1062B 中间18*1.0小磁片 Page3of4 FY-GZ001 4 DCRS-F ≤90mΩ LCZMETER502B 擬制/日期PREPAREDBY/DATE審核/日期CHECKEDBY/DATE 冯伯群2024/10/31 苏燕平2024/10/31 FY-GZ001 Fine 産品型號： DESC 20.5 x40-11Ts-0.08x72-10mm-CLB 版本 Rev：A0 客戶CUST: 淘软料号FineP/N： 客户料号CUSTP/N: 五、包装PACKONG: 5.1包装图片Packingpictures: 项目Item数量Quantity材料规格Material 盒Box350Pcs370*265*55mm 箱BigCarton 1400Pcs390*270*245mm 5.3包装以现有包装盘为参照标准，以实际出货包装为准,如有特需要求可以定制。 Thepackagingshallbebasedontheexistingpackingplateandtheactualdeliverypackageshallprevail.If thereisanyrequirement,wecancustomizeit. 六、材料清单Materiallist: 序号 number Description ManufacturerMaterialname 1 热风线cement wire0.08*72股 热风自粘线cementwire 0.08*72股 东莞市金杰源电子材料有限公司 DongguanJinjieyuan ElectronicMaterialsCo.,LTD 2 无铅锡条Lead-freetin bars 无铅锡条Lead-freetinbars 深圳市道勤锡业有限公司 ShenzhenDaoqinTin IndustryCo.,LTD 3 磁片MagneticsheetΦ42.5*5.0*0.8mm锰锌硬磁片 Manganese-zinchardmagnetic sheet 广州睿晶新型材料科技有限公司 GuangzhouRuijingNew MaterialsTechnologyCo., LTD 4 胶水Glue201胶水Glue 东莞市飞泉电子材料有限公司 DongguanFeiquanElectronic MaterialsCo.,LTD 5 高温胶纸High- temperatureadhesive tape 6mm高温胶纸High- temperatureadhesivetape 东莞市志兴胶带新材料有限公司 DongguanZhixingAdhesive TapeNewMaterialsCo.,LTD 6 带孔双面胶Double-sided tapewithholes 42 mm(ref) 双面胶Double-sided tape 深圳市鸿维达科技有限公司 ShenzhenHongweida TechnologyCo.,LTD 擬制/日期PREPAREDBY/DATE審核/日期CHECKEDBY/DATE 冯伯群2024/10/31 苏燕平2024/10/31 Page4of4

承认书 SPECIFICATIONFORAPPROVEAL AKE 客户名称(CUSTOMER): AK60 客户料号(PARTNO.): 品名(DESCRIPTION): 线圈+磁片 0.08*105P丝包线,∅39.5x14，电感量6.5uH,隔磁片 ∅ 43X0.8(开线槽)磁边起13MM 规格(SPECIFICATION): 20260306 日期(DATE): 本司确认（TRXAPPROVAL） 制作 审核 承认日期 20260306 潘锡明 邱志辉 客户确认（CUSTOMERAPPROVAL） 工程 批准 承认日期 确认结果(Result): 合格不合格其它 东莞市德弗力五金电子材料有限公司 DongguancityDFLElectronicTechnologyCo.,LTD 东莞市石碣镇新风西路107号 No.107,XinfengWestRoad,ShijieTown,DongguanCity 电话：0769-86016320传真：0769-86372427 第1页共2页 东莞市德弗力五金电子材料有限公司 DongguancityDFLElectronicTechnologyCo.,LTD SPECIFICATION Customer: Description: Date: AKE 产品型号: DESC 版本 Rev:A 线圈+磁片 20260306 43.0±1.0 14.0±1.0 39.5±2.0 13.0 + 3.0 3.5±1.5 AKE0-14*39.5-13-FR A 一、尺寸DIMENSION:(mm) B C D E F G E H I J K L 注: 1.线圈反贴硬磁，磁片有孔带 双槽且线圈位置居中 2.磁片背面贴带耳朵 白色双面背胶 3.线圈出线位置缠高温胶带 4.线圈不可松线 B C A 二、原理图（schematicdiagram:） 三、绕线参数(WindingSpecification:) 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection 1 0.08X105P丝包线 Silkyarncoveredwire 12TS 逆时针 anticlockwise 四、电气特性ELECTRICALCHARACTERISTICS: 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS 1 2 3 4 IND. IND. Q值 6.5UH ±10% 100KHZ/1.0V SHDA1062 DCR 拟制/日期PREPAREDBY/DATE 审核/日期CHECKEDBY/DATE 客户/日期CUSTOMEU/DATE 1.Thecoilisreverselyattachedwitha hardmagneticfield Thesheethasholeswithdouble groovesand Thecoiliscentered 2.Thebackofthemagneticsheetis attachedwithears Whitedouble-sidedadhesivebacking 3.Wrapthecoil'slead-outposition High-temperaturetape

Tel:0755-88850135-1439 Mobile:131-4343-1439（Wechatsamenumber） Web:http://www.mtitest.cnE-mail:[email protected] Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 1 of 34 TestReport ReportNo.:MTi250917010-0105E1 Dateofissue:2026-03-02 Applicant:ShenzhenShiAikerElectronicTechnologyCo.,Ltd. Product:Multi-in-onecoolingwirelesscharger Model(s):AK61,AK62 FCCID:2AVG2-AK61 ShenzhenMicrotestCo.,Ltd. TESTREPORT ReportNo.:MTi250917010-0105E1 Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 2 of 34 Tableofcontents 1GeneralDescription.......................................................................................................................4 1.1DescriptionoftheEUT.........................................................................................................4 1.2Descriptionoftestmodes.....................................................................................................4 1.3EnvironmentalConditions.....................................................................................................6 1.4Descriptionofsupportunits..................................................................................................6 1.5Measurementuncertainty.....................................................................................................6 2SummaryofTestResult................................................................................................................7 3TestFacilitiesandaccreditations................................................................................................8 3.1Testlaboratory......................................................................................................................8 4Listoftestequipment....................................................................................................................9 5EvaluationResults(Evaluation).................................................................................................11 5.1Antennarequirement..........................................................................................................11 6RadioSpectrumMatterTestResults(RF)................................................................................12 6.1ConductedEmissionatACpowerline...............................................................................12 6.220dBOccupiedBandwidth.................................................................................................15 6.3Emissionsinfrequencybands(below30MHz)..................................................................22 6.4Emissionsinfrequencybands(30MHz-1GHz)................................................................28 Photographsofthetestsetup...........................................................................................................32 PhotographsoftheEUT.....................................................................................................................33 TESTREPORT ReportNo.:MTi250917010-0105E1 Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 3 of 34 TestResultCertification ApplicantShenzhenShiAikerElectronicTechnologyCo.,Ltd. ApplicantAddress 6thFloor,BuildingC,No.9East,ShangxueTechnologyIndustrialCity, XinxueCommunity,BantianStreet,LonggangDistrict,shenzhenChina ManufacturerShenzhenShiAikerElectronicTechnologyco.,LTD Manufacturer Address 6thFloor,BuildingC,No.9East,ShangxueTechnologyIndustrialCity, XinxueCommunity,BantianStreet,LonggangDistrict,shenzhenChina FactoryShenzhenShiAikerElectronicTechnologyco.,LTD FactoryAddress 6thFloor,BuildingC,No.9East,ShangxueTechnologyIndustrialCity, XinxueCommunity,BantianStreet,LonggangDistrict,shenzhenChina Productdescription ProductnameMulti-in-onecoolingwirelesscharger TrademarkN/A ModelnameAK61 SeriesModel(s)AK62 Standards47CFRPart15C TestMethodANSIC63.10-2020+Cor.1-2023 TestingInformation Dateoftest2026-01-09to2026-02-06 TestresultPass Preparedby:MaleahDeng Reviewedby:DavidLee Approvedby:LewisLian TESTREPORT ReportNo.:MTi250917010-0105E1 Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 4 of 34 1GeneralDescription 1.1DescriptionoftheEUT Productname:Multi-in-onecoolingwirelesscharger Modelname:AK61 SeriesModel(s):AK62 Modeldifference: Allthemodelsarethesamecircuitandmodule,exceptthemodel nameandappearancecolor. Electricalrating: Input:DC12V/3A,DC15V/3A,DC20V/3A WirelessOutput:Phone:25WMax;Earbuds:5W;Watch:2.5W Accessories:N/A Hardwareversion:AK60-A3.2 Softwareversion:0X00486421 Testsample(s)number:MTi250917010-01-E001,MTi250917010-01-R001 RFspecification Operatingfrequency range: Coil1(Phone):115-205kHz(5W,7.5W,10W);360kHz(15W,25W) Coil2(Earbuds):115-205kHz Coil3(Watch):115-205kHz(SamsungWatch)&300-350kHz(Apple Watch) Modulationtype:ASK Antenna(s)type:CoilAntenna 1.2Descriptionoftestmodes No.Emissiontestmodes Mode1Wirelessoutput(Phone(5W)+Earbuds(5W)+AppleWatch(2.5W)) Mode2Wirelessoutput(Phone(7.5W)+Earbuds(5W)+AppleWatch(2.5W)) Mode3Wirelessoutput(Phone(10W)+Earbuds(5W)+AppleWatch(2.5W)) Mode4Wirelessoutput(Phone(15W)+Earbuds(5W)+AppleWatch(2.5W)) Mode5Wirelessoutput(Phone(25W)+Earbuds(5W)+AppleWatch(2.5W)) Mode6Wirelessoutput(Phone(5W)+Earbuds(5W)+SamsungWatch(2.5W)) Mode7Wirelessoutput(Phone(7.5W)+Earbuds(5W)+SamsungWatch(2.5W)) Mode8Wirelessoutput(Phone(10W)+Earbuds(5W)+Sa…

Text truncated - open the document above for the full version.

Tel:0755-88850135-1439 Mobile:131-4343-1439（Wechatsamenumber） Web:http://www.mtitest.cnE-mail:[email protected] Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China Q/MTI-QP-12-FE014 Ver./Rev.：A1 Page 1 of 16 TestReport ReportNo.:MTi250917010-0105E2 DateofIssue:2026-03-02 Applicant:ShenzhenShiAikerElectronicTechnologyCo.,Ltd. Product:Multi-in-onecoolingwirelesscharger Model(s):AK61,AK62 FCCID:2AVG2-AK61 ShenzhenMicrotestCo.,Ltd. TESTREPORT ReportNo.:MTi250917010-0105E2 Tel:0755-88850135-1439 Mobile:131-4343-1439（Wechatsamenumber） Web:http://www.mtitest.cnE-mail:[email protected] Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China Q/MTI-QP-12-FE014 Ver./Rev.：A1 Page 2 of 16 Tableofcontents 1GeneralDescription.............................................................................................................4 1.1DescriptionoftheEUT..........................................................................................................................4 1.2Descriptionoftestmodes......................................................................................................................5 1.3Descriptionofsupportunits...................................................................................................................7 2Measurementuncertainty...................................................................................................7 3Testfacilitiesandaccreditations.......................................................................................8 3.1Testlaboratory.......................................................................................................................................8 4Listoftestequipment..........................................................................................................9 5Testresult...........................................................................................................................10 5.2Testsetup.............................................................................................................................................11 5.3TestProcedures...................................................................................................................................11 5.4Informationoftestequipment..............................................................................................................12 5.5Testresults...........................................................................................................................................13 PhotographsoftheTestSetup................................................................................................15 PhotographsoftheEUT...........................................................................................................15 TESTREPORT ReportNo.:MTi250917010-0105E2 Tel:0755-88850135-1439 Mobile:131-4343-1439（Wechatsamenumber） Web:http://www.mtitest.cnE-mail:[email protected] Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China Q/MTI-QP-12-FE014 Ver./Rev.：A1 Page 3 of 16 TestResultCertification ApplicantShenzhenShiAikerElectronicTechnologyCo.,Ltd. ApplicantAddress 6thFloor,BuildingC,No.9East,ShangxueTechnologyIndustrialCity, XinxueCommunity,BantianStreet,LonggangDistrict,shenzhenChina ManufacturerShenzhenShiAikerElectronicTechnologyco.,LTD ManufacturerAddress 6thFloor,BuildingC,No.9East,ShangxueTechnologyIndustrialCity, XinxueCommunity,BantianStreet,LonggangDistrict,shenzhenChina FactoryShenzhenShiAikerElectronicTechnologyco.,LTD FactoryAddress 6thFloor,BuildingC,No.9East,ShangxueTechnologyIndustrialCity, XinxueCommunity,BantianStreet,LonggangDistrict,shenzhenChina Productdescription ProductnameMulti-in-onecoolingwirelesscharger TrademarkN/A ModelnameAK61 SeriesModel(s)AK62 Standards 47CFRPART1,§1.1310 part2.1091 TestmethodKDB680106D01WirelessPowerTransferv04 TestingInformation Dateoftest2026-01-09to2026-02-06 TestResultPass Preparedby:MaleahDeng Reviewedby:DavidLee Approvedby:LewisLian TESTREPORT ReportNo.:MTi250917010-0105E2 Tel:0755-88850135-1439 Mobile:131-4343-1439（Wechatsamenumber） Web:http://www.mtitest.cnE-mail:[email protected] Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China Q/MTI-QP-12-FE014 Ver./Rev.：A1 Page 4 of 16 1GeneralDescription 1.1DescriptionoftheEUT Productname:Multi-in-onecoolingwirelesscharger Modelname:AK61 SeriesModel:AK62 Modeldifference: Allthemodelsarethesamecircuitandmodule,exceptthemodelname andappearancecolor. Electricalrating: Input:DC12V/3A,DC15V/3A,DC20V/3A WirelessOutput:Phone:25WMax;Earbuds:5W;Watch:2.5W Accessories:N/A Hardwareversion:AK60-A3.2 Softwareversion:0X00486421 Testsample(s) number: MTi250917010-01-E001,MTi250917010-01-R001 RFspecification: Operationfrequency: Coil1(Phone):115-205kHz(5W,7.5W,10W,15WEPP);360kHz(15W MPP,25W) Coil2(Earbuds):115-205kHz Coil3(Watch):115-205kHz(SamsungWatch);300-340kHz(Apple Watch) Modulationtype:ASK Antennatype:CoilAntenna TESTREPORT ReportNo.:MTi250917010-0105E2 Tel:0755-88850135-1439 Mobile:131-4343-1439（Wechatsamenumber） Web:http://www.mtitest.cnE-mail:[email protected] Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China Q/MTI-QP-12-FE014 Ver./Rev.：A1 Page 5 of 16 1.2Descriptionoftestmodes AllthetestmodeswerecarriedoutwiththeEUTinnormaloperation,thefinaltestmodeofthe EUTwastheworsttestmodeforemissiontest,whichwasshowninthisreportanddefinedas: No.Emissiontestmodes Mode1Wirelessoutput(Phone(5W)+Earbuds(5W)+AppleWatch(2.5W)) Mode2Wirelessoutput(Phone(7.5W)+Earbuds(5W)+AppleWatch(2.5W)) Mode3Wirelessoutput(Phone(10W)+Earbuds(5W)+AppleWatch(2.5W)) Mode4Wirelessoutput(Phone(15W)+Earbuds(5W)+AppleWatch(2.5W)) Mode5Wirelessoutput(Phone(25W)+Earbuds(5W)+AppleWatch(2.5W)) Mod…

Text truncated - open the document above for the full version.

Page4of11ReportNo.: MTi250917010-0105 Address:101, No. 7, Zone 2, XinxingIndustrialPark, Fuhai Avenue,Xinhe Community,Fuhai Street, Bao ’an District,Shenzhen,Guangdong,China. Tel: 0755-88850135-1439Mobile:131-4343-1439(Wechatsame number)Web: http://www.mtitest.cnE-mail:[email protected] Internal Page5of11ReportNo.:MTi250917010-0105 Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China. Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] Page6of11ReportNo.:MTi250917010-0105 Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China. Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] Page7of11ReportNo.:MTi250917010-0105 Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China. Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] Page8of11ReportNo.:MTi250917010-0105 Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China. Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] Coil2 Page9of11ReportNo.:MTi250917010-0105 Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China. Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] Page10of11ReportNo.:MTi250917010-0105 Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China. Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] Coil1 Page11of11ReportNo.:MTi250917010-0105 Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China. Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] Coil3

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: Picus Advisors US LLC FRN: 0034336891 Contact Name: lvan Wang Address: 5855 SOVEREIGN DRSTE B-1, HOUSTON, TX 77036, USA Telephone No: +1(713) 271-9600 Email: [email protected] Applicant: Company name: Shenzhen Shi Aiker Electronic Technology Co., Ltd. FRN: 0029068913 Product Description: Multi-in-one cooling wireless charger Grantee code: 2AVG2 FCC ID: 2AVG2-AK61 Contact Name: Yao Su Address: 6th Floor, Building C, No.9 East, Shangxue Technology Industrial City, Xinxue Community, Bantian Street, Longgang District, shenzhen China Telephone No: +86 0755 83770820 Email: [email protected] [Shenzhen Shi Aiker Electronic Technology Co., Ltd.] certifies that, as of the date of this filing of the application with the TCB, [Picus Advisors US LLC] is our designated US agent for service of process for the above referenced FCC ID. [Shenzhen Shi Aiker Electronic Technology Co., Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [Picus Advisors US LLC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 03.10.2026 Applicant’s Name: Yao Su US Agent’s Name: lvan Wang Title: Manager Title: CEO Signature Signature

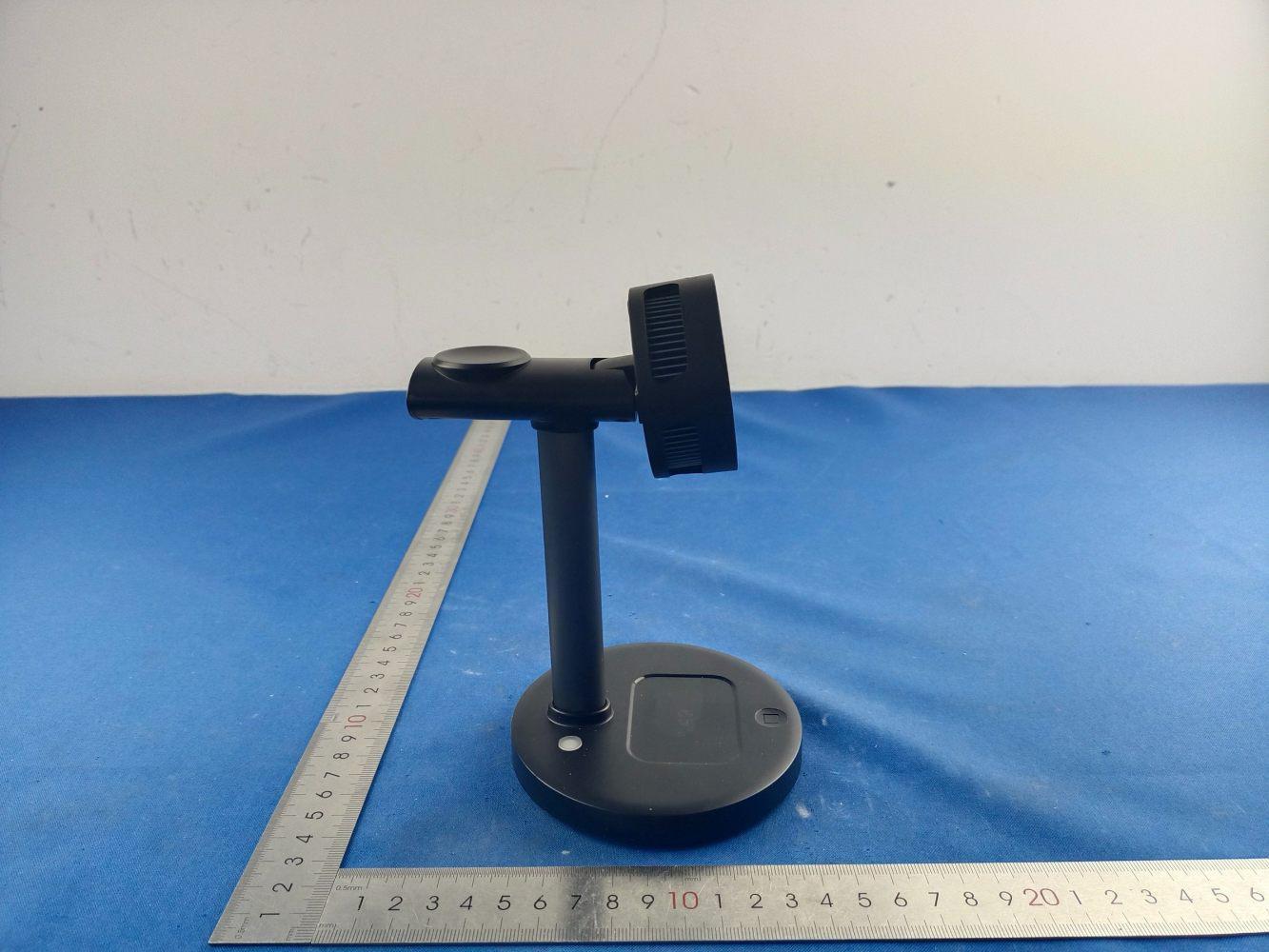

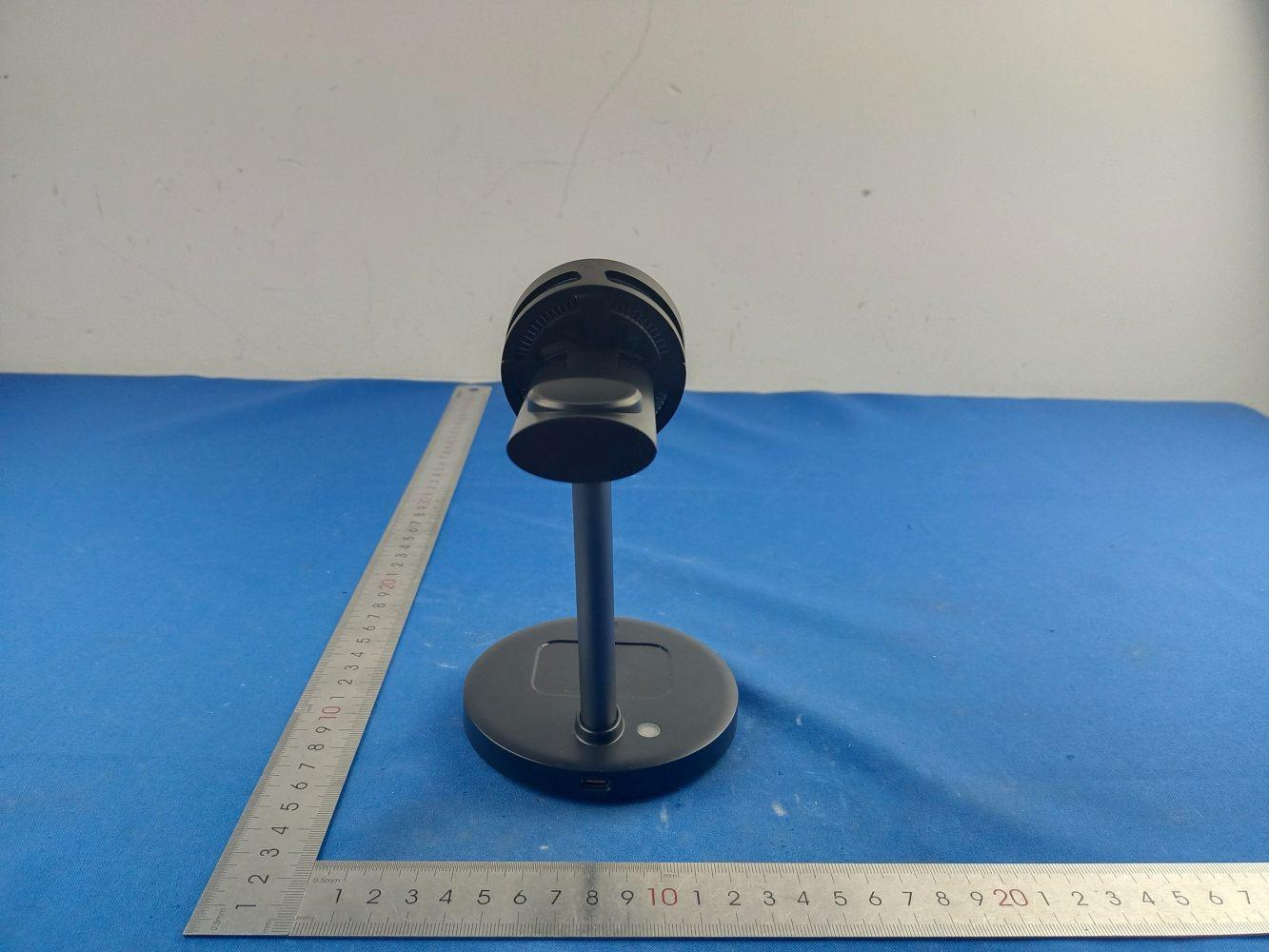

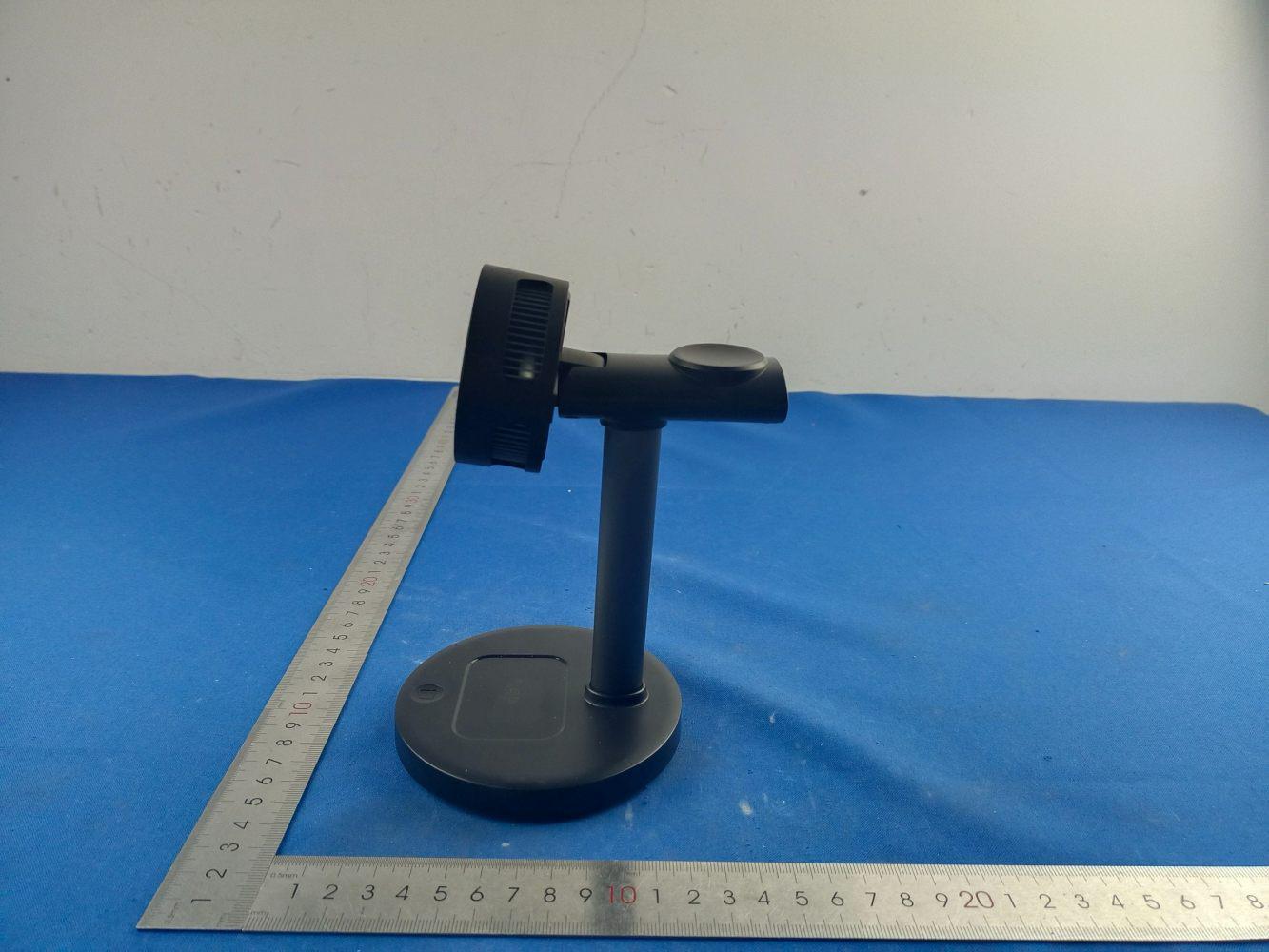

Page1of11ReportNo.:MTi250917010-0105 Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China. Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] PhotographsoftheEUT Model:AK61 External Page2of11ReportNo.:MTi250917010-0105 Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China. Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] Page3of11ReportNo.:MTi250917010-0105 Address:101,No.7,Zone2,XinxingIndustrialPark,FuhaiAvenue,XinheCommunity,FuhaiStreet,Bao’anDistrict,Shenzhen,Guangdong,China. Tel:0755-88850135-1439Mobile:131-4343-1439(Wechatsamenumber)Web:http://www.mtitest.cnE-mail:[email protected] Page4of11ReportNo.: MTi250917010-0…

Text truncated - open the document above for the full version.
