GPON 1GE+WiFi ONU Introduction_V1.1 1 Access the world Introduction 1.1 Product Description GPON 1GE+WiFi ONU is support Dual mode(GPON), It can also be applied to a wide temperature environment, good WiFi coverage and also has a powerful firewall function. GPON 1GE+WiFi ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x. Figure 1 GPON 1GE+WiFi ONU 1.2 Product categories Product model Product specification Chipset SDRAM Memory V2801RGW 1 GPON+1GE+WiFi Realtek 64MB Table 1 Product categories GPON 1GE+WiFi ONU Introduction_V1.1 2Access the world 1.3 Application Chart Figure 2 Application Chart 1.3 Technical parameters Technical item 1GE+WiFi PON interface 1 GPON port(GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM LAN interface 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector WiFi interface Compliant with IEEE802.11b/g/n Operating frequency: 2.412-2.462GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: multiple SSID Channel:13 LED 5, For Status of POWER、LOS、PON、LAN、WiFi Operating condition Temperature: 0°C～+50°C Humidity: 10%～90%（non-condensing） Storing condition Temperature : -30°C～+60°C Humidity :10%～90%（non-condensing） Power supply DC 12V/0.5A Power consumption ≤6W EPON/GPON OLT GPON 1GE+WiFi ONU Introduction_V1.1 3 Access the world Dimension 120mm×78mm×30mm（L×W×H） Net weight 0.15Kg Table 2 Technical parameters 1.4 Panel lights LED Mark Status Description Power POWER On The device is powered up. Off The device is powered down. Optical signal loss LOS Blink Device does not receive optical signals. Off Device has received optical signal. Registration REG On The device is registered to the PON system. Off Device is not registered to the PON system. Blink Device registration is incorrect. Interface LINK/ACT On Port is connected properly (LINK). Off Port connection exception or not connected. Blink Port is sending or/and receiving data (ACT). WiFi WiFi On WiFi running. Off WiFi not working. Table 3 Panel lights on 1.6 Interface description Port Type Function PON Connect PON port with internet by SC/UPC type, single mode optical fiber cable. LAN Connect device with ethernet port by RJ-45 cat5 cable. RST Press down reset button and keep1-5seconds to make the device restart and recover from the factory default settings. Power ON/OFF Power on and Power off. DC12V Connect with power adapter. Table 4 Interface description GPON 1GE+WiFi ONU Introduction_V1.1 4Access the world 1.7 Software Key Feature Software Key Feature Software mode Routing mode. WiFi IEEE802.11b/g/n WiFi Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Layer3 IPv4, DHCP Client/Server , PPPoE,. Multicast IGMP v1/v2/v3 , IGMP snooping. Security Flow & Storm control, Loop Detection. O&M WEB/TELNET. Table 5 Software Key Feature FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help important announcement Important Note: Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-03-12> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVIF-V2801RGW V2801RGW For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name / Title: Chunming Chen / Chairman Company Name: Guangzhou V-Solution Telecommunication Technology Co., Ltd. Address: 601, Building B2, No.162, Science Avenue, ScienceCity, Guangzhou High-tech Industrial DevelopmentZone, Guangzhou, Guangdong, China Tel: 86-020-32211696 Fax: 86-020-32211040 E-Mail: [email protected]

Guangzhou V-Solution Telecommunication Technology Co., Ltd. 601, Building B2, No.162, Science Avenue, ScienceCity, Guangzhou High-tech Industrial DevelopmentZone, Guangzhou, Guangdong, China Date: March 12, 2020 FCC ID: 2AVIF-V2801RGW Model Number: V2801RGW To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Guangzhou V-Solution Telecommunication Technology Co., Ltd., declare that this EUT (FCC ID: 2AVIF-V2802GW) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name / Title: Chunming Chen / Chairman Company Name: Guangzhou V-Solution Telecommunication Technology Co., Ltd. Address: 601, Building B2, No.162, Science Avenue, ScienceCity, Guangzhou High-tech Industrial DevelopmentZone, Guangzhou, Guangdong, China Tel: 86-020-32211696 Fax: 86-020-32211040 E-Mail: [email protected]

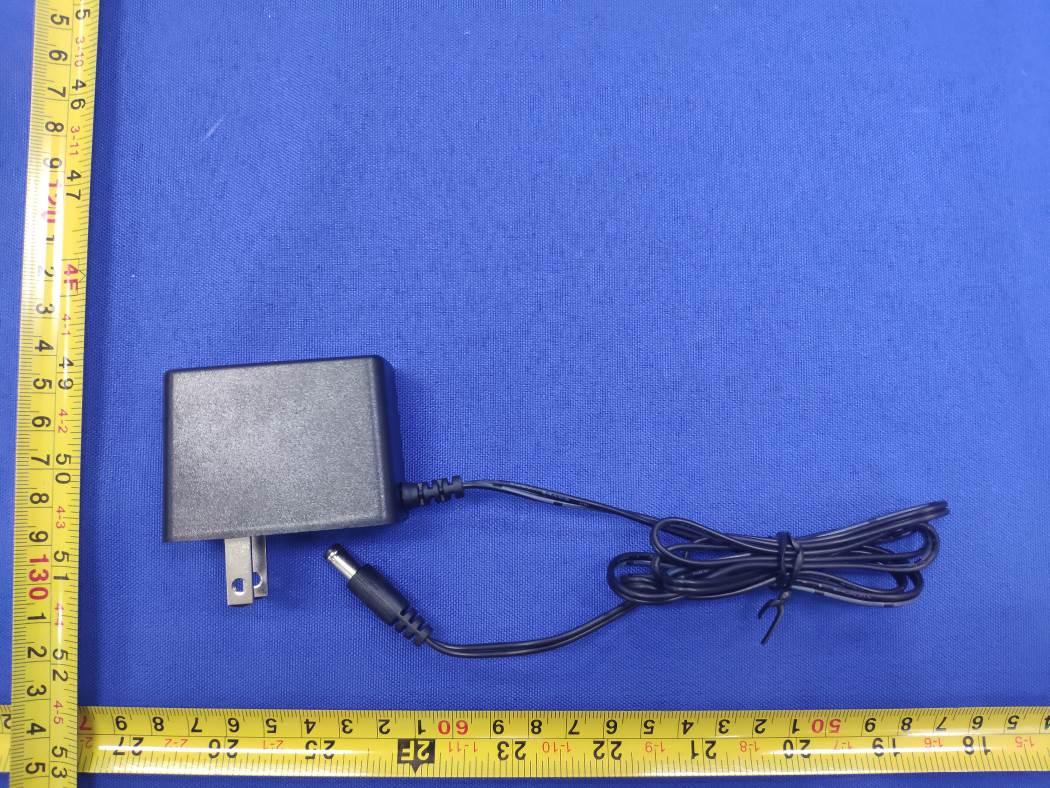

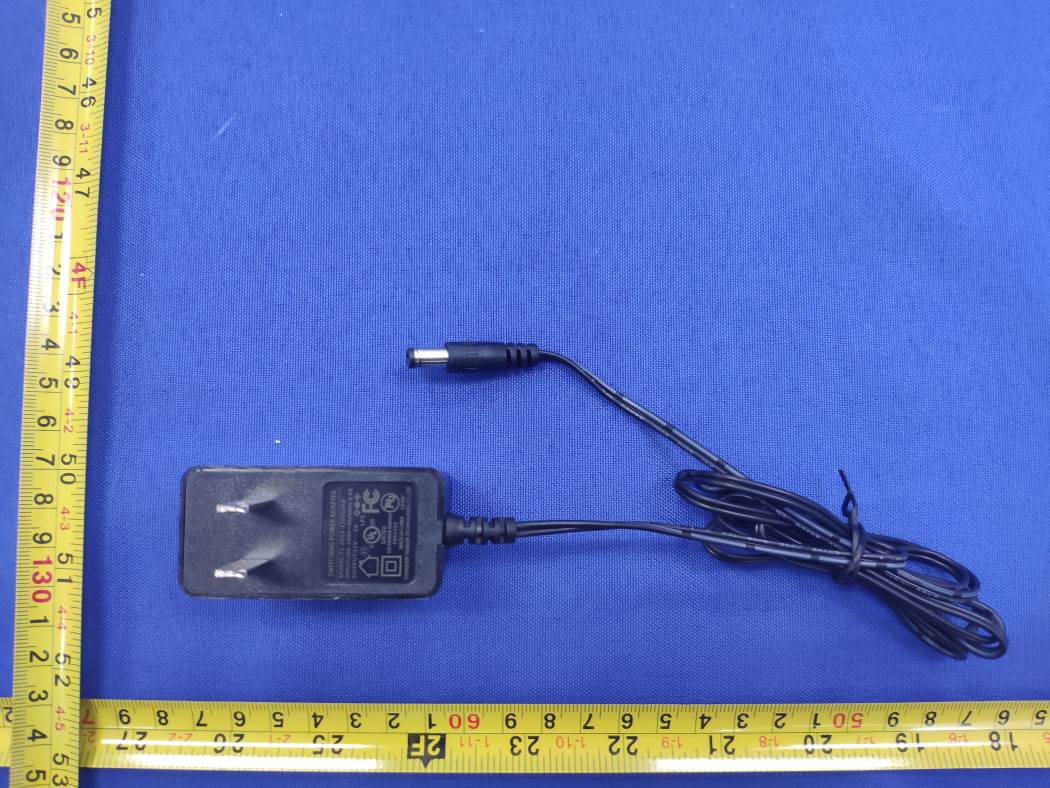

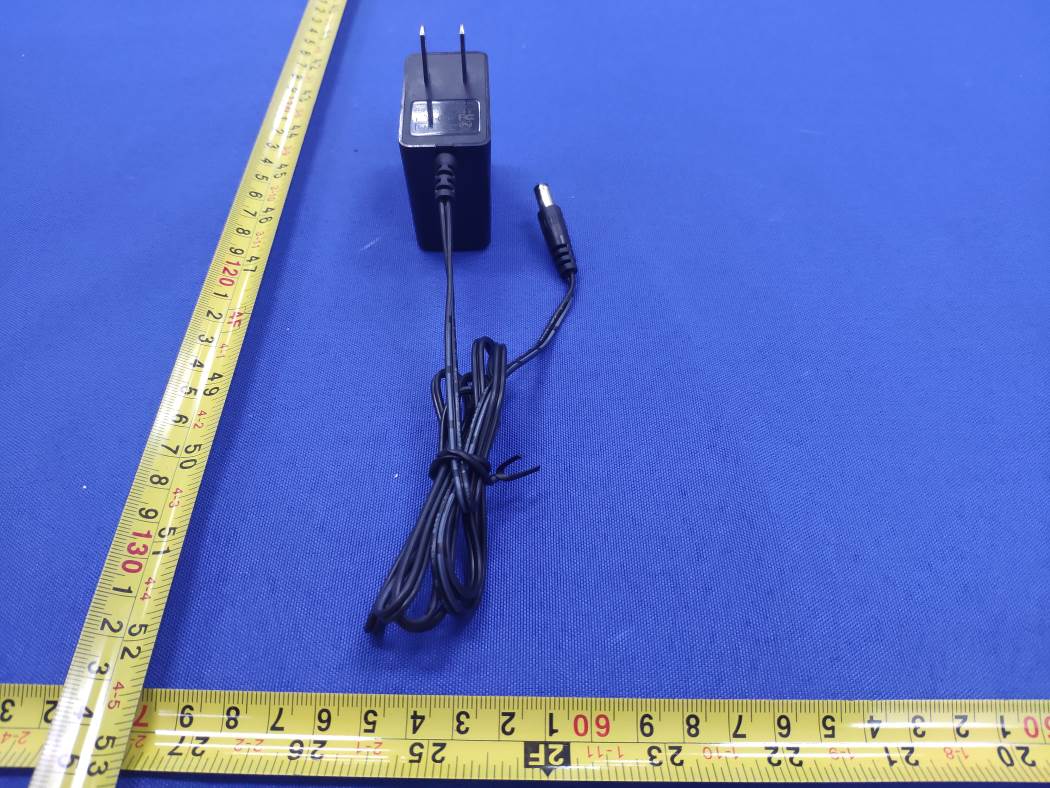

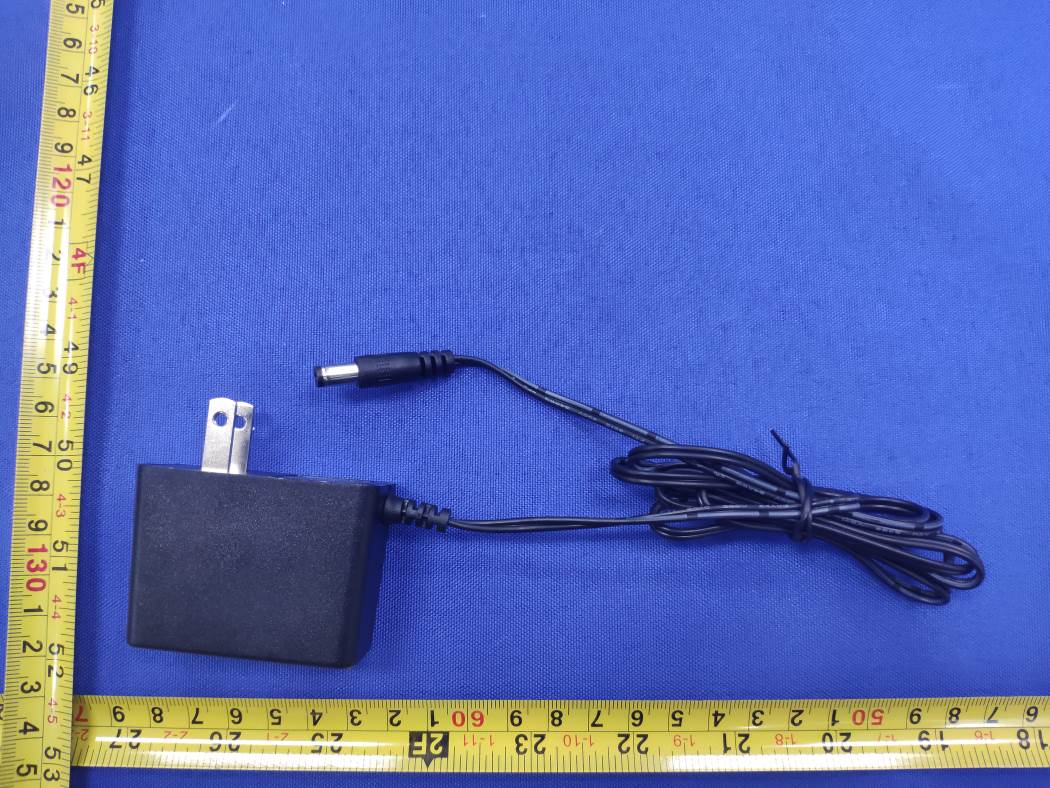

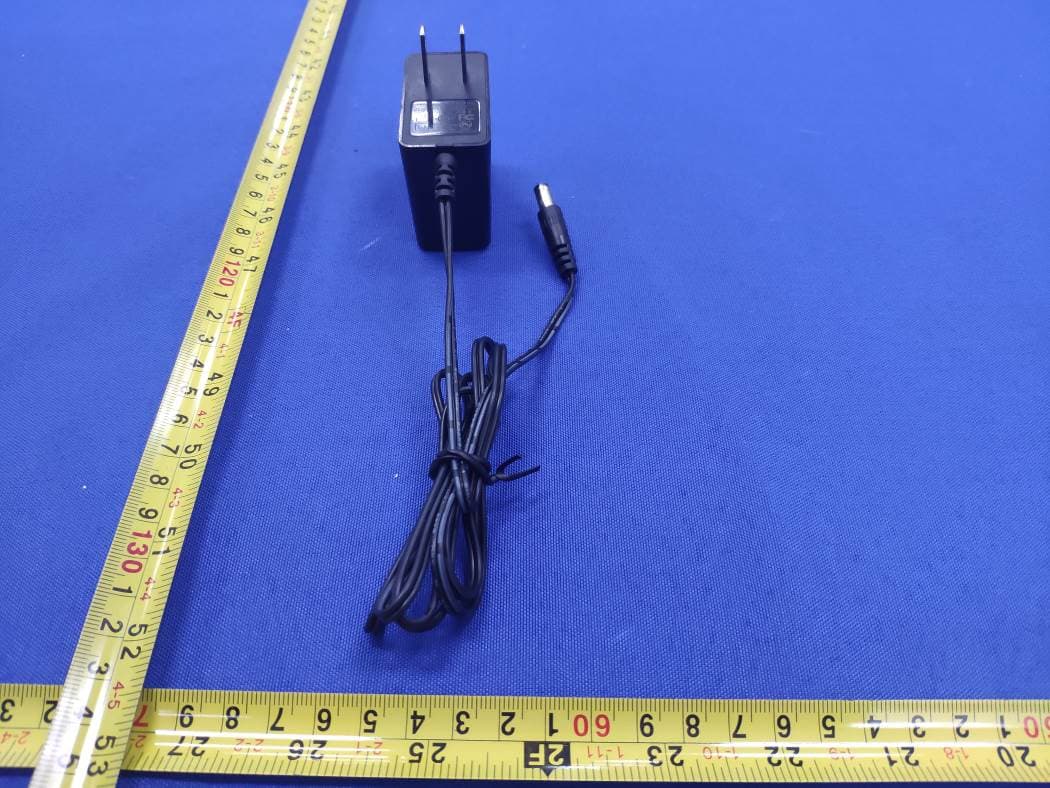

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2801RGW Report No.: LCS191228024AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Power adapter SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2801RGW Report No.: LCS191228024AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2801RGW Report No.: LCS191228024AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2801RGW Report No.: LCS191228024AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 7 Fig. 7 Fig. 8 EUT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2801RGW Report No.: LCS191228024AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 7 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2801RGW Report No.: LCS191228024AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 7 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2801RGW Report No.: LCS191228024AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 7 Fig. 13 Fig. 14
