2AVIF-V2802GWFiber Router

GPON 1GE+1FE+WiFi+CATV ONU Introduction V1.1 1 Access the world Introduction 1.1 Product Description GPON 1GE+1FE+WiFi+CATV ONU meets telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements to design an GPON Gigabit Ethernet products. It is based on mature and stable, cost-effective GPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of ITU-TG.984.x , China Telecom GPON equipment technical requirements and other specifications. Figure 1 1GE+1FE+WiFi ONU Figure 2 1GE+1FE+WiFi+CATV ONU 1.2 Product categories Product model Product specification Chipset SDRAM Memory V2802GW 1 GPON+1GE+1FE+WiFi Realtek 64MB V2802GWT 1 GPON+1GE+1FE+WiFi +CATV Table 1 Product categories GPON 1GE+1FE+WiFi+CATV ONU Introduction V1.1 2 Access the world 1.3 Application Chart Figure 3 Application Chart 1.4 Technical parameters Technical item 1GE+1FE+WiFi 1GE+1FE+WiFi+CATV PON interface 1 GPON port(GPON Class B+) Receiving sensitivity: ≤-28dBm, Saturability: -8dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM Wavelength Tx1310nm,Rx 1490nm Tx1310nm,Rx 1490nm and 1550nm Optical interface SC/UPC connector SC/APC connector(signal fiber with WDM) LAN interface 1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector WiFi interface Compliant with IEEE802.11b/g/n Operating frequency: 2.412-2.462GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: multiple SSID Channel:13 CATV interface RF, optical power : +2~-18dBm Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 78dBuV（-7dBm optical input） AGC range: +2~-7dBm MER: ≥32dB(-14dBm optical input) LED 6, For Status of POWER、LOS、 PON、GE、FE、WiFi 7, For Status of POWER、LOS、PON、 GE、FE、WiFi、CATV Operating condition Temperature: 0°C～+50°C Humidity: 10%～90%（non-condensing） Storing Temperature: -30°C～+70°C EPON/GPON OLT GPON 1GE+1FE+WiFi+CATV ONU Introduction V1.1 3 Access the world condition Humidity: 10%～90%（non-condensing） Power supply DC 12V/1A Power supply ≤6W ≤7W Dimension 185mm×120mm×34mm（L×W×H） Net weight 0.24Kg 0.29Kg Table 2 Technical parameters 1.5 Panel lights V2802GW V2802GWT LED Mark Status Description Power PWR On Device is powered up. Off Device is powered down. Optical signal loss LOS Blink Device does not receive optical signals. Off Device has received optical signal. Registration REG On Device is registered to the PON system. Off Device is not registered to the PON system. Blink Device is registering. Interface GE、FE On Port is connected properly. Off Port connection exception or not connected. Blink Port is sending or/and receiving data. Wireless WiFi On WiFi turned on. Off Device is power off or WiFi turned off. Blink WiFi data transmission. PWR LOS REG GE FE CATV WiFi GPON 1GE+1FE+WiFi+CATV ONU Introduction V1.1 4 Access the world CATV(for V2802GWT) CATV On 1550nm wavelength power of input is in normal range. Off 1550nm wavelength power of input is too low or no input. Blink 1550nm wavelength power of input is too high. Table 3 Panel lights on 1.6 Interface description Port Type Function PON V2802GW: SC/UPC type, single mode optical fiber cable V2802GWT: SC/APC type, single mode optical fiber cable with WDM GE、FE Connect device with ethernet port by RJ-45 cat5 cable. RST Press down reset button and keep1-5seconds to make the device restart and recover from the factory default settings. DC12V Connect with power adapter. CATV★ RF connector. Power On/OFF Power turn on/off. Table 4 Interface description Note: 1. With ★ tags, it is only for V2802GWT. 1.7 Software Parameters Parameter Name Software Parameters Software mode Routing Mode LAN Support Loop Detection Support Storm Control Multicast Support IGMPv1/v2 Support IGMP Snooping QoS Support SP and WRR Support 802.1P L3 Support DHCP/PPPOE Support NAT WiFi IEEE802.11b/g/n, Up to 300Mbps Support Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Support Wireless channel selection Management Support WEB Support Telnet Table 5 Software Parameters FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to Consult the dealer or an experienced radio/TV technician for help important announcement Important Note: Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-03-12> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVIF-V2802GW V2802GW, V2802GWT For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name / Title: Chunming Chen / Chairman Company Name: Guangzhou V-Solution Telecommunication Technology Co., Ltd. Address: 601, Building B2, No.162, Science Avenue, ScienceCity, Guangzhou High-tech Industrial DevelopmentZone, Guangzhou, Guangdong, China Tel: 86-020-32211696 Fax: 86-020-32211040 E-Mail: [email protected]

Guangzhou V-Solution Telecommunication Technology Co., Ltd. 601, Building B2, No.162, Science Avenue, ScienceCity, Guangzhou High-tech Industrial DevelopmentZone, Guangzhou, Guangdong, China Date: March 12, 2020 FCC ID: 2AVIF-V2802GW Model Number: V2802GW, V2802GWT To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Guangzhou V-Solution Telecommunication Technology Co., Ltd., declare that this EUT (FCC ID: 2AVIF-V2802GW) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name / Title: Chunming Chen / Chairman Company Name: Guangzhou V-Solution Telecommunication Technology Co., Ltd. Address: 601, Building B2, No.162, Science Avenue, ScienceCity, Guangzhou High-tech Industrial DevelopmentZone, Guangzhou, Guangdong, China Tel: 86-020-32211696 Fax: 86-020-32211040 E-Mail: [email protected]

Guangzhou V-Solution Telecommunication Technology Co., Ltd. 601, Building B2, No.162, Science Avenue, Science City, Guangzhou High-tech Industrial Development Zone, Guangzhou, Guangdong, China Product Similarity Declaration Date: March 12, 2020 FCC ID: 2AVIF-V2802GW Model Number: V2802GW, V2802GWT To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Guangzhou V-Solution Telecommunication Technology Co., Ltd. hereby declare that our product (Fiber Router) Model Number: V2802GW, V2802GWT difference as follows; Others like WLAN modular, board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name / Title: Chunming Chen / Chairman Company Name: Guangzhou V-Solution Telecommunication Technology Co., Ltd. Address: 601, Building B2, No.162, Science Avenue, ScienceCity, Guangzhou High-tech Industrial DevelopmentZone, Guangzhou, Guangdong, China Tel: 86-020-32211696 Fax: 86-020-32211040 E-Mail: [email protected]

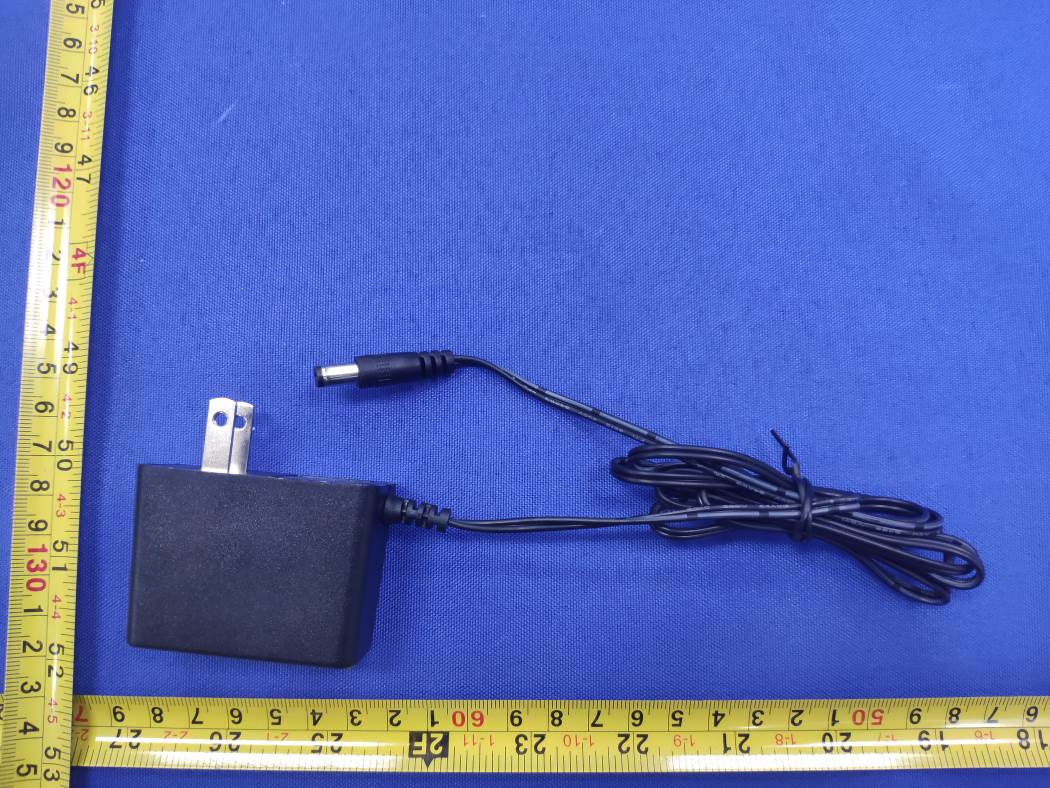

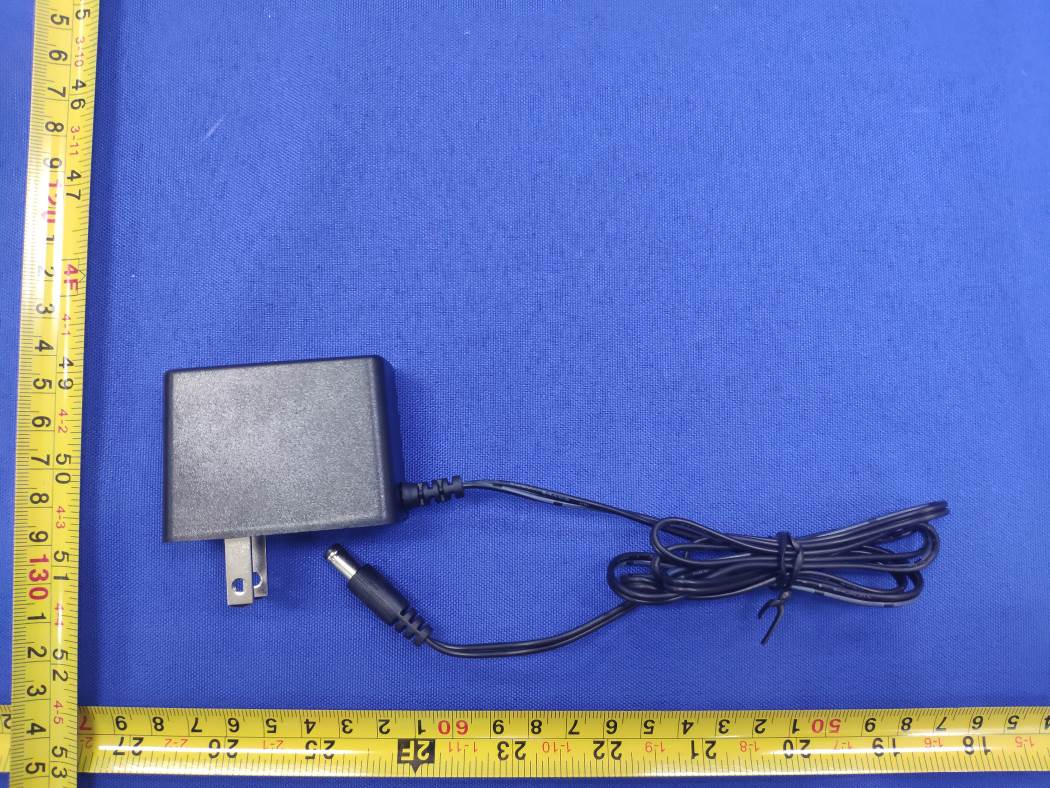

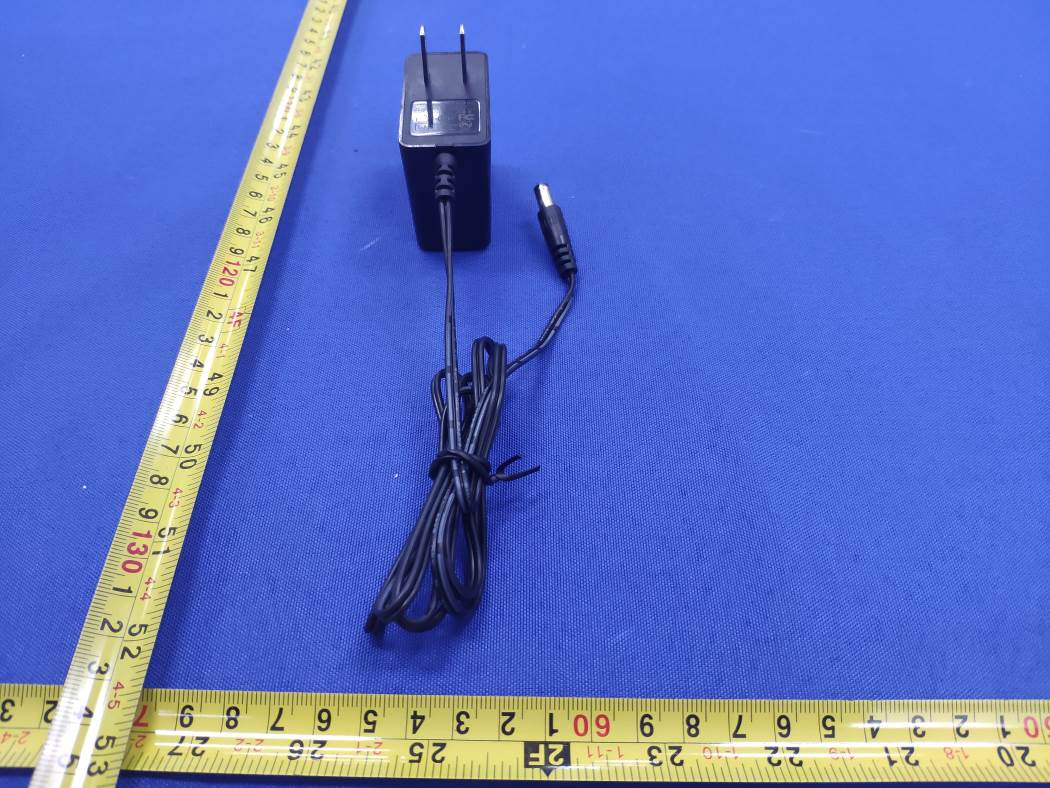

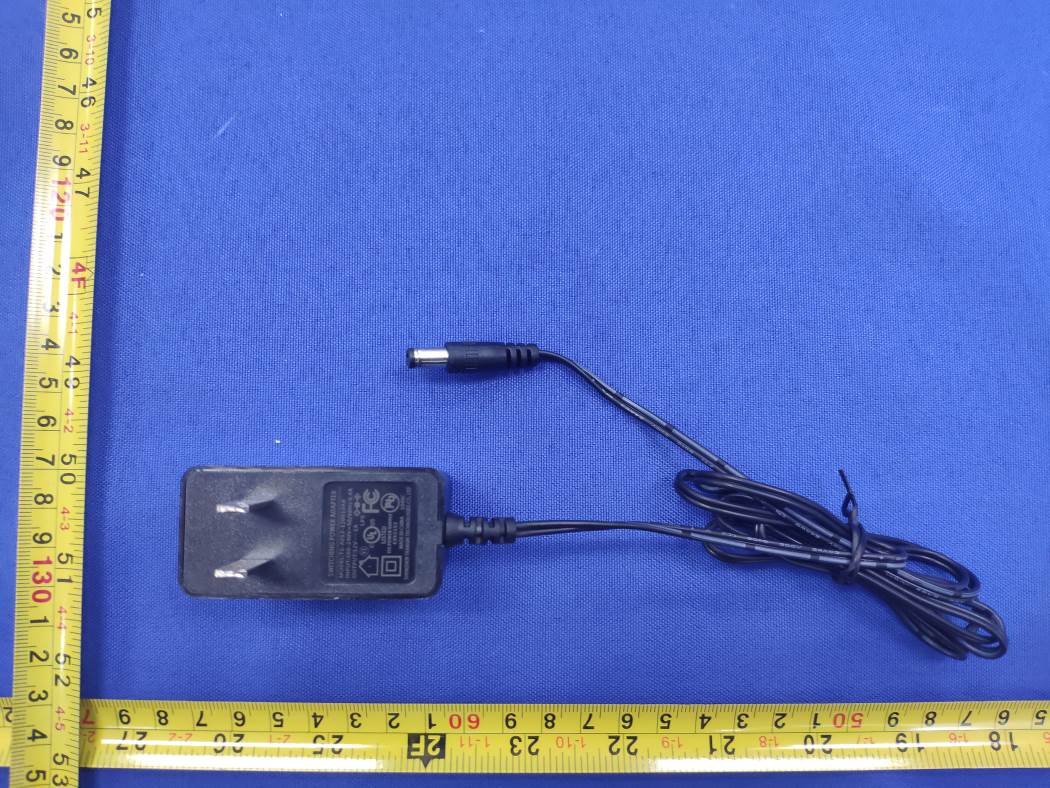

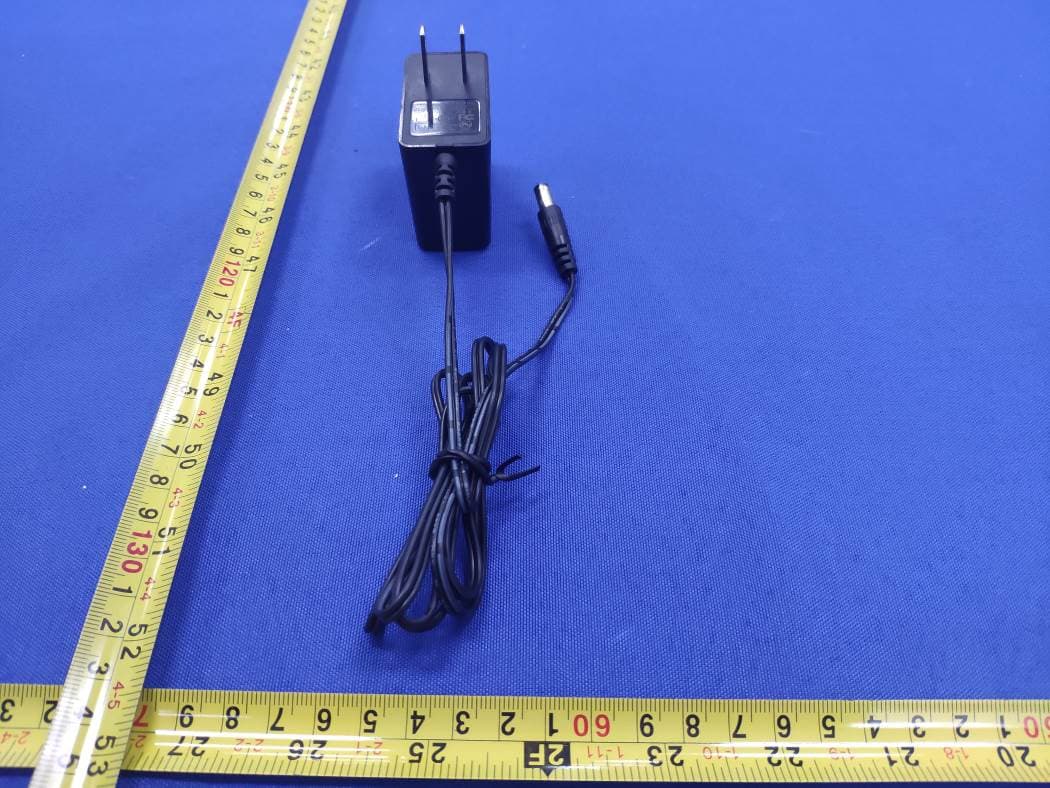

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 11 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Power Adapter SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 11 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 11 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 11 Fig. 7 Model: V2802GW Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 11 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 11 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 11 Fig. 13 Fig. 14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 8 of 11 Model: V2802GWT Fig. 15 Fig. 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 9 of 11 Fig. 17 Fig. 18 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 10 of 11 Fig. 19 Fig. 20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 11 of 11 Fig. 21

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L5.0cm*W4.0cm Label Location Model: V2802GW FCC ID: 2 AV I F-V2802GW This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 1 Label Location Model: V2802GWT FCC ID: 2 AV I F-V2802GW This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 8 1. INTERIOR PHOTOGRAPHS Model: V2802GW Fig. 1 Fig. 2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 8 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 8 Fig. 5 Model: V2802GWT Fig. 6 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 8 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 8 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 8 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 8 Fig. 13 Fig. 14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228022AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 8 of 8 Fig. 15

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2AVIF-V2802GW Product name Fiber Router Model number V2802GW, V2802GWT Model Declaration V2802GWT have one CATV port compare V2802GW Hardware version / Software version / Power supply Input:AC100-240V, 50/60Hz, 0.4A Output: 12V1A 2.4G WLAN Operation frequency IEEE 802.11b: 2412 – 2462 MHz IEEE 802.11g: 2412 – 2462 MHz IEEE 802.11n HT20: 2412 – 2462 MHz IEEE 802.11n HT40: 2422 – 2452 MHz Modulation Type IEEE 802.11b: DSSS (CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK,BPSK) Antenna Type and Gain for 2.4G WLAN Chain 0: External antenna, 5.0dBi (Max.) Chain 1: Internal antenna, 5.0dBi (Max.) The Directional Gain is 8.01dBi. Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information V2802GWT can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Antenna 1 External Antenna 2000 MHz – 2500 MHz 5.0dBi Antenna 2 External Antenna 2000 MHz – 2500 MHz 5.0dBi SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. RF Output Power Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) Antenna 1 Antenna 2 Sum IEEE 802.11b 1 2412 17.464 18.429 / 6 2437 17.784 19.225 / 11 2462 17.357 19.494 / IEEE 802.11g 1 2412 16.059 16.461 / 6 2437 15.861 17.222 / 11 2462 15.841 17.474 / IEEE 802.11n HT20 1 2412 15.598 16.281 18.963 6 2437 16.144 17.080 19.647 11 2462 15.705 17.138 19.491 IEEE 802.11n HT40 3 2422 14.372 14.998 17.707 6 2437 14.449 15.810 18.193 9 2452 14.434 15.417 17.964 7. Manufacturing Tolerance 2.4GWLAN (Antenna 1) IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 17.0 17.0 17.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 16.0 16.0 16.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 16.0 16.0 16.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT40 (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 14.0 14.0 14.0 Tolerance ±…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 1 of 79 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Fiber Router Trade Mark: Test Model: V2802GWT Environmental Conditions Temperature: 21.6 ° C Relative Humidity: 52.6% ATM Pressure: 100.0 kPa Test Engineer: WANGCHUANG Supervised by: Jayden.Zhuo B A.1 Duty Cycle ANT1 Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS ANT2 Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant2 100 PASS 11G 2437 Ant2 100 PASS 11N20SISO 2437 Ant2 100 PASS 11N40SISO 2437 Ant2 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 2 of 79 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 3 of 79 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 4 of 79 Duty Cycle_11B_2437_Ant2 Duty Cycle_11G_2437_Ant2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 5 of 79 Duty Cycle_11N20SISO_2437_Ant2 Duty Cycle_11N40SISO_2437_Ant2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 6 of 79 A.2 Maximum Power Spectral Density Test Graphs_ Ant1 11B/LCH 11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 7 of 79 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 8 of 79 11G/MCH 11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 9 of 79 11N20SISO/LCH 11N20SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 10 of 79 11N20SISO/HCH 11N40SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 11 of 79 11N40SISO/MCH 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 12 of 79 Test Graphs_ Ant2 11B/LCH 11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 13 of 79 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 14 of 79 11G/MCH 11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 15 of 79 11N20SISO/LCH 11N20SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 16 of 79 11N20SISO/HCH 11N40SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 17 of 79 11N40SISO/MCH 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 18 of 79 A.3 6dB Bandwidth Test Graphs_ Ant1 11B/LCH 11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 19 of 79 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 20 of 79 11G/MCH 11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 21 of 79 11N20SISO/LCH 11N20SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 22 of 79 11N20SISO/HCH 11N40SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 23 of 79 11N40SISO/MCH 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 24 of 79 Test Graphs_ Ant2 11B/LCH 11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 25 of 79 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 26 of 79 11G/MCH 11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 27 of 79 11N20SISO/LCH 11N20SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 28 of 79 11N20SISO/HCH 11N40SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 29 of 79 11N40SISO/MCH 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 30 of 79 A.4 RF Conducted Spurious Emissions Mode Channel Antenna Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict 11B LCH Ant1 3.933 -53.231 -16.07 PASS MCH Ant1 1.989 -50.527 -18.01 PASS HCH Ant1 3.738 -47.901 -16.31 PASS 11G LCH Ant1 -3.969 -56.311 -23.97 PASS MCH Ant1 -3.785 -56.512 -23.79 PASS HCH Ant1 -4.086 -56.746 -24.09 PASS 11N20SISO LCH Ant1 -3.943 -55.351 -23.94 PASS MCH Ant1 -3.766 -56.438 -23.77 PASS HCH Ant1 -3.983 -57.291 -23.98 PASS 11N40SISO LCH Ant1 -9.098 -56.408 -29.10 PASS MCH Ant1 -7.762 -57.482 -27.77 PASS HCH Ant1 -7.717 -55.765 -27.72 PASS 11B LCH Ant2 -0.739 --51.175 -20.74 PASS MCH Ant2 0.443 -52.373 -19.56 PASS HCH Ant2 1.694 -1.514 -18.31 PASS 11G LCH Ant2 -8.239 -51.423 -28.24 PASS MCH Ant2 -6.995 -51.764 -26.98 PASS HCH Ant2 -5.833 -53.247 -25.83 PASS 11N20SISO LCH Ant2 -8.669 -51.343 -28.67 PASS MCH Ant2 -7.423 -53.292 -27.42 PASS HCH Ant2 -6.222 -53.259 -26.22 PASS 11N40SISO LCH Ant2 -11.983 -51.501 -31.98 PASS MCH Ant2 -11.097 -52.116 -31.10 PASS HCH Ant2 -10.414 -54.324 -30.41 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 31 of 79 11B_LCH_ Test Graphs_ Ant1 Pref/1…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 41 of 79 11N40SISO_MCH_ Test Graphs_ Ant1 Pref/11N40 SISO/MCH Puw/11N40 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 42 of 79 11N40SISO_HCH_ Test Graphs_ Ant1 Pref/11N40 SISO/HCH Puw/11N40 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 43 of 79 11B_LCH_ Test Graphs_ Ant2 Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 44 of 79 11B_MCH_ Test Graphs_ Ant2 Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 45 of 79 11B_HCH_ Test Graphs_ Ant2 Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 46 of 79 11G_LCH_ Test Graphs_ Ant2 Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 47 of 79 11G_MCH_ Test Graphs_ Ant2 Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 48 of 79 11G_HCH_ Test Graphs_ Ant2 Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 49 of 79 11N20SISO_LCH_ Test Graphs_ Ant2 Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 50 of 79 11N20SISO_MCH_ Test Graphs_ Ant2 Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVIF-V2802GW Report No.: LCS191228023AEA Page 51 of 79 11N20SISO_HCH_ Test Graphs_ Ant2 Pref/11N20 SISO/HCH Puw/11N2…
