2AVIT-TW220ANC Wireless Earbuds

Earfun Technology (HK) Limited

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: May 07, 2024
Application Purpose: Original Equipment
Date of Application: May 07, 2024
Equipment Note: ANC Wireless Earbuds
Frequency Range: 2402.00000000 - 2480.00000000
Company: Earfun Technology (HK) Limited
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

Earfun Technology (HK) Limited * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 4/28/2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2AVIT-TW220 Applicant of FRN: 0029085636 Per section 2.911(d)(7) of the FCC rules, Earfun Technology (HK) Limited (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: EARFUN, INC FCC Registration Number (FRN): 0033640855 Physical U.S. Company Address: 8605 SANTA MONICA BLVD #79525 WEST HOLLYWOOD, CA 90069-4109 Contact Person: ZILI WANG Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Signed: Printed name: Rocky Deng Printed name: ZILI WANG Title: Engineer Title: CEO Company Name: Earfun Technology (HK) Limited Company Name: EARFUN, INC Date: 4/28/2024 Date: 4/28/2024

Attestation Statements

Earfun Technology (HK) Limited Covered Equipment Certification Attestation Letter 4/28/2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2AVIT-TW220 Earfun Technology (HK) Limited (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Signed: Printed name: Rocky Deng Title: Engineer Company Name: Earfun Technology (HK) Limited Date: 4/28/2024

Cover Letter(s)

Earfun Technology (HK) Limited DATE : 2024.04.28 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address: Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Earfun Technology (HK) Limited Address: FLAT/RM A 9F,SILVERCORP INTERNATIONAL TOWER, 707-713 NATHAN ROAD MONGKOK KL, HONG KONG (Applicant Name and address) <Signature> Name: Rocky Deng Title: Engineer Company: Earfun Technology (HK) Limited

Cover Letter(s)

Earfun Technology (HK) Limited DATE : 2024.04.28 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AVIT-TW220 Product Name: ANC Wireless Earbuds Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Rocky Deng Title: Engineer Company: Earfun Technology (HK) Limited

Cover Letter(s)

Earfun Technology (HK) Limited The differences between the left earbud and right earbud are that PCB layout and antenna gain. Its circuit, RF parameter and antenna are identical. Model：TW220 <Signature> Name: Rocky Deng Title: Engineer Company: Earfun Technology (HK) Limited

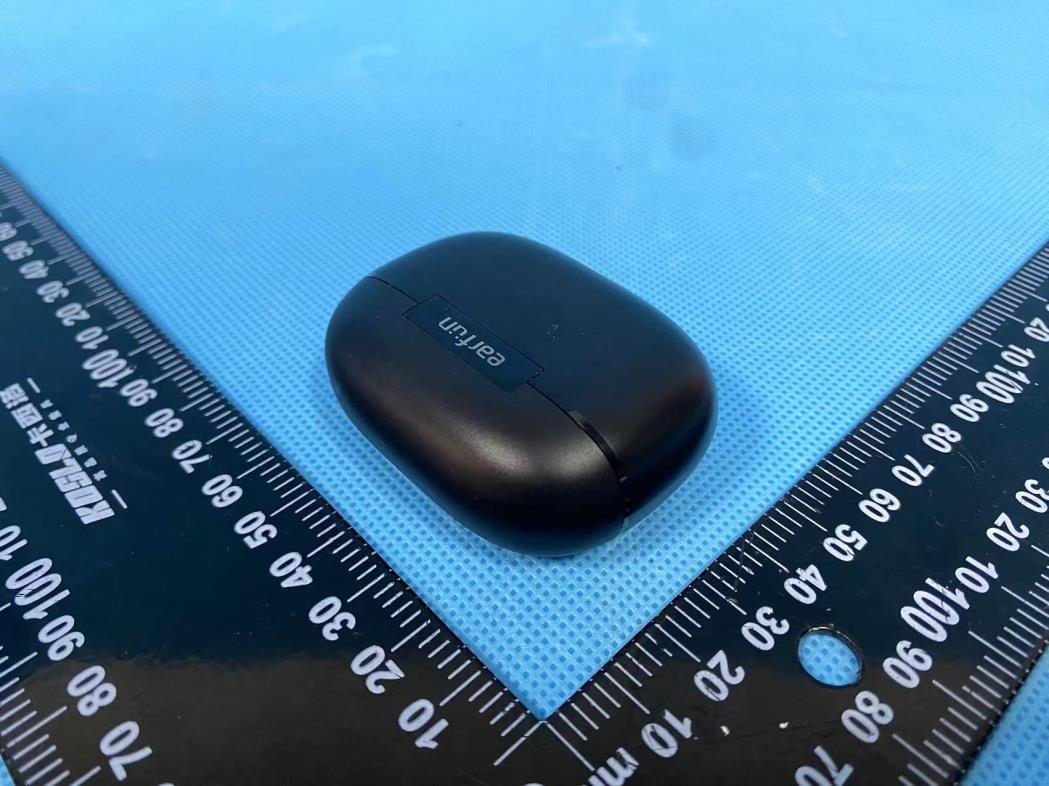

External Photos

External photos M/N: TW220 External photos M/N: TW220 External photos M/N: TW220 External photos M/N: TW220

Internal Photos

Internal photos M/N: TW220 Internal photos M/N: TW220 Internal photos M/N: TW220 Bluetooth antenna Internal photos M/N: TW220

RF Exposure Info

Page 1 of 4 Report No. ESTE-R2404186 FCC RF EXPOSURE REPORT Earfun Technology (HK) Limited ANC Wireless Earbuds Model Number: TW220 FCC ID: 2AVIT-TW220 Applicant: Earfun Technology (HK) Limited Address: FLAT/RM A 9F,SILVERCORP INTERNATIONAL TOWER, 707-713 NATHAN ROAD MONGKOK KL, HONG KONG Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2404186 Date of Test: Apr. 07, 2024~ Apr. 22, 2024 Date of Report: Apr. 25, 2024 Page 2 of 4 Report No. ESTE-R2404186 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KDB 447498 D04 Interim General RF Exposure Guidance v01 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 300 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 3 of 4 Report No. ESTE-R2404186 3. Evaluation Results Left Earbud: Mode Frequency (MHz) Peak output Power (dBm) Antenna Gain (dBi) effective radiated power (dBm) Target power (dBm) Max. Target power (mW) SAR Test Exemption Limit (mW) GFSK 2402 -0.32 2.98 0.51 0±1 1.259 2.72 2441 -0.69 2.98 0.14 0±1 1.259 2.72 2480 -1.3 2.98 -0.47 0±1 1.259 2.72 π/4- DQPSK 2402 -0.21 2.98 0.62 0±1 1.259 2.72 2441 -0.62 2.98 0.21 0±1 1.259 2.72 2480 -1.29 2.98 -0.46 0±1 1.259 2.72 8-DPSK 2402 -1.43 2.98 -0.6 0±1 1.259 2.72 2441 -1.84 2.98 -1.01 -1±1 1.000 2.72 2480 -2.62 2.98 -1.79 -1±1 1.000 2.72 BLE 1M 2402 -0.34 2.98 0.49 0±1 1.259 2.72 2440 -0.68 2.98 0.15 0±1 1.259 2.72 2480 -1.46 2.98 -0.63 0±1 1.259 2.72 BLE 2M 2402 -2.12 2.98 -1.29 -1±1 1.000 2.72 2440 -2.38 2.98 -1.55 -1±1 1.000 2.72 2480 -3.13 2.98 -2.3 -2±1 0.794 2.72 Page 4 of 4 Report No. ESTE-R2404186 Right Earbud: Mode Frequency (MHz) Peak output Power (dBm) Antenna Gain (dBi) effective radiated power (dBm) Target power (dBm) Max. Target power (mW) SAR Test Exemption Limit (mW) GFSK 2402 -1.68 2.96 -0.87 0±1 1.259 2.72 2441 -1.69 2.96 -0.88 0±1 1.259 2.72 2480 -2.32 2.96 -1.51 -1±1 1.000 2.72 π/4- DQPSK 2402 -1.66 2.96 -0.85 0±1 1.259 2.72 2441 -1.71 2.96 -0.9 0±1 1.259 2.72 2480 -2.22 2.96 -1.41 -1±1 1.000 2.72 8-DPSK 2402 -2.97 2.96 -2.16 -2±1 0.794 2.72 2441 -2.92 2.96 -2.11 -2±1 0.794 2.72 2480 -3.63 2.96 -2.82 -2±1 0.794 2.72 BLE 1M 2402 -1.86 2.96 -1.05 -1±1 1.000 2.72 2440 -1.76 2.96 -0.95 0±1 1.259 2.72 2480 -2.41 2.96 -1.6 -1±1 1.000 2.72 BLE 2M 2402 -3.58 2.96 -2.77 -2±1 0.794 2.72 2440 -3.5 2.96 -2.69 -2±1 0.794 2.72 2480 -4.2 2.96 -3.39 -3±1 0.631 2.72 Note: 1. Limited=3060*(0.5/20)^x, x=-log(60/(3060*√f)). 2. We choose f=2.48GHz (Highest frequency operate at bluetooth) to calculate MPE limit as higher frequency will have lower MPE limits. 3. SAR Test Exclusion Thresholds is 2.72mW for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

Test Report

1 承认书 SPECIFICATIONFORAPPROVAL 客户名称 CUSTOMERNAME:东莞市汉凯电子有限公司客户料号 CUSTOMERP/N:108.01.00657 产品料号 PRODUCTP/N:HJA37-L-A9 产品名称 PRODUCTNAME:FPC 天线规格描述： Description BT2400-FPCB内置蓝牙耳机天线（A37-L) 版本 REV:A0 出厂签章 S I G N 核准 APPROVEDBY 审核 CHECKEDBY 制作 DRAMN 客户签章 S I G N 品质 QE 开发 R&D 工程 PE 2 目录 Contents 一、版本履历表（RevisionHistory）二、规格表（SpecificationTable）三、成品图（ProductDrawing）四、包装规范（PackagingSpecifications）五、测试报告（TestReport）六、全尺寸测量报告（FullsizemeasurementReport）七、可靠性测试报告（ReliabilityTestReport）八、天线实物图（Antennadiagram） 3 一、版本履历表（ RevisionHistory ）：说明：本规格书原则上有效期为1年；若任一方需要修改时，需经双方协商一致，修改后方可执行；在本规格书有效期满后，双方均未提出修改要求时，则本规格书有效期顺延1年。 4 二、规格表（ SpecificationTable ）：主要技术指标Maintechnicalspecifications 频率范围（MHZ） 2400~2480 FrequencyRange (MHZ) 2400~2480 特性阻抗(Ω) 50Impedance(Ω)50 输出电压驻波比 ≤2.0 VSWR ≤2.0 极化方式线极化PolarizationLinear,Vertical 方向性全向性 RadiationOmni-directional 连接方式顶针/弹片ConnectorTypeThimble/shrapnel 物理性能PhysicalProperties 天线本体材料 FPCBAntennacoverFPCB 工作温度 -20°C~+70°COperatingTemp-20°C~+70°C 保存温度 -20°C~+60°CStorageTemp-20°C~+60°C 5 三、成品图（Productdrawing）：符合环保 R o H S 2 . 0 鸿基无线通信（深圳）有限公司 A 0 2 0 2 3 / 1 2 / 0 8 调整线路 A 1 2 0 2 3 / 1 2 / 2 2 变更线路 2 0 2 4 / 1 / 3 0 2 0 2 4 / 3 / 0 1 在 A 3 版本尾部剪短 A 4 2 0 2 4 / 3 / 0 2 A 5 2 0 2 4 / 3 / 0 4 2 0 2 4 / 3 / 1 3 日期版本新发行变更内容 A 3 A 2 变更线路变更线路在 A 3 版本上变更线路 A 6 2 0 2 4 / 3 / 2 1 重调 A 7 2 0 2 4 / 3 / 2 6 天线变更 A 8 2 0 2 4 / 3 / 2 7 金手指有变更 A 9 6 四、包装规范（Packagingspecifications）：料号：产品名称：FPC天线产品规格：HJA37-L-A9FPC天线包装材料：封口袋、纸箱包装数量：5000PCS/包包装方式：5000pcs/包,一箱1-16包装箱数量：80000PCS 4.1小包装: 250*210 4.2大包装: 4.3 备注： 4.3.1FPC产品以半切出货制作， 4.3.2小包装数量：5000PCS/袋； 4.3.3大包装数量：5000-80000PCS/箱。 4.4 注意事项 : 4.4.1产品的贮存应保证环境温度在-10°C～＋24°C,湿度小于90%，库房无漏雨、地面要防潮、库房周围避免酸雾，盐雾侵蚀。该产品的贮存期为180天； 4.4.2产品的运输可采用陆、水、空运，运输中应防雨淋； 4.4.3堆码要求：XXX；（其他例如：严禁高空抛、掷等......要求）拟制：李晓红审核：张清花核准：毛路平 7 五、测试报告（Testreport）： 5.1匹配电路图： ElementValue E1N/A E20R E3N/A 5.2 网络分析仪测试报告 : E3 IC Ant E2 E1 8 5.3暗室2D、3DRaditationPattern&gain: Freq[MHz] Gain(dBi)Efficiency(%)Gain(dBi)Efficiency(%) 自由空间自由空间二代人头二代人头 24002.1130.24-7.259.56 24102.9331.59-7.8210.18 24202.9831.27-7.1111.25 24302.7032.57-7.4210.39 24402.7633.91-7.1610.78 24502.6333.57-7.8510.07 24602.6932.59-7.9910.74 24702.1631.58-7.2310.5 24802.0830.24-7.5810.24 5.4暗室有源OTA数据： L信道TRP（dbm）TIS（dbm）自由空间 04.56-89.6 394.25-89.87 784.89-89.69 L信道TRP（dbm）TIS（dbm）二代头模 0-3.56-81.78 39-3.48-82.34 78-3.26-81.89 9 六、全尺寸测量报告（Fullsizemeasurementreport）: 10 八、天线实物图（Antennadiagram）

Test Report

1 承认书 SPECIFICATIONFORAPPROVAL 客户名称 CUSTOMERNAME:东莞市汉凯电子有限公司客户料号 CUSTOMERP/N:108.01.00658 产品料号 PRODUCTP/N:HJA37-R-A9 产品名称 PRODUCTNAME:FPC 天线规格描述： Description BT2400-FPCB内置蓝牙耳机天线（A37-R) 版本 REV:A0 出厂签章 S I G N 核准 APPROVEDBY 审核 CHECKEDBY 制作 DRAMN 客户签章 S I G N 品质 QE 开发 R&D 工程 PE 2 目录 Contents 一、版本履历表（RevisionHistory）二、规格表（SpecificationTable）三、成品图（ProductDrawing）四、包装规范（PackagingSpecifications）五、测试报告（TestReport）六、全尺寸测量报告（FullsizemeasurementReport）七、可靠性测试报告（ReliabilityTestReport）八、天线实物图（Antennadiagram） 3 一、版本履历表（ RevisionHistory ）：说明：本规格书原则上有效期为1年；若任一方需要修改时，需经双方协商一致，修改后方可执行；在本规格书有效期满后，双方均未提出修改要求时，则本规格书有效期顺延1年。 4 二、规格表（ SpecificationTable ）：主要技术指标Maintechnicalspecifications 频率范围（MHZ） 2400~2480 FrequencyRange (MHZ) 2400~2480 特性阻抗(Ω) 50Impedance(Ω)50 输出电压驻波比 ≤2.0 VSWR ≤2.0 极化方式线极化PolarizationLinear,Vertical 方向性全向性 RadiationOmni-directional 连接方式顶针/弹片ConnectorTypeThimble/shrapnel 物理性能PhysicalProperties 天线本体材料 FPCBAntennacoverFPCB 工作温度 -20°C~+70°COperatingTemp-20°C~+70°C 保存温度 -20°C~+60°CStorageTemp-20°C~+60°C 5 三、成品图（Productdrawing）：符合环保 R o H S 2 . 0 鸿基无线通信（深圳）有限公司 A 6 日期版本新发行变更内容 A 0 2 0 2 3 / 1 2 / 0 8 调整线路 A 1 2 0 2 3 / 1 2 / 2 2 变更线路 A 2 2 0 2 4 / 1 / 3 0 变更线路 A 3 2 0 2 4 / 3 / 0 1 与 L 边同步变更版本号 A 4 2 0 2 4 / 3 / 0 2 变更线路 A 5 2 0 2 4 / 3 / 0 4 与 L 边同步版本号 2 0 2 4 / 3 / 1 3 重调 A 7 2 0 2 4 / 3 / 2 1 天线变更 A 8 2 0 2 4 / 3 / 2 6 2 0 2 4 / 3 / 2 7 金手指有变更 A 9 6 四、包装规范（Packagingspecifications）：料号：10.157.000129产品名称：FPC天线产品规格：HJQT32-L-A2FPC天线包装材料：封口袋、纸箱包装数量：5000PCS/包包装方式：5000pcs/包,一箱1-16包装箱数量：80000PCS 4.1小包装: 250*210 4.2大包装: 4.3 备注： 4.3.1FPC产品以半切出货制作， 4.3.2小包装数量：5000PCS/袋； 4.3.3大包装数量：5000-80000PCS/箱。 4.4 注意事项 : 4.4.1产品的贮存应保证环境温度在-10°C～＋24°C,湿度小于90%，库房无漏雨、地面要防潮、库房周围避免酸雾，盐雾侵蚀。该产品的贮存期为180天； 4.4.2产品的运输可采用陆、水、空运，运输中应防雨淋； 4.4.3堆码要求：XXX；（其他例如：严禁高空抛、掷等......要求）拟制：李晓红审核：张清花核准：毛路平 7 五、测试报告（Testreport）： 5.1匹配电路图： ElementValue E1N/A E20R E3N/A 5.2 网络分析仪测试报告 : E3 IC Ant E2 E1 8 5.3暗室2D、3DRaditationPattern&gain: Freq[MHz] Gain(dBi)Efficiency(%)Gain(dBi)Efficiency(%) 自由空间自由空间二代人头二代人头 24002.5630.22-7.119.12 24102.8531.26-7.5610.41 24202.7831.78-7.0810.58 24302.6932.59-7.5310.06 24402.8633.26-7.429.25 24502.8733.07-7.989.78 24602.7132.28-7.429.42 24702.9631.27-7.1610.75 24802.4230.74-7.429.88 5.4暗室有源OTA数据： L信道TRP（dbm）TIS（dbm）自由空间 04.29-89.96 394.85-90.14 785.23-90.38 L信道TRP（dbm）TIS（dbm）二代头模 0-2.69-82.14 39-3.69-82.56 78-3.57-82.05 9 六、全尺寸测量报告（Fullsizemeasurementreport）: 10 八、天线实物图（Antennadiagram）

Test Report

Page 1 of 122 Report No. ESTE-R2404184 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Earfun Technology (HK) Limited ANC Wireless Earbuds Model Number: TW220 FCC ID: 2AVIT-TW220 Applicant : Earfun Technology (HK) Limited Address: FLAT/RM A 9F,SILVERCORP INTERNATIONAL TOWER, 707-713 NATHAN ROAD MONGKOK KL, HONG KONG Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2404184 Date of Test: Apr. 07, 2024~ Apr. 22, 2024 Date of Report: Apr. 25, 2024 Page 2 of 122 Report No. ESTE-R2404184 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test mode .......................................................................................................................................... 9 2.7. Channel List ..................................................................................................................................... 10 2.8. Power Setting of Test Software .................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................... 12 3.1. Limit ................................................................................................................................................... 12 3.2. Test Setup ........................................................................................................................................ 12 3.3. Spectrum Analyzer Setting ............................................................................................................ 12 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ....................................................................................................................................... 12 4. 20 DB BANDWIDTH ......................................................................................................................... 13 4.1. Limit ................................................................................................................................................... 13 4.2. Test Setup ........................................................................................................................................ 13 4.3. Spectrum Analyzer Setting ............................................................................................................ 13 4.4. Test Procedure ................................................................................................................................ 13 4.5. Test Result ....................................................................................................................................... 13 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 14 5.1. Limit ................................................................................................................................................... 14 5.2. Test Setup ........................................................................................................................................ 14 5.3. Spectrum Analyzer Setting ............................................................................................................ 14 5.4. Test Procedure ................................................................................................................................ 14 5.5. Test Result ....................................................................................................................................... 14 6. NUMBER OF HOPPING CHANNEL ................................................................................................... 15 6.1. Limit ................................................................................................................................................... 15 6.2. Test Setup ........................................................................................................................................ 15 …

Text truncated - open the document above for the full version.

Test Report

Page 65 of 122 Report No. ESTE-R2404184 Appendix E: Number of hopping channels Test Result Test Mode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Page 66 of 122 Report No. ESTE-R2404184 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Page 67 of 122 Report No. ESTE-R2404184 Appendix F: Band edge measurements Test Result Test Mode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.90 -50.4 ≤-20.9 PASS DH5 Ant1 High 2480 -1.84 -50.69 ≤-21.84 PASS DH5 Ant1 Low Hop_2402 -1.48 -50.93 ≤-21.48 PASS DH5 Ant1 High Hop_2480 -2.39 -50.79 ≤-22.39 PASS 2DH5 Ant1 Low 2402 -3.97 -51.65 ≤-23.97 PASS 2DH5 Ant1 High 2480 -4.54 -51.71 ≤-24.54 PASS 2DH5 Ant1 Low Hop_2402 -4.43 -51.48 ≤-24.43 PASS 2DH5 Ant1 High Hop_2480 -5.24 -50.94 ≤-25.24 PASS 3DH5 Ant1 Low 2402 -3.62 -51.13 ≤-23.62 PASS 3DH5 Ant1 High 2480 -5.05 -51.09 ≤-25.05 PASS 3DH5 Ant1 Low Hop_2402 -3.30 -51.15 ≤-23.3 PASS 3DH5 Ant1 High Hop_2480 -4.93 -50.79 ≤-24.93 PASS Page 68 of 122 Report No. ESTE-R2404184 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Page 69 of 122 Report No. ESTE-R2404184 DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS Page 70 of 122 Report No. ESTE-R2404184 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS 3DH5-Ant1-2402-PASS Page 71 of 122 Report No. ESTE-R2404184 3DH5-Ant1-2480-PASS 3DH5-Ant1-Hop_2402-PASS 3DH5-Ant1-Hop_2480-PASS Page 72 of 122 Report No. ESTE-R2404184 Appendix G: Conducted Spurious Emission Test Result Test Mode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 -0.90 -43.49 ≤-20.9 PASS DH5 Ant1 2441 30~26500 -1.44 -43.2 ≤-21.44 PASS DH5 Ant1 2480 30~26500 -1.84 -43.55 ≤-21.84 PASS 2DH5 Ant1 2402 30~26500 -3.97 -42.97 ≤-23.97 PASS 2DH5 Ant1 2441 30~26500 -4.32 -43.9 ≤-24.32 PASS 2DH5 Ant1 2480 30~26500 -4.54 -43.6 ≤-24.54 PASS 3DH5 Ant1 2402 30~26500 -3.62 -43.64 ≤-23.62 PASS 3DH5 Ant1 2441 30~26500 -3.93 -43.39 ≤-23.93 PASS 3DH5 Ant1 2480 30~26500 -5.05 -43.06 ≤-25.05 PASS Page 73 of 122 Report No. ESTE-R2404184 Test Graphs DH5-Ant1-2402-30~26500-PASS DH5-Ant1-2441-30~26500-PASS DH5-Ant1-2480-30~26500-PASS Page 74 of 122 Report No. ESTE-R2404184 2DH5-Ant1-2402-30~26500-PASS 2DH5-Ant1-2441-30~26500-PASS 2DH5-Ant1-2480-30~26500-PASS Page 75 of 122 Report No. ESTE-R2404184 3DH5-Ant1-2402-30~26500-PASS 3DH5-Ant1-2441-30~26500-PASS 3DH5-Ant1-2480-30~26500-PASS Page 76 of 122 Report No. ESTE-R2404184 Appendix H: Reference level measurement Test Result Test Mode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2402.15 -0.90 DH5 Ant1 2441 2440.84 -1.44 DH5 Ant1 2480 2480.16 -1.84 2DH5 Ant1 2402 2402.16 -3.97 2DH5 Ant1 2441 2441.06 -4.32 2DH5 Ant1 2480 2480.17 -4.54 3DH5 Ant1 2402 2401.90 -3.62 3DH5 Ant1 2441 2440.81 -3.93 3DH5 Ant1 2480 2479.96 -5.05 Page 77 of 122 Report No. ESTE-R2404184 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 78 of 122 Report No. ESTE-R2404184 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 79 of 122 Report No. ESTE-R2404184 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS Page 80 of 122 Report No. ESTE-R2404184 12.2.Test Result For Right Earbud Appendix A: 20dB Emission Bandwidth Test Result Test Mode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.996 2401.460 2402.456 --- --- DH5 Ant1 2441 0.978 2440.508 2441.486 --- --- DH5 Ant1 2480 0.927 2479.517 2480.444 --- --- 2DH5 Ant1 2402 1.302 2401.352 2402.654 --- --- 2DH5 Ant1 2441 1.338 2440.319 2441.657 --- --- 2DH5 Ant1 2480 1.314 2479.340 2480.654 --- --- 3DH5 Ant1 2402 1.248 2401.364 2402.612 --- --- 3DH5 Ant1 2441 1.266 2440.379 2441.645 --- --- 3DH5 Ant1 2480 1.275 2479.364 2480.639 --- --- Page 81 of 122 Report No. ESTE-R2404184 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 DH5-Ant1-2480 Page 82 of 122 Report No. ESTE-R2404184 2DH5-Ant1-2402 2DH5-Ant1-2441 2DH5-Ant1-2480 Page 83 of 122 Report No. ESTE-R2404184 3DH5-Ant1-2402 3DH5-Ant1-2441 3DH5-Ant1-2480 Page 84 of 122 Report No. ESTE-R2404184 Appendix B: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -1.68 ≤20.97 PASS DH5 Ant1 2441 -1.69 ≤20.97 PASS DH5 Ant1 2480 -2.32 ≤20.97 PASS 2DH5 Ant1 2402 -1.66 ≤20.97 PASS 2DH5 Ant1 2441 -1.71 ≤20.97 PASS 2DH5 Ant1 2480 -2.22 ≤20.97 PASS 3DH5 Ant1 2402 -2.97 ≤20.97 PASS 3DH5 Ant1 2441 -2.92 ≤20.97 PASS 3DH5 Ant1 2480 -3.63 ≤20.97 PASS Page 85 of 122 Report No. ESTE-R2404184 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 86 of 122 Report No. ESTE-R2404184 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 87 of 122 Report No. ESTE-R2404184 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS Page 88 of 122 Report No. ESTE-R2404184 Appendix C: Carrier frequency separation Test Result Test Mode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.921 ≥0.664 PASS DH5 Ant1 2441 0.939 ≥0.664 PASS DH5 Ant1 2480 1.131 ≥0.996 PASS 2DH5 Ant1 2402 1.173 ≥0.892 PASS 2DH5 Ant1 2441 0.954 ≥0.892 PASS 2DH5 Ant1 2480 1.206 ≥0.892 PASS 3DH5 Ant1 2402 1.296 ≥1.275 PASS 3DH5 Ant1 2441 1.116 ≥0.850 PASS 3DH5 Ant1 2480 1.191 ≥0.850 PASS Page 89 of 122 Report No. ESTE-R2404184 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 90 of 122 Report No. ESTE-R2404184 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 91 of 122 Report No. ESTE-R2404184 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS Page 92 of 122 Report No. ESTE-R2404184 Appendix D: Time of occupancy Test Result Test Mode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.380 33 0.013 ≤0.4 PASS DH3 Ant1 Hop 1.620 30 0.049 ≤0.4 PASS DH5 Ant1 Hop 2.870 43 0.123 ≤0.4 PASS 2DH1 Ant1 Hop 0.388 40 0.0…

Text truncated - open the document above for the full version.

Test Report

Page 95 of 122 Report No. ESTE-R2404184 2DH1-Ant1-Hop-PASS 2DH3-Ant1-Hop-PASS Page 96 of 122 Report No. ESTE-R2404184 2DH5-Ant1-Hop-PASS Page 97 of 122 Report No. ESTE-R2404184 3DH1-Ant1-Hop-PASS 3DH3-Ant1-Hop-PASS Page 98 of 122 Report No. ESTE-R2404184 3DH5-Ant1-Hop-PASS Page 99 of 122 Report No. ESTE-R2404184 Appendix E: Number of hopping channels Test Result Test Mode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Page 100 of 122 Report No. ESTE-R2404184 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Page 101 of 122 Report No. ESTE-R2404184 Appendix F: Band edge measurements Test Result Test Mode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -2.55 -51.34 ≤-22.55 PASS DH5 Ant1 High 2480 -3.12 -50.66 ≤-23.12 PASS DH5 Ant1 Low Hop_2402 -2.86 -51.02 ≤-22.86 PASS DH5 Ant1 High Hop_2480 -2.94 -50.69 ≤-22.94 PASS 2DH5 Ant1 Low 2402 -5.80 -50.96 ≤-25.8 PASS 2DH5 Ant1 High 2480 -5.89 -51.66 ≤-25.89 PASS 2DH5 Ant1 Low Hop_2402 -5.97 -50.67 ≤-25.97 PASS 2DH5 Ant1 High Hop_2480 -5.12 -50.97 ≤-25.12 PASS 3DH5 Ant1 Low 2402 -4.98 -51.3 ≤-24.98 PASS 3DH5 Ant1 High 2480 -4.88 -50.98 ≤-24.88 PASS 3DH5 Ant1 Low Hop_2402 -7.08 -50.91 ≤-27.08 PASS 3DH5 Ant1 High Hop_2480 -7.25 -50.31 ≤-27.25 PASS Page 102 of 122 Report No. ESTE-R2404184 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Page 103 of 122 Report No. ESTE-R2404184 DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS Page 104 of 122 Report No. ESTE-R2404184 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS 3DH5-Ant1-2402-PASS Page 105 of 122 Report No. ESTE-R2404184 3DH5-Ant1-2480-PASS 3DH5-Ant1-Hop_2402-PASS 3DH5-Ant1-Hop_2480-PASS Page 106 of 122 Report No. ESTE-R2404184 Appendix G: Conducted Spurious Emission Test Result Test Mode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 -2.55 -43 ≤-22.55 PASS DH5 Ant1 2441 30~26500 -2.71 -41.78 ≤-22.71 PASS DH5 Ant1 2480 30~26500 -3.12 -43.47 ≤-23.12 PASS 2DH5 Ant1 2402 30~26500 -5.80 -43.45 ≤-25.8 PASS 2DH5 Ant1 2441 30~26500 -4.48 -43.55 ≤-24.48 PASS 2DH5 Ant1 2480 30~26500 -5.89 -43.62 ≤-25.89 PASS 3DH5 Ant1 2402 30~26500 -4.98 -43.18 ≤-24.98 PASS 3DH5 Ant1 2441 30~26500 -5.02 -42.9 ≤-25.02 PASS 3DH5 Ant1 2480 30~26500 -4.88 -42.49 ≤-24.88 PASS Page 107 of 122 Report No. ESTE-R2404184 Test Graphs DH5-Ant1-2402-30~26500-PASS DH5-Ant1-2441-30~26500-PASS DH5-Ant1-2480-30~26500-PASS Page 108 of 122 Report No. ESTE-R2404184 2DH5-Ant1-2402-30~26500-PASS 2DH5-Ant1-2441-30~26500-PASS 2DH5-Ant1-2480-30~26500-PASS Page 109 of 122 Report No. ESTE-R2404184 3DH5-Ant1-2402-30~26500-PASS 3DH5-Ant1-2441-30~26500-PASS 3DH5-Ant1-2480-30~26500-PASS Page 110 of 122 Report No. ESTE-R2404184 Appendix H: Reference level measurement Test Result Test Mode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2402.15 -2.55 DH5 Ant1 2441 2441.02 -2.71 DH5 Ant1 2480 2480.00 -3.12 2DH5 Ant1 2402 2402.29 -5.80 2DH5 Ant1 2441 2441.11 -4.48 2DH5 Ant1 2480 2480.09 -5.89 3DH5 Ant1 2402 2401.80 -4.98 3DH5 Ant1 2441 2440.80 -5.02 3DH5 Ant1 2480 2479.83 -4.88 Page 111 of 122 Report No. ESTE-R2404184 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 112 of 122 Report No. ESTE-R2404184 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 113 of 122 Report No. ESTE-R2404184 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS Page 114 of 122 Report No. ESTE-R2404184 13. TEST SETUP PHOTO Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) Page 115 of 122 Report No. ESTE-R2404184 14. EUT PHOTO E…
