2AVK6-MR527E01RFID Reader Module

1/6 ISGUS Mifare Reader Integration Instructions ISGUS Mifare Reader Integration Instructions 2/6 Purpose This document describes the measures required to integrate the ISGUS Mifare Reader into an ISGUS terminal and which regulations must be observed and fulfilled in order to introduce the terminal in the USA and Canada. Product description The ISGUS Mifare Reader is a RFID identification system in form of a pluggable module. The module consists of the OEM radio module PRIMO340 (manufactured by phg) and a PRIMO340 adapter with integrated loop antenna and antenna tuning network. ISGUS Mifare Reader Integration Instructions OEM radio module PRIMO340 PRIMO340 adapter Loop antenna 10-pole and 4-pole pin contact strips, 12 mm ISGUS Mifare Reader 3/6 Intended use The reader is intended exclusively as a reading module for ISGUS time recording and access control terminals (host devices). Other areas of application deviating from this are considered contrary to the designated use. Regulations The ISGUS Mifare Reader has been tested according to FCC and Industry Canada (IC) regulations for module approvals. FCC ID: 2AVK6-MR527E01 IC: 25797-MR527E01 PMN: ISGUS Mifare Reader HVIN: MR527E01 FVIN: 68075J Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. User manual warnings and statements Provisions, instructions and warnings that must be included in the User Manual of the host device. FCC: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Canadian Radio Certification: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. 4/6 L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. ISGUS Mifare Reader 5/6 Testing of host device with approved reader The manufacturer is responsible for ensuring that the host device has been tested and complies with the following rules and regulations. • FCC47 CFR Part 15: Radio Frequency Devices (Subpart B and Subpart C) • RSS-210 Issue 9 (10) • ICES-003 Issue 6: Spectrum Management and Telecommunications. Interference- Causing Equipment Standard. Information Technology Equipment (Including Digital Apparatus) – Limits and Methods of Measurement Labeling of the host device Label on the case: Contains FCC ID: 2AVK6-MR527E01 Contains IC: 25797-MR527E01 Installation The ISGUS Mifare Reader is pluggable connected to the reader adapter board. ISGUS M ifare Reader Reader adapter board ISGUS Mifare Reader 6/6 Installation and integration of reader adapter board into IT 82xx (Fig. IT 8210): Copyright © ISGUS GmbH 2020 Edition: 002US.0220 00 MA 1ZH ISGUS GmbH Oberdorfstr. 18 – 22 D – 78054 Villingen-Schwenningen www.isgus.de [email protected] Reader adapter board with ISGUS Mifare Reader ISGUS Mifare Reader

PHOENIX TESTLAB GmbH Date: 20 February 2020 Product Certification Koenigswinkel 10 D 32825 Blomberg Subject: REQUEST FOR FCC MODULAR TRANSMITTER APPROVAL FCC ID: 2AVK6-MR527E01 To Whom It May Concern: We, ISGUS GmbH, hereby request ☐ a modular / ☒ limited modular approval. In CFR47 §15.212 “Modular Transmitters” and KDB 996369 D01 “Module Equip Auth Guide” there are following eight numbered requirements defined: 1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield but must be on the module assembly. Response: Fulfilled – please refer to the external photo exhibit. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Response: Fulfilled – please refer Block Diagram, Schematic and Operational Description. 3. The modular transmitter must have its own power supply regulation on the module. Response: Fulfilled – please refer to the Block Diagram, Schematic and Operational Description. 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Response: Fulfilled – please refer to photo exhibit showing the permanently attached loop antenna. 5. The module must demonstrate compliance in a stand-alone configuration. Response: Fulfilled – please refer to the test report and test setup photos. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number (KDB 784748). Response: Fulfilled – please refer to the label location and integration manual exhibit. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. Response: Fulfilled – please refer to the test report and integration manual exhibit. 8. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Response: Fulfilled as devices subject to §15.225 are categorically excluded from this requirement. Although the requirements are fulfilled, the Grantee hereby declares that this modular transmitter will be exclusively integrated by the Grantee himself into his own products and is not intended for sale to third parties. Yours sincerely, Sabrina Berghahn Authorized Agent

SGU Zeiterfassung WebServices ISGUSGmbHOberdor(str.18-2278054Villingen-SchwenningenZutnttskontrolle Betriebsdatenerfassung ERP-Integration PHOENIXTESTLABGmbHPersonaleinsatzplanung ProductCertificationDepartmentDienstplanung Koenigswinkel10 32825Blomberg,Germany Geschäftsleitung Powerof Attorney ISGUSGmbH ToWhomltMayConcern: Pleasebeadvisedthatwe,ISGUSGmbH,authorizethefollowingpersonsfrom~18-22 PHOENIXTESTLABGmbH:Villingen-Schwenningen Tel.+497720393-0 Fax+497720393-184 •SabrinaBerghahn [email protected] www.isgus.de toactonourbehalfinallmattersrelatingtoapplicationforequipmentauthorization, includingthesigningofalldocumentsrelatingtothesemattersinthefollowing coutries: USARegistergericht FreiburgimBreisgau CanadaHRB600260 Geschäftsführer: PHOENIXTESTLABGmbHhasourpermissiontouseourtechnicaldocumentsforStefanBeetz theapprovalsforthefollowingnamedevice: Productdescription: FCCID:2AVK6-MR527E01 IC:25797-MR527E01 HVIN:MR527E01 PMN:ISGUSMifareReader FVIN:68075J UnlessfuturecorrespondencefromISGUSGmbHpleaseextendyourfull cooperationtoPHOENIXTESTLABGmbHregardingmatterstotheabove mentionedproductsto6monthsafterthesignatorydateofthisauthorization. ContactpersonMr.StefanBeetz PositionintheManagingDirector company Dateofsianatory13.02.2020 JSGUSGmbH Oberdorfetrasse18-22 /78054_Villingen-Schwennlngetl Signatory (signatureoftheapplicant)

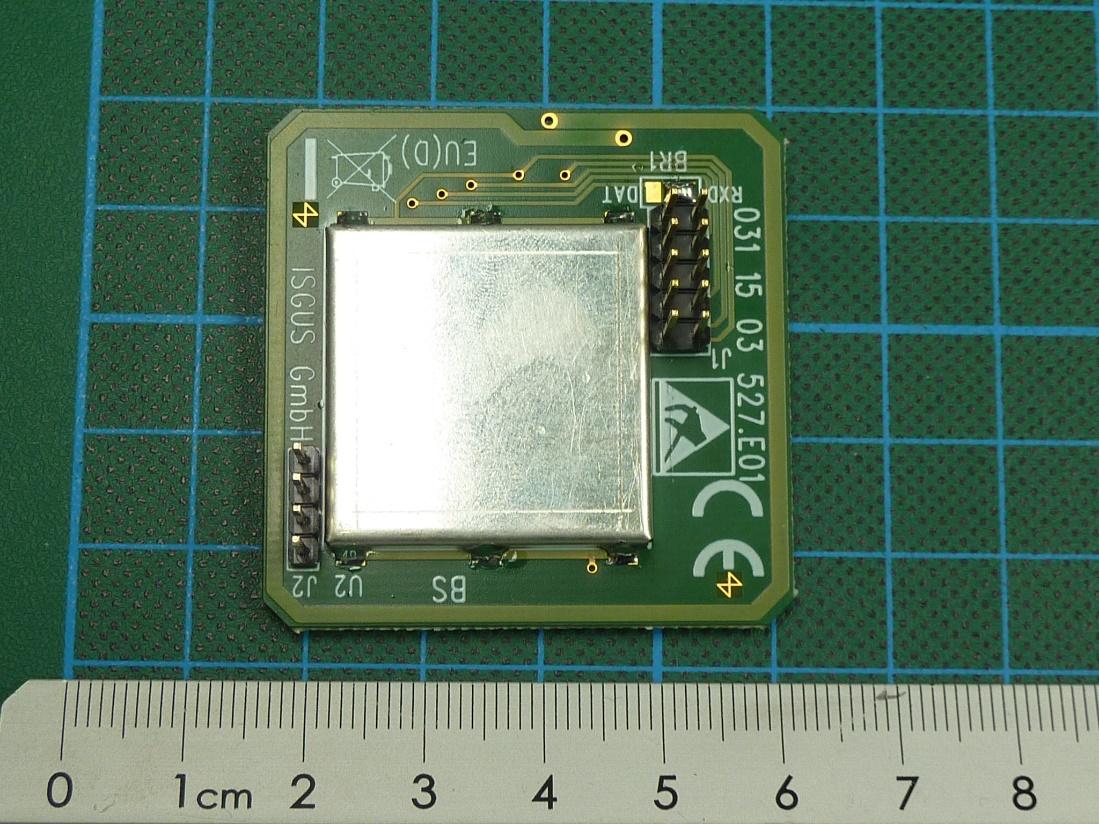

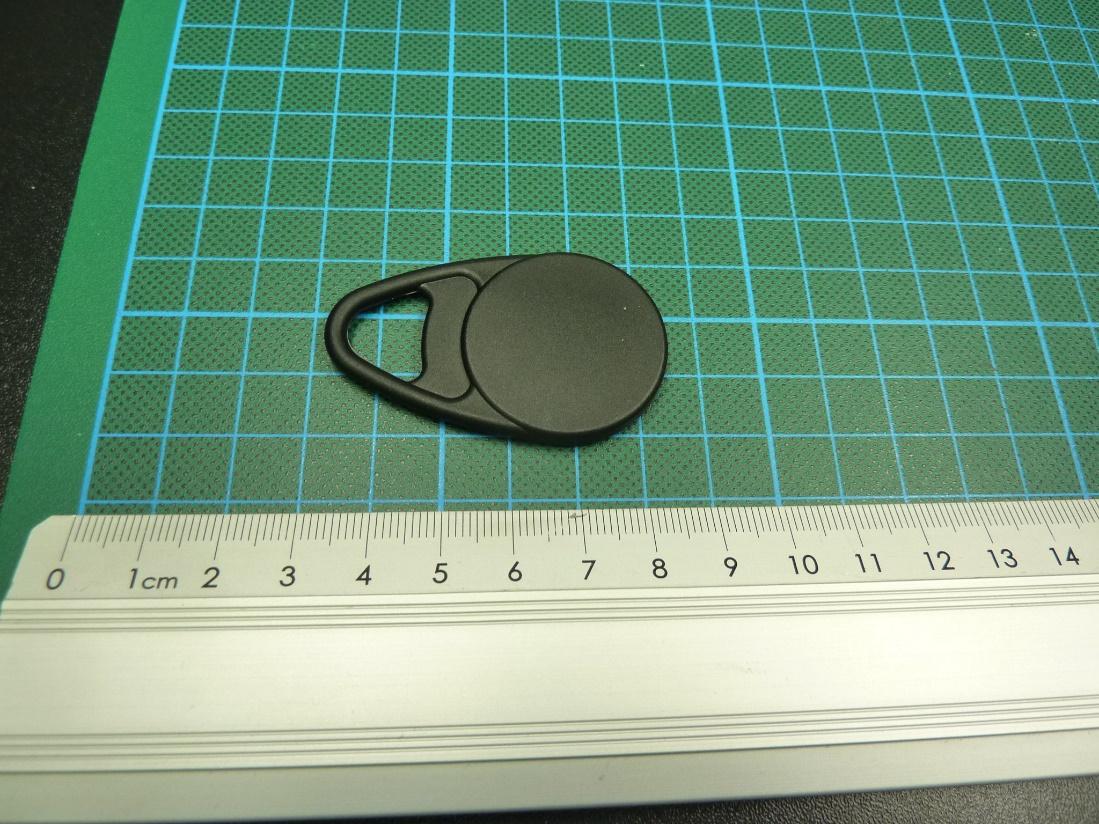

Examiner:Michael DINTERReport Number: F191836E1 Date of Issue: 17.01.2020Order Number: 19-111836Page 1 of 3 191836_PCB1.JPG 191836_PCB2.JPG Examiner:Michael DINTERReport Number: F191836E1 Date of Issue: 17.01.2020Order Number: 19-111836Page 2 of 3 191836_TAG1.JPG 191836_TAG2.JPG Examiner:Michael DINTERReport Number: F191836E1 Date of Issue: 17.01.2020Order Number: 19-111836Page 3 of 3 191836_AC adapter

Lable Location Info

Annex CEUT Internal Photos Examiner:Michael DINTERReport Number: F191836E1 Date of Issue: 17.01.2020Order Number: 19-111836Page 1 of 1 191836_PCB3.JPG

Königswinkel 10 32825 Blomberg, Germany Phone: +49 (0) 52 35 / 95 00-0 Fax:+49 (0) 52 35 / 95 00-10 [email protected] www.phoenix-testlab.de Test Report Report Number: F191836E1 Equipment under Test (EUT): ISGUS Mifare Reader Applicant: ISGUS GmbH Manufacturer: ISGUS GmbH Examiner:Michael DINTERReport Number: F191836E1 Date of Issue: 17.01.2020Order Number: 19-111836Page 2 of 31 References [1] ANSI C63.10: 2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices [2] FCC CFR 47 Part 15 Radio Frequency Devices [3] RSS-210 Issue 9 (August 2016) Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment [4] RSS-Gen Issue 5 (March 2019)Amendment 1 General Requirements for Compliance of Radio Apparatus Test Result The requirements of the tests performed as shown in the overview (clause 4) were fulfilled by the equipment under test. The complete test results are presented in the following. This test report is only valid in its original form. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Tested and written by:Michael DINTER 17.01.2020 NameSignatureDate Reviewed and approved by:Bernd STEINER 17.01.2020 Name Signature Date Examiner:Michael DINTERReport Number: F191836E1 Date of Issue: 17.01.2020Order Number: 19-111836Page 3 of 31 Contents:Page Identification ................................................................................................................................. 4 1.1Applicant ................................................................................................................................................... 4 1.2Manufacturer ............................................................................................................................................ 4 1.3Test Laboratory ........................................................................................................................................ 4 1.4EUT (Equipment under Test) ................................................................................................................... 5 1.5Technical Data of Equipment ................................................................................................................... 6 1.6Dates ........................................................................................................................................................ 7 Operational States ........................................................................................................................ 7 Additional Information ................................................................................................................... 8 Overview ....................................................................................................................................... 9 Results........................................................................................................................................ 10 5.1Spectrum mask ...................................................................................................................................... 10 5.1.1Test method ................................................................................................................................... 10 5.1.2Test results .................................................................................................................................... 11 5.220 dB bandwidth ..................................................................................................................................... 12 5.2.1Test method ................................................................................................................................... 12 5.2.2Test results .................................................................................................................................... 13 5.399 % bandwidth ...................................................................................................................................... 14 5.3.1Test method ................................................................................................................................... 14 5.3.2Test results .................................................................................................................................... 15 5.4Frequency tolerance ............................................................................................................................... 16 5.4.1Test method ................................................................................................................................... 16 5.4.2Test results .................................................................................................................................... 17 5.5Conducted emissions on power supply lines ......................................................................................... 18 5.5.1Test method ................................................................................................................................... 18 5.5.2Results conducted emission measurement on AC mains ............................................................. 19 5.6Radiated emissions ................................................................................................................................ 21 5.6.1Test method ...............................................................................................................…
