2AVKP-BFA30battery wifi camera

FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the follow ing two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, inc luding interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentia l installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televis ion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technic ian for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be insta lled and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

Rev 11/20/07 (SHENZHEN BOVISION TECHNOLOGY CO., LTD.) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AVKP-BFA30 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, (Wang Zhi)

(SHENZHEN BOVISION TECHNOLOGY CO., LTD.) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: SUBJECT: FCC Application for FCC ID: 2AVKP-BFA30 To Whom It May Concern: We, the undersigned, hereby authorize Alan Mei at Shenzhen BCTC Testing Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Alan Mei of Shenzhen BCTC Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, (Wang Zhi)

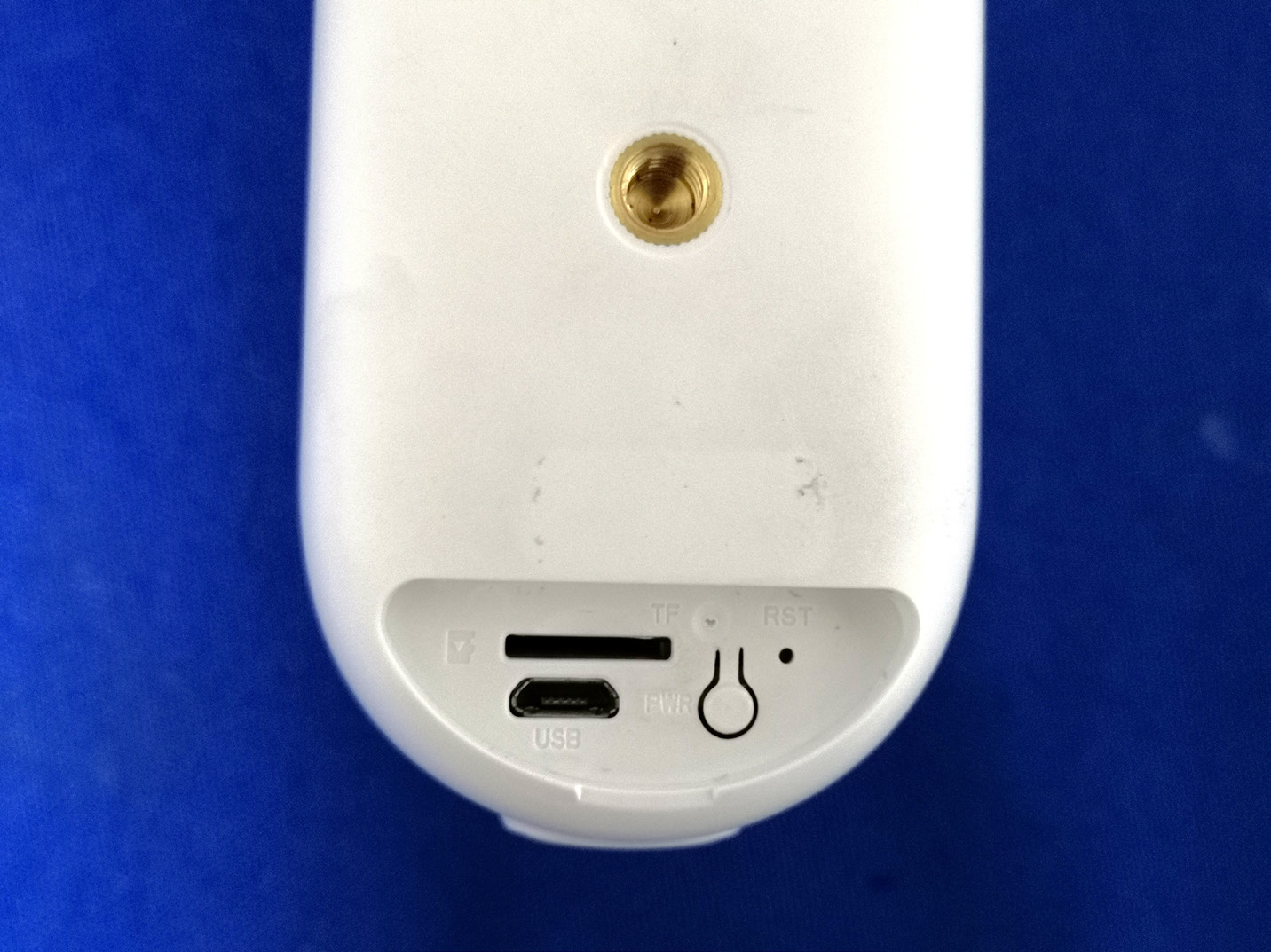

External Photos

Label & label location Model：BF-A30 FCC ID：2AVKP-BFA30

Internal Photos Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AVKP-BFA30 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Modulation Channel Freq. (MHz) Conduct ed power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2) 2.412 14.991 14±1 15.00 31.62 1.995 0.01255 1 2.437 14.558 14±1 15.00 31.62 1.995 0.01255 1 2.462 14.893 14±1 15.00 31.62 1.995 0.01255 1 2.412 13.807 13±1 14.00 25.12 1.995 0.00997 1 2.437 13.779 13±1 14.00 25.12 1.995 0.00997 1 2.462 13.740 13±1 14.00 25.12 1.995 0.00997 1 2.412 12.710 12±1 13.00 19.95 1.995 0.00792 1 2.437 12.228 12±1 13.00 19.95 1.995 0.00792 1 2.462 12.029 12±1 13.00 19.95 1.995 0.00792 1 802.11b 802.11g 802.11n20 Modulation Channel Freq. (MHz) Conduct ed power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2) Conclusion: For the max result : 0.01887≤ 1.0, compliance with FCC's RF Exposure. Summary: Since the ERP (effective radiated power) operated at < 1.5 GHz is less than 1.5 watts and > 1.5 GHz is less than 3 watts, the routine environmental evaluation is not required, and the MPE result calculated for this device complies with the MPE limit as specified in 47 CFR §1.1310.

Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 35 of 70 Edition：A.3 9.5 Test Result Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 3.7V Test Mode ： TX b Mode Frequency Power Spectral Density(dBm/3k Hz) Limit (dBm/3kHz) Result 2412 MHz -9.348 8 PASS 2437 MHz -8.318 8 PASS 2462 MHz -7.725 8 PASS TX CH01 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 36 of 70 Edition：A.3 TX CH06 TX CH11 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 37 of 70 Edition：A.3 Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 3.7V Test Mode ： TX g Mode Frequency Power Spectral Density(dBm/3k Hz) Limit (dBm/3kHz) Result 2412 MHz -16.059 8 PASS 2437 MHz -15.862 8 PASS 2462 MHz -15.493 8 PASS TX CH01 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 38 of 70 Edition：A.3 TX CH06 TX CH11 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 39 of 70 Edition：A.3 Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 3.7V Test Mode ： TX n Mode(20M) Frequency Power Spectral Density(dBm/3k Hz) Limit (dBm/3kHz) Result 2412 MHz -16.556 8 PASS 2437 MHz -15.487 8 PASS 2462 MHz -16.408 8 PASS TX CH01 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 40 of 70 Edition：A.3 TX CH06 TX CH11 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 41 of 70 Edition：A.3 Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 3.7V Test Mode ： TX n Mode(40M) Frequency Power Spectral Density(dBm) Limit (dBm) Result 2422 MHz -18.283 8 PASS 2437 MHz -18.162 8 PASS 2452 MHz -17.764 8 PASS TX CH03 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 42 of 70 Edition：A.3 TX CH06 TX CH09 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 43 of 70 Edition：A.3 10. BANDWIDTH TEST 10.1 Block Diagram Of Test Setup 10.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(a)(2) Bandwidth >= 500KHz (6dB bandwidth) 2400-2483.5 PASS 10.3 Test procedure 1. Set RBW = 100 kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. . 10.4 EUT operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 44 of 70 Edition：A.3 10.5 Test Result Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 3.7V Test Mode ： TX b Mode Frequency (MHz) 6dB bandwidth (MHz) Limit (kHz) Result 2412 8.13 500 Pass 2437 9.06 500 Pass 2462 9.10 500 Pass TX CH 01 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 45 of 70 Edition：A.3 TX CH 06 TX CH 11 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 46 of 70 Edition：A.3 Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 3.7V Test Mode ： TX g Mode Frequency (MHz) 6dB bandwidth (MHz) Limit (kHz) Result 2412 15.81 500 Pass 2437 15.77 500 Pass 2462 16.06 500 Pass TX CH 01 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 47 of 70 Edition：A.3 TX CH 06 TX CH 11 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 48 of 70 Edition：A.3 Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 3.7V Test Mode ： TX n Mode(20M) Frequency (MHz) 6dB bandwidth (MHz) Limit (kHz) Result 2412 16.07 500 Pass 2437 16.71 500 Pass 2462 16.20 500 Pass TX CH 01 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 49 of 70 Edition：A.3 TX CH 06 TX CH 11 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 50 of 70 Edition：A.3 Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 3.7V Test Mode ： TX n Mode(40M) Frequency (MHz) 6dB bandwidth (MHz) Limit (kHz) Result 2422 35.23 500 Pass 2437 35.23 500 Pass 2452 35.21 500 Pass TX CH 03 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 51 of 70 Edition：A.3 TX CH 06 TX CH 09 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 52 of 70 Edition：A.3 11. PEAK OUTPUT POWER TEST 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(3) Peak Output Power 1 watt or 30dBm 2400-2483.5 PASS 11.3 Test procedure a. The EUT was directly connected to the Power meter 11.4 EUT operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 53 of 70 Edition：A.3 11.5 Test Result Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 3.7V Frequency Maximum Conducted Output Power(PK) LIMIT (MHz) (dBm) dBm 802.11b 2412 14.991 30 2437 14.558 30 2462 14.893 30 802.11g 2412 13.807 30 2437 13.779 30 2462 13.740 30 802.11n20 2412 12.710 30 2437 12.228 30 2462 12.029 30 802.11n40 2422 11.435 30 2437 11.245 30 2452 11.191 30 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 54 of 70 Edition：A.3 12. 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 12.1 Block Diagram Of Test Setup 12.2 Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. 12.3 Test procedure Using the following spectrum analyzer setting: a) Set the RBW = 100KHz. b) Set the VBW = 300KHz. c) Sweep time …

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page: 1 of 70 Edition：A.3 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2101552301E Applicant: SHENZHEN BOVISION TECHNOLOGY CO., LTD. Product Name: battery wifi camera Model/Type Ref.: BF-A30 Tested Date: 2021-01-12 to 2021-01-22 Issued Date: 2021-01-26 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 2 of 70 Edition：A.3 FCC ID: 2AVKP-BFA30 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: battery wifi camera Trademark: N/A Model/Type Ref.: BF-A30 Prepared For: SHENZHEN BOVISION TECHNOLOGY CO., LTD. Address: 2nd floor, building G, no. 8, shangxue industrial park, bantian street, longgang district, Shenzhen, China Manufacturer: SHENZHEN BOVISION TECHNOLOGY CO., LTD. Address: 2nd floor, building G, no. 8, shangxue industrial park, bantian street, longgang district, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2021-01-12 Sample tested Date: 2021-01-12 to 2021-01-22 Issue Date: 2021-01-26 Report No.: BCTC2101552301E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Cathy Zhong/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 3 of 70 Edition：A.3 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................ 5 2. TEST SUMMARY ..................................................... 6 3. MEASUREMENT UNCERTAINTY ....................................... 7 4. PRODUCT INFORMATION AND TEST SETUP............................ 8 4.1 Product Information ..................................................... 8 4.2 Test Setup Configuration ................................................ 9 4.3 Support Equipment ..................................................... 9 4.4 Channel List .......................................................... 10 4.5 Test Mode ............................................................ 10 4.6 table of parameters of text software setting ................................ 11 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 12 5.1 Test Facility ........................................................... 12 5.2 Test Instrument Used .................................................. 12 6. CONDUCTED EMISSIONS ............................................ 14 6.1 Block Diagram Of Test Setup ............................................ 14 6.2 Limit ................................................................. 14 6.3 Test procedure ........................................................ 14 6.4 EUT operating Conditions ............................................... 15 6.5 Test Result ........................................................... 16 7. RADIATED EMISSIONS .............................................. 18 7.1 Block Diagram Of Test Setup ............................................ 18 7.2 Limit ................................................................. 19 7.3 Test procedure ........................................................ 20 7.4 EUT operating Conditions ............................................... 22 7.5 Test Result ........................................................... 23 8. RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION .................................................. 30 8.1 Block Diagram Of Test Setup ............................................ 30 8.2 Limit ................................................................. 30 8.3 Test procedure ........................................................ 31 8.4 EUT operating Conditions ............................................... 31 8.5 Test Result ........................................................... 32 9. POWER SPECTRAL DENSITY TEST ................................... 34 9.1 Block Diagram Of Test Setup ............................................ 34 9.2 Limit ................................................................. 34 9.3 Test procedure ........................................................ 34 9.4 EUT operating Conditions ............................................... 34 9.5 Test Result ........................................................... 35 10. BANDWIDTH TEST .................................................. 43 Report No.: BCTC2101552301E No.：BCTC/RF-EMC-005 Page: 4 of 70 Edition：A.3 10.1 Block Diagram Of Test Setup .......................................... 43 10.2 Limit ................................................................ 43 10.3 Test procedure ....................................................... 43 10.4 EUT operating Conditions ............................................. 43 10.5 Test Result .......................................................... 44 11. PEAK OUTPUT POWER TEST ........................................ 52 11.1 Block Diagram Of Test Setup .......................................... 52 11.2 Limit ................................................................ 52 11.3 Test procedure ....................................................... 52 11.4 EUT operating Conditions ............................................. 52 11.5 Test Result .......................................................... 53 12. 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE ................... 54 12.1 Block Diagram Of Test Setup .......................................... 54 12.2 Limit ................................................................ 54 12.3 Test procedure ....................................................... 54 12.4 EUT…

Text truncated - open the document above for the full version.

1 EUT TEST SETUP PHOTOGRAPHS Conducted emissions Radiated Measurement Photos
