2AVKZRM68-NTAMillimeter Wave Radar Module

www.smartradarsystem.com RM68-01 User Manual 페이지 1 Status: Initial Date: 07 Feb. 2020 Author: Smart Radar System Version: 0.1 Document number: Filename: RM68-NTA User Manual User Manual Radar Module (RM68-NTA) A-7F, 253, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, 13486, Republic of Korea Tel : +82-31-8018-7188 Fax : +82-31-8018-7189 http://www.smartradarsystem.com www.smartradarsystem.com RM68-01 User Manual 페이지 2 Revision Sheet (history) Release No. Date Revision Description Rev. 0.1 02/07/2020 Initial Work Rev. 0.2 www.smartradarsystem.com RM68-01 User Manual 페이지 3 Contents 1. Overview and Package Contents ............................................................................................................ 5 1.1 Introduction ................................................................................................................................................... 5 1.2 Features ........................................................................................................................................................... 5 1.3 Package Contents ....................................................................................................................................... 6 2. Hardware Description ................................................................................................................................... 7 2.1 Board image .................................................................................................................................................. 7 2.1.1 Radar module (RM68-NTA)............................................................................................................ 7 2.1.2 Radar module Debugger Board (RM68_DBG) ....................................................................... 8 2.2 Connectors ..................................................................................................................................................... 9 2.2.1 12-pin Connector................................................................................................................................ 9 2.2.2 Power Connector ................................................................................................................................ 9 2.2.3 Mini-USB Connector ....................................................................................................................... 10 2.3 Switches and LEDs ................................................................................................................................... 10 2.3.1 Sense-on-Power (SOP) Switch ................................................................................................... 10 2.3.2 Reset Switch ....................................................................................................................................... 10 2.3.3 LEDs ....................................................................................................................................................... 10 3. Specifications .................................................................................................................................................. 12 4. Software Setup............................................................................................................................................... 13 4.1 Configure Your PC................................................................................................................................... 13 4.2 Software, Development Tools, and Example Code .................................................................. 13 5. Mechanical Mounting of PCB ................................................................................................................ 14 6. PCB Storage and Handling Recommendations ............................................................................ 14 7. Troubleshooting ............................................................................................................................................ 14 8. Notice for FCC ................................................................................................................................................ 15 www.smartradarsystem.com RM68-01 User Manual 페이지 4 List of Figures Figure 1. RM68-NTA (Top) .................................................................................................................................... 7 Figure 2. RM68-NTA (Bottom) ............................................................................................................................ 7 Figure 3. RM68 Debugger Board (Top) .......................................................................................................... 8 Figure 4. Device manager on the PC ........................................................................................................... 13 Figure 5. Mechanical Size .................................................................................................................................. 14 List of Tables Table 1. List of Package .......................................................................................................................................... 6 Table 2 12-Pin IO Connector Pin ....................................................................................................................... 9 Table 3 SOP Switch for Boot mode ............................................................................................................... 10 Table 4 LEDs Information ................................................................................................................................... 11 www.smartradarsystem.com RM68-01 User Manual 페이지 5 1. Overview and Package Contents 1.1 Introduction The RM68-NTA Module from Smart Radar System(SRS) is an easy-to-use evaluation board for the IWR6843 mmWave sensing device. The RM68-NTA Module contains everything re…

Text truncated - open the document above for the full version.

Smart Radar System, Inc. A-7F, 253, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea Date: 02/07/2020 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Letter of Authorization We, the undersigned, hereby authorize Geunki Son of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2AVKZRM68-NTA including signing of all documents relating to these matters. Any and all acts carried out by Geunki Son of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Smart Radar System, Inc. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Contact Name: Jaecheol Ahn Title: Leader of Hardware Development Team

Smart Radar System, Inc. A-7F, 253, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea Date: 02/07/2020 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA RE: Request of Confidentiality for FCC ID: 2AVKZRM68-NTA To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Smart Radar System, Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Smart Radar System, Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description 5 NA SHORT-TERM 6 Internal Photos 7 External Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Contact Name: Jaecheol Ahn Title: Leader of Hardware Development Team

Smart Radar System, Inc. A-7F, 253, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea FCC ID: 2AVKZRM68-NTA MODULAR APPROVAL LETTER Modular Approval Requirement Answers (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Yes (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Yes (iii) The modular transmitter must have its own power supply regulation. Yes (iv) The modular transmitter must comply with the antenna and transmission system requirements of § § 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of §15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Yes (v) The module must demonstrate compliance in a stand-alone configuration. Yes (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Yes (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Yes Sincerely, Name: Jaecheol Ahn Position: Leader of Hardware Development Team

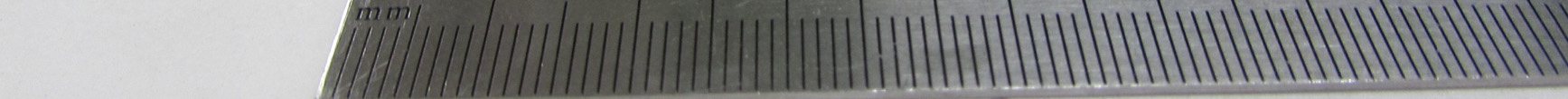

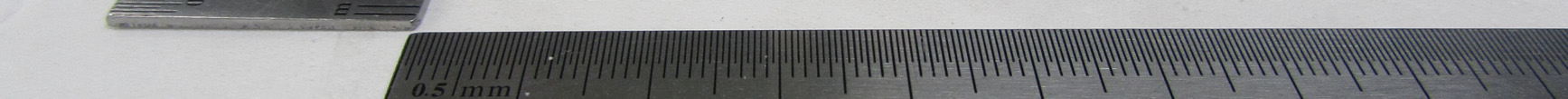

FCC ID : 2AVKZRM68-NTA Copyright Ⓒ 2020, DT&C Co., Ltd. View 1 FCC ID : 2AVKZRM68-NTA Copyright Ⓒ 2020, DT&C Co., Ltd. View 2 FCC ID : 2AVKZRM68-NTA Copyright Ⓒ 2020, DT&C Co., Ltd. View 3

FCC ID: 2AVKZRM68-NTA Copyright Ⓒ 2020, DT&C Co., Ltd. SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

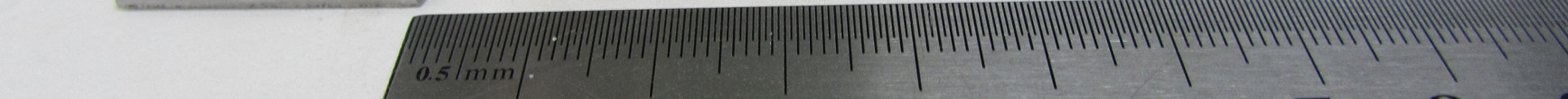

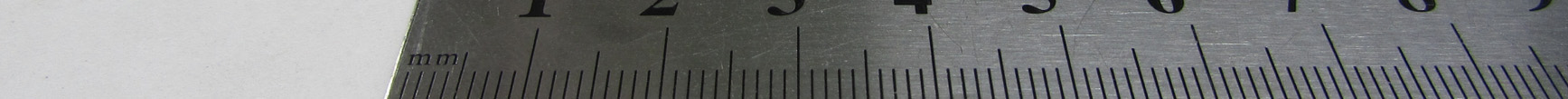

FCC ID : 2AVKZRM68-NTA Copyright Ⓒ 2020, DT&C Co., Ltd. View 1 FCC ID : 2AVKZRM68-NTA Copyright Ⓒ 2020, DT&C Co., Ltd. View 2 FCC ID : 2AVKZRM68-NTA Copyright Ⓒ 2020, DT&C Co., Ltd. View 3

FCC ID: RF function or Mode Maximum EIRP (dBm) Maximum EIRP (mW) Maximum power density (mW/cm 2 ) Requriment (mW/cm 2 ) FMCW61000~6150028.33680.7690.13541.000 ~ ~ ~ ~ ~ ~ ~ ~ ▪ S =- Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3~1.346141.63*10030 1.34~30824/f2.19 / f *180 / f 2 30 30~30027.50.0730.230 300~1,500f / 150030 1,500~100,0001.030 Conclusion : MPE Calculation : ▪ Limits for General Population/Uncontrolled Exposure Frequency range (MHz) 2AVKZRM68-NTA Frequency range (MHz) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. R= Distance to the center of the radiation of the antenna(20c m The exposure condition of this device is compliant with FCC EIRP / ( 4 R 2 π ) 1 S= Maximum power density(mW/cm 2 ) 0 EIRP= Equivalent Isotropic Radiated Power(mW) f = frequency in MHz * = Plane-wave equivalent power density

Report No.: DRTFCC2002-0037 FCC ID: 2AVKZRM68-NTA TRF-RF-245(00)200113 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 30 Test Report Version Test Report No. Date Description Revised By Reviewed By DRTFCC2002-0037 Feb. 12, 2020 Initial issue Inhee bae JaeJin Lee Report No.: DRTFCC2002-0037 FCC ID: 2AVKZRM68-NTA TRF-RF-245(00)200113 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 30 Table of Contents 1. EUT DESCRIPTION .................................................................................... 4 2. INFORMATION ABOUT TESTING .............................................................. 5 2.1 Transmitting configuration of EUT ...................................................................................... 5 2.2 Auxiliary equipment ............................................................................................................. 5 2.3 Tested environment .............................................................................................................. 6 2.4 EMI suppression Device(s) / Modifications ........................................................................ 6 2.5 Measurement Uncertainty .................................................................................................... 6 3 SUMMARY OF TEST RESULTS .................................................................. 7 4. TEST METHODOLOGY .............................................................................. 8 4.1 EUT configuration ................................................................................................................. 8 4.2 EUT exercise ......................................................................................................................... 8 4.3 General test procedures ...................................................................................................... 8 4.4 Description of test modes .................................................................................................... 8 5. INSTRUMENT CALIBRATION .................................................................... 9 6. FACILITIES AND ACCREDITATIONS ........................................................ 9 6.1 Facilities ................................................................................................................................ 9 6.2 Equipment ............................................................................................................................. 9 7. ANTENNA REQUIREMENTS ..................................................................... 9 8 TEST RESULTS ......................................................................................... 10 8.1 20dB Bandwidth .................................................................................................................. 10 8.2 Equivalent Isotropic Radiated Power ............................................................................... 13 8.3 Radiated spurious emissions ............................................................................................ 15 8.4 Frequency stability ............................................................................................................. 24 8.5 AC line conducted emissions ............................................................................................ 26 9 LIST OF TEST EQUIPMENT ...................................................................... 29 APPENDIX I .................................................................................................. 30 Report No.: DRTFCC2002-0037 FCC ID: 2AVKZRM68-NTA TRF-RF-245(00)200113 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 4 / 30 1. EUT DESCRIPTION FCC Equipment Class DXX – Part 15 Low Power communication Device Transmitter Product Millimeter Wave Radar Module Model Name RM68-NTA Add Model Name - Serial Number 20A030013 Power Supply DC 5 V Frequency Range 60~61.5GHz Max. RF Output Power (EIRP) 802.11ad : 28.33 dBm Modulation Type FMCW Antenna Specification Antenna type: Serial Feeding Antenna Max Antenna gain: 22 dBi Note: This EUT supports 60~61.5GHz FMCW radar. Report No.: DRTFCC2002-0037 FCC ID: 2AVKZRM68-NTA TRF-RF-245(00)200113 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 5 / 30 2. INFORMATION ABOUT TESTING 2.1 Transmitting configuration of EUT Test Mode Description Test Frequency(GHz) Sweep Stop Lowest Frequency 61.02 GHz Sweep Stop Middle Frequency 61.25 GHz Sweep Stop Highest Frequency 61.48 GHz - - - Note: The EUT has been tested with the frequency sweep stopped at those frequency chosen. 2.2 Auxiliary equipment Equipment Model No. Serial No. Manufacturer Note - - - - - - - - - - Report No.: DRTFCC2002-0037 FCC ID: 2AVKZRM68-NTA TRF-RF-245(00)200113 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 6 / 30 2.3 Tested environment Temperature : 21 o C ~ 25 o C Relative humidity content : 35 % ~ 42 % Details of power supply : DC 5.0 V 2.4 EMI suppression Device(s) / Modifications EMI suppression device(s) added and/or modifications made during testing → None 2.5 Measurement Uncertainty The measurement uncertainties shown below were calculated in accordance with requirements of ANSI C 63.4- 2014 and ANSI C 63.10-2013. All measurement uncertainty values are shown with a coverage factor of k = 2 to indicate a 95 % level of confidence. Test items Measurement uncertainty AC conducted emission 2.4 dB (The confidence level is about 95 %, k = 2) Radiated spurious emission (1 GHz Below) 5.1 dB (The confidence level is about 95 %, k = 2) Radiated spurious emission (1 GHz ~ 18 GHz) 5.4 dB (The confidence level is about 95 %, k = 2) Radiated spurious emission (18 GHz Above) 5.3 dB (The confidence level is about 95 %, k = 2) Report No.: DRTFCC2002-0037 FCC ID: 2AVKZRM68-NTA TRF-RF-245(00)200113 Prohibits the copying and re-issue of this report without DT&C app…

Text truncated - open the document above for the full version.

FCC ID : 2AVKZRM68-NTA Copyright Ⓒ 2020, DT&C Co., Ltd. Test Setup photographs EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID : 2AVKZRM68-NTA Copyright Ⓒ 2020, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Below 1GHz) FCC ID : 2AVKZRM68-NTA Copyright Ⓒ 2020, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz)
