2AVLK-RAM-B-166Quick Grip Charger

Phone case that contain metal, magnets, or are thicker than 3mm will interfere with wireless charging. This charger is designed for Qi-compatible devices. If your phone does not have built-in wireless charging capabilities, please use a certified Qi wireless charging case or receiver. Refer to your phone’s user manual for detailed features and functions. 1.We suggest to use QC2.0 or QC3.0 adapter for fast charging. 2.Do not place metal objects, magnets, magnetic stripe cards, and hard drive based devices near the wireless charger. It may cause data corruption. 3.Do not attempt to modify, disassemble, or repair this product. 4.Do not expose to water, moisture, or extreme temperatures ( below 40°F or above 90°F) Wireless Charging Position your phone in the center of the designated charging area. You phone will indicate when charging begins. MANUAL Ram Mounts Quick Grip Charger Model # - RAM-B-166 1.Can be customize 2.Diameter=50mm,can be customized 3.Input Power:10W 5V-2A; 9V-1.67A 4.Output: 5W / 7.5W / 10W 5.Conversion Efficiency: 85% Max 6.Transmitting Distance: 5-8mm 7.Working Frequency: 115-205KHz 8.Product Standard: WPC v.1.2.4 9.Protective measures: FOD,DPL,SCP,Over temperature,over voltage protection, software/hardware dual over current protection enhanced VRVS;Dedicated high power low loss MOS & MOS driver 10.Compatible for:QC2.0/QC3.0 FCC warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. IC Caution: Radio Standards Specification RSS-Gen, issue 5 - English: This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. RF exposure statement: The equipment complies with IC Radiation exposure limit set forth for uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. - French: Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis aux deux conditions suivantes: Cet appareil ne doit pas causer d'interférences. Cet appareil doit accepter toutes les interférences, y compris celles susceptibles de provoquer un fonctionnement indésirable de l'appareil. Déclaration d'exposition RF: L'équipement est conforme à la limite d'exposition aux radiations de la IC établie pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.

C5266091_X8_Ed.1 1/1 LetterofAuthorization NationalProducts,Inc Company:NationalProducts,Inc Address:8410DALLASAVESOUTHSEATTLE,WA,USA98108 ProductName:QuickGripCharger ModelNumber:RAM-B-166 FCCIdentifier:2AVLK-RAM-B-166 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:SCOTTANDERSONDate:2/25/2020 Title:Manager Signatureofapplicant:ScottAnderson

C5266091_X10_Ed.1 1/1 NationalProducts,Inc OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2/25/2020 Subject:RequestforConfidentiality FCCID:2AVLK-RAM-B-166 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManual InternalPhotos PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature:ScottAnderson Name:SCOTTANDERSON2/25/2020 Title:Manager

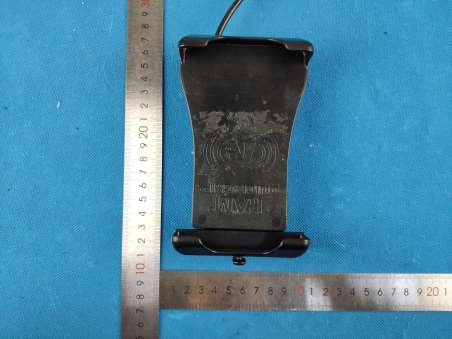

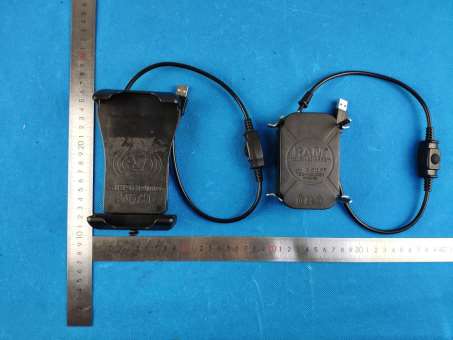

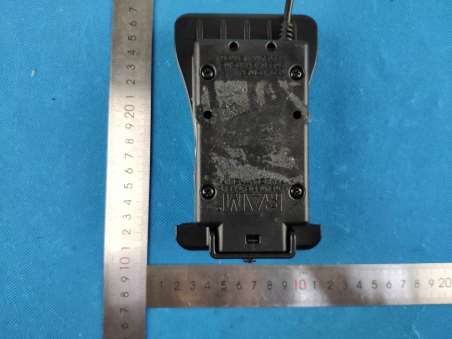

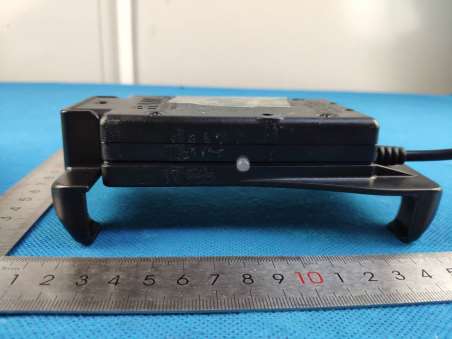

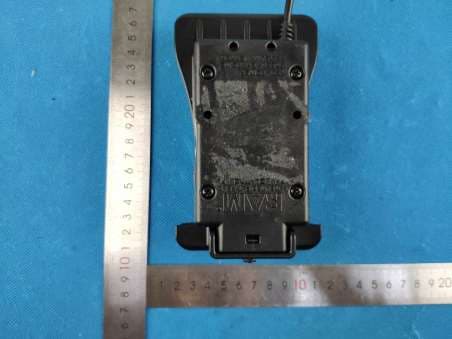

- Page 1 of 3 - Report No.: MTi19120513-8E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China APPENDIX 1: EUT PHOTO Photo 1 (For model RAM-B-166) Photo 2 - Page 2 of 3 - Report No.: MTi19120513-8E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 3 Photo 4 - Page 3 of 3 - Report No.: MTi19120513-8E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 5 Photo 6 ----END OF REPORT----

Size：40mm*25mm Model: RAM-B-166 FCC ID: 2AVLK-RAM-B-166 IC: 25808-RAMB166

- Page 1 of 3 - Report No.: MTi19120513-8E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China APPENDIX 1: EUT PHOTO Photo 1 (For model RAM-B-166) Photo 2 - Page 2 of 3 - Report No.: MTi19120513-8E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 3 Photo 4 Wireless charging ANT - Page 3 of 3 - Report No.: MTi19120513-8E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 5 ----END OF REPORT----

EXPOSURE REPORT FCC ID: 2AVLK-RAM-B-1661 Date of issue: Jan. 14, 2020 Report Number: MTi19120513-8E2 Sample Description: Quick Grip Charger Mo d e l( s ) : RAM-B-166 Applicant: National Products, Inc Address: 8410 DALLAS AVE SOUTH SEATTLE, WA, USA 98108 Date of Test: Dec. 27, 2019 - Jan. 14, 2020 Shenzhen Microtest Co., Ltd. http://www.mtitest.com Test Result Certification Applicant’s name: National Products, Inc Address: 8410 DALLAS AVE SOUTH SEATTLE, WA, USA 98108 Manufacture's name: Shenzhen Aodehong Electronic Technology Co., Ltd Address: 2/F, A1 Bldg., Xiangdali Industrial Zone Hengping RD.No.87, Henggang St. Longang Dist, Shenzhen, 518000 CN Product name: Quick Grip Charger Trademark: Ram Mounts Model name: RAM-B-166 Standard: FCC CFR 47 PART 1 , 1.1310 RF Exposure Procedures: KDB 680106 D01 RF Exposure Wireless Charging App v03 This device described above has been tested by Shenzhen Microtest Co., Ltd. and the test results show that the equipment under test (EUT) compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Tested by: Demi Mu Jan. 14, 2020 Reviewed by: Leo Su Jan. 14, 2020 Approved by: Tom Xue Jan. 14, 2020 1 General Information 1.1 Description of EUT Product name: Quick Grip Charger Brand name: Ram Mounts Model name: RAM-B-166 Series model: N/A Deference in serial model: N/A Operation frequency: 115–205 kHz Operational mode: Wireless charging Modulation type: Load modulation Antenna type: Coil Antenna Power source: DC 9V from adapter AC 120V/60Hz Battery: N/A Adapter information: N/A 1.2 Ancillary equipment list Equipment Model S/N Manufacturer / / / / / / / / 1.3 Measurement uncertainty Measurement Uncertainty for a Level of Confidence of 95 %, U=2xUc(y) Radiated emission(150kHz~30MHz) ± 2.5 dB Radiated emission(30MHz~1GHz) ± 4.2 dB Radiated emission (above 1GHz) ± 4.3 dB Temperature ±1 degree Humidity ± 5 % 2 Testing site Test Site Shenzhen Microtest Co., Ltd Test Site Location No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China FCC Registration No.: 448573 3 List of test equipment Equipment No. Equipment Name Manufacturer Model Serial No. Calibration date Due date MTI-E068 Broadband Field Meter Narda Safety Test Solutions GmbH NBM- 520 D-1699 2019/07/13 2020/07/12 MTI-E069 Probe E-Field Narda Safety Test Solutions EF0691 H-0571 2019/07/13 2020/07/12 4 Test Results 4.4 Maximum permissible exposure 4.4.1 Limit Frequency range(MHz) Electric field strength(V/m) Magnetic field strength(A/m) Power density(mW/cm2) Averaging time(minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 6 300-1500 f/300 6 1500-100000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 f/1500 30 1500-100000 1 30 f = frequency in MHz * = Plane-wave equivalent power density 4.4.2 Test Procedures E and H-field measurements should be made with the center of the probe at a distance of 15 cm surrounding the device and 20 cm above the top surface of the primary/client pair. These measurements should be repeated for three different client battery levels, 1%, 50%, and 99%. Record the test results. KDB 680106 D01 RF Exposure Wireless Charging App v03: (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Note: The device is in compliance with KDB 680106 D01 RF Exposure Wireless Charging App v03 6 conditions. 4.4.3 Test Setup Right Side 15cm Field Probe Top Side Left Side Bottom Side Front Side Back Side 4.4.4 Test Result Maximum permissible Exposure Battery levels Test sides Test distance(cm) E –field(V/m) H–field(A/m) <1% Top 20 0.47 0.19 <1% Bottom 15 0.42 0.11 <1% Left 15 0.44 0.14 <1% Right 15 0.43 0.18 <1% Front 15 0.41 0.15 <1% Back 15 0.40 0.16 Limit 614 1.63 Margin Limit (%) 0.077 11.656 Maximum permissible Exposure Battery levels Test sides Test distance(cm) E –field(V/m) H–field(A/m) <50% Top 20 0.44 0.19 <50% Bottom 15 0.40 0.16 <50% Left 15 0.41 0.12 <50% Right 15 0.43 0.11 <50% Front 15 0.41 0.10 <50% Back 15 0.42 0.18 Limit 614 1.63 Margin Limit (%) 0.072 11.656 Maximum permissible Exposure Battery levels Test sides Test distance(cm) E –field(V/m) H–field(A/m) <99% Top 20 0.44 0.18 <99% Bottom 15 0.43 0.17 <99% Left 15 0.40 0.15 <99% Right 15 0.41 0.13 <99% Front 15 0.42 0.12 <99% Back 15 0.41 0.15 Limit 614 1.63 Margin Limit (%) 0.072 11.043 4.4.5 MPE Setup photo ----END OF REPORT----

This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen Microtest Co., Ltd. Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Test Report FCC ID: 2AVLK-RAM-B-166 Date of issue: Jan. 14, 2020 Report number: MTi19120513-8E1 Sample description: Quick Grip Charger Mo d e l( s ) : RAM-B-166 Applicant: National Products, Inc Address: 8410 DALLAS AVE SOUTH SEATTLE, WA, USA 98108 Date of test: Dec. 27, 2019 - Jan. 14, 2020 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 25 - Report No.: MTi19120513-8E1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Table of Contents 1 GENERAL INFORMATION ................................................................................................................................... 4 1.1 FEATURE OF EQUIPMENT UNDER TEST (EUT) ................................................................................................................... 4 1.2 TEST MODE .............................................................................................................................................................. 4 1.3 EUT TEST SETUP........................................................................................................................................................ 5 1.4 ANCILLARY EQUIPMENT .............................................................................................................................................. 5 1.5 MEASUREMENT UNCERTAINTY ..................................................................................................................................... 5 2 SUMMARY OF TEST RESULT ............................................................................................................................... 6 2.1 OPERATION CHANNEL LIST ........................................................................................................................................... 6 2.2 TEST CHANNEL .......................................................................................................................................................... 6 3 TEST FACILITIES AND ACCREDITATIONS .............................................................................................................. 7 3.1 TEST LABORATORY ..................................................................................................................................................... 7 3.2 ENVIRONMENTAL CONDITIONS ..................................................................................................................................... 7 3.3 MEASUREMENT UNCERTAINTY ...................................................................................................................................... 7 3.4 TEST SOFTWARE ........................................................................................................................................................ 7 4 LIST OF TEST EQUIPMENT .................................................................................................................................. 8 5 TEST RESULTS ..................................................................................................................................................... 9 5.1 ANTENNA REQUIREMENT ............................................................................................................................................ 9 5.1.1 Standard requirement ................................................................................................................................. 9 5.1.2 EUT Antenna ............................................................................................................................................... 9 5.2 CONDUCTED EMISSION ............................................................................................................................................. 10 5.2.1 Limits ......................................................................................................................................................... 10 5.2.2 Test Procedures ......................................................................................................................................... 10 5.2.3 Test Setup .................................................................................................................................................. 10 5.2.4 Test Result ................................................................................................................................................. 10 5.3 RADIATED EMISSION ................................................................................................................................................. 15 5.3.1 Limits ......................................................................................................................................................... 15 5.3.2 Test Procedures ......................................................................................................................................... 16 5.3.3 Test Setup .................................................................................................................................................. 17 5.3.4 Test Result ................................................................................................................................................. 17 5.4 OCCUPIED BANDWIDTH............................................................................................................................................. 22 5.4.1 Test meth…

Text truncated - open the document above for the full version.

Model: RAM-B-166 Radiated emission Conducted emission
