2AVMLSMCOM2Sensor

HARDWARE KIT Product Information 1Version 01. SMACGI-D05-A1 This Product Information guide contains safety, handling, disposal and recycling, regulatory, and software license information, as well warranty information for the SmartAC.com Hardware Kit. Read all safety information and operating instructions below before using the SmartAC.com Hardware Kit to avoid injury. For detailed operating instructions, including any updates to the safety and regulatory information, visit help.smartAC.com SmartAC.com Hardware Kit To use the SmartAC.com Hardware Kit, you need: • A central air/ducted HVAC system, and • Access to an 802.11 wireless network on a 2.4GHz frequency band or an Ethernet network and Internet, and • A smartphone with access to the Apple App Store or Google Play SmartAC.com Hub top view: SmartAC.com Hub rear view: 2SmartAC.com Hardware Kit - Product Information SmartAC.com Sensor front view: SmartAC.com Sensor front view (battery cover removed): SmartAC.com Sensor back view: 3Version 01. SMACGI-D05-A1 Getting started with the SmartAC.com Hardware Kit Before you start, make sure you have physical access to your home router or know your wireless network name (and password if the network is password-protected). If you’re using a wired network, use the provided Ethernet cable to connect your SmartAC.com Hub. 1. Download the SmartAC.com app from the Apple App Store or Google Play (using your camera, you can scan the code above to download the app) 2. Confirm or register your SmartAC.com account 3. Follow video-guided install instructions How to replace the batteries in your SmartAC.com sensors Follow these steps to remove and replace the batteries in your SmartAC.com sensor devices (Comfort, Filter, or Water). Note: Replace only with a SmartAC.com approved batteries. For a list of suitable replacements, visit help.smartAC.com 1. Identify the textured area of the Battery Cover on the front of the sensor device (this is the lower half, below the SmartAC.com logo and eject symbol at the bottom). 4SmartAC.com Hardware Kit - Product Information 2. Placing your thumb on the textured area, gently push and slide the cover. 3. Remove the old batteries. Important: Dispose of batteries according to your local environmental laws and guidelines. 4. With the negative (-) end of the battery oriented toward the top of the device, insert each new battery, pushing up to compress the spring and pushing down to seat the positive end (+). The indicator light will light up immediately when both batteries are installed and the device powers on. 5. Replace the Battery Cover by sitting it in position and sliding down from the top. 5Version 01. SMACGI-D05-A1 Mounting Clip The magnetic mounting clip allows the Comfort sensor to be installed on vents made from non-magnetic materials or with unusual geometry. SmartAC.com Magnetic Mounting Clip side view: SmartAC.com Magnetic Mounting Clip front view: SmartAC.com Magnetic Mounting Clip back view: 6SmartAC.com Hardware Kit - Product Information The Magnetic Mounting Clip articulates through two axes. 1. The rubber grip rotates independently through 360 degrees in a CLOCKWISE/RIGHT- HAND direction. 2. The arm pivots through 90 degrees in relation to the body. 7Version 01. SMACGI-D05-A1 About the SmartAC.com Hub status light The status light on the top of the Hub indicates the following: If the Hub isThe status light... Connected to WiFi with internet accessIs solid blue Off or in standbyIs off Starting upIs solid orange (or red) Is in initial setup modeFlashes orange (or red) slowly In WPS modeFlashes orange (or red) quickly Connected to Wifi with no internet accessIs solid orange (or red) Is in sensor pairing modeFlashes blue About the SmartAC.com Sensor device status light The status light on the front of the sensor devices indicates the following: If the Sensor deviceThe status light... Starting upIs solid for 2 seconds followed by: Flash once = Comfort sensor Flash twice = Filter sensor Flash three times = Water sensor Is off or in standbyIs off Is in sensor pairing modeFlashes blue quickly Has low battery levelFlashes blue periodically Note: Features may be updated or added periodically to SmartAC.com devices via remote firmware upgrades. These changes or upgrades may affect the status light functions listed above. The latest hardware interface specifications, including status light information, are available at help.smartAC.com. 8SmartAC.com Hardware Kit - Product Information Important Safety Instructions WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to SmartAC.com devices or other property. • Read and follow these instructions to use SmartAC.com devices safely. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use the SmartAC.com Hub, Comfort Sensor, or Filter Sensor near water. • Clean only with a dry cloth. • Do not install on or in direct contact with major heat sources such as heating elements, boilers, or other devices that produce extreme heat. • Do not place naked flame sources, such as burners or pilot flames, on or near SmartAC.com devices. • Protect all cords, including the power cord and ethernet cable, from being walked on or pinched, particularly at the plugs and connectors. • Only use attachments/accessories and batteries specified by SmartAC.com. Visit help.smartAC.com for a list of suitable replacements. • Remove the batteries from the sensor devices when depleted or unused for long periods of time. WARNING: To reduce the risk of fire or electric shock, do not expose SmartAC. com devices or accessories to chemicals, excessive heat, or naked flames. Power SmartAC.com Hub and sensor devices have no on/off switch. To disconnect the Hub from power, you must disconnect the power adapter from the device or outlet. To disconnect the sensor devices from power, you must remove the batteries from the device. Power the Hub with the included SmartAC.com …

Text truncated - open the document above for the full version.

Authority to Act as Agent Date: 2022/9/1 PHOENIX TESTLAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg To Whom It May Concern: Intertek Testing Services Taiwan Ltd (Rico Deng) is authorized to act on our behalf, until otherwise notified, for applications to PHOENIX TESTLAB GmbH. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Name: Joseph Pinzarrone Company: SmartAC.com, Inc. Address: 5302 Egbert Street Houston, TX 77007 United States Of America Phone: 6502969072

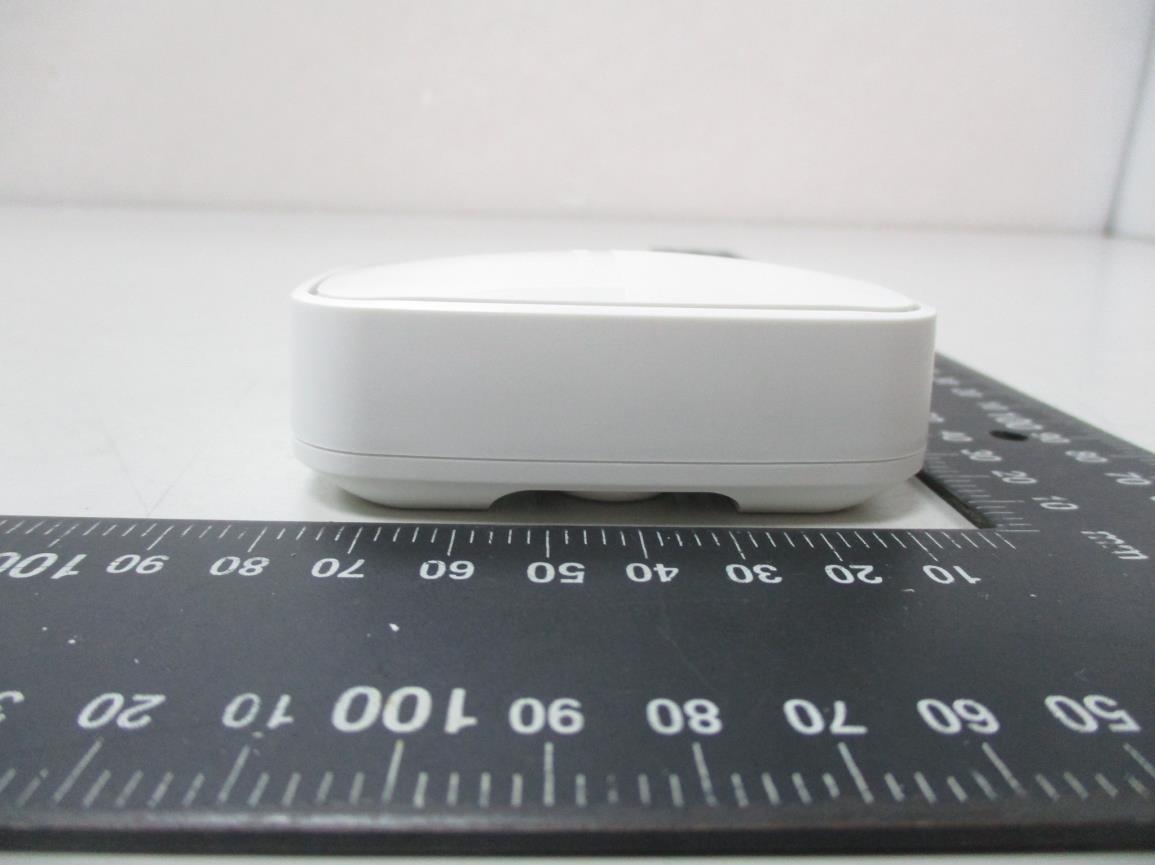

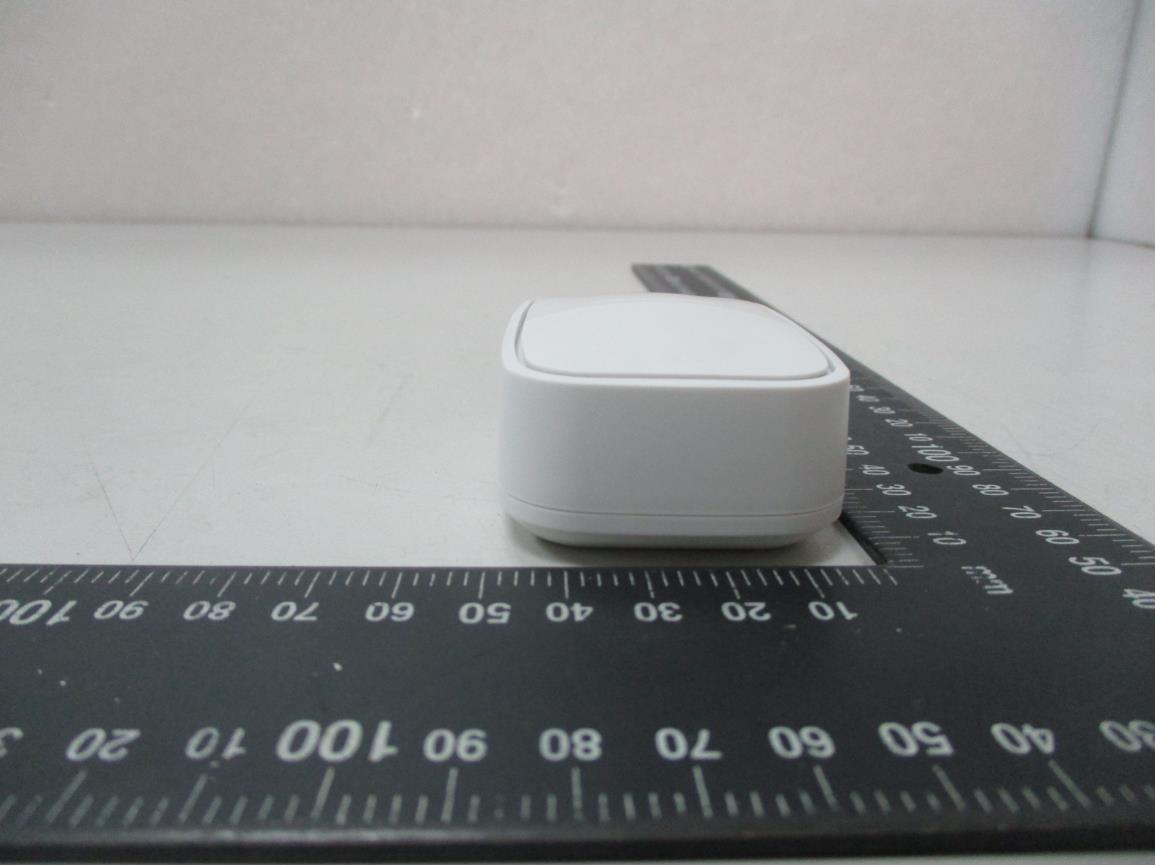

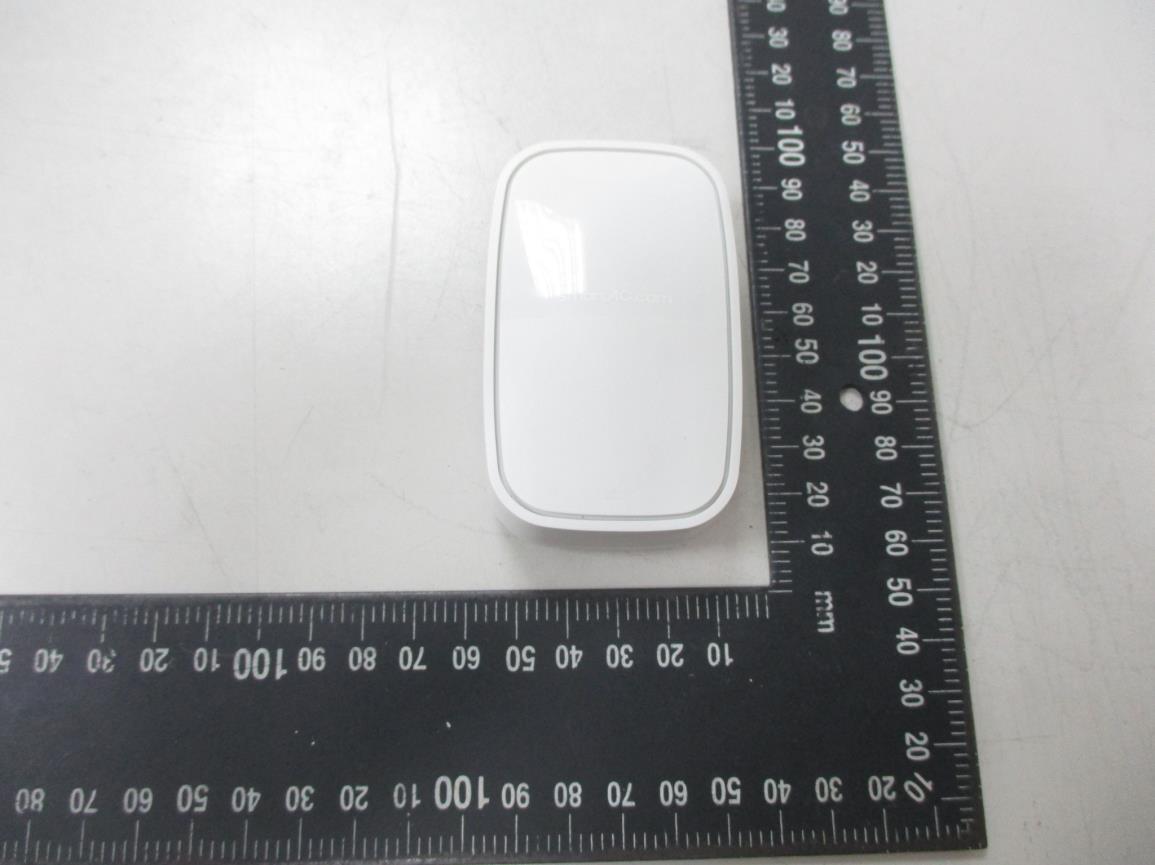

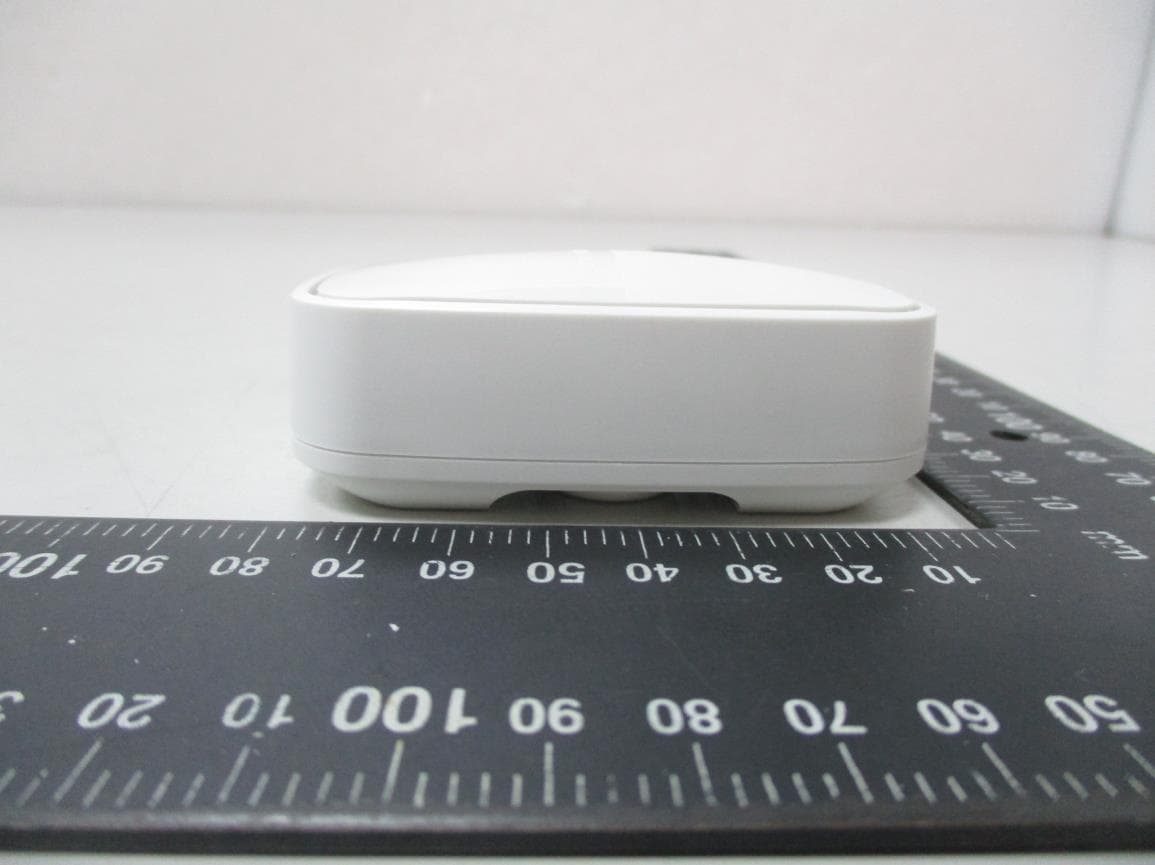

External photo of EUT External photo of EUT External photo of EUT External photo of EUT

Label & Label Location Model : SMCOM1A2

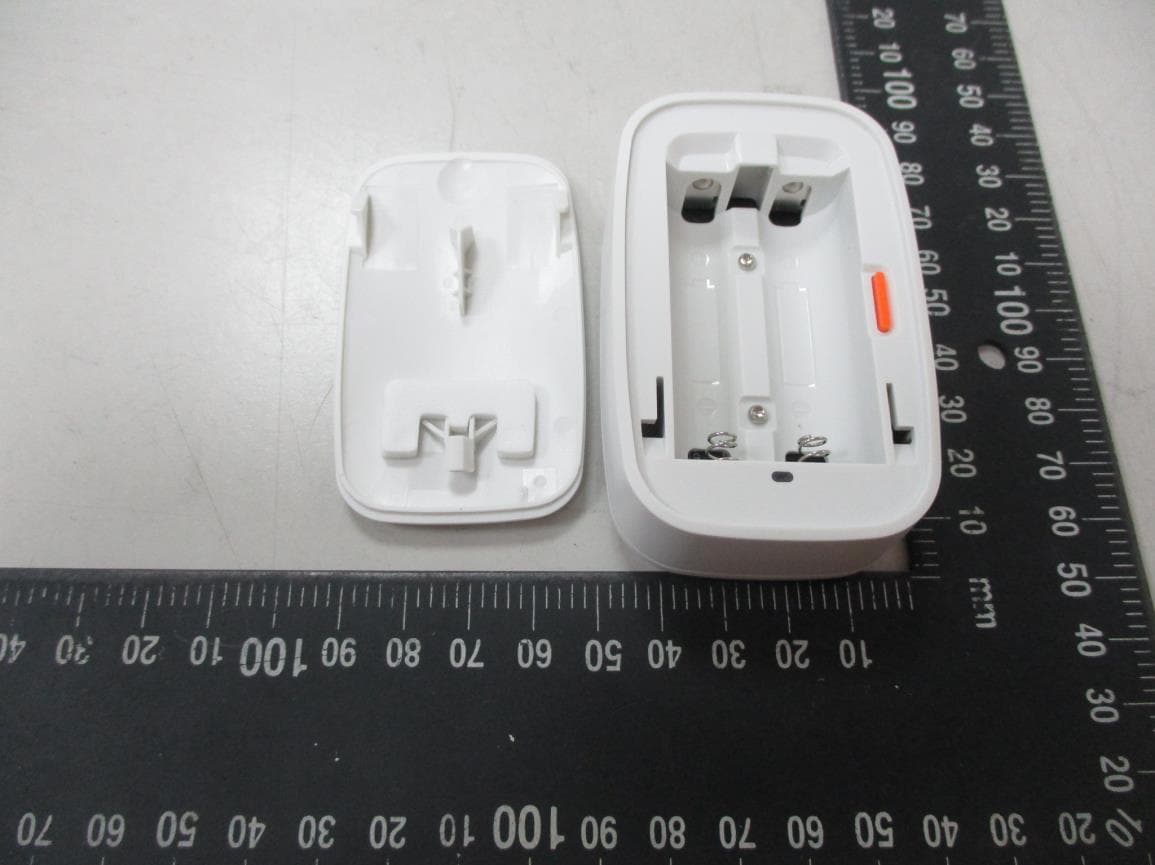

Internal photo of EUT Internal photo of EUT Antenna IC

SmartAC.com, Inc. TEST REPORT Model: SMCOM1A2 REPORT NUMBER 220800294THC-001 ISSUE DATE Sep. 21, 2022 PAGES 22 DOCUMENT CONTROL NUMBER GFT-OP-10h (28-Nov-2018) © 2020 Intertek Report No.: 220800294THC-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. GFT-OP-10h (28-Nov-2018) Page 1 of 22 Test Report 0597 Radio Spectrum TEST REPORT Applicant: SmartAC.com, Inc. 5302 Egbert Street, Houston, TX 77007, United States Product: Sensor Model No.: SMCOM1A2 Brand Name: smartAC.com FCC ID: 2AVMLSMCOM2 Test Method/ Standard: 47 CFR FCC Part 15.249 & ANSI C63.10 2013 Test By: Intertek Testing Services Taiwan Ltd., Hsinchu Laboratory No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan Zero Chen Engineer Rico Deng Reviewer Report No.: 220800294THC-001 GFT-OP-10h (28-Nov-2018) Page 2 of 22 TEST REPORT Revision History Report No. Issue Date Revision Summary 220800294THC-001 Sep. 21, 2022 Same as RF modular, the differences is add accessory connector, after engineer judgment radiated (30MHz~1GHz) emission test were considered necessary and then the other test data based on Report No.: 200700309TWN-001. Report No.: 220800294THC-001 GFT-OP-10h (28-Nov-2018) Page 3 of 22 TEST REPORT Table of Contents 1. General Information ............................................................................................................... 5 1.1 Identification of the EUT .................................................................................................. 5 1.2 Antenna description ......................................................................................................... 5 1.3 Peripherals equipment ..................................................................................................... 5 2. Test specifications ................................................................................................................... 6 2.1 Test standard .................................................................................................................... 6 2.2 Operation mode ............................................................................................................... 6 3. 20dB Bandwidth & Occupied Bandwidth test ........................................................................ 7 3.1 Operating environment .................................................................................................... 7 3.2 Test setup & procedure .................................................................................................... 7 3.3 Measured data of modulated bandwidth test results ..................................................... 7 4. Radiated emission test FCC 15.249 (C) ................................................................................... 9 4.1 Operating environment .................................................................................................... 9 4.2 Test setup & procedure .................................................................................................... 9 4.3 Emission limit ................................................................................................................. 11 4.3.1 Fundamental and harmonics emission limits ............................................................. 11 4.3.2 General radiated emission limits ................................................................................. 12 4.4 Radiated spurious emission test data ............................................................................ 12 4.4.1 Measurement results: frequency range from 9 kHz to 30 MHz .................................. 12 4.4.2 Measurement results: frequencies equal to or less than 1 GHz ................................. 13 4.4.3 Measurement results: frequency above 1GHz ............................................................ 15 4.4.4 Measurement results: Fundamental ........................................................................... 16 5. Radiated emission on the band edge FCC 15.249(d) ........................................................... 17 5.1 Operating environment .................................................................................................. 17 5.2 Radiated emission on the band edge test data .............................................................. 17 6. AC Power Line Conducted Emission ..................................................................................... 19 Appendix A: Test equipment list ............................................................................................... 20 Appendix B: Measurement Uncertainty ................................................................................... 22 Report No.: 220800294THC-001 GFT-OP-10h (28-Nov-2018) Page 4 of 22 TEST REPORT Summary of Tests Test Reference Results 20dB Bandwidth/Occupied Bandwidth test 15.215(c) Pass Radiated Emission test 15.249(c), 15.209 Pass Emission on the Band Edge 15.249(d) Pass Conducted Emission of AC Power 15.207 N/A Antenna Requirement 15.203 Pass Note: Please note that the test results with statement of conformity, the decision …

Text truncated - open the document above for the full version.

Radiated Emission Test set-up photo 9kHz~30MHz Radiated Emission Test set-up photo 30MHz~1GHz Radiated Emission Test set-up photo Above 1GHz
