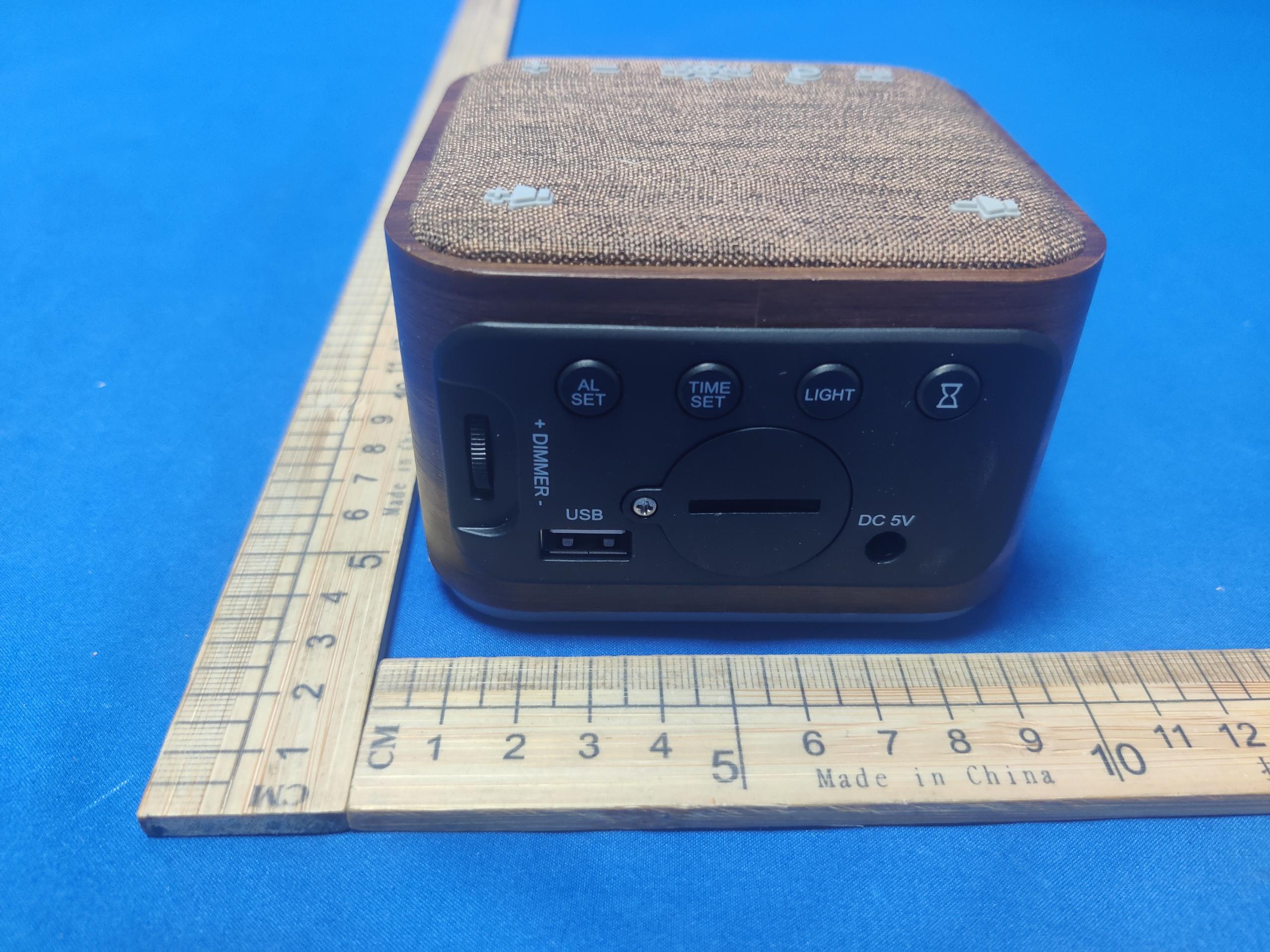

UE288 User Manual [email protected] Mojikoo ALARM Icon BLUETOOTH Indicator SLEEP SOUND Indicator SLEEP TIMER Indicator NIGHTLIGHT AM/PM Indicator Press to set the alarm time,wake up sound and alarm volume level Scroll to adjust the display brightness(0-100%) USB charging port Battery compartment (Battery is built in already) Power connector Press to set the time,switch 12/24Hr mode Press to adjust the nightlight brightness Press to set the timer + DIMMER - USB DC 5V TIME SET AL SET LIGHT DIM Press to decrease volume 1.Short press to turn on/ pause Bluetooth 2.Long press for 2 seconds to turn off Bluetooth 3.For streaming music and synchronizing time from phone Press to turn on/ off sleep sound Forward Backward 1.Press to start the 9 minutes snooze 2.Press to turn on and change the color of the nightlight 3.Hold 2 seconds to turn off the nightlight Press to increase volume SILICONE PROTECTIVE PAD AUDIO SPEAKER HOLES BOTTOM VIEW 1. Plug the adapter into a standard household outlet, you will see 12:00 AM on the display and the clock is ready to be set. 2. Please remove the battery tab before use. 1. If the display is "blank" after plugging in , please check whether the DISPLAY DIMMER on the back is at the HIGH position. 2. Battery backup for saving TIME/ALARM setting only,the display will go blank and preset alarm will not go off under the battery power. 3. Once the battery is removed and with an interruption of power, the TIME and ALARM need to be reset when the power comes back. NOTICE: Flash 1.Press the " BT " to turn on Bluetooth. Press and hold the " BT " for 2 seconds to turn off Bluetooth. When Bluetooth is ON, the " BT " icon will flash on the display. BLUETOOTH CONNECTION SETTING 2.Turn on Bluetooth on your phone and connect with the device " UE288 ". The " BT " icon wil stop flashing on the display upon connecting successfully. 3.When music is playing, press "-" or "+" botton to change the music. Press the " BT " to pause the music and press again to play. 4.Press " " or " " to adjust volume with a range of 01-30 level. The default volume is 30 level(max). 1.The Bluetooth will automatically turn off if fails to connect to the phone within 5 minutes. 2.If a call comes in, the Bluetooth will stop playing the music. 3.When the clock is connected to the phone via Bluetooth, it will auto-sync the phone time to alarm clock. It may fail to auto-sync the time due to incompatible situations on different phone version. 4.Place your clock and phone no more than 10 meters(33ft) away from each other. NOTICE: HOUR Flashes MINUTE Flashes 1.Press the " " button first time to enter HOUR Setting. The HOUR digits will flash on the display. Press " - " or " + " button to advance to the correct hour(hold for rapid setting). MANUAL TIME SETTING TIME SET 2.Press the " " button second time to confirm and enter MINUTE setting. When the MINUTE digits flash , press " - "or " + " button to advance to the correct minute (hold for rapid setting). TIME SET 1.The default is 12-hour time format. 2.When using the 12-hour time format, the AM icon will be appeared for 12:00 midnight through 11:59am, and the PM icon will be appeared for 12:00 noon through 11:59pm. 3.The clock will exit automatically from the TIME setup mode if no action is taken within 10 seconds. NOTICE: 3.Press the " " button third time to confirm and enter TIME FORMAT (12/24H) setting. Press " + " or " - "button to select time format. 4.Press the " " button fourth time to confirm and exit the time setting mode. TIME SET TIME SET ALARM ON ALARM OFF ALARM ON ALARM OFF AL SET To switch the alarm on or off, press and hold" "for 2 seconds. The alarm icon will appear when the alarm is on. ALARM ON/OFF HOUR Flashes MINUTE Flashes AL SET AL SET 1. Press the " " button first time to enter ALARM HOUR setting. The HOUR digits will flash on the display. Press " - " or " + " button to advance to the desired hour (hold for rapid setting). 2. Press the " " button second time to confirm and enter ALARM MINUTE setting. The MINUTE digits will flash on the display. Press " - " or " + " button to advance to the desired minute (hold for rapid setting). ALARM SETTING “01”=Bird Chirping Sound AL SET 3.Press the " " button third time to confirm and enter WAKE UP SOUND setting. The alarm sound options will display, and the alarm sound will ring. Press "-" or "+" button to choose one of eight built-in alarm sounds (01=Bird Chirping; 02=Piano; 03=Flute; 04=Forest; 05=Brook; 06=Ocean Wave; 07=Beep; 08=Buzzer) Chosen Alarm Sound AL SET AL SET 4.Press the " " button fourth time to confirm and enter ALARM VOLUME setting. Press " " or " " to adjust the alarm volume, 01-30 level adjustable. The default alarm volume is 15 level. 5. Press the “ ”button fifth time to confirm and exit the alarm setting mode. The alarm will automatically turn off after 15 minutes if no action is taken. NOTICE: AL SET 1.When the alarm goes off, press " " button to snooze, the alarm icon will flash on the display. The alarm will go off again 9 minutes later. 2.To cancel the snooze at any time or to TURN OFF this day alarm while it is sounding, press " ". The alarm will go off again at the same time the next day. SNOOZE/TURN OFF ALARM DAILY WHITE NOISE SOUND MACHINE ON/OFF 1.When Bluetooth music is turned on, press the " " button to turn off the Bluetooth, the sleep sound will turn on, and the sound icon appear. 2.The sleep sound machine has a memory function: When the function is turned on next time, the music and volume will be the same as before it was turned off. NOTICE: 1.Press the " " button, sound machine will be ON /OFF. 2.Press the " " button to increase the volume. Press the " " button to decrease the volume.(1-30 adjustable) WHITE NOISE SOUND MACHINE When sound machine is on, press " + "or " - " button to switch among all the 25 sounds in sequence. Here is the list of tracks E01White Noise 1 Thunderstorm Brook Bird Chirping Frog Chirping Cricket Chirping Campfire Shush Train Lullary Byebaby …
