2AVMZ-S01Alarm Clock, Bluetooth Speaker

S01 User Manual [email protected] Mojikoo AM IndicatorSLEEP TIMER Indicator PM IndicatorSLEEP SOUND Indicator BLUETOOTH IndicatorALARM Icon Power connector 1. Short press to turn on/pause Bluetooth 2. Hold 2 seconds to turn off Bluetooth 3. For streaming music from phone 1. Repeatedly press to select your local time zone among the five time zones(01=EST;02=CST;03=MST; 04=PST;05=AKST) 2. Hold 2 seconds to enter the time setting and switch 12/24Hr mode Press to turn on/off sleep sound 1. Press to set the alarm time, wake up sound and alarm volume level 2. Hold 2 seconds to turn on/off the alarm 1. Press to set the timer 2. Hold 3 seconds to adjust the nightlight brightness Press to increase volumePress to decrease volume ForwardBackward 1. Press to start the 9 minutes snooze 2. Press to adjust the display brightness manually (When the Auto-dimmer switch at the bottom of the clock is in "OFF" position) 1. Press to turn on and change the color of the nightlight 2. Hold 2 seconds to turn off the nightlight BT Silicone protective pad Power connector Battery compartment (Battery is built in already) DC 5V OFFON AUTO Auto-Dimmer Switch ON/OFF (Slide " " switch to the "ON" position,the smart dimming sensor will adjust the display brightness on the environmental brightness.) AUTO BOTTOM VIEW 1. Plug the adapter into a standard household outlet, you will see 12:00 AM on the display and the clock is ready to be set. 2. Please remove the battery tab before use. 1. If the display is "blank" after plugging in, please press the " " button to adjust the brightness to high level. 2. Battery backup for saving TIME/ALARM/NIGHTLIGHT/SLEEP SOUND setting only, the display will go blank and preset alarm will not go off under the battery power. 3. Once the battery is removed and with an interruption of power, the TIME/ALARM/ NIGHTLIGHT/SLEEP SOUND need to be reset when the power comes back. NOTICE: BTBT BT Flash 1.Press the " " to turn on Bluetooth. Press and hold the " " for 2 seconds to turn off Bluetooth. When Bluetooth is ON, the " BT " icon will flash on the display. BLUETOOTH CONNECTION SETTING 2.Turn on Bluetooth on your phone and connect with the device " S01 ". The " BT " icon will stop flashing on the display upon connecting successfully. 3.When music is playing, press “ ” or “ ” button to change the music. Press the " " to pause the music and press again to play. 4.Press “ ” or “ ” to adjust volume with a range of 01-32 level. The default volume is 16 level. 1.Press the " " button, the time zone options will flash, and the time in the corresponding time zone will flash immediately after 3 seconds. Press " " repeatedly to select one of five time zones.(01=EST;02=CST;03=MST;04=PST;05=AKST). TIME ZONE SELECTION 04 (PST) 03 (MST) 02 (CST) 01 (EST) 05 (AKST) 1.The Bluetooth will automatically turn off if fails to connect to the phone within 5 minutes. 2. If a call comes in, the Bluetooth will stop playing the music. 3. Place your machine and phone no more than 10 meters(33ft) away from each other. NOTICE: HOUR Flashes 1.Press any button except the " " button to confirm your time zone quickly. 2.If you are located outside the above time zones, please follow the MANUAL TIME SETTING steps below to set the correct time. NOTICE: 1. Press and hold the " " button for 2 seconds to enter HOUR setting. The HOUR digits will flash on the display. Press “ ” or “ ” button to advance to the correct hour(hold for rapid setting). TIME SETTING 2.If the time zone options, for example “04(PST)” and the time in the corresponding time zone, totally flashes more than 12 seconds, the time zone “04(PST)” will be confirmed automatically and exit from Time Zone Selection Mode. MINUTE Flashes 2.Press the “ ” button second time to confirm and enter MINUTE setting. When the MINUTE digits flash , press “ ”or “ ” button to advance to the correct minute (hold for rapid setting). 3.Press the “ ” button third time to confirm and enter TIME FORMAT (12/24H) setting. "12H" will flash, it means 12 hour mode, the default is 12-hour time format. 4.Press " " or " " button to select time format. "24H" will flash, it means 24 hour mode. 5.Press the " " button fourth time to confirm and exit the time setting mode. ALARM ON ALARM ON ALARM OFF ALARM OFF 1.The clock will exit automatically from the time setting mode if no action is taken within 10 seconds. 2.When using the 12-hour time format, the AM icon will be appeared for 12:00 midnight through 11:59am, and the PM icon will be appeared for 12:00 noon through 11:59pm. 3.24-hour time fomat does not display AM or PM. NOTICE: To switch the alarm on or off, press and hold “ ” for 2 seconds. The alarm icon will appear when the alarm is on. ALARM ON/OFF HOUR Flashes MINUTE Flashes 1. Press the “ ” button first time to enter ALARM HOUR setting. The HOUR digits will flash on the display. Press “ ”or “ ” button to advance to the desired hour. 2. Press the “ ” button second time to confirm and enter AL ARM MINUTE setting. The MINUTE digits will flash on the display. Press “ ”or “ ” button to advance to the desired minute. ALARM SETTING "A 01" Flash and Bird Chirping Ring 3.Press the “ ” button third time to confirm and enter WAKE UP SOUND setting. The alarm sound options will display, and the alarm sound will ring. Press “ ” or “ ” button to choose one of eight built-in alarm sounds (01=Bird Chirping; 02=Piano; 03=Soft Music; 04=Wind-bell; 05=Ocean Wave; 06=Siren; 07=Beep; 08=Buzzer) "U16" Flash and Chosen Alarm Sound Ring 4.Press the “ ” button fourth time to confirm and enter ALARM VOLUME setting. Press “ ” or “ ” to adjust the alarm volume, 01-32 level adjustable. The default alarm volume is 16 level. 5. Press the “ ” button fifth time to confirm and exit the alarm setting mode. The alarm will automatically turn off after 15 minutes if no action is taken. NOTICE: 1.When the alarm goes off, press “ ” button to snooze, the alarm icon will flash on the display. The alarm will go off again 9 minutes later. 2.…

Text truncated - open the document above for the full version.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: C ompany Name: TECHNITY SOLUTIONS USA INC FRN: 0028473106 Contact Name: Jerry Kao AddresS: 155 FEDERAL ST STE 700 BOSTON, MA 02110 Telephone +1(905)948-8828 Email: [email protected] T his letter is to confirm that the US Agent for Service of Process accepts responsibility to act as a local representative on behalf of Shenzhen Ivante Technology Co., Ltd T he US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Applicant: Company name: Dongguan Shunlang Electronics Co., Ltd Product Description: Alarm Clock, Bluetooth Speaker Grantee code: 2AVMZ FCC ID:2AVMZ-S01 Contact Name: Address:Floor 5, Building 2, Shenxiang Industrial Park,Dabandi Cuntou Community, Humen town, Dongguan Telephone No: 13642932851 Email:[email protected] The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2024/08/02 Applicant’s Name: Gancong He US Agent for Service of Process’s Name: Jerry Kao Title:manager Title: Director Signature Signature Gancong He FRN: 0029126802 1/1

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Dongguan Shunlang Electronics Co., Ltd FRN:0029126802 Grantee code:2AVMZ FCC ID:2AVMZ-S01 Contact Name:Gancong He Address:Floor 5, Building 2, Shenxiang Industrial Park, Dabandi Cuntou Community, Humen town, Dongguan Telephone No: 13642932851 Fax No:N/A Email:[email protected] i. [Dongguan Shunlang Electronics Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Dongguan Shunlang Electronics Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Dongguan Shunlang Electronics Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [ is not] identified on the Covered List as an entity producing “covered” equipment. Date: 2024/08/02 Applicant’s Name:Gancong He Title:general manager Signature: 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

C5266091_X8_Ed.1 1/1 Letter of Authorization Dongguan Shunlang Electronics Co., Ltd Company: Dongguan Shunlang Electronics Co., Ltd Address: Floor 5, Building 2, Shenxiang Industrial Park, Dabandi Cuntou Community, Humen town, Dongguan Product Name: Alarm Clock, Bluetooth Speaker Model Number: S01 FCC Identifier: 2AVMZ-S01 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name:Ganchao He Date: 08/02/2024 Title: general manager Signature of applicant:

C5266091_X10_Ed.2 1/1 Dongguan Shunlang Electronics Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 08/02/2024 Subject: Request for Confidentiality FCC ID: 2AVMZ-S01 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name:Gancong He Title:general manager

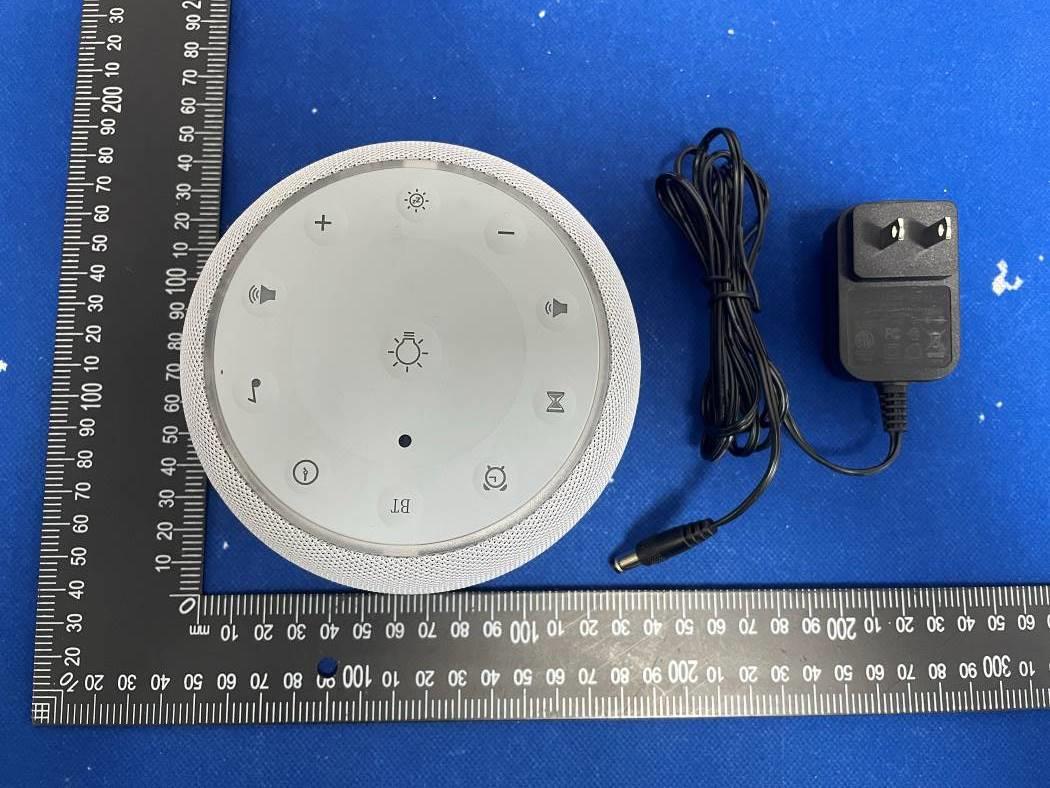

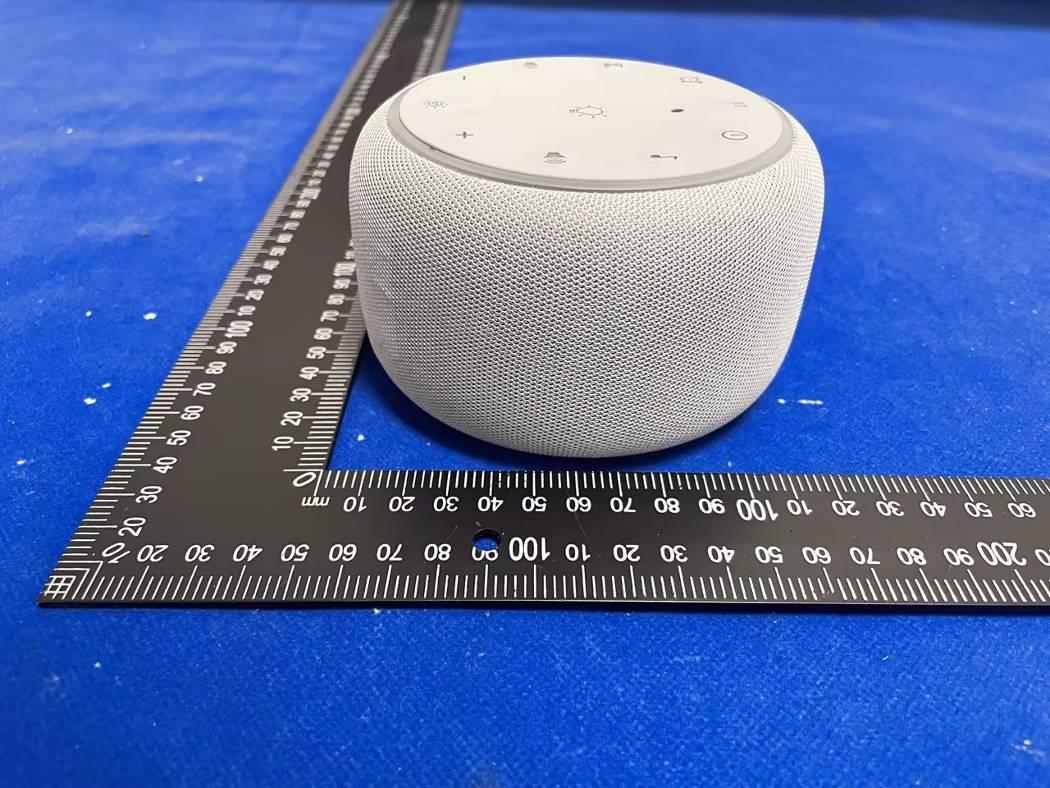

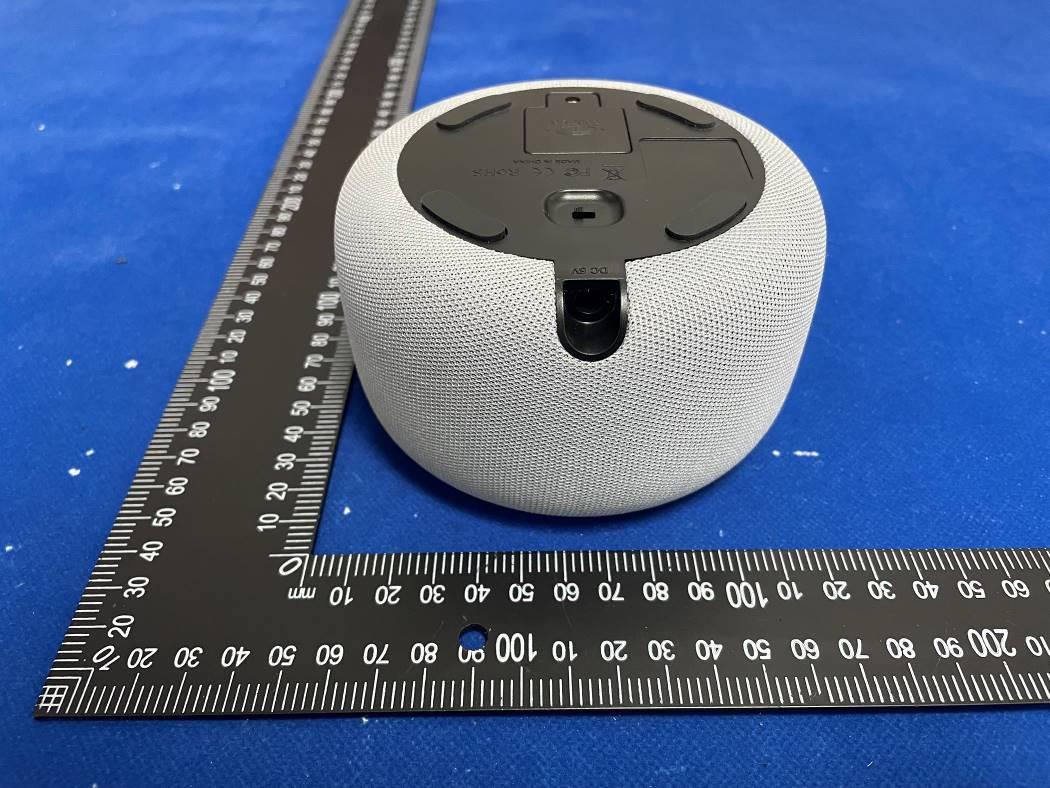

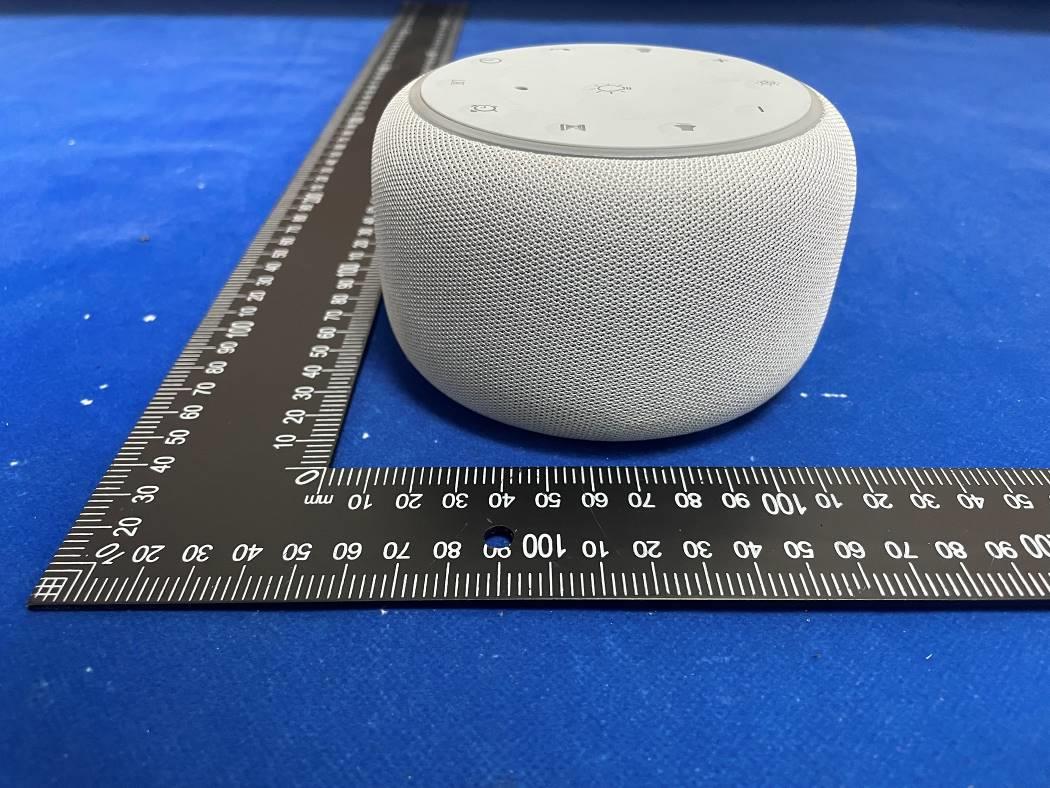

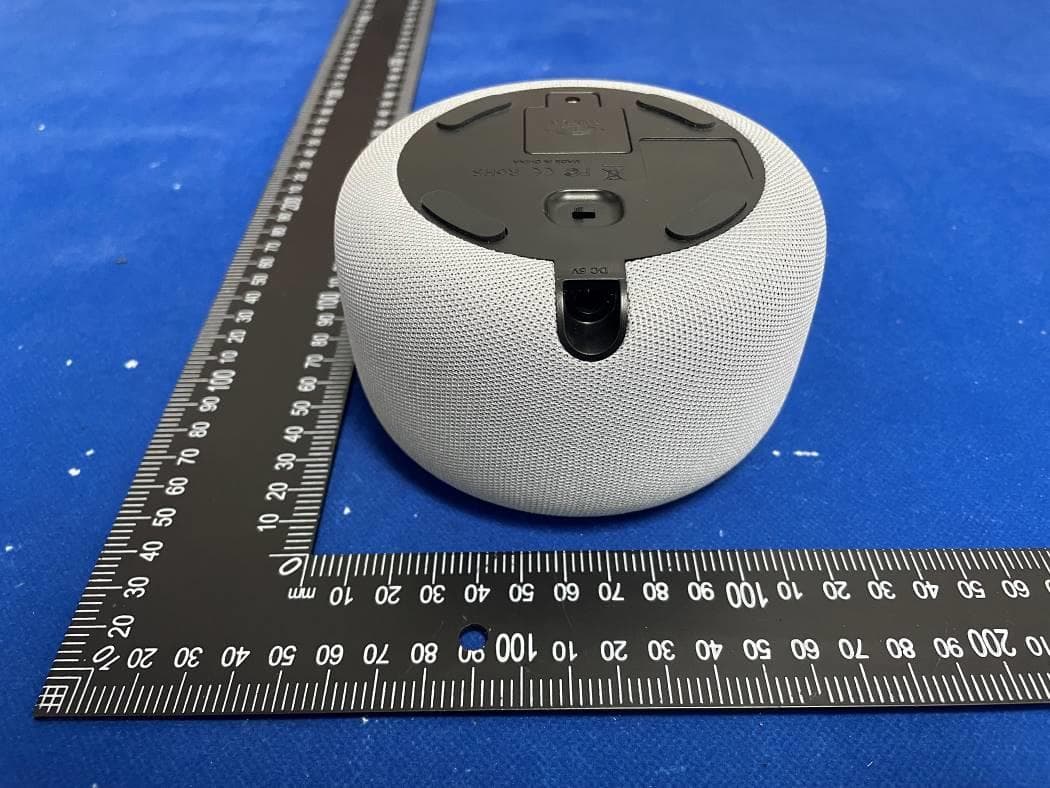

FCC ID:2AVMZ-S01 Page 1 / 5 EUT EXTERNAL PHOTO EUT Photo FCC ID:2AVMZ-S01 Page 2 / 5 EUT Photo EUT Photo FCC ID:2AVMZ-S01 Page 3 / 5 EUT Photo EUT Photo FCC ID:2AVMZ-S01 Page 4 / 5 EUT Photo EUT Photo FCC ID:2AVMZ-S01 Page 5 / 5 EUT Photo

FCC ID:2AVMZ-S01 Page 1 / 7 EUT INTERNAL PHOTOS EUT Photo EUT Photo FCC ID:2AVMZ-S01 Page 2 / 7 EUT Photo EUT Photo FCC ID:2AVMZ-S01 Page 3 / 7 EUT Photo EUT Photo FCC ID:2AVMZ-S01 Page 4 / 7 EUT Photo EUT Photo FCC ID:2AVMZ-S01 Page 5 / 7 EUT Photo EUT Photo PCB Antenna FCC ID:2AVMZ-S01 Page 6 / 7 EUT Photo EUT Photo FCC ID:2AVMZ-S01 Page 7 / 7 EUT Photo

HY- FCC 2.1091 Ver.1.1 Page 1 of 5 Report No.: RF240710003-02-002 FCC RF EXPOSURE REPORT FCC ID:2AVMZ-S01 Test Report No...........:RF240710003-02-002 Product(s) Name.........:Alarm Clock , Bluetooth Speaker Model(s)....................:S01 Trade Mark................:Mojikoo Applicant...................:DONGGUAN SHUNLANG ELECTRONICS., LTD. Address....................:ROOM 402, BUILDING 6, NO.27 HUAILIN RD, HUAIDE COMMUNITY, HUMEN TOWN, DONGGUAN CITY,GUANGDONG PROVINCE, CHINA Receipt Date..............:2024.07.16 Test Date...................:2024.07.16~2024.08.06 Issued Date................:2024.08.09 Standards..................:FCC Guidelines for Human Exposure IEEE C95.1 FCC Title 47 Part 2.1091 KDB 447498 D01 General RF Exposure Guidance v06 Testing Laboratory......:Shenzhen Haiyun Standard Technical Co., Ltd. Prepared By:Checked By:Approved By: Jason HuangTim ZhangMisue Su HY-FCC 2.1091 Ver.1.1 Page 2 of 5 Report No.: RF240710003-02-002 History of this test report Original Report Issue Date: 2024.08.09 ● No additional attachment ○ Additional attachments were issued following record Attachment No.Issue DateDescription HY-FCC 2.1091 Ver.1.1 Page 3 of 5 Report No.: RF240710003-02-002 1.. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna For BDR+EDR: Antenna gainAntenna Type -0.58dBiPCB Antenna HY-FCC 2.1091 Ver.1.1 Page 4 of 5 Report No.: RF240710003-02-002 2.. TEST RESULTS Worst case as below Freq. Maximum conducted output power Directional Antenna Gain Calculated maximum EIRP MPE Limit MPE Value Operating Mode (MHz)(dBm)(dBi)(dBm)(mW)(mW/cm 2 ) BDR+EDR2402-2480-2.77-0.58-3.350.4610.0010 Note: The calculated distance is 20 cm Result: Complies HY-FCC 2.1091 Ver.1.1 Page 5 of 5 Report No.: RF240710003-02-002 Statement 1. The report is invalid without the official seal or special seal of Shenzhen Haiyun Standard Technology Co., Ltd. (hereinafter referred to as the unit). 2. The report is invalid without the signature of the approver. 3. The report is invalid if altered arbitrarily. 4. The report shall not be partially copied without the written approval of the unit. 5. The reported test results are only valid for the tested samples. 6. If there is any objection to the test report, it shall be submitted to the test unit within 15 days from the date of receiving the report, and the overdue shall not be accepted. Shenzhen Haiyun Standard Technology Co., Ltd. Address: Room 110, 111, 112, 113, 115, 116, Block B, Jinyuan Business Building, No. 302, Xixiang Avenue, Labor Community, Xixiang Street, Baoan District, Shenzhen, China Tel: 0755-26024411 Email: [email protected] (END OF REPORT)

HY-FCC part 15C-BT Ver.1.1 Page 1 of 101 Report No.: RF240710003-02-001 RF Test Report FCC ID: 2AVMZ-S01 Test Report No...........:RF240710003-02-001 Product(s) Name.........:Alarm Clock , Bluetooth Speaker Model(s)....................:S01 Trade Mark................:Mojikoo Applicant...................:DONGGUAN SHUNLANG ELECTRONICS., LTD. Address....................:ROOM 402, BUILDING 6, NO.27 HUAILIN RD, HUAIDE COMMUNITY, HUMEN TOWN, DONGGUAN CITY,GUANGDONG PROVINCE, CHINA Receipt Date..............:2024.07.16 Test Date...................:2024.07.16~2024.08.06 Issued Date................:2024.08.09 Standards..................:47 CFR FCC Part 15, Subpart C(Section 15.247) ANSI C63.10:2013 Testing Laboratory......:Shenzhen Haiyun Standard Technical Co., Ltd. Prepared By:Checked By:Approved By: Jason HuangTim ZhangMisue Su HY-FCC part 15C-BT Ver.1.1 Page 2 of 101 Report No.: RF240710003-02-001 Table of Contents 1 . SUMMARY OF TEST RESULTS6 1.1 TEST FACILITY7 1.2 MEASUREMENT UNCERTAINTY7 1.3 TEST ENVIRONMENT CONDITIONS7 2 . GENERAL INFORMATION8 2.1 GENERAL DESCRIPTION OF EUT8 2.2 DESCRIPTION OF TEST MODES9 2.3 PARAMETERS OF TEST SOFTWARE10 2.4 SUPPORT UNITS10 3 . AC POWER LINE CONDUCTED EMISSIONS11 3.1 LIMIT11 3.2 TEST PROCEDURE11 3.3 DEVIATION FROM TEST STANDARD11 3.4 TEST SETUP12 3.5 EUT OPERATING CONDITIONS12 3.6 TEST RESULTS12 4 . RADIATED EMISSIONS13 4.1 LIMIT13 4.2 TEST PROCEDURE14 4.3 DEVIATION FROM TEST STANDARD15 4.4 TEST SETUP15 4.5 EUT OPERATING CONDITIONS16 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ16 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ16 4.8 TEST RESULTS - ABOVE 1000 MHZ16 5 . NUMBER OF HOPPING FREQUENCY17 5.1 LIMIT17 5.2 TEST PROCEDURE17 5.3 DEVIATION FROM STANDARD17 5.4 TEST SETUP17 5.5 EUT OPERATION CONDITIONS17 5.6 TEST RESULTS17 6 . AVERAGE TIME OF OCCUPANCY18 6.1 LIMIT18 HY-FCC part 15C-BT Ver.1.1 Page 3 of 101 Report No.: RF240710003-02-001 6.2 TEST PROCEDURE18 6.3 DEVIATION FROM STANDARD18 6.4 TEST SETUP18 6.5 EUT OPERATION CONDITIONS18 6.6 TEST RESULTS18 7 . HOPPING CHANNEL SEPARATION19 7.1 LIMIT19 7.2 TEST PROCEDURE19 7.3 DEVIATION FROM STANDARD19 7.4 TEST SETUP19 7.5 EUT OPERATION CONDITIONS19 7.6 TEST RESULTS19 8 . BANDWIDTH20 8.1 LIMIT20 8.2 TEST PROCEDURE20 8.3 DEVIATION FROM STANDARD20 8.4 TEST SETUP20 8.5 EUT OPERATION CONDITIONS20 8.6 TEST RESULTS20 9 . MAXIMUM OUTPUT POWER21 9.1 LIMIT21 9.2 TEST PROCEDURE21 9.3 DEVIATION FROM STANDARD21 9.4 TEST SETUP21 9.5 EUT OPERATION CONDITIONS21 9.6 TEST RESULTS21 10 . CONDUCTED SPURIOUS EMISSION22 10.1 LIMIT22 10.2 TEST PROCEDURE22 10.3 DEVIATION FROM STANDARD22 10.4 TEST SETUP22 10.5 EUT OPERATION CONDITIONS22 10.6 TEST RESULTS22 11 . MEASUREMENT INSTRUMENTS LIST23 12 . ANTENNA REQUIREMENT24 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS25 HY-FCC part 15C-BT Ver.1.1 Page 4 of 101 Report No.: RF240710003-02-001 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ27 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ28 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ30 APPENDIX E - NUMBER OF HOPPING FREQUENCY45 APPENDIX F - AVERAGE TIME OF OCCUPANCY48 APPENDIX G - HOPPING CHANNEL SEPARATION58 APPENDIX H - BANDWIDTH61 APPENDIX I - MAXIMUM OUTPUT POWER73 APPENDIX J - CONDUCTED SPURIOUS EMISSION79 APPENDIX K - DECLARATION FOR BLUETOOTH DEVICE99 HY-FCC part 15C-BT Ver.1.1 Page 5 of 101 Report No.: RF240710003-02-001 HISTORY OF THIS TEST REPORT Original Report Issue Date: 2024.08.09 ● No additional attachment ○ Additional attachments were issued following record Attachment No.Issue DateDescription HY-FCC part 15C-BT Ver.1.1 Page 6 of 101 Report No.: RF240710003-02-001 1.. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test ItemTest ResultJudgmentRemark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS------ 15.247(d) 15.205(a) 15.209(a) Radiated Emission APPENDIX B APPENDIX C APPENDIX D PASS------ 15.247 (a)(1)(iii) Number of Hopping Frequency APPENDIX E PASS------ 15.247 (a)(1)(iii) Average Time of Occupancy APPENDIX F PASS------ 15.247(a)(1)Hopping Channel Separation APPENDIX G PASS------ 15.247(a)(1)Bandwidth APPENDIX H PASS------ 15.247(a)(1)Maximum Output Power APPENDIX I PASS------ 15.247(d)Conducted Spurious Emission APPENDIX J PASS------ 15.203Antenna Requirement ------ PASSNote(2) Note: (1) “N/A” denotes test is not applicable in this test report (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. HY-FCC part 15C-BT Ver.1.1 Page 7 of 101 Report No.: RF240710003-02-001 1.1. TEST FACILITY Company:Shenzhen Haiyun Standard Technical CO., Ltd. Address: No. 110-113, 115, 116, Block B, Jinyuan Business Building, Bao'an District, Shenzhen, China CNAS Registration Number: CNAS L18252 CAB identifier:CN0145 A2LA Certificate Number:6823.01 Telephone: 0755-26024411 1.2. MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)) Uncertainty ParameterUncertainty Occupied Channel Bandwidth±102kHz Power Spectral Density±0.743dB Conducted Spurious Emission±1.328dB RF power conducted ±0.377dB Conducted emission(9kHz~30MHz) AC main±2.68dB Radiated emission(9kHz~30MHz)±2.74dB Radiated emission (30MHz~1GHz)±4.22dB Radiated emission (1GHz~18GHz)±5.06dB Radiated emission (18GHz~40GHz)±4.98dB Note: Unless specifically mentioned, the uncertainty of measurement has not been taken into account to declare the compliance or non-compliance to the specification. 1.3. TEST ENVIRONMENT CONDITIONS Test Item Temperatur e HumidityTest VoltageTested By AC Power Line Conducted Emissions24.2°C51%AC 120V/60HzFreedom Zhuo Radiated Emissions-9 kHz to 30 MHz23.6°C57%AC 120V/60HzFreedom Zhuo Radiated Emissions-30 MHz to 1000 MHz23.6°C57%AC 120V/60HzFreedom Zhuo Radiated Emissions-Above 1000 …
