2AVRY-SWX0001Wireless line powered and battery powered wall switch

WIRELESS WALL SWITCH & LOAD CONTROLLER INSTALLATION & OPERATION INSTRUCTIONS MODEL NUMBERSDESCRIPTIONS SWX-851-xx WIRELESS WALL SWITCH LOAD CONTROLLER, 120/277VAC, NO NEUTRAL REQUIRED BASIC OPERATION A received wireless message indicating occupancy from one or more wirelessly linked sensors will trigger the unit’s integrated relay to close. When configured for Vacancy operation, lights must be initially switched on by pressing the unit’s button (or by pressing the ON button on a wirelessly linked wall station). Once closed, line voltage will flow through the relay and turn on the connected lighting load. This wall switch load controller maintains a master time delay that is reset every time a linked sensor reports occupancy. Lights will be switched off once there hasn’t been an occupancy message reported for the duration of the time delay. * xx = color (WH, IV, AL, GY) SPECIFICATIONS ELECTRICAL OPERATING VOLTAGE 120-277 VAC, Single Phase, 50/60 Hz LOAD RATINGS MAX: 800W @ 120VAC 1200W @ 277VAC MIN: None LOAD TYPES LED Driver/Lamps CFL, Electronic/Magnetic Ballasts (Fluorescent) Tungsten (Incandescent) ESD IMMUNITY Tested to withstand electrostatic discharge without damage or memory loss. SURGE IMMUNITY Tested to withstand surge voltages without damage or loss of operation. NON-VOLATILE MEMORY Saves all settings even if power is disrupted. ENVIRONMENTAL OPERATING TEMP 32°F to 122°F (0°C to 50°C) RELATIVE HUMIDITY 0-95% Non-Condensing, Indoor Use Only OPERATION OPERATING MODES Occupancy, Vacancy, Switch Disable TIME DELAY OPTIONS 1, 5, 10, 15, 20, 30 min. WIRELESS RANGE 80’ line of site w/o obstruction (walls) 40’ with obstruction (walls/floors) FREQUENCY 915 MHz ISM Band WIRELESS LINKING Simple 3 sec. Push Button Process SECURITY All Wireless Data is Encrypted PHYSICAL SIZE 2.74”H x 1.68”W x 1.39”D (6.96 x 4.27 x 3.53 cm) <1” Wallbox Mounting Depth WEIGHT 4.5 oz MOUNTING Single Gang Switch Box LED STATUS INDICATOR Bi-color White & Blue CODE COMPLIANCE These load controllers can be used to meet ASHRAE 90.1, IECC, & Title 24 energy code requirements. OVERVIEW The SENSORWORX wireless wall switch load controller links to remote occupancy sensors and switches without low voltage wiring in order to provide automatic lighting control. Designed with contractors in mind, the unit is significantly shallower than typical wall controllers, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral connection and never requires a minimum load. This switch also matches the SENSORWORX family of wall switch occupancy sensors and 0-10V dimming wall switch sensors. All SENSORWORX products are proudly made in the USA. FEATURES ELECTRICAL FEATURES ÃAccommodates Neutral (3-Wire) and No-Neutral (2-Wire) Installations ÃElectronically Timed Switching Ensures Long Relay Life ÃNo Minimum Load or External Load Capacitor (MLC) Requirements ÃMeets Regulatory Guidelines for Current Leakage PHYSICAL FEATURES ÃEnclosure is 25-40% Shallower than Other Wall Controllers (< 1” Depth into Wallbox) ÃSelf-Grounding Mounting Strap ÃModern Look and Intuitive Easy-Tap Button OPERATIONAL FEATURES ÃPairs in Seconds with Wireless Sensors & Remote Wall Stations ÃConfigurable Time Delays and Operational Modes (e.g. Occupancy, Vacancy, Switch Disable) ÃBlue Locator LED when Lights are Off ÃSettings are Adjustable Without Removing Cover Plate ÃLinks with up to 30 sensors and/or switches INSTALLATION INSTRUCTIONS FRONTSIDE BREAK-OFF BRACKET EARS BREAK-OFF BRACKET EARS LED INDICATOR BUTTON SENSOR FACE** 2.74” SUPPLIED MOUNTING SCREWS FOR MOUNTING TO SINGLE GANG SWITCH BOX 1.39” 0.94” 1.69” ** SENSOR FACE IS FIELD REMOVABLE IN ORDER TO CHANGE COLORS. CONTACT FACTORY FOR ADDITIONAL FACES ÃDesigned to mount in 1-gang wall box with 3.28” hole spacing. ÃUnits can also share multiple gang wall boxes with other devices. ÃUnit face is field removable in order to change colors. Contact factory for additional faces. H N GRN * IF NO NEUTRAL PRESENT, REMOVE WHITE SLEEVE FROM WIRE & CONNECT GREEN/YELLOW WIRE TO GROUND LIGHTING LOAD * SWX-851 WIRELESS WALL SWITCH CONTROLLER WHT BLK SWITCHED OUTPUT BLU NEUTRAL TO GROUND CONVERSION DETAIL ÃThe white wire has a removable sleeve which reveals a green/ yellow wire NOTE: This product is UL listed and meets NEC 404.2(c) & 404.22 guidelines regarding powering over ground & current leakage. Device may be used in replacement or retrofit applications when no neutral conductor is present. SLIDE SLIDE SLIDE WHITE SLEEVE OFF WIRING ÃUnit works both in installations where Neutral connection is available as well as installations where only Ground connection is present. ÃIf no neutral is present, remove the white sleeve from the wire & connect the now Green/Yellow wire to Ground. ÃNote, either the white wire or green/yellow wire must be connected. The all green wire is just for safety. BASIC WIRING WARNING: TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE WIRING LINE VOLTAGE WIRELESS WALL SWITCH CONTROLLER WIRELESS CEILING SENSOR ÃSmall Offices ÃCopy Rooms ÃPrivate Restrooms APPLICATIONS SMALL SPACES For control of small spaces like a private office, a wireless wall switch controller linked to a single wireless ceiling sensor (SWX-201-B) is recommended (see diagram on right). Both occupancy (auto-on) and vacancy (manual-on) operation are achievable in order to meet energy code requirements. MEDIUM SIZE SPACES For control of medium size spaces like a conference room or small classroom, a wireless wall switch controller linked to a single wireless wide view sensor (SWX-401-B) provides an excellect solution. Linking additional sensors is also an option if necessary. Switching from a second location (e.g. 3-way) is achieved by linking a remote wireless wall switch (SWX-852) to the wireless switch controller. ÃSmall Classrooms ÃConference Rooms ÃShort Hallways ÃBreak Rooms COMPATIBLE WIRELESS DEVICES MODEL #DESCRIPTIONWIRELESS TYPEPOWER TYPE SWX-201-B Small Motion 360° Sensor, P…

Text truncated - open the document above for the full version.

WIRELESS REMOTE DIMMER & SWITCH INSTALLATION & OPERATION INSTRUCTIONS SPECIFICATIONS ELECTRICAL & WIRELESS BATTERY TYPE Requires one CR123(A) Lithium Battery (provided in box) BATTERY LIFE Designed for 10 Year Life Non-Volatile Memory (saves all settings regardless of battery state) Blink Warning @10% Life RANGE 80’ line of site w/o obstruction (walls) 40’ with obstruction (walls/floors) FREQUENCY 915 MHz ISM Band WIRELESS LINKING Simple 3 sec. Push Button Process SECURITY All Wireless Data is Encrypted CODE COMPLIANCE These switches can be used to meet ASHRAE 90.1, IECC, & Title 24 energy code requirements. ENVIRONMENTAL OPERATING TEMP 32°F to 122°F (0°C to 50°C) RELATIVE HUMIDITY 0-95% Non-Condensing, Indoor Use Only PHYSICAL SIZE 2.74”H x 1.68”W x 1.39”D (6.96 x 4.27 x 3.53 cm) Fits Decorator Switch Plate Opening WEIGHT 2.5 oz MOUNTING Single Gang Switch Box MISC COMPATIBLE LOAD CONTROLLERS SWX-851 Wall Switch SWX-950 Series Power Packs FEATURES ÃPairs in Seconds with Wireless Controllers Ã10 Year Battery Life Design ÃDecorator Style Fits Common Wall Plates (not included) ÃMatches Styling of other SWX Sensors & Wired Wall Stations ÃEnables Multiway Switching & Dimming (e.g., 3-way, 4-way) ÃIntuitive Operation OVERVIEW The SENSORWORX ® remote dimming and on/off wall stations are battery powered devices that provide manual operation of wirelessly controlled lighting. These attractive wall stations greatly reduce total installation time and wireless pairing fuss. Requiring just a few seconds per device, SENSORWORX wireless sensors can be linked to one or more wireless load controllers (such as the SWX-851 wireless wall switch, or a SWX- 950 series wireless power pack). Additionally, these devices can be configured to work together with other wireless or wired wall stations to provide dimming and switching control from multiple locations. MODEL NUMBERSDESCRIPTION SWX-852-B-xx WIRELESS REMOTE 2 BUTTON ON/OFF WALL STATION, BATTERY POWERED SWX-854-B-xx WIRELESS REMOTE DIMMING & ON/OFF WALL STATION, 4 BUTTON, BATTERY POWERED LINE VOLTAGE 0-10V DIMMING WIRELESS REMOTE DIMMER SWITCH WIRELESS DIMMING POWER PACK WIRELESS CEILING SENSOR APPLICATIONS Adding a wireless remote wall switch to a room controlled by a wireless power pack (SWX-950) and a wireless sensor (e.g. SWX-201-B) enables code compliant vacancy (manual on) operation. When linked with a wireless dimming power pack (SWX-950-D2), a remote wireless dimmer is perfect for providing user control of 0-10V dimmable lighting. Additional remote dimmer switches can be linked enabling user control from multiple locations. Linking a remote wireless switch to a wireless wall switch load controller (SWX-851) enables 3-way user control as well. ÃClassrooms ÃOpen Areas ÃConference Rooms ÃHallways ÃSmall Offices ÃCopy Rooms ÃPrivate Restrooms ÃBreak Rooms * xx = color (WH, IV, AL, GY) ÃThe switch/dimmer runs on one CR123(A) Lithium Battery (included). ÃInstall battery prior to mounting. Polarity is indicated on the battery compartment door. ÃIf the unit’s battery life reaches 10%, the LED will rapidly blink blue after every button press. ÃReplacement batteries are available at most retailers or home centers where batteries are sold or from SENSORWORX. BATTERY INFORMATION COMPATIBLE WIRELESS DEVICES The below chart lists the devices that can be used in a SENSORWORX wireless application. Note that sensors and remote switch & dimmer devices are transmit only devices and therefore must be linked to a load controller for switching or dimming of lighting. MODEL #DESCRIPTIONWIRELESS TYPEPOWER TYPE SWX-201-B Small Motion 360° Sensor, PIRTransmitBattery SWX-401-BWide View Sensor, PIRTransmitBattery SWX-402-BLong Range Hallway Sensor, PIRTransmitBattery SWX-851-xxWall Switch Load Controller, No Neutral Required, <xx = color>Transmit & Receive120-277 VAC SWX-852-B-xxRemote Switch (On/Off), <xx = color>TransmitBattery SWX-854-B-xxRemote Dimming Switch (On/Off, Raise/Lower), <xx = color>TransmitBattery SWX-950Power Pack Load Controller, 20AReceive120/277 VAC SWX-950-D2Power Pack Load Controller, 20A, 0-10V DimmingReceive120/277 VAC SWX-950-AXHybrid Wireless/Wired Power Pack Load Controller, 20ATransmit & Receive120/277 VAC SWX-950-AX-D2Hybrid Wireless/Wired Power Pack Load Controller, 20A, 0-10V DimmingTransmit & Receive120/277 VAC MOUNTING BRACKET CHASE NIPPLE BATTERY COMPARTMENT BATTERY COMPARTMENT BATTERY COMPARTMENT LOCK NUT CHASE NIPPLE LOCK NUT LOCKING 3-POSITION TILT ADJUSTMENT MOUNTING BRACKET LOCKING 3-POSITION TILT ADJUSTMENT SERRATED END FOR CUTTING THROUGH CEILING TILE SERRATED END FOR CUTTING THROUGH CEILING TILE INSTALLATION INSTRUCTIONS ÃDesigned to mount in 1-gang wall box with 3.28” hole spacing. ÃUnits can also share multiple gang wall boxes with other devices. LED INDICATORLED INDICATOR DIMMING UP DIMMING DOWN ON BUTTON OFF BUTTON ON BUTTON OFF BUTTON LED INDICATORLED INDICATOR DIMMING UP DIMMING DOWN ON BUTTON OFF BUTTON ON BUTTON OFF BUTTON SWX-852SWX-854 OPERATION NOTES ÃWireless remote switches and dimmers only transmit when a button is being pressed. ÃThe unit’s blue LED will light only when a button is pressed. ÃThe dim up and dim down buttons may be held down to increase dimming rate. STEP 1 WALL SWITCH OR POWER PACK STEP 2 & STEP 3 WIRELESS REMOTE SWITCH & DIMMER STEP 4 WALL SWITCH OR POWER PACK SWX-851 HOLD FOR 3 SEC SWX-950 HOLD FOR 3 SEC SWX-854 HOLD FOR 3 SEC SWX-852 HOLD FOR 3 SEC SWX-851 PRESS ONCE SWX-950 PRESS ONCE OROR WIRELESS PAIRING Pairing a remote dimmer/switch with a wireless wall switch load controller or power pack load controller is quickly done via the following procedure: 1. Enter pairing mode by holding down the wireless load controller’s button for 3 seconds until the LED starts alternating white then blue. 2. At the battery powered remote dimmer/switch, hold down the ON button for 3 seconds until the LED starts alternating white then blue. Releasing will pair the device with the controller in pairing mode (see note…

Text truncated - open the document above for the full version.

June 10, 2020 Federal Communications Commission Authorization and Evaluation Division RE: Confidentiality request regarding application for certification of FCC ID: 2AVRY-SWX0001 To Whom It May Concern: Pursuant to 47 CFR Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Type of Confidential Request Exhibit Type File Name Permanent Block Diagram 2AVRY-SWX0001 BlkDia.pdf Permanent Schematic 2AVRY-SWX0001 Schem.pdf Permanent Operational Description 2AVRY-SWX0001 OpDes.pdf Short Term Internal Photos 2AVRY-SWX0001 IntPho.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to BLP Technologies and provide unjustified benefits to its competitors. BLP Technologies understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also require short term confidential treatment of information for a period of 180 days. This enables BLP Technologies to complete its development and regulatory efforts prior to introducing the product to the marketplace. Releasing information on the product via the FCC website prior to formal market introduction can be confusing to our customers, and places BLP Technologies at a competitive disadvantage. Sincerely, William Fassbender [email protected] BLP Technologies, Inc. Sensorworx 2a Research Parkway Wallingford, CT 06492 203-678-4224 Ext. 110

April 20, 2020 Federal Communications Commission Authorization and Evaluation Division RE: FCC ID: 2AVRY-SWX0001 To Whom It May Concern: Please be advised that William Fassbender of BLP Technologies, Inc. authorizes Larry Stillings of Compliance Worldwide, Inc. to act on our behalf, until otherwise notified, for applications submitted for the purpose of obtaining an FCC Grant of Equipment Authorization. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, William Fassbender [email protected] BLP Technologies, Inc. Sensorworx 2A Research Parkway Wallingford, CT 06492 (203) 678-4224 Ext. 110

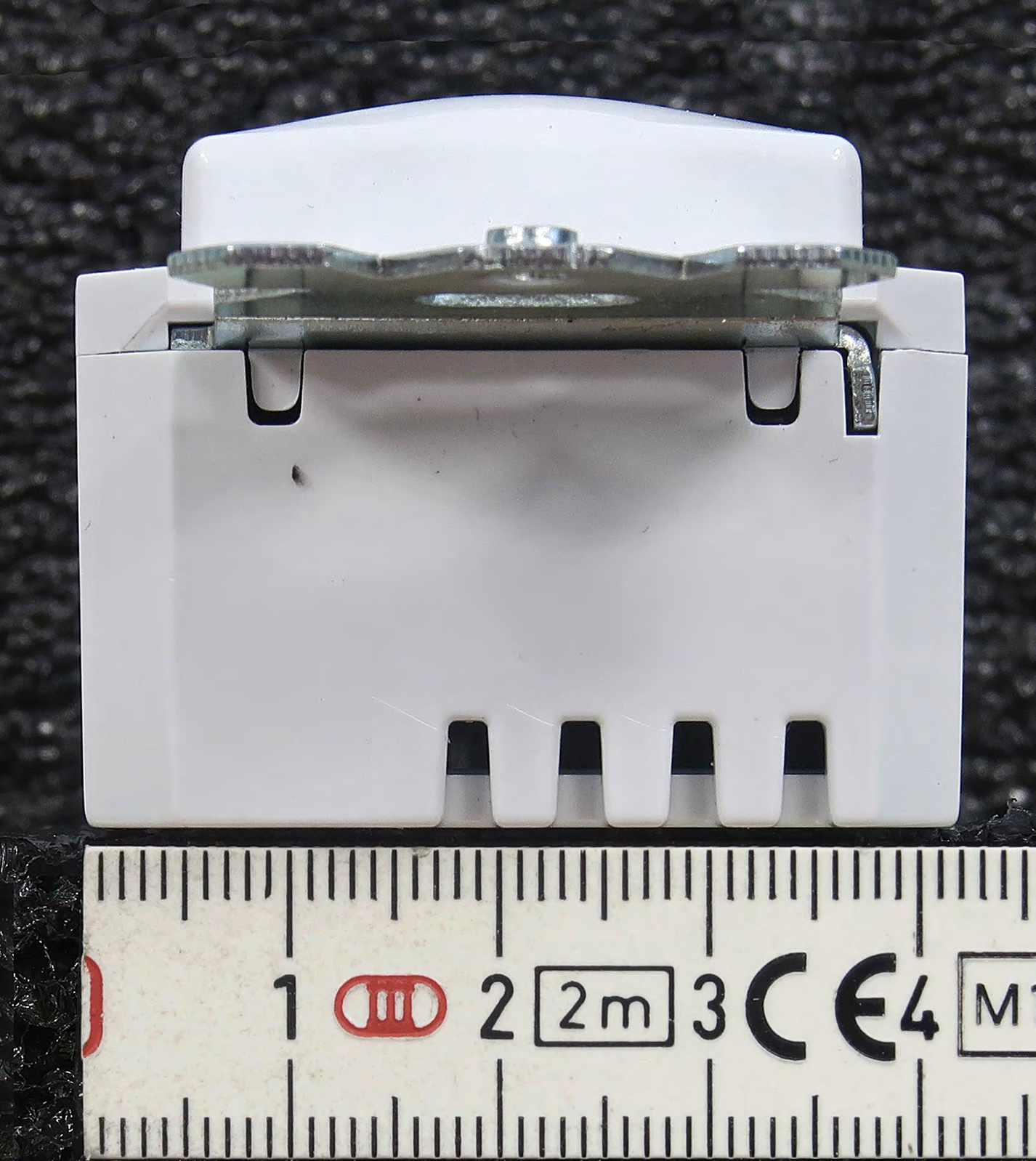

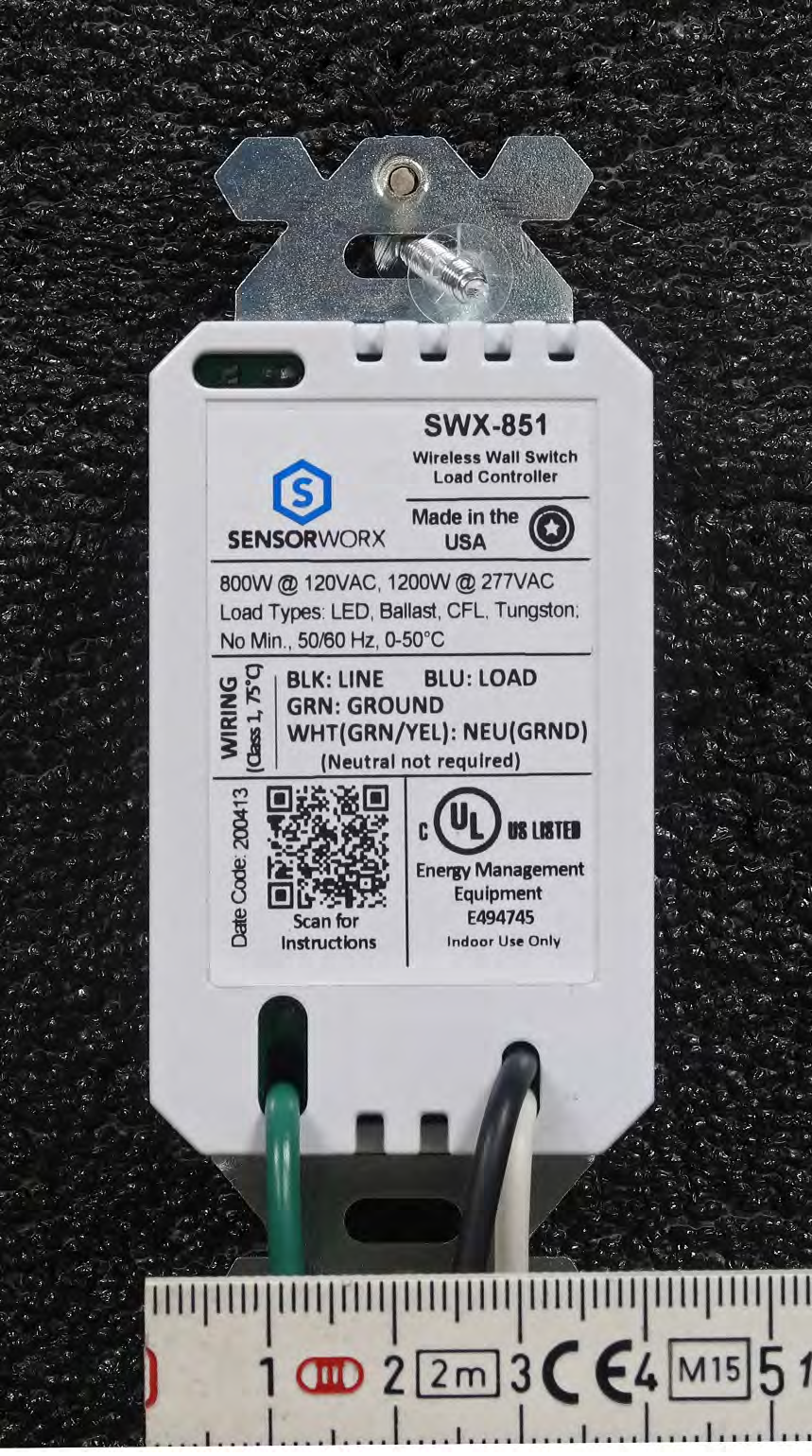

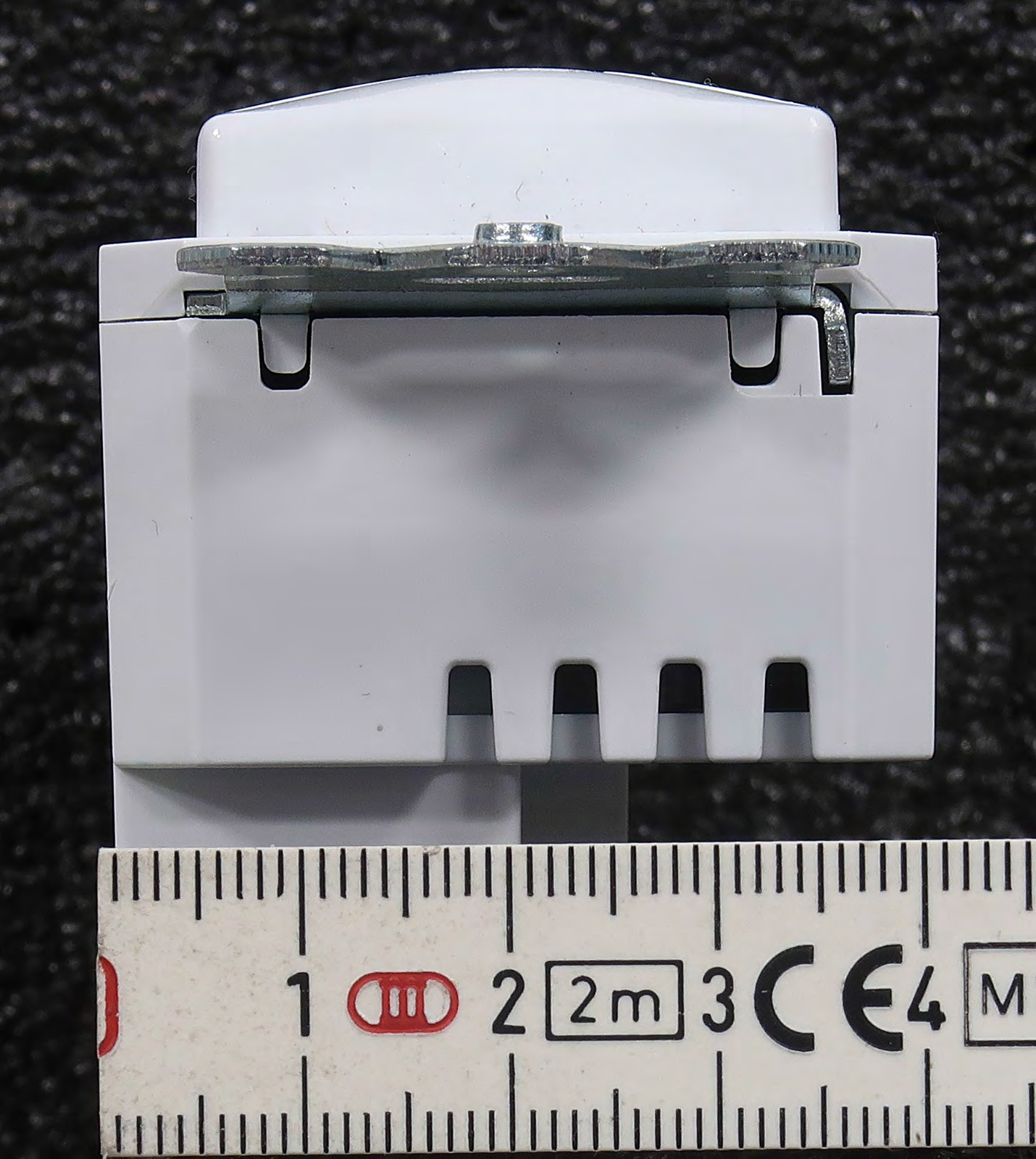

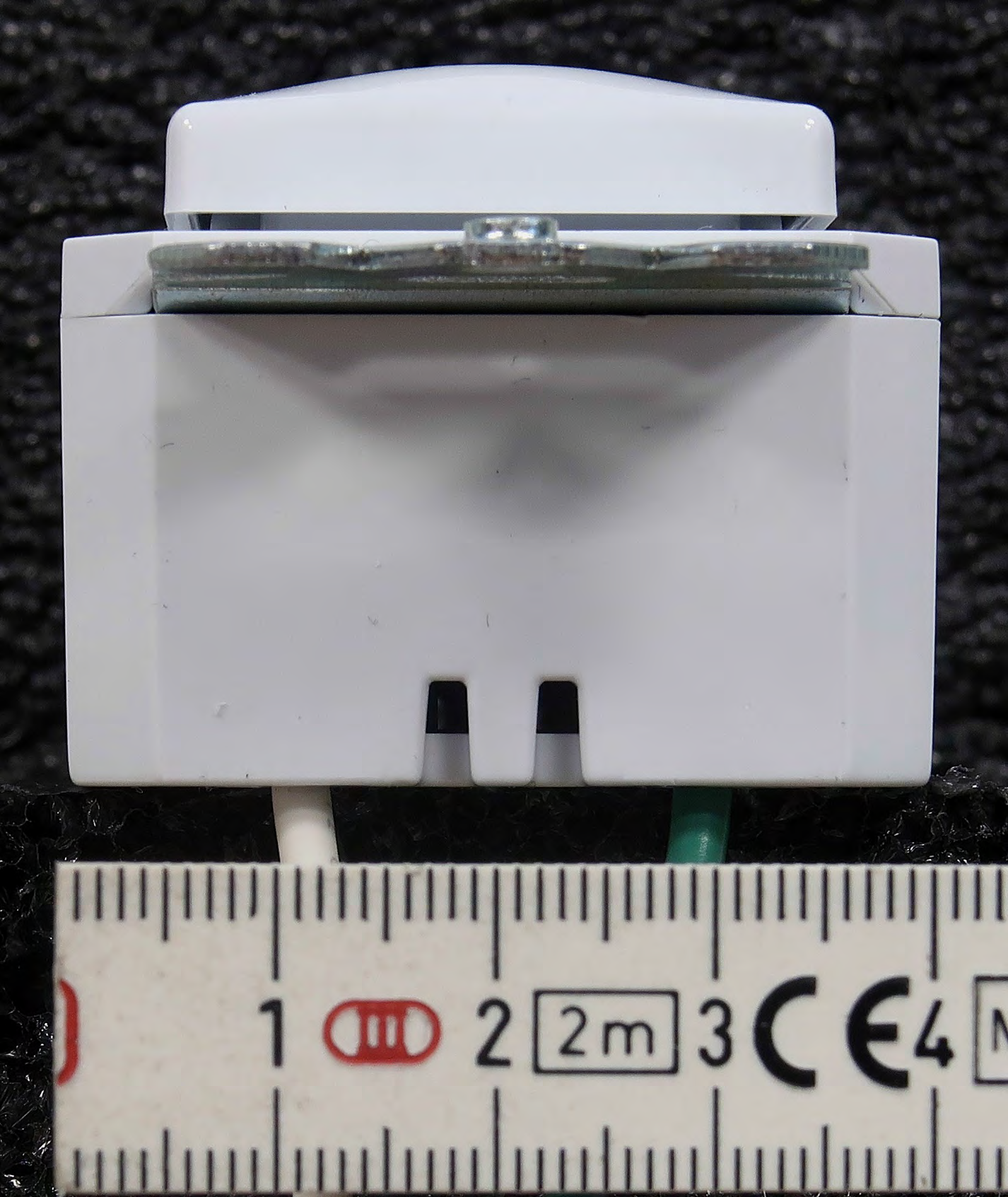

External Photos – Wall Switch – 830-46C-00001 AC Powered Front Rear Left Side Right Side Top Bottom Battery Powered Front Rear with Battery cover Rear without Battery Cover Top Bottom Left Right

May 1, 2020 Federal Communications Commission Authorization and Evaluation Division RE: FCC ID: 2AVRY-SWX0001, Wireless Wall Switch Label Location Best Regards, William Fassbender BLP Technologies Sensorworx 2a Research Parkway Wallingford, CT 06492 (203) 678-4224 Ext. 110 [email protected]

May 1, 2020 Federal Communications Commission Authorization and Evaluation Division RE: FCC ID: 2AVRY-SWX0001, Wireless Wall Switch Label Samples Best Regards, William Fassbender BLP Technologies Sensorworx 2a Research Parkway Wallingford, CT 06492 (203) 678-4224 Ext. 110 [email protected]

Internal Photos – Wall Switch – 830-46C-00001 AC Powered Case Opening Mainboard Front Mainboard Rear Transmitter Module Front Transmitter Module Rear Battery Powered Mainboard Front Mainboard Rear Transmitter Module Front Transmitter Module Rear Transmitter Module Front Transmitter Module Rear

Test Number: 200-20 Issue Date: 5/8/2020 Page 29 of 45 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complainceworldwide.com 7. Measurement Data (continued) 7.12. Public Exposure to Radio Frequency Energy Levels (15.247(i) (1.1307 (b)(1)) RSS- GEN, ISSUE 5, section 3.4, RSS 102) 7.12.1. FCC 15.247 (i) Requirements Requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. Frequency (MHz) MPE Distance (cm) DUT Output Power (dBm) DUT Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Result (mW/cm 2 ) (W/m 2 ) (1) (2) (3) (4) (5) 903 20 9.19 -1.0 0.001311385 0.01311385 0.6020000 Compliant 915 20 10.16 -1.0 0.001639571 0.01639571 0.6100000 Compliant 927 20 8.30 -1.0 0.001068391 0.01068391 0.6180000 Compliant • PD = Power Density (mW/cm 2 ) • OP = DUT Output Power (dBm) • AG = DUT Antenna Gain (dBi) • d = MPE Distance (cm) 1. Reference CFR 2.1091: For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. 2. Table 6.2 of this test report. 3. Johanson Technology 0915AT43A0026 chip antenna specifications. 4. Power density is calculated from field strength measurement and antenna gain. 5. Reference CFR 1.1310, Table 1: Limits for Maximum Permissible Exposure (MPE), Section (B): Limits for General Population/Uncontrolled Exposure. Limit = f/1500, where f is in MHz. Results: Passed - The device under test meets the exclusion requirement detailed for a device with a separation distance of 20 cm. OP + AG (4 x π x d²) PD =
