2AVV6-8273713 in 1 Wireless charger

Statement FCC Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Attestation Statement. Old Code: C5266091 24 New Code: 00015544 Ed.3 Change reason: FRN is added to the Applicant information section. 1/1 TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: 3 in 1 Wireless charger Grantee code: 2AVV6 FCC ID: 2AVV6-827371 FRN: 0029326568 Contact Name: Lin guichu Address: Street: 19800 MacArthur Blvd. Suite 300, Irvine California, CA 92612, United States Telephone No: (138)290-4065 Fax No: / Email: [email protected] i. [Liquipel Protection LLC] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Liquipel Protection LLC] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Liquipel Protection LLC] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment. Date: 2026-07-21 Applicant’s Name: Lin guichu Title: Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Liquipel Protection LLC Code 00018768 Ed. 1 Item 1. The device is able to install software/program installation? ☐ Yes, go to Item 2. ☒ No. In this case, the rest of the items do not apply. The device cannot support installation of Kaspersky cybersecurity or anti-virus software. Item 2. Technical Requirements for Kaspersky Cybersecurity Software: # General Requirements (For all Devices) Yes / No or N/A Comments 1 Internet connection for activation and updates (For all Operating Systems) N/A # General Requirements (For Windows Devices) Yes / No or N/A Comments 1 Storage: 1500 MB free space on the hard drive N/A Device 3 in 1 Wireless charger Company name Liquipel Protection LLC Grantee code 2AVV6 FCC ID 2AVV6-827371 FRN 0029326568 Contact name Lin guichu Address Street: 19800 MacArthur Blvd. Suite 300, Irvine California, CA 92612, United States Telephone number (138)290-4065 E-mail [email protected] Chipset/module information D9812 Operating System (if applicable) N/A Storage Capacity (hard drive or other permanent memory storage, if applicable) N/A 2 2 Operating System: Microsoft Windows 8, 8.1, 10 & 11 Home / Pro / Enterprise Microsoft Windows 7 Starter / Home Basic & Premium / Professional / Ultimate SP1 or higher N/A 3 Processor: 1 GHz or higher (x86 or x64) N/A 4 Memory (RAM)1 GB (32-bit) or 2 GB (64-bit) N/A 5 Screen Resolution: Minimum resolution of 1024 x 768 N/A # General Requirements (For macOS devices) Yes / No or N/A Comments 1 Operating System macOS® 13 – 14 N/A 2 Memory (RAM)4 GB N/A 3 Storage: 3455 MB free space on the hard drive N/A # General Requirements (For Android Devices) Yes / No or N/A Comments 1 Storage: 150 MB free space N/A 2 Operating System: Android™ 10 – 14 N/A 3 Screen Resolution: Minimum resolution of 320 x 480 N/A # General Requirements (for iOS devices) Yes / No or N/A Comments 1 Storage: 150 MB free space N/A 2 Operating System: iOS® 17 N/A # General Requirements (For Linux system) Yes / No or N/A Comments 1 Hard drive: 1 GB of free space N/A 2 CPU: Intel Pentium 1 GHz or higher N/A 3 3 RAM: 1 GB N/A 4 Minimum software requirements: AlmaLinux OS 8 or later; AlterOS 7.5 or later; Astra Linux Common Edition 2.12 or later; CentOS 6.7 or later; Debian GNU/Linux 10.0 or later; EulerOS 2.0 or later; Oracle Linux 7.3 or later ; Red Hat Enterprise Linux 6.7 or later ; Rocky Linux 8.5 or later ; SUSE Linux Enterprise Server 12.5 or later; Ubuntu 12.04 or later ; Uncom OS Home / Business / Education / Enterprise 2.2 or later; ALT Linux Workstaton / Workstation K / Server / Education 8 or later; ROSA Linux Workstation / Server 12 or later ; RED OS 7.3 and later ; N/A After reviewed the technical requirements, is the device capable of supporting the installation of Kaspersky software? ☐ Yes, go to Item 3. ☒ No. In this case, the rest of the items do not apply. The device cannot support installation of Kaspersky software Item 3. Connectivity Capabilities: # Physical Interface Purpose Justification 1 1 The justification field is used to justify why the software cannot be received through that interface. Check the annex for more indications. 4 1 # Wireless Interface Purpose Justification 1 1 After the review of this items, the device: ☒ Cannot support installation of any cybersecurity or anti-virus software on the covered list. ☐ Potentially can operate with any cybersecurity or anti-virus software on the covered list – additional third- party proof is provided to demonstrate compliance with requirements as of 2.911(d)5(i),(ii) – “Proof of Compliance with Covered List Software Requirements” of this document applies Signature: Name: Lin guichu Date: 7/21/2026

Liquipel Protection LLC Product Similarity Declaration Product name: 3 in 1 Wireless charger Model name: 827371, PT827371, OJD-112, OJD-112A, OJD- 112D FCC ID: 2AVV6-827371 We (Shenzhen Autige Technology Co., Ltd) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name. Signature: Name: Lin Gui Chu Title: Manager Place, date: 2026/07/21

C5266091_X10_Ed.2 1/1 Liquipel Protection LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: 2AVV6-827371 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Lin guichu Title: Manager

Liquipel Protection LLC C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Liquipel Protection LLC Address: Street: 19800 MacArthur Blvd. Suite 300, Irvine California, CA 92612, United States Product Name: 3 in 1 Wireless charger Model Number: 827371, PT827371, OJD-112, OJD-112A, OJD-112D FCC Identifier: 2AVV6-827371 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Lin guichu Date: 7/21/2026 Title: Manager Signature of applicant:

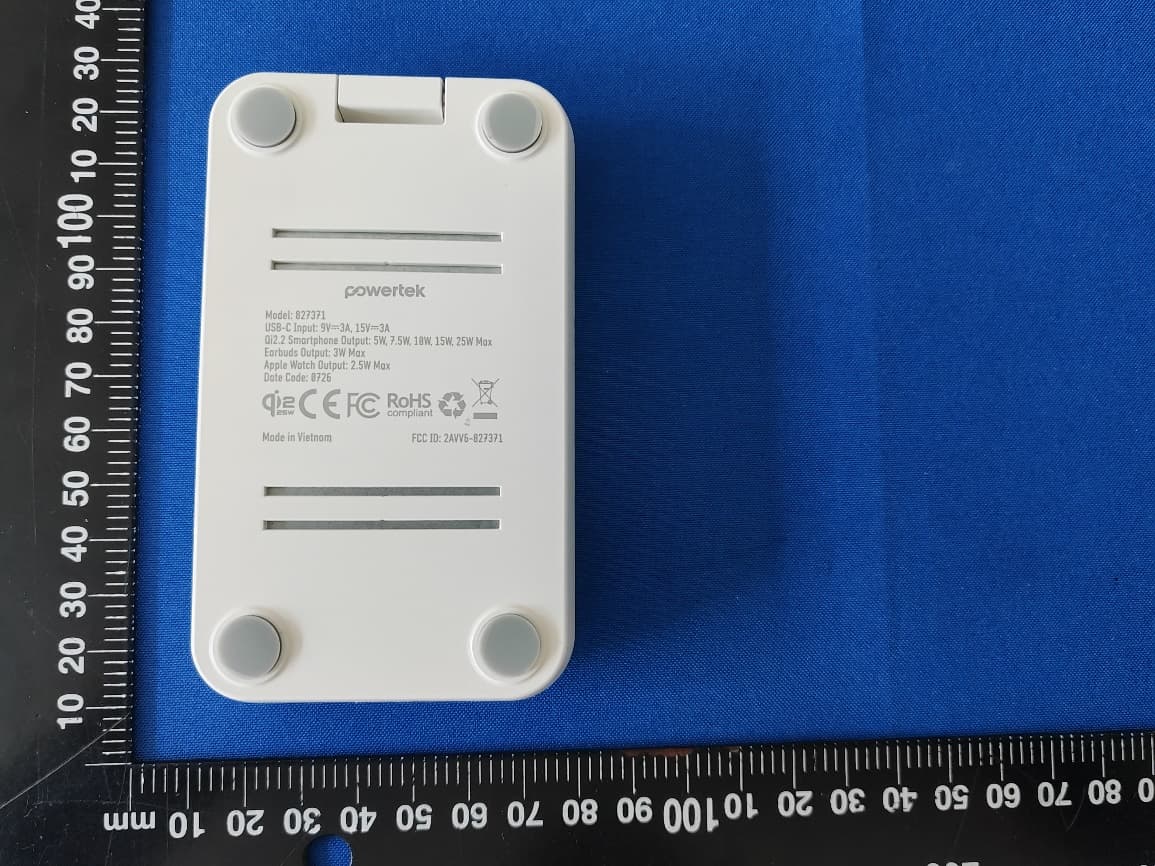

Report No. ITA26B06001188W Page 1 of 5 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China Details of:External view Details of:External view Report No. ITA26B06001188W Page 2 of 5 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China Details of:External view Details of:External view Report No. ITA26B06001188W Page 3 of 5 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China Details of:External view Details of:External view Report No. ITA26B06001188W Page 4 of 5 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China Details of:External view Details of:External view Report No. ITA26B06001188W Page 5 of 5 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China Details of:External view

Report No. ITA26B06001188W Page 1 of 3 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China Details of:Internal view Details of:Internal view Report No. ITA26B06001188W Page 2 of 3 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China Details of:WPT Antenna for phone and WPT Antenna for earphone view Details of:WPT Antenna for watch view Phone Earphone Watch Report No. ITA26B06001188W Page 3 of 3 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China Details of:PCB view Details of:PCB view

Test Report issued under the responsibility of: Itestek Testing Co., Ltd. (Dongguan) TEST REPORT RADIO FREQUENCY FOR WIRELESS POWER TRANSFER Report Number.............................:ITA26B06001188W 002 Test date .......................................:2026-06-27 to 2026-08-14 Issue date .....................................:2026-08-14 Total number of pages ................:8 Standard/According to ...............:KDB 680106 D01 Wireless Power Transfer v04 Template version .........................:V2.0 Testing Laboratory ......................:Itestek Testing Co., Ltd. (Dongguan) Address ........................................:Room 116, Building 8 and Room 606, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518000, People's Republic of China Tested by ......................................:Tom Zhang Checked by...................................:Oliver Qiao Approved by .................................:Rock Huang Applicant’s name .........................:Liquipel Protection LLC Address ........................................:Street: 19800 MacArthur Blvd. Suite 300, Irvine California, CA 92612, United States Manufacturer’s name...................:Huizhou Aojiada Technology Co., Ltd. Address ........................................:Room 1001, Unit 29, No. 6 Xinhua Avenue, Chenjiang Subdistrict, Huizhou, Guangdong, China Factory’s name ............................:Huizhou Aojiada Technology Co., Ltd. Address ........................................:Room 1001, Unit 29, No. 6 Xinhua Avenue, Chenjiang Subdistrict, Huizhou, Guangdong, China Trade Mark....................................:N/A Product description .....................:3 in 1 Wireless charger Model/Type reference ..................:827371, PT827371, OJD-112, OJD-112A, OJD-112D Ratings..........................................:USB-C Input: 9Vdc 3A, 15Vdc 3A Qi2.2 Smartphone Output: 5W, 7.5W, 10W, 15W, 25W Max Earphone Output: 3W Max Apple Watch Output: 2.5W Max FCC ID ...........................................:2AVV6-827371 Test result.....................................:Pass Report No.:ITA26B06001188W 002Page 2 of 8 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China Declare: 1. This report shall not be partially reproduced without the consent of the laboratory. 2. If the report without tester's signature, auditor's signature, approver's signature and inspection seal, the report is invalid. 3. The test results are valid only for the tested samples. 4. After test and evaluation, our opinion is that the equipment provided for test compliance with the requirement of the above FCC standards. 5. If the report is not stamped with the accreditation recognized seal, it will only be used for scientific research, education, and internal quality control activities, and is not used for the purpose of issuing supporting data to the society. Testing laboratory: Itestek Testing Co., Ltd. (Dongguan) Room 116, Building 8 and Room 606, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518000, People's Republic of China FCC designation number CN1436 A2LA has accredited, certificate Number 7609.01 Report No.:ITA26B06001188W 002Page 3 of 8 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China 1. General test information 1.1.Description of EUT Details of technical specification refer to the description in follows: Test model numberOJD-112 Model differentAll models are identical, except model name. Frequency range (Hz) 110.1K-205K: 5W, 7.5W, 10W for phone; 3W for earphone 326.5K: 2.5W for Apple watch 360K: 15W, 25W for phone; Modulation techniqueFSK Antenna typeCoil Antenna Antenna gain0 dBi Temperature range (°C)-10 ~ +40 Hardware versionV1.0 Software versionV1.0 Block diagram EUT configuration for test EUT/AEAC Mains 1.2.Test modes ModeTest Status 1 AC Mains + Mobile phone charging mode for output 5W (110.1k-205kHz) + Earphone charging mode (110.1k-205kHz) + Apple Watch charging mode (326.5kHz) 2 AC Mains + Mobile phone charging mode for output 7.5W (110.1k-205kHz) + Earphone charging mode (110.1k-205kHz) + Apple Watch charging mode (326.5kHz) 3 AC Mains + Mobile phone charging mode for output 10W (110.1k-205kHz) + Earphone charging mode (110.1k-205kHz) + Apple Watch charging mode (326.5kHz) 4 AC Mains + Mobile phone charging mode for output 15W (360kHz) + Earphone charging mode (110.1k-205kHz) + Apple Watch charging mode (326.5kHz) 5 AC Mains + Mobile phone charging mode for output 25W (360kHz) + Earphone charging mode (110.1k-205kHz) + Apple Watch charging mode (326.5kHz) 6 AC Mains + Mobile phone charging mode for output 5W (110.1k-205kHz) + Earphone charging mode (110.1k-205kHz) 7 AC Mains + Mobile phone charging mode for output 7.5W (110.1k-205kHz) + Earphone charging mode (110.1k-205kHz) 8 AC Mains + Mobile phone charging mode for output 10W (110.1k-205kHz) + Earphone charging mode (110.1k-205kHz) 9 AC Mains + Mobile phone charging mode for output 15W (360kHz) + Earphone charging mode (110.1k-205kHz) Report No.:ITA26B06001232W 002Page 4 of 8 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China 10 AC Mains + Mobile phone charging mode for output 25W (360kHz) + Earphone charging mode (110.1k-205kHz) 11 AC Mains + Mobile phone charging mode for output 5W (110.1k-205kHz) + Apple Watch charging mode (326.5kHz) 12 AC Mains + Mobile phone charging mode for output 7.5W (110.1k-205kHz) + Apple Watch charging mode (326.5kHz) 13 AC Mains + Mobile phone charging mode for output 10W (110.1k-205kHz) + Apple Watch charging mode (326.5kHz) 14 AC Mains + Mobile phone c…

Text truncated - open the document above for the full version.

Test Report issued under the responsibility of: Itestek Testing Co., Ltd. (Dongguan) TEST REPORT FEDERAL COMMUNICATIONS COMMISSION FOR WIRELESS POWER TRANSFER Report Number.............................:ITA26B06001188W 001 Test date .......................................:2026-06-27 to 2026-0-14 Issue date .....................................:2026-08-14 Total number of pages ................:22 Standard/According to ...............:FCC CFR Title 47 Part 15 Subpart C ANSI C63.10-2020 + Cor. 1-2023+C63.10a-2024 + Errata to C63.10a- 2024 Template version .........................:V2.0 Testing Laboratory ......................:Itestek Testing Co., Ltd. (Dongguan) Address ........................................:Room 116, Building 8 and Room 606, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518000, People's Republic of China Tested by ......................................:Tom Zhang Checked by...................................:Oliver Qiao Approved by .................................:Rock Huang Applicant’s name .........................:Liquipel Protection LLC Address ........................................:Street: 19800 MacArthur Blvd. Suite 300, Irvine California, CA 92612, United States Manufacturer’s name...................:Huizhou Aojiada Technology Co., Ltd. Address ........................................:Room 1001, Unit 29, No. 6 Xinhua Avenue, Chenjiang Subdistrict, Huizhou, Guangdong, China Factory’s name ............................:Huizhou Aojiada Technology Co., Ltd. Address ........................................:Room 1001, Unit 29, No. 6 Xinhua Avenue, Chenjiang Subdistrict, Huizhou, Guangdong, China Trade Mark....................................:N/A Product description .....................:3 in 1 Wireless charger Model/Type reference ..................:827371, PT827371, OJD-112, OJD-112A, OJD-112D Ratings..........................................:USB-C Input: 9Vdc 3A, 15Vdc 3A Qi2.2 Smartphone Output: 5W, 7.5W, 10W, 15W, 25W Max Earphone Output: 3W Max Apple Watch Output: 2.5W Max FCC ID ...........................................:2AVV6-827371 Test result.....................................:Pass Report No.:ITA26B06001188W 001Page 2 of 22 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China Declare: 1. This report shall not be partially reproduced without the consent of the laboratory. 2. If the report without tester's signature, auditor's signature, approver's signature and inspection seal, the report is invalid. 3. The test results are valid only for the tested samples. 4. After test and evaluation, our opinion is that the equipment provided for test compliance with the requirement of the above FCC standards. 5. If the report is not stamped with the accreditation recognized seal, it will only be used for scientific research, education, and internal quality control activities, and is not used for the purpose of issuing supporting data to the society. Testing laboratory: Itestek Testing Co., Ltd. (Dongguan) Room 116, Building 8 and Room 606, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518000, People's Republic of China FCC designation number CN1436 A2LA has accredited, certificate Number 7609.01 1. Summary of test results RequirementCFR47 SectionResult Antenna requirement§15.203PASS AC Power Line Conducted Emission §15.207PASS Spurious Emission§15.209PASS Occupied Bandwidth§15.215(c)PASS Report No.:ITA26B06001188W 001Page 3 of 22 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China 2. General test information 2.1.Description of EUT Details of technical specification refer to the description in follows: Test model numberOJD-112 Model differentAll models are identical, except model name. Frequency range (Hz) 110.1K-205K: 5W, 7.5W, 10W for phone; 3W for earphone 326.5K: 2.5W for Apple watch 360K: 15W, 25W for phone; Modulation techniqueFSK Antenna typeCoil Antenna Antenna gain0 dBi Temperature range (°C)-10 ~ +40 Hardware versionV1.0 Software versionV1.0 Block diagram EUT configuration for test EUT/AEAC Mains 2.2. Test modes ModeTest Status 1 AC Mains + Mobile phone charging mode for output 5W (110.1k-205kHz) + Earphone charging mode (110.1k-205kHz) + Apple Watch charging mode (326.5kHz) 2 AC Mains + Mobile phone charging mode for output 7.5W (110.1k-205kHz) + Earphone charging mode (110.1k-205kHz) + Apple Watch charging mode (326.5kHz) 3 AC Mains + Mobile phone charging mode for output 10W (110.1k-205kHz) + Earphone charging mode (110.1k-205kHz) + Apple Watch charging mode (326.5kHz) 4 AC Mains + Mobile phone charging mode for output 15W (360kHz) + Earphone charging mode (110.1k-205kHz) + Apple Watch charging mode (326.5kHz) 5 AC Mains + Mobile phone charging mode for output 25W (360kHz) + Earphone charging mode (110.1k-205kHz) + Apple Watch charging mode (326.5kHz) 6 AC Mains + Mobile phone charging mode for output 5W (110.1k-205kHz) + Earphone charging mode (110.1k-205kHz) 7 AC Mains + Mobile phone charging mode for output 7.5W (110.1k-205kHz) + Earphone charging mode (110.1k-205kHz) 8 AC Mains + Mobile phone charging mode for output 10W (110.1k-205kHz) + Earphone charging mode (110.1k-205kHz) 9 AC Mains + Mobile phone charging mode for output 15W (360kHz) + Earphone charging mode (110.1k-205kHz) 10 AC Mains + Mobile phone charging mode for output 25W (360kHz) + Earphone charging mode (110.1k-205kHz) Report No.:ITA26B06001188W 001Page 4 of 22 Itestek Testing Co., Ltd. (Dongguan) Floor 6, Building 3, Innovation Port of Hanyuwan, Liyuan Road, Tangwei, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China 11 AC Mains + Mobile phone charging mode for output 5W (110.1k-205kHz) + Apple Wa…

Text truncated - open the document above for the full version.

Page 1 of 4 承 認 書 SPECIFICATION FOR APPROVAL 客 戶： CUSTOMER: 惠州市奥嘉达科技有限公司(Huizhou Aojiada Technology Co., Ltd.) 客 戶 料 號： CUST P/N: 料 號： FINE P/N: G42.5-6.5UH 单线圈0.08*24P*2-10TS 産 品 型 號： DESC: Φ42.5MMX5.0MMX0.8MM开槽 日 期： DATE: 2024/11/12 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 黄燕铭 宁元安 黄锦华 东莞市西联干城科技有限公司 Dongguan Xilian Gancheng Technology Co., Ltd 工廠地址：东莞市东坑镇骏发路123号三甲高新技术产业园2栋8楼 8th Floor, Building 2, Sanjia High-tech Industrial Park, No. 123 Junfa Road, Dongkeng Town, Dongguan City TEL：0769-82989159 FAX：0769-82989159 E-mail：[email protected] Page 2 of 4 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2024/11/12 黄燕铭 Page 3 of 4 SPECIFICATION 産 品 型 號： DESC Φ20.5x39-6.5uH-0.08x24PX2P-12mm 版本 Rev：A.0 客戶CUST: XXX 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 42.0+0.5 B 39±1 C 12±2 D 3±2 E 1.6±0.2 F 0.8±0.1 G 20.5±0.5 Note 1. Cross out of line; 2. Wrap 8mm(ref) width high-temperature adhesive tape 1-2Ts around the lead-out position; 3. The coil is attached with a circular hard magnetic sheet with grooves. The size of the magnetic sheet is 43.5±0.5mm, the inner hole is 5.0mm, and the thickness is 0.8±0.1mm. Page 4 of 4 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F 热风线0.08*24PX2 10Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 3.8uH ±20%单独线圈 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 6.5uH +10%加磁片 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤120mΩ 100KHz/1.0V LCZ METER 502B 4 Q S-F ≥39 100KHz/1.0V LCZ METER 502B 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE 黄燕铭2024/11/12 黄锦华2024/11/12

深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co., Ltd 深圳市龙华区观澜街道桂花社区观光路1165号工厂401整层 The entire 401 floor of the factory, No. 1165, Guanguang Road, Guihua Community, Guanlan Street, Longhua District, Shenzhen 客户/Client 惠州市奥嘉达科技有限公司 (Huizhou Aojiada Technology Co., Ltd.) 名称/TYPE 42.5*5.3*0.8， 0.08*80p*11TS+20*0.8, 7.9uH, L=10MM 产品型号 Model NO SG-A1142.5-7.9UH 产品编号 SG-A1142.5-010-001 Enginrer NO TQE 1800510003 日期/Date 2024-7-26 编制/Prepared 审核/Checked 认可/Approved XieYanQi DuanJiaWang XieXiaoZai 客户认可回签/Authorixed Signaturure Company Chop 工程/ Enginrer 认可/QC APProved 认可日期/APProved 本公司工程部/For Enginer Departner Only 修改内容/Rrvised Content 认可日期/APProved Date 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co., Ltd 深圳市龙华区观澜街道桂花社区观光路1165号工厂401整层 The entire 401 floor of the factory, No. 1165, Guanguang Road, Guihua Community, Guanlan Street, Longhua District, Shenzhen 一、 线圈工艺/Winding Procese: NO 绕组 线规 匝数 绕线方向 备注 1 N1 2UEW-B-0.08*80P 11TS CCW 2 二．电气性能/FEATURES: 1.测试条件（Test conditions）：25°C,65%RH@100KHz/1V 1.1 电感量（Inductance） 1.11 L0A（单独线圈）=4.6uH±20% 1.12 L0A(线圈+磁片)=7.9uH±10% 1.2 Q 值=35MIN 1.3 直流电阻（DCR）：70mΩ MAX 1.4 工作温度(Operating Temperature)：-25°C~85°C 2.测试仪器(Test instrument)：L:创达 1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单 NO Descrption Material 1 WIRE ￠0.08*80P 2UEW 2 FERRITE 42.5*5.3*0.8 双槽 20*0.8 铁氧体硬磁 42.5*5.3*0.8 double-slot 20*0.8 ferrite hard magnetic 3 GLUE 白胶/黄胶 White glue/yellow glue 4 SOLDER XCD-907B 5 Adhesive 双面背胶 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co., Ltd 深圳市龙华区观澜街道桂花社区观光路1165号工厂401整层 The entire 401 floor of the factory, No. 1165, Guanguang Road, Guihua Community, Guanlan Street, Longhua District, Shenzhen 三．电路图/CIRCUIT DIAGRAM Unit： MM 四．外形图/OUTSIDE DIAGRA 注：线圈出线位置缠绕5MM（ref）高温胶纸, Note: The coil lead-out position is wrapped with 5MM (ref) high-temperature adhesive tape. Double-sided adhesive backing 6 High temperature adhesive 5MM(ref)高温胶带 5MM(ref) high-temperature tape 7 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co., Ltd 深圳市龙华区观澜街道桂花社区观光路1165号工厂401整层 The entire 401 floor of the factory, No. 1165, Guanguang Road, Guihua Community, Guanlan Street, Longhua District, Shenzhen 标准 A B C D H E I T STD 42.5±0.5 39±1 20.5±0.5 20±0.3 10±2 2-4 0.8±0.1 2.3Max Unit： mm 五．包装/PACKAGE 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特需要求可以定制。 The packaging shall be based on the exusting packing plate and the actual delivery package shall prevail .If there is any requirement,we can customize it. 1400 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co., Ltd 深圳市龙华区观澜街道桂花社区观光路1165号工厂401整层 The entire 401 floor of the factory, No. 1165, Guanguang Road, Guihua Community, Guanlan Street, Longhua District, Shenzhen 六、贮存和使用条件 Storage and Use condition 6.1 贮存条件 Storage condition 6.1.1 建议贮存条件：温度-25°C~ 85°C ，湿度 70% (Max.) Recommended keeping conditions: -25°C ~85°C, 70%RH (Max.) 6.1.2 贮存期限：自生产之日起六个月内 Storage life : Within the limits of six months from being produced. 6.2 使用条件 Use condition 使用条件限制：温度=-25°C~ 85°C, 湿度≤ 90% Use condition limit: T=-25°C~85°C, RH≤ 90%.

深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co., Ltd 深圳市龙华区观澜街道桂花社区观光路1165号工厂401整层 The entire 401 floor of the factory, No. 1165, Guanguang Road, Guihua Community, Guanlan Street, Longhua District, Shenzhen 客户/Client 惠州市奥嘉达科技有限公司 (Huizhou Aojiada Technology Co., Ltd.) 名称/TYPE G 25 X 2.3 X 8.1UH Enginrer NO TQE 1800510003 日期/Date 2023-11-3 编制/Prepared 审核/Checked 认可/Approved XieYanQi DuanJiaWang XieXiaoZai 客户认可回签/Authorixed Signaturure Company Chop 工程/ Enginrer 认可/QC APProved 认可日期/APProved 本公司工程部/For Enginer Departner Only 修改内容/Rrvised Content 认可日期/APProved Date 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co., Ltd 深圳市龙华区观澜街道桂花社区观光路1165号工厂401整层 The entire 401 floor of the factory, No. 1165, Guanguang Road, Guihua Community, Guanlan Street, Longhua District, Shenzhen 一、 线圈工艺/Winding Procese: NO 绕组 线规 匝数 绕线方向 备注 1 N1 2UEW-B-0.08*24p 13TS CCW 2 二．电气性能/FEATURES: 1.测试条件（Test conditions）：25°C,65%RH@100KHz/1V 1.1 电感量（Inductance） 1.11 L0A（单独线圈）=3.8uH±20% 1.12 L0A(线圈+磁片)=8.1uH±10% 1.2 Q=20MIN 1.3 直流电阻（DCR）：145mΩ MAX 1.4 工作温度(Operating Temperature)：-25°C~85°C 2.Test instrument：L:CH1068+1310;DCR:502BC;SIZE:Callipers 3.Material List NO Description Material 1 WIRE ￠0.08*24p 2UEW 2 FERRITE G25 Soft magnetic 3 GLUE White Glue BY882 4 SOLDER XCD-907B 5 Adhesive Doubl…

Text truncated - open the document above for the full version.
