2AVVF-22-134Pod 2.3

Pod 2.3 Specification Product: Pod 2.3File Number: 20220503001 Model: 22-134 Date: May. 3, 2022 Page 1 of 6 The information contained in this document is PROPRIETARY to WEEL Technologies, LTD and shall not be printed, copied or used in part or whole without WEEL’s written consent. Pod 2.3 Specification Version 2.21 Version History Version # Author Revision Date Approval Approval Date Reason 2.21 Carolyn Bi 05/03/2022 Chen Wei 05/03/2022 Pod 2.3 Specification Product: Pod 2.3File Number: 20220503001 Model: 22-134 Date: May. 3, 2022 Page 2 of 6 The information contained in this document is PROPRIETARY to WEEL Technologies, LTD and shall not be printed, copied or used in part or whole without WEEL’s written consent. Table of Contents 1.Product Description Page 3 2. Scope Page 3 3.Materials Page 3 4.Part Numbers Page 3 5.Pod Electronics Characteristics Page 3 6.Battery Specification & Features Page 4 7.WiFi Specification Page 4 8.Pod Operation & Features Page 4 9. LED Functions Page 5 Pod 2.3 Specification Product: Pod 2.3File Number: 20220503001 Model: 22-134 Date: May. 3, 2022 Page 3 of 6 The information contained in this document is PROPRIETARY to WEEL Technologies, LTD and shall not be printed, copied or used in part or whole without WEEL’s written consent. 1.Product Description 1.1 This product can collect and store human motion and posture, positioning information and environmental data. 1.2 Pod electronics include: 6-Axis Motion Tracking IMU, 3D magnetometer, barometric pressure / humidity and temperature sensors, WiFi 5G/2.4G & BLE 5.0 combo module, Flash memory, high stability and low power consumption RTC chip that can work for up to 3 months when the battery is out of power. 1.3 Pod contains 2 lithium rechargeable batteries. 1.4 Pod can connect to AWS IoT to upload data. 1.5 RGB LED displays different work states. 1.6 Pod supports OTA firmware. 2. Scope This document contains general requirements for the electrical and mechanical elements. 3. Materials 3.1 Pod housing: 65% ABS+35% PC (black) 4.Part Numbers 5.Pod Electronics Characteristics Working Voltage Max 5V±5% Working Current Avg. 13mA WIFI Channel Frequency 2.4G & 5.0G Power off Current <20μA Charging Current 80mA Battery Charging Time <2.5 hours Battery Life (continuous working time) 10 hours Temperature Accuracy ±1°C Humidity Accuracy 3% Pressure Accuracy ±1.5pa/k Gyroscope Specifications ±2000°/s, 1% sensitivity Accelerometer Specifications ±16g, 1% Sensitivity Pod V2.3 22-134 Pod 2.3 Specification Product: Pod 2.3File Number: 20220503001 Model: 22-134 Date: May. 3, 2022 Page 4 of 6 The information contained in this document is PROPRIETARY to WEEL Technologies, LTD and shall not be printed, copied or used in part or whole without WEEL’s written consent. Magnetic Sensor Specifications ±1000uT dynamic range, <0.1%FS Ultra -low hysteresis ESD Protect 5kv WiFi Communication Distance >15m Working Temperature -20°C ~ 60°C 6.Battery Specifications & Features 7. WiFi Specification 7.1 Work Frequency: 2412 - 2462MHz & 5180 - 5850MHz 7.2 Transmit Power: 13 dBm transmit output power 7.3 Supported D ata Rates: 6, 9, 12, 18, 24, 36, 48, 54Mbps 7.4 Working Temperature: -20°C ~ 60°C 7.5 Storage Temperature: -40°C ~ 85°C 7.6 Receive Current: 20 mA (with ideal DC-DC converter) 7.7 Transmit Current: 230mA peak current in TX (13dBm) 8. Pod Operation & Features 8.1 POWER OFF State 8.1.1 The Pod default state is POWER OFF. Under this state, all the peripherals and functions for the system micro power consumption are closed. 8.1.2 Under NORMAL State, press and hold the button for 12s to power it off. 8.2 NORMAL State 8.2.1 From POWER OFF State, press and hold the button for 3s to enter into NORMAL State. Mechanical Form Factor 30 x 21 x 3mm Battery Type Lithium polymer rechargeable battery Battery Capacity 3.7V DC, 150mAh Protection Over current and short Working Environment -20°C ~ 60°C Mechanical Form Factor Φ4.8 x 2.5mm Battery Type Lithium rechargeable battery Battery Capacity 3V, 2.3mAh Pod 2.3 Specification Product: Pod 2.3File Number: 20220503001 Model: 22-134 Date: May. 3, 2022 Page 5 of 6 The information contained in this document is PROPRIETARY to WEEL Technologies, LTD and shall not be printed, copied or used in part or whole without WEEL’s written consent. 8.2.2 Once powered on, the Pod automatically collects motion posture and environmental data, and stores them in Flash. 8.2.3 Wi-Fi hotspot device (MiFi) with WPA-2 personal network broadcast. The credentials must be defined as follows: SSID: mo djoul1 PW: BW489A600365 The broadcast SSID should NOT be a hidden network. 8.2.4 When the Pod is plugged into the Charger, the Pod will automatically connect to AWS loT core and update data. 8.3 CHARGING State 8.3.1 The Pod will enter into CHARGING State when it is plugged into Docking Station that is connected to a Power Supply. 8.3.2 In CHARGING State, the Pod can upload data via WiFi. 8. 4 ERASE DATA State 8.4.1 In NORMAL State or CHARGING State, press and hold the button for 6s and then release the button, then press the button for 3 times to start erase data. 8.5 HW RESET 8.5.1 When MCU hang-up, press and hold the button for 16s to reset the system. 9. LED Functions Pod System State LED Status Power Off Off Normal Blue LED on Send Data Green LED on Send Data Completed White LED on Charging Purple LED on Erase Data LED turns Red --> Green --> Red --> Blue --> Purple in order Warning (Low Battery <10%) Red LED on HW Reset Off Pod 2.3 Specification Product: Pod 2.3File Number: 20220503001 Model: 22-134 Date: May. 3, 2022 be printed, copied or used in part or whole without WEEL’s written consent. FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the p…

Text truncated - open the document above for the full version.

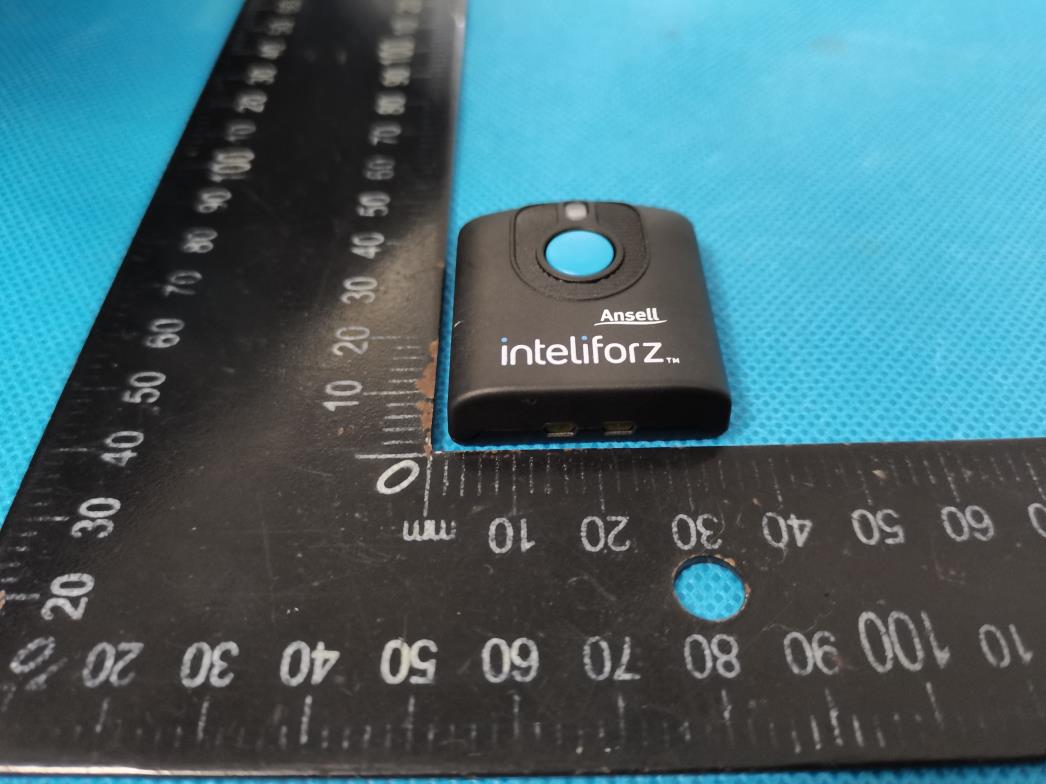

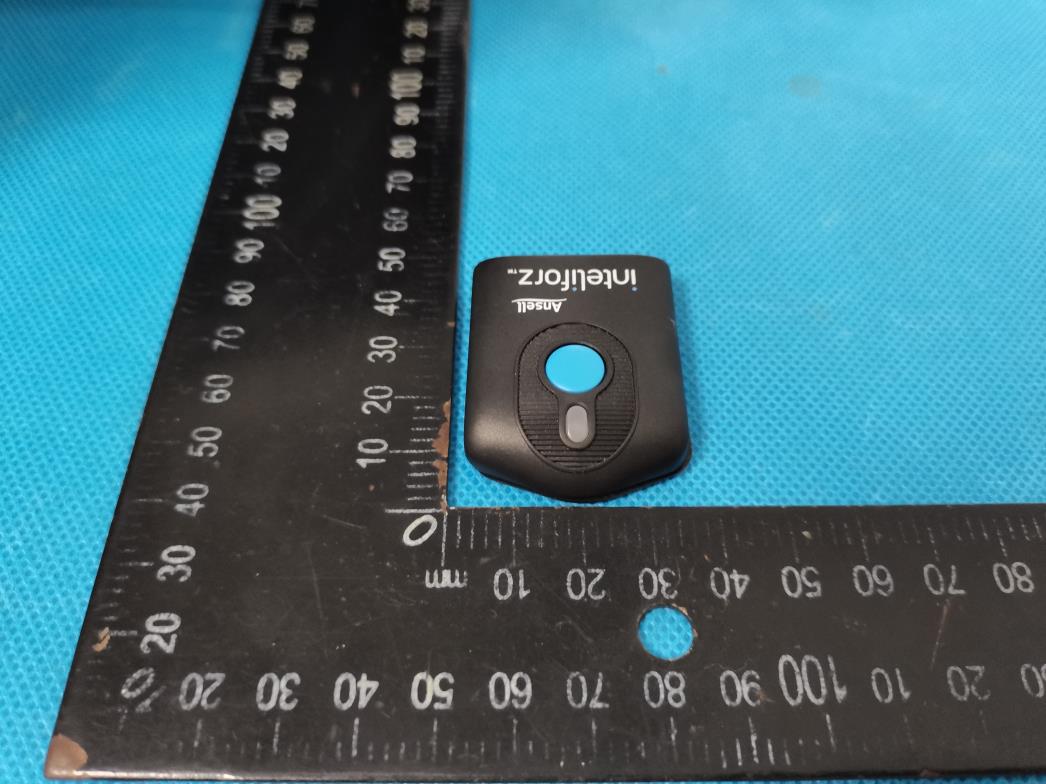

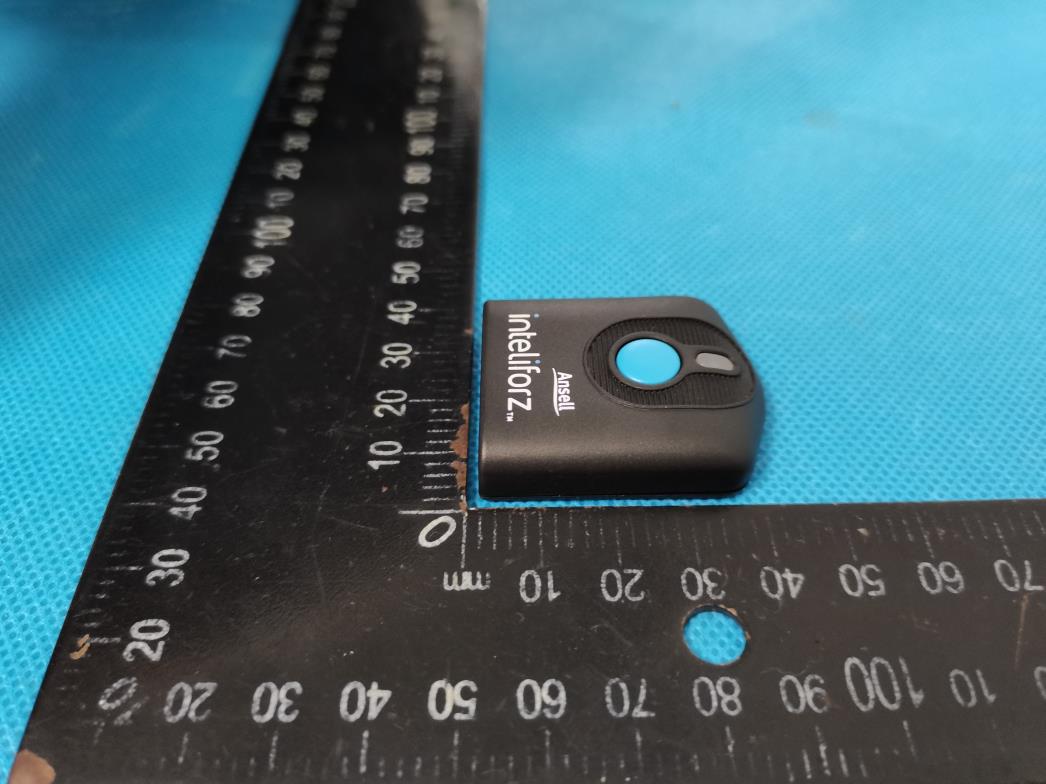

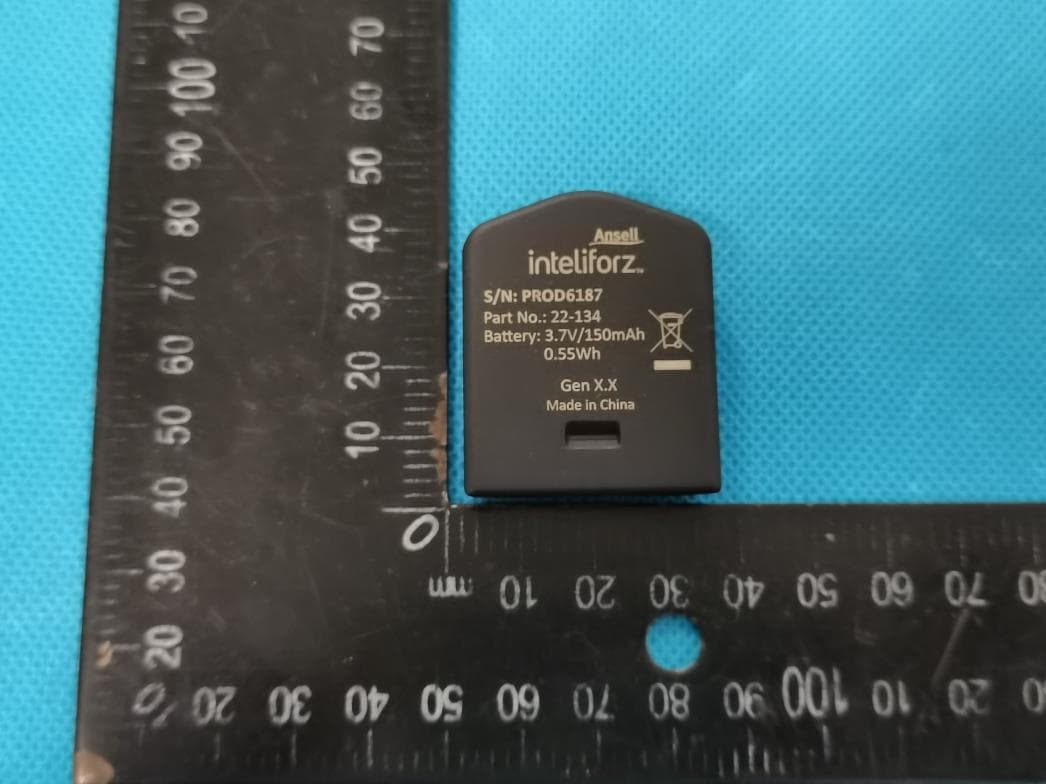

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Pod 2.3 ID DESIGNER: LYRID# : DI0ASMCI0104DATE: 2022-03-29PAGE: 01/01 silkscreen Laser engraving 注意： 20mm 7mm 9mm 9mm 4mm S/N: PROD6161~PROD6162...~PROD6170(序列号依次增加) PANTONE: 299 C PANTONE: 299 C HEX #FFFFFF

Photo 7 Photo 8 Ant Photo 9 Photo 10 Photo 11 Photo 12 Photo 13

version01 Ansell Healthcare Products LLC Declaration concerning Antenna Specification It is hereby declared that the product Model No.: 22-134 FCC ID: 2AVVF-22-134 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Ceramic antenna antenna type(s) described below: Model No. of antenna: 2450AD14A5500 Type of antenna: Ceramic antenna Gain of the antenna: WIFI 2.4G: 1 dBi WIFI 5G: 4 dBi Frequency range: WIFI 2.4G: 2412-2462 MHz WIFI 5G: 5150-5850 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Ansell Healthcare Products LLC Address: 511 Westinghouse Rd, Pendleton, SC 29670, United States City: Pendleton ZIP / Postal code: Country: United States Name: United States Date: 22/11/2022 Signature:

802.11 Dual Band 2.45/5 GHz Mini Chip Antenna. WiFi, WLAN, IoT Detail Specification: Page 1 of 14 AEC-Q200 qualification available. 1 Measured on 2450AD14A5500-EB2SMA eval-board (See pages 7-11 for details) Mechanical Dimensions ±± W ±± T a ±± b c ±± d ±± e ±± f ±± g h ±± https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2020 Johanson Technology, Inc. All Rights Reserved -Terminals 2 and 4 have two pads each -Make sure to have Pin 3 soldered to its PCB land pad but not connected to GND or input, they must be NC (or floating). If unsoldered, it may affect improper antenna resonance and drop-shock resistance. 3 4 Top View, looking "through" the component Scenario 2 1 2 GND NC NC NC NC FEED Scenario 1 FEED min.0.15min. 0.0020.250.05 0.0080.0010.200.03 0.010 0.006 0.0080.002 0.2150.05 0.40 Packing Style max. 0.001 0.0850.003 mm 2450AD14A5500-EB1SMA & 2450AD14A5500-EB2SMA see pages 2&7 for details Bulk (loose) T & R e.g. 2450AD14A5500(T or S) 0.0040.031 0.016 1.0 dBi typ. (XZ-Total) 12/1/2020 Part Number Explanation Part Number 2450AD14A5500 0.008 Function No. 0.80 Impedance50 Ω Input Power2 Watts max. (CW) 0.004 min. 6 min. L 0.086 max. 1.600.10 100% Tin 0.001 -3.5 dBi typ. (XZ-Total) "High Frequency Ceramic Solutions" 0.008min. 0.004 0.10 0.10 In P/N Suffix Terminal Configuration Evaluation Board 2400 - 24805150 - 5850 Frequency (MHz) P/N 2450AD14A5500 Let us help you with the antenna design, optimization, and tuning! General Specifications Suffix = T or S 0.003 Avg. Rad Efficiency 1 80%60% GND -2.5 dBi typ. (XZ-Total) 4.0 dBi typ. (XZ-Total) 0.030.20 Ver. 3.0 Storage Temperature e.g. 2450AD14A5500T 18 months max. Suffix = T Peak Gain (dBi typ.) Average Gain (dBi typ.) 0.063 0.03 0.208 Storage Period Return Loss (dB)6 min. Reel Quantity Operating Temperature e.g. 2450AD14A5500SSuffix = S -40 to +85°C -40 to +85°C 4000 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Top View e L f a W d c b g h Bottom View T Side View   https://www.johansontechnology.com/ipc-antenna-services 802.11 Dual Band 2.45/5 GHz Mini Chip Antenna. WiFi, WLAN, IoTP/N 2450AD14A5500 Detail Specification: Page 2 of 14 Mount these devices with brown mark facing up. https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2020 Johanson Technology, Inc. All Rights Reserved Ver. 3.0 "High Frequency Ceramic Solutions" 12/1/2020 Mounting Considerations 1: Antenna PCB Layout (Scenario 1 Terminal Configuration) Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. 0.25 1.0nH 5.8 3 0.65 4.1 0.35 0.21 0.3 0.29 0.15 0.5 0.6 0.45 0.4 1.1 0.15 0.6 3.5 1.43 PCB Layout (top) Land Solder Resist ALL Units in mm PCB Layout (bottom) Top RF Ground Vias to the other side of the PCB 4.1 0.65 0.25 5.66 2.2 0.14 Bottom RF Ground Not Connected! Vias to the other side of the PCB No metal layers in yellow area Floating Floating Matching circuit (shunt-series- shunt recommended) 0.15 Request this layout file! https://www.johansontechnology.com/ask‐a‐question 802.11 Dual Band 2.45/5 GHz Mini Chip Antenna. WiFi, WLAN, IoTP/N 2450AD14A5500 Detail Specification: Page 3 of 14 24 50 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2020 Johanson Technology, Inc. All Rights Reserved Ver. 3.0 5.579 "High Frequency Ceramic Solutions" 12/1/2020 Mounting Consideration 1: Evaluation Board, 40x70mm (Scenario 1 Terminal Configuration) Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Frequency (GHz)Radiated Efficiency (%) 2.4466 Top RF Ground 40 5 50Feed Line 8 Matching circuit leave space fo a "pi" matching network. 70 Units in mm To order the ABOVE pre‐tuned 50Ω EVB with a female SMA connector click here: https://www.johansontechnology.com/request‐a‐sample Reference p/n: 2450AD14A5500‐EB1SMA No metal layers on yellow area What happens to the antenna’s performance if you reduce the ground plane to 35x40mm LxW? We’ll share the study with you, send us a message at: https://www.johansontechnology.com/ask‐a‐question Would you like the layout file of the above? Have antenna tuning issues? Please contact us if you have any questions regarding the implementation of this antenna in your PCB's layout. We'll be happy to guide you to maximize the antenna's performance. Contact our applications engineers at: https://www.johansontechnology.com/ask‐a‐question 802.11 Dual Band 2.45/5 GHz Mini Chip Antenna. WiFi, WLAN, IoTP/N 2450AD14A5500 Detail Specification: Page 4 of 14 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2020 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 12/1/2020 Mounting Consideration 1: Evaluation Board, 40x70mm Typical Electrical Performance (T=25°C) Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Ver. 3.0 m128 freq= S(1,1)=0.122 / 95.014 impedance = 47.527 + j11.753 2.442GHz m135 freq= S(1,1)=0.093 / 81.368 impedance = 50.543 + j9.329 5.500GHz 2.53.03.54.04.55.05.52.06.0 -20 -15 -10 -5 -25 0 freq, GHz dB(S(1,1)) m129 m130 m131 m132 m133 m134 m129 freq= dB(S(1,1))=-18.254 2.442GHz m130 freq= dB(S(1,1))=-7.250 2.400GHz m131 freq= dB(S(1,1))=-8.854 2.484GHz m132 freq= dB(S(1,1))=-9.557 5.150GHz m133 freq= dB(S(1,1))=-20.673 5.500GHz m134 freq= dB(S(1,1))=-10.013 5.850GHz freq (2.000GHz to 6.000GHz) S(1,1) m128 m135 802.11 Dual Band 2.45/5 GHz Mini Chip Antenna. WiFi, WLAN, IoTP/N 2450AD14A5500 Detail Specification: Page 5 of 14 https://www.johansontechnology.com 40…

Text truncated - open the document above for the full version.

Page 1 of 89 Report No.: S22051603202001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Pod 2.3 Trademark： Ansell Model Name： 22-134 Family Model： N/A Report No.： S22051603202001 FCC ID： 2AVVF-22-134 Prepared for Ansell Healthcare Products LLC 511 Westinghouse Rd, Pendleton, SC 29670, United States Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 89 Report No.: S22051603202001 TEST RESULT CERTIFICATION Applicant’s name ................. : Ansell Healthcare Products LLC Address .................................. : 511 Westinghouse Rd, Pendleton, SC 29670, United States Manufacturer's Name ..................................... : WEEL Technologies, LTD. Address .................................. : Suite 305, No.47 QianKeng Road, XinHe Community, FuCheng Street,LongHua District, ShenZhen City, GuangDong, China Product description Product name ......................... : Pod 2.3 Trademark ............................ : Ansell Model Name ......................... : 22-134 Family Model .......................... : N/A Test Sample Number S220516032002 Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ............................ S220516032002 Date of Test Date (s) of performance of tests ............. : Jun. 07, 2022 ~ Jun. 15, 2022 Date of Issue........................................... : Jun. 29, 2022 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 89 Report No.: S22051603202001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jun. 29, 2022 Jacob Chen Page 4 of 89 Report No.: S22051603202001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 8 1.5. Ambient Condition ................................................................................... 8 2. SAR Measurement System ................................................................................... 9 2.1. SATIMO SAR Measurement Set-up Diagram ............................................ 9 2.2. Robot ..................................................................................................... 10 2.3. E-Field Probe .......................................................................................... 11 2.3.1. E-Field Probe Calibration ................................................................. 11 2.4. SAM phantoms ...................................................................................... 12 2.4.1. Technical Data .................................................................................. 13 2.5. Device Holder ........................................................................................ 14 2.6. Test Equipment List ................................................................................ 15 3. SAR Measurement Procedures .......................................................................... 17 3.1. Power Reference ................................................................................... 17 3.2. Area scan & Zoom scan .......................................................................... 17 3.3. Description of interpolation/extrapolation scheme .............................. 19 3.4. Volumetric Scan ..................................................................................... 19 3.5. Power Drift ............................................................................................ 19 4. System Verification Procedure .......................................................................... 20 4.1. Tissue Verification ................................................................................. 20 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 21 4.2. System Verification Procedure .............................................................. 22 4.2.1. System Verification Results .............................................................. 23 5. SAR Measurement variability and uncertainty .................................................. 24 5.1. SAR measurement variability ................................................................. 24 5.2. SAR measurement uncertainty .............................................................. 24 …

Text truncated - open the document above for the full version.

Report No.: S22051603201002 Page 1 of 140 5.2G WIFI: Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5180 Ant1 83.48 0.78 NVNT a 5200 Ant1 83.41 0.79 NVNT a 5240 Ant1 83.46 0.79 NVNT ac20 5180 Ant1 83.42 0.79 NVNT ac20 5200 Ant1 83.5 0.78 NVNT ac20 5240 Ant1 83.48 0.78 NVNT n20 5180 Ant1 82.23 0.85 NVNT n20 5200 Ant1 82.26 0.85 NVNT n20 5240 Ant1 82.26 0.85 Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT a 5200MHz Ant1 Report No.: S22051603201002 Page 2 of 140 Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT ac20 5180MHz Ant1 Report No.: S22051603201002 Page 3 of 140 Duty Cycle NVNT ac20 5200MHz Ant1 Duty Cycle NVNT ac20 5240MHz Ant1 Report No.: S22051603201002 Page 4 of 140 Duty Cycle NVNT n20 5180MHz Ant1 Duty Cycle NVNT n20 5200MHz Ant1 Report No.: S22051603201002 Page 5 of 140 Duty Cycle NVNT n20 5240MHz Ant1 Report No.: S22051603201002 Page 6 of 140 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 9.51 0.78 10.29 24 Pass NVNT a 5200 Ant1 10.257 0.79 11.047 24 Pass NVNT a 5240 Ant1 9.574 0.79 10.364 24 Pass NVNT ac20 5180 Ant1 9.484 0.79 10.274 24 Pass NVNT ac20 5200 Ant1 9.272 0.78 10.052 24 Pass NVNT ac20 5240 Ant1 10.558 0.78 11.338 24 Pass NVNT n20 5180 Ant1 9.544 0.85 10.394 24 Pass NVNT n20 5200 Ant1 10.185 0.85 11.035 24 Pass NVNT n20 5240 Ant1 9.793 0.85 10.643 24 Pass Power NVNT a 5180MHz Ant1 Power NVNT a 5200MHz Ant1 Report No.: S22051603201002 Page 7 of 140 Power NVNT a 5240MHz Ant1 Power NVNT ac20 5180MHz Ant1 Report No.: S22051603201002 Page 8 of 140 Power NVNT ac20 5200MHz Ant1 Power NVNT ac20 5240MHz Ant1 Report No.: S22051603201002 Page 9 of 140 Power NVNT n20 5180MHz Ant1 Power NVNT n20 5200MHz Ant1 Report No.: S22051603201002 Page 10 of 140 Power NVNT n20 5240MHz Ant1 Report No.: S22051603201002 Page 11 of 140 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant1 24.063 Pass NVNT a 5200 Ant1 23.914 Pass NVNT a 5240 Ant1 20.6 Pass NVNT ac20 5180 Ant1 24.978 Pass NVNT ac20 5200 Ant1 22.363 Pass NVNT ac20 5240 Ant1 21.334 Pass NVNT n20 5180 Ant1 24.181 Pass NVNT n20 5200 Ant1 25.098 Pass NVNT n20 5240 Ant1 21.148 Pass -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5200MHz Ant1 Report No.: S22051603201002 Page 12 of 140 -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT ac20 5180MHz Ant1 Report No.: S22051603201002 Page 13 of 140 -26dB Bandwidth NVNT ac20 5200MHz Ant1 -26dB Bandwidth NVNT ac20 5240MHz Ant1 Report No.: S22051603201002 Page 14 of 140 -26dB Bandwidth NVNT n20 5180MHz Ant1 -26dB Bandwidth NVNT n20 5200MHz Ant1 Report No.: S22051603201002 Page 15 of 140 -26dB Bandwidth NVNT n20 5240MHz Ant1 Report No.: S22051603201002 Page 16 of 140 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5180 Ant1 16.526 NVNT a 5200 Ant1 16.52 NVNT a 5240 Ant1 16.488 NVNT ac20 5180 Ant1 16.556 NVNT ac20 5200 Ant1 16.508 NVNT ac20 5240 Ant1 16.507 NVNT n20 5180 Ant1 17.779 NVNT n20 5200 Ant1 17.769 NVNT n20 5240 Ant1 17.76 OBW NVNT a 5180MHz Ant1 OBW NVNT a 5200MHz Ant1 Report No.: S22051603201002 Page 17 of 140 OBW NVNT a 5240MHz Ant1 OBW NVNT ac20 5180MHz Ant1 Report No.: S22051603201002 Page 18 of 140 OBW NVNT ac20 5200MHz Ant1 OBW NVNT ac20 5240MHz Ant1 Report No.: S22051603201002 Page 19 of 140 OBW NVNT n20 5180MHz Ant1 OBW NVNT n20 5200MHz Ant1 Report No.: S22051603201002 Page 20 of 140 OBW NVNT n20 5240MHz Ant1 Report No.: S22051603201002 Page 21 of 140 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 -0.41 11 Pass NVNT a 5200 Ant1 -0.082 11 Pass NVNT a 5240 Ant1 -0.51 11 Pass NVNT ac20 5180 Ant1 -0.523 11 Pass NVNT ac20 5200 Ant1 -0.862 11 Pass NVNT ac20 5240 Ant1 0.306 11 Pass NVNT n20 5180 Ant1 -0.686 11 Pass NVNT n20 5200 Ant1 0.369 11 Pass NVNT n20 5240 Ant1 -0.614 11 Pass PSD NVNT a 5180MHz Ant1 PSD NVNT a 5200MHz Ant1 Report No.: S22051603201002 Page 22 of 140 PSD NVNT a 5240MHz Ant1 PSD NVNT ac20 5180MHz Ant1 Report No.: S22051603201002 Page 23 of 140 PSD NVNT ac20 5200MHz Ant1 PSD NVNT ac20 5240MHz Ant1 Report No.: S22051603201002 Page 24 of 140 PSD NVNT n20 5180MHz Ant1 PSD NVNT n20 5200MHz Ant1 Report No.: S22051603201002 Page 25 of 140 PSD NVNT n20 5240MHz Ant1 Report No.: S22051603201002 Page 26 of 140 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5180 Ant1 -30.58 -27 Pass NVNT a 5240 Ant1 -48.05 -27 Pass NVNT ac20 5180 Ant1 -31.89 -27 Pass NVNT ac20 5240 Ant1 -47.92 -27 Pass NVNT n20 5180 Ant1 -28.89 -27 Pass NVNT n20 5240 Ant1 -47.52 -27 Pass Band Edge NVNT a 5180MHz Low Ant1 Band Edge NVNT a 5240MHz High Ant1 Report No.: S22051603201002 Page 27 of 140 Band Edge NVNT ac20 5180MHz Low Ant1 Band Edge NVNT ac20 5240MHz High Ant1 Report No.: S22051603201002 Page 28 of 140 Band Edge NVNT n20 5180MHz Low Ant1 Band Edge NVNT n20 5240MHz High Ant1 Report No.: S22051603201002 Page 29 of 140 Report No.: S22051603201002 Page 30 of 140 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5180 Ant1 -36.6 -27 Pass NVNT a 5200 Ant1 -36.11 -27 Pass NVNT a 5240 Ant1 -36.31 -27 Pass NVNT ac20 5180 Ant1 -40.33 -27 Pass NVNT ac20 5200 Ant1 -43.16 -27 Pass NVNT ac20 5240 Ant1 -44.93 -27 Pass NVNT n20 5180 Ant1 -36.64 -27 Pass NVNT n20 5200 Ant1 -36.93 -27 Pass NVNT n20 5240 Ant1 -37.47 -27 Pass Tx. Spurious NVNT a 5180MHz Ant1 Emission Tx. Spurious NVNT a 5200MHz Ant1 Emission Report No.: S22051603201002 Page 31 of 140 Tx. Spurious NVNT a 5240MHz Ant1 Emission Tx. Spurious NVNT ac20 5180MHz Ant1 Emission Report No.: S22051603201002 Page 32 of 140 Tx. Spurious NVNT ac20 5200MHz Ant1 Emission Tx. Spurious NVNT ac20 5240MHz Ant1 Emission Report No.: S22051603201002 Page 33 of 140 Tx. Spurious NVNT n20 5180MHz Ant1 Emission Tx. Spurious NVNT n20…

Text truncated - open the document above for the full version.

Report No.: S22051603201002 Page 74 of 140 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5500 Ant1 9.355 0.78 10.135 24 Pass NVNT a 5600 Ant1 9.902 0.79 10.692 24 Pass NVNT a 5700 Ant1 10.196 0.79 10.986 24 Pass NVNT ac20 5500 Ant1 9.403 0.84 10.243 24 Pass NVNT ac20 5600 Ant1 8.999 0.83 9.829 24 Pass NVNT ac20 5700 Ant1 9.009 0.84 9.849 24 Pass NVNT n20 5500 Ant1 9.265 0.84 10.105 24 Pass NVNT n20 5600 Ant1 10.045 0.85 10.895 24 Pass NVNT n20 5700 Ant1 9.983 0.84 10.823 24 Pass Power NVNT a 5500MHz Ant1 Power NVNT a 5600MHz Ant1 Report No.: S22051603201002 Page 75 of 140 Power NVNT a 5700MHz Ant1 Power NVNT ac20 5500MHz Ant1 Report No.: S22051603201002 Page 76 of 140 Power NVNT ac20 5600MHz Ant1 Power NVNT ac20 5700MHz Ant1 Report No.: S22051603201002 Page 77 of 140 Power NVNT n20 5500MHz Ant1 Power NVNT n20 5600MHz Ant1 Report No.: S22051603201002 Page 78 of 140 Power NVNT n20 5700MHz Ant1 Report No.: S22051603201002 Page 79 of 140 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Verdict NVNT a 5500 Ant1 23.887 Pass NVNT a 5600 Ant1 29.269 Pass NVNT a 5700 Ant1 21.045 Pass NVNT ac20 5500 Ant1 27.041 Pass NVNT ac20 5600 Ant1 27.219 Pass NVNT ac20 5700 Ant1 21.339 Pass NVNT n20 5500 Ant1 27.359 Pass NVNT n20 5600 Ant1 29.943 Pass NVNT n20 5700 Ant1 21.474 Pass -26dB Bandwidth NVNT a 5500MHz Ant1 -26dB Bandwidth NVNT a 5600MHz Ant1 Report No.: S22051603201002 Page 80 of 140 -26dB Bandwidth NVNT a 5700MHz Ant1 -26dB Bandwidth NVNT ac20 5500MHz Ant1 Report No.: S22051603201002 Page 81 of 140 -26dB Bandwidth NVNT ac20 5600MHz Ant1 -26dB Bandwidth NVNT ac20 5700MHz Ant1 Report No.: S22051603201002 Page 82 of 140 -26dB Bandwidth NVNT n20 5500MHz Ant1 -26dB Bandwidth NVNT n20 5600MHz Ant1 Report No.: S22051603201002 Page 83 of 140 -26dB Bandwidth NVNT n20 5700MHz Ant1 Report No.: S22051603201002 Page 84 of 140 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5500 Ant1 16.594 NVNT a 5600 Ant1 16.689 NVNT a 5700 Ant1 16.501 NVNT ac20 5500 Ant1 17.873 NVNT ac20 5600 Ant1 17.823 NVNT ac20 5700 Ant1 17.761 NVNT n20 5500 Ant1 17.811 NVNT n20 5600 Ant1 17.861 NVNT n20 5700 Ant1 17.75 OBW NVNT a 5500MHz Ant1 OBW NVNT a 5600MHz Ant1 Report No.: S22051603201002 Page 85 of 140 OBW NVNT a 5700MHz Ant1 OBW NVNT ac20 5500MHz Ant1 Report No.: S22051603201002 Page 86 of 140 OBW NVNT ac20 5600MHz Ant1 OBW NVNT ac20 5700MHz Ant1 Report No.: S22051603201002 Page 87 of 140 OBW NVNT n20 5500MHz Ant1 OBW NVNT n20 5600MHz Ant1 Report No.: S22051603201002 Page 88 of 140 OBW NVNT n20 5700MHz Ant1 Report No.: S22051603201002 Page 89 of 140 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT a 5500 Ant1 -0.94 11 Pass NVNT a 5600 Ant1 -0.434 11 Pass NVNT a 5700 Ant1 0.183 11 Pass NVNT ac20 5500 Ant1 -1.098 11 Pass NVNT ac20 5600 Ant1 -1.531 11 Pass NVNT ac20 5700 Ant1 -1.644 11 Pass NVNT n20 5500 Ant1 -1.158 11 Pass NVNT n20 5600 Ant1 -0.393 11 Pass NVNT n20 5700 Ant1 -0.353 10 Pass PSD NVNT a 5500MHz Ant1 PSD NVNT a 5600MHz Ant1 Report No.: S22051603201002 Page 90 of 140 PSD NVNT a 5700MHz Ant1 PSD NVNT ac20 5500MHz Ant1 Report No.: S22051603201002 Page 91 of 140 PSD NVNT ac20 5600MHz Ant1 PSD NVNT ac20 5700MHz Ant1 Report No.: S22051603201002 Page 92 of 140 PSD NVNT n20 5500MHz Ant1 PSD NVNT n20 5600MHz Ant1 Report No.: S22051603201002 Page 93 of 140 PSD NVNT n20 5700MHz Ant1 Report No.: S22051603201002 Page 94 of 140 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5500 Ant1 -32.67 -27 Pass NVNT a 5700 Ant1 -38.27 -27 Pass NVNT ac20 5500 Ant1 -29.65 -27 Pass NVNT ac20 5700 Ant1 -35.1 -27 Pass NVNT n20 5500 Ant1 -31.57 -27 Pass NVNT n20 5700 Ant1 -33.64 -27 Pass Band Edge NVNT a 5500MHz Low Ant1 Band Edge NVNT a 5700MHz High Ant1 Report No.: S22051603201002 Page 95 of 140 Band Edge NVNT ac20 5500MHz Low Ant1 Band Edge NVNT ac20 5700MHz High Ant1 Report No.: S22051603201002 Page 96 of 140 Band Edge NVNT n20 5500MHz Low Ant1 Band Edge NVNT n20 5700MHz High Ant1 Report No.: S22051603201002 Page 97 of 140 Report No.: S22051603201002 Page 98 of 140 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5500 Ant1 -37.2 -27 Pass NVNT a 5600 Ant1 -37.37 -27 Pass NVNT a 5700 Ant1 -36.96 -27 Pass NVNT ac20 5500 Ant1 -36.49 -27 Pass NVNT ac20 5600 Ant1 -35.95 -27 Pass NVNT ac20 5700 Ant1 -37.53 -27 Pass NVNT n20 5500 Ant1 -37.02 -27 Pass NVNT n20 5600 Ant1 -37.07 -27 Pass NVNT n20 5700 Ant1 -36.18 -27 Pass Tx. Spurious NVNT a 5500MHz Ant1 Emission Tx. Spurious NVNT a 5600MHz Ant1 Emission Report No.: S22051603201002 Page 99 of 140 …
