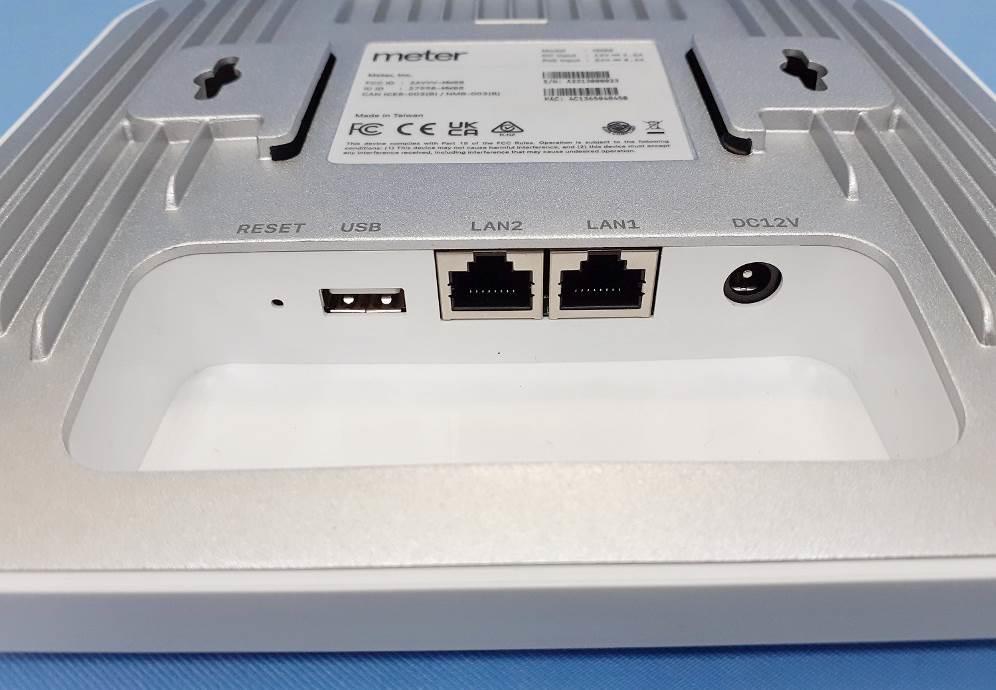

2AVVV-MW08Meter wireless access point with WiFi and Bluetooth

0 User Manual WAP385 Version 1.0 2 Chapter1 Product Overview 3 Introduction Key Features ・Supports IEEE802.11ac/a/b/g/n/ax wireless standards ・Four 2.4 GHz Metal PIFA Antennas ・Four 5 GHz Metal PIFA Antennas ・Support MU-MIMO / OFDMA function ・Support Tx Beamforming to enlarge the transmitting distance. ・IEEE802.11 PoE af/at Input design with Gigabit port supports. ・Flexible application by the built-in 2nd LAN port. ・More customized items on Band Steering for intelligent Management. ・Secured Guest Network option available The AP is 802.11 ax ac/a/b/g/n Indoor Access Point with speeds up to 1200 Mbps on 2.4GHz and 2400 Mbps on 5GHz band. It can be configured as an Access Point, or WDS (AP, Station). The AP is an affordable solution which is built in high-powered radios and long-range settings to replace the ordinary Access Points that do not have the range and reach to connect to a growing number of wireless users. With 11ax features, the Access Point could reduce the handling period on client devices and network with more client devices at the same time. Meanwhile, the beamforming will gather energy to a specific direction and increase the transmitting distance. 4 Physical Interface (MW08) 15 Physical & Environment Power Source DC Input: 12 VDC/2.5A PoE: compatible with 802.3af/at 54Vdc/0.6A Internal High Gain Antenna (Peak Gain) 5.01dBi 2.4GHz antennas 5.90dBi BLE antennas 5.19dBi 5GHz antennas Scanning 4.33dBi 2.4GHz antennas 6.17dBi 5GHz antennas Interface 1 x 10/100/1000/2500Mbps Ethernet Port with 802.3af/at PoE 1 x 10/100/1000Mbps Ethernet Port 1 x DC power connector 1 x USB 2.0 port 1 x reset button Dimensions (W x D x H) 205x205x34 mm Mounting Ceiling, T-Rail, Wall and Pole mount Environment Operating temperature: 0°C~40°C Operating humidity: 0%~90% typical 16 Technical Specifications Storage temperature: -40°C~70°C 17 Mounting 18 19 Pole Mount an Access Point 6) Slide the pole mount base into the slot of the Access Point. 7) Attaching the Straps to the Pole Mount Bracket 8) Lock and tighten the strap to secure the pole mount bracket to the pole. 20 Applications Wireless LAN (WLAN) products are easy to install and highly efficient. The following list describes some of the many applications made possible through the power and flexibility ofWLANs:  Difficult-to-Wire Environments: There are many situations where wires cannot be installed, deployed easily, or cannot be hidden from view. Older buildings, sites with multiple buildings, and/or areas that make the installation of a Ethernet-based LAN impossible, impractical or expensive are sites where WLAN can be a network solution.  Temporary Workgroups: Create temporary workgroups/networks in more open areas within a building; auditoriums, amphitheaters classrooms, ballrooms, arenas, exhibition centers, or temporary offices where one wants either a permanent or temporary Wireless LAN established.  The Ability to Access Real-Time Information: Doctors/Nurses, Point-of-Sale Employees, and/or Warehouse Workers can access real-time information while dealing with patients, serving customers, and/or processing information.  Frequently Changing Environments: Set up networks in environments that change frequently (i.e.: Show Rooms, Exhibits, etc.).  Small Office and Home Office (SOHO) Networks: SOHO users require a cost-effective, easy, and quick installation of a small network.  Training/Educational Facilities: Training sites at corporations or students at universities use wireless connectivity to exchange information between peers and easily access information for learning purposes. 21 Appendix A - FCC Interference Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA Operation of this device is restricted to indoor use only 22 Appendix B - IC Interference Statement Industry Canada Statement This device complies with Canada license-exempt RSSs of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept a…

Text truncated - open the document above for the full version.

Meter Inc 548 Market St, PMB 22716, San Francisco, California 94104, United States To: Federal Communications Commission Date: 2023/06/12 7435 Oakland Mills Road Columbia, MD 21046 USA Attestation Section 2.911(d)(5)(i) and Section 2.911(d)(5)(ii) (KDB 986446 D01 Covered Equipment) Section 2.911(d)(5)(i) Meter Inc (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Section 2.911(d)(5)(ii) Meter Inc (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Type of Equipment subject to FCC Certification: FCC ID: 2AVVV-MW08 If you have any questions, please feel free to contact me Contact Person: Jeff Leopando Position in the Company: Product Operations Manager Address: 548 Market St, PMB 22716, San Francisco, California 94104, United States Email: [email protected] Date of Signature: 2023/06/12 ___________________________ Signatory (signature of the applicant)

Meter Inc 548 Market St, PMB 22716, San Francisco, California 94104, United States To: Federal Communications Commission Date: 2023/06/12 7435 Oakland Mills Road Columbia, MD 21046 USA Attestation Certification designating a U.S. Agent for Service of Process Section 2.911(d)(7) (KDB 986446 D01 Covered Equipment) Meter Inc (“the applicant”) as required by section 2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. U. S. Agent Information: Contact Person : Jeff Leopando Company Name: Meter Inc FRN: 0029316551 Company Address: 548 Market St, PMB 22716, San Francisco, California 94104, United States Email: [email protected] Sincerely yours, Applicant Company (grantee) Company Name : Meter Inc Contact : Jeff Leopando / Product Operations Manager Tel: 4155733933 Email: [email protected]

Meter Inc 548 Market St, PMB 22716, San Francisco, California 94104, United States Declaration of Authorization Date: 2023/06/12 We Name: Meter Inc Address: 548 Market St, PMB 22716, San Francisco, California 94104, United States City: San Francisco State: California Country: United States Declare that Name Representative of agent: William Chung / Senior Director Agent Company name: Eurofins E&E Wireless Taiwan Co., Ltd. Address: No. 140-1, Changan Street, Bade District, City: Taoyuan Country: Taiwan Is authorized to apply for Certification of the following product(s) Product Name: Meter wireless access point FCC ID : 2AVVV-MW08 IC : 27998-MW08 Trademark: meter on our behalf This is valid until December 31, 2024, or until FCC and IC certification are completed, whichever comes sooner. Contact Person / Title : Jeff Leopando / Product Operations Manager Tel.: 4155733933 Email: [email protected] Signature:

Meter Inc 548 Market St, PMB 22716, San Francisco, California 94104, United States Date : 6/12/2023 UNII Device Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization, Device FCC ID : 2AVVV-MW08 (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability , N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5150-5250 MHz Yes , No Yes , No Yes , No Yes , No 5725-5850 MHz Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No Yes , No (3) Country code selection ability - Yes , No If no, pls explain how it was implemented : This function is disabled via firmware setting. (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non- DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on it was implement , and how software was controlled) Contact Person / Title : Jeff Leopando / Product Operations Manager Tel.: 4155733933 Email: [email protected] Signature:

Meter Inc 548 Market St, PMB 22716, San Francisco, California 94104, United States Date: 2023/06/12 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AVVV-MW08 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Security Information The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Contact Person / Title : Jeff Leopando / Product Operations Manager Tel.: 4155733933 Email: [email protected] Signature:

Meter Inc 548 Market St, PMB 22716, San Francisco, California 94104, United States DATE : 2023/06/15 WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : 2AVVV-MW08 Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. _________________ Others Pls explain detail here. Signature Contact Person / Title : Jeff Leopando / Product Operations Manager Tel.: 4155733933 Email: [email protected]

C234131_EUT External Photos Page 1 of 5 External Photos Model Number: MW08 C234131_EUT External Photos Page 2 of 5 EUT Photo (1) EUT Photo (2) C234131_EUT External Photos Page 3 of 5 EUT Photo (3) EUT Photo (4) C234131_EUT External Photos Page 4 of 5 EUT Photo (5) EUT Photo (6) C234131_EUT External Photos Page 5 of 5 EUT Photo (7)

±Redcolorfor reference and willbe printedby factory. 61. 4 3-1. 8R 51. 4 R-NZ R-NZ MW08 12V 2.5A 0.6A 2AVVV-MW08 27998-MW08 54V MW08 12V 2.5A 0.6A 2AVVV-MW08 27998-MW08 54V MAC S/N 848094B00B25 MW0800001T022101 NOTE - 公差部分不符合左列標準 。 - 印刷如有不清、斷字或滲墨現象 。 - 印刷色如與PANTONE色不符合 。 - 印刷位置與圖比例印刷不符合 。 ※廠商須無條件重新製作! 6710A6873560 2023/01/09 機構外觀課 Michael Bear emplus Technologies, Inc. Ted 1 1 機種名稱 MW08 - Dimension : 61.4 *51.4 mm - Tolerance : ±0.1 mm - Coating: Printable Matt Polyester 打字霧P - Material : 50 番反銀龍+一般黏膠 +打字霧膜 Code : HTLSMI50 Adhesive : △ 黏著力 Peel Adhesion: 0.8 kgf/25mm ↑ Coating : 25番霧面無鹵打印 PET △ 黏著力 Peel Adhesion: 0.6 ↑ kgf / 25mm △ 適用溫度Service Temperature: ≧ 110 °C Label Location Back side of EUT

C234131_EUT Internal Photos Page 1 of 26 Internal Photos Model Number: MW08 C234131_EUT Internal Photos Page 2 of 26 EUT Photo (1) EUT Photo (2) Scanning ANT. Bluetooth LE ANT. C234131_EUT Internal Photos Page 3 of 26 EUT Photo (3) EUT Photo (4) C234131_EUT Internal Photos Page 4 of 26 EUT Photo (5) EUT Photo (6) C234131_EUT Internal Photos Page 5 of 26 EUT Photo (7) EUT Photo (8) C234131_EUT Internal Photos Page 6 of 26 EUT Photo (9) EUT Photo (10) C234131_EUT Internal Photos Page 7 of 26 EUT Photo (11) EUT Photo (12) C234131_EUT Internal Photos Page 8 of 26 EUT Photo (13) EUT Photo (14) C234131_EUT Internal Photos Page 9 of 26 EUT Photo (15) EUT Photo (16) C234131_EUT Internal Photos Page 10 of 26 EUT Photo (17) EUT Photo (18) 5G2 ANT. 2G0 ANT. 2G2 ANT. 5G3 ANT. 2G3 ANT. 5G0 ANT. 2G1 ANT. 5G1 ANT. C234131_EUT Internal Photos Page 11 of 26 EUT Photo (19) EUT Photo (20) C234131_EUT Internal Photos Page 12 of 26 EUT Photo (21) EUT Photo (22) C234131_EUT Internal Photos Page 13 of 26 EUT Photo (23) EUT Photo (24) C234131_EUT Internal Photos Page 14 of 26 EUT Photo (25) EUT Photo (26) C234131_EUT Internal Photos Page 15 of 26 EUT Photo (27) EUT Photo (28) C234131_EUT Internal Photos Page 16 of 26 EUT Photo (29) EUT Photo (30) C234131_EUT Internal Photos Page 17 of 26 EUT Photo (31) EUT Photo (32) C234131_EUT Internal Photos Page 18 of 26 EUT Photo (33) EUT Photo (34) C234131_EUT Internal Photos Page 19 of 26 EUT Photo (35) EUT Photo (36) C234131_EUT Internal Photos Page 20 of 26 EUT Photo (37) EUT Photo (38) C234131_EUT Internal Photos Page 21 of 26 EUT Photo (39) EUT Photo (40) C234131_EUT Internal Photos Page 22 of 26 EUT Photo (41) EUT Photo (42) C234131_EUT Internal Photos Page 23 of 26 EUT Photo (43) EUT Photo (44) C234131_EUT Internal Photos Page 24 of 26 EUT Photo (45) EUT Photo (46) C234131_EUT Internal Photos Page 25 of 26 EUT Photo (47) EUT Photo (48) C234131_EUT Internal Photos Page 26 of 26 EUT Photo (49) EUT Photo (50)

Page 1 of 11 Report Number: USSC234131001 Version: 00 MPE Report Applicant ： Meter Inc Product Name ： Meter wireless access point Trade Name ： Meter Model Number ： MW08 Applicable Standard ： 47 CFR § 2.1091 Received Date ： Apr. 18, 2023 Issue Date ： Jun. 17, 2023 Issued by Approved By ： (William Chung) Eurofins E&E Wireless Taiwan Co., Ltd. No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of Eurofins E&E Wireless Taiwan Co., Ltd. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. Page 2 of 11 Report Number: USSC234131001 Version: 00 Revision History Rev. Issued Date Revisions Revised By 00 Jun. 17, 2023 Initial Issue Rowan Hsieh Page 3 of 11 Report Number: USSC234131001 Version: 00 Contents 1. General Information .................................................................................................................... 4 2. Description of Equipment under Test (EUT) ............................................................................ 5 3. RF Exposure Limit ...................................................................................................................... 6 4. RF Exposure Assessment .......................................................................................................... 7 5. Maximum Conducted Power ...................................................................................................... 9 6. Result ......................................................................................................................................... 10 7. Conclusion ................................................................................................................................. 11 Page 4 of 11 Report Number: USSC234131001 Version: 00 1. General Information 1.1 Reference Applicable Standard Standard Description Version IEEE C95.1 American National Standard safety levels with respect to human exposure to radio frequency electromagnetic fields, 300 KHz to 100 GHz, New York. 1992 47 CFR § 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. - 47 CFR § 1.1310 Radiofrequency radiation exposure limits. - KDB 447498 D04 RF exposure procedures and equipment authorization policies for mobile and portable devices v01 1.2 Testing Location Site Name: Site Name: Eurofins E&E Wireless Taiwan Co., Ltd. Site Address: ▓ No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Site Address: □ No. 2, Wuquan 5th Rd. Wugu Dist., New Taipei City, Taiwan (R.O.C.) Page 5 of 11 Report Number: USSC234131001 Version: 00 2. Description of Equipment under Test (EUT) Applicant Meter Inc 548 Market St., PMB 22716, San Francisco, CA 94104 Product Name Meter wireless access point Trade Name Meter Model Number MW08 FCC ID 2AVVV-MW08 Frequency Range WLAN 2.4 GHz Band：2412 - 2472 MHz WLAN 5.2 GHz Band：5180 - 5320 MHz WLAN 5.8 GHz Band：5725 - 5850 MHz Bluetooth：2402 - 2480 MHz Supported Modulations WLAN 2.4 GHz : 802.11b/g/n/ac/ax HT20/HT40/VHT20/VHT40/ HE20/HE40 WLAN 5 GHz : 802.11a/n/ac/ax HT20/HT40/VHT20/VHT40/VHT80/VHT160/HE20/HE40/HE80/HE160 Use Distance 20 cm Note: The above information of DUT was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Page 6 of 11 Report Number: USSC234131001 Version: 00 3. RF Exposure Limit For devices that operate at larger distances from persons, where there are minimal RF coupling interactions between a device and the user or nearby persons, RF exposure compliance using maximum permissible exposure (MPE) limits is applied. The limits for MPE is listed as below: Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm²) Averaging Time|E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824 / f 2.19 / f (180 / f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F / 1,500 30 1,500-100,000 - - 1.0 30 Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm²) Averaging Time|E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 - - F / 300 6 1,500-100,000 - - 5 6 f = frequency in MHz. * = Plane-wave equivalent power density. Page 7 of 11 Report Number: USSC234131001 Version: 00 4. RF Exposure Assessment 4.1 Exemption Evaluation Exemption evaluation was performed according to the appendix A and B in KDB447498 D04. The General Sequence for Determination of Procedure demonstrated in Figure A.1 of KDB447498 D04 was applied. Page 8 of 11 Report Number: USSC234131001 Version: 00 4.2 Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR § 1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transm…

Text truncated - open the document above for the full version.

MW08 Antenna Test Report CustomerEmplus ProjectMW08 Project Description 2.4G antenna *4 5G antenna *4 ScanRadio*1 Date2023/04/19 Prepared byCell Report VersionA01 Executive Summary •Purpose Antenna verification for MW08 device, result as following. •Agenda –Model name –VSWR & Isolation –Radiation Pattern –Efficiency and Gain Model name AntennaModel name 2G35718A0514300 2G15718A0515300 2G05718A0516300 2G25718A0517300 5G05718A0518300 5G15718A0522300 5G35718A0520300 5G25718A0521300 BLE5718A0524300 Scanning5718A0601300 Manufactory : SenaoNetworks, Inc. Add : No.500, Fuxing3rd Rd., GuishanDist., Taoyuan City 333001, Taiwan VSWR Freq. (MHz)2G32G12G02G2 2400 1.881.691.951.40 2450 1.771.471.761.39 2500 1.731.401.821.42 VSWR VSWR Freq. (MHz)5G05G15G35G2 5150 1.391.381.201.64 5500 1.131.311.061.21 5850 1.471.321.121.13 VSWR VSWR VSWR Freq. (MHz)BLEScanning 2400 1.871.39 2450 1.601.47 2500 1.931.03 5150 1.34 5500 1.53 5850 1.78 Isolation Freq. (MHz)2G3-2G12G3-2G02G3-2G22G1-2G02G1-2G22G0-2G2 2400 -18.17-22.96-23.65-12.42-22.39-21.42 2450 -21.05-25.51-32.70-12.40-23.54-28.34 2500 -23.44-31.51-32.13-14.15-22.82-23.80 Isolation Isolation Freq. (MHz)5G0-5G15G0-5G35G0-5G25G1-5G35G1-5G25G3-5G2 5150 -38.01-45.90-31.76-27.40-45.11-24.34 5500 -33.28-36.76-28.12-25.39-40.03-26.09 5850 -31.30-36.11-45.84-25.74-69.13-29.17 Isolation VSWR Isolation Freq. (MHz)BLE-Scanning 2400 -32.42 2450 -46.47 2500 -46.67 5150 -39.76 5500 -35.21 5850 -46.44 2D Radiation Pattern – 2G0 @ 2.45GHz I/O port Front side Front side YXY LED side LED side 2D Radiation Pattern – 2G1 @ 2.45GHz X Z Z I/O port Front side Front side YXY LED side LED side 2D Radiation Pattern – 2G2 @ 2.45GHz X Z Z I/O port Front side Front side YXY LED side LED side 2D Radiation Pattern – 2G3 @ 2.45GHz X Z Z I/O port Front side Front side YXY LED side LED side 2D Radiation Pattern – 5G0 @ 5.55GHz X Z Z I/O port Front side Front side YXY LED side LED side 2D Radiation Pattern – 5G1 @ 5.55GHz X Z Z I/O port Front side Front side YXY LED side LED side 2D Radiation Pattern – 5G2 @ 5.55GHz I/O port Front side Front side YXY LED side LED side 2D Radiation Pattern – 5G3 @ 5.55GHz X Z Z I/O port Front side Front side YXY LED side LED side 2D Radiation Pattern – BLE @ 2.45GHz X Z Z I/O port Front side Front side YXY LED side LED side 2D Radiation Pattern – Scanning @ 2.45GHz X Z Z I/O port Front side Front side YXY LED side LED side 2D Radiation Pattern – Scanning @ 5.55GHz X Z Z I/O port Front side Front side YXY LED side LED side Antenna Efficiency and Gain Antenna Performance 2G32G1 Freq. (MHz) Efficiency (%) Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) 240061.12.7067.73.93 245063.92.8768.94.08 250066.43.7076.03.59 Antenna Performance 5G05G1 Freq. (MHz) Efficiency (%) Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) 515063.95.1362.94.26 5500 61.14.19 60.53.58 585060.15.1957.83.81 Antenna Performance 2G02G2 Freq. (MHz) Efficiency (%) Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) 240063.04.1260.43.26 245065.03.5565.14.73 250060.53.3062.35.01 Antenna Performance 5G35G2 Freq. (MHz) Efficiency (%) Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) 515057.74.03 54.04.25 550058.94.0254.75.04 585060.64.5650.34.00 Antenna Performance BLEScanning Freq. (MHz) Efficiency (%) Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) 240058.95.0454.34.33 245061.95.9053.04.27 250053.15.2263.03.50 515060.76.17 550054.65.72 585052.46.17

Appendix A. Test Data QCN5054 802.11a51801.4301.60089.3750.4880.699 802.11ax HE2051805.4805.76095.1390.2160.182 802.11ax HE4051905.4805.78094.8100.2310.182 802.11ax HE8052105.4805.72095.8040.1860.182 Duty Factor (dB) 1/T Minimun VBW (kHz) Duty cycle on time (ms) on+off time (ms) Duty cycle (%) Band Frequency (MHz) Page 1 of 22 Report Number: USRC234131002 Version: 00 CHAnt-0Ant-1Ant-2Ant-3 3615.515.515.515.5 4015.515.515.515.5 4415.515.515.515.5 4815.515.515.515.5 14921212121 15721212121 16521212121 3616161616 4016161616 4416161616 4816161616 14921212121 15721212121 16520.520.520.520.5 3814.514.514.514.5 4617.517.517.517.5 15120202020 15920202020 5785 5825 5190 5230 802.11n HT20QSPR 5.0-00188 802.11n HT40QSPR 5.0-00188 5180 5755 5795 QCN5054 Mode Frequency (MHz) Test SW Version 5745 5785 802.11aQSPR 5.0-00188 5825 5180 5200 5220 5240 5220 5240 5200 5745 Page 2 of 22 Report Number: USRC234131002 Version: 00 CHAnt-0Ant-1Ant-2Ant-3 3616161616 4016161616 4416161616 4816161616 14921212121 15721212121 16520.520.520.520.5 3814.514.514.514.5 4617.517.517.517.5 15120202020 15920202020 4213.513.513.513.5 15516.516.516.516.5 CHAnt-0Ant-1Ant-2Ant-3 36Full16161616 40Full16161616 44Full16161616 48Full16161616 149Full21212121 157Full21212121 165Full20.520.520.520.5 38Full14.514.514.514.5 46Full17.517.517.517.5 151Full20202020 159Full20202020 42Full13.513.513.513.5 155Full16.516.516.516.5 802.11ac VHT80QSPR 5.0-00188 802.11ax HE20QSPR 5.0-00188 802.11ax HE40QSPR 5.0-00188 Frequency (MHz) Test SW Version 5180 5200 5220 5240 5775 5210 Mode 802.11ax HE80QSPR 5.0-00188 5775 5230 5745 5785 5755 5210 5795 5825 5190 802.11ac VHT20QSPR 5.0-00188 802.11ac VHT40QSPR 5.0-00188 5230 5745 5785 5825 5755 5795 5190 5180 RF power setting in Test SW RF power setting in Test SW 5200 5220 5240 Mode Frequency (MHz) Test SW Version Page 3 of 22 Report Number: USRC234131002 Version: 00 Ant-0Ant-1Ant-2Ant-3Total dBmdBmdBmdBmdBmdBm 3616.7616.5716.6817.0022.7830.00 4016.8116.6016.7216.9722.8030.00 4416.7816.5216.6616.9022.7430.00 4816.6116.2316.6216.9822.6430.00 14922.0222.1522.4522.0128.1830.00 15721.9022.0522.3221.9328.0730.00 16522.0022.3522.2722.0728.2030.00 3617.2517.2917.3417.2223.3030.00 4017.2417.0517.4817.2923.2930.00 4417.1616.9917.3917.2223.2130.00 4816.9416.8117.2817.3623.1230.00 14921.8022.0822.6021.9628.1430.00 15721.7421.7722.4921.7727.9730.00 16521.5121.8121.7121.4227.6430.00 3815.7815.9716.1116.0321.9930.00 4618.5418.4518.9018.7624.6930.00 15121.7821.7422.1721.7127.8730.00 15921.4121.8121.9821.4227.6830.00 Ant-0Ant-1Ant-2Ant-3Total dBmdBmdBmdBmdBmdBm 3617.3317.4017.4217.3223.3930.00 4017.2717.1517.5817.4323.3830.00 4417.1817.1017.5017.3623.3130.00 4816.9616.9517.4017.4923.2330.00 14921.9322.1222.6821.9928.2130.00 15721.8221.9122.5521.8228.0630.00 16521.6321.8421.7521.5027.7030.00 3815.8716.0416.2416.1622.1030.00 4618.5918.5319.0318.8724.7830.00 15121.8521.8422.2721.8127.9730.00 15921.4921.8722.0121.5627.7630.00 4214.8214.6614.9214.8920.8430.00 15518.0118.1018.2117.8524.0730.00 QCN5054 Band Date Rate or Sub-test CH Frequency (MHz) Average power Limit Limit Band Date Rate or Sub-test CH Frequency (MHz) 5180 5200 5220 5240 802.11n HT4054M 5785 5825 5210 5745 5755 5755 5795 5190 5230 5180 5200 5785 5825 5180 5200 5220 5240 5190 5230 5220 5240 Average power 802.11a6M 5785 5825 802.11ac VHT2026M 802.11ac VHT4054M 5745 5795 5775 117.2M 5745 802.11n HT2026M 802.11ac VHT80 Page 4 of 22 Report Number: USRC234131002 Version: 00 Ant-0Ant-1Ant-2Ant-3Total dBmdBmdBmdBmdBmdBm 365180Full17.4017.4217.5217.4223.4630.00 405200Full17.3117.2617.6317.4723.4430.00 445220Full17.2517.2017.5517.3823.3730.00 485240Full16.9817.0117.5417.5023.2930.00 1495745Full22.0322.1622.7522.0628.2830.00 1575785Full21.8822.0522.6021.9328.1530.00 1655825Full21.6521.9121.8221.5727.7630.00 385190Full15.9916.0616.3016.2622.1830.00 465230Full18.6218.6519.0519.0124.8630.00 1515755Full21.9721.9422.3221.8728.0530.00 1595795Full21.6221.9122.0821.6127.8330.00 425210Full14.9014.7515.0014.9620.9230.00 1555775Full18.1218.1818.3217.9124.163…
