WAG-0F2W XGS-PON ONT User Manual

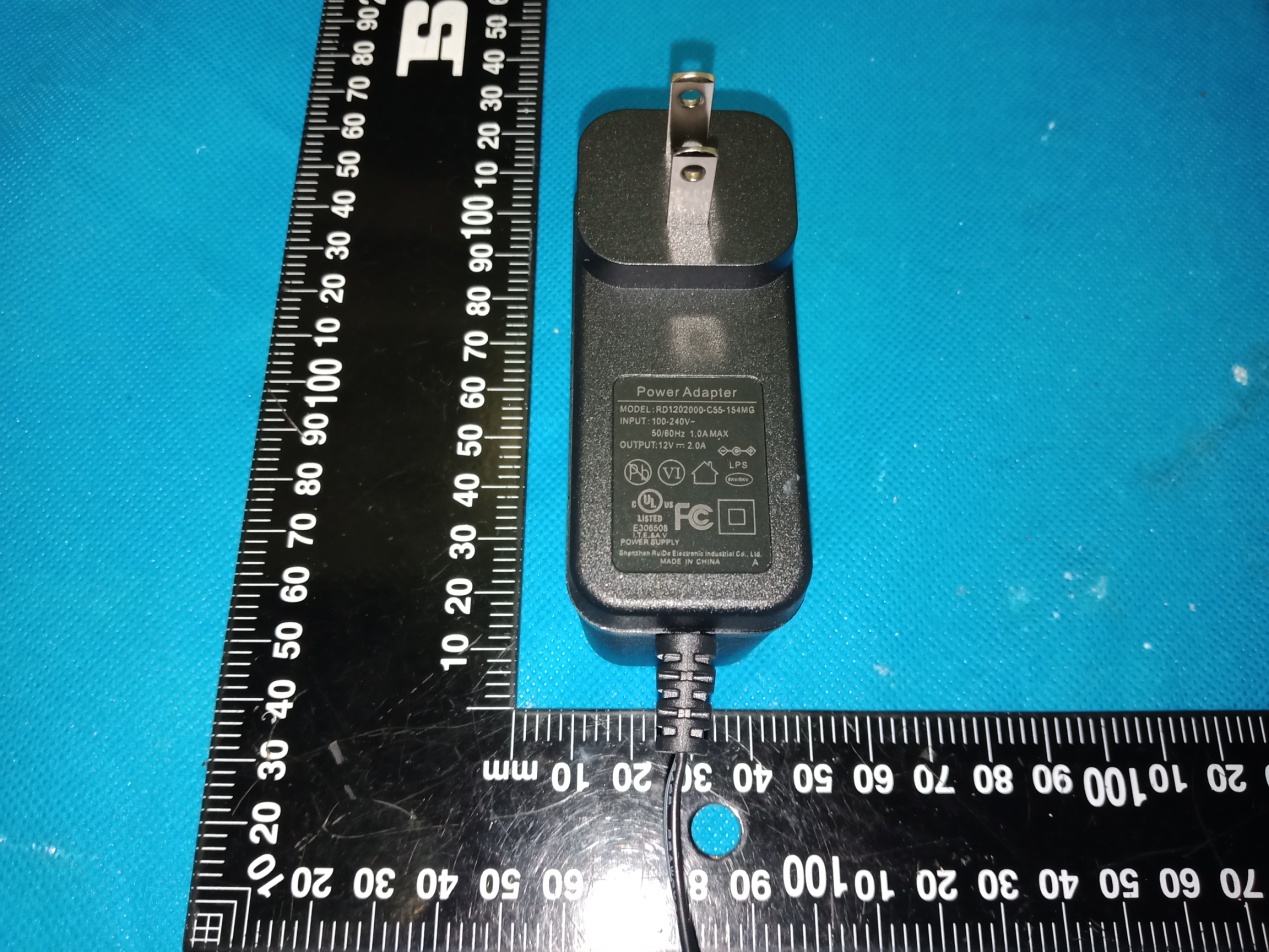

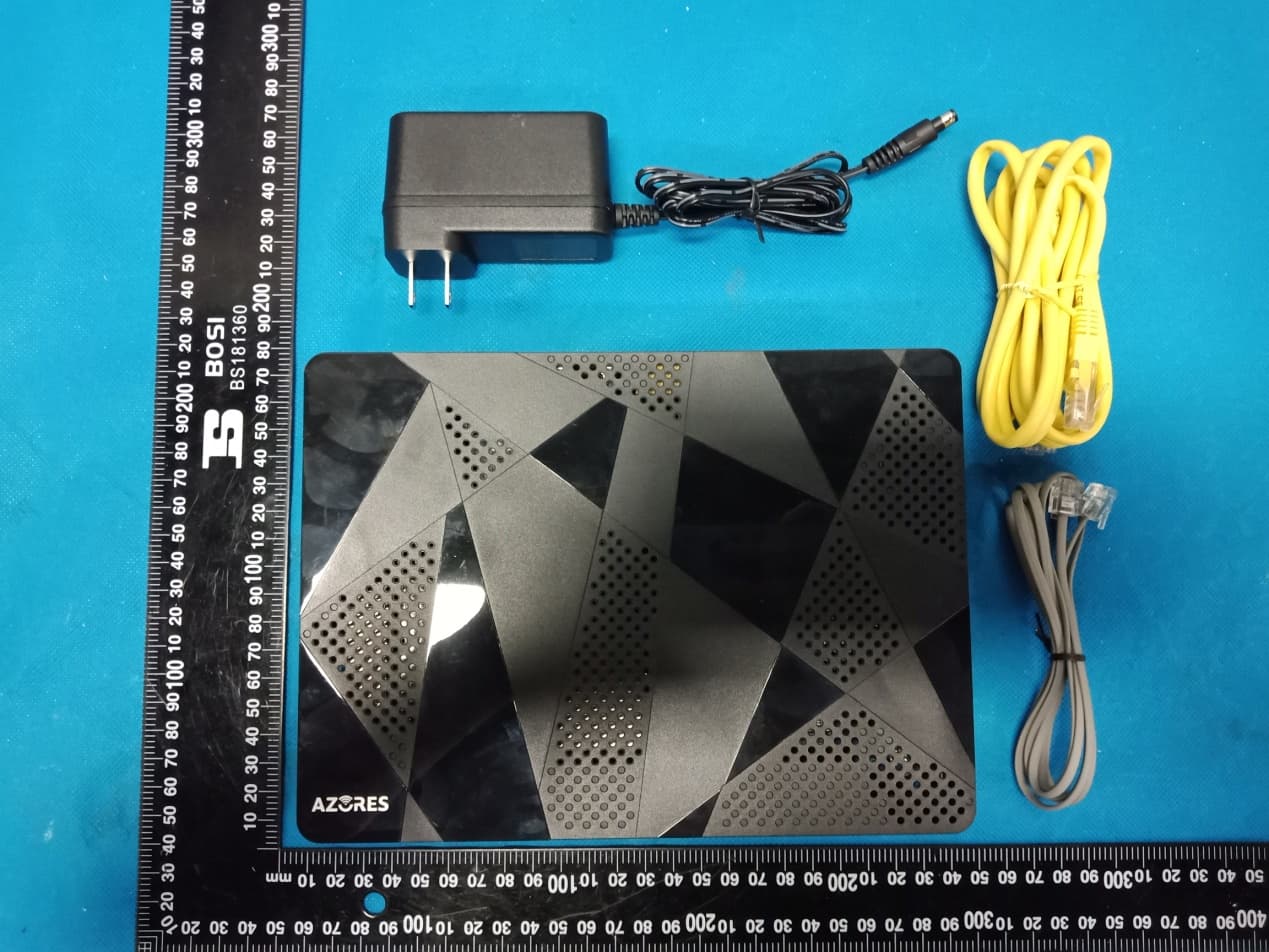

Package Lists ItemQuantity 0F2WW GPON ONT Unit1 Power Adapter1 RJ-45 Ethernet Cable1 User Manual1

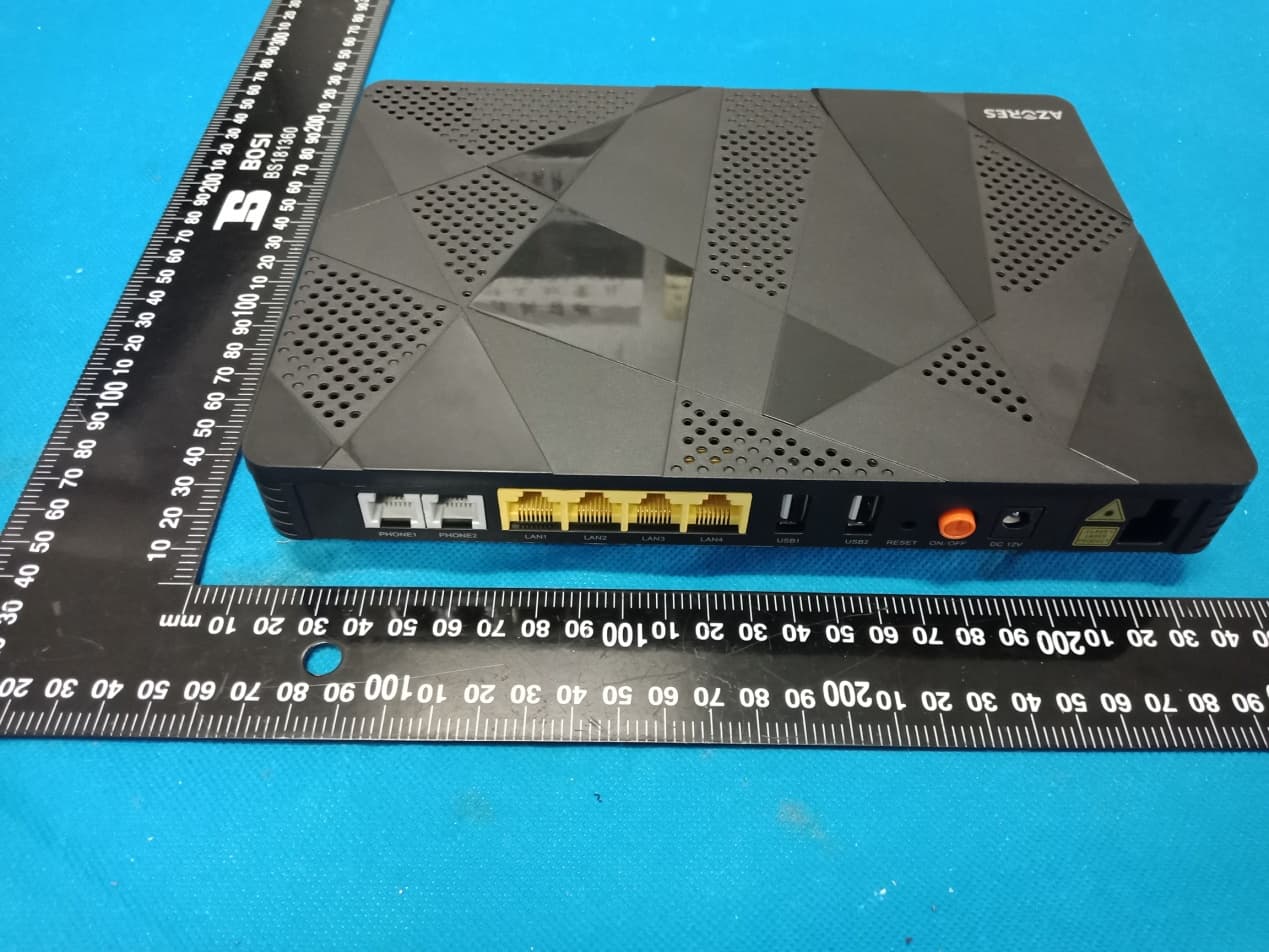

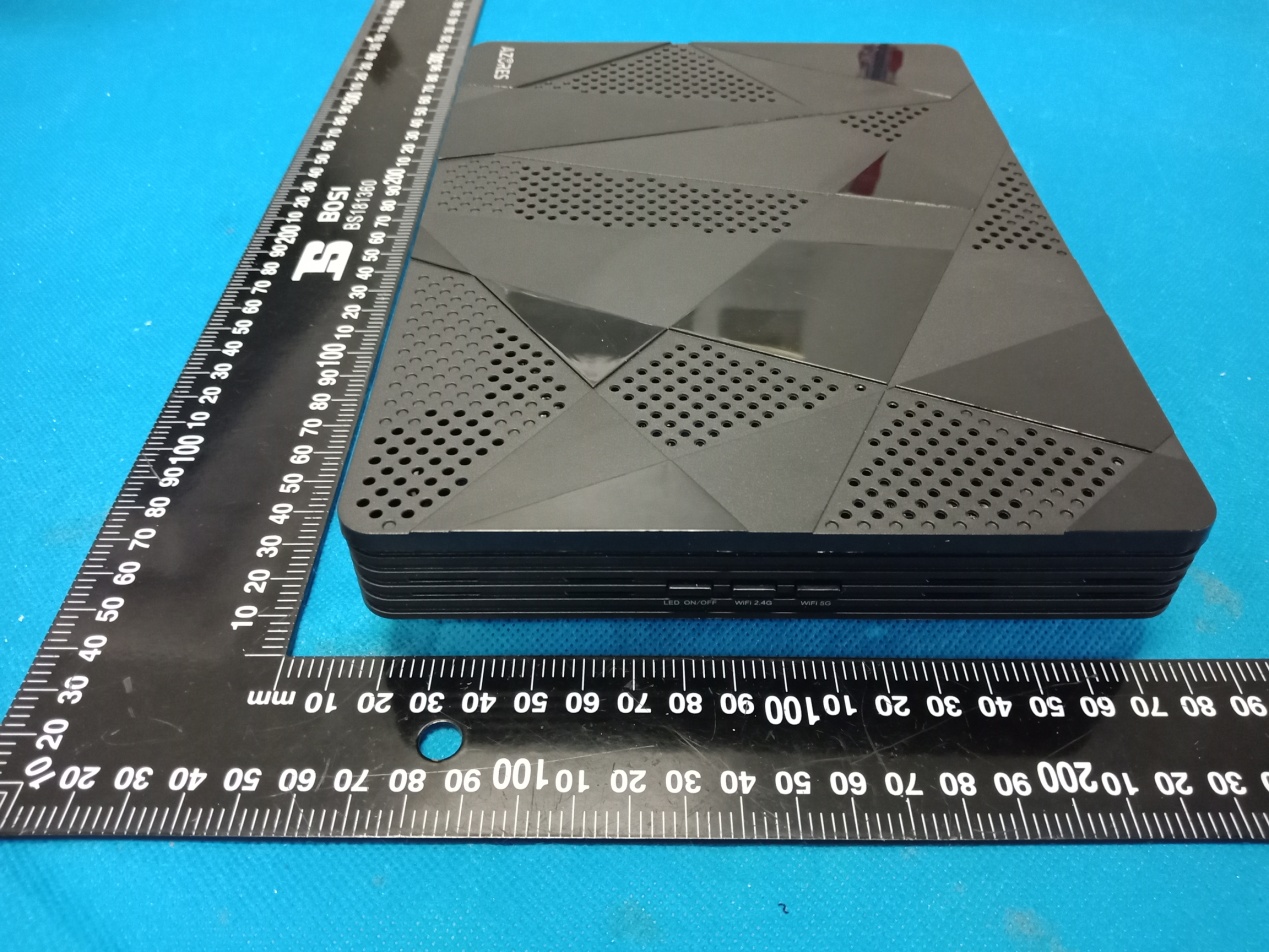

Product Overview The WAG-0F2W is an ITU-T G.984 and ITU-T G.988 compliant ONT.The ONT provides four GE ports, two POTS ports, Wi-Fi 802.11ax [email protected] & 802.11ax 4x4 @5GHz concurrent, two USB ports. Its characteristics of high bandwidth and lowdelay can meet the needs of high-end home users. And it supports desktop mounting or wall mounting. Interface Device InterfaceDescription Fiber Optical interface1*SC/APC optical interface for fiber connection. Supports GPON(Transmitting : 1270 nm(PON) , Receiving : 1577 nm (PON) ) LAN4*GE Ethernet interface with RJ-45 connector, Supports 10/100/1000-Base-T, half/full duplex and flow control, auto negotiation or manual configuration Device InterfaceDescription and supports MDI/MDIX auto-sensing Phone2*POTS interfaces with RJ-11 connector USB2*USB port, 5V-1.0A, connects to a USB storage device Power12V Power Input Interface 1* DC Jack for power input Technical Specification ItemDescription Dimension220mm×160mm×38mm(Height×Width×Depth) Rated Voltage12V Rated Current2A Operation Temperature0ºC to 40ºC Storage Temperature-20ºC to 65ºC
Safety Instructions Please read the safety instructions carefully before usingthe device. 1.Please keep the power adapter and cable and hands clean anddry to avoid the electric shock and other dangers. 2.Please only use the standard power adapter provided in thepackaging box, otherwise, the device may work abnormally or even be damaged. 3.Please don’t open the cover of the device, especially whenthe device is powered on. It can be dangerous to do so. 4.If do not use the device for a long time, please turn off the power. 5.If find the device is in an abnormal state, such as too hot, strange smell or smoke, please power off the device quickly and feed back to the service provider. 6.Please keep the device away from any hot source and water. 7.Please don’t let anything cover the cooling holes of the device. 8.Observe local equipment handling regulations and protect the environment. 9.If need to clean the dust of the equipment, please cut off the power supply first and unplug the relevant connecting cable, then use dry cloth to clean, do not use any liquid.
Cable Connetion Connect Ethernet Cable If needed, connect LAN port of WAG-0F2W to PC via standard RJ-45 Ethernet Cable. Connect Fiber Optical Cable Connect the fiber optical port of WAG-0F2W (at the bottom of the device) to GPON OLT via fiber optical cable. Connect RJ-11 cable If needed, connect the phone port of WAG-0F2W to wired telephone via RJ-11 cable. Connect USB storage device If needed,connect the USB storage device with USB port. Connect Power Adapter Connect the power interface of WAG-0F2W to a power outlet viathe provided power adapter (Please don’t use other specifications of power adapter), then turn on the power switch of 0F2WW.
LED LEDColorStateDescription PowerGreen OffThe device is powered off. OnThe device is powered on. LEDColorStateDescription PONGreen Off The device has not started the registration process. FlashingThe device is registering or upgrading. On The device has completed the registration process. LOSRed Off The received GPON optical power is normal. Flashing The received GPON optical power is lower than the sensitivity of the optical receiver. InternetGreen OffThe device has no Ethernet connection. On The device has connected to the Internet (the correct IP address has been obtained and the bridge link is normal). GEGreen Off The device is not powered on or no LAN connection is established. Flashing Data is transmitted or received through this Ethernet interface. On The LAN connection is established but no data is transmitted/received. POTSGreen Off The device is unable to register on the soft switch/IMS. FlashingVoice service is being provided. On The device has registered on the soft switch/IMS but no voice service. WiFi2.4G GreenOffThe WI-FI interface is disabled. FlashingData is being transmitted. OnThe WI-FI interface is enabled. Wifi5G GreenOffThe WI-FI interface is disabled. FlashingData is being transmitted. OnThe WI-FI interface is enabled. USB GreenOffUSB port is disconnected. On USB port has connected the USB storage device.
Buttons ButtonFunction Power ButtonPower on and offthe WAG-0F2W device. LED ButtonLED ON/OFF button, press to turn all LEDs ON/OFF. WiFi2.4GWiFi 2.4G ON/OFF button, press to enable/ disable 2.4G Wifi functions. WiFi5G WiFi 5G ON/OFF button, press to enable/ disable 5G Wifi functions. ResetReset the WAG-0F2W device.
Wireless Configuration Wireless CountryRegion is 0(US). Logging into the Web Page Management IP address: 192.168.1.1, Network Mask: 255.255.255.0 Username/Password: admin/admin HTTP web address: https://192.168.1.1 Step 1:Use the Ethernet cable to connect LAN port 1 of WAG-0F2W to a PC. Step 2:Set up the PC to obtain an IP address automatically (DHCP) andmake sure the IP address of the PC is in the same subnet as the management IP address of WAG-0F2W. Step 3:Enterhttps://192.168.1.1in the address bar of the web browser to log into the local web page. Step 4:On the login screen, enter the username(admin) and password(admin), and then clickLogin.After the authentication is successful, the management webpage is displayed.
NOTE: If you do not perform any operation within 5 minutes after login, you will be forced to exit the webpage automatically and required to re-log into the web page. The login interface will be locked for 1 minute if a wrong user nameor password is entered three times consecutively. DO NOT connect the Ethernet cable to port(s) that are bound to the OTHER bridge service. A PC won’t be able to obtain an IP address via DHCP nor access the 0F2WW web page. By default, LAN port 4 is configured with the OTHER bridge service. SSID Configuration You can configure 2.4G SSID name via: Network->WLAN Setup->WLAN 2.4G Setup You can configure 5G…
