2AVYF-IPC-AX2E-DCONSUMER CAMERA

Hangzhou Huacheng Network Technology Co., Ltd. Date: 2021-06-11 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Contact Name: Jian Li Title of Person: Certification Manager Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China

Hangzhou Huacheng Network Technology Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AVYF-IPC-AX2E-D To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation BOM List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Contact Name: Jian Li Title of Person：Certification Manager Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Date: July 20, 2021

Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Confirmation Letter We, Hangzhou Huacheng Network Technology Co., Ltd. The product: CONSUMER CAMERA FCC ID: 2AVYF-IPC-AX2E-D And model No. IPC-A22E-D-LC, IPC-TA22E-D-LC, IPC-A22EP-D-imou, IPC-A22EN-D- imou, IPC-A22EN-D, IPC-TA22C-D-LC, IPC-TA22CP-D-imou, IPC-TA22CN-D-imou, IPC- TA22CP-D, IPC-TA22CN-D have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction, with IPC-A22EP-D. The difference is only the name of the models. Best Regards Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Contact Name: Jian Li Title of Person：Certification Manager Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Date:7/20/2021

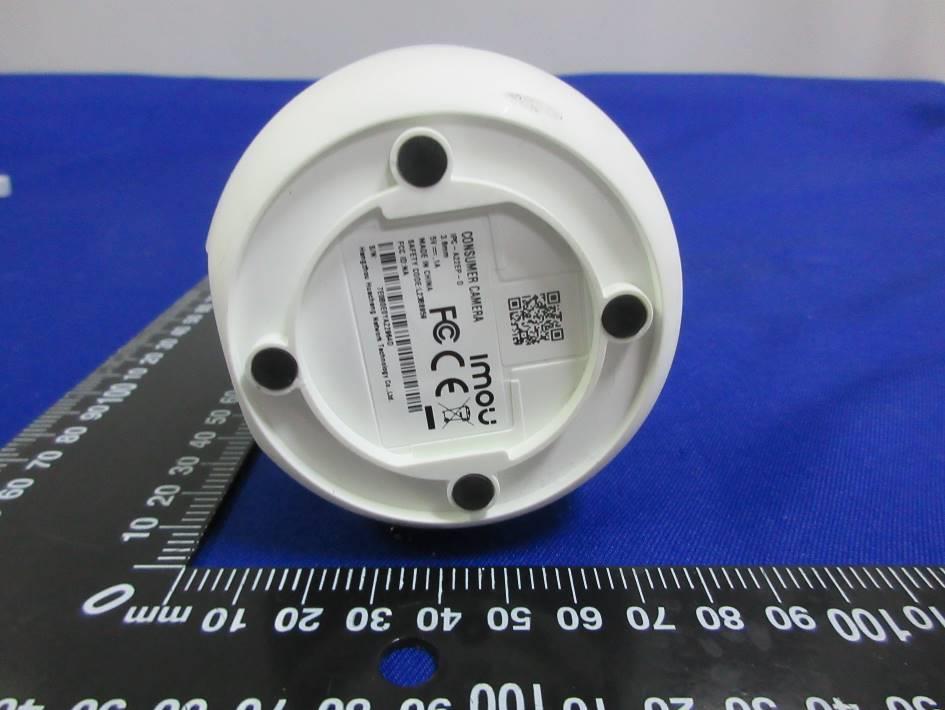

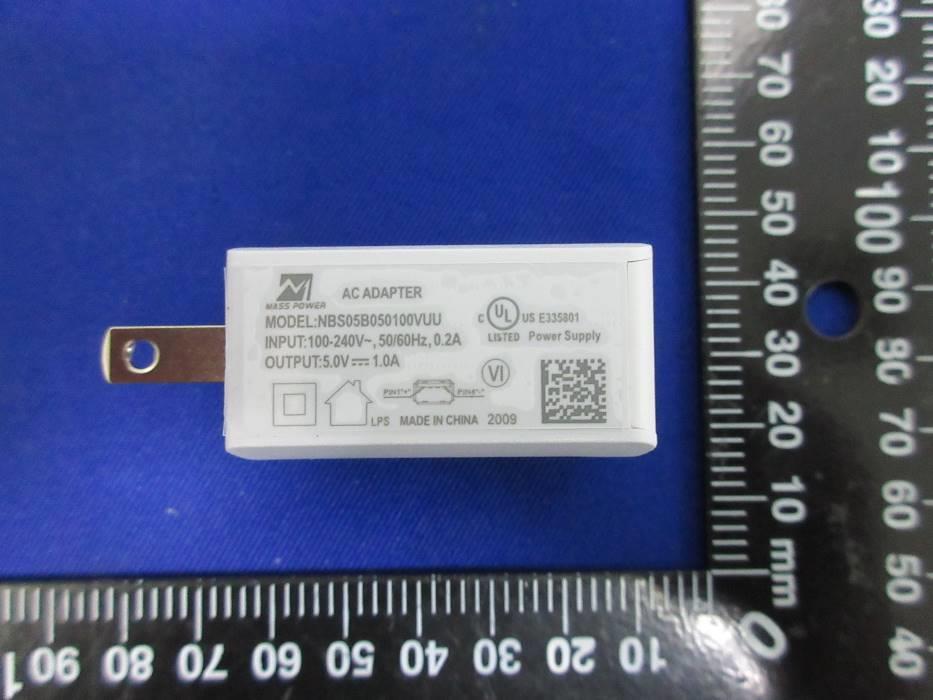

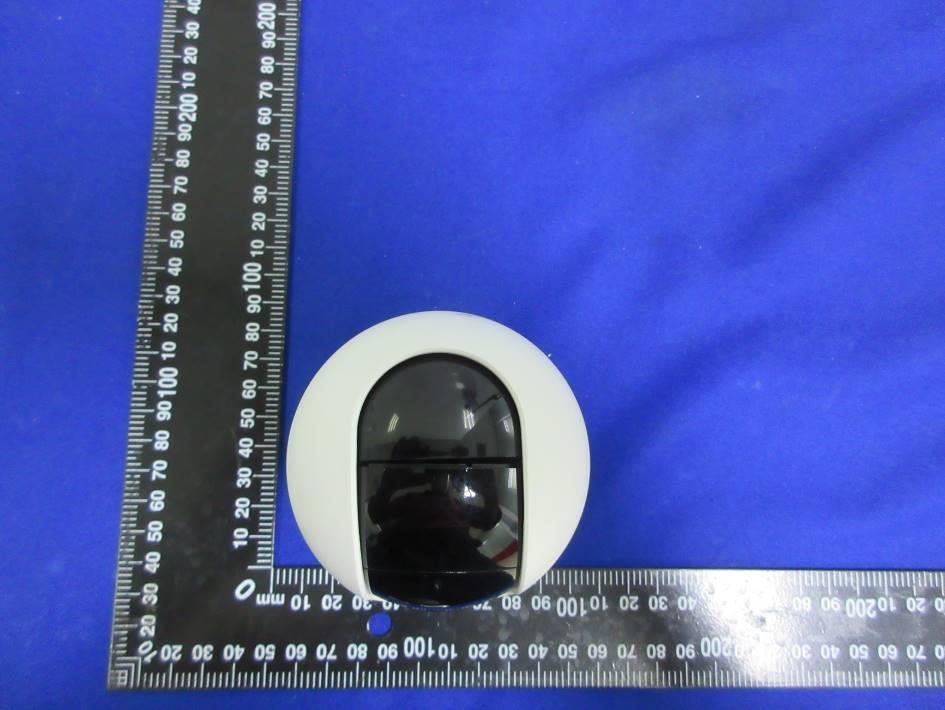

Appendix I External Photographs Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Top View of EUT Bottom View of EUT Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Front View of EUT Back View of EUT Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Left View of EUT Right View of EUT Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. View of adapter

Appendix II Internal Photographs Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-7 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-8 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. RF Model location ` Antenna location

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For CONSUMER CAMERA MODEL NUMBER: IPC-A22EP-D ADDTIONAL MODEL NUMBER: IPC-A22EN-D, IPC-A22EN-D-imou, IPC-A22EP-D-imou, IPC-TA22E-D-LC, IPC-A22E-D-LC, LC-TP2E-D, LC-TP2-D PROJECT NUMBER: 4790015544-3 REPORT NUMBER: 4790015544-3-2 FCC ID: 2AVYF-IPC-AX2E-D ISSUE DATE: Jul.19, 2021 Prepared for Hangzhou Huacheng Network Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4790015544-3-2 Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. Revision History Rev. Issue Date Revisions Revised By V0 07/19/2021 Initial Issue REPORT No.: 4790015544-3-2 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. REQUIREMENT .................................................................................................................... 6 REPORT No.: 4790015544-3-2 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Manufacturer Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China EUT Description Product Name CONSUMER CAMERA Model Name IPC-A22EP-D Additional No. IPC-A22EN-D, IPC-A22EN-D-imou,IPC-A22EP-D-imou, IPC- TA22E-D-LC, IPC-A22E-D-LC, LC-TP2E-D, LC-TP2-D Sample Number 4060126 Data of Receipt Sample Jul.11,2021 Test Date Jul.11,2021~ Jul.18,2021 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Tom Tang Leon Wu Project Engineer Senior Project Engineer Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4790015544-3-2 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4790015544-3-2 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available for this EUT. MPE CALCULATION METHOD S =PG/(4πR 2 ) where: S = power density (in appropriate units, e.g. mW/ cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) REPORT No.: 4790015544-3-2 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. CALCULAT…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For CONSUMER CAMERA MODEL NUMBER: IPC-A22EP-D ADDTIONAL MODEL NUMBER: IPC-A22EN-D, IPC-A22EN-D-imou, IPC-A22EP-D-imou, IPC-TA22E-D-LC, IPC-A22E-D-LC, LC-TP2E-D, LC-TP2-D PROJECT NUMBER: 4790015544-3 REPORT NUMBER: 4790015544-3-1 FCC ID: 2AVYF-IPC-AX2E-D ISSUE DATE: Jul.19, 2021 Prepared for Hangzhou Huacheng Network Technology Co.,Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: + 86-512-6808 6400 Fax: + 86-512-6808 4099 Website: www.ul.com REPORT No.: 4790015544-3-1 ` Page 2 of 152 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 07/19/2021 Initial Issue REPORT No.: 4790015544-3-1 ` Page 3 of 152 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION .................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 7 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................. 7 4.2. MEASUREMENT UNCERTAINTY .................................................................................. 7 5. EQUIPMENT UNDER TEST ................................................................................................. 8 5.1. DESCRIPTION OF EUT.................................................................................................. 8 5.2. MAXIMUM OUTPUT POWER ......................................................................................... 9 5.3. CHANNEL LIST .............................................................................................................. 9 5.4. TEST CHANNEL CONFIGURATION ............................................................................ 10 5.1. THE WORSE CASE POWER SETTING PARAMETER ............................................... 10 5.2. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................... 11 5.3. THE WORSE CASE CONFIGURATIONS .................................................................... 11 5.4. TEST ENVIRONMENT.................................................................................................. 12 5.5. DESCRIPTION OF TEST SETUP ................................................................................. 13 6. MEASURING INSTRUMENT AND SOFTWARE USED ..................................................... 14 7. MEASUREMENT METHODS .............................................................................................. 15 8. ANTENNA PORT TEST RESULTS .................................................................................... 16 8.1. ON TIME AND DUTY CYCLE ....................................................................................... 16 8.2. 6 dB BANDWIDTH ........................................................................................................ 19 8.3. CONDUCTED POWER ................................................................................................. 27 8.4. POWER SPECTRAL DENSITY .................................................................................... 29 8.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ......................................... 38 8.6. RADIATED TEST RESULTS ........................................................................................ 70 8.6.1. LIMITS AND PROCEDURE ................................................................................... 70 8.6.2. RESTRICTED BANDEDGE ................................................................................... 75 8.6.3. SPURIOUS EMISSIONS ........................................................................................ 92 9. AC POWER LINE CONDUCTED EMISSIONS ................................................................. 149 10. ANTENNA REQUIREMENTS ........................................................................................ 152 REPORT No.: 4790015544-3-1 ` Page 4 of 152 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Manufacturer Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China EUT Description Product Name CONSUMER CAMERA Model Name IPC-A22EP-D Additional No. IPC-A22EN-D, IPC-A22EN-D-imou,IPC-A22EP-D-imou, IPC- TA22E-D-LC, IPC-A22E-D-LC, LC-TP2E-D, LC-TP2-D Sample Number 4060126 Data of Receipt Sample Jul.11,2021 Test Date Jul.11,2021~ Jul.18,2021 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C PASS REPORT No.: 4790015544-3-1 ` Page 5 of 152 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Sum…

Text truncated - open the document above for the full version.

REPORT No.: 4790015544-3-1 ` Page 77 of 152 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11B LCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2336.1733 43.64 12.55 56.19 74.00 -17.81 peak 28.89 12.55 41.44 54.00 -12.56 average 2 2390.0000 41.00 13.07 54.07 74.00 -19.93 peak 29.31 13.07 42.38 54.00 -11.62 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3-1 ` Page 78 of 152 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11B HCH Horizontal PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2483.5000 43.68 12.97 56.65 74.00 -17.35 peak 30.27 12.97 43.24 54.00 -10.76 average 2 2505.8482 43.57 13.18 56.75 74.00 -17.25 peak 29.81 13.18 42.99 54.00 -11.01 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3-1 ` Page 79 of 152 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11B HCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2483.5000 41.33 12.97 54.30 74.00 -19.7 peak 30.02 12.97 42.99 54.00 -11.01 average 2 2517.8422 42.55 13.21 55.76 74.00 -18.24 peak 29.89 13.21 43.10 54.00 -10.9 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3-1 ` Page 80 of 152 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11G LCH Horizontal PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2341.1426 42.68 12.61 55.29 74.00 -18.71 peak 29.14 12.61 41.75 54.00 -12.25 average 2 2390.0000 49.23 13.07 62.30 74.00 -11.7 peak 33.15 13.07 46.22 54.00 -7.78 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3-1 ` Page 81 of 152 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11G LCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2387.5172 45.83 13.07 58.90 74.00 -15.1 peak 31.03 13.07 44.10 54.00 -9.9 average 2 2390.0000 42.79 13.07 55.86 74.00 -18.14 peak 30.88 13.07 43.95 54.00 -10.05 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3-1 ` Page 82 of 152 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11G HCH Horizontal PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2483.5000 45.57 12.97 58.54 74.00 -15.46 peak 30.85 12.97 43.82 54.00 -10.18 average 2 2489.2187 45.52 12.99 58.51 74.00 -15.49 peak 30.23 12.99 43.22 54.00 -10.78 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3-1 ` Page 83 of 152 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11G HCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2483.5000 41.59 12.97 54.56 74.00 -19.44 peak 30.05 12.97 43.02 54.00 -10.98 average 2 2494.0343 43.25 13.05 56.30 74.00 -17.7 peak 29.89 13.05 42.94 54.00 -11.06 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3…

Text truncated - open the document above for the full version.

Appendix III Setup Photographs RADIATED RF MEASUREMENT SETUP (9KHz ~ 30 MHz) RADIATED RF MEASUREMENT SETUP (30MHz ~ 1 GHz) RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz- X axis) RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz- Y axis) RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz- Z axis) POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
