2AVYF-IPC-AX3CONSUMER CAMERA

Security Camera Quick Start Guide Foreword Package Contents 1 Overview 2 Important Safeguards and Warnings General This manual introduces the functions, installation and operations of the camera. Electrical Safety Environment Operation and Daily Maintenance Safety Instructions The following categorized signal words with dened meaning might appear in the manual. About the Manual ● ● ● ● V1.0.0 T2.00241474 Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable result. Provides additional information as the emphasis and supplement to the text. Signal WordsMeaning The manual is for reference only. If there is inconsistency between the manual and the actual product, the actual product shall prevail. We are not liable for any loss caused by the operations that do not comply with the manual. The manual would be updated according to the latest laws and regulations of related jurisdictions. For detailed information, refer to the paper manual, CD-ROM, QR code or our ocial website. If there is inconsistency between paper manual and the electronic version, the electronic version shall prevail. Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened. ● ● ● ● It is recommended to use the device together with lightning arrester to improve lightning protection eect. It is recommended to ground the device to enhance reliability. Do not touch the image sensor directly. Use a dry cloth dampened with alcohol and gently wipe away any dust on the lens. You can clean the device body with soft dry cloth, and for stubborn stains, use the cloth with mild detergent. To avoid possible damage on device body coating which could cause performance decrease, do not use volatile solvent such as alcohol, benzene, diluent and so on to clean the device body, nor can strong, abrasive detergent be used. ● ● ● ● ● ● ● ● ● ● ● ● ● ● Strengthen the protection of network, device data and personal information by adopting measures which include but not limited to using strong password, changing password regularly, updating rmware to the latest version, and isolating computer network. For some device with old rmware versions, the ONVIF password will not be modied automatically along with the modication of the system password, and you need to upgrade the rmware or manually update the ONVIF password. Use standard components or accessories provided by manufacturer and make sure that the device is installed and maintained by professional engineers. The surface of the image sensor should not be exposed to laser beam radiation. Do not provide two or more power supply sources for the device unless otherwise specied. A failure to follow this instruction might cause damage to the device. 01 0504 02 06 03 07 ● ● ● ● ● ● ● ● ● ● All the designs and software are subject to change without prior written notice. The product updates might cause some dierences between the actual product and the manual. Please contact the customer service for the latest program and supplementary documentation. There still might be deviation in technical data, functions and operations description, or errors in print. If there is any doubt or dispute, we reserve the right of nal explanation. All trademarks, registered trademarks and the company names in the manual are the properties of their respective owners. Please visit our website, contact the supplier or customer service if there is any problem occurring when using the device. If there is any uncertainty or controversy, we reserve the right of nal explanation. ● ● ● ● ● ● ● ● ● ● ● Do not aim the device at strong light to focus, such as lamp light and sun light; otherwise it might cause over brightness or light marks, which are not the device malfunction, and aect the longevity of Complementary Metal-Oxide Semiconductor (CMOS). Do not place the device in a damp, dusty, extremely hot or cold environment, and avoid places with strong electromagnetic radiation or unstable lighting. Keep the device away from any liquid to avoid damage to the internal components. Keep the indoor device away from rain or damp to avoid re or lightning. Install the device in a well-ventilated place and do not block the ventilation of the device. Transport, use and store the device under the allowed humidity and temperature. Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation. Use the factory default package or material with equal quality to pack the device when transporting. Install the device in the location where only the professional sta with relevant knowledge of safety guards and warnings can access. Do not touch the heat dissipation component of the device to avoid scald. Carefully follow the instructions in the manual when performing any disassembly operation about the device; otherwise, it might cause water leakage or poor image quality due to unprofessional disassembly. Please contact after-sale service for desiccant replacement if there is condensed fog on the lens after unpacking or when the desiccant turns green. (Not all models are included with the desiccant). All installation and operation shall conform to your local electrical safety codes. The power source shall conform to the Safety Extra Low Voltage (SELV), and supply power with rated voltage which meets limited power source requirement according to IEC60950-1. Note that the power supply requirement is subject to the device label. Make sure that the power supply is correct before operating the device. A readily accessible disconnecting device shall be incorporated in the building installation wiring. Prevent the power cable from being trampled or pressed, especially the plug, power socket and the junction extruded from the device. Unpack the box and check if…

Text truncated - open the document above for the full version.

Hangzhou Huacheng Network Technology Co., Ltd. Date: 2021-06-11 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Contact Name: Jian Li Title of Person: Certification Manager Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China

Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Confirmation Letter We, Hangzhou Huacheng Network Technology Co., Ltd. The product: CONSUMER CAMERA FCC ID: 2AVYF-IPC-AX3 And model No IPC-A23N-imou; IPC-A23P-imou; IPC-A23N; IPC-TA23-LC; LC-TA3 have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction, with IPC-A23P. The difference is only the name of the models. Best Regards Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Contact Name: Jian Li Title of Person：Certification Manager Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Date:7/20/2021

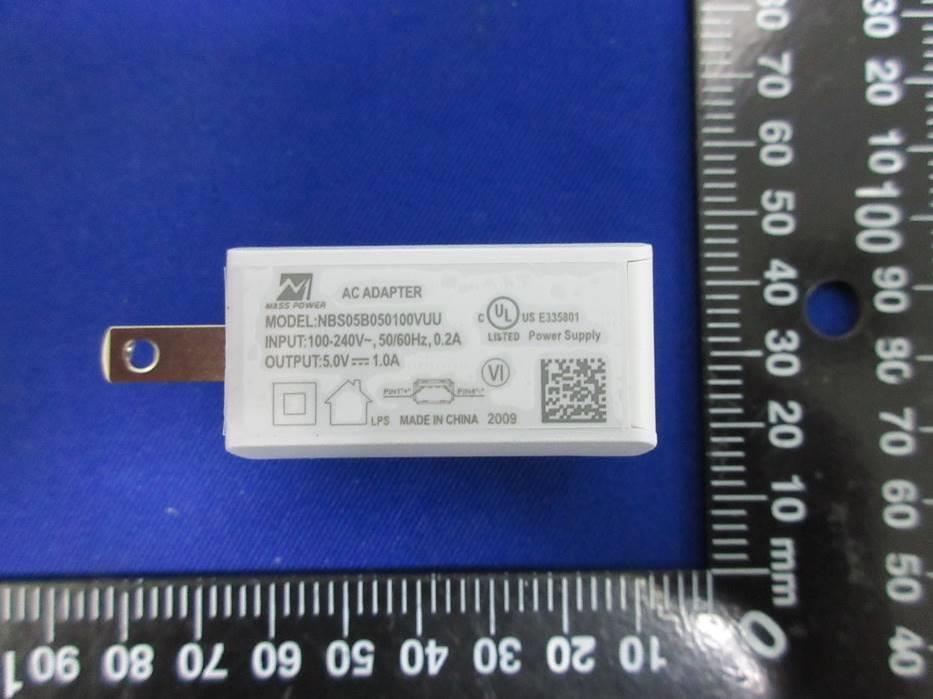

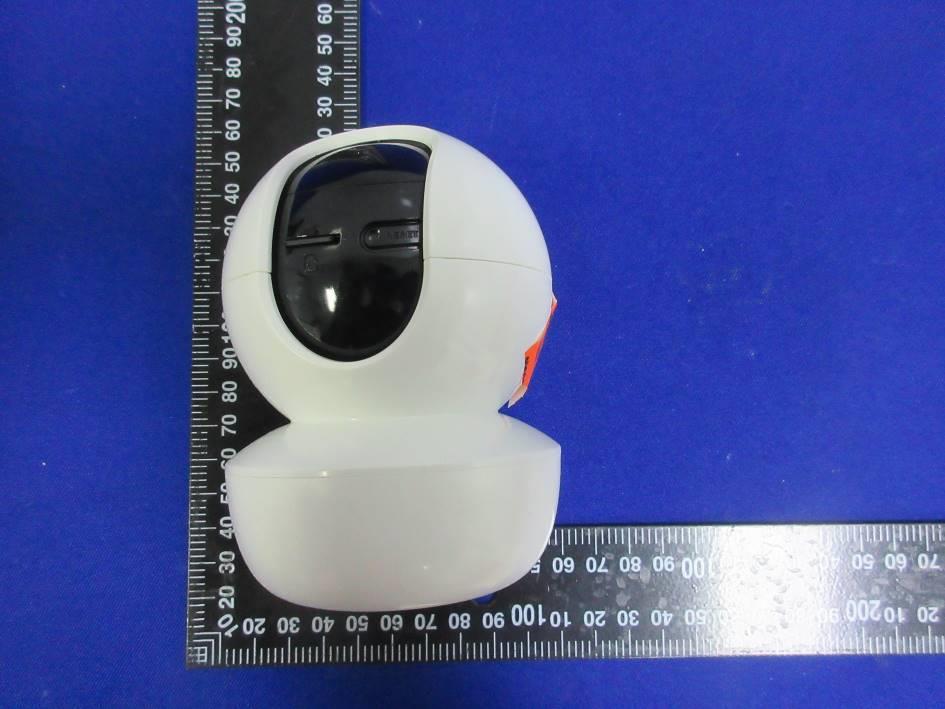

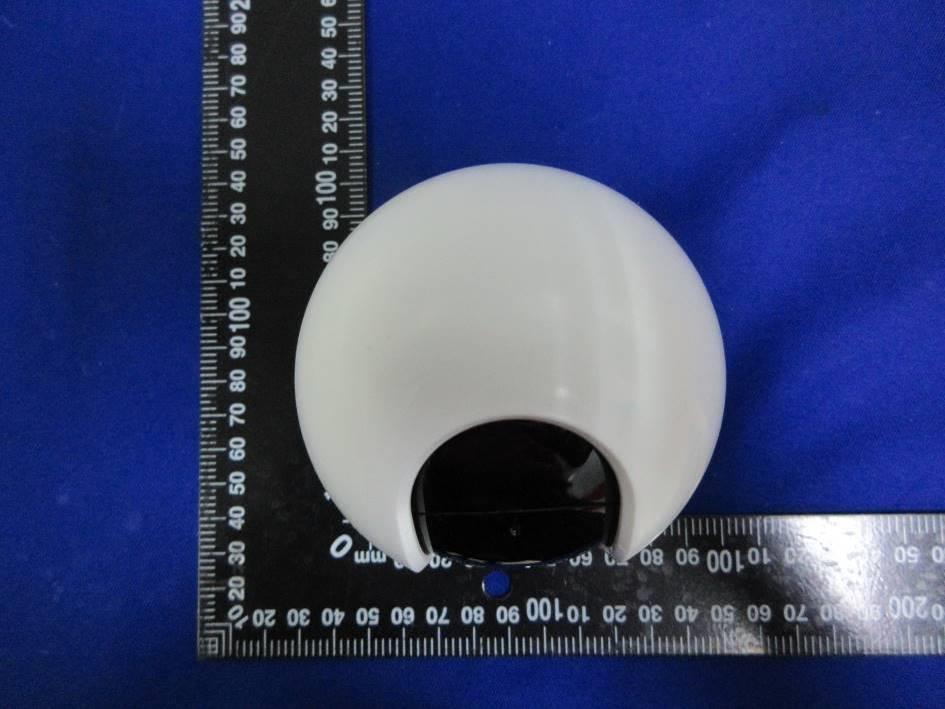

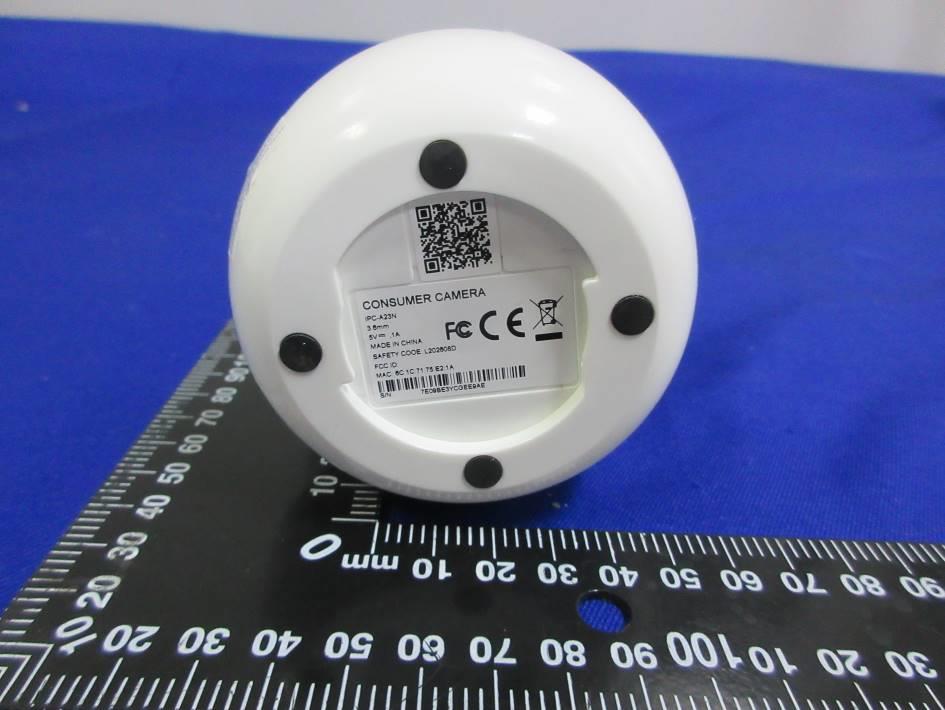

Appendix I External Photographs Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Top View of EUT Bottom View of EUT Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Front View of EUT Back View of EUT Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Left View of EUT Right View of EUT Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. View of adapter Details View of EUT

Appendix II Internal Photographs Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-7 Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. RF Model location ` Antenna location

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For CONSUMER CAMERA MODEL NUMBER: IPC-A23P ADDTIONAL MODEL NUMBER: IPC-A23N-imou; IPC-A23P-imou; IPC-A23N; IPC- TA23-LC; LC-TA3 PROJECT NUMBER: 4790015544-3 REPORT NUMBER: 4790015544-3-4 FCC ID: 2AVYF-IPC-AX3 ISSUE DATE: Jul.19, 2021 Prepared for Hangzhou Huacheng Network Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4790015544-3-4 Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. Revision History Rev. Issue Date Revisions Revised By V0 07/19/2021 Initial Issue REPORT No.: 4790015544-3-4 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. REQUIREMENT .................................................................................................................... 6 REPORT No.: 4790015544-3-4 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Manufacturer Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China EUT Description Product Name CONSUMER CAMERA Model Name IPC-A23P Additional No. IPC-A23N-imou; IPC-A23P-imou; IPC-A23N; IPC-TA23-LC; LC-TA3 Sample Number 4060126 Data of Receipt Sample Jul.11,2021 Test Date Jul.11,2021~ Jul.18,2021 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Tom Tang Leon Wu Project Engineer Senior Project Engineer Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4790015544-3-4 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4790015544-3-4 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available for this EUT. MPE CALCULATION METHOD S =PG/(4πR 2 ) where: S = power density (in appropriate units, e.g. mW/ cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) REPORT No.: 4790015544-3-4 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. CALCULATED RESULTS Radio Frequency Radiation Exposure Evaluation WIFI (Worst case) Mode Output P…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For CONSUMER CAMERA MODEL NUMBER: IPC-A23P ADDTIONAL MODEL NUMBER: IPC-A23N-imou; IPC-A23P-imou; IPC-A23N; IPC-TA23-LC; LC-TA3 PROJECT NUMBER: 4790015544-3 REPORT NUMBER: 4790015544-3-3 FCC ID: 2AVYF-IPC-AX3 ISSUE DATE: Jul.19, 2021 Prepared for Hangzhou Huacheng Network Technology Co.,Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: + 86-512-6808 6400 Fax: + 86-512-6808 4099 Website: www.ul.com REPORT No.: 4790015544-3-3 ` Page 2 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 07/19/2021 Initial Issue REPORT No.: 4790015544-3-3 ` Page 3 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION .................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 7 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................. 7 4.2. MEASUREMENT UNCERTAINTY .................................................................................. 7 5. EQUIPMENT UNDER TEST ................................................................................................. 8 5.1. DESCRIPTION OF EUT.................................................................................................. 8 5.2. MAXIMUM OUTPUT POWER ......................................................................................... 9 5.3. CHANNEL LIST .............................................................................................................. 9 5.4. TEST CHANNEL CONFIGURATION ............................................................................ 10 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................... 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................... 11 5.7. THE WORSE CASE CONFIGURATIONS .................................................................... 11 5.8. TEST ENVIRONMENT.................................................................................................. 12 5.9. DESCRIPTION OF TEST SETUP ................................................................................. 13 5.10. MEASURING INSTRUMENT AND SOFTWARE USED ............................................ 14 6. MEASUREMENT METHODS .............................................................................................. 15 7. ANTENNA PORT TEST RESULTS .................................................................................... 16 7.1. ON TIME AND DUTY CYCLE ....................................................................................... 16 7.2. 6 dB BANDWIDTH ........................................................................................................ 19 7.3. CONDUCTED POWER ................................................................................................. 27 7.4. POWER SPECTRAL DENSITY .................................................................................... 29 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ......................................... 37 7.6. RADIATED TEST RESULTS ........................................................................................ 68 7.6.1. LIMITS AND PROCEDURE ................................................................................... 68 7.6.2. RESTRICTED BANDEDGE ................................................................................... 73 7.6.3. SPURIOUS EMISSIONS ........................................................................................ 90 8. AC POWER LINE CONDUCTED EMISSIONS ................................................................. 147 9. ANTENNA REQUIREMENTS ........................................................................................... 150 REPORT No.: 4790015544-3-3 ` Page 4 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Manufacturer Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China EUT Description Product Name CONSUMER CAMERA Model Name IPC-A23P Additional No. IPC-A23N-imou; IPC-A23P-imou; IPC-A23N; IPC-TA23-LC; LC-TA3 Sample Number 4060126 Data of Receipt Sample Jul.11,2021 Test Date Jul.11,2021~ Jul.18,2021 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C PASS REPORT No.: 4790015544-3-3 ` Page 5 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Summary of Test Results Clause Test Items FCC Rules Test Results 1 6db DTS Bandwidth FCC 15.247 …

Text truncated - open the document above for the full version.

REPORT No.: 4790015544-3-3 ` Page 75 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11B LCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2350.1625 42.34 12.69 55.03 74.00 -18.97 peak 29.11 12.69 41.80 54.00 -12.2 average 2 2390.0000 41.15 13.07 54.22 74.00 -19.78 peak 29.03 13.07 42.10 54.00 -11.9 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3-3 ` Page 76 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11B HCH Horizontal PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2483.5000 41.67 12.97 54.64 74.00 -19.36 peak 29.27 12.97 42.24 54.00 -11.76 average 2 2499.5474 43.74 13.13 56.87 74.00 -17.13 peak 29.41 13.13 42.54 54.00 -11.46 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3-3 ` Page 77 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11B HCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2483.5000 39.55 12.97 52.52 74.00 -21.48 peak 2 2514.4218 42.00 13.21 55.21 74.00 -18.79 peak 29.34 13.21 42.55 54.00 -11.45 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3-3 ` Page 78 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11G LCH Horizontal PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2367.7897 42.16 12.89 55.05 74.00 -18.95 peak 28.86 12.89 41.75 54.00 -12.25 average 2 2390.0000 50.17 13.07 63.24 74.00 -10.76 peak 35.64 13.07 48.71 54.00 -5.29 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3-3 ` Page 79 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11G LCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2387.2172 43.14 13.06 56.20 74.00 -17.8 peak 30.24 13.06 43.30 54.00 -10.7 average 2 2390.0000 45.39 13.07 58.46 74.00 -15.54 peak 31.46 13.07 44.53 54.00 -9.47 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3-3 ` Page 80 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11G HCH Horizontal PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2483.5000 49.84 12.97 62.81 74.00 -11.19 peak 34.26 12.97 47.23 54.00 -6.77 average 2 2490.0738 46.76 13.00 59.76 74.00 -14.24 peak 31.78 13.00 44.78 54.00 -9.22 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3-3 ` Page 81 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11G HCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2483.5000 44.22 12.97 57.19 74.00 -16.81 peak 31.09 12.97 44.06 54.00 -9.94 average 2 2502.2928 43.98 13.15 57.13 74.00 -16.87 peak 30.34 13.15 43.49 54.00 -10.51 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790015544-3-3 ` Page 82 of 150 UL-CCIC COMPANY LIMI…

Text truncated - open the document above for the full version.

Appendix III Setup Photographs RADIATED RF MEASUREMENT SETUP (9KHz ~ 30 MHz) RADIATED RF MEASUREMENT SETUP (30MHz ~ 1 GHz) RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz- X axis) RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz- Y axis) RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz- Z axis) POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
