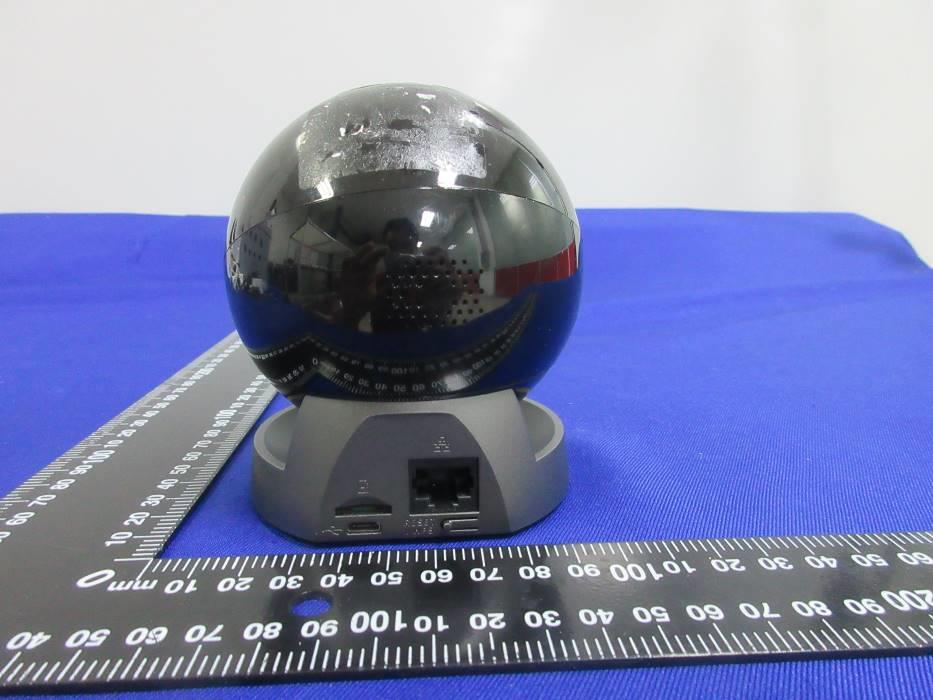

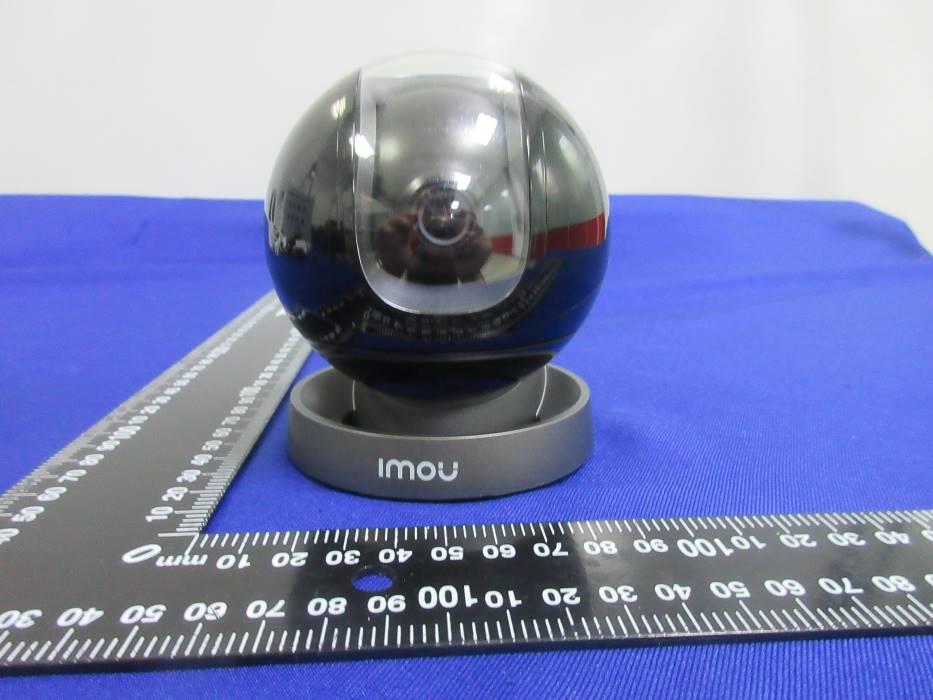

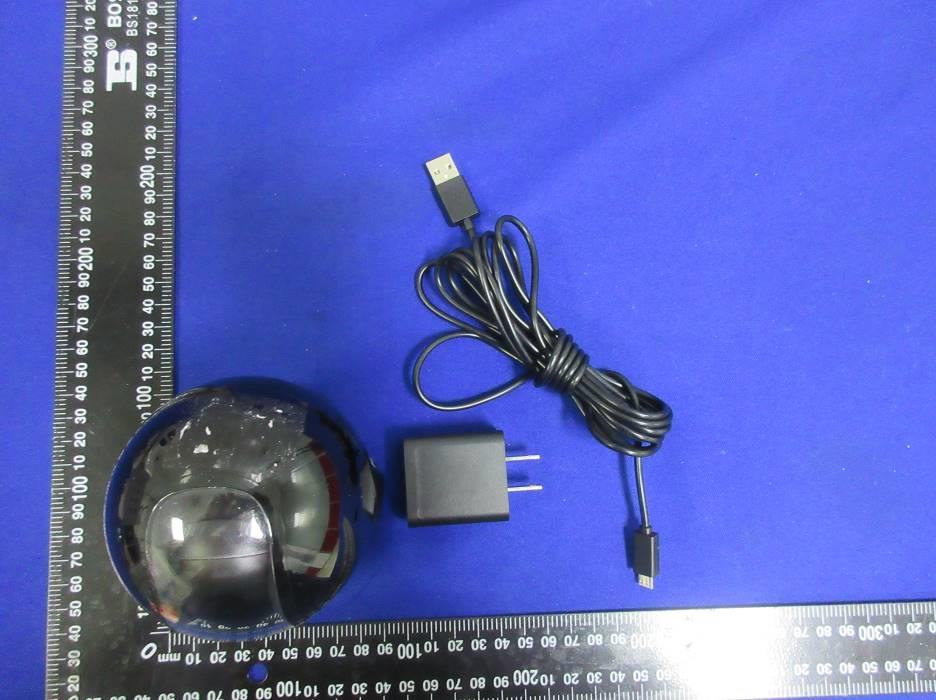

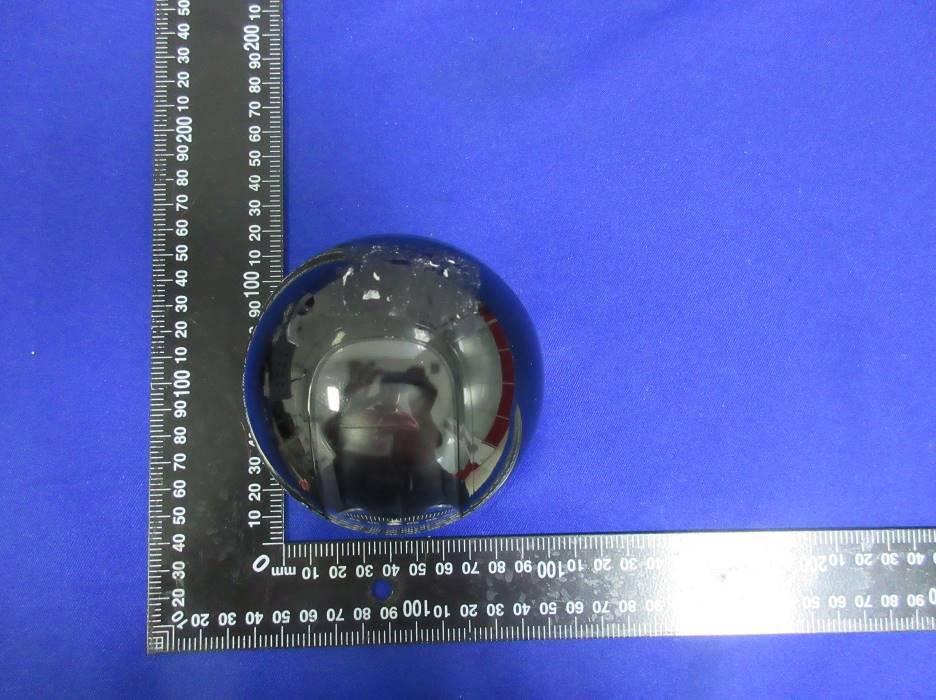

Appendix I External Photographs Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Top View of EUT Bottom View of EUT Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Front View of EUT Back View of EUT Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Left View of EUT Right View of EUT Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. View of adapter

Appendix II Internal Photographs Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-7 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-8 Internal View of EUT-9 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. RF Model location ` Antenna location

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For CONSUMER CAMERA MODEL NUMBER: IPC-A26LP-C ADDITIONAL MODEL NUMBER: IPC-A26LP-C-imou, IPC-A26LN-C-imou, IPC-A26LN-C, IPC-TA26L-C-LC, IPC-A26L-C-LC, LC-K26L-C, TP7S-C PROJECT NUMBER: 4789973747 REPORT NUMBER: 4789973747-70 FCC ID: 2AVYF-IPC-AX6L-C ISSUE DATE: Jun. 16, 2021 Prepared for Hangzhou Huacheng Network Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4789973747-70 Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. Revision History Rev. Issue Date Revisions Revised By V0 06/16/2021 Initial Issue REPORT No.: 4789973747-70 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT No.: 4789973747-70 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Manufacturer Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China EUT Description Product Name CONSUMER CAMERA Model Name IPC-A26LP-C Additional No. IPC-A26LP-C-imou, IPC-A26LN-C-imou, IPC-A26LN-C, IPC-TA26L-C-LC, IPC-A26L-C-LC, LC-K26L-C, TP7S-C Sample Number 3967011 Data of Receipt Sample Jun. 05, 2021 Test Date Jun. 06, 2021 ~ Jun. 15, 2021 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Jason Yang Tom Tang Engineer Project Engineer Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4789973747-70 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4789973747-70 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available for this EUT. MPE CALCULATION METHOD S =PG/(4πR 2 ) where: S = power density (in appropriate units, e.g. mW/ cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) REPORT No.: 4789973747-70 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. CALCULATED RESULTS Radio Frequency R…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For CONSUMER CAMERA MODEL NUMBER: IPC-A26LP-C ADDITIONAL MODEL NUMBER: IPC-A26LP-C-imou, IPC-A26LN-C-imou, IPC-A26LN-C, IPC-TA26L-C-LC, IPC-A26L-C-LC, LC-K26L-C, TP7S-C PROJECT NUMBER: 4789973747 REPORT NUMBER: 4789973747-69 FCC ID: 2AVYF-IPC-AX6L-C ISSUE DATE: Jun. 16, 2021 Prepared for Hangzhou Huacheng Network Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4789973747-69 Page 2 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 06/16/2021 Initial Issue REPORT No.: 4789973747-69 Page 3 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM OUTPUT POWER...................................................................................... 9 5.3. CHANNEL LIST ........................................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ..........................................................................10 5.5. THE WORSE CASE POWER SETTING PARAMETER ..............................................10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................11 5.7. THE WORSE CASE CONFIGURATIONS ..................................................................11 5.8. TEST ENVIRONMENT ...............................................................................................12 5.9. DESCRIPTION OF TEST SETUP ...............................................................................13 5.10. MEASURING INSTRUMENT AND SOFTWARE USED ..........................................15 6. MEASUREMENT METHODS ............................................................................................16 7. ANTENNA PORT TEST RESULTS ...................................................................................17 7.1. ON TIME AND DUTY CYCLE .....................................................................................17 7.2. 6 dB BANDWIDTH ......................................................................................................20 7.3. CONDUCTED OUTPUT POWER ...............................................................................28 7.4. POWER SPECTRAL DENSITY ..................................................................................30 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................38 7.6. RADIATED TEST RESULTS ......................................................................................68 7.6.1. LIMITS AND PROCEDURE .................................................................................68 7.6.2. TEST ENVIRONMENT ........................................................................................74 7.6.3. RESTRICTED BANDEDGE .................................................................................74 7.6.4. SPURIOUS EMISSIONS .....................................................................................91 8. AC POWER LINE CONDUCTED EMISSIONS ................................................................ 147 9. ANTENNA REQUIREMENTS .......................................................................................... 150 REPORT No.: 4789973747-69 Page 4 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Manufacturer Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China EUT Description Product Name CONSUMER CAMERA Model Name IPC-A26LP-C Additional No. IPC-A26LP-C-imou, IPC-A26LN-C-imou, IPC-A26LN-C, IPC-TA26L-C-LC, IPC-A26L-C-LC, LC-K26L-C, TP7S-C Sample Number 3967011 Data of Receipt Sample Jun. 05, 2021 Test Date Jun. 06, 2021 ~ Jun. 15, 2021 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C PASS REPORT No.: 4789973747-69 Page 5 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Summary of Test Results Clause Test Items FCC Rules Test Results 1 6db DTS Bandwid…

Text truncated - open the document above for the full version.

REPORT No.: 4789973747-69 Page 49 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789973747-69 Page 50 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789973747-69 Page 51 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789973747-69 Page 52 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789973747-69 Page 53 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789973747-69 Page 54 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789973747-69 Page 55 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789973747-69 Page 56 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789973747-69 Page 57 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789973747-69 Page 58 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789973747-69 Page 59 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789973747-69 Page 60 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789973747-69 Page 61 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789973747-69 Page 62 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789973747-69 Page 63 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789973747-69 Page 64 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789973747-69 Page 65 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789973747-69 Page 66 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789973747-69 Page 67 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789973747-69 Page 68 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 7.6. RADIATED TEST RESULTS 7.6.1. LIMITS AND PROCEDURE LIMITS Please refer to FCC §15.205 and §15.209 Please refer to FCC KDB 558074 Radiation Disturbance Test Limit for FCC (Class B)(9KHz-1GHz) Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 960~1000 500 3 Note: 1) At frequencies at or above 30 MHz, measurements may be performed at a distance other than what is specified provided: measurements are not made in the near field except where it can be shown that near field measurements are appropriate due to the characteristics of the device; and it can be demonstrated that the signal levels needed to be measured at the distance employed can be detected by the measurement equipment. Measurements shall not be performed at a distance greater than 30 meters unless it can be further demonstrated that measurements at a distance of 30 meter…

Text truncated - open the document above for the full version.

REPORT No.: 4789973747-69 Page 102 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11G MCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark [MHz] [dBuV/m] [dB] [dBuV/m] [dBuV/m] [dB] 1 1195.0244 47.29 -5.57 41.72 74.00 -32.28 Horizontal 2 1535.8170 57.09 -5.75 51.34 74.00 -22.66 Horizontal 3 1797.3497 44.59 -3.82 40.77 74.00 -33.23 Horizontal 4 1991.1239 44.39 -3.08 41.31 74.00 -32.69 Horizontal 5 2283.6605 44.73 -1.94 42.79 74.00 -31.21 Horizontal 6 2902.4878 41.37 0.36 41.73 74.00 -32.27 Horizontal Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Peak: Peak detector. 5. For below 3GHz part, filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for Band Reject Filter losses. 6. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4789973747-69 Page 103 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11G HCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark [MHz] [dBuV/m] [dB] [dBuV/m] [dBuV/m] [dB] 1 1199.5249 44.03 -5.56 38.47 74.00 -35.53 Vertical 2 1535.8170 55.19 -5.75 49.44 74.00 -24.56 Vertical 3 1791.8490 45.41 -3.76 41.65 74.00 -32.35 Vertical 4 2043.6305 48.38 -2.39 45.99 74.00 -28.01 Vertical 5 2306.1633 49.04 -1.73 47.31 74.00 -26.69 Vertical 6 2673.9592 43.85 -0.71 43.14 74.00 -30.86 Vertical Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Peak: Peak detector. 5. For below 3GHz part, filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for Band Reject Filter losses. 6. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4789973747-69 Page 104 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11N HT20 LCH Horizontal PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark [MHz] [dBuV/m] [dB] [dBuV/m] [dBuV/m] [dB] 1 1197.5247 46.35 -5.56 40.79 74.00 -33.21 Horizontal 2 1399.8000 43.28 -5.66 37.62 74.00 -36.38 Horizontal 3 1535.8170 57.19 -5.75 51.44 74.00 -22.56 Horizontal 4 1795.3494 46.82 -3.79 43.03 74.00 -30.97 Horizontal 5 2176.6471 42.57 -2.33 40.24 74.00 -33.76 Horizontal 6 2511.6890 43.48 -0.38 43.10 74.00 -30.90 Horizontal Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Peak: Peak detector. 5. For below 3GHz part, filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for Band Reject Filter losses. 6. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4789973747-69 Page 105 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11N HT20 LCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark [MHz] [dBuV/m] [dB] [dBuV/m] [dBuV/m] [dB] 1 1198.7748 44.74 -5.56 39.18 74.00 -34.82 Vertical 2 1395.2994 45.74 -5.71 40.03 74.00 -33.97 Vertical 3 1535.5669 54.79 -5.75 49.04 74.00 -24.96 Vertical 4 1793.3492 47.43 -3.77 43.66 74.00 -30.34 Vertical 5 2282.4103 49.16 -1.94 47.22 74.00 -26.78 Vertical 6 2666.9584 45.09 -0.72 44.37 74.00 -29.63 Vertical Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Peak: Peak detector. 5. For below 3GHz part, filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for Band Reject Filter losses. 6. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4789973747-69 Page 106 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11N …
