Federal Communication Commission Interference Statement : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. RF Exposure: A distance of 20cm shall be maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna.

FCC Supplier’s Declaration of Conformity Importer Name: Dahua Technology USA Inc. Importer Address: 23 Hubble Irvine, CA 92618 Equipment Product Name: CONSUMER CAMERA Model No.: IPC-F22P;IPC-F22N;LC-K3X;IPC-F22P-0280B-imou;IPC-F22P-0360B-imou; IPC-F22P-0600B-imou;IPC-F22N-0280B-imou;IPC-F22N-0360B-imou; IPC-F22N-0600B-imou;IPC-F22-0280B-LC;IPC-F22-0360B-LC; IPC-F22-0600B-LC; Trade Name: or Telephone. : (949) 679-7777 We, Dahua Technology USA Inc., declare under our sole responsibility that the above referenced product has been tested on samples according to FCC requirements, for which UL issued 4789491215 and found compliant with the following standards: FCC Part 15 Subpart B. Please be advised, This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, And (2) this device must accept any interference received, including Interference that may cause undesirable operation.

Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Confirmation Letter We, Hangzhou Huacheng Network Technology Co., Ltd. The product: CONSUMER CAMERA And model No.: IPC-F22P IPC-F22P-0280B-imou; IPC-F22P-0360B-imou; IPC-F22P-0600B-imou; IPC-F22N; IPC-F22N-0280B-imou; IPC-F22N-0360B-imou; IPC-F22N-0600B-imou; LC-K3X; IPC-F22-0280B-LC; IPC-F22-0360B-LC; IPC-F22-0600B-LC have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with IPC- F22P The difference lies only the model name, product color, marketing channel and sale country. all these changes do not degrade the unwanted emissions of the certified product. Best Regards Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Contact Name: Jian Li Title of Person：Certification Manager Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China

Hangzhou Huacheng Network Technology Co., Ltd. Date: 2020-07-20 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Contact Name: Jian Li Title of Person：Certification Manager Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China

Hangzhou Huacheng Network Technology Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AVYF-IPC-FX2 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Contact Name: Jian Li Title of Person：Certification Manager Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Date:2020/07/20

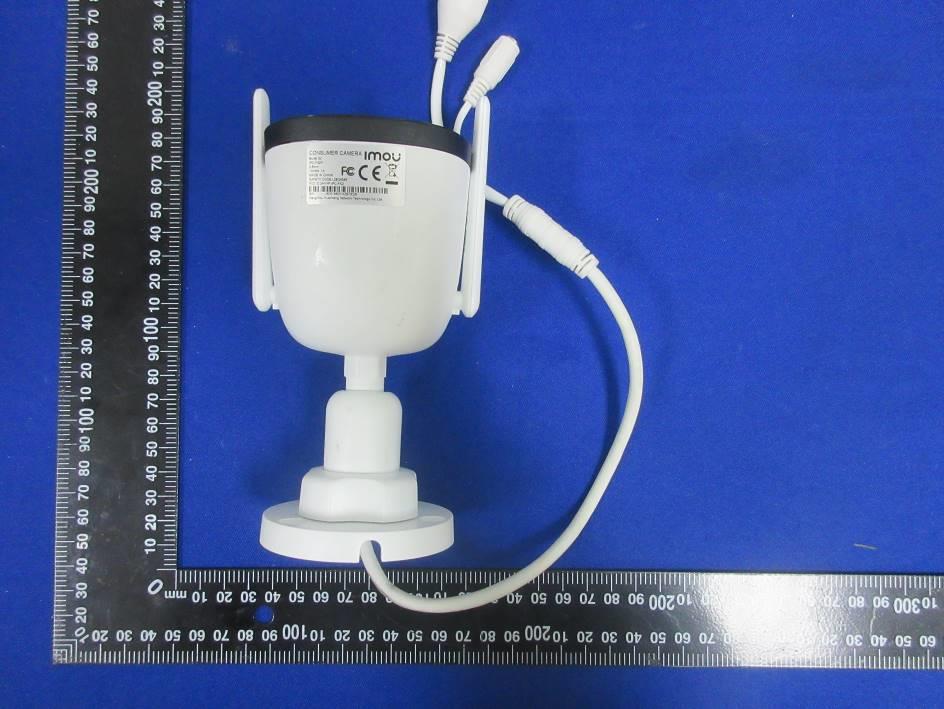

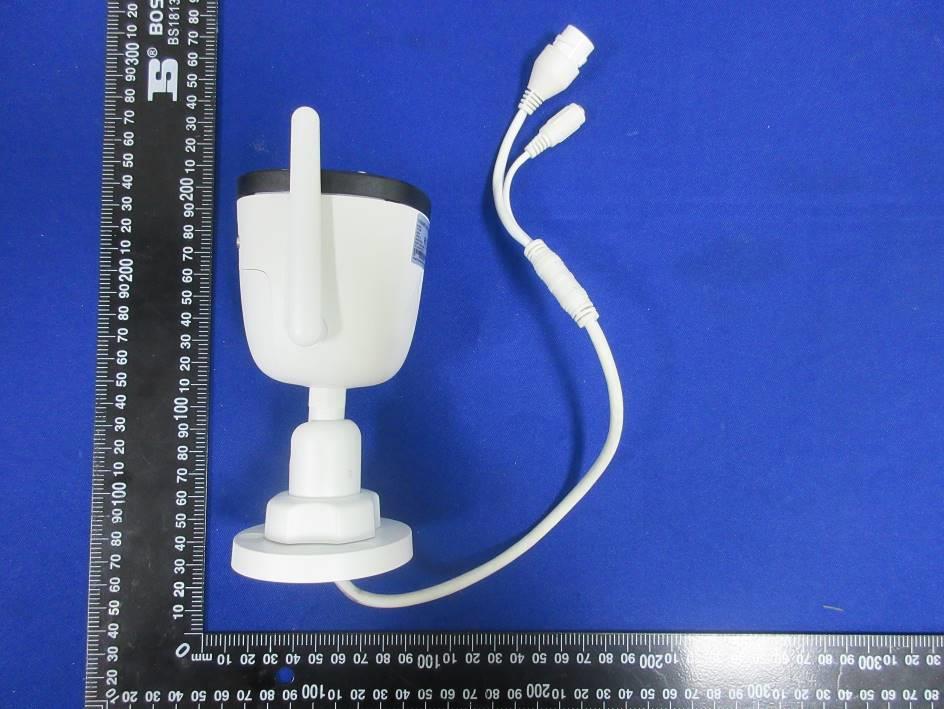

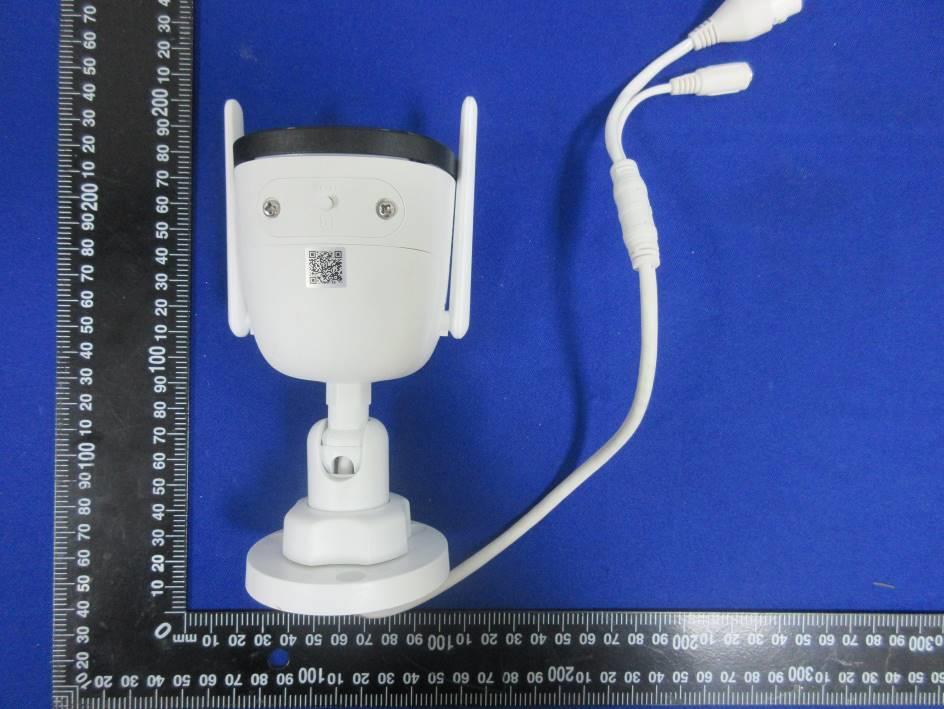

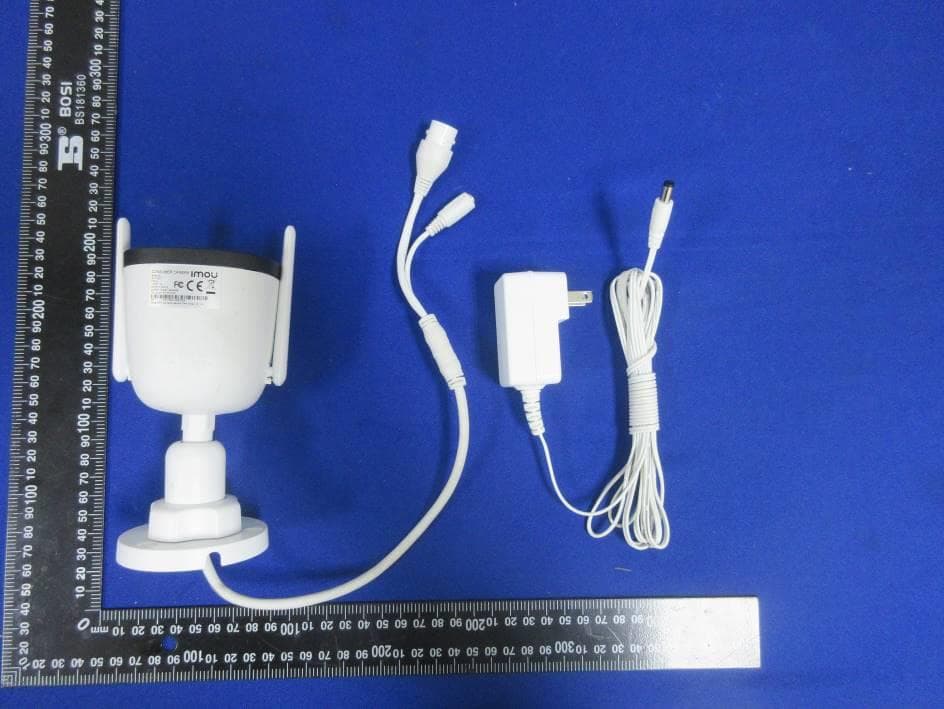

REPORT NO: 4789490607-1 Appendix I External Photographs REPORT NO: 4789490607-1 Page 2 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Top View of EUT REPORT NO: 4789490607-1 Page 3 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Bottom View of EUT Front View of EUT REPORT NO: 4789490607-1 Page 4 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Back View of EUT Left View of EUT REPORT NO: 4789490607-1 Page 5 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Right View of EUT

REPORT NO: 4789490607-1 Appendix II Internal Photographs REPORT NO: 4789490607-1 Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 REPORT NO: 4789490607-1 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 REPORT NO: 4789490607-1 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 REPORT NO: 4789490607-1 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-7 REPORT NO: 4789490607-1 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-8 Antenna and RF Model location-1 REPORT NO: 4789490607-1 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Antenna and RF Model location-2

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE REPORT For CONSUMER CAMERA MODEL NUMBER: IPC-F22P ADDITIONAL MODEL NUMBER: IPC-F22P-0280B-imou; IPC-F22P-0360B-imou; IPC-F22P-0600B-imou; IPC-F22N; IPC-F22N-0280B-imou; IPC-F22N-0360B-imou; IPC-F22N-0600B-imou; LC-K3X; IPC-F22-0280B-LC; IPC-F22-0360B-LC; IPC-F22-0600B-LC PROJECT NUMBER: 4789490607 REPORT NUMBER: 4789490607-2 FCC ID: 2AVYF-IPC-FX2 ISSUE DATE: Jul. 19, 2020 Prepared for Hangzhou Huacheng Network Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4789490607-2 Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. Revision History Rev. Issue Date Revisions Revised By V0 07/19/2020 Initial Issue REPORT No.: 4789490607-2 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT No.: 4789490607-2 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Manufacturer Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China EUT Description Product Name: CONSUMER CAMERA Model Name: IPC-F22P Additional No. : IPC-F22P-0280B-imou; IPC-F22P-0360B-imou; IPC-F22P-0600B-imou; IPC-F22N; IPC-F22N-0280B-imou; IPC-F22N-0360B-imou; IPC-F22N-0600B-imou; LC-K3X; IPC-F22-0280B-LC; IPC-F22-0360B-LC; IPC-F22-0600B-LC Sample Number: 3076779 Data of Receipt Sample: May. 21, 2020 Date Tested: May. 21, 2020 ~ Jul. 13, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Jason Yang Tom Tang Engineer Engineer Project Associate Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4789490607-2 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4789490607-2 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available for this EUT. MPE CALCULATION METHOD S =PG/(4πR 2 ) where: S = power density (in appropriate units, e.g. mW/ cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = …

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For CONSUMER CAMERA MODEL NUMBER: IPC-F22P ADDITIONAL MODEL NUMBER: IPC-F22P-0280B-imou; IPC-F22P-0360B-imou; IPC-F22P-0600B-imou; IPC-F22N; IPC-F22N-0280B-imou; IPC-F22N-0360B-imou; IPC-F22N-0600B-imou; LC-K3X; IPC-F22-0280B-LC; IPC-F22-0360B-LC; IPC-F22-0600B-LC PROJECT NUMBER: 4789490607 REPORT NUMBER: 4789490607-1 FCC ID: 2AVYF-IPC-FX2 ISSUE DATE: Jul. 19, 2020 Prepared for Hangzhou Huacheng Network Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4789490607-1 Page 2 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 07/19/2020 Initial Issue REPORT No.: 4789490607-1 Page 3 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM OUTPUT POWER...................................................................................... 9 5.3. CHANNEL LIST ........................................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ..........................................................................10 5.5. THE WORSE CASE POWER SETTING PARAMETER ..............................................10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................11 5.7. THE WORSE CASE CONFIGURATIONS ..................................................................11 5.8. TEST ENVIRONMENT ...............................................................................................12 5.9. DESCRIPTION OF TEST SETUP ...............................................................................13 5.10. MEASURING INSTRUMENT AND SOFTWARE USED ..........................................14 6. MEASUREMENT METHODS ............................................................................................15 7. ANTENNA PORT TEST RESULTS ...................................................................................16 7.1. ON TIME AND DUTY CYCLE .....................................................................................16 7.2. 6 dB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ...........................................19 7.3. CONDUCTED OUTPUT POWER ...............................................................................27 7.4. POWER SPECTRAL DENSITY ..................................................................................29 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................37 7.6. RADIATED TEST RESULTS ......................................................................................67 7.6.1. LIMITS AND PROCEDURE .................................................................................67 7.6.2. TEST ENVIRONMENT ........................................................................................72 7.6.3. RESTRICTED BANDEDGE .................................................................................72 7.6.4. SPURIOUS EMISSIONS .....................................................................................89 8. AC POWER LINE CONDUCTED EMISSIONS ................................................................ 121 9. ANTENNA REQUIREMENTS .......................................................................................... 124 REPORT No.: 4789490607-1 Page 4 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Manufacturer Information Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China EUT Description Product Name: CONSUMER CAMERA Model Name: IPC-F22P Additional No. : IPC-F22P-0280B-imou; IPC-F22P-0360B-imou; IPC-F22P-0600B-imou; IPC-F22N; IPC-F22N-0280B-imou; IPC-F22N-0360B-imou; IPC-F22N-0600B-imou; LC-K3X; IPC-F22-0280B-LC; IPC-F22-0360B-LC; IPC-F22-0600B-LC Sample Number: 3076779 Data of Receipt Sample: May. 21, 2020 Date Tested: May. 21, 2020 ~ Jul. 13, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C PASS REPORT…

Text truncated - open the document above for the full version.

REPORT No.: 4789490607-1 Page 41 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Test Channel Verdict 11n HT20 LCH PASS Test Mode Test Channel Verdict 11n HT20 HCH PASS REPORT No.: 4789490607-1 Page 42 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Test Channel Verdict 11n HT40 LCH PASS Test Mode Test Channel Verdict 11n HT40 HCH PASS REPORT No.: 4789490607-1 Page 43 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Part II :Conducted Emission Test Result Table Test Mode Channel Pref(dBm) Puw(dBm) Verdict 11B LCH 3.81 <Limit PASS MCH 4.76 <Limit PASS HCH 5.92 <Limit PASS 11G LCH -0.64 <Limit PASS MCH -0.16 <Limit PASS HCH 1.36 <Limit PASS 11n HT20 LCH -0.11 <Limit PASS MCH 0.21 <Limit PASS HCH 2.14 <Limit PASS 11n HT40 LCH -2.92 <Limit PASS MCH -1.98 <Limit PASS HCH -0.27 <Limit PASS Test Plots Test Mode Channel Verdict 11B LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789490607-1 Page 44 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789490607-1 Page 45 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11B MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789490607-1 Page 46 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789490607-1 Page 47 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11B HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789490607-1 Page 48 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789490607-1 Page 49 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789490607-1 Page 50 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789490607-1 Page 51 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789490607-1 Page 52 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789490607-1 Page 53 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789490607-1 Page 54 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789490607-1 Page 55 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11n HT20 LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789490607-1 Page 56 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789490607-1 Page 57 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11n HT20 MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789490607-1 Page 58 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789490607-1 Page 59 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11n HT20 HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789490607-1 Page 60 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789490607-1 Page 61 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11n HT40 LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789490607-1 Page 62 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: …

Text truncated - open the document above for the full version.

REPORT No.: 4789490607-1 Page 81 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11n HT20 LCH Horizontal PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2347.0684 40.58 13.35 53.93 74.00 -20.07 peak 2 2376.7721 40.07 13.63 53.70 74.00 -20.30 peak 3 2390.0000 38.82 13.75 52.57 74.00 -21.43 peak Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4789490607-1 Page 82 of 124 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11n HT20 LCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2322.0153 41.96 13.02 54.98 74.00 -19.02 peak 28.47 13.02 41.49 54.00 -12.51 average 2 2348.2873 41.41 13.37 54.78 74.00 -19.22 peak 28.41 13.37 41.78 54.00 -12.22 average 3 2374.2405 41.76 13.58 55.34 74.00 -18.66 peak 28.35 13.58 41.93 54.00 -12.07 average 4 2379.3599 41.57 13.66 55.23 74.00 -18.77 peak 29.12 13.66 42.78 54.00 -11.22 average 5 2390.0000 41.32 13.75 55.07 74.00 -18.93 peak 29.23 13.75 42.98 54.00 -11.02 average Note: 1. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 2. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was re…
