Screw and Anchor Pack ×1 Camera ×1 Version 1.1.0 Quick Start Guide 1.2.51.32.17527-000 Mounting Template ×1 QSG ×1 Mounting Bracket ×1 Camera IntroductionInstalling CameraSetting up CameraPackage Content LED Indicator Status Device Status Power off/LED turned off Rebooting after reset Booting Device malfunction Network connection failed Pairing falied Ready for network configuration Ready to pair Off Solid red Flashing green and red alternatelyUpdating firmware Operating properly Flashing red Solid green Flashing green Waterproof Connector ×1 Camera Mounting Screw Mounting Bracket Mounting Template (U-shaped) Wall Anchor Mounting Surface Select Wi-Fi Wi-Fi XXXXXX1 Wi-Fi XXXXXX2 Wi-Fi XXXXXX3 ... Wi-Fi Password Lens IR LED Indicator Spotlight Infrared LED Microphone Reset Button Micro SD Card Slot Ethernet Port Power Port If the LED indicator status goes wrong, reset the camera. Make sure that the mounting surface is strong enough to hold at least three times the weight of the camera and the bracket. See the table below for definitions of camera’s LED behaviors. Follow the steps below to add the camera to your Imou account. Step 1 Scan the following QR code or search "Imou Life" in Google Play or App Store to download and install the app. Step 2 Launch the app. Then create an account if you are a new user. Step 3 Connect the camera to power source with the power adapter. Step 4 After the camera boots up, the LED indicator light flashes green (wire-free camera) or is on solid green (wired camera). Step 1 Peel off the U-shaped mounting template and stick it to the desired installation area. Step 2 Drill holes into the mounting surface as the mounting template marks and then insert wall anchors as needed. Step 5 Follow the on-screen prompts to add the camera. Repeat the adding process if you have multiple cameras. Speaker Wi-Fi Antenna Ceiling Mount If you already use the app, make sure that you are using the latest version. Press and hold the reset button for 10 s to reset the camera. Double-press the reset button to enable camera’s hotspot. Disconnect the camera from the power before installation or taking out its SD card. 1 2 3 4 5 Power Adapter ×1 About the Manual FAQ For more questions, please scan the QR code below or visit: www.imoulife.com/web/support/help - This manual is for reference only. The operation of the actual product shall prevail if there is any inconsistency. - All the designs and software are subject to change without prior written notice. - All trademarks and registered trademarks mentioned are the properties of their respective owners. - Please visit our website or contact your local customer service if there is any problem when using the device. - If there is any uncertainty or controversy, we reserve the right of final explanation. Q: The device cannot boot up or work as expected? Check the LED indicator status. If the light is not in green, press and hold the reset button for 10 s to reset the camera. Q: How to connect the camera to another Wi-Fi network? If the camera is online, select Device Details > Network Config to change the Wi-Fi connection on the app. If the camera is offline, reset the camera, and then configure the camera again. Q: Connection takes too long? Check if the distance between the camera and the router, and that between the camera and the smart phone is both within 5 m (16.4 ft) during the connection. Check the Wi-Fi configuration of the router: Select the channel to auto, and the mode to 11bgn mixed. Q: When the micro SD card is full, how is the recorded video saved? When the micro SD card is full, the system will overwrite the previous recorded videos. Save the important information in time. Q: Where are the recorded videos saved? If you have activated the cloud storage and installed a micro SD card, the recordings will be both saved to the card and cloud. If the cloud storage is deactivated, the recordings are saved to the SD card. Videos recorded during live view or playback is saved on your phone. Q: The device is offline? Check the indicator status: Solid green: Check whether the router can connect to the Internet. If the network is connected, restart the camera. Flashing red: Reset the camera, and then configure the camera again. Solid red: The camera is faulty. Step 3 Secure the mounting bracket to the surface with included mounting screws. Step 4 Align on the top of the camera with on the bracket, then fit the two parts together. Step 5 Rotate the camera counterclockwise until it is locked. Make sure align with . Step 6 Power on the camera and then adjust its angle properly. Step 1 Peel off the rectangular mounting template and stick it to the desired installation area. Step 2 Drill holes into the mounting surface as the mounting template marks and then insert wall anchors as needed. Step 3 Secure the mounting bracket to the surface with included mounting screws. Step 4 Align on the top of the camera with on the bracket, then fit the two parts together. Step 5 Rotate the camera counterclockwise until it is locked. Make sure align with . Step 6 Power on the camera and then adjust its angle properly. Wall Mount Camera Mounting Screw Rectangular Mounting Template Wall Anchor Make sure that the pole is strong enough to hold at least three times the weight of the camera and the bracket. The hoops are not provided. Please prepare them in advance. Step 2 Align on the top of the camera with on the bracket, then fit the two parts together. Step 3 Rotate the camera counterclockwise until it is locked. Make sure align with . Step 4 Power on the camera and then adjust its angle properly. Step 1 Thread the hoop through the mounting holes on the bracket, then attach the bracket to the pole . Pole Mount Mounting Bracket Hoop 1 2 1 2 Mounting Bracket Mounting Surface 3 Camera 3 4 5

Hangzhou Huacheng Network Technology Co., Ltd. Date: 2021-06-11 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Contact Name: Jian Li Title of Person: Certification Manager Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China

Hangzhou Huacheng Network Technology Co., Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Confirmation Letter We, Hangzhou Huacheng Network Technology Co., Ltd. The product: CONSUMER CAMERA FCC ID: 2AVYF-IPC-SX2F-C And model No.: IPC-S22FP-C;IPC-S22FP-C-0360B-imou;IPC-S22FP-C-0600B-imou;IPC- S22FN-C-0360B-imou;IPC-S22FN-C-0600B-imou;LC-K72F-C; LC-TS2F-C;IPC-S22F-C- 0360B-LC;IPC-S22F-C-0600B-LC;IPC-TS22F-C-0360B-LC;IPC-TS22F-C-0600B-LC;IPC- S22FP-C-0360B;IPC-S22FN-C-0360B;IPC-S22FP-C-0600B;IPC-S22FN-C-0600B; IPC-S22FP- C-imou;IPC-S22FN-C-imou C have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction, with IPC-S22FN-C. The difference is only the name of the models. Best Regards Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Contact Name: Jian Li Title of Person：Certification Manager Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Date:6/16/2021

Hangzhou Huacheng Network Technology Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AVYF-IPC-SX2F-C To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Hangzhou Huacheng Network Technology Co., Ltd. Contact Name: Jian Li Title of Person：Certification Manager Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Date: June 8, 2021

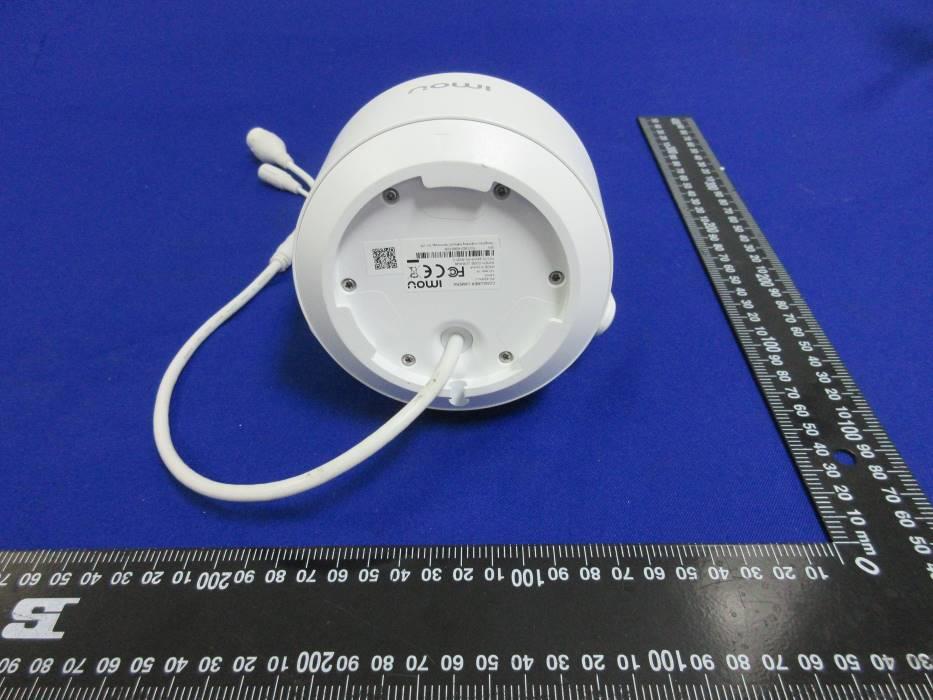

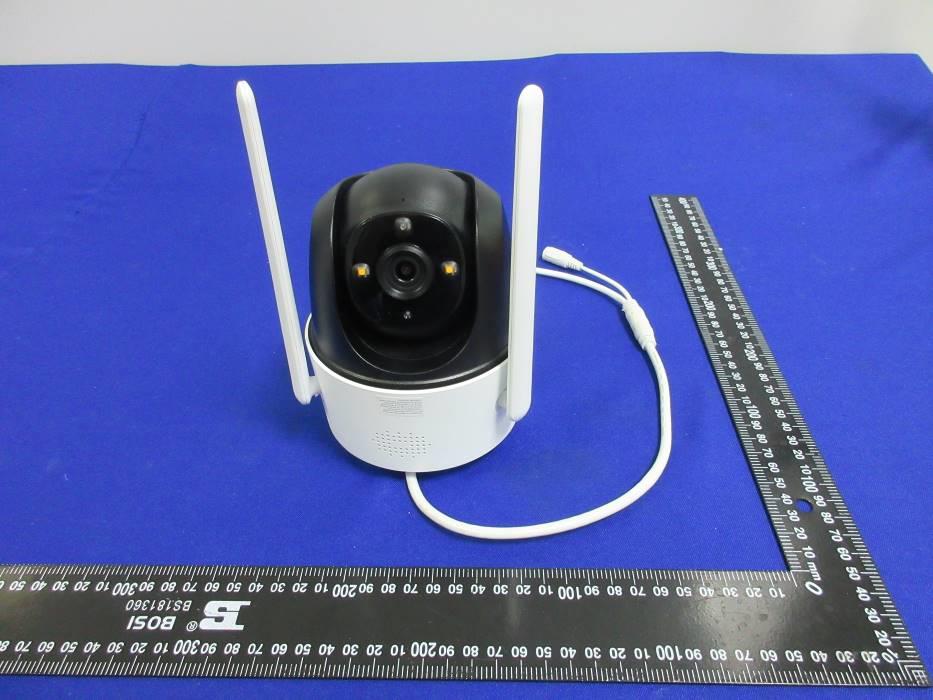

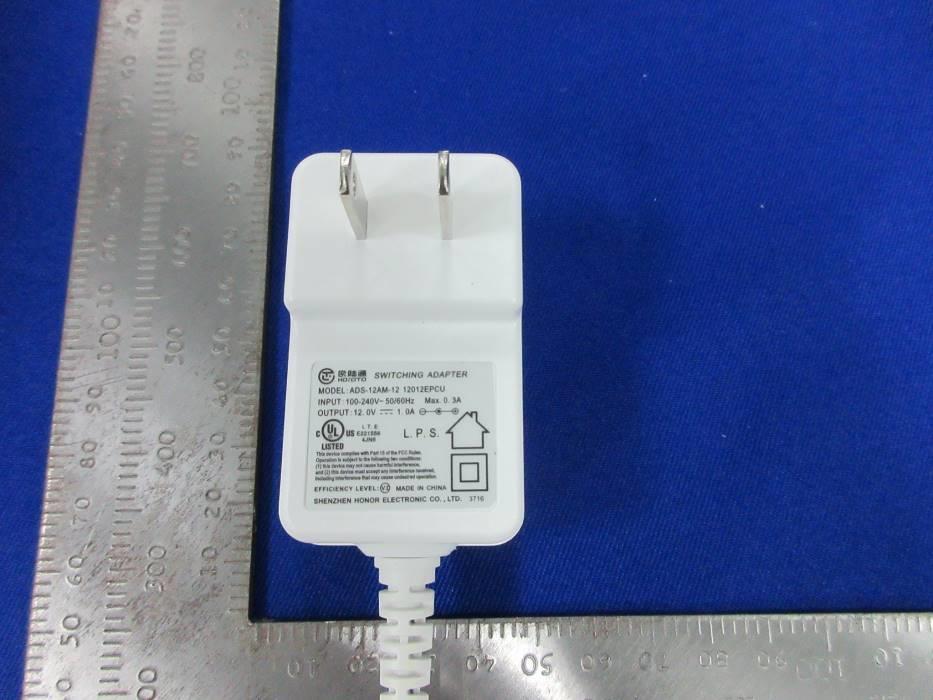

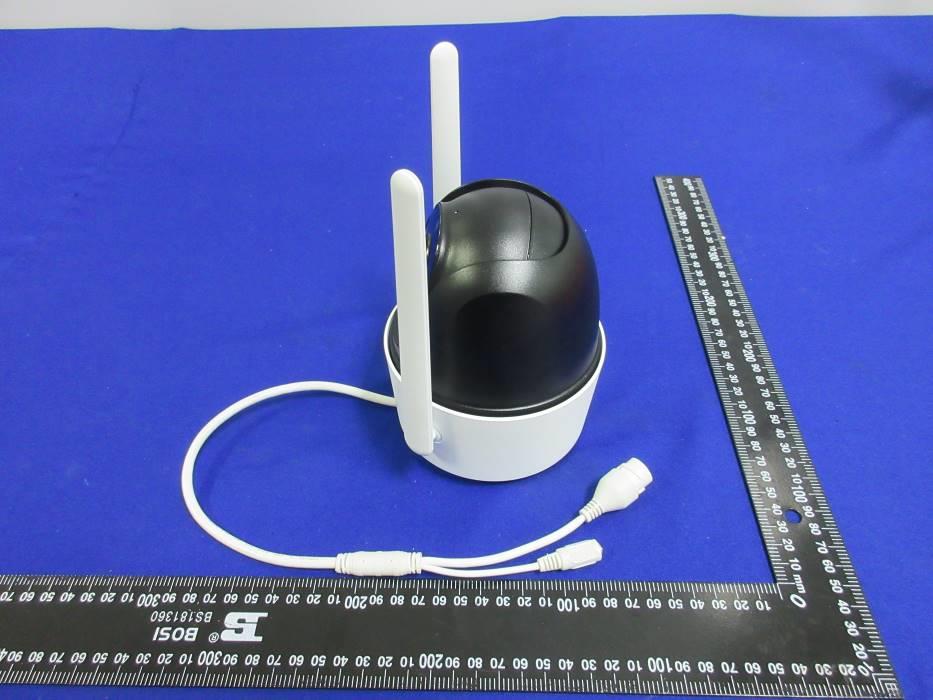

Appendix I External Photographs Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Top View of EUT Bottom View of EUT Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Front View of EUT Remark：The antennas are Non-Detachable Back View of EUT Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Left View of EUT Right View of EUT Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. View of adapter

Appendix II Internal Photographs Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-6 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-7 Internal View of EUT-8 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. RF Model location ` Antenna location

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. RF EXPOSURE REPORT For CONSUMER CAMERA MODEL NUMBER: IPC-S22FN-C ADDTIONAL MODEL NUMBER: IPC-S22FP-C;IPC-S22FP-C-0360B-imou;IPC-S22FP- C-0600B-imou;IPC-S22FN-C-0360B-imou;IPC-S22FN-C-0600B-imou;LC-K72F-C; LC-TS2F-C;IPC-S22F-C-0360B-LC;IPC-S22F-C-0600B-LC;IPC-TS22F-C-0360B- LC;IPC-TS22F-C-0600B-LC;IPC-S22FP-C-0360B;IPC-S22FN-C-0360B; IPC-S22FP-C-0600B;IPC-S22FN-C-0600B; IPC-S22FP-C-imou; IPC-S22FN-C-imou PROJECT NUMBER: 4789973747 REPORT NUMBER: 4789973747-63 FCC ID: 2AVYF-IPC-SX2F-C ISSUE DATE: Jun.15, 2021 Prepared for Hangzhou Huacheng Network Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789973747-63 Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. Rev. Issue Date Revisions Revised By V0 06/15/2021 Initial Issue REPORT No.: 4789973747-63 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT No.: 4789973747-63 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Hangzhou Huacheng Network Technology Co.,Ltd. Address: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China EUT Description Product Name: CONSUMER CAMERA Model Name: IPC-S22FN-C Additional No. : IPC-S22FP-C;IPC-S22FP-C-0360B-imou;IPC-S22FP-C-0600B- imou;IPC-S22FN-C-0360B-imou;IPC-S22FN-C-0600B-imou; LC-K72F-C;LC-TS2F-C;IPC-S22F-C-0360B-LC;IPC-S22F-C- 0600B-LC;IPC-TS22F-C-0360B-LC;IPC-TS22F-C-0600B- LC;IPC-S22FP-C-0360B;IPC-S22FN-C-0360B;IPC-S22FP-C- 0600B;IPC-S22FN-C-0600B; IPC-S22FP-C-imou; IPC-S22FN-C- imou Sample Number: 3967010 Data of Receipt Sample: Jun.05,2021 Date Tested: Jun.06,2021~ Jun.14,2021 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Tom Tang Leon Wu Project Engineer Senior Project Engineer Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4789973747-63 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4789973747-63 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available for this EUT. MPE CALCULATION METHOD S =PG/(4πR 2 ) where: S = power density (in appropriate units, e.g. mW/ cm2) P = power input to the antenna (in appropriate units, e.g., mW) (the measured power va…
