2AVYF-M1Smart Home Center

Smart Home Center User’s Manual V1.0.0 V1.0.0 I Foreword General This manual introduces the functions and operations of Smart Home Center (hereinafter referred to as "the Device"). Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a high potential hazard which, if not avoided, will result in death or serious injury. Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable result. Provides methods to help you solve a problem or save you time. Provides additional information as the emphasis and supplement to the text. Revision History Version Revision Content Release Time V1.0.0 First release. May 2020 Interface Declaration This manual mainly introduces the relevant functions when you use the device. The interfaces used for manufacture, returning to the factory for inspection, and locating fault are not described in this manual. Please contact technical support if you need information about these interfaces. About the Manual ⚫ The manual is for reference only. If there is inconsistency between the manual and the actual product, the actual product shall prevail. ⚫ We are not liable for any loss caused by the operations that do not comply with the manual. ⚫ The manual would be updated according to the latest laws and regulations of related regions. For detailed information, see the paper manual, CD-ROM, QR code or our official website. If there is inconsistency between paper manual and the electronic version, the II electronic version shall prevail. ⚫ All the designs and software are subject to change without prior written notice. The product updates might cause some differences between the actual product and the manual. Please contact the customer service for the latest program and supplementary documentation. ⚫ There still might be deviation in technical data, functions and operations description, or errors in print. If there is any doubt or dispute, please refer to our final explanation. ⚫ Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened. ⚫ All trademarks, registered trademarks and the company names in the manual are the properties of their respective owners. ⚫ Please visit our website, contact the supplier or customer service if there is any problem occurred when using the device. ⚫ If there is any uncertainty or controversy, please refer to our final explanation. III Important Safeguards and Warnings This section introduces the proper handling of the Device, hazard prevention, and property damage prevention. Read the manual carefully before using the Device, follow the instructions when using the Device, and keep the manual well for future reference. Operating Requirements ⚫ Do not place or install the Device in a place exposed to sunlight or near the heat source. ⚫ Keep the Device away from dampness, dust or soot. ⚫ Keep the Device installed horizontally on the stable place to prevent it from falling. ⚫ Do not drop or splash liquid onto the Device, and make sure that there is no object filled with liquid on the Device to prevent liquid from flowing into it. ⚫ Place the Device in a well-ventilated place, and do not block the ventilation. ⚫ Use the Device within the rated range of power input and output. ⚫ Do not dissemble the Device randomly. ⚫ Transport, use and store the Device under the allowed humidity and temperature range. ⚫ Do not hot swap the SD card and SSD; otherwise the data might be lost or damaged. ⚫ Use the recommended SD card and SSD to ensure storage reliability. ⚫ Keep the Device away from microwave equipment to avoid the effect on wireless communication. ⚫ Press the Home button for ≥ 6 seconds, and the Device will be forcibly restarted. Be cautious. Power Requirements ⚫ Improper battery use might result in fire, explosion, or inflammation. ⚫ When replacing the battery, make sure that the same model is used. ⚫ Use the recommended power cables in the region and use them under the rated specification. ⚫ Use the power adapter provided with the Device; otherwise, it might result in people injury and device damage. ⚫ The power source shall conform to the requirements of the Safety Extra Low Voltage (SELV) standard, and supply power with rated voltage which conforms to Limited power Source requirement according to IEC60950-1. Note that the power supply requirement is subject to the device label. ⚫ Connect the Device (type-I structure) to the power socket with protective earthing. ⚫ The appliance coupler is a disconnection device. Keep a convenient angle when using it. The figures in the manual are for reference only, and the actual interface shall prevail. IC RF Radiation Exposure 5G Statement: The user manual for local area network devices shall contain instructions related to the restrictions mentioned in the above sections, namely that: IV (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate. (i)Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. (ii) le gain d'antenne maximal autorisé pour les appareils dans la bande 5725-5850 MHz doivent respecter le pire limites spécifiées pour le point-à-point et l'exploitation non point à point, le cas échéant. Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the b…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hangzhou Huacheng Network Technology Co.,Ltd. Address No.2930, Nanhuan Road, Binjiang District, Hangzhou, China Grantee Code 2AVYF FCC ID 2AVYF-M1 Authorized Contact Name Jian Li Contact Email [email protected] Contact Phone 0571-28822025 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:2020/5/12 Print Name: Jian Li Title: Certification Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hangzhou Huacheng Network Technology Co.,Ltd. Date: 2020-05-12 TO: Innovation, Science and Economic Development Regarding: IC: 25954-M1 ATTN: Director of Certification: We, the undersigned, hereby authorize Parlam Zhan to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with << Hangzhou Huacheng Network Technology Co.,Ltd.>>. This authorization is valid until further written notice from the applicant. Name (Printed):Jian Li Title: Certification Manager Signature: On behalf of Company: Hangzhou Huacheng Network Technology Co.,Ltd. Telephone: 0571-28822025

Hangzhou Huacheng Network Technology Co.,Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, angzhou 310052, China Regarding: Confidentiality Request regarding application for FCC ID: 2AVYF-M1 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions NII Software Security Info The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Jian Li Title: Certification Manager Company Name: Hangzhou Huacheng Network Technology Co.,Ltd

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 8 Page 1 of 8 External Photos Applicant: Hangzhou Huacheng Network Technology Co.,Ltd. Address of Applicant: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China. Equipment Under Test (EUT): Product Name: Smart Home Center Model No.: M1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 8 Page 2 of 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 8 Page 3 of 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 8 Page 4 of 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 8 Page 5 of 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 8 Page 6 of 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 8 Page 7 of 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 8 of 8 Page 8 of 8 End

Label location FCC Warning

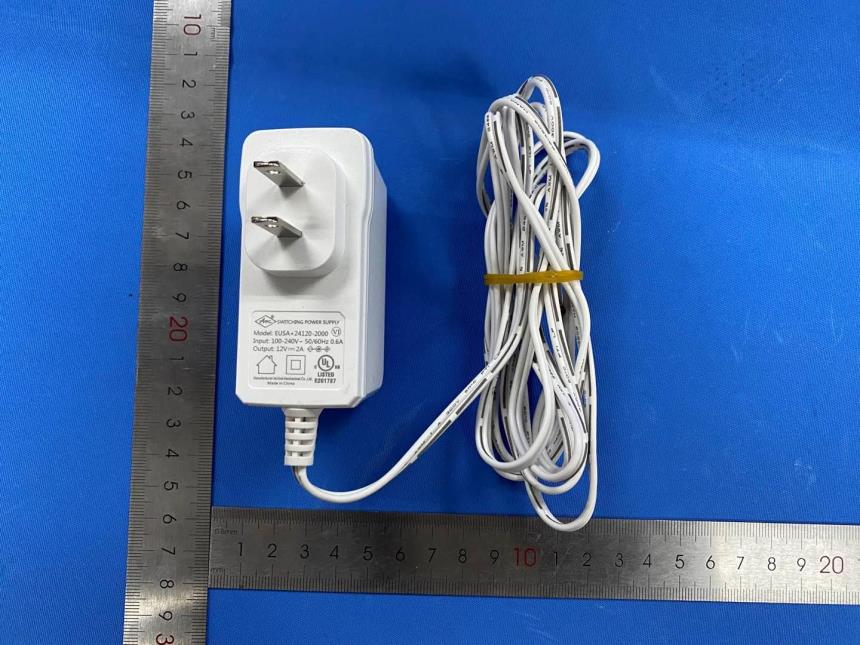

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 10 Page 1 of 10 Internal Photos Applicant: Hangzhou Huacheng Network Technology Co.,Ltd. Address of Applicant: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China. Equipment Under Test (EUT): Product Name: Smart Home Center Model No.: M1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 10 Page 2 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 10 Page 3 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 10 Page 4 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 10 Page 5 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 10 Page 6 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 10 Page 7 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 8 of 10 Page 8 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 9 of 10 Page 9 of 10 ADS-26FSG-12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 10 of 10 Page 10 of 10 ESUA+24120-2000 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200300180805 Page: 1 of 13 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF MPE REPORT Application No.: SHEM2003001808CR FCC ID: 2AVYF-M1 IC: 25954-M1 Applicant: Hangzhou Huacheng Network Technology Co.,Ltd. Address of Applicant: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China. Manufacturer: Hangzhou Huacheng Network Technology Co.,Ltd. Address of Manufacturer: No.2930, Nanhuan Road, Binjiang District, Hangzhou, China. Equipment Under Test (EUT): EUT Name: Smart Home Center Model No.: M1 Add Model No.: L1, M1S, L1S Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 RSS-102 Issue 5 (March 2015) Date of Receipt: 2020-03-19 Date of Test: 2020-03-23 to 2020-04-10 Date of Issue: 2020-05-12 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200300180805 Page: 2 of 13 Note： For FCC Mode No：M1, L1, M1S, L1S For IC Mode No:M1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200300180805 Page: 3 of 13 Revision Record Version Description Date Remark 00 Original 2020-05-12 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200300180805 Page: 4 of 13 2 Contents Page 1 COVER PAGE ................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 4 3 GENERAL INFORMATION ........................................................................................................................... 5 GENERAL DESCRIPTION OF E.U.T. .......................................................................................................................... 5 BT ........................................................................................................................................................................... 5 TEST LOCATION ...................................................................................................................................................... 7 TEST FACILITY ........................................................................................................................................................ 7 4 TEST STANDARDS AND LIMITS ............................................................................................................... 8 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ........................................................................................... 8 IC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: .............................................................................................. 8 5 MEASUREMENT AND CALCULATION ..................................................................................................... 9 MAXIMUM TRANSMIT POWER .................................................................................................................................. 9 5GHZ EIPR FOR IC: ............................................................................................................................................. 11 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200300180805 Page: 5 of 13 3 General Information General Description of E.U.T. Power supply: DC12V by Adapter Adapter1: Model: ADS-26FSG-12 12024EPCU INPUT: 100~240V 50/60Hz OUTPUT: DC 12V/2.0A Adapter2: Model: ESUA+24120-2000 INPUT: 100~240V 50/60Hz OUTPUT: DC 12V/2.0A Serial Number: 6D01EC0PAG00001 Firmware Version: 1.000.0000002.5 BT Antenna Gain: Antenna 1: 2.68dBi Antenna Type: Antenna 1: Dipole Antenna Bluetooth Version: V5.0 Dual mode Channel Spacing: 1MHz Modulation Type: GFSK, π/4DQPSK, 8DPSK Number of Channels: 79 Operation Frequency: 2402MHz to 2480MHz Spectrum Spread Technology: Frequency Hopping Spread Spectrum(FHSS) BLE Antenna Gain: Antenna 1: 2.68dBi Antenna Type: Antenna 1: Dipole Antenna Bluetooth Version: V5.0 Dual mode Channel Spacing: 2MHz Modulation Type: GFSK Number of Channels: 40 Operation Frequency: 2402MHz to 2480MHz 2.4GHz Antenna Gain: Antenna 1: 2.68dBi; Antenna 2: 2.76dBi Directional gain: 5.73dBi Antenna Type: Antenna 1: Dipole Antenna Antenna 2: Dipole Antenna Channel Spacing: 5MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11 Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200300180805 Page: 6 of 13 5GHz Operation Frequency: Band Mode Frequency Range(MHz) Number of channels Band 1 802.11a/n(HT20)/ac(HT20) 5180-5240 4 802.11n(HT40)/ac(HT40) 5190-5230 2 802.11ac(HT80) 5210 1 Band 4 802.11a/n(HT20)/ac(HT20) 5745-5825 5 802.11n(HT40)/ac(HT40) 5755-5795 2 802.11ac(HT80) 5775 1 Modulation Type: 802.11a: OFDM (64QAM, 16QAM, QPSK, BPSK) 802.11n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) Channel Spacing: 802.11a/n(HT20)/ac(HT20): 20MHz 802.11n(HT40)/ac(HT40): 40MHz 802.11ac(HT80): 80M…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Appendix D for SHEM200300180804 1. Duty Cycle 1.1 Test Result Test Mode Channel Frequency (MHz) TX Type ANT No. T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) 802.11a 5180 SISO 1 1.343 1.539 87.26 0.59 5200 SISO 1 1.343 1.538 87.32 0.59 5240 SISO 1 1.343 1.539 87.26 0.59 5745 SISO 1 1.344 1.539 87.33 0.59 5785 SISO 1 1.343 1.538 87.32 0.59 5825 SISO 1 1.344 1.539 87.33 0.59 802.11n(HT20) 5180 MIMO 1 1.255 1.451 86.49 0.63 5200 MIMO 1 1.255 1.451 86.49 0.63 5240 MIMO 1 1.256 1.451 86.56 0.63 5745 MIMO 1 1.256 1.451 86.56 0.63 5785 MIMO 1 1.256 1.451 86.56 0.63 5825 MIMO 1 1.256 1.451 86.56 0.63 802.11n(HT40) 5190 MIMO 1 0.916 1.087 84.27 0.74 5230 MIMO 1 0.617 0.812 75.99 1.19 5755 MIMO 1 0.617 0.811 76.08 1.19 5795 MIMO 1 0.617 0.810 76.17 1.18 802.11ac(VHT20) 5180 MIMO 1 1.256 1.451 86.56 0.63 5200 MIMO 1 1.256 1.451 86.56 0.63 5240 MIMO 1 1.256 1.451 86.56 0.63 5745 MIMO 1 1.276 1.476 86.45 0.63 5785 MIMO 1 1.363 1.562 87.26 0.59 5825 MIMO 1 1.276 1.476 86.45 0.63 802.11ac(VHT40) 5190 MIMO 1 0.636 0.837 75.99 1.19 5230 MIMO 1 0.617 0.810 76.17 1.18 5755 MIMO 1 0.617 0.811 76.08 1.19 5795 MIMO 1 0.636 0.836 76.08 1.19 802.11ac(VHT80) 5210 MIMO 1 0.636 0.836 76.08 1.19 5775 MIMO 1 0.607 0.797 76.16 1.18 1.2 Test Graph SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 2. Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Emission Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11a 5180 SISO 1 20.495 Only for Report Use PASS 2 29.880 Only for Report Use PASS 5200 SISO 1 22.519 Only for Report Use PASS 2 31.281 Only for Report Use PASS 5240 SISO 1 22.945 Only for Report Use PASS 2 30.760 Only for Report Use PASS 5745 SISO 1 16.396 ≥0.5 PASS 2 16.285 ≥0.5 PASS 5785 SISO 1 16.292 ≥0.5 PASS 2 16.061 ≥0.5 PASS 5825 SISO 1 16.334 ≥0.5 PASS 2 16.364 ≥0.5 PASS 802.11n(HT20) 5180 MIMO 1 19.384 Only for Report Use PASS 2 27.841 Only for Report Use PASS 5200 MIMO 1 19.574 Only for Report Use PASS 2 28.536 Only for Report Use PASS 5240 MIMO 1 20.973 Only for Report Use PASS 2 22.861 Only for Report Use PASS 5745 MIMO 1 17.531 ≥0.5 PASS 2 17.378 ≥0.5 PASS 5785 MIMO 1 17.549 ≥0.5 PASS 2 17.548 ≥0.5 PASS 5825 MIMO 1 17.291 ≥0.5 PASS 2 16.724 ≥0.5 PASS 802.11n(HT40) 5190 MIMO 1 41.092 Only for Report Use PASS 2 66.508 Only for Report Use PASS 5230 MIMO 1 41.148 Only for Report Use PASS 2 50.220 Only for Report Use PASS 5755 MIMO 1 35.214 ≥0.5 PASS 2 35.200 ≥0.5 PASS 5795 MIMO 1 35.285 ≥0.5 PASS 2 34.175 ≥0.5 PASS 802.11ac(VHT20) 5180 MIMO 1 22.907 Only for Report Use PASS 2 28.334 Only for Report Use PASS 5200 MIMO 1 27.336 Only for Report Use PASS 2 27.684 Only for Report Use PASS 5240 MIMO 1 19.711 Only for Report Use PASS 2 23.920 Only for Report Use PASS 5745 MIMO 1 17.359 ≥0.5 PASS 2 17.606 ≥0.5 PASS 5785 MIMO 1 16.515 ≥0.5 PASS 2 16.071 ≥0.5 PASS 5825 MIMO 1 17.403 ≥0.5 PASS 2 17.589 ≥0.5 PASS 802.11ac(VHT40) 5190 MIMO 1 42.212 Only for Report Use PASS 2 60.653 Only for Report Use PASS 5230 MIMO 1 41.173 Only for Report Use PASS 2 44.418 Only for Report Use PASS 5755 MIMO 1 35.158 ≥0.5 PASS 2 35.227 ≥0.5 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 5795 MIMO 1 35.592 ≥0.5 PASS 2 34.098 ≥0.5 PASS 802.11ac(VHT80) 5210 MIMO 1 81.187 Only for Report Use PASS 2 87.111 Only for Report Use PASS 5775 MIMO 1 73.827 ≥0.5 PASS 2 71.390 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11a 5180 SISO 1 16.486 Only for Report Use 2 16.828 Only for Report Use 5200 SISO 1 16.530 Only for Report Use 2 16.931 Only for Report Use 5240 SISO 1 16.571 Only for Report Use 2 16.642 Only for Report Use 5745 SISO 1 23.612 Only for Report Use 2 26.909 Only for Report Use 5785 SISO 1 21.657 Only for Report Use 2 28.409 Only for Report Use 5825 SISO 1 18.301 Only for Report Use 2 27.232 Only for Report Use 802.11n(HT20) 5180 MIMO 1 17.612 Only for Report Use 2 17.827 Only for Report Use 5200 MIMO 1 17.681 Only for Report Use 2 17.849 Only for Report Use 5240 MIMO 1 17.652 Only for Report Use 2 17.720 Only for Report Use 5745 MIMO 1 24.075 Only for Report Use 2 26.942 Only for Report Use 5785 MIMO 1 20.621 Only for Report Use 2 28.653 Only for Report Use 5825 MIMO 1 18.164 Only for Report Use 2 27.960 Only for Report Use 802.11n(HT40) 5190 MIMO 1 36.486 Only for Report Use 2 36.922 Only for Report Use 5230 MIMO 1 36.568 Only for Report Use 2 36.668 Only for Report Use 5755 MIMO 1 42.166 Only for Report Use 2 48.241 Only for Report Use 5795 MIMO 1 38.492 Only for Report Use 2 51.255 Only for Report Use 802.11ac(VHT20) 5180 MIMO 1 17.662 Only for Report Use 2 17.817 Only for Report Use 5200 MIMO 1 17.664 Only for Report Use 2 17.832 Only for Report Use 5240 MIMO 1 17.624 Only for Report Use 2 17.695 Only for Report Use 5745 MIMO 1 23.122 Only for Report Use 2 27.102 Only for Report Use 5785 MIMO 1 21.563 Only for Report Use 2 27.906 Only for Report Use 5825 MIMO 1 18.397 Only for Report Use 2 27.312 Only for Report Use 802.11ac(VHT40) 5190 MIMO 1 36.428 Only fo…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 3.2 Maximum Power For IC Test Mode Frequency (MHz) Tx Type Measured Output Power (dBm) EIRP(dBm) Limits (dBm) Verdict Ant 1 Ant 2 Total Ant 1 Ant 2 Total 802.11a 5180 SISO 12.67 12.15 / 16.68 15.41 / ≤23 PASS 5200 SISO 12.67 11.78 / 16.68 15.04 / ≤23 PASS 5240 SISO 12.36 11.38 / 16.37 14.64 / ≤23 PASS 5745 SISO 16.99 14.74 / / / / ≤30 PASS 5785 SISO 16.78 15.01 / / / / ≤30 PASS 5825 SISO 16.65 15.07 / / / / ≤30 PASS 802.11n 5180 MIMO 11.48 11.14 14.32 18.13 17.79 20.97 ≤22.35 PASS 5190 MIMO 11.17 10.35 13.79 17.82 17.00 20.44 ≤22.35 PASS 5200 MIMO 11.51 10.87 14.21 18.16 17.52 20.86 ≤22.35 PASS 5230 MIMO 11.82 10.65 14.28 18.47 17.30 20.93 ≤22.35 PASS 5240 MIMO 11.35 10.45 13.93 18.00 17.10 20.58 ≤22.35 PASS 5745 MIMO 16.73 14.43 18.74 / / / ≤29.35 PASS 5755 MIMO 17.08 15.04 19.19 / / / ≤29.35 PASS 5785 MIMO 16.30 14.55 18.52 / / / ≤29.35 PASS 5795 MIMO 16.62 14.88 18.85 / / / ≤29.35 PASS 5825 MIMO 16.54 14.58 18.68 / / / ≤29.35 PASS 802.11ac 5180 MIMO 11.57 11.17 14.38 18.22 17.82 21.03 ≤22.35 PASS 5190 MIMO 11.95 11.08 14.55 18.6 17.73 21.20 ≤22.35 PASS 5200 MIMO 11.49 10.82 14.18 18.14 17.47 20.83 ≤22.35 PASS 5210 MIMO 11.52 10.63 14.11 18.17 17.28 20.76 ≤22.35 PASS 5230 MIMO 11.64 10.63 14.17 18.29 17.28 20.82 ≤22.35 PASS 5240 MIMO 11.28 10.43 13.89 17.93 17.08 20.54 ≤22.35 PASS 5745 MIMO 16.37 14.44 18.52 / / / ≤29.35 PASS 5755 MIMO 17.15 15.00 19.22 / / / ≤29.35 PASS 5775 MIMO 15.70 13.88 17.89 / / / ≤29.35 PASS 5785 MIMO 16.45 14.52 18.60 / / / ≤29.35 PASS 5795 MIMO 16.53 14.43 18.62 / / / ≤29.35 PASS 5825 MIMO 16.55 14.57 18.68 / / / ≤29.35 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 3.3 Test Graph SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 4. Maximum Power Spectral Density (PSD) 4.1 Maximum Power Spectral Density (PSD) for FCC Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/MHz) Limits (dBm/MHz) Verdict Ant 1 Ant 2 Total 802.11a 5180 SISO -1.30 -1.32 / ≤11 PASS 5200 SISO -1.62 -2.13 / ≤11 PASS 5240 SISO -2.22 -3.00 / ≤11 PASS 802.11n(HT20) 5180 MIMO -1.12 -1.78 1.57 ≤10.35 PASS 5200 MIMO -1.43 -2.22 1.20 ≤10.35 PASS 5240 MIMO -2.27 -3.12 0.34 ≤10.35 PASS 802.11n(HT40) 5190 MIMO -5.13 -5.56 -2.33 ≤10.35 PASS 5230 MIMO -4.62 -5.39 -1.98 ≤10.35 PASS 802.11ac(VHT20) 5180 MIMO -1.23 -1.69 1.56 ≤10.35 PASS 5200 MIMO -1.42 -1.85 1.38 ≤10.35 PASS 5240 MIMO -2.06 -2.90 0.55 ≤10.35 PASS 802.11ac(VHT40) 5190 MIMO -4.16 -4.75 -1.43 ≤10.35 PASS 5230 MIMO -4.57 -5.54 -2.02 ≤10.35 PASS 802.11ac(VHT80) 5210 MIMO…

Text truncated - open the document above for the full version.
