2AVYW-BT700PROBattery Tester

”ELCO ME ABOUT T hank you for purchasing BT?OO PRO. If you have an y questions or issues, please contact our official technical support team at support@ topdon.com. BT700 PRO is a groundbreaking battery tester filled with features of battery testing, battery matching, plus the b uilt-in printer. Based on RT­Thread operating system, this battery tester will help you strive for more accurate and efficient battery diagnostics, being super b eneficial for p『0- level technicians and mechanics working in the a utomotive world. TECHNICAL SPECIFICATION Screen Port Type System Bluetooth Button Memory Working Voltage Working Current Working Temp. Battery Capacity Printe『Type Printe『Dimensions Dimensions Weight 3.5 ” TFT, 320*480 Mini USB, DB15 RT-Thread Bluetooth 4.0 Silicone 2G 9～15V 500mA (Typical) 14＇。F町104 。 F(-10 。 C- 50 。 C) 2,600mAh Thermal Printer 2.24*0.98 inches (57*25mm ) 刀5*4.86*1.67inches (181.5*123.5吨2.5mm) 16.93 oz (480 g ) BATTERY MEASURING STANDARD & RANGE CCA 100-2000 DIN 100-1400 BCI 100-2000 IEC 100-1400 CA 100-2000 EN 100-2000 MCA 100-2000 SAE 100-2000 』IS 26A17--245H52 GB 30Ah-200Ah 15 87 2436 9 REGISTRATION & UPGRADE Stepl Step2 v Language Visit www.topdon.com. Select ” Support-> Download -> Ba忧eryTool -> Ba忧eryTester''. Download and install the "TOPDON PC Suite" to your computer. Open the ” TOPDON PC Suite': Sleet ” Creat an account': Input the email address and click "get code ” to obtain the Verification Code and input the code.After that, set your login password. ＠ v Language ＠ 1·01,00"1 1·01,00"1 Sign up 。r sign In t。yourace。uni � 同；C挝川ode Get c。de STEP2 Step3 Sign in 。r create an ace。uni � E些 Sign in Forgot your passw。rd STEP3 Connect BT700 PRO to your computer via the USB c able,keep the USB connection stable and solid. Input the account ID and password your created and click ” sign in ’ ！ Step4 Step5 TOP DON BT700Pro $’‘’”·． ’回2200301饥X即可 TOPDON PC Suite will automatically recognize the device. The ” My Device ” page will list all available devices ’ information under you『TOPDONaccount after you click ” Register now ” to finish the activation. Click “ Upgrade''. Select the software you need to update. Keep the USB connection stable while upgrading. After completing, unplug the USB cable. My Devi。e Upgrade Info们mad饵’ Upg阳de .. 同w.ar• Mπ"SUBIS州 .... 且A sue民RU AC,J良，民 G四”nt v”’蝠，n 嗣wV耐事帕，电 11812 V也.，. V嗡·＂＇v‘3l Y610 v，儿们 睛垃咀且 (21 ® Ci)) 0 S嗣肉啕，．． ， o.ea唰...后。．“”d .. ...唰自�鼠”d 《um.，帽 ... 揭...四 0.43MB h”。”？”W回咽eo..u,, I 剧””棉田...阳”帽田机崎回国a皿锦帆’v TOP DON BT700 Pro ... ‘刷刷。 8剧22田30’0000由 民..，－筒。nD11te Unknown ＇...－“ Unknown � ，。”... T田’”“叫wCo..Ud 0时倒1G豆工豆－ My D，词。．Upg,atie Inf僻ma咀饵’ 5τ可＠ 节啕dlW\coll,d倒回od lobe田”啕』，...... “四·－－�·＂＇·，，咱抽回Ion. 』，.，..＿no附...Mio-I皿时 � BTMOBILE PRO BT 700 PRO BTMOBILE PRO WELCOME ABOUT Thank you for purchasing TOPDON BT700PRO. If you have any questions or issues, please contact our official technical support team at support@ topdon.com. TOPDON BT700PRO is a groundbreaking battery tester filled with features of battery testing, battery matching, plus the built-in printer. Based on RT- Thread operating system, this battery tester will help you strive for more accurate and efficient battery diagnostics, being super beneficial for pro- level technicians and mechanics working in the automotive world. TECHNICAL SPECIFICATION BATTERY MEASURING STANDARD & RANGE Screen Port Type System Bluetooth Button Memory Working Voltage Working Current Working Temp. Battery Capacity Printer Type Printer Dimensions Dimensions Weight 3.5” TFT, 320*480 Mini USB, DB15 RT-Thread Bluetooth 4.0 Silicone 2G 9~15V 500mA (Typical) 14°F~104°F (-10°C~50°C) 2,600mAh Thermal Printer 2.24*0.98 inches (57*25mm) 7.15*4.86*1.67 inches (181.5*123.5*42.5mm) 16.93 oz (480g) CCA BCI CA MCA JIS 100-2000 100-2000 100-2000 100-2000 26A17--245H52 DIN IEC EN SAE GB 100-1400 100-1400 100-2000 100-2000 30Ah-200Ah 1 . Battery Tester FCC STATEMENT 1.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 5mm between the radiator & your body

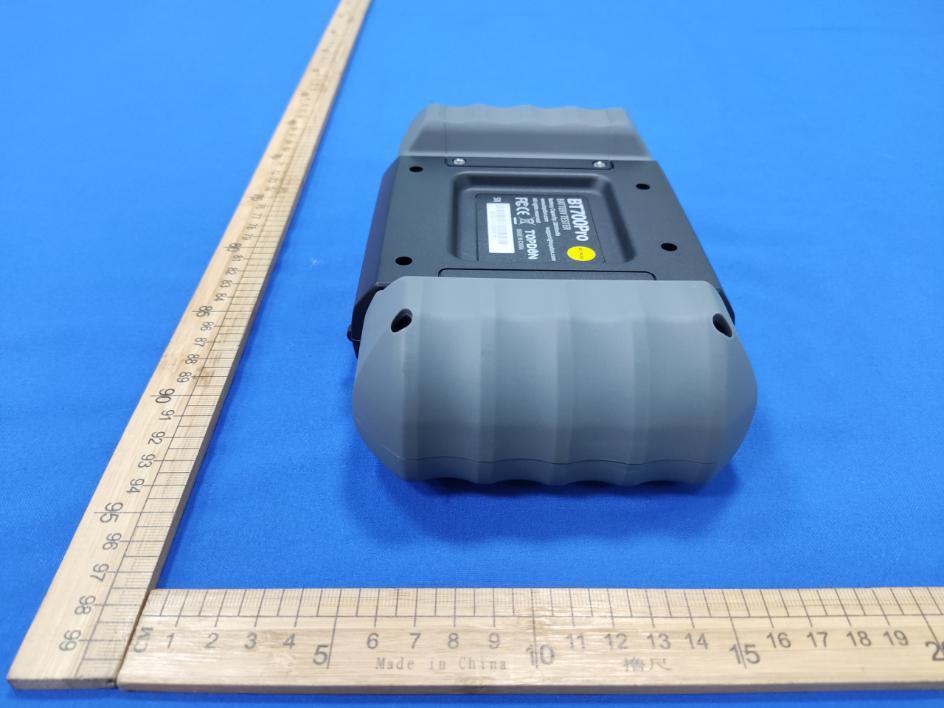

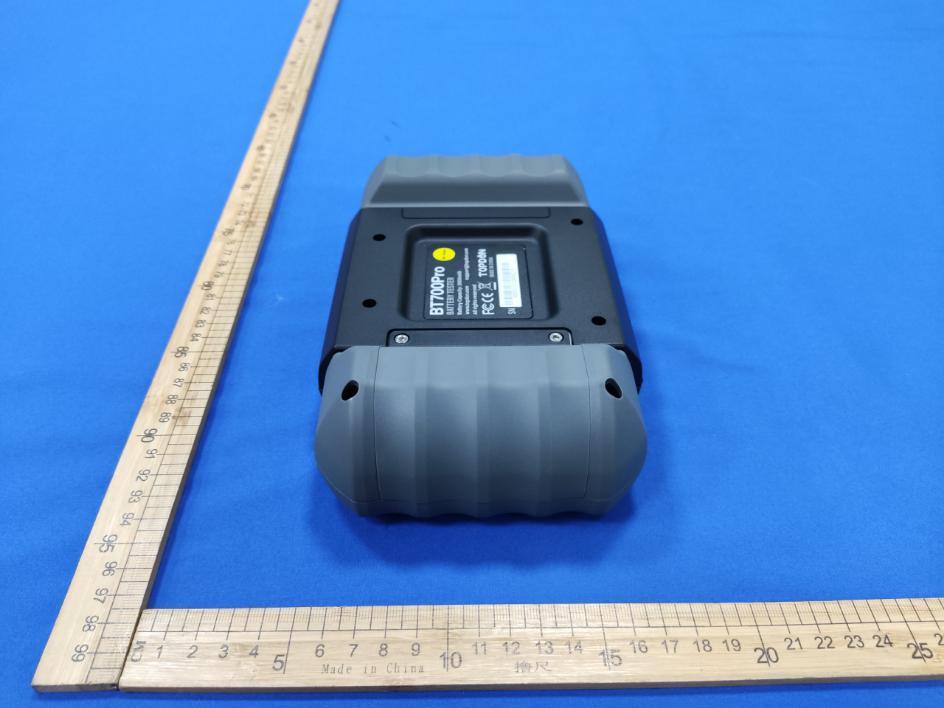

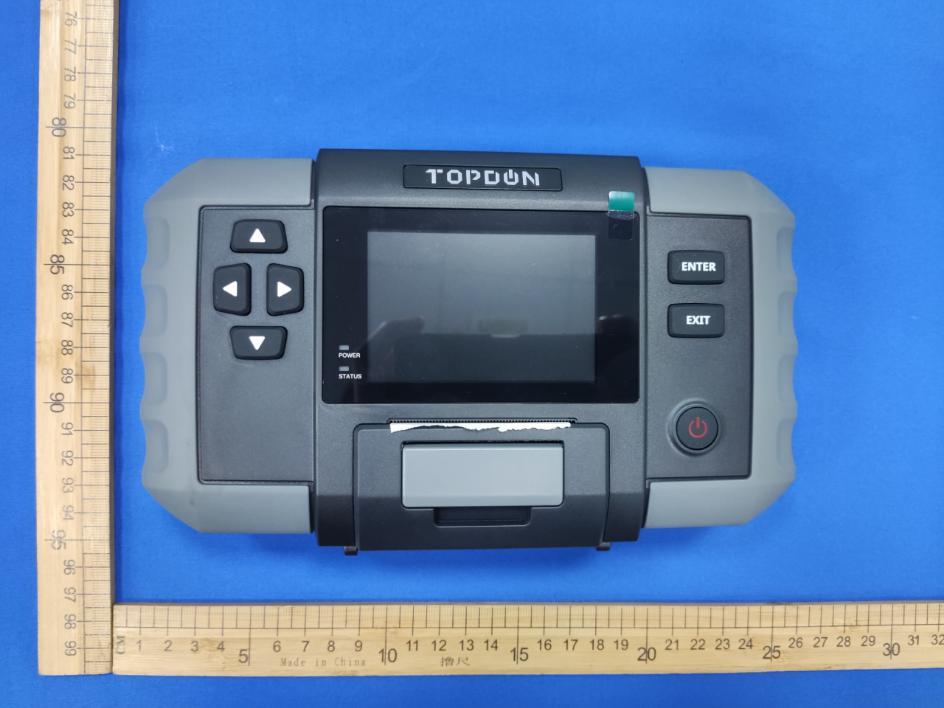

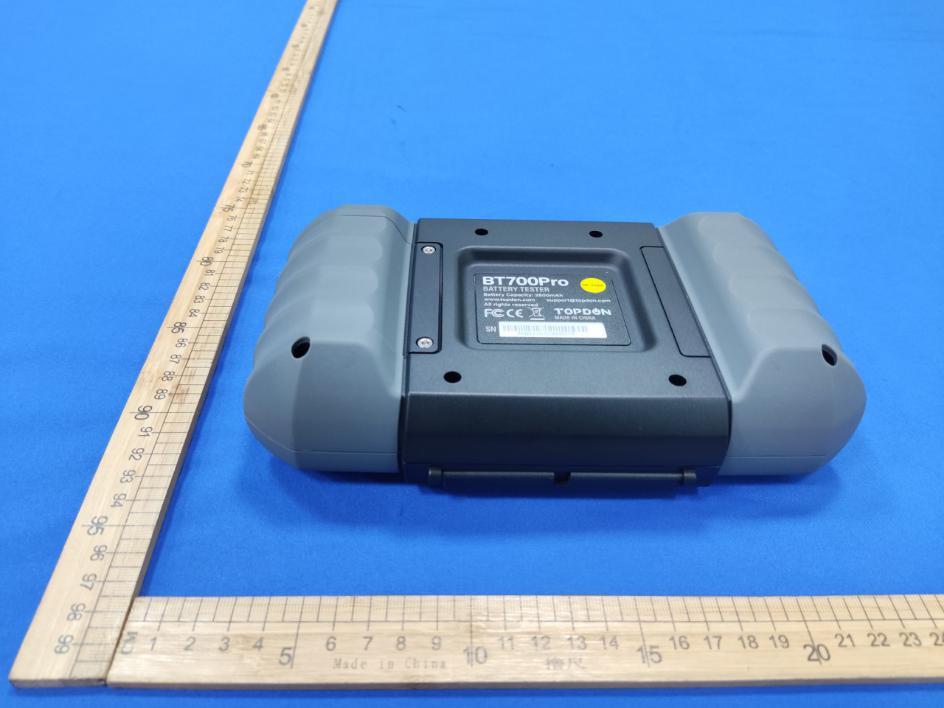

Model:BT700Pro ExternalPhotographs Model:BT700Pro Model:BT700Pro

LabelPosition

Model:BT700Pro Internalphotos Model:BT700Pro Model:BT700Pro Model:BT700Pro Model:BT700Pro Model:BT700Pro Model:BT700Pro Model:BT700Pro ANT

version01 TOPDONTECHNOLOGYCo.,Ltd DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:BT700Pro FCCID:2AVYW-BT700PRO fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna: PCBAntenna Gainoftheantenna: 3.0dBi Frequencyrange: 2402-2480MHz ModelNo.ofantenna:N/A Typeofantenna:/ Gainoftheantenna:/ Frequencyrange:/ Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Sincerely, Signature [KeLuo] [ProductDirector] [TOPDONTECHNOLOGYCo.,Ltd]

KSIGN (Guangdong) Testing Co., Ltd. West Side of 1/F., Building C, Zone A, Fuyuan New Factory, Jiujiu Industrial Park, Minzhu,Shatou, Shajing, Bao'an District, Shenzhen, Guangdong, People’s Republic of China Tel.: + (86)755-29852678 Fax: + (86)755-29852397 E-mail: [email protected] Website: www.gdksign.com KSIGN(Guangdong) Testing Co., Ltd. RF Exposure Evaluation FCC ID:2AVYW-BT700PRO REQUIREMENT KDB447498 D01 General RF Exposure Guidance v06, Clause 4.3.1(a) [(max. power of channel, including tune-up tolerance,mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 Where -f(GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. TEST RESULT Passed Not Applicable BLE Test mode Channel Frequency (MHz) Max. Measured Power (dBm) Max. Tune up tolerance Power (dBm) Max. Tune up tolerance Power (mW) Calculating data Limit Results GFSK 2402 -0.57 -0.57±1 1.10 0.34 3.00 Pass 2440 -0.81 -0.81±1 1.04 0.33 2480 -1.44 -1.44±1 0.90 0.28 Note: -The exposure safety distance is less than 5mm. **********************THE END**********************

Page 2 of 56 Report No.: KS2104S0984E KSIGN(Guangdong) Testing Co., Ltd. TABLE OF CONTENTS Page 1. TEST SUMMARY .............................................................................................................................................................. 3 1.1. TEST STANDARDS ................................................................................................................................................................. 3 1.2. REPORT VERSION ................................................................................................................................................................. 3 1.3. TEST DESCRIPTION ............................................................................................................................................................... 4 1.4. TEST FACILITY ...................................................................................................................................................................... 5 1.5. MEASUREMENT UNCERTAINTY ............................................................................................................................................... 6 1.6. ENVIRONMENTAL CONDITIONS ................................................................................................................................................ 6 2. GENERAL INFORMATION ................................................................................................................................................. 7 2.1. GENERAL DESCRIPTION OF EUT .............................................................................................................................................. 7 2.2. OPERATION STATE ................................................................................................................................................................ 8 2.3. MEASUREMENT INSTRUMENTS LIST ......................................................................................................................................... 9 2.5. TEST SOFTWARE ................................................................................................................................................................... 9 3. TEST ITEM AND RESULTS ............................................................................................................................................... 10 3.1. ANTENNA REQUIREMENT ..................................................................................................................................................... 10 3.2. PEAK OUTPUT POWER ........................................................................................................................................................ 11 3.3. POWER SPECTRAL DENSITY .................................................................................................................................................. 14 3.4. 6DB BANDWIDTH .............................................................................................................................................................. 17 3.5. BAND EDGE AND SPURIOUS EMISSION (CONDUCTED) ................................................................................................................ 21 3.6. BAND EDGE EMISSIONS(RADIATED) ....................................................................................................................................... 24 3.7. SPURIOUS EMISSION (RADIATED) .......................................................................................................................................... 29 3.8. CONDUCTED EMISSION ....................................................................................................................................................... 40 4. EUT TEST PHOTOS ......................................................................................................................................................... 43 5. PHOTOGRAPHS OF EUT CONSTRUCTIONAL ................................................................................................................... 46 Page 3 of 56 Report No.:KS2104S0984E KSIGN(Guangdong) Testing Co., Ltd. 1. TEST SUMMARY 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Operation within the bands of 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz. KDB 558074 D01：The measurement guidance provided herein is applicable only to Digital Transmission System (DTS) devices operating in the 902-928 MHz. 2400-2483.5 MHz and/or 5725-5850 MHz bands under §15.247 of the FCC rules (Title 47 of the Code of Federal Regulations) ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. 1.2. Report version Revised No. Date of issue Description 01 May. 11, 2021 Original Page 4 of 56 Report No.:KS2104S0984E KSIGN(Guangdong) Testing Co., Ltd. 1.3. Test Description FCC Part 15 Subpart C(15.247) Test Item Standard Section Result Test Engineer FCC Antenna Requirement 15.203 Pass Rory Huang Conducted Emission 15.207 Pass Rory Huang Restricted Bands 15.205 Pass Rory Huang Peak Output Power 15.247(b) Pass Rory Huang Band Edge Emissions 15.247(d) Pass Rory Huang Power Spectral Density 15.247(e) Pass Rory Huang Radiated Emission 15.205&15.209 Pass Rory Huang 6dB Bandwidth 15.247(a)(2) Pass Rory Huang Spurious RF Conducted Emission 15.247(d) Pass Rory Huang Note: The measurement uncertainty is not included in the test result. Page 5 of 56 Report No.:KS2104S0984E KSIGN(Guangdong) Testing Co., Ltd. 1.4. Test Facility Address of the report laboratory KSIGN(Guangdong) Testing Co., Ltd. West Side of 1/F., Building C, Zone A, Fuyuan New Factory, Jiujiu Industrial Park, Minzhu,Shatou, Shajing, Bao'an District, Shenzhen, Guangdong, People’s Republic of China Laboratory accreditation The test facility is recognized, certified, or accredited by the following organizations: CNAS-Lab Code: L1326…

Text truncated - open the document above for the full version.

Model:BT700Pro RadiatedMeasurement(Below1GHz) RadiatedMeasurement(Above1GHz) RFConducted CONDUCTEDEMISSIONTESTSETUP
