2AW48-METRON30BTLaser Distance Meter

HU BG Gebrauchsanweisung Operating Instructions Manuel d'instructions Instruzioni d'uso Instrucciones de uso Gebruiksaanwijzing Руководство по применению Instrukcja obsługi Eksploatacijos instrukcija Lietošanas instrukcija Uputstvo za upotrebu Návod k použití Manual de utilizare Ръководство за употреба Használati útmutató METRON 30 BT 2 DE METRON 30 BT Delivery Contents 1. Laser distance meter 2. Belt pouch 3. Strap 4. 2 x 1.5 V (AAA) batteries 1. 4. 2. 3. 3 DE 2.1 Function Buttons 2.2 Display 1. 6. 7. 3. 4. 1. 2. 9. 8. 2. 3. 5. 4 DE Operating Instructions METRON 30 BT Laser Distance Meter (original version) About this Manual Congratulations on the purchase of your new METRON 30 BT! You have acquired a SOLA measurement device, which can make your work easier, faster, and more precise. To utilize the complete functionality range of this measurement device, and to ensure a safe operation, please observe the following instructions: •Please read these operating instructions before commissioning the device. •Always keep the operating instructions near the device. •Only hand over the device to other persons together with the operating instructions. •Never render the attached warning signs unreadable. Contents 1. General Information 2. Description 3. Technical Data 4. Safety Instructions 5. Laser Safety / Classification 6. Getting Started 7. Operation 8. Maintenance, Storage, and Transportation 9. Delivery Contents and Accessories 10. Troubleshooting 11. Disposal 12. Manufacturer’s Guarantee 13. EC Declaration of Conformity 5 DE 1.1 Signal Words and their Meaning DANGER For an imminent danger that could lead to serious injury or death. WARNING For a possibly dangerous situation that could lead to serious injury or death. CAUTION For a possibly dangerous situation that could lead to slight injury or property damage. NOTE For application notes and other useful information. 1.2 Pictograms and Other Information 1.2.1 Warning Signs Warning of dangers in general 1. General Information 1.2.2 Symbols Read the operating instructions before use Batteries and devices may not be disposed of with household waste Do not throw battery into the fire Do not heat battery above 60°C Class 2 laser device Do not look into the laser beam! 6 DE 2. Description 2.3 Intended Use The device is designed to measure distances. The display shows the measurement, the setting, as well as the device status. An emitted laser beam is directed towards a reflective surface and sent back to the laser distance meter. This allows the distance to be determined. The range depends on the model of the laser distance meter, the reflectivity, and the quality of the reflective surface. 2.1 Function Buttons 1. ON/measure button 2. Function button/measuring edge 3. OFF/delete button 2.2 Display 1. Measurements 2. Measurement display 3. Battery status 4. Measuring edge 5. Laser point display 6. Function display 7. Min./max. display 8. Unit 9. Area/space display 7 DE 3. Technical Data 3.1 General Measuring range0.05–30 m* Accuracy± 2.0 mm** Protection classIP54 Laser class2 Laser type630–670 nm < 1 mW Automatic power off, laser45 s Automatic power off, device180 s Operating timeup to 5,000 measurements*** Battery type2 x 1.5 V (AAA) batteries Operating temperature0–40°C Storage temperature-20–60°C Tripod connection- Dimensions (H x W x D)105 x 47 x 27 Weight with batteries 100 g *For measurements with 100% reflectivity of the target (e.g. a wall painted white), low background lighting, and 25°C operating temperature. Measurements may become less accurate in adverse conditions, such as direct sunlight, a poorly reflective surface, or measurement on glass or glossy surfaces, leading to measurement errors. The visibility range of the laser point depends on the ambient conditions. **Accurate from 0.05–10 m. The maximum tolerance of 0.1 mm/m may deteriorate at distances between 10 m and 30 m. ***Use at room temperature. 3.2 Functions Length measurement Min./max. measurement Continuous measurement Area measurement Volume measurement Indirect 2-point measurement 8 DE 8 4. Safety Instructions 4.1 Area of Responsibility 4.1.1 Manufacturer SOLA is responsible for the safe delivery condition of the product, including the operating instructions and the original accessories. 4.1.2 Operator The operator is responsible for using the product as intended, the deployment of person- nel, their training, and the operational safety of the product. The operator understands the safety information which is stated on the product and the instructions in the operating instructions. The operator shall comply with the standard local regulations relating to safety and accident preven- tion regulations as well as worker protection laws and regulations. The operator shall immediately notify SOLA if safety-related issues should arise relating to the product or during its utilization. The operator shall ensure that the product is not utilized any further if defects become evident, and they will have the product repaired professionally. 4.2 Improper Use Use of the device and the accessories without instruction. Use of third-party accessories or additional equipment. Use outside of the intended limits (see Chapter 3 / Technical Data). Use under extreme temperature fluctuations without adequate acclimatization. Disabling of safety devices and removal of hazard notices and labels. Unauthorized opening of the device. Performance of modifications or alterations to the device or the accessories. Deliberate blinding of third parties. Inadequate safeguarding at the installation site. 4.3 Utilization Limitations The METRON 30 BT is suitable for continuous use in an atmosphere which can be inhabited by humans. Do not operate the product in explosion-prone or corrosive environments. Inform the local safety authorities and safety experts before working in hazardous environments, in close proximity to electrical installations or similar surroundings. 9 DE 4.4 Usage Hazards 4.4.1 General WARNI…

Text truncated - open the document above for the full version.

SOLA-MESSWERKZEUGE GMBH * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter April 26, 2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AW48-METRON30BT Per section 2.911(d)(7) of the FCC rules, SOLA-MESSWERKZEUGE GMBH certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: Phuntion LLC Physical U.S. Company Address: 25214 Spectrum, Irvine, CA92618 Agent name: Jun.Tian Agent Email Address: [email protected] FRN: 0033422403 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Lukas.Zwing Printed name: Jun.Tian Title: Click here to enter text. Title: CEO Company Name: SOLA-MESSWERKZEUGE GMBH Company Name: Phuntion LLC Date: April 14, 2023 Date: April 14, 2023

SOLA-MESSWERKZEUGE GMBH Covered Equipment Certification Attestation Letter 4/14/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AW48-METRON30BT SOLA-MESSWERKZEUGE GMBH. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. SOLA-MESSWERKZEUGE GMBH. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Lukas.Zwing Title: Click here to enter text. Company Name: SOLA-MESSWERKZEUGE GMBH Date: 4/14/2023

SOLA-MESSWERKZEUGE GMBH 4/26/2023 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint SOLA-MESSWERKZEUGE GMBH UNTERES TOBEL 25A-6840 GOTZIS, AUSTRIA to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Lukas.Zwing

SOLA-MESSWERKZEUGE GMBH Model difference I, the undersigned, hereby confirm that any of our production units bearing the following models numbers are said to be identical in cosmetics, materials, PCB layout, electrical, mechanical, and physical design, including software/firmware . The Product only different model number,But the PCB board inside are identical.. EUT: Laser Distance Meter FCC ID: 2AW48-METRON30BT M/N: METRON 30 BT, VECTOR 50 Signed: Printed name: Lukas.Zwing Title: Click here to enter text. Company Name: SOLA-MESSWERKZEUGE GMBH Date: 4/14/2023

SOLA-MESSWERKZEUGE GMBH 4/26/2023 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2AW48-METRON30BT Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Signed: Printed name:Lukas.Zwing Title:

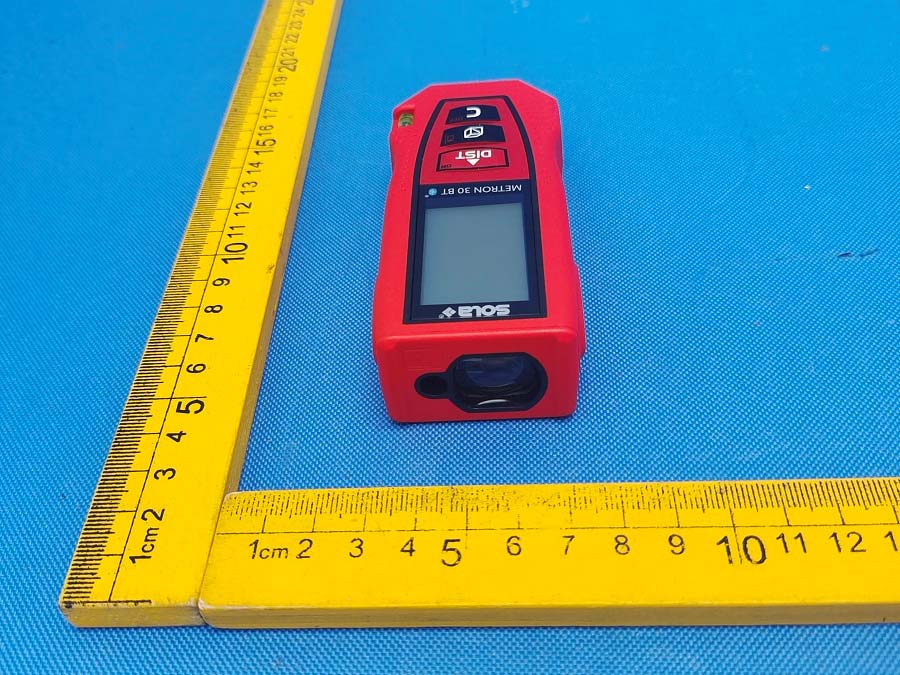

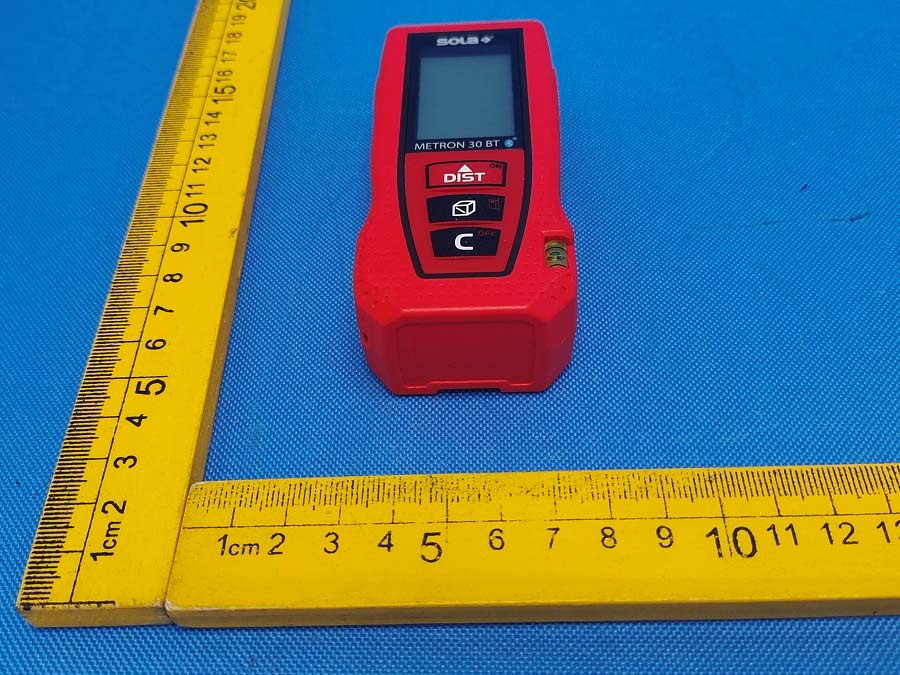

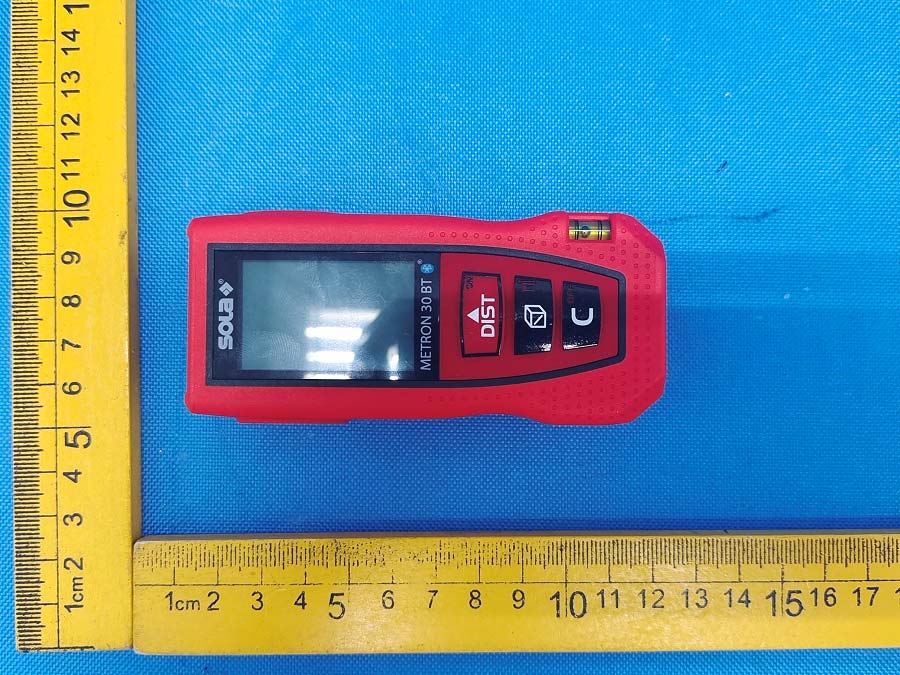

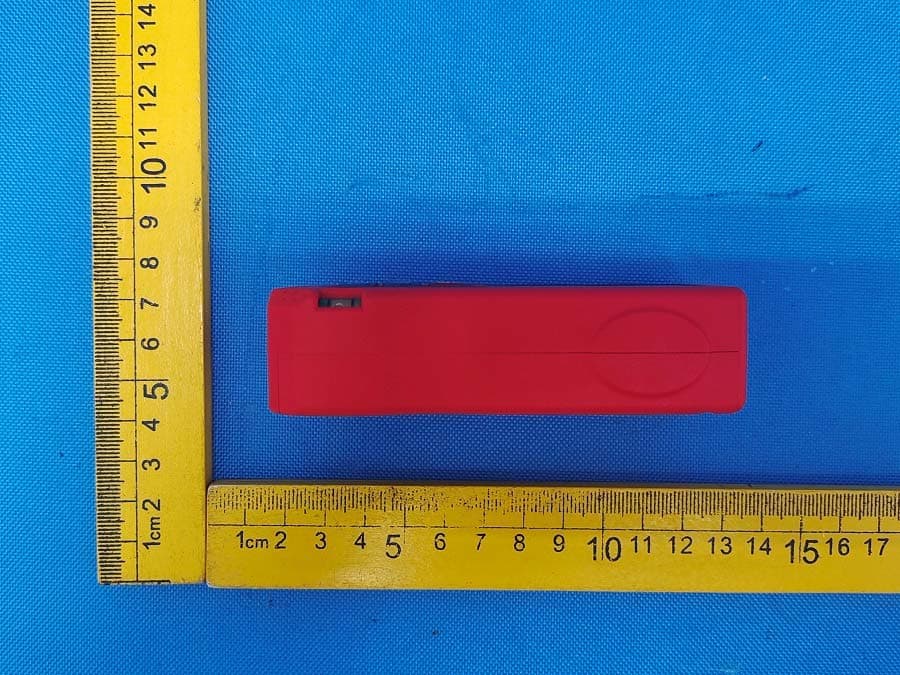

FCC ID: 2AW48-METRON30BT Page 1/3 External photo FCC ID: 2AW48-METRON30BT Page 2/3 FCC ID: 2AW48-METRON30BT Page 3/3 --END---

Label Location

FCC ID: 2AW48-METRON30BT Page 1/4 Internal photo FCC ID: 2AW48-METRON30BT Page 2/4 FCC ID: 2AW48-METRON30BT Page 3/4 2402-2480MHz BT Antenna FCC ID: 2AW48-METRON30BT Page 4/4 ---END---

Page 1 of 2 Address: No.11, WuSong Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 GuangdongProvince,China523117 http://www.cpcteam.com RF EXPOSURE EVALUATION EUT Specification EUT Laser Distance Meter Model Number METRON 30 BT , VECTOR 50 FCC ID 2AW48-METRON30BT Antenna gain (Max) 2.04dBi Operation Frequency 2402-2480MHz Input Rating DC 3.0V From Battery Standard 47 CFR Part 1.1307 47 CFR Part 1.1310 KDB447498D01 General RF Exposure Guidance v06 Modulation BLE Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation17 • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 90249-23-72-23-PP002 Page 2 of 2 Address: No.11, WuSong Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 GuangdongProvince,China523117 http://www.cpcteam.com Calculated Result and Limit Operation Mode: BLE Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) GFSK -Lowest (2402MHz) 1.05 1±1 2 1.5850.49 3.0 GFSK -Middle (2440MHz) 0.87 1±1 2 1.5850.50 GFSK -Highest (2480MHz) 0.03 0±1 1 1.2590.40 Conclusion: the calculated value ≤3.0, SAR is exempted. Remark: The Max Conducted Peak Output Power data refer to report Report No.: 90249-23-72-23-PP001

Page 1 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com TEST REPORT Report Number. ........................ : 90249-23-72-23-PP001 Date of issue ............................ : 2023.04.26 Tested by (+signature) ............ : Duke Chen Approved by (+signature) ....... : Jason Gao Testing Laboratory name ........ : SLG-CPC Testlaboratory Co., Ltd. Address .................................... : No. 11, Wu Song Road, Dongcheng District, Dongguan, Guangdong Province, China 523117 Applicant’s name ..................... : SOLA-MESSWERKZEUGE GMBH Address .................................... : UNTERES TOBEL 25A-6840 GOTZIS, AUSTRIA Manufacturer’s name ............. : GEO LASER CO., LTD. Address .................................... : UNIT A1, 6/F., ONE CAPITAL PLACE, 18 LUARD ROAD, WAN CHAI, HONG KONG Factory’s name ....................... : Dongguan Sndway Electronic Co., Ltd Address .................................... : 58 Humen Tuanjie Road,Humen Town,Dongguan City Standard(s) ............................... : FCC 47 CFR Part 15, Subpart C Test item description ............... : METRON 30 BT Series model.......................: VECTOR 50 EUT ............................................ : Laser Distance Meter Model/Type reference .............. : FCC ID ....................................... : 2AW48-METRON30BT Date of receipt of test item ..... : 2023.03.31 Date (s) of performance of test: 2023.03.31 - 2023.04.12 Summary of Test Results ........ : Pass The Summary of Test Results based on a technical opinion belongs to the standard(s). General disclaimer: This report shall not be reproduced except in full, without the written approval of SLG-CPC Testlaboratory Co., Ltd. The test results in the report only apply to the tested sample. 90249-23-72-23-PP001 Page 2 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com Table of Contents 1 EUT TECHNICAL DESCRIPTION ...................................................................................................... 4 2 SUMMARY OF TEST RESULT .......................................................................................................... 5 3 TEST METHODOLOGY ..................................................................................................................... 6 3.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 6 3.2 MEASUREMENT EQUIPMENT USED ....................................................................................... 6 3.3 DESCRIPTION OF TEST MODES ............................................................................................. 7 4 FACILITIES AND ACCREDITATIONS ................................................................................................ 8 4.1 FACILITIES ................................................................................................................................. 8 4.2 LABORATORY ACCREDITATIONS AND LISTINGS .................................................................. 8 5 TEST SYSTEM UNCERTAINTY ........................................................................................................ 9 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................... 10 6.1 RADIO FREQUENCY TEST SETUP 1 ..................................................................................... 10 6.2 RADIO FREQUENCY TEST SETUP 2 ..................................................................................... 10 7 TEST REQUIREMENTS ................................................................................................................... 12 7.1 DTS 6DB BANDWIDTH ............................................................................................................ 12 7.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER................................................................ 15 7.3 MAXIMUM POWER SPECTRAL DENSITY ............................................................................. 17 7.4 RADIATED SPURIOUS EMISSION .......................................................................................... 20 7.5 ANTENNA APPLICATION ......................................................................................................... 30 90249-23-72-23-PP001 Page 3 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com Modified Information Version Report No. Revision Data Summary Ver.1.0 90249-23-72-23-PP001 2023-04-26 Original Version 90249-23-72-23-PP001 Page 4 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com 1 EUT TECHNICAL DESCRIPTION Product: Laser Distance Meter Model Number: METRON 30 BT, VECTOR 50 Power supply: DC 3.0V From Battery Modulation: BLE Frequency Range: 2402MHz～2480MHz Number of Channels: 40channels Channel Space: 1MHz Antenna Gain: 2.04dBi Antenna: PCB Antenna Temperature Range: 0°C ~ +45°C Note: for more details, please refer to the User’s manual of the EUT. 90249-23-72-23-PP001 Page 5 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com 2 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 15.247(a)(2) DTS (6dB) Bandwidth PASS 15.247(b)(3) Maximum Peak Conducted Output Power PASS 15.247(e) Maximum Power Spectral Density Level PASS 15.247(d) Unwanted Emission Into Non-Restricted Frequency Bands PASS 15.247(d) 15.209 Radiated Spurious Emission PASS 15.207 Conducted Emission Test N/A 15.247(b) Antenna Application PASS NOTE1: N/A (Not Applicable) NOTE2: Accordin…

Text truncated - open the document above for the full version.

Antenna Specification M/N: BDE-BLEM401P 1.Mechanical Dimension 2. Gain and Efficiency Frequency Gain Efficiency 2400 MHz 1.89 18.24% 2410 MHz 1.08 16.53% 2420 MHz 1.34 17.02% 2430 MHz 2.04 19.33% 2440 MHz 1.44 17.31% 2450 MHz 1.41 17.33% 2460 MHz 1.85 19.25% 2470 MHz 1.81 19.84% 2480 MHz 1.06 16.63% 2490 MHz 0.94 16.35% 2500 MHz 1.02 15.82% Manufacturer name :GEO LASER CO., LTD. Address:UNIT A1, 6/F., ONE CAPITAL PLACE, 18 LUARD ROAD, WAN CHAI, HONG KONG 3. Radiation Pattern XZ plane (Phi = 0°) YZ plane (Phi = 90°) XY plane (Theta = 90°)

FCC ID: 2AW48-METRON30BT Test photo Radiated emission FCC ID: 2AW48-METRON30BT
