2AW48-METRON60BTLaser Distance Meter

HU BG Gebrauchsanweisung Operating instructions Manuel d'instructions Instruzioni d'uso Instrucciones de uso Gebruiksaanwijzing Руководство по применению Instrukcja obsługi Eksploatacijos instrukcija Lietošanas instrukcija Uputstvo za upotrebu Návod k použití Manual de utilizare Ръководство за употреба Használati útmutató METRON 60 BT 2 EN Included in delivery with the METRON 60 BT 1. Laser distance meter 2. Belt pouch 3. Charging cable 4. Strap 1.2. 3.4. 3 EN 2.1 Function buttons 2.2 Display 7. 8. 9. 10. 1. 2. 6. 4. 5. 3. 4 EN Operating manual METRON 60 BT laser distance meter (original version) About this manual Congratulations on the purchase of your new METRON 60 BT! You have acquired a SOLA measurement instrument, which can make your work easier, faster and more precise. To utilize the complete functionality range of this measurement instrument, and to ensure a safe opera- tion, please observe the following instructions: •Please read this operating manual before commissioning the device. •Always keep the operating manual near the device. •Only hand over the device to other persons together with the operating manual. •Never render the attached warning signs unreadable. Contents 1. General information 2. Description 3. Technical data 4. Safety instructions 5. Laser safety/Classification 6. Getting Started 7. Operation 8. Maintenance, storage and transportation 9. Delivery contents and accessories 10. Troubleshooting 11. Disposal 12. Manufacturer’s guarantee 13. EC conformity declaration 5 EN 1.1 Signal words and their meaning DANGER For an imminent danger that could lead to serious injury or death. WARNING: For a possibly dangerous situation that could lead to serious injury or death. CAUTION For a possibly dangerous situation that could lead to slight injury or property damage. NOTE: For application notes and other useful information. 1.2 Pictograms and other information 1.2.1 Warning signs Warning of dangers in general 1. General information 1.2.2 Symbols Read the operating manual before use Batteries and devices must not be disposed of with household waste Do not throw batteries into the fire Do not heat the battery above 60 °C. Class 2 laser device Do not look into the laser beam! 6 EN 2. Description 2.3 Intended Use This instrument is designed to measure distances. The measured value, setting, and instrument status can be viewed on the display. A laser beam is emitted and then sent back to the laser distance measurement instrument from a reflect- ed surface. This is used to calculate the distance. The range depends on the model of the laser distance measurement instrument, on reflectivity, and on the properties of the reflective surface. 2.1 Function buttons 1 Display 2 Keyboard 3 Hole for hand strap 4 Working face 5 Tripod adapter 1/4" 6 Mini-USB port 7 ON / Measure button 8 Function button / Memory 9 Addition, subtraction / Reference point 10 OFF / Delete button 2.2 Display 1 Measured values 2 Measured value display 3 Gradient display 4 Function display 5 Point-to-point display 6 Bluetooth 7 Battery status 8 Min/Max display 9 Reference point 10 Unit 11 Memory 7 EN 3. Technical data 3.1 General Measuring range0.05 – 60 m* Accuracy± 1.5 mm** Protection classIP 54 Laser class2 Laser type635 nm, < 1 mW Laser auto-shutdown45 s Instrument auto-shutdown180 s Operations per charge up to5000 measurements*** Battery type3.7 V 850 mAh Li-ion Operating temperature0 to 40°C Storage temperature-20 to 60°C Tripod adapter1/4" Dimensions (H x W x D)119 x 46 x 28 Weight with batteries 100 g *when measuring a target with 100% reflectivity (e.g. a painted white wall), with low backlight and an operating temperature of 25°C. Under unfavorable conditions, e.g. direct sunlight, non-reflective surfaces or measurements on glass or shiny surfaces, the inaccuracy can increase and measuring errors can therefore occur. The reach of the visible laserpoint always depends on the ambient conditions. **this degree of precision applies when measuring distances of between 0.05 and 10 m; when measuring distances of between 10 m and 60 m, the maximum tolerance may decrease by 0.1 mm/m ***when used at room temperature 3.2 Functions Length measurement Min/max measurement Continuous measurement Area measurement Volume measurement Indirect 2-point measurement Indirect 3-point measurement Addition Subtraction Measurement value memory 8 EN 8 4. Safety instructions 4.1 Area of responsibility 4.1.1 Manufacturer SOLA is responsible for the safe delivery condition of the product, including the operating manual and the original accessories. 4.1.2 Operator The operator is responsible for using the product as intended, the deployment of person- nel, their training and the operational safety of the product. The operator understands the safety information which is stated on the product and the instructions in the operating manual. The operator shall comply with the standard local regulations relating to safety and accident preven- tion regulations as well as worker protection laws and regulations. The operator shall immediately notify SOLA if safety-related issues should arise relating to the product or during its utilization. The operator shall ensure that the product is not utilized any further if defects become evident, and they will have the product repaired professionally. 4.2 Improper use Use of the device and the accessories without instruction. Use of third-party accessories or additional equipment. Use outside of the intended limits (see Chapter 3 / Technical data). Use under extreme temperature fluctuations without an adequate acclimatization. Disabling of safety devices and removal of hazard notices and labels. Unauthorized opening of the device. Performance of modifications or alterations to the device or the accessories. Deliberate blinding of third parties. Inadequate safeguarding at the installation site. 4.3 Utilization limitations The METRON 60 BT is suitable for continuous use in an atmosphere which can be inhab…

Text truncated - open the document above for the full version.

SOLA-MESSWERKZEUGE GMBH * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter April 26, 2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AW48-METRON60BT Per section 2.911(d)(7) of the FCC rules, SOLA-MESSWERKZEUGE GMBH certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: Phuntion LLC Physical U.S. Company Address: 25214 Spectrum, Irvine, CA92618 Agent name: Jun.Tian Agent Email Address: [email protected] FRN: 0033422403 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed:Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Lukas.Zwing Printed name: Jun.Tian Title: Click here to enter text. Title: CEO Company Name: SOLA-MESSWERKZEUGE GMBH Company Name: Phuntion LLC Date: April 14, 2023Date: April 14, 2023

SOLA-MESSWERKZEUGE GMBH Covered Equipment Certification Attestation Letter 4/14/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AW48-METRON60BT SOLA-MESSWERKZEUGE GMBH. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. SOLA-MESSWERKZEUGE GMBH. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Lukas.Zwing Title: Click here to enter text. Company Name: SOLA-MESSWERKZEUGE GMBH Date: 4/14/2023

SOLA-MESSWERKZEUGE GMBH 4/26/2023 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint SOLA-MESSWERKZEUGE GMBH UNTERES TOBEL 25A-6840 GOTZIS, AUSTRIA to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Lukas.Zwing

SOLA-MESSWERKZEUGE GMBH 4/26/2023 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2AW48-METRON60BT Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Signed: Printed name:Lukas.Zwing Title:

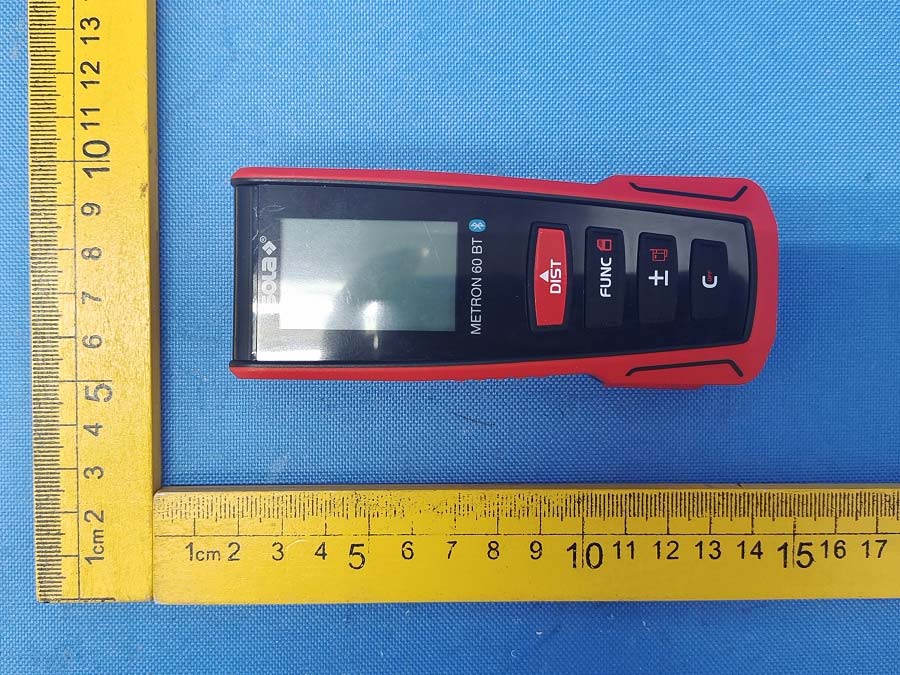

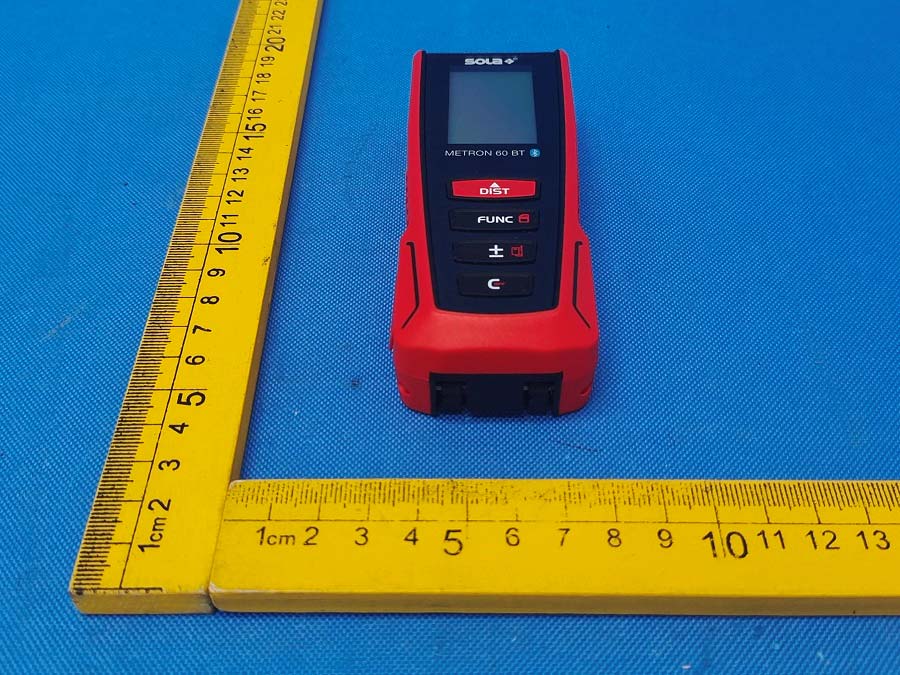

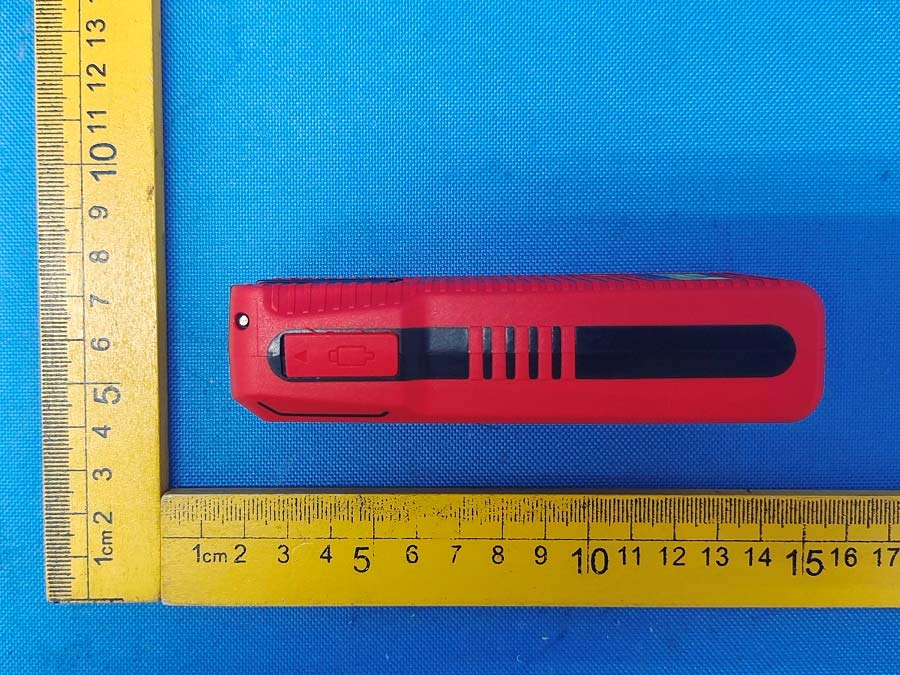

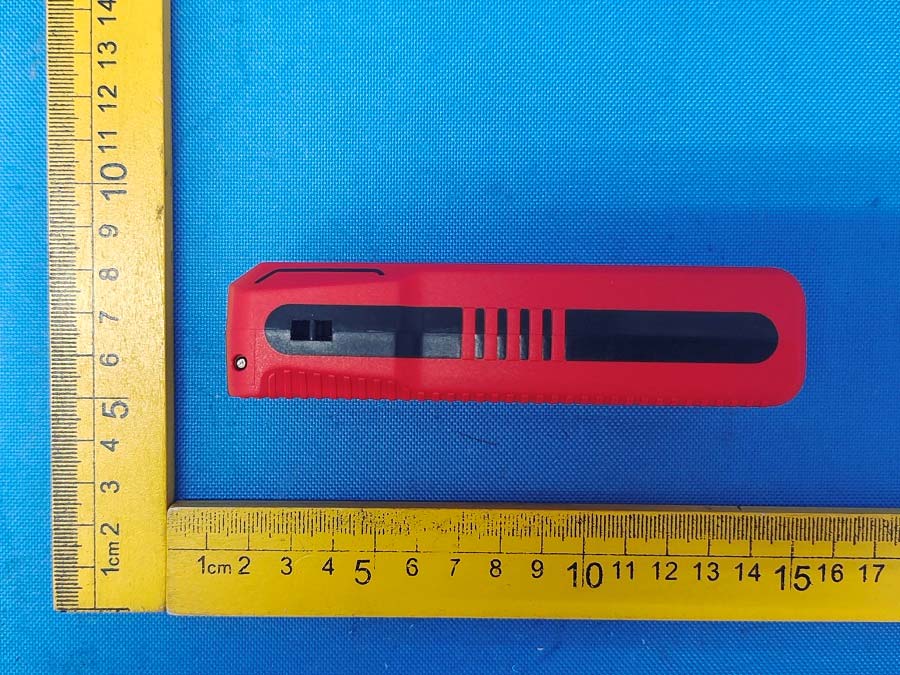

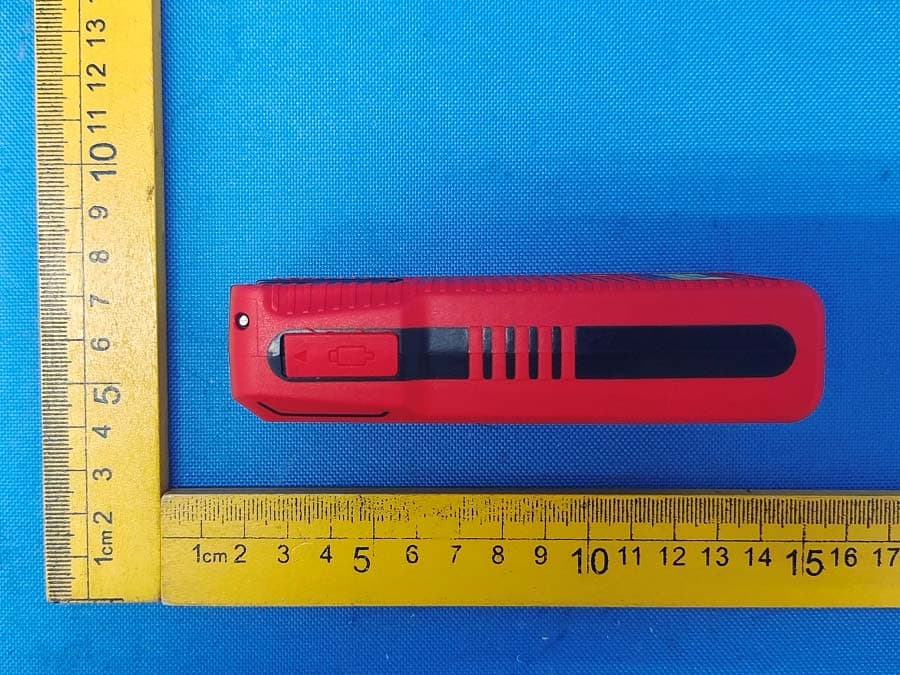

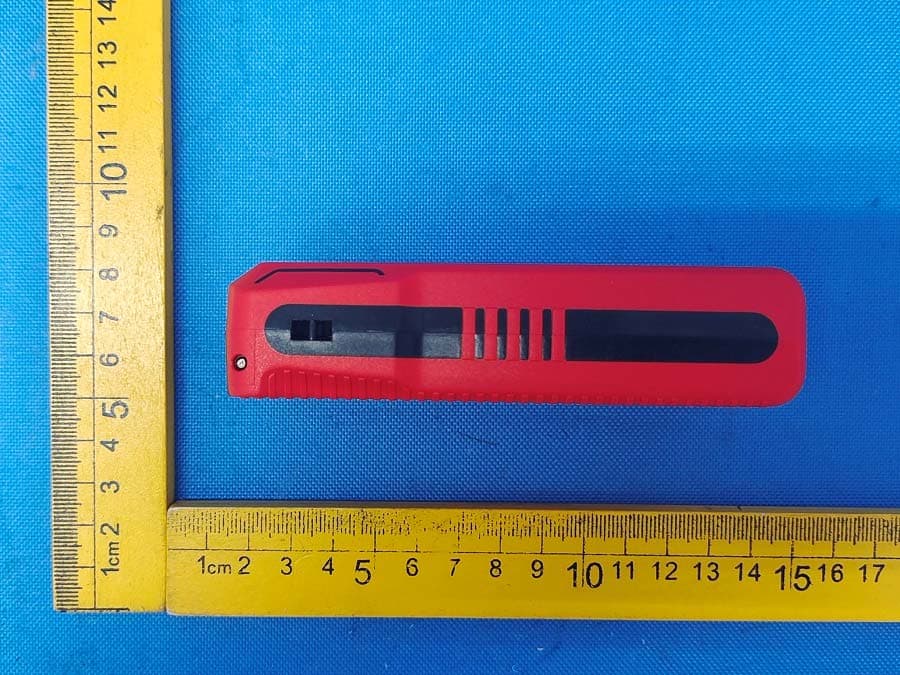

FCC ID: 2AW48-METRON60BT Page 1/3 External photo FCC ID: 2AW48-METRON60BT Page 2/3 FCC ID: 2AW48-METRON60BT Page 3/3 --END---

Label Location M/N: METRON 60 BT FCC ID:2AW48-METRON60BT

FCC ID: 2AW48-METRON60BT Page 1/5 Internal photo FCC ID: 2AW48-METRON60BT Page 2/5 FCC ID: 2AW48-METRON60BT Page 3/5 FCC ID: 2AW48-METRON60BT Page 4/5 2402-2480MHz BT Antenna FCC ID: 2AW48-METRON60BT Page 5/5 ---END---

Page 1 of 2 Address: No.11, WuSong Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 GuangdongProvince,China523117 http://www.cpcteam.com RF EXPOSURE EVALUATION EUT Specification EUT Laser Distance Meter Model Number METRON 60 BT FCC ID 2AW48-METRON60BT Antenna gain (Max) 2.04dBi Operation Frequency 2402-2480MHz Input Rating DC 5V From USB Charging DC 3.7V From Battery Standard 47 CFR Part 1.1307 47 CFR Part 1.1310 KDB447498D01 General RF Exposure Guidance v06 Modulation BLE Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation17 • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 90252-23-72-23-PP002 Page 2 of 2 Address: No.11, WuSong Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 GuangdongProvince,China523117 http://www.cpcteam.com Calculated Result and Limit Operation Mode: BLE Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) GFSK -Lowest (2402MHz) 1.60 1±1 2 1.5850.49 3.0 GFSK -Middle (2440MHz) 1.17 1±1 2 1.5850.50 GFSK -Highest (2480MHz) 1.09 1±1 2 1.5850.50 Conclusion: the calculated value ≤3.0, SAR is exempted. Remark: The Max Conducted Peak Output Power data refer to report Report No.: 90252-23-72-23-PP001

Page 1 of 33 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com TEST REPORT Report Number. ........................ : 90252-23-72-23-PP001 Date of issue ............................ : 2023.04.26 Tested by (+signature) ............ : Duke Chen Approved by (+signature) ....... : Jason Gao Testing Laboratory name ........ : SLG-CPC Testlaboratory Co., Ltd. Address .................................... : No. 11, Wu Song Road, Dongcheng District, Dongguan, Guangdong Province, China 523117 Applicant’s name ..................... : SOLA-MESSWERKZEUGE GMBH Address .................................... : UNTERES TOBEL 25A-6840 GOTZIS, AUSTRIA Manufacturer’s name ............. : GEO LASER CO., LTD. Address .................................... : UNIT A1, 6/F., ONE CAPITAL PLACE, 18 LUARD ROAD, WAN CHAI, HONG KONG Factory’s name ....................... : Dongguan Sndway Electronic Co., Ltd Address .................................... : 58 Humen Tuanjie Road,Humen Town,Dongguan City Standard(s) ............................... : FCC 47 CFR Part 15, Subpart C Test item description ............... : METRON 60 BT EUT ............................................ : Laser Distance Meter Model/Type reference .............. : FCC ID ....................................... : 2AW48-METRON60BT Date of receipt of test item ..... : 2023.03.31 Date (s) of performance of test: 2023.03.31 - 2023.04.12 Summary of Test Results ........ : Pass The Summary of Test Results based on a technical opinion belongs to the standard(s). General disclaimer: This report shall not be reproduced except in full, without the written approval of SLG-CPC Testlaboratory Co., Ltd. The test results in the report only apply to the tested sample. 90252-23-72-23-PP001 Page 2 of 33 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com Table of Contents 1 EUT TECHNICAL DESCRIPTION ...................................................................................................... 4 2 SUMMARY OF TEST RESULT .......................................................................................................... 5 3 TEST METHODOLOGY ..................................................................................................................... 6 3.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 6 3.2 MEASUREMENT EQUIPMENT USED ....................................................................................... 6 3.3 DESCRIPTION OF TEST MODES ............................................................................................. 7 4 FACILITIES AND ACCREDITATIONS ................................................................................................ 8 4.1 FACILITIES ................................................................................................................................. 8 4.2 LABORATORY ACCREDITATIONS AND LISTINGS .................................................................. 8 5 TEST SYSTEM UNCERTAINTY ........................................................................................................ 9 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................... 10 6.1 RADIO FREQUENCY TEST SETUP 1 ..................................................................................... 10 6.2 RADIO FREQUENCY TEST SETUP 2 ..................................................................................... 10 7 TEST REQUIREMENTS ................................................................................................................... 12 7.1 DTS 6DB BANDWIDTH ............................................................................................................ 12 7.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER................................................................ 15 7.3 MAXIMUM POWER SPECTRAL DENSITY ............................................................................. 17 7.4 RADIATED SPURIOUS EMISSION .......................................................................................... 20 7.5 CONDUCTED EMISSION TEST .............................................................................................. 30 7.6 ANTENNA APPLICATION ......................................................................................................... 33 90252-23-72-23-PP001 Page 3 of 33 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com Modified Information Version Report No. Revision Data Summary Ver.1.0 90252-23-72-23-PP001 2023-04-26 Original Version 90252-23-72-23-PP001 Page 4 of 33 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com 1 EUT TECHNICAL DESCRIPTION Product: Laser Distance Meter Model Number: METRON 60 BT Power supply: DC supply: DC 5V From USB Charging DC 3.7V From Battery Modulation: BLE Frequency Range: 2402MHz～2480MHz Number of Channels: 40channels Channel Space: 1MHz Antenna Gain: 2.04dBi Antenna: PCB Antenna Temperature Range: 0°C ~ +45°C Note: for more details, please refer to the User’s manual of the EUT. 90252-23-72-23-PP001 Page 5 of 33 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com 2 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 15.247(a)(2) DTS (6dB) Bandwidth PASS 15.247(b)(3) Maximum Peak Conducted Output Power PASS 15.247(e) Maximum Power Spectral Density Level PASS 15.247(d) Unwanted Emission Into Non-Restricted Frequency Bands PASS 15.247(d) 15.209 Radiated Spurious Emission PASS 15.207 Con…

Text truncated - open the document above for the full version.

Antenna Specification M/N: BDE-BLEM401P 1.Mechanical Dimension 2. Gain and Efficiency Frequency Gain Efficiency 2400 MHz 1.89 18.24% 2410 MHz 1.08 16.53% 2420 MHz 1.34 17.02% 2430 MHz 2.04 19.33% 2440 MHz 1.44 17.31% 2450 MHz 1.41 17.33% 2460 MHz 1.85 19.25% 2470 MHz 1.81 19.84% 2480 MHz 1.06 16.63% 2490 MHz 0.94 16.35% 2500 MHz 1.02 15.82% Manufacturer name :GEO LASER CO., LTD. Address:UNIT A1, 6/F., ONE CAPITAL PLACE, 18 LUARD ROAD, WAN CHAI, HONG KONG 3. Radiation Pattern XZ plane (Phi = 0°) YZ plane (Phi = 90°) XY plane (Theta = 90°)

FCC ID: 2AW48-METRON60BT Test photo Radiated emission FCC ID: 2AW48-METRON60BT Conducted Emission
